Uneven dairy cow bedding is not just an appearance problem.
As cows lie down, stand up, and move inside freestalls, they gradually push bedding away from certain areas. The stall may still look reasonably clean while the effective bedding depth has become too shallow to provide comfortable support.
Wet bedding, compacted material, and manure contamination create additional problems.
The goal of daily bedding maintenance is simple: keep each freestall clean, dry, reasonably level, and adequately cushioned.
For most individual freestall systems, that means following four practical steps:
- Remove manure and wet bedding.
- Check low spots, compaction, and effective bedding depth.
- Redistribute suitable clean bedding and level the surface.
- Add fresh bedding when the stall condition requires it.
These steps apply broadly to sand, sawdust, recycled manure solids (RMS), and mattress-based freestalls.
However, the material determines how each step should be performed. Clean sand should not be managed exactly like contaminated sawdust, and a thin layer over a cow mattress should not be treated like a deep-bedded stall.
This guide focuses on individual dairy freestalls. Compost-bedded pack barns require a separate management approach involving their own moisture, aeration, and pack-maintenance procedures.
Step 1: Remove Manure and Wet Bedding First
Before using a rake or leveling tool, remove the material that should no longer remain in the stall.
Check for:
- Visible manure and urine contamination.
- Wet or sticky bedding.
- Hardened clumps.
- Material that has become heavily soiled.
- Dirt and debris brought in from cow alleys.
- Contamination near the rear curb.
The rear portion of a freestall deserves particular attention because manure and moisture commonly accumulate there.
Why Cleaning Must Come Before Leveling
Simply spreading dirty material across the stall makes the surface look more even, but it does not correct the underlying hygiene problem.
This is especially important for organic bedding such as sawdust, wood shavings, and recycled manure solids.
Organic materials can support bacterial growth when conditions are favorable. Repeatedly moving soiled material into the main lying area is therefore a poor maintenance practice.
A useful rule is:
Remove contaminated material rather than trying to hide it under a fresh layer.
For deep-bedded stalls, localized cleaning is often possible without removing the entire bedding layer.
Also check the adjacent alley. If cows continually track manure into clean stalls, bedding work alone will not solve the problem.

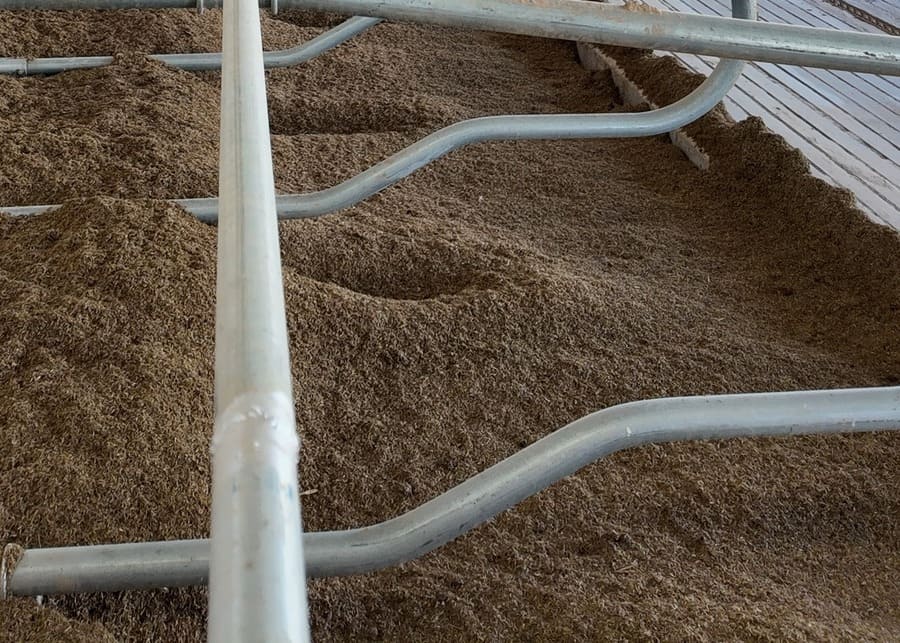

Step 2: Check Low Spots and Effective Bedding Depth
One of the most easily overlooked problems is bedding displacement.
A cow can push loose material forward, sideways, or into piles while entering, lying down, or standing up.
Over time, the result may include:
- A depression where the cow normally lies.
- Thin bedding near the rear or side of the stall.
- Exposed concrete or another hard base.
- Ridges that interfere with comfortable positioning.
- Material packed tightly into one section.
Why Effective Depth Matters More Than Appearance
A stall can look full of bedding when viewed from the aisle but still have insufficient cushioning at the main points of contact.
The question is not whether the entire bed is exactly the same height.
It is whether the cow has adequate support when kneeling, lying down, and rising.
For some deep-bedded systems, a loose bedding layer around 15–20 cm may be used as a design reference.
But this is not a universal requirement for every material or freestall configuration.
The appropriate depth depends on:
- Whether the stall has a deep loose bed or a mattress.
- The material's ability to cushion the cow.
- The underlying stall base.
- Cow size and resting behavior.
- The amount of bedding lost or displaced.
- Moisture and compaction.
A Simple Physical Check
When the stall is unoccupied and safe to inspect, staff can use a clean hand or suitable tool to check for hard areas, shallow spots, and compacted material.
This is a quick screening method, not a laboratory measurement of cushioning performance.
Pay attention to repeated problems.
If the same location becomes shallow every day, the issue may involve stall dimensions, cow positioning, or the way bedding is being applied.
Step 3: Redistribute Clean Bedding and Level the Surface
After removing contaminated material and checking the low spots, restore a more even resting surface.
For suitable deep loose bedding, this may involve:
- Moving clean material into shallow areas.
- Breaking up appropriate compacted sections.
- Smoothing excessive ridges.
- Keeping the surface adequately cushioned.
- Avoiding exposed hard spots.
A rake or suitable bedding tool is often enough for smaller farms.
The important point is to work with clean material that remains suitable for use.
Do Not Rake Every Bedding Material the Same Way
With sand, routine grooming may involve moving relatively clean material to restore the stall surface and replacing sand that has been lost.
However, avoid bringing heavily contaminated material from lower layers to the surface.
With sawdust or wood shavings, moisture and contamination deserve more attention. Do not repeatedly pull old, soiled material from one end of the stall into the main resting area.
The same precaution applies to RMS bedding, which requires particularly careful hygiene management because it originates from manure.
Penn State Extension recommends frequent removal and replacement of contaminated organic bedding, rather than continually piling used material at the front and pulling it back.
See Designing and Building Dairy Cattle Freestalls.
Does the Surface Have to Be Perfectly Flat?
No.
The goal is a comfortable, reasonably even surface with no major depressions, hard clumps, or exposed base.
Trying to create a visually perfect surface at every inspection can waste time without necessarily improving cow comfort.
Instead, check how cows use the stalls.
If animals frequently stand half-in and half-out, hesitate before lying down, or avoid certain positions, the cause may involve bedding, stall geometry, or another comfort problem.
Step 4: Refill Bedding Based on Actual Condition
A fixed replenishment schedule can make work easier to organize.
But the schedule should not replace regular observation.
Some farms may groom stalls at each milking session. Others may use different inspection and replenishment routines depending on available staff, equipment, and bedding material.
The practical approach is to inspect at regular times and add fresh bedding according to actual need.
When Should Fresh Bedding Be Added?
Look for the following signs:
- Low spots cannot be restored with suitable clean material.
- The stall base is becoming exposed.
- Bedding thickness is no longer sufficient.
- Moisture remains after contaminated material is removed.
- Bedding is heavily compacted.
- Material losses are increasing.
- Cows appear reluctant to lie down in affected stalls.
Do not wait for every stall to become visibly uncomfortable before replenishing material.
At the same time, adding a large amount of bedding on a fixed date is not necessarily more effective than smaller, well-timed additions.

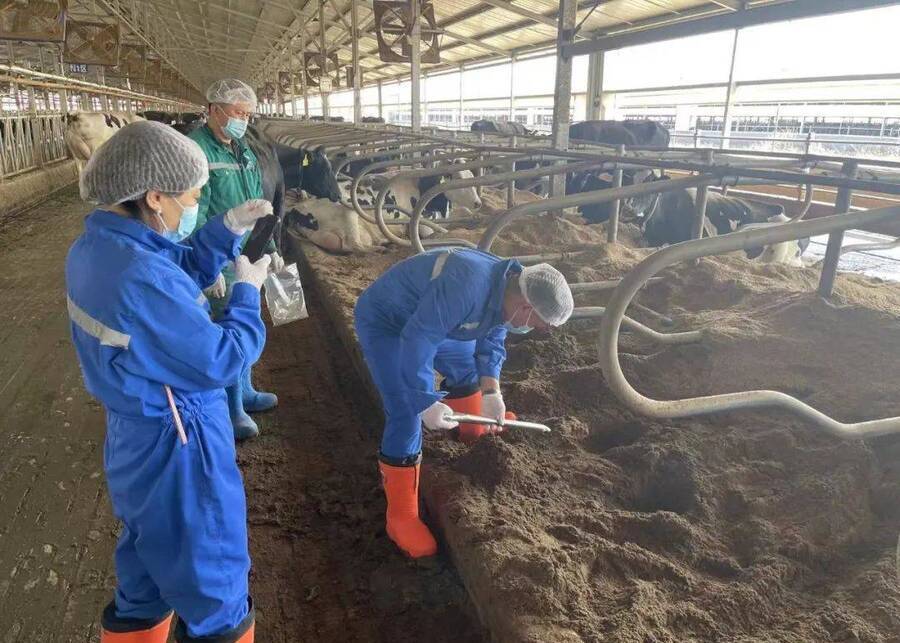

Manual Maintenance or Mechanical Equipment?
For a small or medium dairy with manageable labor requirements, manual grooming can be a practical and economical choice.
Employees can combine bedding inspections with normal barn checks.
A larger operation may benefit from mechanized bedding distribution or grooming when labor requirements and operating conditions justify the investment.
The decision should be based on actual workload, consistency, equipment costs, and barn layout.
Automation does not replace the need to inspect individual stalls.

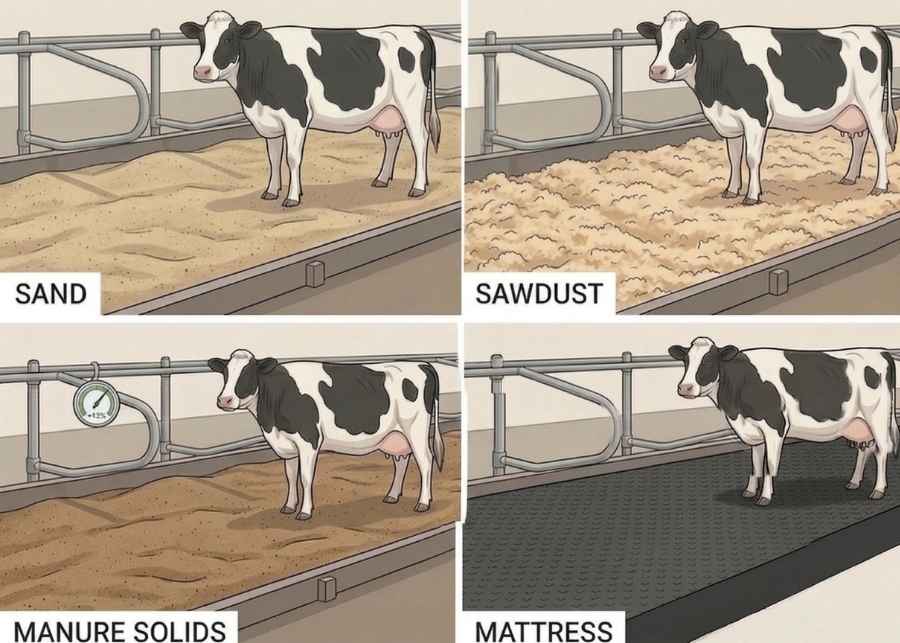

How Should Different Dairy Cow Bedding Materials Be Maintained?
The four basic objectives remain consistent:
Clean + Dry + Level + Adequate Support
But the daily maintenance priorities vary by bedding type.
| Bedding System | Main Maintenance Priority | What to Avoid |
|---|---|---|
| Deep sand | Remove contamination, restore low spots, replace lost sand | Bringing dirty lower-layer material back to the surface |
| Sawdust or wood shavings | Remove wet and soiled material, monitor compaction, replenish clean bedding | Repeatedly reusing damp or contaminated material |
| Recycled manure solids (RMS) | Monitor moisture, surface contamination, and hygiene closely | Assuming separated or processed solids remain hygienically suitable without continued management |
| Cow mattress with loose bedding | Clean the mattress surface and maintain a suitable dry bedding layer | Assuming the mattress eliminates the need for bedding maintenance |
Sand Bedding
Sand can provide a supportive, moldable resting surface when depth and cleanliness are maintained.
However, cows continually displace some of the material.
Regular grooming, replacement, and removal of contaminated bedding are necessary.
Sand may also affect manure pumps, scrapers, and downstream handling equipment, so bedding selection should be coordinated with the manure-management system.
Sawdust and Wood Shavings
Wood-based bedding requires particularly careful moisture management.
Wet areas, compacted material, and manure contamination can build up if staff do not inspect the stalls consistently.
From a practical maintenance perspective, these problems are easy to overlook until the bedding surface has already deteriorated.
Frequent removal of contaminated material and timely replenishment are generally more useful than repeatedly loosening the same wet material.
Recycled Manure Solids
RMS is not simply a low-cost replacement for other bedding materials.
Its suitability depends on applicable local requirements, production methods, material quality, and the farm's hygiene program.
Even when the material has undergone processing, occupied stalls can become contaminated again.
Daily attention to surface dryness and cleanliness remains essential.
Mattress-Based Freestalls
A cow mattress provides a designed support layer underneath the cow.
The loose bedding above it serves additional functions, including absorbing surface moisture and maintaining cleanliness.
The amount and type of loose bedding should follow the mattress design and the farm's actual conditions.
A mattress may reduce dependence on deep loose bedding, but it does not eliminate cleaning, replenishment, or ongoing inspection.
Deep Bedding vs. Cow Mattresses: Which Is Easier to Maintain?
The answer depends on the whole housing system.
Deep-Bedded Freestalls
Deep bedding can provide good cushioning when properly designed and maintained.
The main operating tasks include removing contamination, restoring bedding depth, grooming the surface, and replenishing material.
Ongoing material handling and bedding supply should be included in the farm's operating budget.
Mattress-Based Freestalls
A cow mattress provides a more defined underlying support structure.
This may simplify some aspects of managing bedding depth, depending on the system.
However, it also introduces other considerations:
- Initial mattress purchase and installation.
- Surface cushioning and cow comfort.
- Cover condition and material wear.
- Cleaning and moisture management.
- Loose bedding requirements.
- Long-term repair or replacement.
It would be misleading to promise that mattresses always reduce maintenance costs or produce better welfare outcomes.
The correct comparison is between complete, well-managed resting systems.
The University of Minnesota Extension discusses how different stall surfaces, including deep bedding and mattresses, relate to cow comfort and lameness outcomes.
See Cow Comfort and Why It Matters.
Do Deep-Bedded Stalls Need Complete Replacement Every Six Months?
Not necessarily.
A fixed six-month replacement rule is not appropriate for all individual freestall bedding systems.
Routine maintenance usually involves:
- Removing manure and wet material.
- Restoring suitable bedding depth.
- Leveling and grooming where appropriate.
- Adding fresh bedding according to condition.
Partial or more extensive removal may be required when ordinary maintenance no longer restores an acceptable surface.
Examples include persistent wetness, severe contamination, unsuitable compaction, or a damaged bedding base.
The decision should follow bedding condition and hygiene needs, not simply the calendar.
This guidance applies to individual freestalls. Compost-bedded pack barns have different management requirements and should not use this procedure as their complete operating program.
What If the Bedding Keeps Becoming Uneven?
If low spots repeatedly return despite good maintenance, examine the stall design.
Common factors include:
Stall length: Insufficient or poorly arranged resting space can affect cow positioning.
Forward lunging clearance: Cows need space to move their heads and necks when rising.
Neck rail position: An unsuitable position may change where cows stand in the stall.
Brisket locator: Incorrect placement or height can interfere with natural movement.
Rear curb: Its design affects bedding retention, manure exposure, and cow access.
Stall base and slope: A damaged or unsuitable base can contribute to recurring uneven surfaces or drainage problems.
For existing barns, begin with practical management improvements.
Review cleaning frequency, bedding application, material quality, and cow behavior before committing to major structural changes.
If the same problems persist, investigate whether the cow freestall geometry needs adjustment.
Small, correctly assessed changes may be possible, but structural modifications should be evaluated against cow dimensions, safety, and the existing installation.
A Simple Daily Freestall Bedding Checklist
Barn staff do not need a complicated scoring system to spot obvious bedding problems.
A short daily inspection can begin with four questions.
| Daily Check | What to Look For | Suggested Action |
|---|---|---|
| Clean? | Manure, visible dirt, contaminated material | Remove soiled bedding |
| Dry? | Wet patches, sticky clumps, moisture at the rear | Remove wet material and investigate the source |
| Level? | Depressions, ridges, exposed hard spots | Restore the surface using suitable clean material |
| Adequately cushioned? | Thin bedding, compaction, hard contact points | Add or replace bedding as required |
These checks are useful during routine barn inspections and while cows are away for milking, when stall access can be managed safely.
If a recurring problem is found, record its location and assign someone to follow up.
A stall that repeatedly becomes wet or uneven may need more than another pass with a rake.
How Can NexAgri Support Dairy Freestall Planning?
NexAgri Solutions supplies commercial dairy barn equipment, including cow freestall structures, cow mattresses, and related barn infrastructure.
When selecting these products, the equipment should match the herd's body dimensions, the chosen bedding material, and the farm's daily cleaning practices.
For existing barns, the first step is to identify whether the main problem comes from bedding management, stall geometry, or both.
For new barn projects, stall design and bedding maintenance requirements should be considered together before equipment configurations are finalized.
Actual product dimensions, material specifications, installation support, and customization requirements should be confirmed for each project.
Frequently Asked Questions
How often should dairy cow bedding be leveled?
Inspect bedding regularly and groom it when conditions require. Many farms combine stall checks with daily barn work or milking routines. The appropriate frequency depends on material, cow activity, and how quickly the surface becomes uneven.
Can I pull used sawdust back into low spots?
Only material that remains suitably clean and dry should be considered for redistribution. Wet or manure-contaminated sawdust should be removed rather than repeatedly moved into the cow's main resting area.
Is 15–20 cm of bedding required in every freestall?
No. Deep loose bedding and mattress-based stalls have different support structures. The appropriate depth depends on the system design, material, and animal comfort.
Do cow mattresses still need bedding?
Yes. Mattress-based stalls generally require a suitable surface bedding layer to support cleanliness, dryness, and cow comfort. Follow the specific mattress system's requirements.
Why does bedding keep disappearing from the same area?
Cows may displace bedding during normal movement. Repeated losses can also indicate problems with stall dimensions, bedding-retention features, or maintenance practices.
Conclusion
Leveling dairy cow bedding should be part of a consistent freestall maintenance routine.
The four practical steps are:
Remove Contamination → Inspect Low Spots → Level Clean Bedding → Refill When Needed
The most important mistake to avoid is focusing only on how flat or tidy the stall looks.
A clean-looking surface may still lack sufficient cushioning, while a freshly leveled organic bed may still contain contaminated material.
For lasting results, keep the surface clean and dry, maintain effective bedding depth, and investigate recurring problems with the stall design.
A comfortable dairy freestall is not the one that looks perfect after grooming. It is the one that continues to support safe, natural resting behavior between inspections.
