Livestock Watering Systems
for Commercial Dairy Barns
NexAgri livestock watering systems combine AISI 304 stainless steel troughs, automatic refill and drainage for commercial dairy barns. Select trough lengths, insulation and heating around herd demand, local winter conditions, water supply and available power.
Which Hydration Capacity Fits Your Barn?
Use the listed group ranges as a starting point. Confirm drinking access, peak refill demand, alley clearance and winter conditions before selecting trough lengths and heating.
10 - 30 Cows / Pen
Designed for maternity pens, sick bays, or smaller group housing requiring compact footprints and steady flow rates.
30 - 45 Cows / Group
Consider the 2.7 m configuration for freestall crossovers. Check drinking access and clear passage space against the actual alley layout.
50 - 70 Cows / Group
Consider the 4 m configuration for larger groups and parlor return lanes. Confirm simultaneous drinking demand and available water-line flow.
Compare Stainless Steel Trough Configurations
The listed dimensions, insulation, electrical supply and cow-group ranges support initial selection. Confirm trough quantity, accessible drinking perimeter, refill flow and heater rating for the site before ordering.
| Trough Model | Dimensions (L×W×H) | Serving Capacity | Thermal Insulation | Heating Element | Primary Barn Application |
|---|---|---|---|---|---|
| 1.0 Meter Trough | 1000 × 500 × 600 mm | 10 - 15 Cows | 40-50mm Polyurethane Core | 220V / 50Hz | Calf Pens & Maternity Bays |
| 2.0 Meter Trough | 2000 × 500 × 600 mm | 20 - 30 Cows | 40-50mm Polyurethane Core | 220V / 50Hz | Medium Freestall Groups |
| 2.7 Meter Trough (Standard) | 2700 × 500 × 600 mm | 30 - 45 Cows | 40-50mm Polyurethane Core | 220V / 50Hz | Crossover Alleys & Main Barns |
| 4.0 Meter Trough | 4000 × 500 × 600 mm | 50 - 70 Cows | 40-50mm Polyurethane Core | 220V / 50Hz | Parlor Exit Holding Lanes |

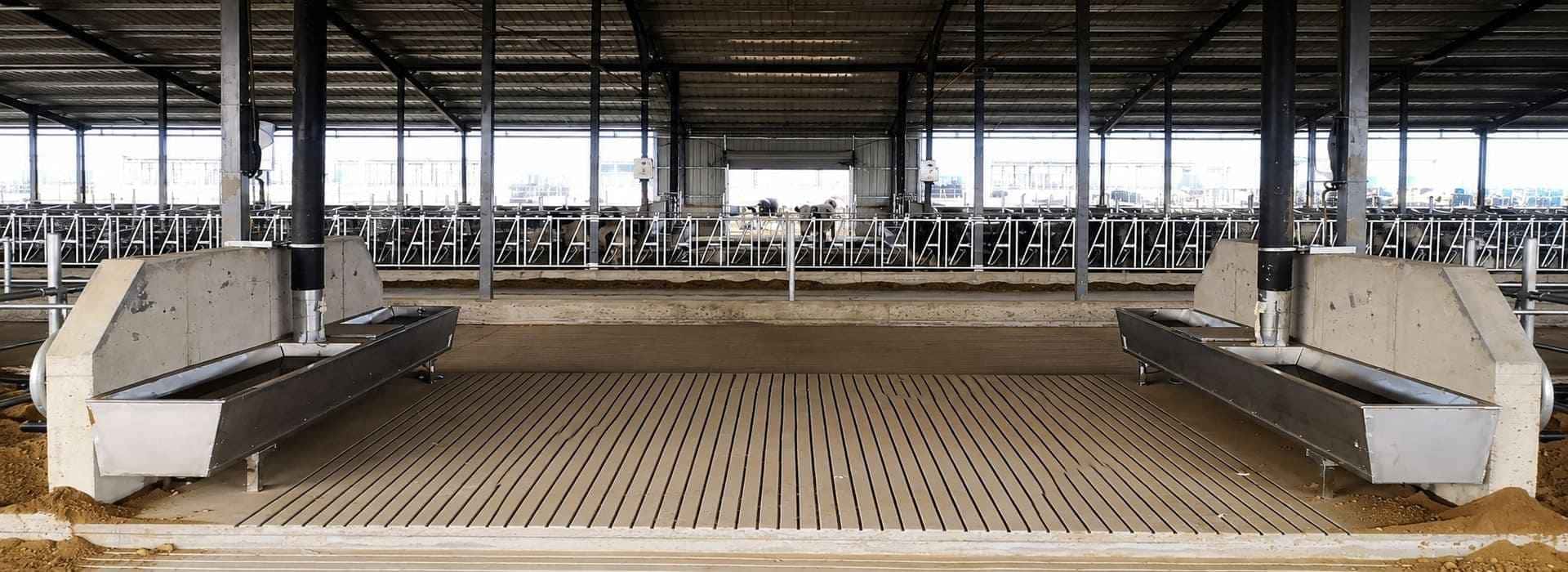

Stainless Steel Troughs for Winter Water-System Planning
AISI 304 stainless steel troughs with insulated construction, refill valves and drainage access. Confirm the heating configuration and installation requirements for the barn.

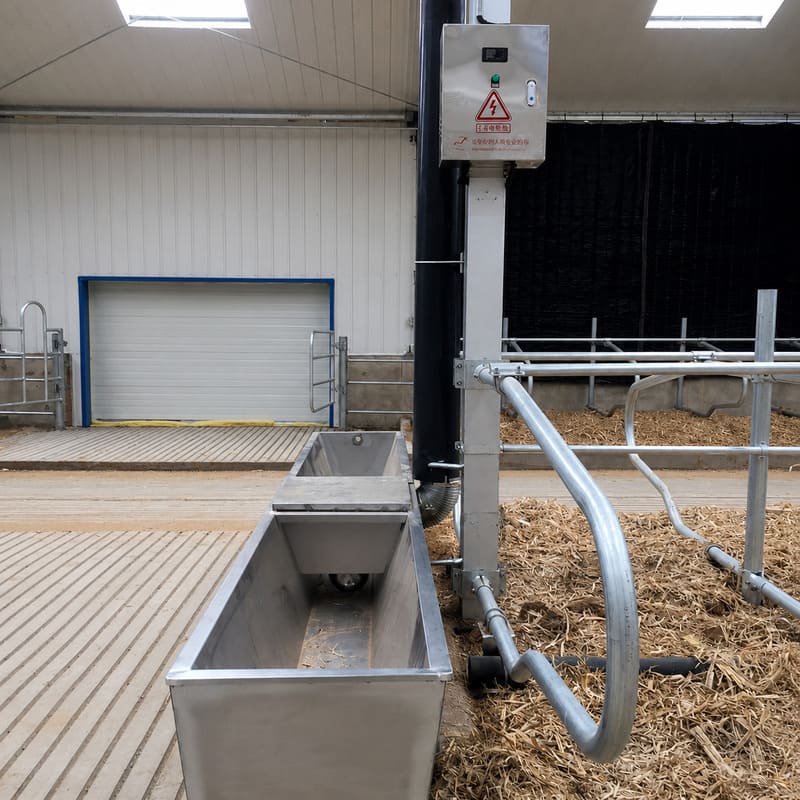

Thermostatic Heated Stainless Steel Troughs
Insulation, Heating & Refill Configuration
The listed troughs combine 220V electric heating with a 50mm double-wall polyurethane insulation core. Review heater power, thermostat setting, minimum ambient temperature, wind exposure and incoming water conditions to specify winter operation; water temperature depends on the installed configuration and site conditions.
Industrial Sourcing & Engineering Standards
Review the material specification, heater configuration and inspection access for the installation. Confirm the scope of applicable ISO 9001 and CE documentation against the selected equipment and destination requirements.
Cow-Safe Folded Edges
Folded, smooth inner rims reduce exposed sharp edges at the drinking surface. Inspect the installed edges and fixings during routine maintenance.
High-Efficiency Thermal Core
The 40–50mm polyurethane core provides thermal insulation between the steel walls. Heater cycling and energy use depend on ambient temperature, water turnover, thermostat setting and installation exposure.
Auto-Floater Refill
A mechanical float valve controls refill. Match valve flow and available water pressure to peak drinking demand, and allow access for inspection and cleaning.
Sloped Rapid Drainage
A sloped internal bottom and manual discharge valve support flushing and cleaning. Cleaning time depends on trough size, sediment, water supply and the farm sanitation routine.
Water-System Planning & Operating Costs
Compare installation scope and ongoing operating costs using the farm layout, utilities, winter conditions and cleaning routine.
1. Winter Operation & Heating Selection
Review minimum winter temperature, wind exposure, incoming water temperature and refill demand when specifying heating. Include protection of exposed supply lines and valves in the installation plan.
Confirm heater power, thermostat control, electrical protection and inspection access before ordering. Heating should be assessed as part of the complete water system; it does not establish a fixed milk-yield outcome.
2. Materials, Drainage & Cleaning Access
Compare trough materials alongside surface condition, drainage and access for cleaning. Set the cleaning routine around water quality, feed contamination and the farm sanitation plan.
NexAgri AISI 304 stainless steel troughs combine accessible drinking surfaces with a sloped basin and discharge valve. Allow space to inspect the float valve, drain the trough and clean the basin; material choice does not replace routine sanitation.
3. Sizing & Crossover Alley Layout Rules
Use the listed cow-group ranges for preliminary selection, then check available drinking perimeter, trough distribution and peak refill flow. Coordinate locations with crossover clearance and animal traffic, especially after milking.
Build a Site-Specific Water-System Budget
- Equipment & installationTrough lengths and quantities, valves, pipe runs, drainage, electrical connections and installation work.
- Winter energy useHeater rating, thermostat setting, local weather, water turnover and electricity tariff.
- Routine operationCleaning labor, water used for flushing, valve inspection and replacement parts.
Compare the proposed system with your current installation using local costs. Payback and savings require project-specific assumptions.
Global Installation Reality
The following project examples retain their original installation details. Temperatures, cold ratings and cleaning times refer to those individual projects and are not standard guarantees for every water-system configuration.
2,000 Cow All-Weather Dairy Barn
Upgraded from open plastic tanks to 2.7m Thermostatic Stainless Steel Troughs. Delivers continuous 15°C water to protect herd yield during seasonal temperature swings.
800 Cow Freestall Crossover Upgrade
Sloped bottom and manual discharge valve permitted rapid barn cleaning routines while maintaining Grade-A sanitation compliance.
Livestock Watering System FAQs
Practical planning answers for commercial dairy water systems, heated troughs and water-line layouts.
What is included in a livestock watering system for a dairy barn?
A livestock watering system can include drinking troughs, water supply connections and valves, plus heating or insulation where site conditions call for them. The final scope should be matched to the herd groups, barn layout, climate and available utilities.
How should trough capacity be planned for cow groups?
Use the listed trough configurations as a starting point: the 1.0 m, 2.0 m, 2.7 m and 4.0 m models are shown for groups of 10–15, 20–30, 30–45 and 50–70 cows respectively. Confirm the final selection against trough location, group routine and simultaneous drinking access.
When is a heated water trough appropriate?
A heated water trough is typically considered where freezing temperatures, cold barn conditions or exposed water lines could affect winter operation. Review the local climate, installation position, power supply and insulation requirement before choosing the configuration.
What should be checked before selecting a trough length?
Check herd grouping, crossover or alley layout, available drinking access, traffic flow, water supply pressure and drainage. These details help determine whether a compact trough, a standard 2.7 m model or a longer configuration suits the planned location.
How do automatic refill and drainage affect daily operation?
A mechanical float valve helps maintain the water level, while a sloped basin and discharge point support routine flushing. Include access for inspection and cleaning in the barn water-system layout so these features can be used safely and conveniently.
Can water systems be planned with other barn infrastructure?
Yes. Trough locations can be coordinated with crossovers, headlocks, animal traffic routes, drainage and water-line runs. Sharing a barn plan and herd grouping helps create a layout that works with the wider dairy-farm workflow.
What details are needed for a water-system quotation?
Provide the barn plan, herd groups, local climate, water source, electrical supply, preferred trough locations and drainage conditions. NexAgri can then review suitable trough lengths and the required water-system configuration for the project.
Ready to Optimize Your Barn's Hydration?
Share your barn plan, herd groups, lowest winter temperature, water pressure and flow, electrical supply, and drainage conditions. NexAgri can review trough quantities, suitable heating configurations and the quotation scope.
Planning for commercial dairy barns, herd groups and local utilities.
