Rapid Milk Cooling
System
Plan staged milk cooling with a tubular heat exchanger, specified CIP connections and optional heat recovery. Cooling duty, cleaning controls and warm-water output are sized around milk flow, water temperature and site utilities.
Why Commercial Dairies Choose Tubular Cooling
Compare tubular construction, cleaning access and heat-recovery options against your milk flow, utilities and maintenance routine.
Separate Flow Paths
The tubular arrangement uses separate milk and cooling-medium flow paths. Tube integrity, connection seals, pressure limits and inspection procedures remain part of the selected design and maintenance plan.
Cleaning Integration
The described "Air-Top" arrangement can be integrated with the exchanger, milk pump and pipelines. Define cleaning coverage, utilities, cycle settings and inspection or disassembly tasks for the selected system.
Hot Water Recovery
A specified recovery circuit can produce 35–50°C warm water under the designed load and water-flow conditions. Where the cleaning process calls for 85–90°C, size separate electrical boosting and storage for that duty.
Architecture Comparison
Compare the construction, cleaning and utility requirements of the selected tubular or plate arrangement. Performance depends on the complete process design.
Engineered Cooling Solutions
Select a configuration to review its technical specifications, then size it from peak hourly milk flow, temperature targets and available utilities.
Milk Quick Cooling System
Intelligent 2-Stage Tubular Technology
The two-stage tubular arrangement combines water pre-cooling with direct-expansion refrigeration. A design profile of 37°C to 20°C, followed by a 1.5–2.5°C outlet target, requires suitable water temperature, flow, refrigeration capacity and low-temperature controls. Confirm the required outlet target for the storage process.
Engineering Deep Dive
The listed configuration uses staged cooling and PLC control. Define operating limits, cleaning tasks and product-specific documentation for the destination market before quotation.
Total Cost of Ownership (TCO) & Value Creation
Compare refrigeration, water supply, heat recovery and maintenance costs using the selected duty and local utility prices.
1. Cooling Duty & Milk Handling
Select the outlet temperature and cooling schedule with the receiving dairy process. The listed 1.5–2.5°C target applies only under designed operating conditions, including milk flow, inlet temperature, cooling utilities and control settings.
Milk acceptance and payment also depend on farm hygiene, handling, testing and storage. The cooling system should be assessed as one part of that process.
2. Heat Recovery & Water Demand
Refrigeration heat recovery can preheat water for suitable farm uses. Evaluate the described 35–50°C range against compressor load, incoming water temperature, water demand and storage capacity.
If the cleaning process requires 85–90°C water, include the boost-heater duty, storage losses and peak demand in the energy calculation. Estimate savings from the proposed system and existing heating costs.
3. Controls & Maintenance Scope
A Siemens PLC configuration can coordinate milk-flow inputs and compressor staging. Define operator checks, alarms, CIP controls and service access in the project scope. Tubular construction changes the maintenance tasks but does not remove inspection or seal maintenance at system connections.
Utilities & Maintenance
Global Installation Reality

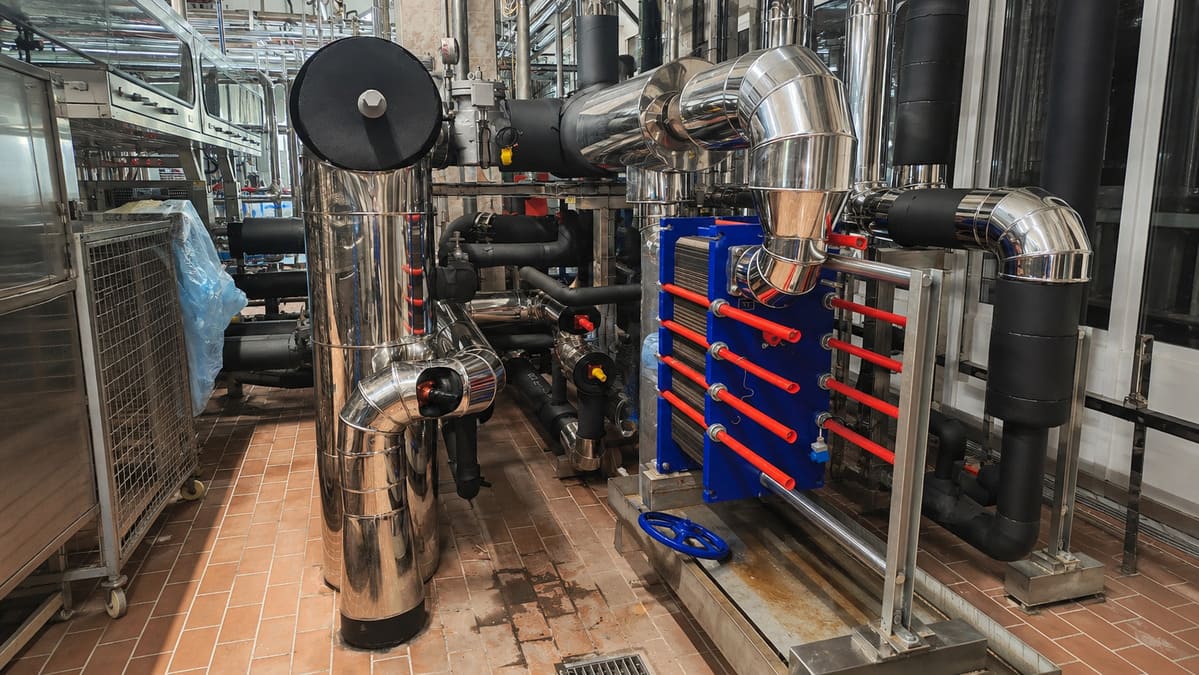

The Malaysia example below uses a plate heat exchanger. Its reported volume, temperature and energy result belong to that installation and do not define the tubular configuration described above.
High-Efficiency Compact Plate Heat Exchange
Rapid Cooling System FAQs
Practical planning answers for commercial milk rapid cooling systems and tubular heat-exchange configurations.
What does a rapid cooling system do in a dairy operation?
A rapid cooling system is designed to reduce milk temperature after collection through a defined heat-exchange process. The required configuration depends on the incoming milk temperature, target temperature, milk volume and the available water and refrigeration conditions.
How does the two-stage cooling process work?
The page describes a two-stage arrangement: a water-based pre-cooling stage followed by direct-expansion refrigeration for deeper cooling. The actual temperature profile and equipment capacity should be reviewed against the farm's milk flow and site utilities.
Why consider a tubular milk cooling configuration?
A tubular configuration uses a tube-based heat-exchange path and can be evaluated where the project requires the process arrangement shown on this page. Selection should consider the milk flow, cleaning method, installation space and how the system connects with the existing milk-handling equipment.
Can heat recovery be included with milk rapid cooling?
The page describes recovery of compressor heat for warm-water use. Whether this feature is included and how it is configured depends on the selected cooling system, hot-water demand and the available installation interfaces.
How is cleaning planned for the cooling equipment?
Cleaning requirements should be defined around the milk-contact circuit, the planned CIP procedure, water supply, chemical handling and drainage. Confirming these details early helps match the cooling system to the farm's sanitation routine.
What information is needed to size a rapid cooling system?
Provide expected milk volume and collection pattern, current and target temperatures, available groundwater or cooling water, electrical supply, installation space and any existing tank or milk line to be connected. These inputs support a capacity and configuration review.
Plan Your Milk Cooling System
Send peak hourly milk flow, inlet and target temperatures, available water, electrical supply and installation space. NexAgri will review the cooling configuration and utility requirements. Initial response within 24 business hours.
