Vertical Outdoor Milk Silos
for Commercial Dairies
Specify 20 to 120 tonne outdoor milk storage around your daily volume, ambient conditions and operating schedule. Capacity, cooling duty and civil requirements are confirmed in the approved project layout.
Structural Engineering Advantages
Plan outdoor milk storage with capacity, refrigeration and civil-work inputs matched to the site.
Outdoor Installation
External cladding configuration and siting are reviewed against local wind, rain, UV and available service access.
Cooling Design
A 100 mm polyurethane insulation configuration is selected around the local climate, storage duty and approved cooling system.
Drainage Planning
The vertical conical base is configured to support sanitary drainage and CIP planning within the approved system.
Choose Your Silo Capacity
Select the appropriate tonnage based on your daily milk yield and logistics requirements.
20T - 40T
Mid-Size Commercial
- ✓ Fully factory welded and tested
- ✓ Open Top shipping subject to packed dimensions
- ✓ Select capacity from milk volume and collection interval
50T - 80T
Large Dairy Hub
- ✓ High-strength reinforced base ring
- ✓ Flat Rack or Break Bulk, subject to route and dimensions
- ✓ Multi-tanker dispatch capabilities
100T - 120T
Industrial Processing
- ✓ Maximum buffer storage for regional plants
- ✓ 4.0mm inner wall option; final thickness follows structural design
- ✓ Requires heavy civil engineering foundation
Powered by Industrial-Grade Engineering
Storage, cooling and cleaning components are selected around the approved capacity, site utilities and operating routine.

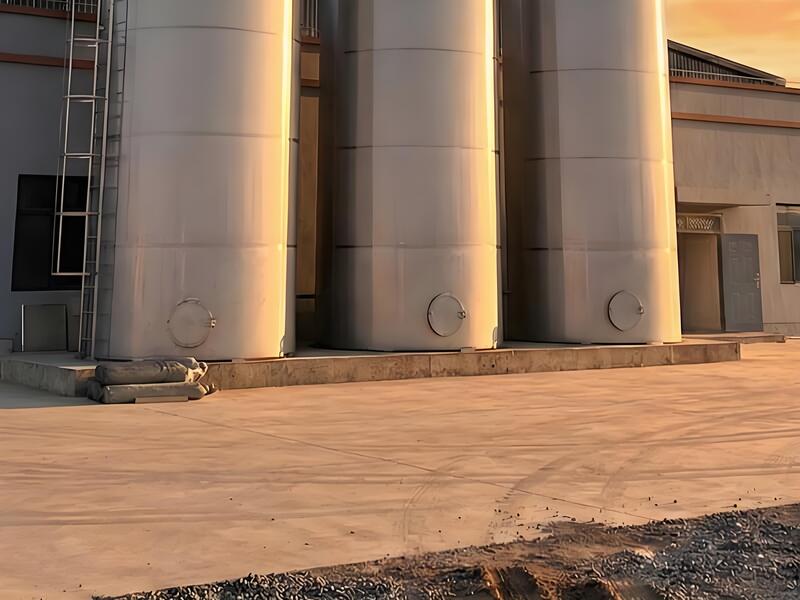

The "Alcove" Interface
An alcove arrangement places selected controls and service points on the milk-room side. Coordinate the wall opening, sealing, outlet and operator access with the approved silo and building layout.
Dimple Plate Cooling Jacket
A laser-welded dimple jacket provides a cooling surface on the lower vessel walls. Refrigerant or glycol connections are specified for the selected jacket, operating pressure and refrigeration system.

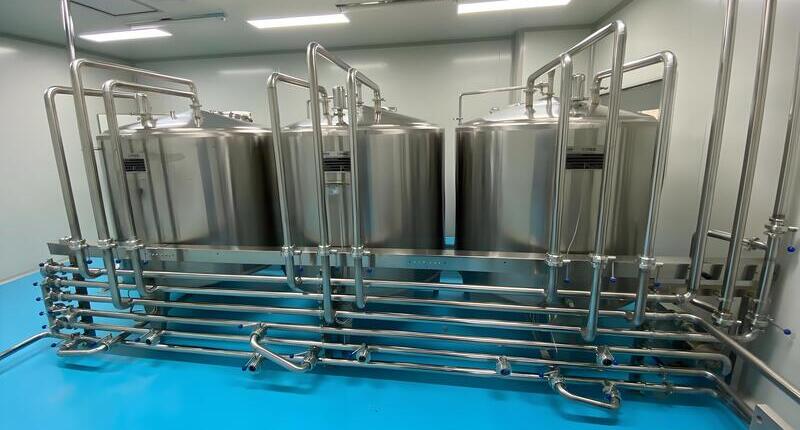

T-Type Auto CIP
Rotary spray devices can connect to the specified CIP supply. Cleaning flow, pressure, chemistry, drainage and inspection access are defined for the selected vessel; any entry follows the site-safety procedure.
Air Security System
A vent and vacuum-relief arrangement manages pressure changes during filling, discharge and cleaning. Size and maintain it for the selected flow rates and CIP cycle; confirm operating limits in the equipment instructions.
Project Planning Guide
Review footprint, foundation, refrigeration and access requirements before finalising civil drawings.
1. Civil Work Scope Review
Compare indoor and outdoor storage at the same required capacity. Outdoor siting may reduce enclosed milk-room space, but still requires an engineered foundation, drainage, access, utility connections and any alcove or building alterations. Price the civil scope against the actual site.
2. Civil Engineering & Foundation Loads
A 120T milk load is approximately 120,000 kg before adding the vessel and equipment. Foundation design must account for total loaded weight, soil conditions, wind and local requirements.
NexAgri supplies the agreed equipment loads and anchor-layout inputs; the responsible civil engineer finalises the foundation, reinforcement and concrete specification. Coordinate drawing approval and construction with the manufacturing schedule.
3. Global Shipping & Site Logistics
Review Open Top, Flat Rack or Break Bulk shipment against packed dimensions, weight, route and port handling limits. Where site assembly is proposed, the quotation must define welding, inspection, lifting equipment and on-site service responsibilities before dispatch.
Silo Installation Planning
Compare Installation Scope
Indoor Storage Option
Review milk-room alterations, tank access and drainage routes at the required capacity.
Outdoor Silo Installation
Review equipment loads, foundation and anchors, crane access, drainage and utility connections.
Compare site work at the same storage capacity using the approved equipment layout.
Selected by operating conditions
The approved project layout defines equipment supply, civil-work inputs and commissioning scope.

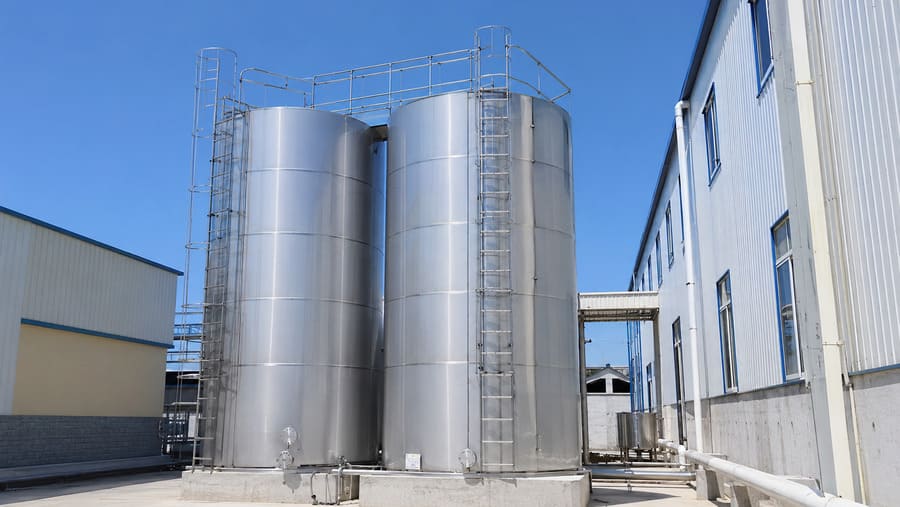

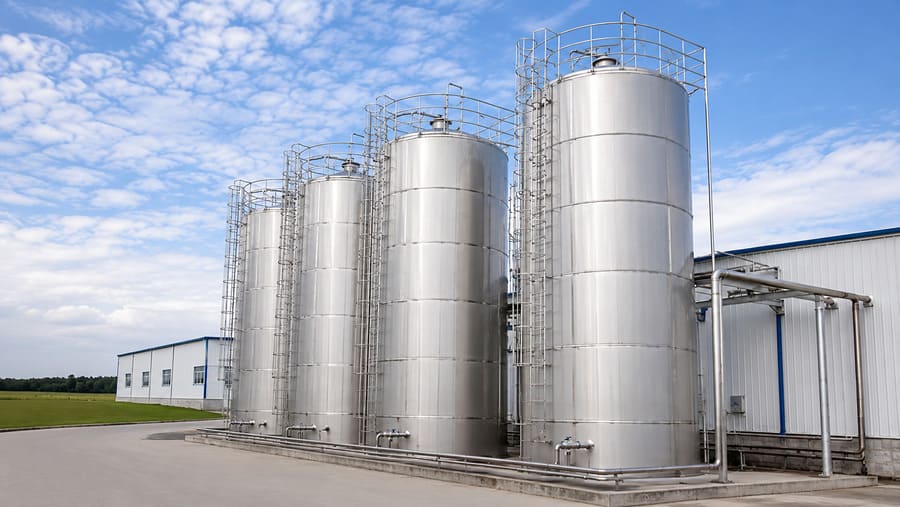

Global Installation Reality
Heavy-duty storage infrastructure trusted by commercial processors worldwide.
Extreme Climate Storage
Processing Center Hub
Integrate Your Milk Storage System
Coordinate milk transfer, cooling and storage with the selected silo and farm hygiene routine.
Milk Quick Cooling
Cool incoming milk before silo storage with a staged system using plate or tubular heat exchange. Match milk flow, inlet temperature and the storage target to the available water and refrigeration.
Milk Cooling Tanks
Premium horizontal and vertical cooling tanks (500L to 30T) designed to preserve milk quality at optimal temperatures before transport.
Transport Tanks
Commercial tanker systems with anti-surge baffles to safely transport bulk milk from your farm silos to processors.
Reviewed by Cathy Xu
Sales Director, NexAgri Solutions
Expert in engineering turnkey dairy projects and heavy agricultural equipment sourcing. Outdoor silo projects need the capacity, cooling, civil works and logistics scope confirmed before manufacture.
Outdoor Milk Silos FAQs
Practical answers for commercial dairies and processing facilities planning high-capacity outdoor milk storage.
How do I choose the right outdoor milk silo capacity?
Begin with daily milk volume, collection frequency, the required buffer, truck dispatch schedule and the available site area. NexAgri outdoor silos range from 20 to 120 tonnes. Confirm the final capacity together with the refrigeration load, milk-room interface and service access rather than selecting by volume alone.
What foundation does an outdoor milk silo require?
The foundation must be designed for the selected capacity, fully loaded weight, local soil conditions, wind conditions and applicable local requirements. After the site and capacity are confirmed, the project drawing can define the foundation layout, anchor positions and the civil-work inputs needed before installation.
How does the alcove connection work?
For an alcove arrangement, the silo is positioned beside the milk-room wall and the opening, sealing details and service points are coordinated to the approved layout. This can place the outlet, temperature display, sampling points and controls on the milk-room side, subject to the final configuration and local building requirements.
Can an outdoor milk silo be specified for hot or cold climates?
This outdoor configuration uses a 100 mm high-density polyurethane insulation layer. The required cooling and any cold-weather protection should be selected for the local temperature range, milk inlet temperature, fill level and operating schedule. Where winter conditions require it, an outlet-valve heating option can be considered in the project specification.
How are milk cooling and agitation configured?
Cooling capacity and agitation are selected around the silo size, milk volume, inlet temperature, ambient conditions and collection interval. Side-mounted or top-mounted stirrers support milk mixing during storage. Confirm the site power supply and operating routine for the final configuration.
How are cleaning and installation responsibilities planned?
Confirm the CIP arrangement, water and chemical supply, drainage route, lifting plan, site access and commissioning scope before ordering. The agreed quotation can define the equipment supply, drawings, local civil and lifting resources, on-site support and final commissioning responsibilities.
Plan Your Outdoor Milk Silo Installation
Share your required working capacity, milk-handling schedule and a site layout. NexAgri can review the storage, cooling, cleaning and connection requirements before preparing the equipment layout and quotation.
Initial response within 24 business hours.
Helpful details for your enquiry
- Storage duty
- Required working capacity, daily milk volume, filling and collection schedule, and temperature requirements.
- Site & access
- Available footprint and height, milk-room position, delivery route and crane access.
- Utilities & interfaces
- Electrical supply, refrigeration needs, agitation, outlet connections and alcove arrangement.
- Cleaning & site work
- CIP supply and return, drainage, foundation planning and local installation arrangements.
Foundation, lifting, on-site connections and commissioning responsibilities are defined in the quotation. Final site and structural requirements follow the approved project drawings.
