Commercial Dairy Feeding Equipment
for Efficient Feed Management
NexAgri supplies headlocks, TMR mixers and feed-distribution equipment for commercial dairy farms. Plan the feeding line around herd groups, ration preparation, barn dimensions and the available tractor or electrical supply.
What challenge are you solving today?
Start with the handling, ration-preparation or distribution task, then review the equipment and site conditions it requires.
Herd Management
Need controlled cow access for routine checks and herd-management tasks? Review spacing, group size and release arrangements.
Ration Homogeneity
Review ration ingredients, forage length and batch size to select a mixing and cutting configuration.
Feed Distribution
Plan feed or bedding distribution around material properties, lane access and the conveying or spreading arrangement.
Commercial Dairy Feeding Equipment Solutions
| Equipment Type | Primary Task | Operating Workflow | Key Equipment Feature | Selection Input |
|---|---|---|---|---|
| Self-Locking Headlocks | Controlled Herd Access | Group locking and individual release | Hot-Dip Galvanized Steel | Cow size and feed-face length |
| Vertical TMR Mixers | Ration Preparation | Batch loading, cutting and mixing | Heavy-Duty Planetary Gearbox | Ration, batch size and power |
| Feed & Bedding Spreaders | Mechanized Distribution | Material loading and distribution | Conveying and spreading options | Material, route and discharge |
Engineered for the Feed Lane
Select construction, surface protection and service access for the feed materials, daily workload and conditions in your barn.

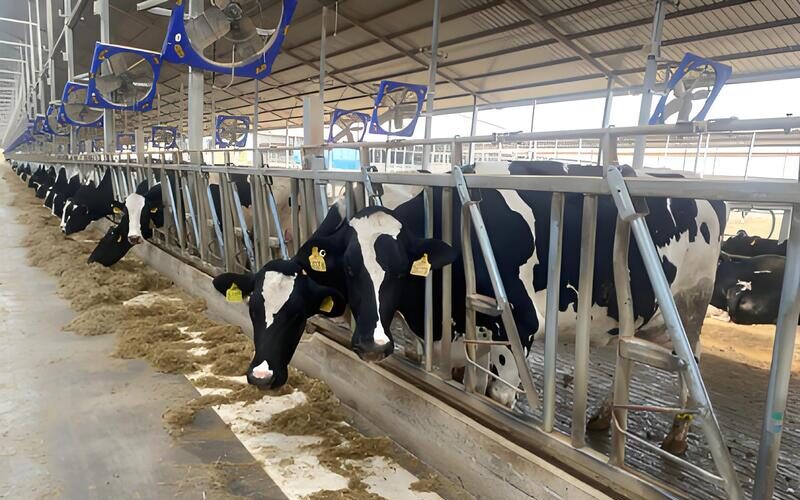

Self-Locking Headlocks
Group Locking & Individual Access
Headlocks provide controlled access along the feed line for herd-management tasks. Select adult-cow or adjustable heifer panels, release arrangements and noise-dampening buffers around animal size and the handling routine.

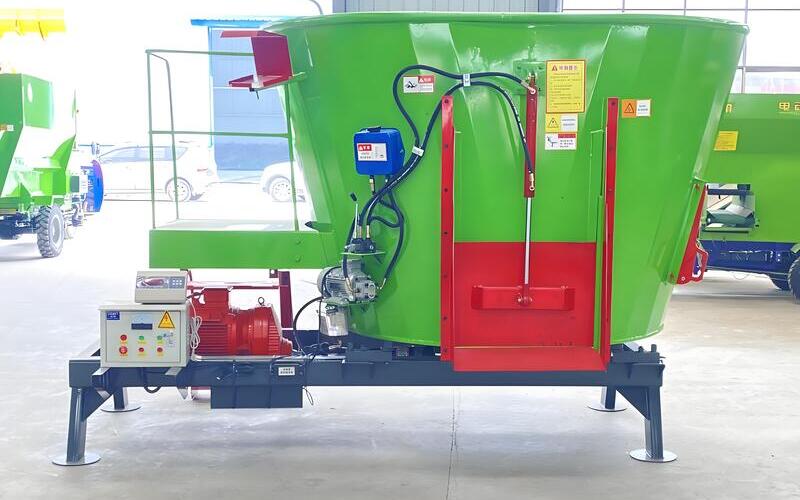

Vertical TMR Mixers
Batch Mixing & Cutting
Trailed and stationary vertical mixers cut and blend ration ingredients using an auger and knife system. Match capacity, loading order and processing time to forage length, moisture, batch volume and the feeding programme.
Built for the Barn Environment
Confirm steel sections, finish, drive components and service requirements in the project specification. Product-specific compliance documentation is reviewed by model and destination market before quotation.
Surface Protection
Headlock panels can use hot-dip galvanization after welding. Coating thickness, including an 85μm target where specified, should be recorded with the selected steel section and finish requirements.
Contact Surfaces & Buffers
Q235B pipework, finished contact surfaces and rubber buffers support the headlock arrangement. Inspect clearances, pivot points and buffer wear as part of routine maintenance.
Heavy-Duty Transmissions
Vertical mixers use planetary gearboxes matched to the auger and drive. Spreader drive and conveying arrangements are selected separately for material flow, loading and discharge requirements.
Total Cost of Ownership (TCO) & Planning Guide
Compare equipment, installation and daily operating costs using your farm’s ration, staffing and feed-delivery routine.
1. Ration Preparation & Feed Refusals
Record the current ration, loading sequence, feed refusals and batch consistency before selecting a mixer. Capacity, knives and mixing time should suit the ingredients and forage length. Review results against the farm baseline rather than assuming a fixed waste reduction.
2. Handling & Staffing Requirements
Compare the time spent loading, mixing, distributing and cleaning with the proposed equipment workflow. Include operator training, animal supervision and service access when planning staffing; the required crew depends on the task and site.

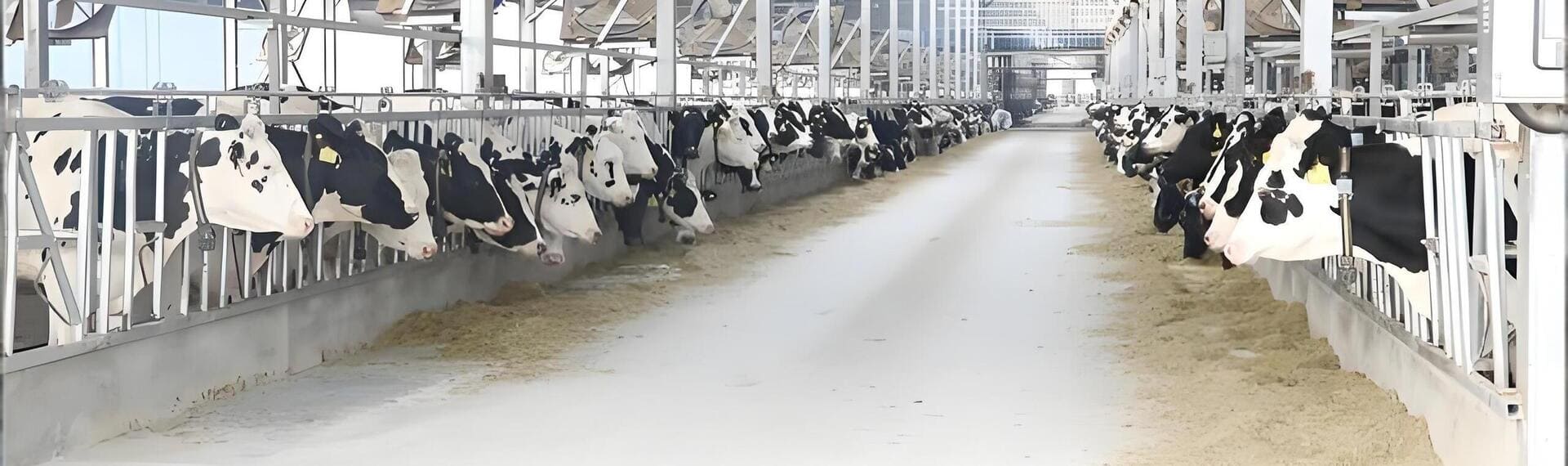

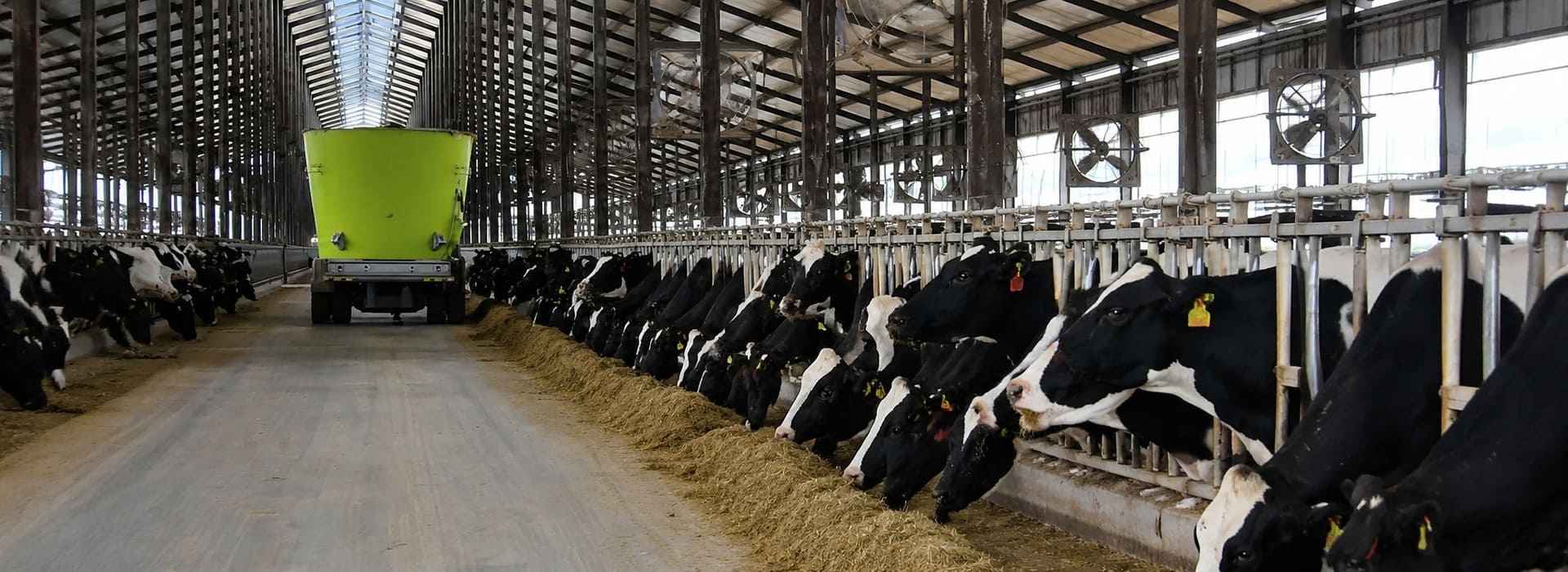

3. Feed Lane Layout & Engineering
Share lane widths, door heights, turning areas, feed-face length and herd groups. NexAgri can review equipment clearances and headlock spacing options such as 60cm or 75cm, then provide a proposed arrangement for the agreed project scope. Confirm final measurements and local structural work before installation.
Feeding Project Cost Inputs
- Equipment ScopeHeadlock quantity, mixer capacity and distribution equipment.
- Site WorkSupport posts, feed lanes, foundations and electrical connections.
- Daily OperationRation volume, batch frequency, staff time and fuel or electricity.
- Service & DeliveryWear parts, inspections, freight and local installation.
Compare costs against the current farm routine using local prices and project-specific operating data.
Dairy Feeding Equipment FAQs
Practical equipment-selection answers for commercial dairy headlocks, TMR mixers and feed or bedding spreaders.
Which feeding equipment should be prioritised for my dairy farm?
Start with the operational constraint. Headlocks support controlled access for feeding and management tasks; TMR mixers prepare the ration; feed spreaders distribute feed or selected bedding materials. The right sequence depends on the current feeding routine, labour availability and barn layout.
How is headlock spacing selected for a herd?
Spacing should be planned around the breed, age group, body size, feed-bunk layout and management routine. Share the herd profile and barn dimensions so the number of headlocks, spacing and mounting layout can be reviewed for the project.
Can a TMR mixer be selected for round bales and different feed ingredients?
A TMR mixer can be evaluated around the ration ingredients, bale type and size, daily batch volume, loading method and desired discharge routine. Confirm these inputs with the selected mixer model so the mixing and cutting configuration suits the farm’s feed programme.
How do I choose the appropriate TMR mixer capacity?
Calculate the total ration required per batch, number of feeding groups, feed density, loading equipment and preferred number of mixes per day. The selected capacity should support the working routine without forcing overfilling or unnecessary empty runs.

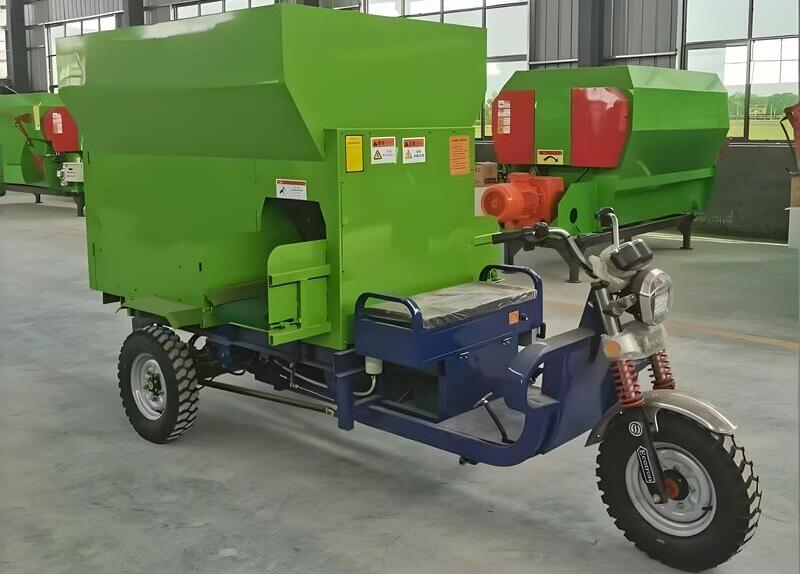

Can a feed spreader handle both feed and bedding materials?
Suitability depends on the material, moisture level, density, particle size, required spread width and the selected spreader configuration. State whether the unit will distribute TMR, silage, bedding or more than one material so the chassis and conveying arrangement can be assessed.
What site conditions matter for feed-lane equipment?
Check lane width, turning space, floor condition, door clearances, loading route, power or tractor availability, drainage and the location of feed bunks or bedding areas. These conditions determine whether the selected equipment can move and operate safely in the barn.
Can feeding equipment be included in a complete barn layout?
Yes. Headlocks, TMR mixing and feed-distribution equipment can be reviewed together around the feed lane, cow groups and daily operating flow. The final layout and quotation should confirm equipment quantities, interfaces and site-preparation requirements.
What information is needed for a feeding-equipment quotation?
Share herd size and groups, current ration, daily feed volume, barn drawings or key dimensions, available loading equipment, intended feed or bedding materials and the desired operating routine. These inputs allow the suitable equipment configuration to be reviewed accurately.
Ready to Upgrade Your Feed Lane?
Send herd groups, ration ingredients and daily volume, barn dimensions, available tractor or electrical power, and project location. NexAgri can review equipment selection and layout inputs for a project quotation. Initial response within 24 business hours.
