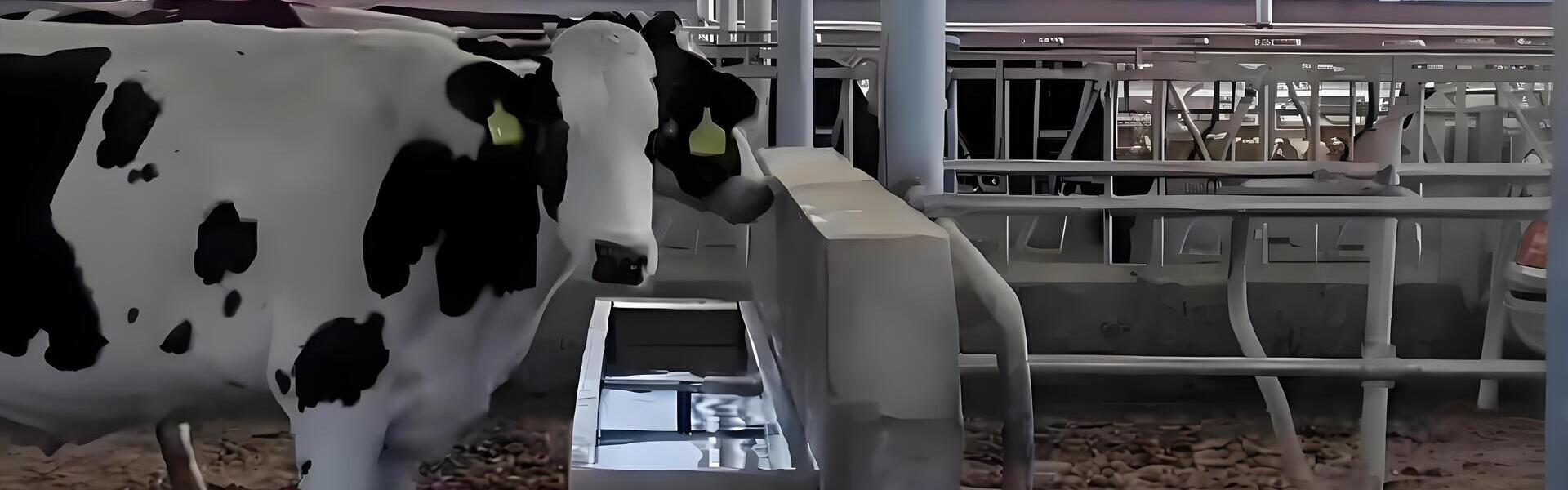

Thermostatic Heated Stainless Steel
Troughs
NexAgri thermostatic heated troughs combine AISI 304 double-wall stainless steel, polyurethane insulation, automatic refill and manual drainage. Select trough size, inlet arrangement and heating configuration around herd demand, climate, water quality and the cleaning routine.
Why Dairies Upgrade to Thermostatic SS Troughs
Compare heating, insulation and drainage features against winter conditions, water supply and daily maintenance needs.
Heating Selection
Confirm heater power, thermostat settings, minimum ambient temperature and incoming water conditions. Operating water temperature depends on the selected equipment and installation.

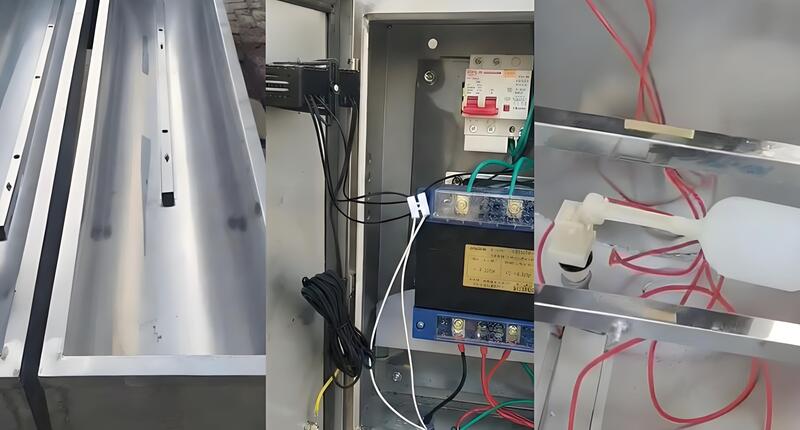

PU Thermal Insulation
The listed 50mm polyurethane core provides insulation between the steel walls. Energy use depends on outdoor exposure, water turnover, heater rating and thermostat setting.
Sloped Basin & Valve
A sloped basin and manual discharge valve support flushing and cleaning. Allow access for sediment removal, valve inspection and refilling; cleaning time depends on site conditions.
Stationary Structural Configurations
Select the floor-mounting and physical protection setup that matches your barn traffic density and crossover space.

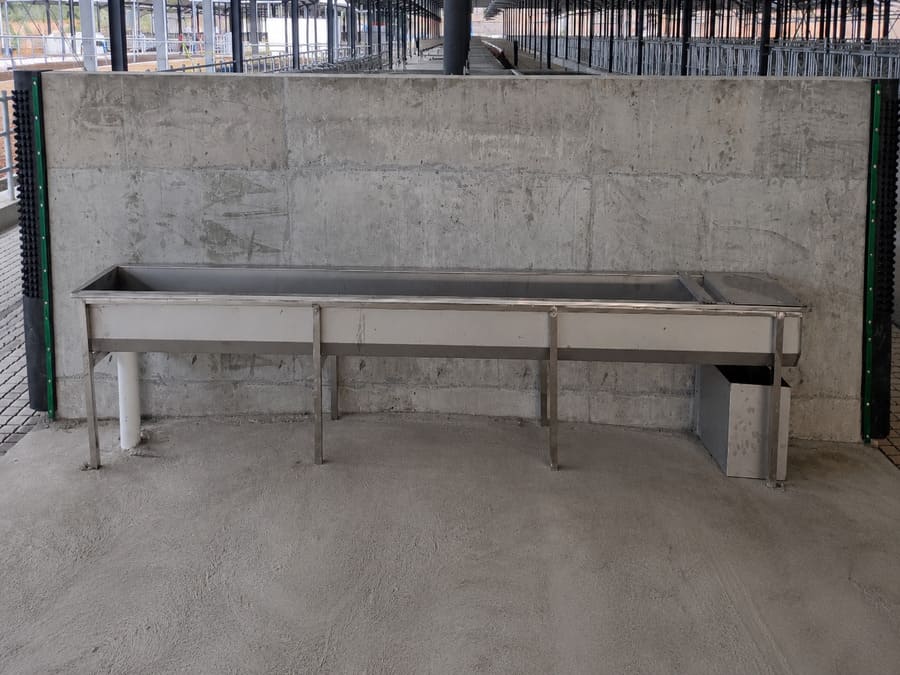

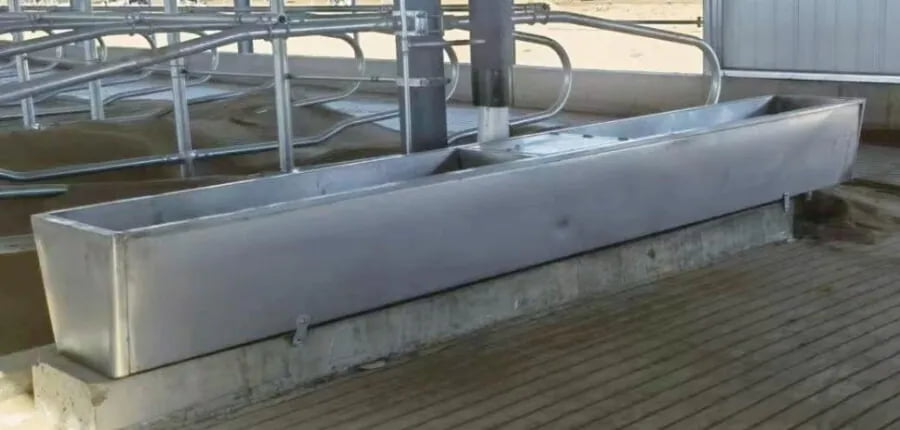

Direct Floor-Anchor Setup
Compact & Direct Concrete Mounting
Secured directly to concrete pads using heavy-duty stainless expansion anchor bolts. Space-saving footprint engineered for standard crossover alleys and wall-adjacent water lines.
- Standard freestall crossover alleys
- Maternity, calf, & treatment pens
- Wall-adjacent water supply layouts

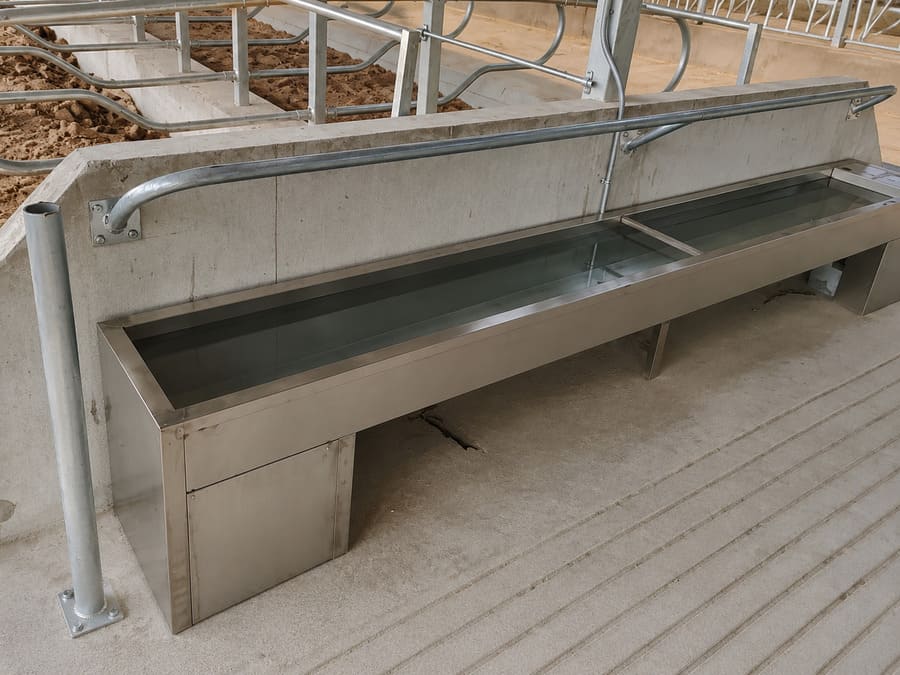

Protective Pipe-Guard Setup
Collision-Resistant Frame Protection
Combines the stationary trough with hot-dip galvanized Q235B pipe protection arches to provide separation around the trough body, heating box and float valve. Check guard clearance, anchor details and machinery routes for the installation.
- High-density parlor return lanes
- Main crossover traffic bottlenecks
- Open lot & feedlot environments
Engineering Deep Dive
The table lists the material and component configuration for selection. Confirm plate thickness, insulation, heater power and control-box protection for the quoted model; review water quality, local electrical requirements and the applicable ISO documentation scope.
Total Cost of Ownership (TCO) & Planning Guide
Plan installation and ongoing costs from the trough configuration, site utilities, winter conditions and maintenance routine. Use project-specific costs when comparing options.
1. Winter Operation & Inspection
Review local freezing conditions, water-line exposure and the current winter inspection routine. Include protection of inlets, valves and supply lines when specifying the installation.
Thermostatic heating is one part of winter water-system planning. Confirm heater power, control settings and electrical protection, and retain routine checks of water availability and equipment condition.
2. Thermal Insulation & Duty-Cycle Efficiency
The NexAgri 50mm polyurethane core provides thermal insulation. Estimate electricity use from heater rating, operating hours, thermostat settings, water turnover and local conditions; compare against a defined existing system rather than assuming a fixed saving.
3. AISI 304 Construction & Cleaning
Assess material selection alongside water quality, surface condition and the cleaning products used on the farm. Routine cleaning and inspection remain necessary for any trough material.

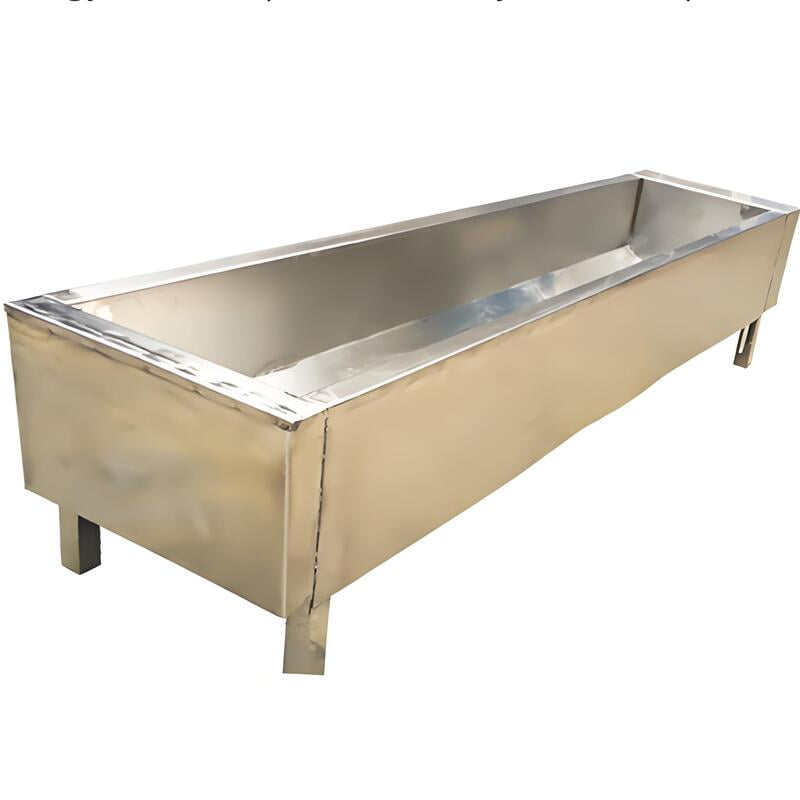

The listed construction has a 1.5mm inner AISI 304 wall and a 1.2mm outer wall. Inspect the basin, anchors, protective guard where fitted, float valve and drain, and allow access for maintenance.
Compare Installed & Operating Costs
- Equipment & installationTrough length and quantity, floor anchors or pipe guards, water connections, drainage and electrical work.
- Winter electricityHeater power, operating hours, thermostat settings, water turnover and local electricity tariff.
- Maintenance & cleaningInspection time, cleaning water, valve servicing and replacement components.
Use the farm's existing costs and proposed configuration to assess savings or payback. No fixed recovery period applies to every installation.
Global Installation Reality
The following project examples retain their original installation details. Temperatures, cold ratings and cleaning times refer to those individual projects and are not standard guarantees for every trough configuration.

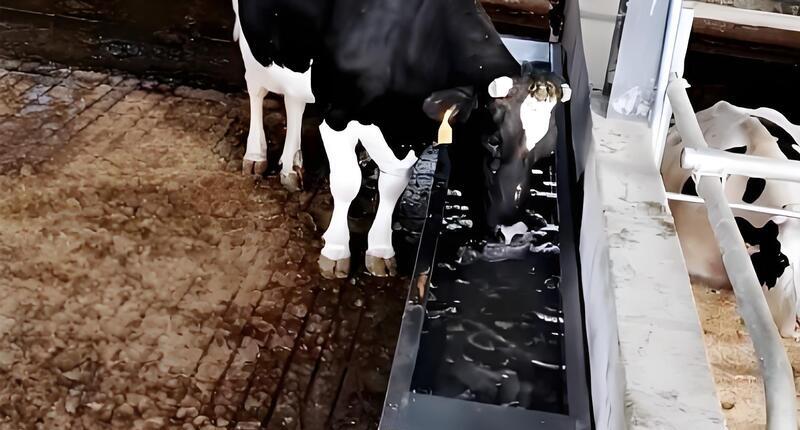

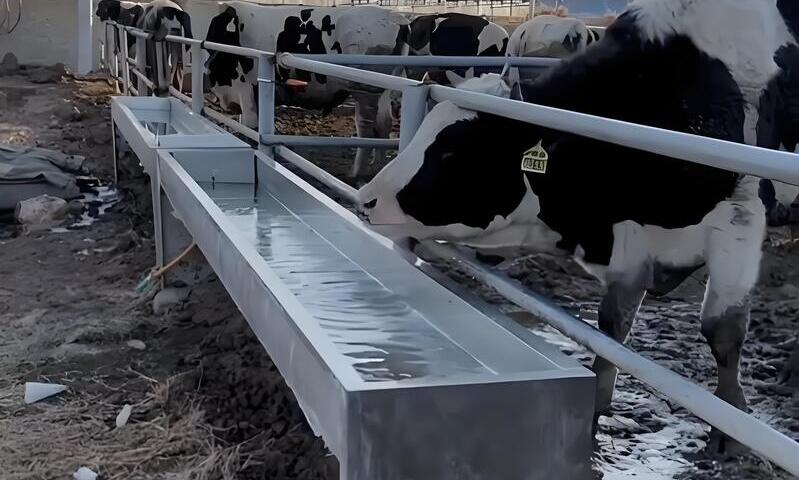

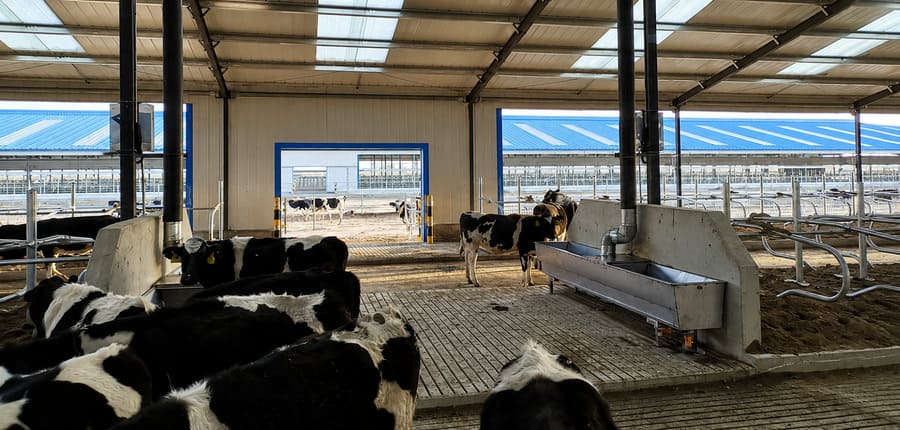

2,000 Cow All-Weather Dairy Barn
Upgraded from open plastic tanks to 2.7m Thermostatic Stainless Steel Troughs. Delivers continuous 15°C water to protect herd yield during seasonal temperature swings.

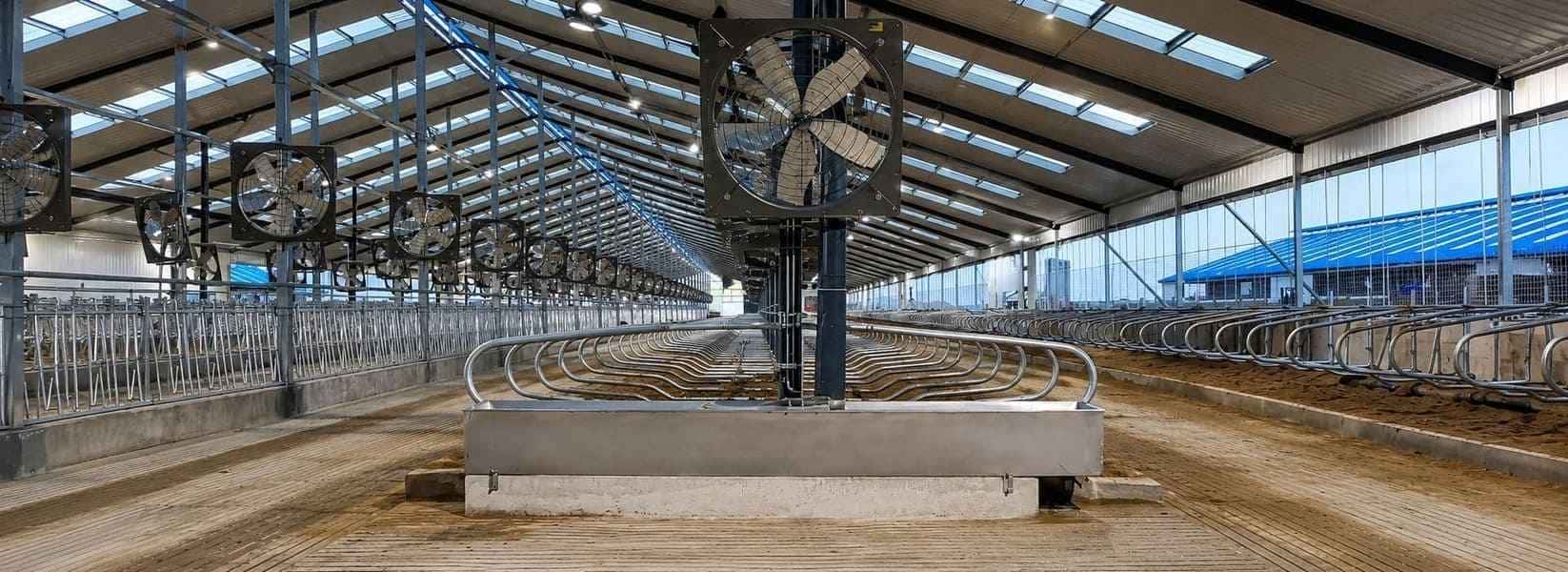

800 Cow Freestall Crossover Upgrade
Sloped bottom and manual discharge valve permitted rapid barn cleaning routines while maintaining Grade-A sanitation compliance.
Complete Your Barn Infrastructure
Pair hydration stations with dedicated resting and feeding barn equipment.
Cow Free Stalls
Hot-dip galvanized Q235B steel free stalls for resting-area layouts. Coordinate stall dimensions and animal access with the wider barn plan.
View Product Details →
Self-Locking Headlocks
Feeding-line headlocks with central locking controls. Coordinate feed-fence access, water-trough positions and animal traffic in the barn layout.
View Product Details →Heated Stainless Steel Water Trough FAQs
Practical product-selection answers for commercial dairy barns using thermostatic stainless steel water troughs.
What configuration options are available for heated stainless steel water troughs?
The trough can be specified by length and installation arrangement, including direct floor-anchor and protective pipe-guard setups. Select the configuration according to the planned trough position, barn traffic and the herd groups it will serve.
How do I choose between a direct floor-anchor and a protective pipe-guard setup?
A direct floor-anchor arrangement can suit standard trough locations where the unit is protected by the barn layout. A protective pipe guard can be considered where animal pressure, machinery movement or traffic around the trough needs additional physical separation.
What electrical and water connections need to be prepared?
The page lists a 220 V / 50 Hz heating configuration for these troughs. Confirm the local electrical supply and safe installation requirements for the destination, then plan the water inlet, shut-off access and discharge route before installation.
How is the trough insulated and heated?
The listed construction uses a double-wall stainless steel body with a 40–50 mm polyurethane insulation core and an electric heating arrangement. Actual operating performance will depend on ambient conditions, installation details and the selected configuration.
How should the float valve and trough be maintained?
Include routine checks of the mechanical float valve, water inlet and drainage point. Drain and clean the trough on the farm’s normal hygiene schedule, and inspect the heating and electrical components according to the site’s operating procedures.
What information is needed for a trough quotation?
Share the preferred trough length, animal groups, climate, barn layout, power supply, water connection and whether a protective pipe guard is required. NexAgri can then review an appropriate heated stainless steel water-trough configuration.
Ready to Upgrade Your Barn's Hydration System?
Share your preferred trough lengths, herd groups, barn plan, lowest winter temperature, water pressure and flow, power supply and cleaning routine. NexAgri can review mounting arrangements, heating requirements and the quotation scope.
