Commercial Milking Parlors
for Dairy Farms
Compare Herringbone, Parallel and Rotary milking parlors around herd size, milking window, building footprint and selected equipment scope. NexAgri supplies B2B systems with layouts and quotations prepared for the project.
Which Parlor Layout Fits Your Dairy?
Use herd size as a starting point, then review the milking window, building constraints, cow flow and equipment requirements before selecting a layout.
50 - 500 Cows
Focus on maximum individual cow care, udder visibility, and fitting into narrow existing barns.
500 - 1,000 Cows
Focus on maximum throughput per hour, rapid exit speed, and reducing milker walking distance.
1,000+ Cows
Review continuous-flow capacity, automation options, staffing plan and maintenance requirements against the selected rotary project.
Compare Commercial Configurations
| System Type | Ideal Herd Size | Throughput Impact | Building Footprint | Planning Focus |
|---|---|---|---|---|
| Heavy Herringbone | 50 - 500 Cows | Baseline Batch Exit | Narrow/Flexible Retrofit | Side access and retrofit fit |
| Rapid-Exit Parallel | 500 - 1,000 Cows | Rapid-exit workflow | Wider, Shorter Length | Cow flow and pit access |
| Industrial Rotary | 1,000+ Cows | Max Continuous Flow | Large Square Dedicated Barn | Dedicated building and flow |
Engineered Around Your Cows
Steelwork, materials and corrosion protection are selected for the chosen parlor configuration and confirmed in the equipment scope.

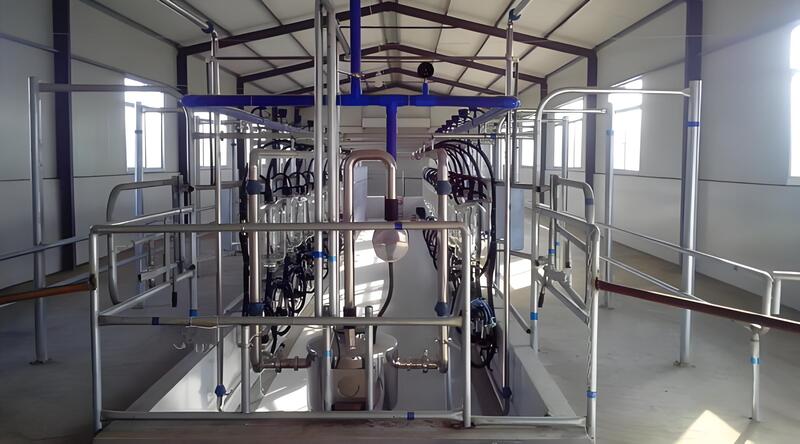

Heavy-Duty Herringbone Systems
Optimal Visibility & Care
Designed for farms that prioritize individual cow attention. The 30° or 50° zig-zag positioning gives milkers unobstructed access to the udder from the side, making inspection and attachment highly ergonomic.

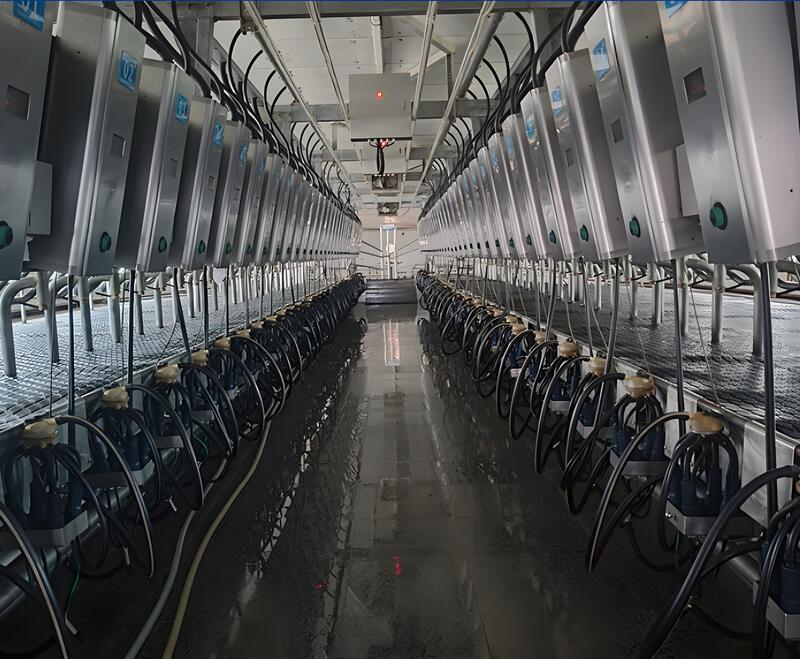

Rapid-Exit Parallel Systems
Rapid Exit & Rear Access
Engineered for high-efficiency commercial herds. Cows stand at a 90° angle, utilizing the shortest distance between udders. The pneumatic front-frame configuration can be selected to support the planned cow-flow and changeover routine.

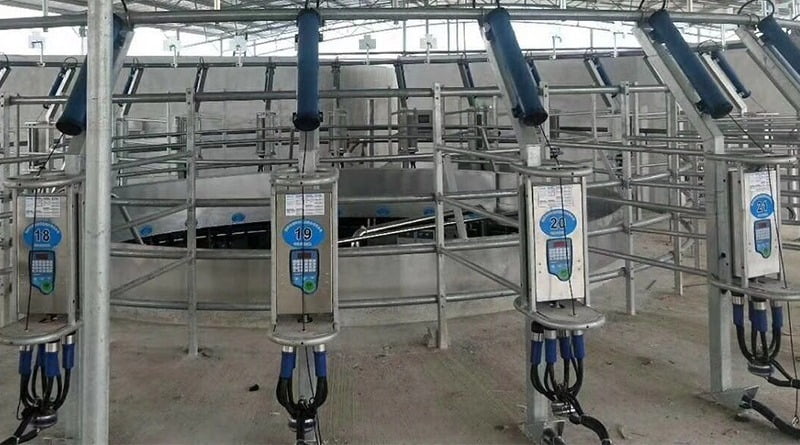

Continuous Flow Rotary Platforms
Continuous-Flow Workflow
The ultimate solution for mega-dairies. Operators stay in one place while cows calmly step onto a slowly moving platform. Base, deck and drive options are selected around platform size, site conditions and the planned operating routine.
Equipment Options & Integration
Select vacuum, metering, pulsation and cleaning equipment around the chosen parlor, operating requirements and agreed supply scope.
Vacuum & Controls
Select the vacuum pump, reserve capacity, controls and pipeline arrangement around the milking points and site utilities.
Metering Options
Choose glass jar or electronic metering around the records, operating workflow and intended system integrations for the project.
Pulsation & Claw Sets
Specify pulsators, claws, liners and settings for the selected milking routine and the applicable equipment configuration.
CIP Cleaning Scope
Define cleaning equipment, wash circulation and control functions around the selected parlor, milk line and local operating procedure.
Proven Results on Real Farms
See how commercial dairies globally are reducing labor and improving yield with NexAgri Turnkey solutions.

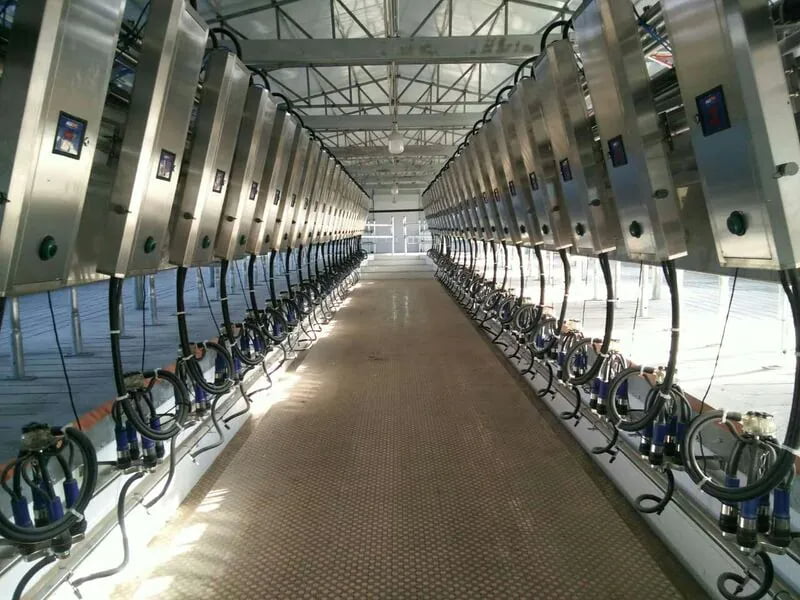

Double-30 Rapid Exit Parallel
Can be specified with selected identification, drafting-gate and milk-monitoring equipment where the project includes the required meters, readers, interfaces and controls.

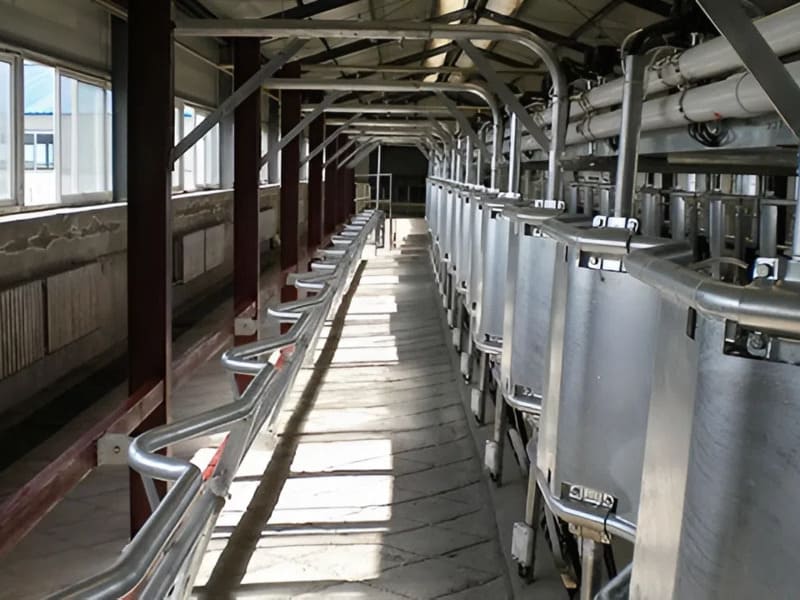

Double-12 Heavy Herringbone
The heavy-duty infrastructure and enclosed vacuum systems easily handle extreme winters while maintaining perfect sanitation temperatures.

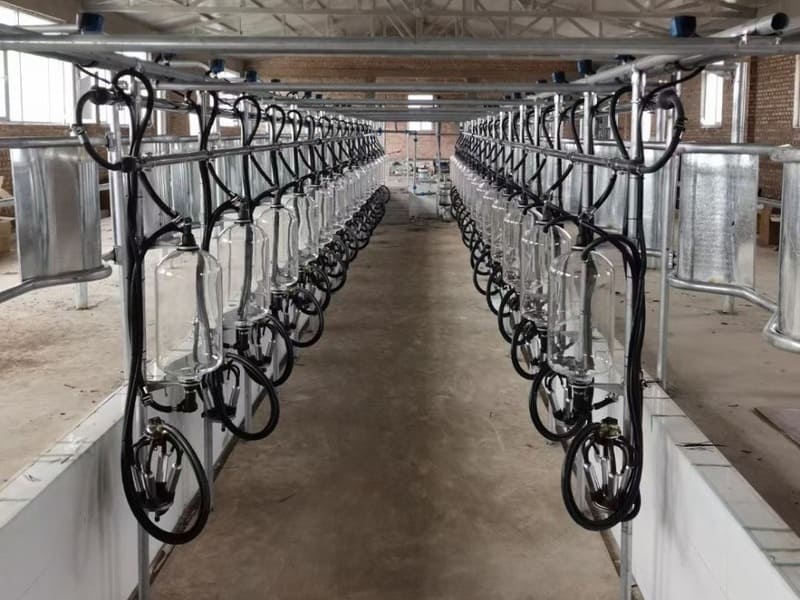

Double-20 Glass Jar System
A classic mechanical design with a practical fit for rural operations. Final reliability depends on the selected equipment, power supply, installation and maintenance routine.
Total Cost of Ownership (TCO) & Planning Guide
A milking parlor is a long-term capital investment. Review these factors before finalizing your civil engineering design.
1. Space & Civil Engineering Requirements
The dimensions of your existing or planned barn dictate the system you can install. For instance, a Double-12 Herringbone (30°) requires approximately 17 meters (55 ft) of pit length and 6.5 meters (21 ft) of building width. By contrast, a Parallel Parlor requires a wider footprint but significantly less length, as cows stand at a 90-degree angle (71cm spacing per cow).
Our engineers always allocate auxiliary space for the Holding Pen (1.5 to 2.0 sq. meters per cow) and a dedicated, isolated Equipment Room to protect the vacuum pump and milk cooling tanks from moisture and manure.
2. Maintenance & Lifecycle Cost (OpEx)
Initial capital expenditure (CapEx) is only part of the equation. Herringbone, Parallel and Rotary systems have different equipment, maintenance and operating requirements. Compare the selected configuration, projected use and service plan as part of the quotation.
Confirm material specifications, corrosion protection, routine consumables and any recommended spare-parts package in the product-specific quotation.
3. Animal Welfare & Milk Yield Impacts
Cow entry, stall geometry, operator access and milking routine should be reviewed together. Select indexing, platform surfaces and pulsation equipment around the management method and project requirements.
4. Integrating Smart Dairy Management
A modern parlor is a data hub. Where the selected metering and software interfaces support it, project teams can assess integration with NexAgri-Guard Smart Collar System or NexAgri-Sense Smart Ear Tag System.
Data, drafting and monitoring functions depend on the selected devices, software interfaces and farm management setup; define these functions in the agreed system scope.
Project Cost Factors
Cost and operating outcomes depend on the selected system, farm routine, labour plan, utilities and local project conditions.
Milking Parlors FAQs
Practical selection and planning answers for commercial dairy farms comparing Herringbone, Parallel and Rotary milking parlor configurations.
Which milking parlor layout is right for my dairy farm?
Use herd size, milking window, building footprint and labour routine together. This page positions Herringbone systems for approximately 50–500 cows where side access and narrow-barn fit matter, Parallel systems for approximately 500–1,000 cows where faster changeover is a priority, and Rotary systems for larger continuous-flow operations. These are planning guides; the final layout should be based on your farm inputs.
Can a Herringbone milking parlor fit an existing narrow barn?
It can be a practical option to assess for a narrower retrofit footprint. The angled 30° or 50° stall arrangement supports side access to the udder and can be developed around the available building width, pit position, cow entry and exit routes, drainage and utility locations.
How does a rapid-exit Parallel parlor reduce changeover time?
In the Parallel configuration shown on this page, cows stand at 90° to the pit and the pneumatic front frame releases a full side together at the end of a group. This layout is intended to shorten the transition between groups while keeping the operator work area close to the udders.
When should a farm consider a Rotary milking parlor?
A Rotary parlor is suited to projects that need a continuous-flow milking routine and have space for a dedicated larger building. It is commonly evaluated for herds above 1,000 cows on this page, but the appropriate platform size and automation scope depend on the required milking window, herd routine and site plan.
What determines milking-parlor throughput?
Throughput depends on stall count, cow entry and exit flow, milk-out time, preparation routine, operator workflow and the selected automation. Compare layouts at the same target milking window rather than choosing from herd size alone.
Can a new milking parlor be planned with vacuum, metering and cleaning equipment?
Yes. The project configuration can include the vacuum system, milk metering, pulsation and cleaning equipment required for the selected parlor. Define the intended operating level early so that equipment positions, utilities and control space are coordinated in the layout.
What information is needed for a milking-parlor layout and quotation?
Share your current and planned herd size, preferred milking window, available barn dimensions, site drawings where available, entry and exit routes, utility conditions and the equipment functions you need. These inputs allow the stall count, pit arrangement and supporting equipment scope to be reviewed for your project.
Can NexAgri provide a custom dairy parlor layout?
Yes. A custom layout can be prepared around the agreed project inputs and equipment scope. The final drawing and quotation should confirm the selected parlor type, stall count, installation boundary and commissioning responsibilities before ordering.
Plan Your Milking Parlor Project
Send your herd size, target milking window, barn dimensions and project location. NexAgri will review the requirements and provide an initial response within 24 business hours; final layout, scope and quotation are confirmed for the project.
