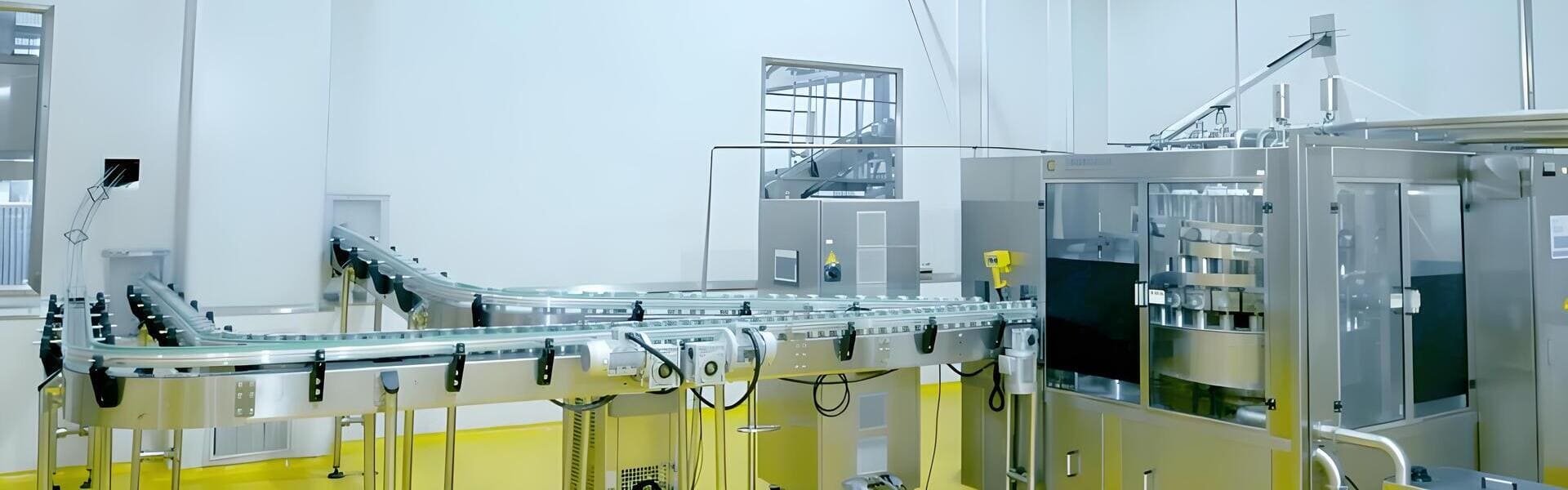

Dairy Packaging Equipment
for Commercial Plants
NexAgri offers filling and sealing machinery for yogurt cups, PET/glass bottles, gable-top cartons and liquid pouches. Packaging format, sealing, filling accuracy, hygiene options and output are confirmed with the selected machine, material and operating conditions.
Confirm automation components, enclosure ratings, hygiene options and product-contact documentation for the selected machine and destination market.
Why Commercial Dairies Upgrade Packaging Lines
Review fill variation, seal integrity, product hygiene and operator tasks to define the required packaging configuration and acceptance tests.
Seal Integrity
Match the sealing or capping method to the container and closure. Confirm temperature, pressure, dwell time or cap torque, and test seal integrity under the intended distribution conditions.
Dosing Precision
Select the dosing method for product viscosity, fill volume and speed. Confirm accuracy with the actual product and agreed sampling and test conditions.
Hygiene Planning
Where specified, UV treatment is one part of the hygiene arrangement. Validate its suitability and operating conditions alongside equipment cleaning, product handling and the packaging environment.
Operator Workflow
Define container loading, filling, closing, inspection, material replenishment and changeover tasks. Staffing depends on automation scope and output requirements.
Containers & Formats for Every Market Segment
Compare formats around the product, fill volume, packaging supply and distribution route. Review equipment capacity, buffer requirements, cleaning and controls before connecting to an existing line.

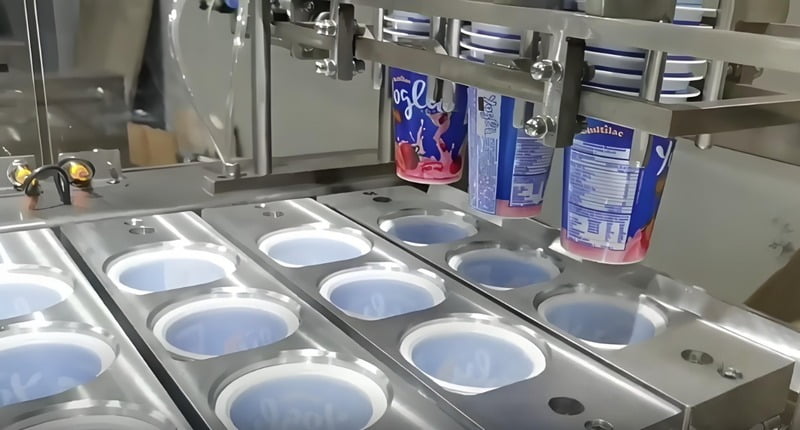

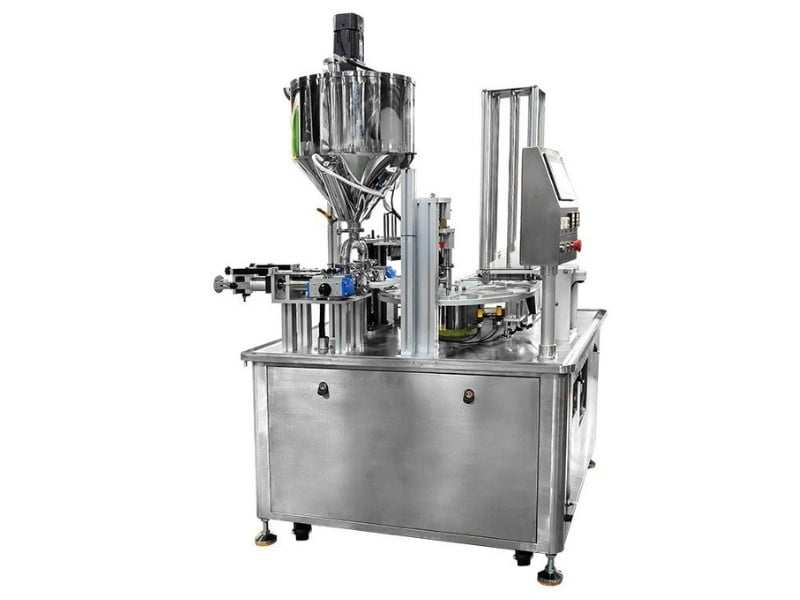

Cup Filling & Heat-Sealing Systems
Target Application: Set & Stirred Yogurt, Sour Cream, Pudding
Engineered for viscous cultured dairy products. Features automatic cup loading, anti-splash piston dosing, photoelectric foil-lid centering, and thermal sealing. Available in compact rotary indexers or multi-lane linear architectures.

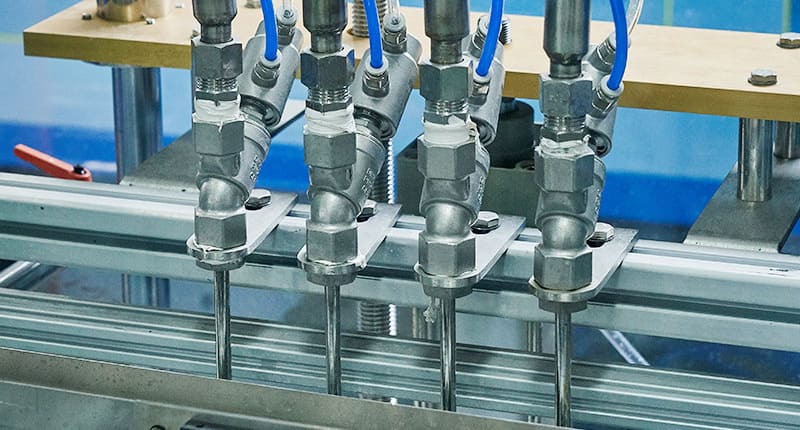

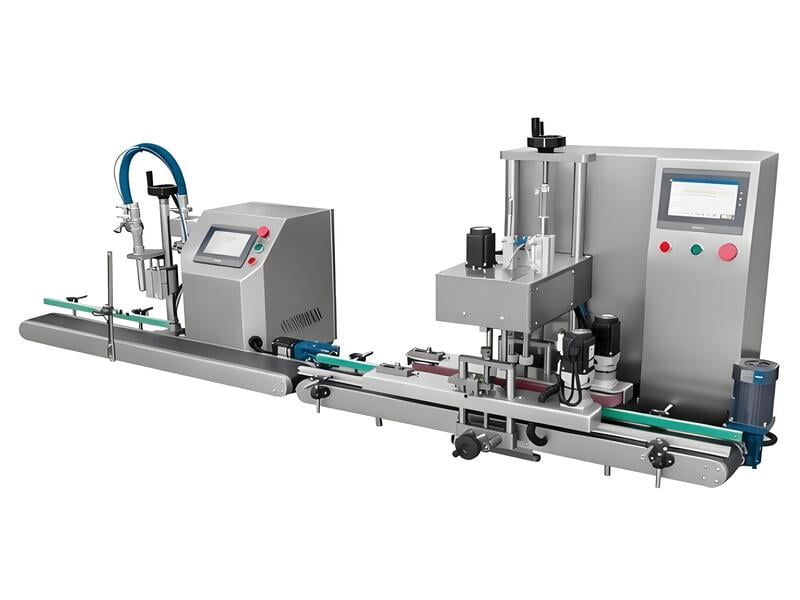

Inline / Monoblock Bottle Filling & Capping
Target Application: Pasteurized Fresh Milk, Drinking Yogurt, Flavored Dairy
Select bottle rinsing or treatment, filling and screw-capping stages for the container and product. Confirm the monoblock arrangement, material compatibility and hygiene procedure for glass, PET or HDPE formats.

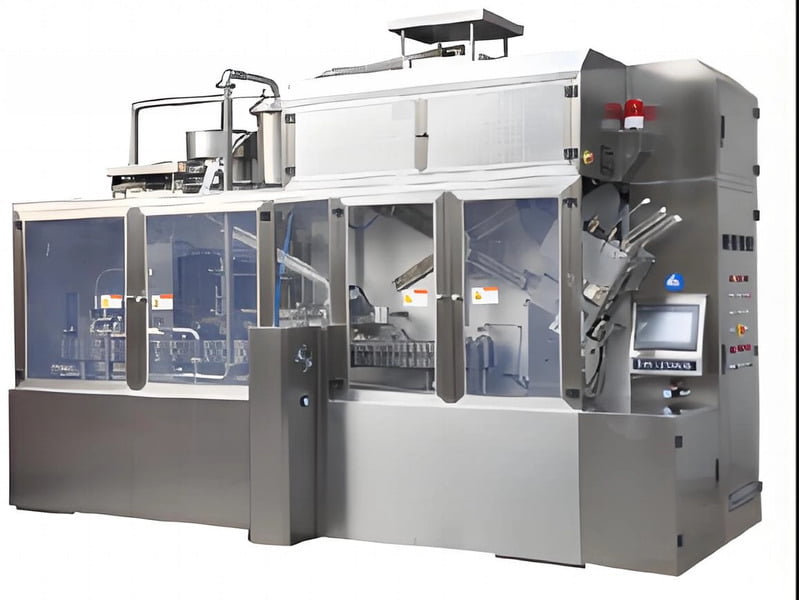

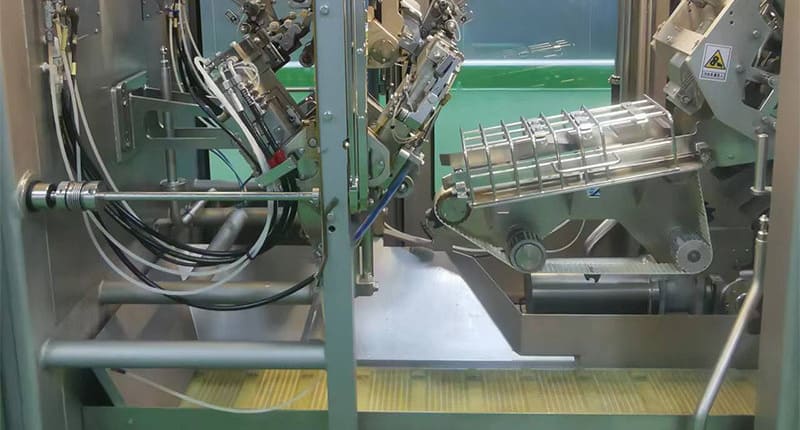

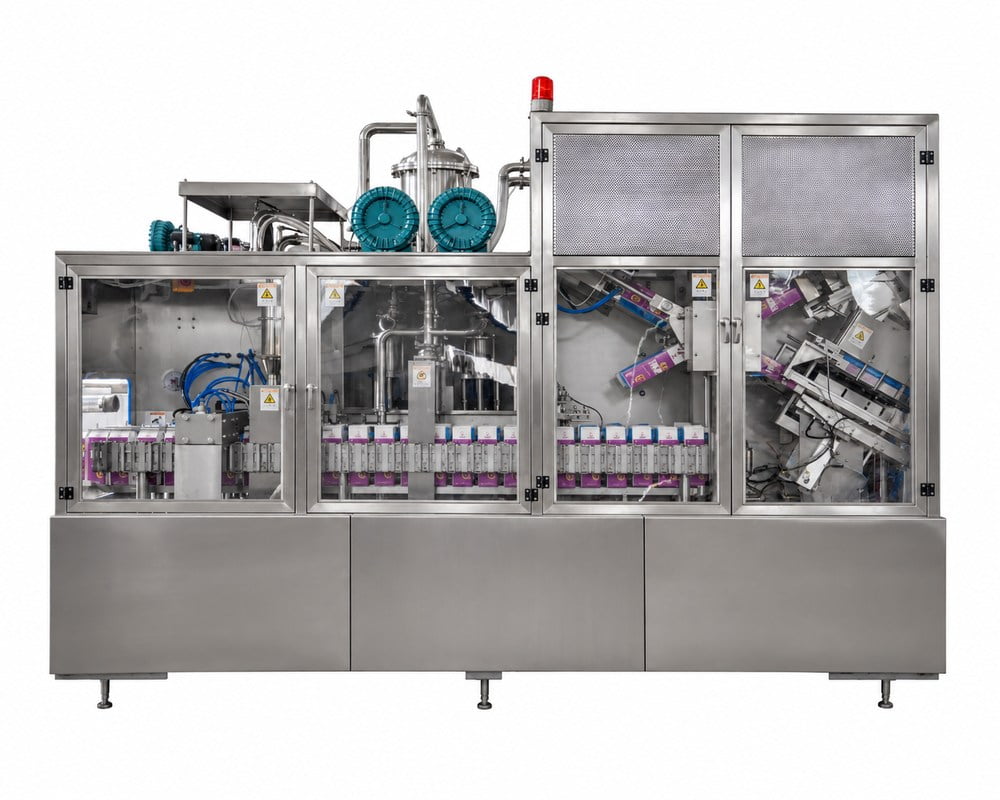

Gable-Top Carton Packaging Machine
Target Application: Cold-Chain Premium Fresh Milk & Juices
Automated carton-blank forming, bottom heating/sealing, anti-foaming milk filling, and top roof sealing. Elevates brand positioning for urban retail cold-chain distribution with optional screw-cap spout applicators.

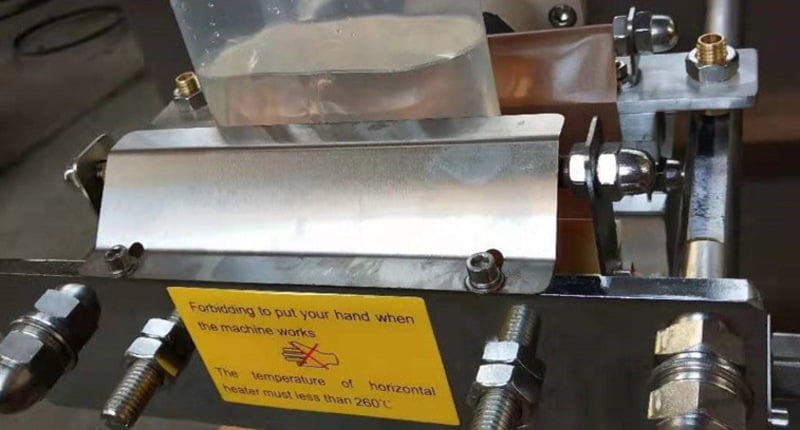

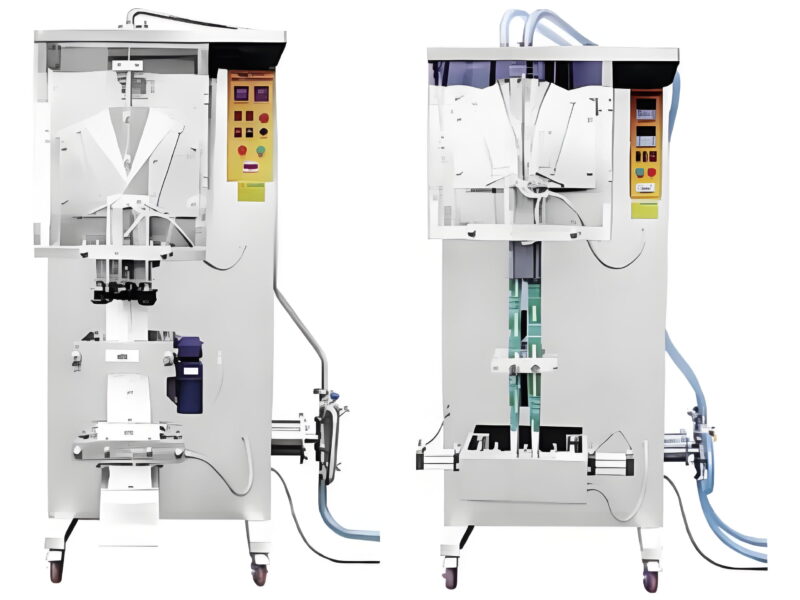

Automatic Vertical Pouch Packaging Unit
Target Application: High-Volume Mass Market Liquid Milk Distribution
The vertical pouch configuration combines PE film feeding, date coding, volumetric filling and vertical/horizontal sealing. Confirm any UV film-treatment option, film compatibility and hygiene procedure for the selected machine.
Total Cost of Ownership (TCO) & Packaging Planning
Compare equipment and integration costs with packaging materials, measured fill losses, reject rates, labor, utilities and maintenance.
1. Dosing Volumetric Precision vs. Daily Give-Away
Measure fill weight or volume variation on the existing line. Define the target fill, sampling method and destination-market requirements before comparing dosing configurations.
Evaluate the selected dosing system using the actual product, fill volume and operating speed. Estimate product losses from measured fill variation rather than assuming a fixed daily saving.
2. Material Compatibility & Film Scrap Reduction
Review sealing temperature, pressure, dwell time, film alignment and material consistency when investigating weak seals or scrap.
Confirm temperature controls and registration sensors for the chosen machine. Use trials with the intended film to set the operating window and measure startup, changeover and production scrap.
3. Comparing Container Formats & Costs
Compare pouches, cartons and bottles using local packaging costs, distribution needs and the product positioning. Retail margin depends on market pricing and operating costs, not the machine format alone.
Build a Format-Specific Budget
- Machine scope: Format, fill volume, output, closure and coding options.
- Material costs: Containers or film, lids, caps, labels and supply availability.
- Operating losses: Measured fill variation, seal rejects, startup and changeover scrap.
- Plant operation: Staffing, utilities, cleaning, maintenance and integration.
Assess savings and payback against the plant baseline and selected packaging configuration.
Engineering Standards & Technical Data
Retain the listed format-specific specifications for initial selection. Confirm materials, controls, accuracy and hygiene options in the selected machine schedule. Bottle configurations are listed at 1,000–6,000 BPH in the catalog and up to 8,000 BPH in the technical range; confirm the applicable model and test conditions.
The original Nairobi project details below describe that installation. Reported leakage, labor and capacity results are case-specific and do not guarantee outcomes for another packaging line.
Multi-Format Packaging Line Upgrade
A commercial dairy plant in Nairobi transitioned from slow manual liquid filling to NexAgri automated packaging machinery. By deploying an automatic pouch unit alongside a rotary cup filler, the plant eliminated transit leakage and expanded into high-margin supermarket yogurt cups.
Plan Packaging-Line Interfaces
Review the product transfer, pipe size, connection standard, buffer capacity and cleaning interfaces between packaging equipment and the following plant systems:
- ✓ HTST Pasteurization Systems
- ✓ Jacketed Fermentation Tanks
- ✓ Horizontal Insulated Storage Tanks
- ✓ Central CIP Sanitation Stations
- ✓ End-of-Line Sticker & Sleeve Labelers
Specify PLC communication, level sensing, interlocks and speed coordination between upstream processing and the filler. Confirm component brands and control responsibilities for the quoted configuration.
Complete Your Dairy Infrastructure
Pair packaging machinery with upstream milk cooling and storage buffer tanks.
Horizontal Cooling Tanks
Direct-expansion storage tanks in the listed 1T–30T range. Confirm the cooling duty, storage temperature and product-handling requirements for the selected tank.
View Tank Models →
Milk Quick Cooling System
Plate cooling equipment selected for product flow, inlet and target outlet temperatures, and available cooling utilities before filling.
View Details →
Outdoor Milk Silos
Vertical insulated storage silos (20T–120T) designed for high-capacity commercial packaging facilities.
View Specifications →Dairy Packaging Equipment FAQs
Practical answers for dairy processors selecting cup, bottle, carton or pouch filling equipment.
Which packaging formats can the line handle?
This page covers dairy packaging equipment for cups, bottles, gable-top cartons and liquid pouches. The appropriate format depends on the product, desired fill volume, distribution conditions, pack material supply and the required output per hour.
Can one filling machine handle both milk and yogurt?
The filling system should be configured for the product's viscosity and inclusions. Thin pasteurized milk and thicker stirred yogurt use different filling approaches, so confirm the product viscosity, temperature at filling, fruit or particulate content, target fill weight and required accuracy before selecting the dosing system.
What speed and fill range are listed for cup filling?
The listed cup-filling range is 1,200 to 6,000 cups per hour and 100 to 500 ml piston dosing. The stated ±1.0% accuracy must be confirmed for the selected model, actual product, fill volume, speed and agreed test conditions. Output also depends on the lid/seal process, changeovers and operator workflow.
What film should be used for a pouch filling machine?
The page specifies food-grade PE roll film for the vertical pouch unit. Before ordering, confirm the film width, thickness, print registration, pouch volume, sealing temperature range and whether the product requires a particular barrier structure. A film sample should be checked against the final machine and product conditions.
Is a gable-top carton machine suitable for ambient UHT milk?
The listed gable-top machine is positioned for fresh pasteurized milk distributed in a refrigerated ESL cold chain. Ambient UHT products require an aseptic processing and packaging system designed for that process. Confirm the product heat treatment, target shelf life, distribution temperature and carton specification before selecting the line.
How are product-contact parts cleaned?
Confirm product-contact materials, surface finish, cleaning access and CIP connections in the selected machine specification. Define cleaning chemicals, temperature, flow and cycle time for the product and validate the procedure, including parts requiring separate cleaning.
Automating Your Packaging Line?
Share the product, container and closure samples, fill volume, target hourly output, utilities and destination market. NexAgri can review the dosing, sealing, hygiene and line-interface requirements before preparing a machine proposal.
