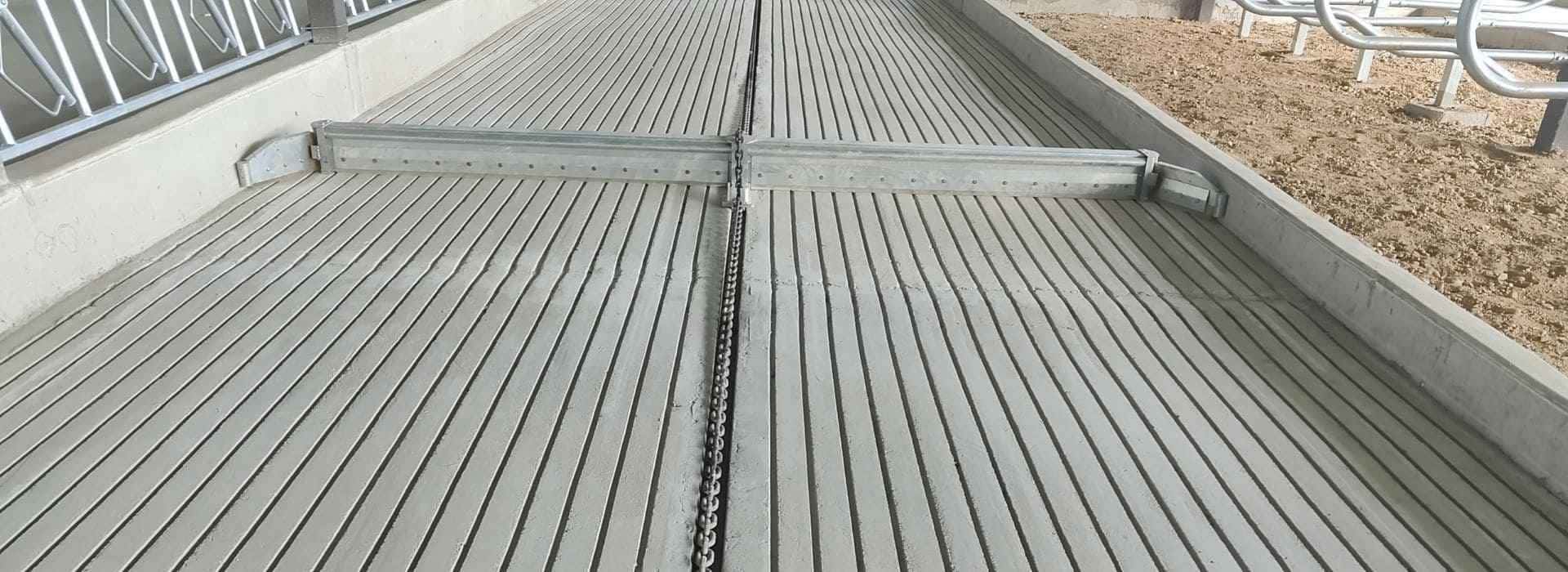

Automatic Heavy-Duty Manure Scraper System
Smart Barn Hygiene Automation

Manure Scrapers for Commercial Dairy Barns

NexAgri chain-drive manure scrapers support scheduled alley cleaning in commercial dairy barns. Select the blade, drive and controls around alley dimensions, flooring, bedding, manure consistency and the collection route.

Review Layout & Running Costs
Chain DriveAlley and load planning
Control OptionsTimer or PLC configuration
0.75–1.5 kWDrive power range
Site LayoutFloor, crossings and discharge

Why Automate Manure Removal?

Plan a defined cleaning route and schedule, with suitable drive capacity, control functions and access for inspection and maintenance.

Cleaning

Defined Alley Route

Scheduled scraping moves accumulated manure toward the collection point. Pair the scraper routine with floor drainage and residual cleaning.

Scheduled

Cleaning Cycles

Timer-based or PLC control supports scheduled scraper cycles. Include supervision, crossover cleaning, inspections and maintenance when comparing the new routine with current labour and tractor use.

200m

Layout Option

Plan drive selection, chain routing, crossings and the collection point together for the 200 m layout option.

System Configurations

Select the control intelligence level that matches your herd management requirements.

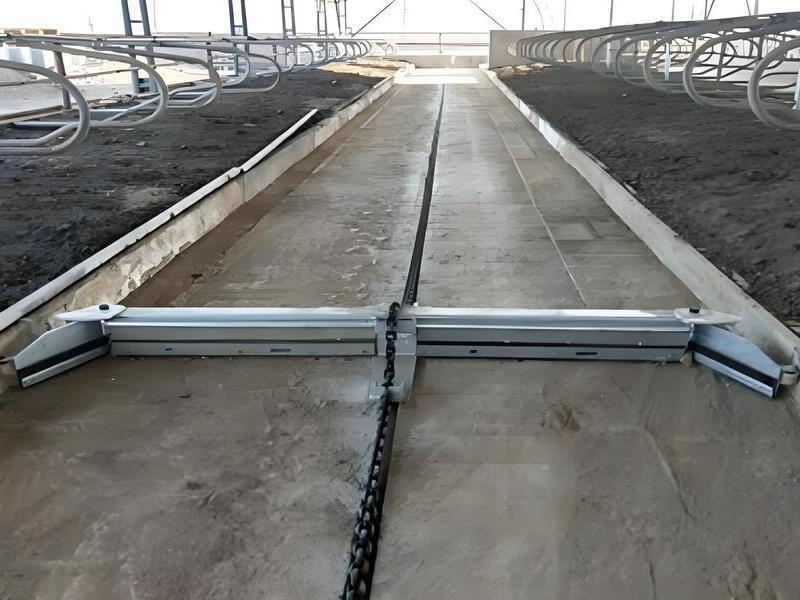

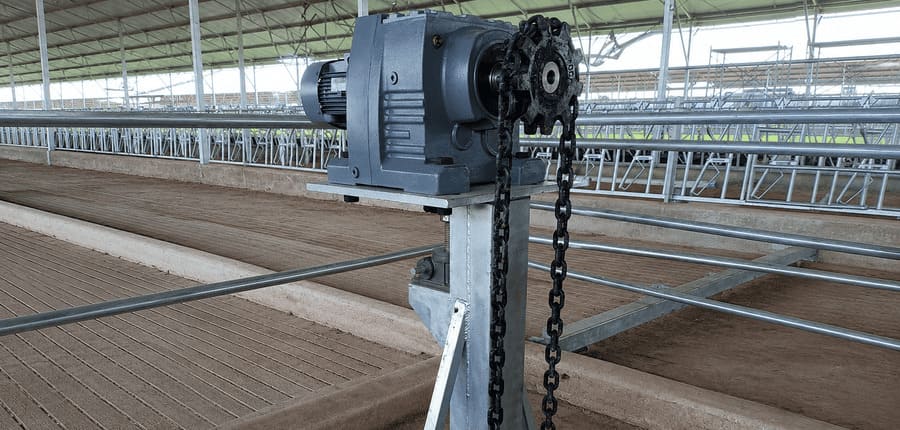

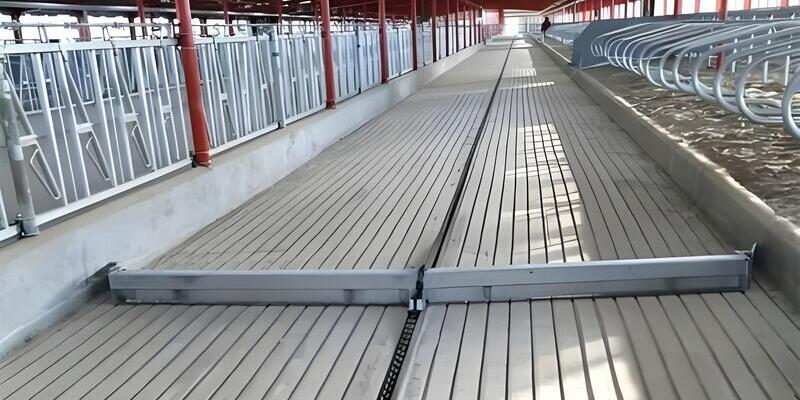

Standard Chain Drive Scraper
Standard Series

Heavy-Duty Chain Drive

Reliable Automation

Built for reliable daily operation with a heavy-duty gearbox and hardened steel chain. Designed for consistent alley cleaning with simple timer-based control.

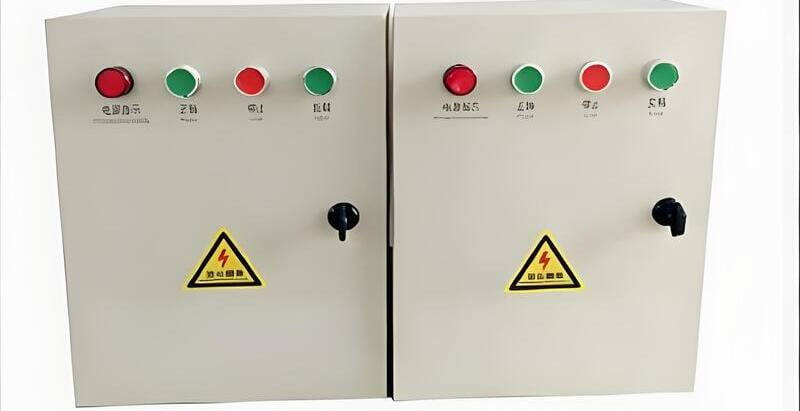

PLC Control Option

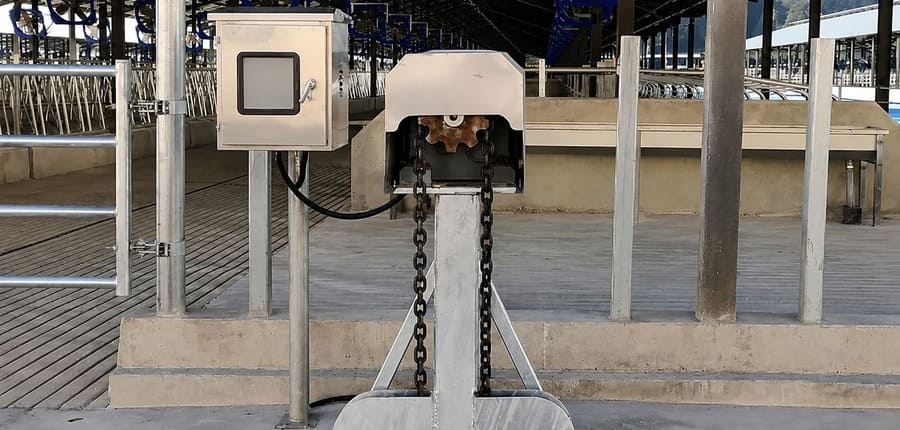

Smart PLC Chain Drive System
Premium Series

Smart PLC Chain Drive

Resistance Monitoring

The PLC configuration combines scheduled cleaning, resistance monitoring and automatic reverse. Commissioning sets the operating schedule and response parameters for the barn.

System Feature Standard Series Premium Series
Chain & Gearbox Heavy-Duty Included Heavy-Duty Included
V-Shape Scraper Blades Included Included
Smart Obstacle Detection — ✓ Resistance Detection + Auto-Reverse
Frost Protection Mode — ✓
Control Interface Time-Based Controller PLC Intelligent Control

Engineering Deep Dive

The chain-drive system brings together the motor, gearbox, drive chain, V-shaped blades and corner wheels. The table below outlines component specifications and configuration options.

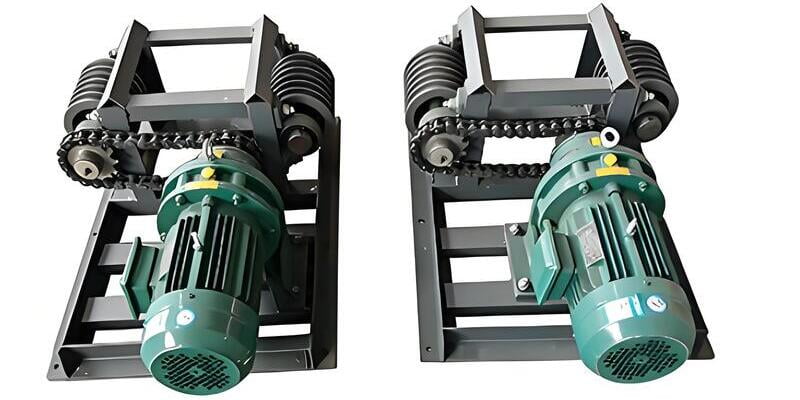

High-Torque Motor

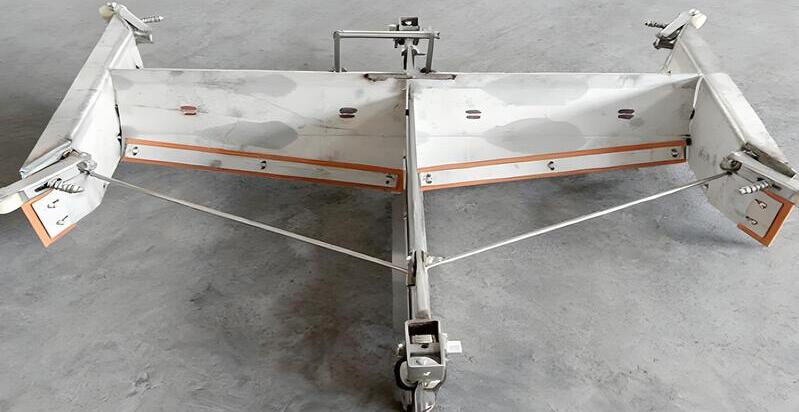

V-Shape Blade
Corner Wheels
Component Material / Spec
Drive Motor 0.75–1.5 kW drive range; IE3 motor options and 380 V / 50 Hz configuration, confirmed for the selected drive and local supply.
Gearbox Heavy-duty cycloidal reducer for smooth transmission.
Drive Chain Hardened steel drive chain, selected with the drive and route layout for the alley and manure load.
Blade Design V-shaped folding blade arrangement for the return stroke. Blade edges are selected for the floor surface.
Floor Adaptability Steel frame with optional polyurethane rubber edges for rubber mats.
Corner Wheels Cast iron with double-sealed bearings and grease fittings.

Total Cost of Ownership (TCO) & Planning Guide

Compare equipment, installation, electricity, labour and maintenance using the farm’s current cleaning routine and proposed scraper schedule.

1. Cleaning Labour & Operating Costs

Record current cleaning hours, fuel, machine wear and staffing. Compare these with scraper electricity, inspections, chain and blade wear, residual cleaning and installation work. Labour requirements depend on the route and daily management.

2. Cleaning Schedule & Floor Conditions

Set the cleaning interval from manure accumulation, bedding, drainage and cow movement. A 2–3-hour interval can be evaluated during commissioning; floor condition and health outcomes also depend on wider farm management.

3. Collection & Downstream Handling

Coordinate scraper cycles with the discharge point, slurry transfer and storage system so removed manure can move through the downstream handling process.

Project Cost Planning

Scraper Layout & Running Cost Inputs

  • Equipment ScopeAlley length, blade width, chain route, drive units and control configuration.
  • InstallationFloor preparation, fixing points, corner wheels, electrical work and discharge interfaces.
  • Daily OperationCleaning frequency, electricity, supervision and residual manual cleaning.
  • Service & DeliveryChain tensioning, lubrication, blade and wheel wear, freight and installation support.

Compare the proposed system with current cleaning records and local costs. Payback depends on the equipment scope and operating routine.

Plan Your Project with NexAgri

Mark the points below on your barn sketch. NexAgri can review chain routing, drive position and equipment scope against the dimensions and site conditions.

Barn sketch inputs for a chain-drive manure scraper layout review Conceptual top view with numbered input locations. One: alley dimensions. Two: floor and bedding. Three: crossings and access. Four: route and drive position to review. Five: collection and discharge. Six: power and controls. This is not an installation drawing. 1 2 3 4 5 6 Illustrative input map. Not to scale. No chain routing is specified.
Illustrative input map, not an installation drawing. Final chain routing, equipment positions and clearances are confirmed for the project.
  1. Alley dimensions

    Mark the length and width of each alley.

  2. Floor and bedding

    Identify floor material, slope, mats and bedding.

  3. Crossings and access

    Mark animal crossings, doors and service access.

  4. Route and drive position

    Mark corners and possible drive positions for review.

  5. Collection and discharge

    Show collection channels, discharge points and downstream equipment.

  6. Power and controls

    Provide voltage, phase, frequency and timer or PLC preference.

Next steps: Site measurement → layout review → agreed installation and commissioning scope.
