Orthopedic Cow Mattresses | High-Yield Comfort Solutions | NexAgri
Cows resting on NexAgri Orthopedic Mattresses
Commercial Herd Welfare Infrastructure

Simulate Pasture Comfort. Harvest More Milk.

Designed to encourage 12-14 hours of daily resting behavior, our orthopedic mattress systems reduce bedding dependency by up to 80% while supporting higher-producing dairy herds.

Calculate Farm ROI
15+
Years Engineering
5,000+
Stall Projects
30+
Export Markets
ISO
9001 Manufacturing

Why Poor Flooring Reduces Dairy Farm Profitability

Standing on hard surfaces causes joint inflammation, reduces udder blood flow, and limits your commercial productivity.

-80%

Bedding Cost Drop

Stop buying, transporting, and managing deep sand or straw. Our high-grip surfaces only require a minimal dusting of sawdust to maintain perfect hygiene.

14hr

Target Resting Time

Multi-layer shock absorption encourages cows to lie down faster. Extended resting time translates directly to optimized blood flow and milk let-down.

<5%

Compression Set

High-elasticity EVA and rubber compounds ensure the mat returns to its original shape, eliminating the "puddling" effect even after years of 700kg pressure.

Choose the Right Support System

From heavy-duty seamless rubber rolls to premium multi-layer orthopedic systems for high-yielding herds.

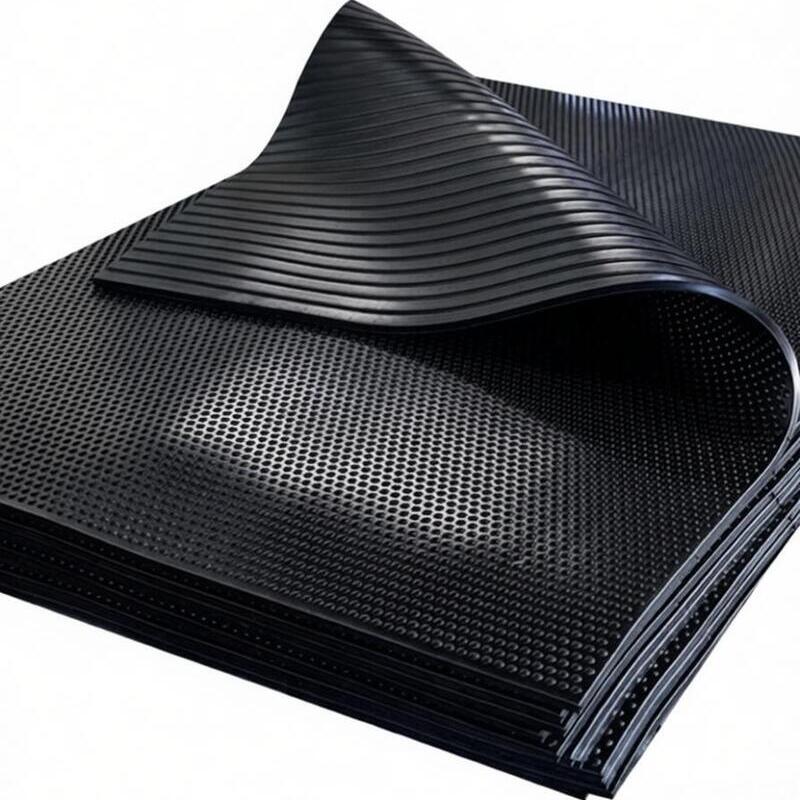

Rubber Cow Mat Rolls
Standard Durability

Continuous Rubber Rolls

Seamless Protection for Large Areas

Vulcanized rubber reinforced with nylon fabric. Eliminates seams where bacteria breed.

Best For:
  • Cow alleys & walkways
  • Holding areas
  • High traffic zones
  • Standard freestalls
Highest Yield

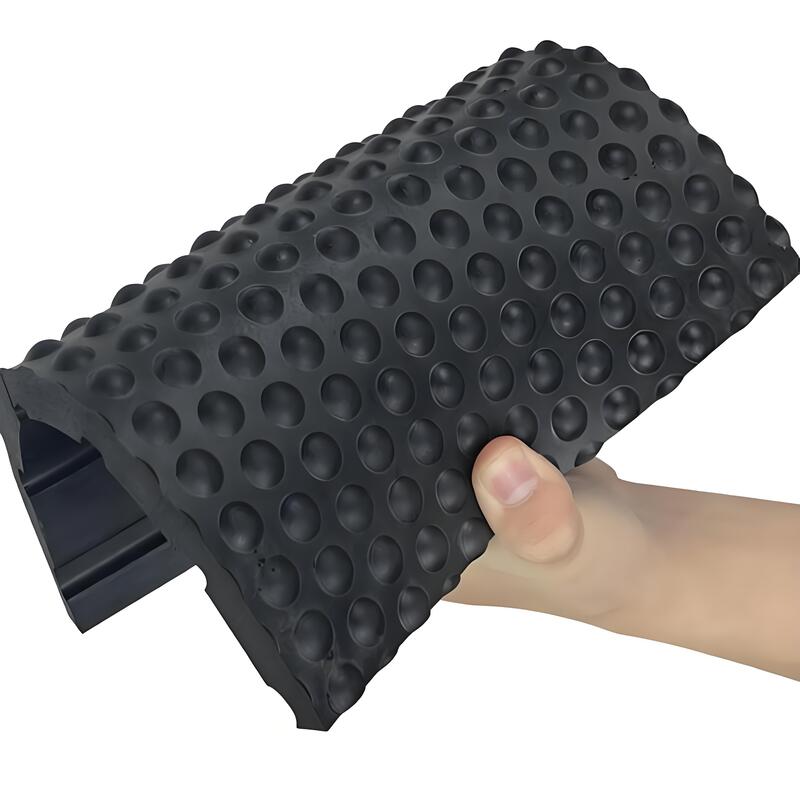

Multi-layer Orthopedic Mattress
Premium Comfort

Multi-Layer Orthopedic

The Gold Standard for Milk Production

Features a high-density PU/Latex foam core sealed beneath a heavy-duty PES top cover. Delivers unmatched shock absorption.

Best For:
  • High-yield dairy barns
  • Premium freestalls
  • Fresh cow pens
  • Recovery areas
System Feature Continuous Rubber Rolls Multi-Layer Orthopedic
Total Thickness 10mm - 20mm 30mm - 45mm
Core Material Solid NR/SBR Rubber High-Density PU Foam
Shock Absorption (Rebound) Medium Maximum (Simulates Pasture)
Primary Application Walkways & Standard Stalls High-Yield Dairy Stalls

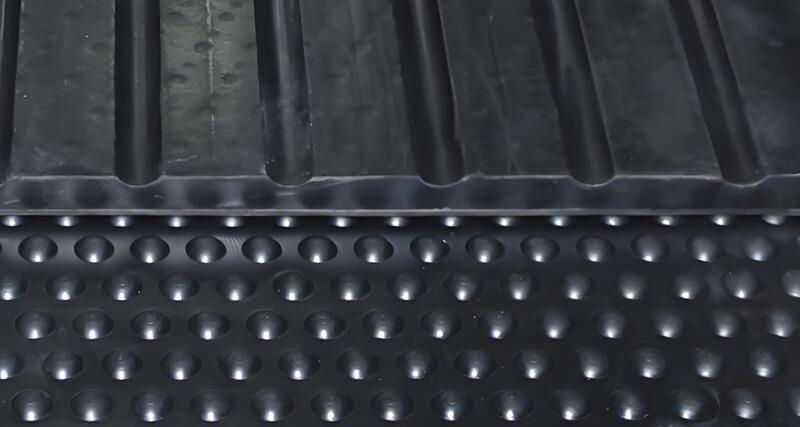

Engineering Deep Dive

Material science optimized for the harsh realities of commercial manure, moisture, and extreme weight.

Anti-Slip PES Cover
High-Density PU Foam
Rubber Shock Absorption Base
Component Material / Spec
Surface Texture Hammer-top or pebble design (Multi-directional grip)
Base Material SBR/NR Rubber or Vulcanized EVA
Hardness Profile Shore A 60-65 (Optimal Balance of Support & Softness)
Chemical Resistance 100% impervious to ammonia, urine, and common barn disinfectants
Installation Method Stainless Steel 304 expansion bolts & tension strips

Total Cost of Ownership (TCO) & Planning Guide

Mattress infrastructure is a rapid-payback commercial asset. Evaluate OpEx savings and yield improvements before procurement.

1. Operational Expenditure (OpEx) Bedding Savings

Deep sand or straw beds require continuous labor for leveling, topping up, and managing manure lagoons. Sand specifically causes massive wear and tear on manure pumps and scrapers.

By switching to NexAgri orthopedic mattresses, farms typically reduce bedding volume by up to 80%, substituting heavy material for a light dusting of kiln-dried sawdust purely for moisture absorption. This directly slashes your monthly supply and labor budgets.

2. SCC Reduction & Udder Health

Organic bedding like straw acts as an incubator for environmental pathogens (e.g., Klebsiella, Strep. uberis), spiking Somatic Cell Counts (SCC). Our vulcanized rubber covers are non-porous and feature precision-engineered hygienic slopes, allowing urine to run off immediately. A cleaner udder going into the milking parlor means less prep time, lower mastitis rates, and premium milk quality bonuses.

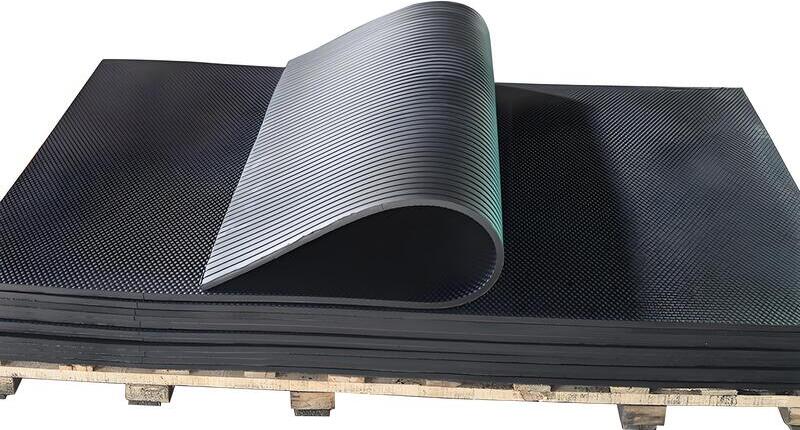

3. Stall Sizing & B2B Wholesale Shipping

We provide standard cuts (e.g., 1200mm x 1800mm) or continuous rolls up to 50 meters to minimize seams in the barn. Because we manufacture directly, we optimize 20ft and 40ft shipping containers for maximum volume density. This drastically lowers your landed cost-per-stall for projects over 100 stalls.

Financial ROI Analysis

Projected CapEx Payback

Annual Bedding / Labor Costs -80% Drop
Sand/Straw
Mattress
CapEx Recovery Period 18-24 Months
Resting Time Impact Supporting Improved Milk Yield

Global Installation Reality

Real operational metrics from commercial dairies trusting NexAgri comfort infrastructure.

USA Commercial Dairy Farm
USA Commercial Dairy Farm USA

High-Yield Freestall Barn

Quantity 1,000 Mattresses
Product type Multi-Layer Orthopedic
Previous Bedding Deep Sand
Outcome -40% Lagoon Maint.

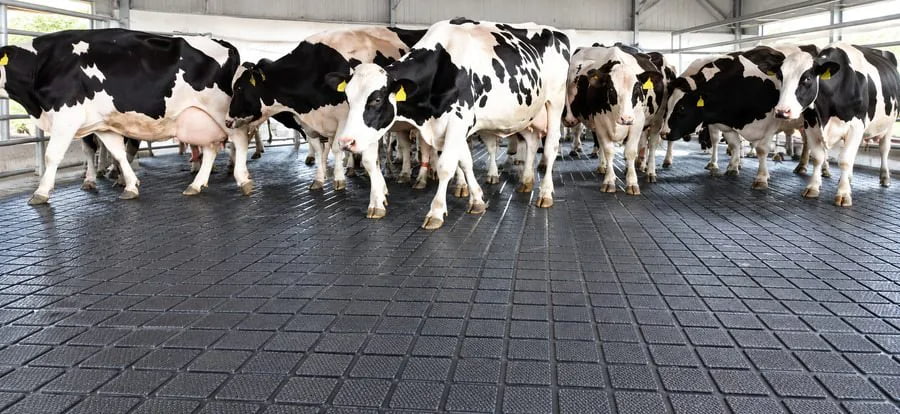

Asian Large-Scale Dairy
Asian Large-Scale Dairy Asia

Large Scale Walkway Upgrade

Quantity 4,500 Sq. Meters
Product Type Continuous Rubber Rolls
Commissioned 2025
Outcome Zero Slippage Incidents

Complete Your Cow Comfort System

Enhance mattress effectiveness with dedicated stall infrastructure and environmental controls.

NexAgri Cow Free Stalls

Cow Free Stalls

The structural boundary. Hot-dip galvanized Q235B steel engineered to guide cows perfectly onto the mattress without injury, preventing manure dropping on the bed.

View Product Details →
NexAgri Barn Fans

High-Velocity Barn Fans

Maintain optimal temperature in the resting zone. A comfortable mattress requires high-volume airflow to mitigate heat stress while cows lie down.

View Product Details →
Cathy Xu

Reviewed by Cathy Xu

Sales Director, NexAgri Solutions

Expert in engineering turnkey dairy projects, automation integration, and heavy agricultural equipment sourcing for large-scale commercial farms worldwide.

Technical Frequently Asked Questions

Expert technical answers to help you plan your commercial cow housing setup.

Is rubber better than EVA for cow mattresses?
It depends on the application. Rubber is superior for heavy-traffic walkways due to its extreme durability and anti-slip properties. EVA or PU-core orthopedic mattresses are better for the actual stall bed because they provide higher thermal insulation and "rebound" comfort, which is what encourages the cow to lie down longer and produce more milk.
What is the recommended cow mattress thickness?
For high-yield stalls, a thickness of 30-45mm is recommended. This provides the optimal balance of shock absorption and durability, allowing the cow to comfortably drop onto her knees when lying down without striking the concrete below.
How long do dairy cow mattresses last?
High-quality dairy cow mattresses typically last 8-10+ years depending on usage, herd size, and maintenance routines. NexAgri uses high-density vulcanized rubber designed specifically to withstand the 24/7 pressure of 700kg+ dairy cows.
How do you prevent cows from slipping on wet mats?
Our mattresses feature a specialized "Hammer-Top" or "Pebble" textured surface that provides multi-directional grip. This is critical when the cow is getting up (the highest-risk moment for slips). The texture ensures that even when the mat is wet with urine or manure, the hoof has enough friction to prevent "splitting" and devastating hip injuries.
How are the mattresses securely fixed to the concrete floor?
We provide a full installation kit containing stainless steel 304 expansion bolts and heavy-duty fixing strips. For continuous roll-type mattresses, we use a mechanical tensioning system at both ends of the row. This ensures the mat remains perfectly flat and doesn't "wave" or shift, which is essential to prevent dirt and bacteria from becoming trapped underneath.

Ready to Optimize Your Herd's Resting Time?

Stop losing milk yield to poor barn flooring. Submit your barn dimensions and herd size. Our engineering center will supply an optimized volume calculation and factory-direct B2B quotation within 24 hours.

Factory direct supply for 50 to 5,000+ Cow Operations.
