Commercial Continuous HTST Plate Pasteurizer Unit
High-Throughput Continuous Series

HTST Continuous Plate Pasteurizers

NexAgri HTST plate pasteurizers serve continuous dairy and liquid-beverage processing lines, with listed flow capacities of 500 to 3,000+ L/H. Plate material, gaskets, thermal duty, control response and documentation are selected around the product, flow rate, utilities and destination requirements.

Review Utility Planning
500–3,000+ L/HListed continuous flow range
Plate HTSTProcess-specific thermal duty
Heat RegenerationDuty confirmed by configuration
Line PlanningUtilities, controls & CIP
At-a-Glance Specifications

Compare compact 500–1,000 L/H skids with 2,000–3,000+ L/H industrial modules. Select heating utilities, controls and cleaning connections for your product and production schedule.

Flow Capacity 500 - 3,000+ L/H
Thermal Method HTST (72-85°C / 15-20s)
Heat Regeneration Process-Specific Duty
Control Automation PLC / Diversion Controls
Plate Grade AISI 316L (Ra ≤ 0.4μm)
Sanitation Loop Automated CIP Ready

Why Commercial Dairies Choose Plate HTST

Compare throughput, regeneration duty, diversion controls and cleaning arrangements against the planned product and plant utilities.

Recovery

Thermal Energy Recovery

Outgoing processed product can preheat incoming cold product across separate plate channels. The recovery duty and utility demand depend on product properties, temperatures, flow and exchanger selection.

3,000L/H

Continuous Flow Rate

Match the selected flow rate to product properties, holding requirements and downstream storage or filling. Include startup, changeover and cleaning in the operating schedule.

Controls

Automatic Flow Diversion

A pneumatic diversion valve can return product when monitored conditions fall outside the approved process settings. Specify response, interlocks, return routing and commissioning tests for the selected line.

Processing Scale Configurations

Compare frame size, utility interfaces, controls and cleaning connections for the required output. Regeneration references below apply at the specified product temperatures and flow.

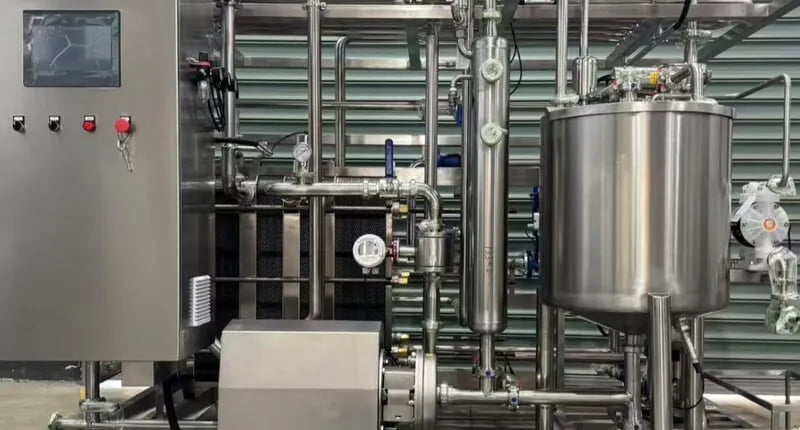

Standard HTST Skid Pasteurizer
500L - 1,000L / Hour

Standard HTST Skid Unit

Compact & Factory Pre-Assembled

Skid-mounted stainless steel chassis featuring a balance tank, sanitary centrifugal feed pump, plate pack, holding tube, and semi-automatic digital PID panel. Configurable for electric hot water or steam heating.

Ideal Applications:
  • Regional milk collection centers
  • Central processing kitchens & dairies
  • Medium-scale fluid milk bottling lines
Multistage Configuration

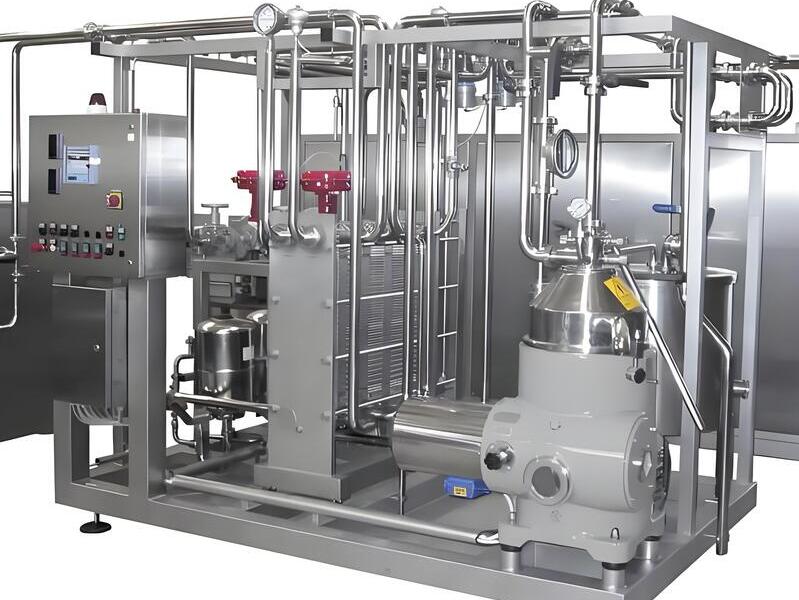

Industrial Multistage HTST Module
2,000L - 3,000L+ / Hour

Industrial Multistage Module

Automated High-Capacity Line

Listed industrial configurations use heating, regeneration, pre-cooling and chilling stages with flow regulation, diversion, recording and CIP interfaces. Confirm PLC brand, instrumentation and integration scope in the proposal.

Ideal Applications:
  • Large commercial dairy processing enterprises
  • Continuous yogurt & ESL beverage plants
  • High-speed pouch & bottle packaging lines
Technical Parameter Standard Skid (500L-1,000L/H) Industrial Module (2,000L-3,000L/H+)
Listed Regeneration Reference 65% - 70% — Confirm at Design Duty >75% Four-Stage Reference — Confirm at Design Duty
Heating Utility Options Electric Hot Water / Boiler Steam Industrial Steam Boiler Connection
Automation & Control Panel Digital PID Micro-Processor Siemens PLC Touchscreen System
Inline Homogenizer Port Optional Bypass Valve Standard Pre-Piped Interface (60-65°C)
Sanitation Protocol Manual / Semi-Auto CIP Connection Fully Automated Central CIP Loop Sync

Engineering Deep Dive

Corrugated plates, sanitary connections and replaceable gaskets form the product-contact circuit. Select plate finish, gasket grade and diversion controls around the product, cleaning chemistry and destination requirements.

AISI 316L Corrugated Plates (Ra < 0.4μm)
Sanitary Tri-Clamp Connections
Food-Grade Clip-On EPDM Gaskets
Component Material / Engineering Specification
Plate Material Food-Grade AISI 316L Stainless Steel (Herringbone Press Pattern)
Surface Finish Mirror Polish (Ra ≤ 0.4μm) — Confirm Finish and Cleaning Requirements
Sealing Gaskets Clip-On EPDM / NBR Gaskets — Confirm Grade, Compatibility and Documentation
Flow Diversion Valve Pneumatic 3-Way Diversion Valve — Response and Interlocks to Confirm
Data Recording Digital Paperless Recorder with USB/Ethernet audit trail export

Total Cost of Ownership (TCO) & Planning Guide

Assess the complete heating, cooling and cleaning duty of the proposed line. Compare equipment, installation and operating costs using local tariffs and the planned production schedule.

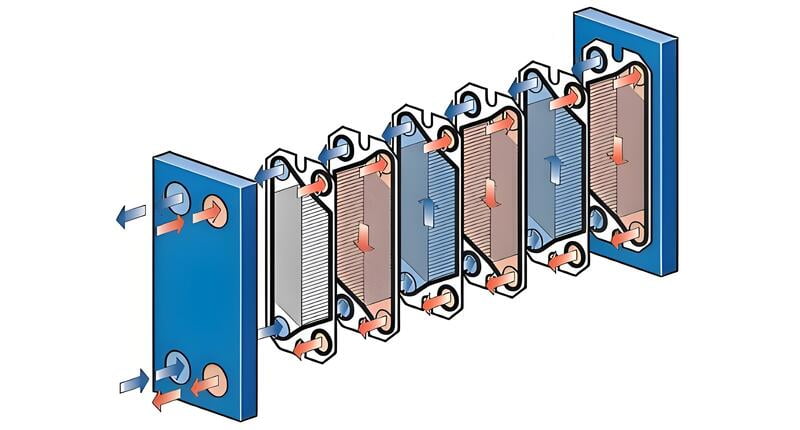

1. How Heat Regeneration Reduces Utility Consumption

Calculate heating and cooling demand from product flow, properties, inlet temperature and the approved process setpoints. Include the available utility temperatures and capacities in exchanger selection.

Regeneration transfers heat from outgoing product to incoming product across separate plate channels, reducing external heating and cooling loads. Calculate recovered duty from the specified product flow and temperatures.

2. CIP Cleanability & Anti-Fouling Plate Maintenance

Product residues can affect plate flow and heat transfer. Monitor operating performance and define inspection and cleaning intervals for the product, duty and operating hours.

Set CIP temperature, chemical concentration, flow, contact time and rinsing for the product residues and material compatibility. Use cleaning results and operating performance to schedule plate-pack inspection and gasket service.

3. Process Validation & Data Recording

Define the required temperature, flow and diversion records, calibration, access controls and retention requirements for the selected process and destination. Confirm the recorder and export functions in the equipment scope and include commissioning and process-validation checks.

Project Cost Planning

Compare Thermal Duty & Operating Costs

  • Process dutyProduct, flow, inlet and outlet temperatures, holding requirements and regeneration design.
  • Utilities & installationHeating and cooling sources, connections, pumping, controls and commissioning.
  • Operating scheduleProduction hours, changeovers, CIP inputs, local tariffs, labor and maintenance.
  • Validation & documentationAgreed tests, calibration, records and destination requirements.

Compare against a defined existing process. Recovery, savings and payback depend on the selected duty and project costs.

Global Installation Reality

Compare HTST skid installations by milk flow, process stages and heat-recovery arrangement.

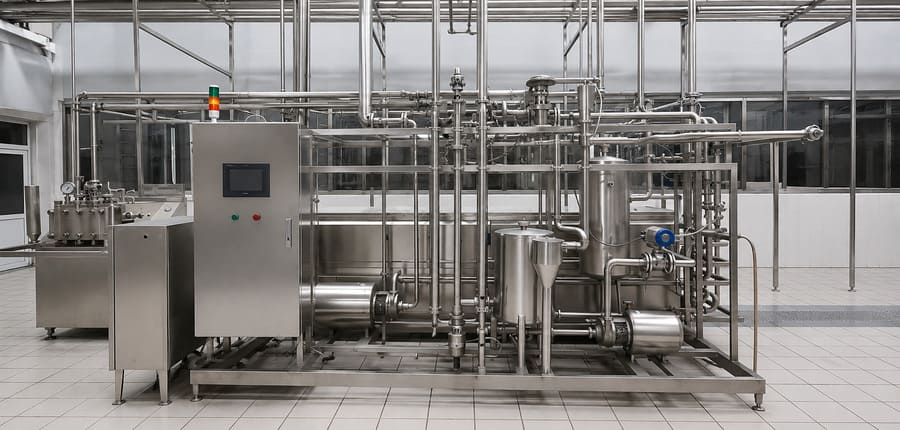

2,000 L/H 4-stage continuous plate HTST pasteurizer system in Tashkent Uzbekistan
Tashkent, Uzbekistan Uzbekistan

Commercial Fluid Milk Bottling Facility

Commissioned 2023
Flow Capacity 2,000 L/H
System Type 4-Stage Plate HTST
Heat-Exchange Layout Four-Stage Plate System
1,000 L/H integrated HTST pasteurization skid with PLC control unit in cleanroom facility
Querétaro, Mexico Mexico

Dairy Processing & Beverage Skid

Commissioned 2022
Flow Capacity 1,000 L/H
System Type Modular HTST Skid
Installation Format Modular HTST Skid

Complete Your High-Capacity Processing Plant

Coordinate raw-milk cooling and storage before pasteurization, then plan the processing line’s final cooling and filling stages.

Refrigeration units for a modular milk-cooling system

Milk Quick Cooling Systems

Cool incoming raw milk before refrigerated storage and pasteurization. Match peak milk flow, inlet temperature and available cooling utilities to the system configuration.

View Product Details →
Outdoor Milk Silos

Outdoor Milk Silos (20T-120T)

High-capacity insulated stainless steel silos designed for buffer storage of raw or pasteurized milk with automated CIP spray balls.

View Product Details →
Horizontal Milk Cooling Tanks

Horizontal Milk Cooling Tanks

Industrial bulk cooling tanks (1T to 30T) with direct-expansion cooling plates for raw milk reception.

View Product Details →

Plate HTST Pasteurizer FAQs

Practical engineering answers for dairy processors, beverage plants and project procurement teams.

What capacity should I choose for a continuous plate pasteurizer?

Size the line around the required hourly output, the peak production window and the capacity of downstream storage or filling equipment. NexAgri configurations cover 500 to 3,000+ L/H: compact skid units are listed at 500 to 1,000 L/H, while industrial modules cover 2,000 to 3,000+ L/H. Confirm the product type, target flow rate and planned operating hours when requesting a configuration.

How does heat regeneration work in an HTST plate pasteurizer?

Outgoing processed product transfers heat to incoming cold product across separate plate channels. Listed references are 65% to 70% for the standard skid and over 75% for the four-stage module; confirm these at the agreed product, flow and temperature duty. Recovery percentage is not a guaranteed reduction in total plant utility cost.

Do I need a steam boiler for a plate pasteurizer?

Not in every case. The 500 to 1,000 L/H standard HTST skid can be configured for electric hot water or boiler steam. The 2,000 to 3,000+ L/H industrial module is specified for an industrial steam-boiler connection. Utility selection should be checked against the site's available electrical supply, steam capacity, chilled-water system and production schedule.

What pasteurization temperature and holding time can the system use?

The specified HTST reference range is 72 to 85°C with a 15 to 20 second holding time. The required setpoint must be selected for the specific product and the applicable local food-processing requirements. The system's temperature control, holding tube and flow-diversion valve are configured around the approved processing parameters.

Can a homogenizer or cream separator be integrated in the process line?

Yes. The standard skid has an optional inline-homogenizer bypass valve, and the industrial module includes a pre-piped interface specified at 60 to 65°C. Confirm the required product viscosity, homogenization pressure, separator duty and line flow during process design so the connection and control sequence can be matched to the full dairy processing line.

How are the plates cleaned and maintained?

The unit is designed for CIP connection. It uses AISI 316L corrugated plates with a Ra ≤ 0.4 μm surface specification, sanitary Tri-Clamp connections and clip-on EPDM or NBR gaskets. A suitable cleaning recipe, solution temperature, flow rate and inspection interval should be set for the processed product; plate and gasket service can then be planned around operating hours and cleaning results.

Ready to Scale Up Your Continuous Line?

Share the product, target hourly flow, inlet and outlet temperatures, holding requirements, operating hours, utilities and destination market. NexAgri can review plate-unit configuration, regeneration duty and quotation scope.

Continuous processing configurations from 500 L/H compact skids to 3,000+ L/H commercial modules.
