Commercial Outdoor Milk Silos
for Bulk Dairy Storage
Plan outdoor milk storage around your site and collection schedule. NexAgri offers 20–120 tonne vertical silos with 100mm PU insulation and Miller Plate cooling; foundation, access and cooling duty are defined for the selected project.
Select Your Storage Configuration
Match daily milk volume, collection frequency and available space with a suitable storage and cooling configuration.
5 - 15 Tons
Horizontal indoor cooling tanks suitable for mid-sized dairies with adequate milk room space.
20 - 50 Tons
Vertical outdoor silos for commercial dairies. Review foundation loads, milk-room connections and outlet elevation alongside the required capacity.
60 - 120 Tons
Massive buffer storage for milk processing plants and collection centers requiring multi-truck dispatch capabilities.
Storage Architecture Comparison
| Configuration | Civil Engineering Requirement | Cooling Arrangement | Emptying Dynamics | CapEx Impact |
|---|---|---|---|---|
| Indoor Horizontal Tanks | Milk-room space, ventilation and service access | Direct-expansion cooling by configuration | Standard Sloped | Building scope depends on existing facilities |
| Vertical Outdoor Silos | Engineered foundation, access and milk-room interface | Miller Plate + 100mm Insulation | Gravity discharge with planned outlet and drainage | Building alterations assessed by site |
Engineered for Reliability & Hygiene
NexAgri offers AISI 304 stainless-steel silo configurations. Material, fabrication and documentation requirements are confirmed for the selected silo and destination market before quotation.

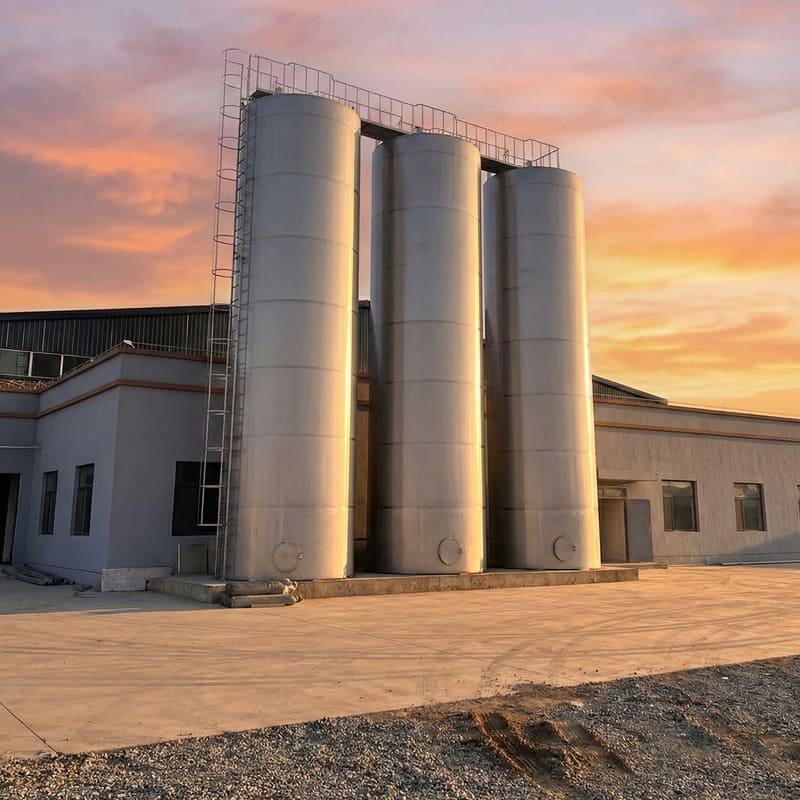

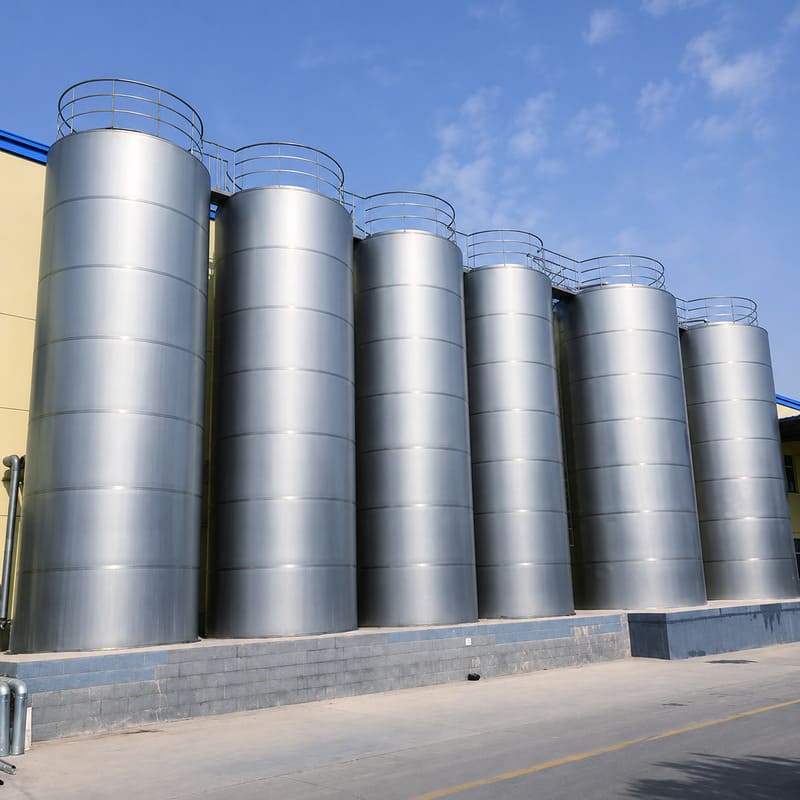

Vertical Outdoor Silos (20T - 120T)

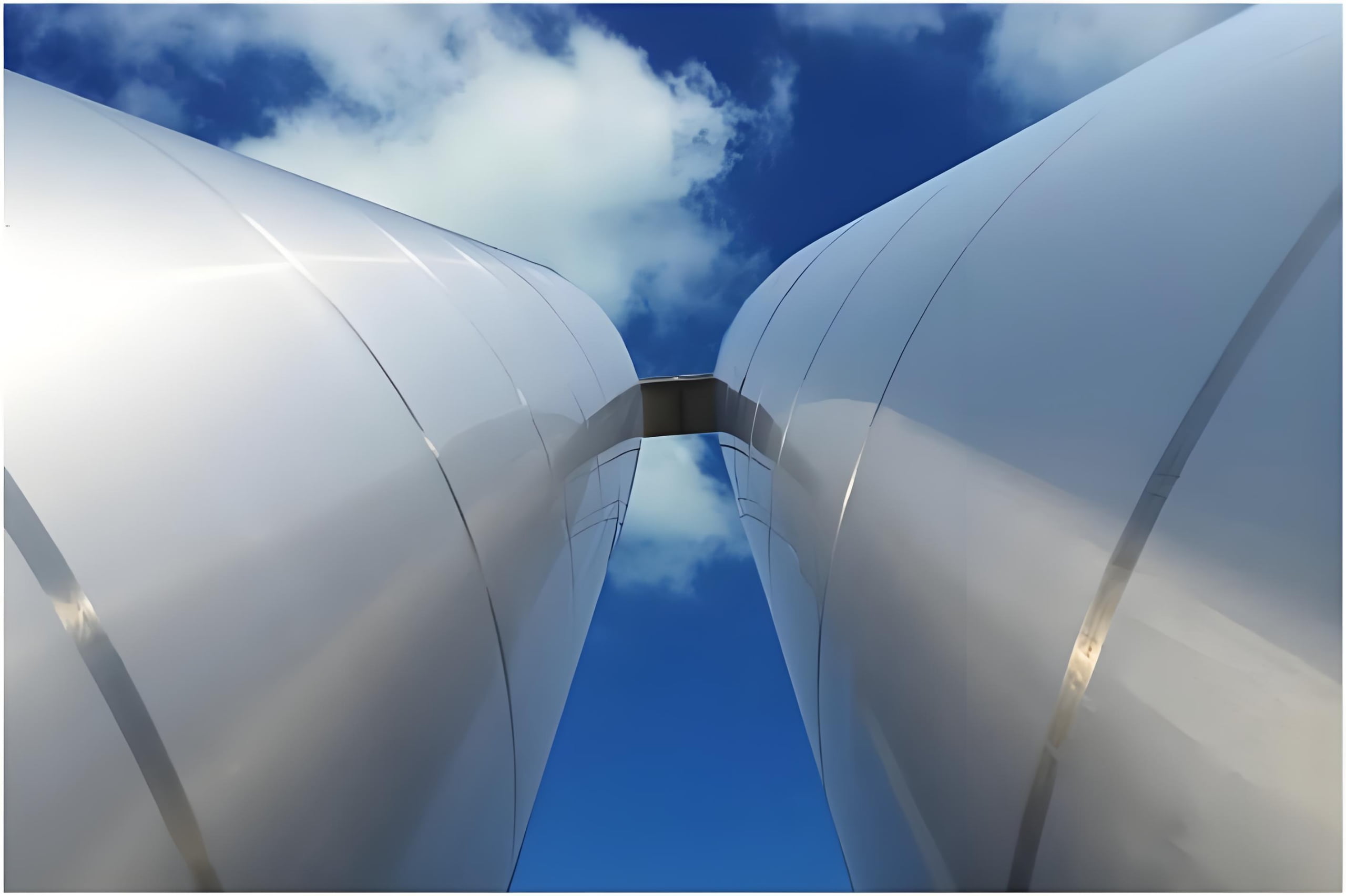

Outdoor Storage Configuration
An alcove arrangement can connect the outdoor silo to the milk room. The 100mm polyurethane insulation limits heat transfer; milk-temperature performance depends on ambient conditions, incoming milk temperature, fill level, cooling duty and operating routine.
Industrial-Grade Thermal Technology
Protecting your most valuable asset requires uncompromised material science and refrigeration engineering.
Miller Plate Jacket
A Miller Plate cooling jacket provides a heat-transfer surface around the vessel. Size the cooling duty for milk volume, inlet temperature, available utilities and operating conditions.
T-Type CIP Cleaning
T-type rotary spray devices and vent arrangements are specified with cleaning flow, pressure, chemistry and drainage. Cleaning coverage and inspection access are reviewed for the selected vessel.
Hygienic Geometry
Radiused vessel transitions and finished welds support cleanability. Specify the surface finish, cleaning routine and inspection requirements for the milk-handling process.
Safe Access Design
Ladders, platforms and manholes are selected around inspection, maintenance and local site-safety requirements. Confirm the access arrangement in the approved layout.
Total Cost of Ownership (TCO) & Planning Guide
Evaluating the financial impact of shifting from indoor tanks to commercial outdoor silos.
1. Foundation & Building Scope
Size storage from daily milk volume, collection frequency and the required buffer. Outdoor installation may reduce enclosed milk-room space, but the budget still needs foundations, crane access, drainage, utility connections and any alcove or building alterations. Compare these items against the existing site and selected silo.
2. Footprint vs. Capacity Ratio
Vertical silos use height to accommodate storage volume. Compare the selected silo footprint with an indoor tank arrangement of equivalent total capacity, including maintenance clearance, crane access and milk-tanker routes. Use dimensioned layouts for the comparison.
3. Thermal Duty & Operating Costs
The 100mm PU insulation limits heat gain. A cooling target such as 4°C must be assessed with incoming milk temperature, filling pattern, ambient conditions and refrigeration capacity. Estimate compressor duty and electricity costs from the selected system and local operating schedule.
Indoor vs. Outdoor Scope
Site Work to Compare
Indoor Layout
Milk-room space, access and building alterations
Outdoor Silo
Foundation, lifting access, drainage and utilities
Milk Silos FAQs
Practical answers for commercial dairies planning high-capacity outdoor milk storage.
How do I choose the right milk silo capacity?
Start with daily milk volume, collection frequency, the intended storage buffer and the site’s available installation area. This page covers 20 to 120 tonne configurations. The final capacity should also account for the milk room interface, truck access and the refrigeration arrangement required for the operating schedule.
What site preparation does an outdoor milk silo require?
Plan the foundation, crane access, delivery route, drainage, electrical supply and the connection between the silo and milk room before installation. For projects using an alcove interface, the wall opening and service access should be coordinated with the final drawing rather than set from a generic dimension.
How is the foundation specified for a large milk silo?
The foundation must be engineered for the selected silo capacity, fully loaded weight, local soil conditions, wind conditions and applicable local requirements. Confirm the final capacity and site data first; the project drawing can then define the required foundation layout, anchor-bolt positions and civil-work inputs.
How does the silo handle outdoor temperature exposure?
This page specifies 100 mm polyurethane insulation and an outer stainless-steel shell for the outdoor storage configuration. Actual milk-temperature performance still depends on ambient conditions, milk inlet temperature, tank fill level, cooling configuration and operating routine, so those inputs should be reviewed for the project location.
What cooling system is used for a commercial milk silo?
The page describes integrated Miller Plate cooling for the 20–120 tonne outdoor silo range. Cooling capacity should be selected against daily volume, milk inlet temperature, ambient conditions, collection interval and available electrical supply rather than assumed from silo capacity alone.
How are cleaning and daily access arranged?
Confirm the cleaning method, water and chemical supply, drainage route and required access points in the final configuration. Where an alcove connection is selected, the outlet valve, temperature display, sampling points and controls can be planned for access from the milk-room side, subject to the approved layout.
Ready to Scale Your Storage Capacity?
Send your daily milk volume, collection schedule, site dimensions and project location. NexAgri will review the silo configuration, layout and foundation inputs for a project quotation. Initial response within 24 business hours.
