Milk Transport
Tanks
Plan milk collection around your route, payload and vehicle requirements. NexAgri offers skid-mounted tanks for local chassis integration and complete truck configurations, with mounting, import and commissioning responsibilities defined in the quotation.
Built for Rough Roads & Long Distances
Review insulation, liquid movement and cleaning requirements alongside the selected vehicle and collection route.

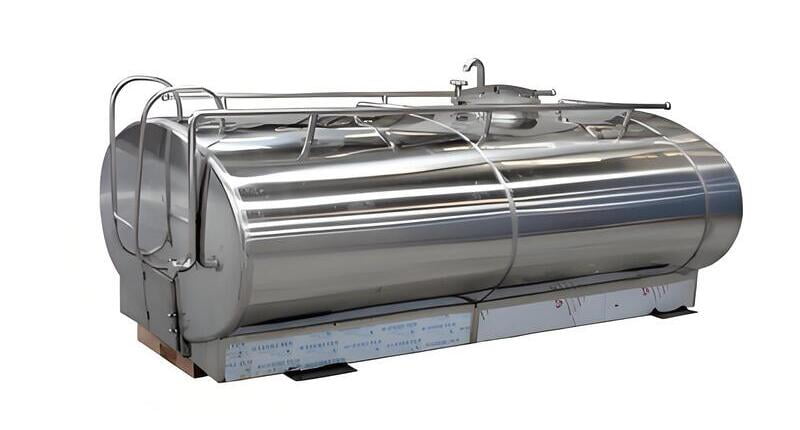

PU Insulation Range
The listed 60–80mm polyurethane envelope limits heat gain. Arrival temperature depends on pre-cooling, fill level, route duration and ambient conditions; insulation does not provide active refrigeration.
Liquid-Movement Control
Internal baffle plates limit liquid movement during travel. Compartment layout, fill limits, axle loads and vehicle operation must be assessed together for the chosen chassis.

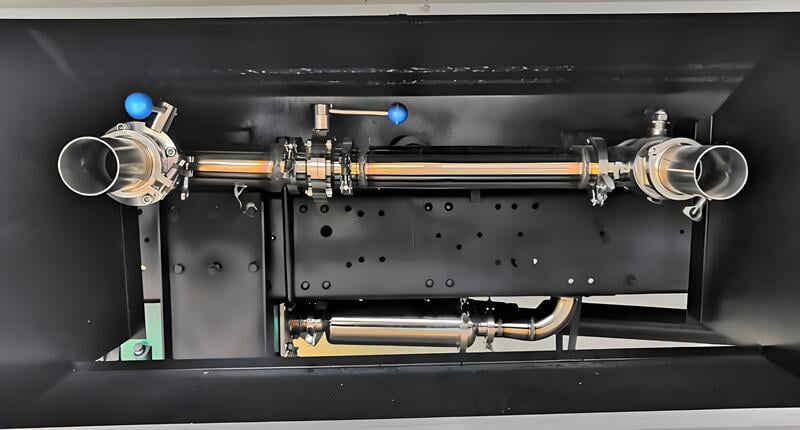

Cleaning Connections
Internal 360° rotating spray balls connect to a suitably sized CIP station. Set cleaning flow, pressure, chemistry, cycle time and inspection tasks for the selected tank.
Strategic Procurement Options
Navigate international shipping costs and vehicle import duties by choosing the exact delivery model your business needs.

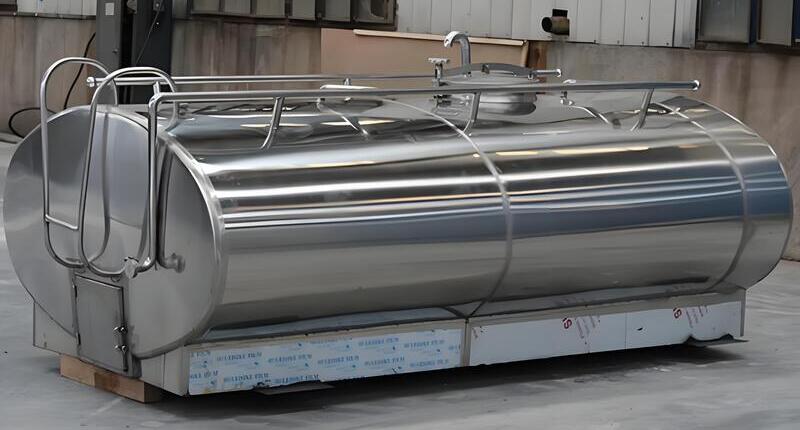

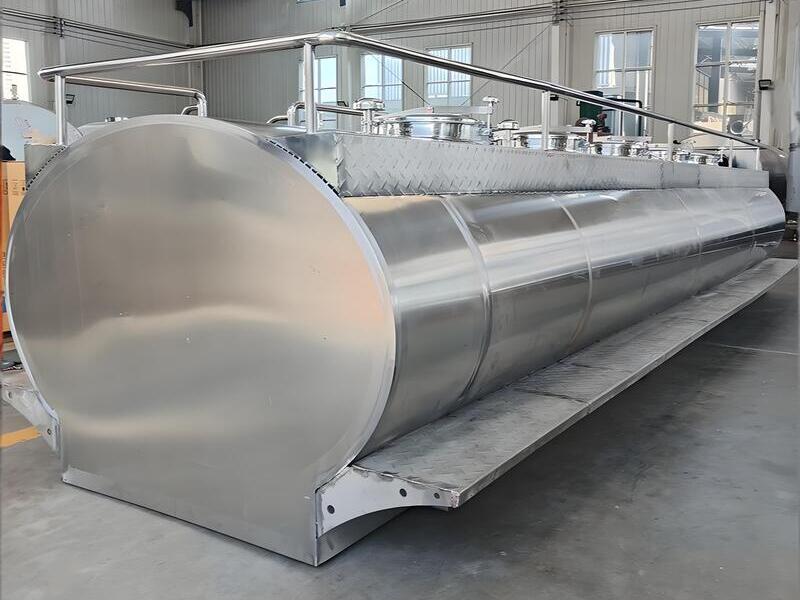

Standalone Tank (Skid-Mounted)
Local Chassis Integration
Supply the tank assembly for a locally sourced chassis, such as a specified Isuzu, Tata or Hino model. Frame, saddle and mounting dimensions are matched to approved vehicle data; compare landed costs using the destination import requirements.

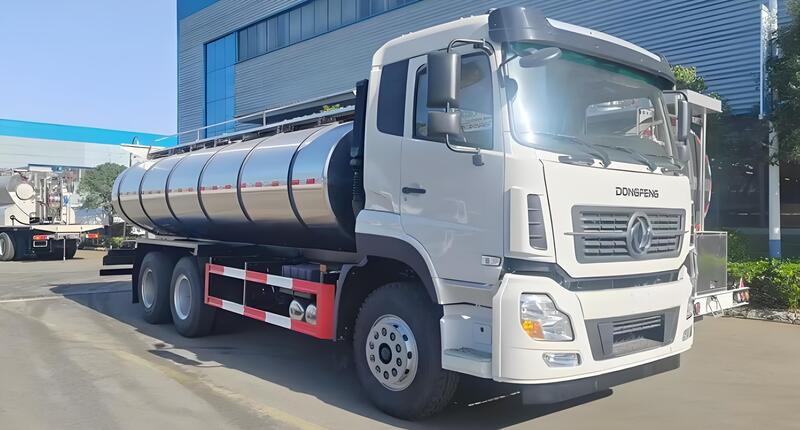

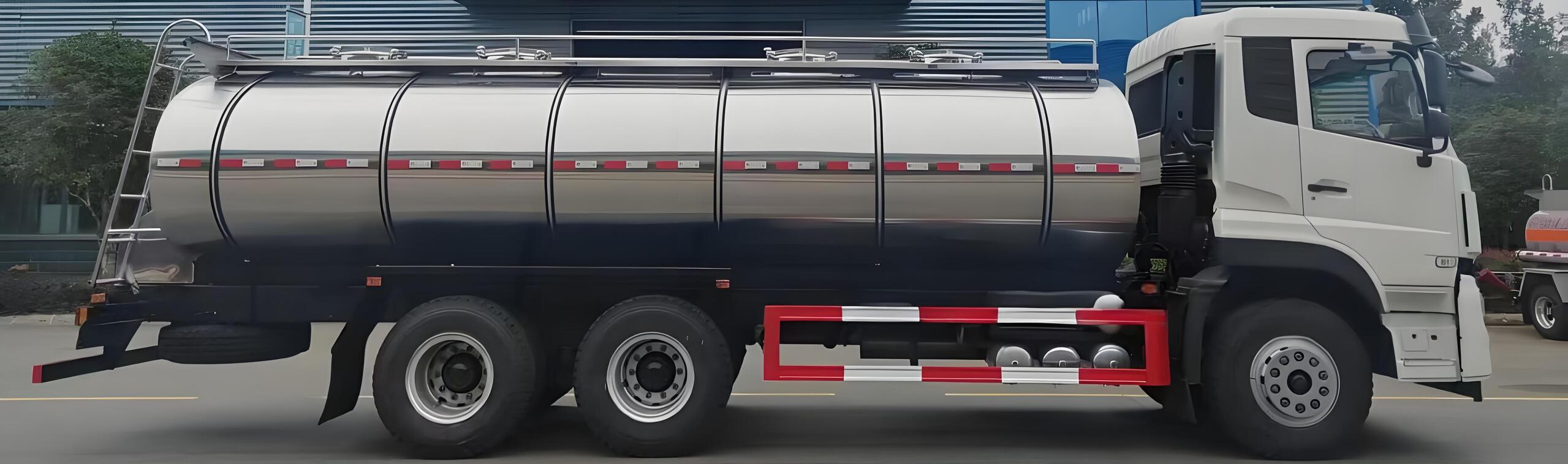

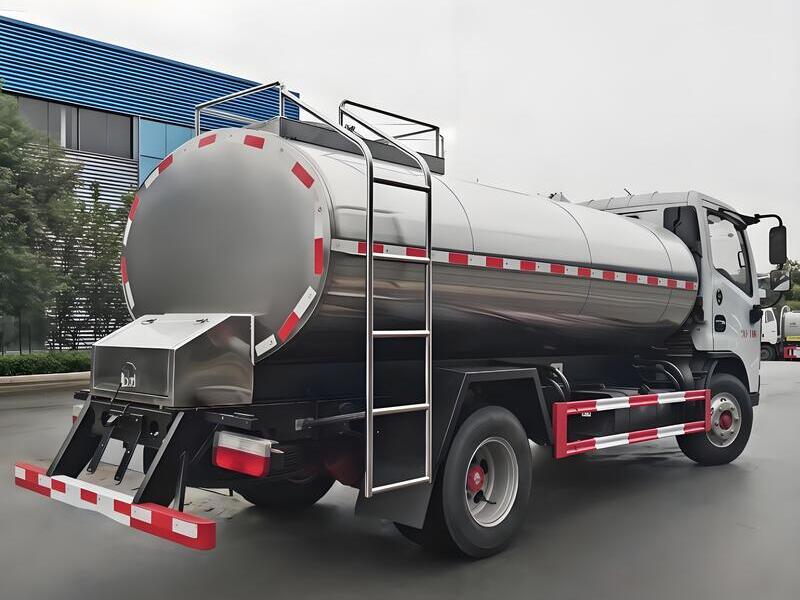

Turnkey Logistics Truck
Complete Vehicle Configuration
Complete truck configurations can use selected commercial chassis, including Dongfeng and FAW. Confirm payload, integration, destination vehicle requirements, registration and commissioning responsibilities before shipment.
Engineering Deep Dive

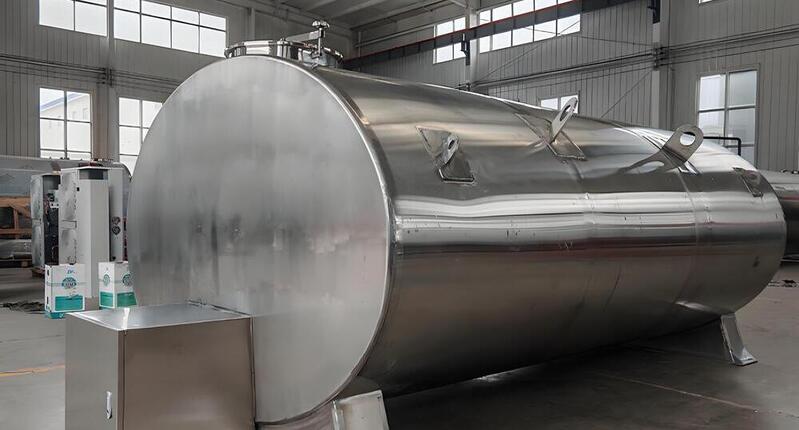

SUS304 contact surfaces, insulation and sanitary connections form the listed tank configuration. Review fabrication, cleaning access and structural mounting requirements for the selected vehicle.
Material, Chassis & Documentation
Total Cost of Ownership (TCO) & Logistics Planning
Compare tank supply, vehicle integration, cleaning time and operating costs using your collection route and fleet data.
1. Capital Expenditure (CapEx) & Import Strategy
Compare a standalone tank with a complete truck using equipment price, freight, local mounting, commissioning and applicable import charges. Have the local import adviser confirm classification and duties for each delivery model.
For a locally sourced chassis, provide the wheelbase, frame dimensions, axle ratings and mounting restrictions. Approve the saddle and frame drawing before manufacture and define local installation responsibilities.
2. Fleet Wear & Suspension Lifespan
A 20,000L load adds substantial mass before the tank and vehicle are counted. Calculate the actual loaded weight and axle distribution, and select baffling and fill limits for the route and chassis.
Anti-surge plates manage liquid movement; they do not remove the need for appropriate driving, vehicle maintenance and load control. Estimate maintenance costs from the proposed fleet duty.
3. CIP Automation & Driver Efficiency
CIP connections can reduce the handling involved in tank washing. The complete cycle includes the required rinse, chemical wash, drainage and inspection steps; duration and operator tasks depend on tank size, residues and the receiving plant cleaning system.
Operating Cost Factors
Tanks
Global Installation Reality
Project examples showing specific tank, chassis and route arrangements. Recorded outcomes relate to those deployments and do not define every tank configuration.
Mountain Highway Stability
8-Hour Tropical Transport
Complete Your Cold Chain
Essential cooling and transport integrations to support your primary milking infrastructure.
Farm Cooling Tanks
Define the loading-temperature target, such as 4°C where required by the collection process, and size farm cooling for incoming milk temperature and volume.
Rapid Cooling Systems
Pre-cool incoming milk with a heat-exchange system sized for flow, inlet temperature, target outlet temperature and available cooling utilities.

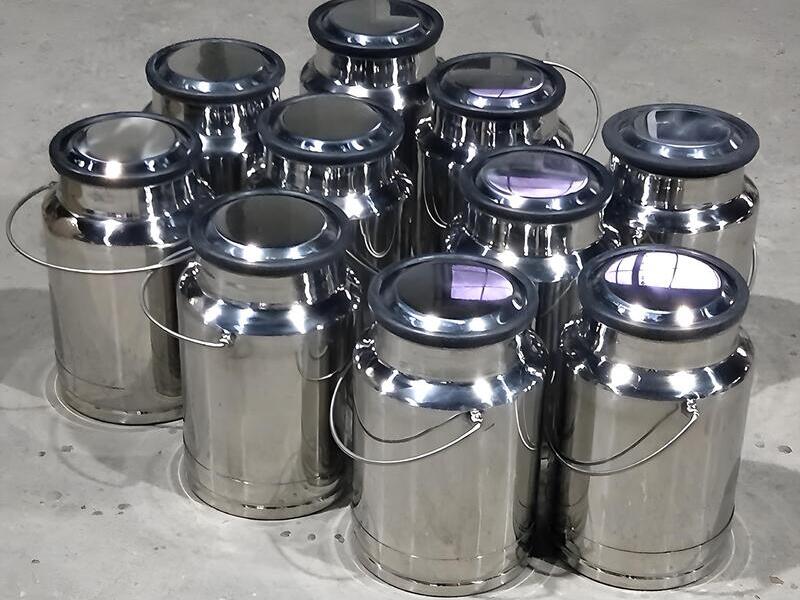

Milk Cans & Buckets
Heavy-duty manual transport options (5L-50L) for smaller rural collection routes.
Milk Tanker FAQs
Practical answers for dairy logistics operators, fleet buyers and project teams.
What is the difference between a milk tanker truck and a skid-mounted tank?
A milk tanker truck is the complete transport-truck configuration. A skid-mounted tank is supplied as the tank assembly for mounting on a locally sourced chassis. The right delivery model depends on your local vehicle sourcing, freight plan, import process and responsibility for final vehicle integration.
Which milk tanker capacities are available?
The page lists standalone skid-mounted tanks from 500 L to 20,000 L and turnkey logistics trucks from 5,000 L to 30,000 L. Confirm the target collection volume, route length, legal vehicle limits and chassis payload before selecting a capacity.
What chassis information is needed for a skid-mounted tank?
Provide the chassis make and model, wheelbase, frame and mounting dimensions, intended payload, axle arrangement and destination requirements. These inputs let the tank frame and saddle arrangement be reviewed against the local vehicle before production.
Does the milk tanker include active refrigeration?
This page specifies a 60–80 mm CFC-free injected polyurethane thermal envelope. It describes an insulated milk transport tank, so confirm the planned pre-cooling process, loading temperature, route duration and ambient conditions with the project team when defining the cold-chain configuration.
What tank construction and sanitary components are specified?
The listed construction includes a food-grade SUS304 inner tank body in a 2.0–3.0 mm thickness range, a dust-proof manhole lid with silicone gasket, a 2 in or 2.5 in sanitary butterfly discharge valve, internal anti-surge plates and a CIP network with 360° rotating spray balls.
What details are needed for a milk tanker quotation?
Share the required capacity, whether you need a skid-mounted tank or turnkey truck, destination, preferred chassis arrangement, milk collection route and any CIP or connection requirements. NexAgri can then prepare the suitable commercial configuration for review.
Plan Your Dairy Logistics Fleet
Send the required capacity, route, destination and chassis dimensions where applicable. NexAgri will review the mounting inputs and delivery scope for a project quotation. Initial response within 24 business hours.
Expert engineering from 500L skids to 30,000L logistics fleets.
