GPS Cow Collars & Virtual Fencing Systems: Engineering Analysis, Commercial ROI, and AIoT Smart Farm Architecture

Commercial livestock production and extensive grazing operations face escalating labor costs, severe land degradation, and heavy capital expenditure on physical perimeter maintenance. Traditional perimeter fencing—such as multi-strand barbed wire or electrified high-tensile wire—demands continuous manual inspection, high initial installation capital, and rigid pasture allocations that limit rotational efficiency.

A GPS cow collar virtual fencing system is an advanced livestock management technology that combines satellite positioning, wireless communication networks, and wearable smart collars to create software-defined grazing boundaries without physical barriers. By delivering progressive acoustic cues followed by low-intensity electrical pulses, the system trains cattle via associative conditioning to remain within digitally mapped boundaries, enabling automated rotational grazing and real-time herd tracking.

From an agricultural engineering and equipment supply perspective, virtual fencing represents a fundamental shift from static physical infrastructure to dynamic, data-driven livestock management. This technical guide evaluates the working principles of GPS virtual fencing, off-grid communication topologies, financial return on investment (ROI), security protocols, and integration within a complete 5-layer AIoT smart farm ecosystem.

---

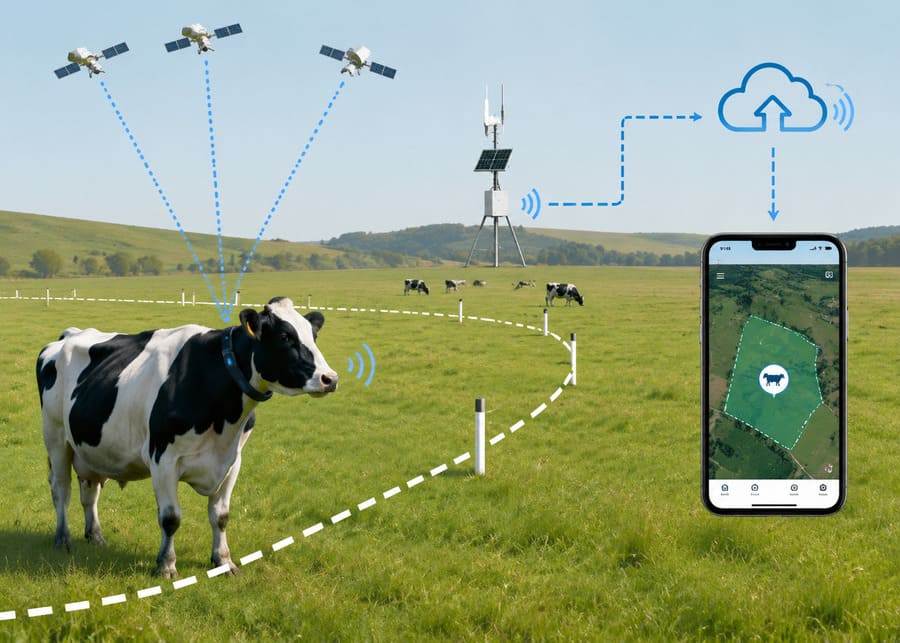

Technical Principles of GPS Virtual Fencing

Virtual fencing replaces physical posts and wire with geo-referenced boundaries drawn on a cloud-based Geographic Information System (GIS) interface. The system relies on continuous feedback loops between smart neck collars, local network infrastructure, and cloud management software.

1. GNSS Positioning & Data Transmission

Each cow collar incorporates a multi-constellation GNSS receiver (supporting GPS, GLONASS, and BeiDou) to calculate precise latitude and longitude coordinates at configurable intervals. Internal power management algorithms adjust sampling rates based on livestock activity—increasing sampling frequency when animals approach boundary buffers and switching to low-power idle modes during resting periods. Location data, battery metrics, and behavioral sensor payloads are transmitted to the cloud via cellular or long-range low-power radio protocols.

2. Two-Stage Associative Conditioning Logic

Boundary compliance relies on a humane, standardized training protocol based on classic conditioning principles:

• Acoustic Warning Zone: As cattle approach within a predetermined buffer distance (typically 5 to 10 meters) of the virtual boundary, the collar emits a distinct audio cue (80–90 dB warning tone).
• Electrical Impulse Zone: If the animal continues forward across the boundary line, the collar delivers a short, low-intensity electrical micro-pulse across electrodes contacting the upper neck. The electrical pulse energy is engineered at approximately 0.2 to 0.5 Joules—less than half the energy output of a standard physical electric fence charger.

Cattle quickly learn to associate the warning sound with the imminent electrical pulse¹. Field studies and commercial trials indicate that after a 4-to-7-day training phase, over 95% of cattle adjust their direction upon hearing the acoustic cue alone, minimizing the need for electrical stimulation.

3. Biometric & Behavioral Analytics

Beyond boundary enforcement, modern smart collars integrate tri-axial accelerometers and thermistors. These onboard sensors capture high-frequency movement metrics to analyze:

• Rumination & Grazing Time: Monitoring mastication patterns to detect nutritional deficiencies or metabolic disorders early.
• Resting vs. Active Behavior: Identifying estrus onset through localized hyper-activity spikes or illness through prolonged lethargy.
• Core Heat & Thermal Stress: Tracking activity patterns against environmental ambient heat indices to trigger automated cooling protocols or pasture movement into shaded zones.

---

Key Operational Advantages for Commercial Ranches

Performance Metric	Traditional Barbed Wire	GPS Virtual Fencing System	Commercial Impact
Boundary Flexibility	Fixed physical lines; high labor to reconfigure	Instant digital setup via mobile app or desktop dashboard	Enables daily precision rotational grazing
Capital Expenditure (CapEx)	High ($12–$23 per linear meter)	Low initial hardware & gateway installation	70%–80% lower initial capital allocation
Annual Maintenance	High (regular wire tightening, post replacement)	Minimal (software updates, periodic battery service)	Eliminates perimeter boundary patrol labor
Pasture Utilization	Moderate (uneven grazing, overgrazed zones)	High (targeted sub-paddock allocation)	Improves biomass recovery by 20%–35%
Ecosystem Protection	Rigid barriers block wildlife migration	Excludes stock from riparian zones and sensitive areas	Supports environmental stewardship and carbon credits

1. Substantial Capital & Labor Reduction

Constructing physical fencing across vast topographies requires extensive manual labor, heavy equipment transport, and post-hole drilling in difficult rock or wetland terrain. Virtual boundaries eliminate physical post installation and ongoing fence patrols, allowing ranch managers to reallocate operational labor toward herd health and nutrition management.

2. Precision Rotational Grazing & Pasture Regeneration

Static pastures often suffer from selective overgrazing near water sources and underutilization of distant forage. With virtual fencing, farm managers can subdivide vast pasture parcels into micro-paddocks directly on a digital map. Strip grazing and intensive rotational schedules can be scheduled automatically, promoting uniform forage consumption, enhancing root-system recovery, and increasing overall stocking capacity per acre.

3. Animal Welfare & Stress Management

Commercial trial data demonstrates that virtual fencing imposes equal or lower cortisol stress responses in livestock compared to traditional electric fencing or hard crowding corrals. Once herd conditioning is established, cattle navigate pasture boundaries with high predictability, responding smoothly to acoustic tones without physical panic or injury risks associated with wire entanglements.

---

Primary Commercial Application Scenarios

Vast Grazing Lands -> Targeted Paddock Allocation -> Automated Boundary Shifts -> Rest & Biomass Recovery

1. Large-Scale Extensive Ranches

For commercial operations managing cattle across thousands of contiguous acres, physical fence construction is economically unfeasible. Virtual fencing allows operators to establish virtual perimeters around vast land sections, track scattered animals in real time, and gather herds efficiently during sorting season.

2. Ecological & Riparian Buffer Protection

Protecting natural waterways, wetlands, and reforestation plots from cattle trampling is vital for sustainable land management. Operators can draw high-precision exclusion zones around riverbanks, erosion-prone hillsides, or wildlife nesting sites without obstructing natural water runoff or wild animal corridors.

3. Wildfire Risk Mitigation & Firebreak Grazing

In arid and forestry-adjacent regions, dense dry biomass creates severe wildfire hazards. Livestock can be intentionally concentrated into narrow, high-density grazing corridors along forest edges or road rights-of-way. By stripping overgrown brush and fuel biomass, the herd creates natural, low-cost firebreaks.

---

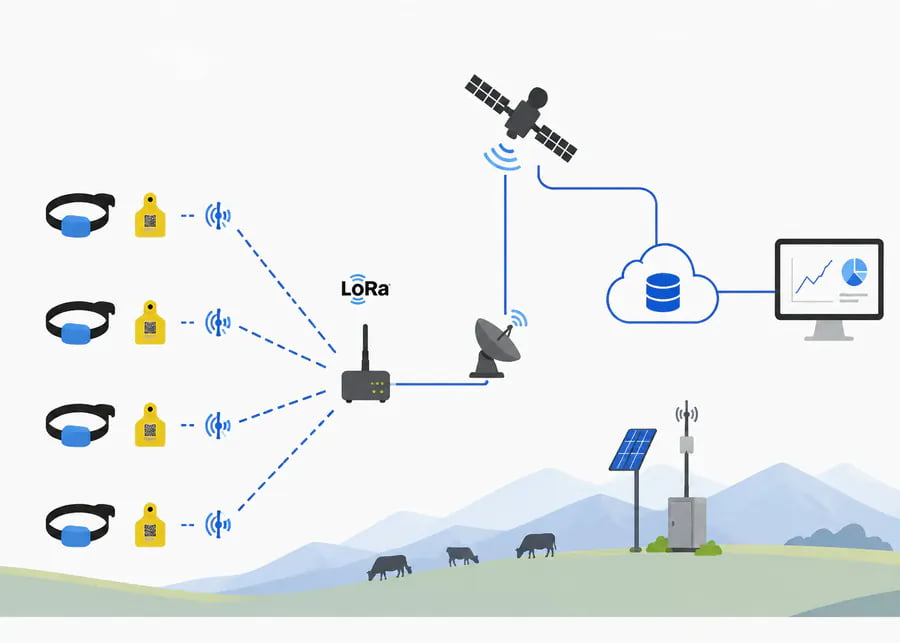

Overcoming Off-Grid Communication Challenges: The LoRaWAN Advantage

A critical hurdle for deploying smart collars in remote pastoral environments is the lack of public 4G/5G cellular coverage. Commercial operations require robust, low-cost wireless backhaul topologies that operate reliably in complete isolation from public infrastructure.

Smart Collars (Sensors) -> LoRaWAN RF Gateway -> Satellite / Cellular Backhaul -> Cloud AIoT Platform

1. LoRaWAN (Low Power Wide Area Network) Architecture

For off-grid pastures, LoRaWAN is the most practical, cost-effective, and robust primary communication protocol.

• Long-Range Coverage: A single central LoRaWAN gateway elevated on a weatherized mast or grain silo can achieve line-of-sight coverage of 10 to 15 kilometers (6 to 9 miles), spanning thousands of pasture acres.
• Ultra-Low Power Consumption: LoRaWAN's sub-gigahertz narrow-band modulation allows smart collars to operate on small internal lithium batteries for multiple grazing seasons² without recharging.
• Zero Recurring Data Fees for Local RF: Ranchers own the gateway infrastructure, avoiding ongoing monthly SIM card costs per animal for local telemetry.

2. Satellite Direct-to-Cell & Starlink Backhaul

For ultra-remote operations spanning mountain ranges or deep valleys, solar-powered LoRaWAN gateways can be paired with satellite internet backhaul (such as Starlink or direct-to-device satellite messaging). The local LoRaWAN gateway aggregates telemetry from hundreds of collars via sub-GHz radio links and relays encrypted batch payloads to the cloud via satellite, providing uninterrupted continuous visibility anywhere on earth³.

3. Multi-Mode Positioning & Hybrid Fail-Safe

To ensure absolute reliability across varied terrains, high-reliability collars employ multi-mode fallback logic:

• Primary Mode: Multi-constellation GNSS (GPS + BeiDou) for high-accuracy spatial tracking.
• Network Transmission: LoRaWAN as primary transmission; cellular (NB-IoT/LTE-M) as secondary where available; Satellite short-burst data (SBD) for critical emergency fallback.
• Offline Boundary Enforcement: Critical virtual boundary coordinates are stored directly in the collar's non-volatile onboard memory. Even if local wireless communication or satellite links drop temporarily, the collar continues enforcing boundary rules locally without interruption.

---

Comprehensive 3-Year Cost & ROI Analysis

To evaluate the economic viability of adopting virtual fencing compared to traditional 4-strand barbed wire fencing, the following financial model compares capital investment, installation, maintenance, and quantified labor/health savings for a baseline commercial herd of 100 head over a 3-year operating cycle.

1. Cost Comparison Breakdown (1,000-Meter Boundary Benchmark)

Traditional 4-Strand Barbed Wire Fencing

• Materials & Posts: $12.00 – $23.00 per meter (includes steel T-posts, corner assemblies, high-tensile wire, tensioners).
  • 1,000m Material Cost: $12,300 – $23,100
• Labor & Professional Installation: $8.00 – $15.00 per meter (post drilling, wire stretching, land clearing).
  • 1,000m Installation Cost: $7,700 – $15,400
• Annual Maintenance & Repairs: Estimated at 10%–20% of initial material cost annually ($1,200 – $4,600/year) due to weather damage, fallen trees, and livestock pressure.
  • 3-Year Maintenance Accumulated: $3,700 – $13,800
• Total 3-Year Cost (Traditional Wire): $23,700 – $36,900

GPS Virtual Fencing System (100-Head Herd Baseline)

• Hardware Capital Investment: Solar LoRaWAN base station gateway + 100 smart collars + 5-year hardware warranty.
  • First-Year Capital Cost: $2,300 – $4,600
• Software & Mapping Subscription: Cloud platform access, mobile GIS interface, and satellite baseline mapping ($80 – $150 annually).
  • 3-Year Subscription Total: $240 – $450
• System Maintenance & Servicing: Minimal replacement straps and battery servicing over 3 years.
  • 3-Year Maintenance Total: $300 – $800
• Total 3-Year Cost (Virtual Fencing): $2,600 – $5,400

2. Quantified Financial Returns & ROI Calculation

The financial returns of virtual fencing extend beyond simple fence material replacement into operational labor reduction and improved animal health outcomes:

1. Capital & Maintenance Cost Savings:
   • Direct savings over physical wire infrastructure: $21,100 – $31,500
2. Labor Efficiency Gains:
   • Eliminating manual boundary patrols and reducing herd roundup times by an estimated 20 hours per week⁴ at an average labor rate of $7.70/hour.
   • 3-Year Labor Savings: ~$2,300
3. Health & Mortality Reduction:
   • Continuous biometric tracking lowers disease incidence by approximately 5%⁵ through early detection of lethargy or rumination drop-offs. Assuming a treatment/loss avoidance value of $77 per head:
   • 3-Year Health Savings (100 head): ~$11,500

3-Year Return on Investment Calculation:

ROI Formula: (Total Benefits - System Cost) / System Cost

• Optimistic ROI Scenario: ($31,500 + $2,300 + $11,500 - $2,600) / $2,600 = 16.4x (1,640% return)
• Conservative ROI Scenario: ($21,100 + $2,300 + $11,500 - $5,400) / $5,400 = 5.4x (540% return)
• Expected Industry Baseline Range: 7.4x to 12.4x ROI over a 3-year operating period.

---

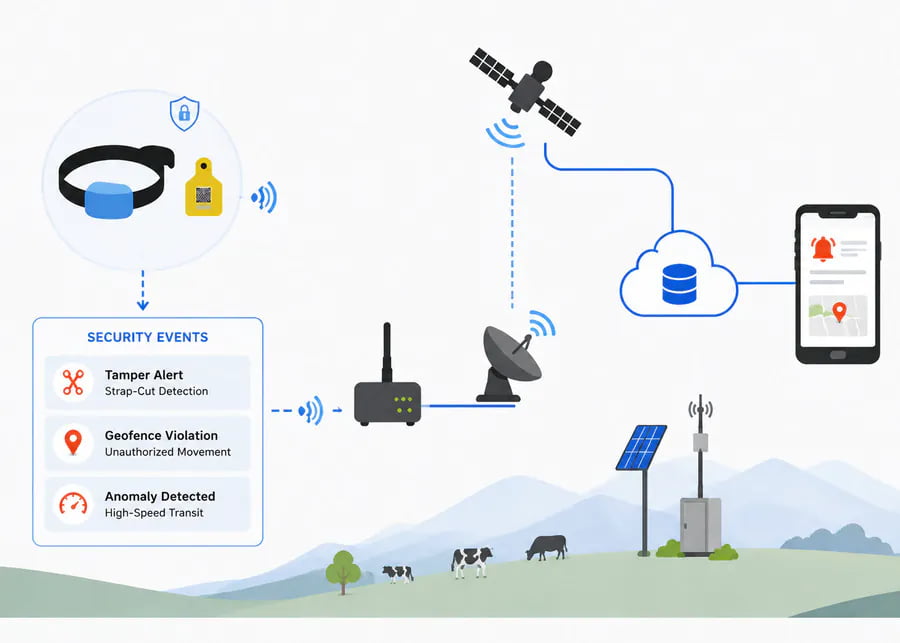

Anti-Theft Security Protocols & Asset Protection

Livestock theft (cattle rustling) represents a multi-million-dollar annual loss for extensive pastoral operations. Smart collars act as an active, real-time security device to prevent unauthorized livestock movement:

1. Tamper & Strap-Cut Detection: Internal conductive threads or micro-switches embedded within the collar strap detect physical cutting or removal attempts, instantly transmitting a high-priority alert to ranch managers.
2. Geofence Security Violation Alerts: If livestock cross outer ranch boundaries during unusual hours (e.g., late night), the system triggers automated push notifications, SMS alerts, and audible farm alarms.
3. High-Speed Transit & Flight Anomaly Detection: Onboard accelerometers detect abnormal movement velocities (e.g., cattle being loaded onto trailers or driven rapidly by vehicles), switching the collar to high-frequency live GPS tracking mode to assist law enforcement in recovery.

---

Building a Full-Scale Smart Dairy & Beef Enterprise: The 5-Layer AIoT Architecture

Virtual fencing collars deliver maximum value when integrated into a unified cloud-based farm management ecosystem. NexAgri Solutions advocates a modular 5-layer AIoT architecture that connects field hardware to executive decision engines.

Layer 1: Sensing & Smart Hardware Layer -> Layer 2: Wireless Communication & Networks -> Layer 3: Cloud AIoT Platform Layer -> Layer 4: Farm Analytics Layer -> Layer 5: Decision Intelligence Layer

Layer 1: Sensing & Smart Hardware Layer (Data Collection)

The physical foundation collecting continuous operational parameters across the farm:

• Individual Animal Identifiers: Wearable GPS/LoRaWAN collars, smart ear tags, and low-frequency RFID tags.
• Health & Physiological Sensors: Bolus temperature sensors, rumination acoustic monitors, and automated weigh-scale platforms.
• Feeding & Nutrition Equipment: Precise Total Mixed Ration (TMR) mixer scales, automated feed pushers, and smart water troughs.
• Environmental Controls: Meteorological stations, soil moisture probes, barn temperature/humidity index (THI) sensors, and automated manure scrapers.

Layer 2: Communication & Network Layer (Data Transmission)

Connecting field devices reliably to local and cloud infrastructures:

• Short-Range & Local Links: Bluetooth Low Energy (BLE) for local gateway pairing; RFID readers for sorting alleys.
• Long-Range Field Networks: LoRaWAN base stations operating at 868/915 MHz for pasture-wide coverage.
• Backhaul Protocols: 4G/5G cellular gateways, satellite backhaul, and automated Over-The-Air (OTA) firmware upgrade pipelines.

Layer 3: Cloud AIoT Platform Layer (Data Processing & Storage)

The centralized intelligence core managing device fleets and processing high-throughput telemetry streams:

• Ingestion Engine: Multi-protocol parsing (MQTT, HTTP, CoAP), device authentication, and telemetry validation.
• Data Governance & Security: Time-series databases, spatial GIS query processing, and encrypted cloud storage architecture.
• Integration Framework: Open API endpoints, SDKs, and message queues supporting seamless interoperability with third-party Enterprise Resource Planning (ERP) and farm management software.

Layer 4: Farm Analytics Layer (Value Extraction)

Transforming raw sensor streams into predictive agronomic insights:

• Reproductive & Breeding Analysis: Automated estrus detection algorithms calculating precise insemination windows to boost conception rates.
• Predictive Health Diagnostics: Early detection of sub-clinical mastitis, lameness onset, or respiratory distress based on minor deviations in daily movement and feeding duration.
• Precision Nutrition Modeling: Comparing daily feed intake logs against milk production yields or weight gain curves to optimize TMR formulations and minimize feed waste.
• Financial & Operational Reports: Real-time cost-per-head tracking, pasture consumption metrics, and asset depreciation accounting.

Layer 5: Decision Intelligence & Operational Layer (Execution)

The top-level management dashboard delivering actionable directives to farm operators:

• Automated Action Triggers: Automated activation of barn ventilation fans when THI thresholds are exceeded.
• Dynamic Grazing Schedules: System-recommended pasture rotation maps based on biomass recovery rates and weather forecasts.
• Targeted Veterinary Worklists: Daily automated mobile dispatch lists identifying specific cattle requiring health evaluation or medical treatment.

---

Evaluating Virtual Fencing for Your Operation

Adopting GPS virtual fencing and smart collar technologies allows commercial beef and dairy operations to eliminate physical fencing overhead, optimize grazing distribution, and implement data-driven livestock management. By pairing long-range LoRaWAN networking with cloud-based AIoT analytics, large-scale ranches achieve unprecedented operational efficiency and high financial returns.

Commercial farm operators, agricultural engineers, and livestock project developers evaluating smart monitoring solutions are encouraged to analyze their pasture topography, network coverage requirements, and integration objectives.
