A dairy processor installs a 1,000 L/h pasteurizer for a plant expected to package 5,000 liters of milk a day. The machine reaches its specified operating temperature and the process looks stable, yet the shift ends with fewer finished bottles than planned.
Sometimes the pasteurizer is genuinely undersized. In other plants, the restriction comes from insufficient heating or refrigeration, a full downstream tank, packaging interruptions or the time spent changing products. Finding the bottleneck begins with the finished-product target and a time-based balance of the entire line.
The following method is intended for small and medium dairy plants planning pasteurized drinking milk or reviewing an existing production line. Yogurt, cheese and other products require their own process routes and schedules.
1. Define the Product, Package and Working Day
A request for a “five-tonne dairy line” is the beginning of a design discussion. First establish whether the number refers to raw milk received, milk processed or saleable finished product.
Five tonnes is a mass measurement. For illustration, raw cow's milk at a density of 1.03 kg/L corresponds to approximately 4,854 L for 5,000 kg. Actual volume depends on milk composition and measurement temperature. The FAO small-scale dairy manual gives a typical milk-density range of about 1.028–1.033 kg/L at 15–20°C.
Before preparing a quotation, collect these five sets of information:
| Design input | What the customer should provide | Effect on line configuration |
|---|---|---|
| Product mix | Daily volumes of fresh milk, flavored milk, yogurt, cheese milk or other products | Determines process routes, holding steps, vessels and hygiene requirements |
| Production schedule | Shift hours, production days, batch sizes and number of product changes | Determines the sustained L/h capacity required |
| Packaging | Bottle, carton, pouch or cup; fill size; expected packs per hour | Establishes filler speed and downstream handling requirements |
| Factory utilities | Power, steam or hot water, chilled water, compressed air, water quality and drainage | Sets the achievable duty of heating, cooling, cleaning and packaging equipment |
| Expansion plan | Present demand, future products, target output and available floor space | Identifies service connections and space worth reserving in Phase 1 |
A plant producing 5,000 L of one drinking-milk SKU has a very different operating schedule from a plant splitting the same volume among milk, yogurt and multiple bottle sizes. Prepare a separate process and time allowance for each product family.
2. Translate Pasteurizer Rating into Daily Output
The rated flow describes the machine's capacity during stable operation under specified product and process conditions. The planned working day also includes start-up, changeovers, inspections and production interruptions.
Use this relationship for the initial capacity estimate:
Saleable output (L/day) = sustained line flow (L/h) × stable production hours (h/day) × saleable yield
Here, stable production hours represent the time actually available at the stated line speed. The saleable-yield factor accounts for product that does not become accepted finished packs, such as documented start-up losses and rejected packaging.
For an illustrative eight-hour shift, the time allowance might be:
| Activity | Planning allowance |
|---|---|
| Start-up and process verification | 25 minutes |
| A scheduled product or packaging changeover | 45 minutes |
| Transfer, preparation and quality checks | 20 minutes |
| Short operating interruptions | 15 minutes |
| Stable production available | 375 minutes (6.25 hours) |
This schedule assumes the end-of-day CIP cycle takes place outside the eight-hour production shift. Plants cleaning during the shift need to include that downtime in the shift schedule.
For 5,000 L of saleable packaged milk, a 6.25-hour stable production window and a 98% illustrative saleable yield, the required sustained flow is:
5,000 ÷ (6.25 × 0.98) ≈ 816 L/h
A validated 1,000 L/h pasteurizer has sufficient nominal flow for this example. The upstream supply, utilities, any full-flow homogenizer, chilled buffer and filler must be checked against the same target.

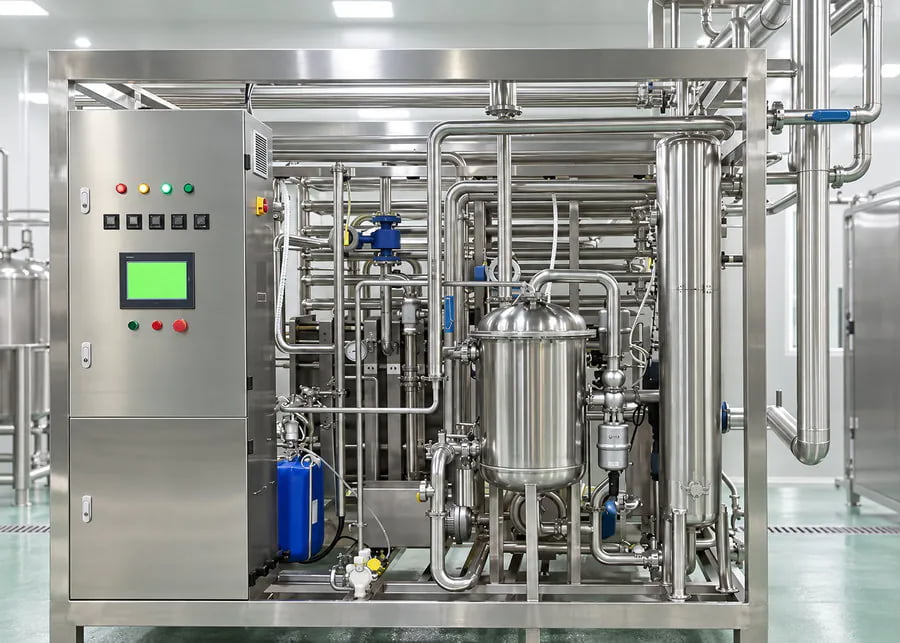

3. Check Heating, Cooling and HTST Safety Controls
A plate pasteurizer may have enough nominal flow but struggle to hold temperature when the factory's heat or refrigeration services are under load. Use measurements taken while production is running, particularly when multiple equipment users are active.
HTST temperature and holding-time references
For ordinary fluid milk containing less than 10% milk fat, a widely used HTST minimum is 72°C for at least 15 seconds. The Canadian Food Inspection Agency also lists 75°C for 15 seconds for specified products with higher fat or solids, or added sugar. Requirements for flavored milk, cream, cultured products and other recipes must be set for their actual formulation and the destination market.
| Parameter | Reference for a chilled fluid-milk line | What to verify on the machine |
|---|---|---|
| Pasteurization | 72°C for at least 15 seconds for ordinary fluid milk | Validated holding time and process temperature at the approved flow |
| Other milk formulations | Some higher-fat, higher-solids or sweetened products require 75°C for 15 seconds under the cited Canadian guidance | Recipe-specific legal and validated process settings |
| Chilled milk outlet | Around 4°C for refrigerated pasteurized milk | Product outlet temperature throughout the run and at the hygienic storage/filling interface |
| Regenerative heat recovery | Around 90–94% in a published plate-pasteurizer design example | Actual specified regeneration performance at the selected flow and inlet temperatures |
| Chilled utility | Approximately 2°C coolant in that same published design example | Required inlet temperature, flow, pressure and heat-removal duty for the selected unit |
The source for pasteurization schedules is the Canadian Food Inspection Agency's HTST guidance. The thermal-design examples, including the 4–72–4°C milk temperature program, 90–94% regeneration and 2°C coolant, are documented in the Dairy Processing Handbook process-line design chapter.
The table describes a chilled drinking-milk application. Yogurt milk typically leaves thermal treatment warm to match fermentation inoculation temperatures, while cheese milk is discharged at renneting temperature. Regeneration ratios and coolant temperatures are similarly specified around each plant's heat-exchanger plate pack and utility design.
Read the temperature and pressure trends together
If product temperature falls as flow increases, measure heating-medium temperature and pressure at the skid, control-valve position, hot-water circulation and condensate removal where relevant. Frequent flow-diversion events are a reason to investigate the heat balance and controls before making a capacity change.
The HTST flow rate must remain within its validated holding-time and safety-control conditions. The flow-diversion device is part of the safety system: product that has not met the required treatment is directed away from forward production. Raising pump speed requires appropriate assessment and re-verification, including the holding-time relationship.
On the cooling side, record chilled-water supply and return temperatures, flow rate and final milk outlet temperature. A chiller rated for the installed refrigeration load can still fall short if another process, storage tank or CIP circuit adds demand at the same time.
Also monitor the pressure difference across the plate heat exchanger. Increasing pressure drop and declining thermal performance during a long run may point to fouling, which can reduce available flow and increase the heating and cooling duty. Confirm the cause using product-side and utility-side readings before specifying a larger heat exchanger.
4. Match Homogenization, Buffer Storage and Filling
Line capacity depends on the route taken by the product. For example, some dairy designs use partial homogenization, while others send the entire product stream through a homogenizer. Its required capacity should reflect the specified route.
Consider three machines in a fully sequential, synchronized flow:
| Process stage | Rated flow |
|---|---|
| Pasteurizer | 2,000 L/h |
| Full-flow homogenizer | 1,000 L/h |
| Filler | 800 L/h |

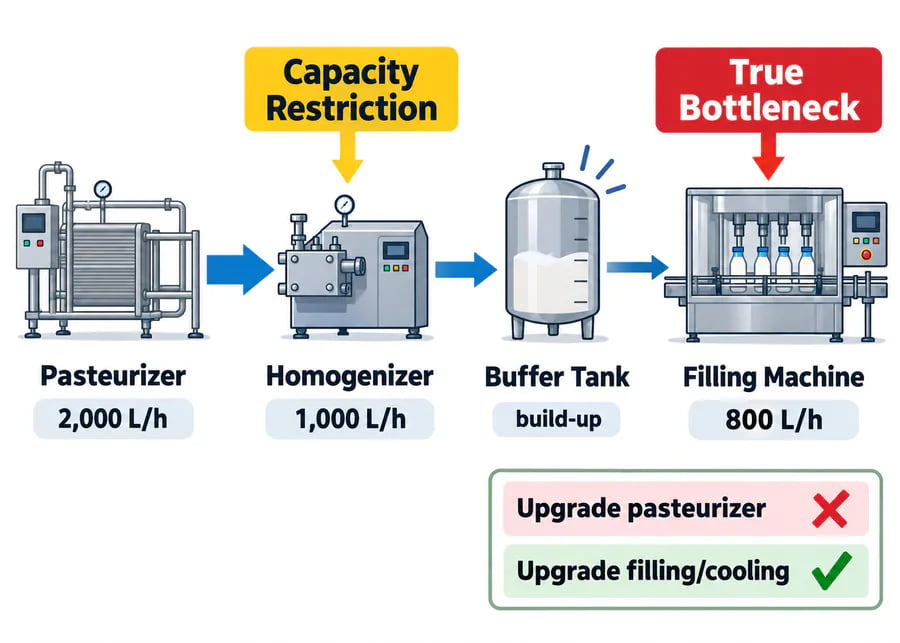

With no effective intermediate storage, the 800 L/h filler limits the sustained packaged flow. The correct upgrade decision starts at the filling stage and its downstream handling equipment.
What a chilled product buffer can do
A hygienic, temperature-controlled buffer after pasteurization can absorb short differences between the upstream and downstream rates. For example, if pasteurization supplies 1,000 L/h and filling withdraws 750 L/h, the tank gains 250 L per hour while both operate. After two hours, the accumulated volume is 500 L.
The tank allows pasteurization and filling to follow different schedules within the working day. Its required working volume depends on start and stop times, minimum and maximum permitted levels, residence time, cooling and cleaning arrangements. The upstream raw-milk balance tank has a different place in the flow diagram from the chilled pasteurized-product buffer.
Calculate what the filler can package
A filler specified at 3,000 bottles/hour with a 250 mL pack size has a nominal liquid throughput of:
3,000 × 0.25 = 750 L/h
With 6.25 productive hours and the same illustrative 98% saleable yield, it produces approximately 4,594 L/day of saleable product. This misses the 5,000 L/day target even if the pasteurizer can run faster.
A suitable filler rated at 3,600 bottles/hour for the same pack size corresponds to 900 L/h. Its actual performance must be confirmed for the bottle format, caps, labels, reject handling and downstream conveying system.
5. Account for the Complete CIP and Changeover Window
For plants making several products, the period between the last accepted pack of one product and the first accepted pack of the next is a useful measure of changeover performance.
Record the stages separately:
- Recover and drain product from tanks and lines.
- Route the required cleaning and rinsing through all affected product-contact equipment and valve circuits.
- Change packaging parts, fill heads or format settings as needed.
- Restore process temperatures and operating conditions.
- Complete checks and authorize the new production run.
A 30-minute chemical circulation step can easily expand into a 60–90-minute total changeover once product recovery, filler cleaning, rinsing, thermal stabilization and quality checks are included. Time each step during commissioning to build an accurate production schedule.
| Changeover | Main source of downtime | Planning response |
|---|---|---|
| 1 L bottle to 250 mL bottle, same milk | Filler adjustment, change parts, pack checks | Check format-specific output and actual change time |
| Plain milk to a formulated drink | Product recovery, recipe and hygiene requirements | Map shared pipelines, valves and tanks |
| Drinking milk to a cultured-product route | Cleaning, vessel allocation and fermentation scheduling | Schedule downstream tanks and product release separately |
Draw the full product-contact route from pasteurization to the filler, and document which circuits are cleaned together. CIP pumps, valve sequencing, drain points and product recovery should be considered during line design so cleaning does not create avoidable production delays.
6. Compare Batch Pasteurizers with Continuous HTST
Batch systems are evaluated by usable volume per cycle. The cycle includes filling, heating, holding, cooling, discharge and any preparation needed before the next batch.
For illustration, a 500 L usable vat completing a full production cycle every 120 minutes makes 1,500 L over three cycles in six hours, before product losses. The actual cycle depends on product, equipment, utility duty and hygiene requirements.

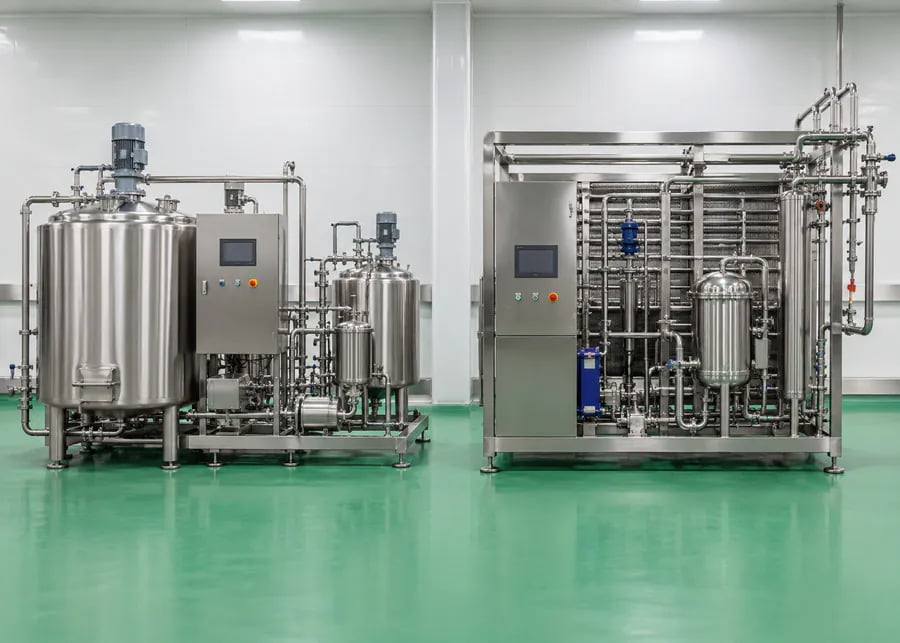

HTST is generally attractive when the plant runs substantial volumes of compatible liquid product with relatively few interruptions. Batch vats can suit varied recipes, smaller lots, heating-and-holding duties and plants with frequent changes. Yogurt and cheese operations also need downstream fermentation or coagulation equipment; their overall output follows those stages as well.
Compare a batch quotation using its usable volume and full cycle time, and an HTST quotation using its approved process flow and available operating hours. NexAgri supplies both batch and continuous pasteurization systems for different product and production schedules.
7. Complete 5,000 L/Day Line Balancing Summary
The calculations in Sections 2 and 4 establish the required liquid flow and the gap caused by a 3,000-bottle/hour filler. The next step is to select a compatible equipment package and check how the equipment can run together.
The example below is for one chilled pasteurized-milk product, packed in 250 mL bottles, with 6.25 hours available for stable production and a 98% planning yield. All figures are illustrative design inputs.
| Line component | Preliminary configuration | What must be confirmed |
|---|---|---|
| Raw milk receiving and chilled storage | Sufficient usable inventory for approximately 5,102 L entering the example's product balance | Intake schedule, milk density, storage temperature, raw-milk handling and any additional process losses |
| Raw-milk balance and feed system | Matched to the pasteurizer's controlled inlet flow | Minimum level, pump and valve control, inlet-pressure conditions |
| HTST pasteurizer | 1,000 L/h validated milk-processing duty | Holding time, heating/cooling performance, approved flow and diversion controls |
| Homogenizer, if treating full product flow | 1,000 L/h compatible duty | Product requirements, pressure, temperature and its location in the process |
| Chilled pasteurized-milk buffer | About 1,000 L nominal as an initial layout allowance | Confirm that usable volume between operating level limits meets the actual buffer calculation, plus residence-time and hygiene requirements |
| Bottle filler | At least 3,600 bottles/hour at 250 mL, or 900 L/h nominal | Stable speed with actual bottles, caps, reject rate and conveyors |
| CIP and utility systems | Designed for the selected production and cleaning schedule | Peak hot-water/steam, cooling, water, air, drainage and cleaning-circuit needs |
How the two main machines share the day: The 1,000 L/h pasteurizer needs approximately 5.10 running hours to supply the example's roughly 5,102 L gross product. The 900 L/h filler needs approximately 5.67 running hours to package that volume before applying the illustrative 2% rejected/lost product allowance.
A possible staggered schedule starts filling 12 minutes after pasteurization begins. Under uninterrupted nominal flows, buffer inventory peaks at approximately 690 L near the end of the upstream run, after which filling continues until the tank is drawn down. Both stages finish within the 6.25-hour stable-production window.
That makes a nominal 1,000 L buffer a reasonable preliminary layout candidate, provided its usable operating volume is sufficient once low-level cut-off, high-level margin and controls are defined. The final tank may be larger or smaller after the filling sequence, hygienic design and start-up requirements are engineered.
The practical conclusion is a balanced 1,000 L/h HTST + compatible full-flow processing + 900 L/h filling arrangement, with sufficient buffer capacity and utilities. A 2,000 L/h pasteurizer would not add value to this particular production target unless the schedule, filler or future product mix changes.
8. Diagnose an Existing Line with Time-Aligned Records
When production falls below plan, record the operating conditions for the same time window. One machine may slow because another machine downstream has stopped, so identify the sequence of events before deciding where to invest.
| What the operator sees | Useful records | First checks |
|---|---|---|
| Milk accumulates ahead of the pasteurizer | Intake rate, raw balance level, HTST flow | Heat supply, controlled flow and upstream/downstream coordination |
| Frequent pasteurizer flow diversion | Recorded temperatures, diversion events, approved flow | Heating duty, controls and process validation |
| Pasteurized product is too warm | Milk outlet temperature, coolant supply and return, utility flow | Chiller capacity, plate exchanger and simultaneous thermal demand |
| Flow declines during a long run | Pressure difference, pump speed, temperature trend | Fouling, restrictions, filters and valve conditions |
| Pasteurized buffer stays near the top | Tank-level trend, filler stop reasons and actual packs/hour | Filling and downstream packaging availability |
| Filler repeatedly runs out of product | Buffer level, pump status and upstream stop events | Transfer system, controls and raw-material supply |
| Good running speed but low shift output | Runtime by reason, cleaning duration, rejected packs | Production schedule, product changeovers and yield |
A useful capacity review combines a shift event timeline, flow/temperature/tank-level trends and accepted finished-pack counts. The three records distinguish speed restrictions from lost production time and rejected product.
Changes to HTST flow controls, holding-tube conditions or diversion arrangements need the relevant checks and acceptance procedures before production resumes. Refer to the Canadian Food Inspection Agency's critical process test procedures for examples of critical equipment verification.
9. Plan Expansion from 5,000 to 10,000 L/Day
Expansion can come from a longer operating schedule, higher sustained flow or both. The required flow for 10,000 L/day at 98% saleable yield is approximately 1,633 L/h over 6.25 stable production hours, or 816 L/h over 12.5 stable production hours.
The second option assumes adequate staffing, cleaning arrangements, product storage and dispatch capacity. Compare both scenarios before deciding which machines need replacement.
For Phase 1, it is useful to plan the future electrical intake and cable routes, boiler or hot-water plant, chilled-water distribution, compressed air, water treatment, drainage, effluent management and equipment access. Installation space and service tie-in points are often cheaper to provide during initial construction than after the plant is running.
Process-specific vessels and fillers deserve separate decisions. Yogurt fermentation tanks, cheese vats and packaging formats depend on the future product portfolio. A modular upgrade is often preferable to buying oversized specialized equipment before demand is clear.
The expansion layout should show the future tie-ins, the floor space reserved for additional tanks or fillers, and the work that may require a production shutdown.
10. NexAgri's Approach to a Balanced Dairy Processing Line
NexAgri supplies dairy pasteurization, homogenization, cooling and storage, CIP and packaging equipment as part of complete dairy processing lines.
For a new installation or an upgrade, our engineering team can prepare:
- A process flow diagram (PFD) for each product route.
- An equipment list covering usable batch size, rated flow and operating conditions.
- A line-capacity balance with production hours, changeovers and packaging demand.
- An equipment layout with access for operation, cleaning and maintenance.
- A utility and connection schedule covering water, power, heating, cooling, compressed air and drainage.
- Installation, commissioning and operator guidance for the agreed equipment scope.
For an existing factory, share the process drawing, current machine capacities, production logs and daily finished-product target. For a new project, start with the product mix, packaging sizes, planned shift and site utilities. Contact NexAgri to review a practical equipment configuration.
Frequently Asked Questions
What usually makes a small dairy processing line miss its daily target?
Common causes are insufficient heating or cooling duty, a filler that cannot keep up, accumulated changeover time, repeated process diversions and downstream stops. Time-aligned production records reveal which issue is limiting accepted finished-product output.
Is a higher-capacity pasteurizer always the best upgrade?
Upgrade the stage that limits the agreed production target. A larger pasteurizer may leave daily output unchanged when the filling line, refrigeration system or production schedule is the actual restriction.
How much buffer storage is needed between pasteurization and filling?
Calculate the difference between the upstream and downstream flow over their planned running periods, then add the operating level margins and hygienic design requirements. The 5,000 L/day worked example illustrates how a preliminary tank allowance can be checked against a schedule.
What temperature should milk leave the HTST pasteurizer?
For chilled pasteurized drinking milk, around 4°C is a common design target. A yogurt base or cheese milk may be discharged at a different temperature for its next process stage. The approved product specification, local requirements and downstream storage conditions determine the setpoint.
What should a customer send for a 5,000-to-10,000 L/day upgrade?
Send the current PFD, equipment schedule, product and package list, production hours, CIP/changeover records, utility specifications, factory layout and planned future product mix. These inputs allow a phased capacity and utility assessment.
Conclusion
The daily output of a dairy plant reflects every stage between raw-milk reception and accepted finished packs. A capacity review should show where milk slows, how long each stage remains available and what happens between the processing skid and the filler.
With measured operating data and a balanced equipment schedule, processors can direct investment toward the real restriction and plan future growth around a reliable production flow.
