A cow exercise area should not be designed as an isolated open yard.
Its real performance depends on how smoothly cows can move from the barn to the yard, from the yard back to feed and water, and through the wider milking and housing system without unnecessary waiting or crossing traffic.
For this reason, we normally look at five things before discussing the final yard size:
- Cow traffic flow
- Entrance and exit design
- Drainage
- Walking surface
- Water and manure handling
A large exercise yard can still perform poorly if cows must pass through a narrow, slippery entrance or if the route interferes with milking and feeding traffic.
Start With Cow Flow, Not Square Meters
Cow traffic is one of the easiest parts of an exercise-yard project to underestimate.
On a drawing, an outdoor yard may look simple: barn, gate, open space.
In daily operation, however, cows may need to move between:

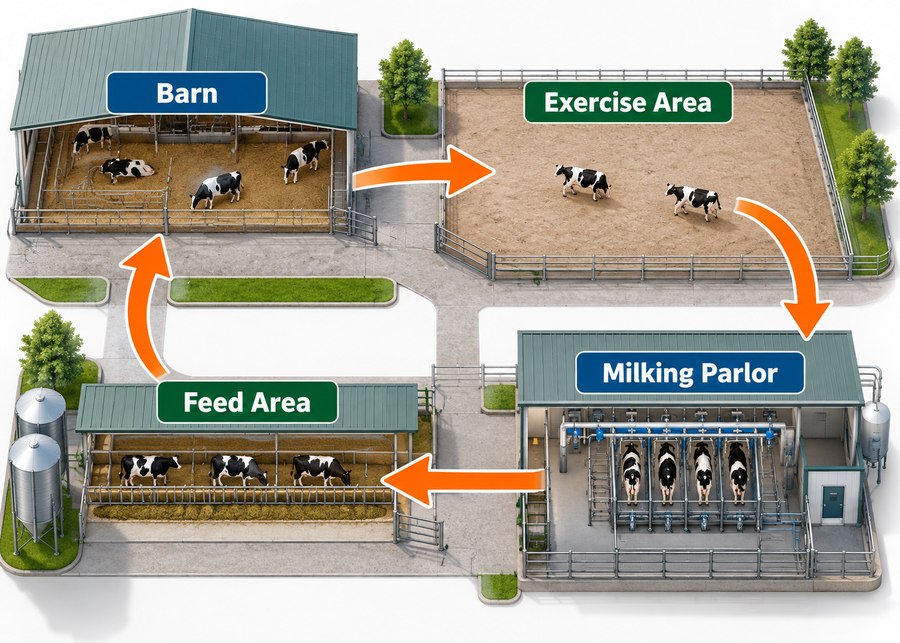

Barn → Exercise Area → Milking Parlor → Feed Area → Barn
Other groups may also be moving between pens at the same time.
If these routes cross or become unnecessarily long, staff may need to push cows more aggressively, dominant animals can block timid cows, and congestion develops at gates and intersections.
This is why exercise-area planning should be coordinated with:
- Milking routes
- Group-transfer routes
- Feed and water access
- Manure-removal traffic
- Barn entrances
- Other cow groups
The objective is not simply to give cows more space.
It is to make that space easy to enter, easy to leave, and compatible with the rest of the farm workflow.
Does Every Dairy Farm Need a Separate Exercise Area?
No.
A separate outdoor exercise yard should solve a real housing or management problem.
If cows in a well-designed freestall barn already have enough opportunity to:
- Walk freely
- Reach feed without congestion
- Access water easily
- Move between resting and feeding areas
- Express normal movement within the housing system
then constructing a separate outdoor exercise area may provide limited additional value.
This is especially important where land is limited or where an outdoor yard would create additional manure, drainage, mud, or labor problems.
A separate exercise area becomes more useful when indoor movement is restricted, cows spend long periods confined to limited spaces, or the farm deliberately wants to provide controlled outdoor access.
The design question should therefore be:
What problem will this exercise area solve?
Not:
How large should every dairy exercise yard be?
Do Not Size the Yard Only From Total Herd Size
A common planning shortcut is to specify a fixed number of square meters per cow and multiply it by the total herd.
That can significantly oversize or undersize the area.
The more useful number is:
How many cows will actually use the exercise area at the same time?
For example, a 500-cow dairy does not necessarily require an exercise yard sized for all 500 cows if cows enter in production groups or only part of the herd uses the area at one time.
A better planning sequence is:
Total herd → Groups using the yard → Peak simultaneous cow number → Required movement space → Final yard area
Benchmarks such as 20–30 m² per cow can still be useful during early planning, but they should be treated as a reference rather than an automatic design rule.
Climate, surface type, duration of use, stocking pattern, manure load, and management method can all change the space requirement.

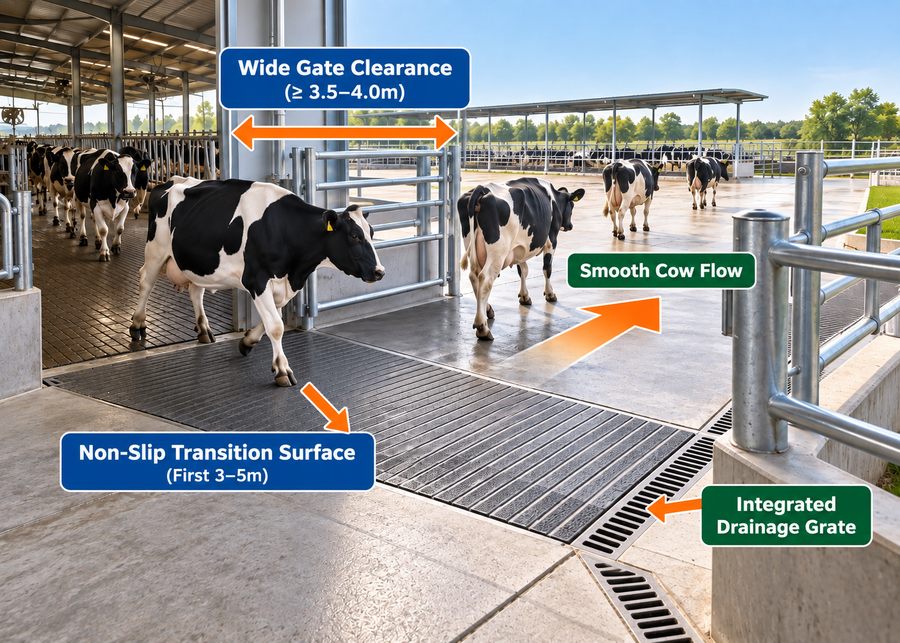

The First 3–5 Meters Outside the Barn Matter Most
One of the most critical parts of an exercise area is not the center of the yard.
It is the transition between the barn and the outdoor area.
The first several meters outside the entrance receive concentrated hoof traffic every time cows enter or return.
Problems here quickly become operational problems:
- Gate too narrow
- Sudden turns
- Slippery flooring
- Uneven surfaces
- Standing water
- Manure accumulation
- A sudden step or slope change
Once cows hesitate at the entrance, the animals behind them begin to bunch.
Staff then need to intervene, which creates additional stress and increases labor.
As a basic rule, the outdoor entrance should not suddenly become narrower than the main cow alley leading toward it.
The transition should also be smooth, visible, non-slip, and free of sharp turns immediately outside the gate.
Which Flooring Is Best for a Cow Exercise Area?
There is no single surface that is ideal for every farm.
The correct choice is a balance between hoof safety, drainage, cleaning requirements, climate, and budget.
| Surface | Main Advantage | Main Limitation | Best Use |
|---|---|---|---|
| Rubber / Rubberized Surface | High grip and good cow comfort | High installation cost | High-traffic entrances, turning areas and waiting zones |
| Textured Concrete | Durable and easy to scrape or wash | Can become hard or slippery if poorly finished | Intensive commercial yards and traffic lanes |
| Gravel / Sand-Based Surface | Good drainage and softer footing | Requires regular grading and replenishment | Lower-intensity outdoor areas |
| Natural Soil | Very low initial cost | Mud, erosion and difficult manure control | Low-cost seasonal use in suitable climates |
For high-value lactating cows, hoof traction deserves particular attention.
However, covering an entire large outdoor yard with rubber may not be economically necessary.
A more practical design is often to use the highest-quality non-slip surface at the locations carrying the greatest traffic:
- Barn exits
- Gateways
- Sharp turns
- Watering areas
- Holding points
These are also the locations where slipping injuries are most likely to occur.
Drainage Is What Separates an Exercise Yard From a Mud Yard
A large outdoor space quickly becomes unusable if water and manure cannot leave the surface.
Poor drainage causes:
- Mud accumulation
- Slippery footing
- Dirty legs and udders
- Higher cleaning workload
- Hoof exposure to persistently wet conditions
- Difficult machinery access
The yard should therefore be graded so water moves toward planned drainage or manure collection areas rather than back toward the barn entrance.
The most important inspection points are usually:
- Barn doorway
- Water trough area
- Low points
- Fence corners
- Drain channels
- Manure collection points
If puddles repeatedly appear in the same location, the problem is usually the surface profile or drainage layout—not a shortage of cleaning labor.
Water Access Should Not Create Another Traffic Bottleneck
If cows spend meaningful time outside, clean drinking water should be easily accessible.
But simply placing a water trough somewhere inside the exercise yard is not enough.
The trough should not create a dead-end area where dominant cows can block access.
It also should not force cows leaving the yard to cross the path of cows entering.
A good watering location allows cows to:
Approach → Drink → Move Away
without turning sharply or blocking the main route.
For larger groups, trough capacity and refill rate also matter. A large trough with slow refill can still become a bottleneck.
Where cold conditions are expected, insulated or heated stainless steel livestock troughs can also help maintain reliable water access.
Can Exercise Time Reduce Feed Intake or Milk Production?
It can—if outdoor access is managed poorly.
The problem is not exercise itself.
The problem is lost access time.
For example, if an entire group is pushed outside at once and later returned through a narrow gate, cows may spend significant time:
- Waiting
- Standing in congestion
- Walking unnecessarily
- Away from the feed bunk
That can interfere with the normal feeding routine.
This is particularly undesirable after milking, when cows often return to the feed area.
Where farm layout and management allow, voluntary or flexible outdoor access can reduce this problem because cows do not all have to move through the same gateway at exactly the same time.
Where scheduled access is necessary, the exercise period should be coordinated with:
- Milking
- Fresh-feed delivery
- Feed pushing
- Group movement
- Heat-stress management
The exercise yard should support the daily routine rather than compete with feeding time.
Manure Removal Must Be Designed Before the Yard Is Built
Exercise areas concentrate manure around gates, water points, shade areas, and common walking routes.
If the yard is designed without considering cleaning access, maintenance quickly becomes labor-intensive.
Before construction, check whether:
- Scraping equipment can enter easily
- Manure can be moved toward a collection point
- Cleaning machinery must cross cow traffic
- Drainage carries slurry toward the correct treatment area
- Gates provide enough equipment clearance
On intensive facilities, the yard should integrate with the farm's existing manure scraping system or manure collection route wherever practical.
The exercise area should not become an isolated manure-management problem.
A Simple Five-Point Exercise Area Inspection
When we review an existing cow exercise area, five locations usually reveal most of the design problems.
| What to Check | Good Design | Warning Sign |
|---|---|---|
| Entrance / Exit | Wide, smooth and easy for cows to understand | Bunching, hesitation or frequent staff pushing |
| Drainage | Surface drains quickly after washing or rain | Persistent puddles and mud |
| Floor Surface | Stable and non-slip | Cows shorten stride or hesitate |
| Water Access | Easy approach and exit | Dominant cows block the trough |
| Manure Removal | Clear scraping and collection route | Manure builds up at gates and corners |
If several of these problems appear together, increasing the size of the exercise area usually will not solve them.
The layout needs to be corrected first.
How We Plan an Exercise Area in a New Dairy Project
For a new dairy facility, the exercise yard should be considered during the farm-layout stage rather than added after the barn has already been positioned.
A practical sequence is:
1. Define Which Cows Will Use It
Lactating cows, dry cows, transition cows, or specific production groups may have different requirements.
2. Determine Peak Simultaneous Use
Size the area around the group that will actually occupy it—not automatically around total herd inventory.
3. Map the Cow Routes
Check the connection between:
Barn → Yard → Milking → Feed → Return
and identify potential crossing points.
4. Design the Entrance First
Confirm gate width, turning radius, surface grip, drainage, and the first several meters outside the barn.
5. Select Surface and Drainage Together
Flooring cannot be selected independently of rainfall, manure load, cleaning method, and drainage.
6. Position Water and Cleaning Access
Avoid creating new bottlenecks around water troughs or manure-removal routes.
Only after these points are resolved should the final footprint be fixed.
Conclusion
A good cow exercise area is not simply a large fenced space.
Its performance depends on how well it integrates with the rest of the dairy:
Cow Flow → Entrance Design → Safe Flooring → Drainage → Water Access → Manure Removal
The most common mistake is to focus on total square meters while overlooking the routes cows use every day.
For some well-designed freestall dairies, a separate exercise yard may not even be necessary.
For farms that do need one, the objective should be to create an area cows can enter and leave calmly without reducing feeding access or creating additional labor.
In new dairy projects, NexAgri Solutions can incorporate cow traffic, barn layout, water systems, manure handling, and outdoor exercise areas into the same farm plan so that these systems work together rather than being designed separately.
