A cow exercise area gives dairy cows additional space to walk, socialize and spend time outside the main barn. But simply fencing off an empty yard is not enough.
A poorly designed exercise area can quickly become muddy, slippery and difficult to clean. It can also create congestion around gates, water troughs and barn entrances.
A good design should connect naturally with the dairy barn while providing safe footing, effective drainage, sufficient space, secure fencing and convenient access to water.
For commercial dairy farms, the goal is not to make cows walk as much as possible. The goal is to provide additional freedom of movement without interfering with feeding, resting or milking routines.
Will an Exercise Area Reduce Feed Intake or Milk Production?
One concern we sometimes hear from dairy farms is:
If cows become comfortable outside, will they spend less time at the feed bunk?
Usually, this is more of a cow-flow and management problem than an exercise-area problem.
Cows still need easy access to:
- Feed
- Drinking water
- Resting stalls
- Milking routes
- Shade or shelter when required
If the exercise area is located too far from the barn, access is poorly controlled, or cows must walk long distances several times per day, it can interfere with their normal daily routine.
But a properly located exercise yard beside the barn is very different.
Outdoor access can give cows more opportunities for voluntary movement, social interaction and natural behavior.
It may also support locomotion and hoof health when the walking surface is suitable.
However, an exercise area should not be considered a guaranteed way to increase milk yield.
Milk production still depends much more directly on factors such as:
- Dry matter intake
- Ration quality
- Lying time
- Heat stress
- Hoof health
- Disease control
- Milking management
The exercise area should therefore support the overall cow-comfort system rather than compete with feeding or resting time.
How Much Space Does a Cow Exercise Area Need?
There is no single space allowance that works for every dairy farm.
The required area depends on how the yard will actually be used.
For example, an area used for short periods of daily exercise does not need to be designed in exactly the same way as a large outdoor loafing area where cows may spend several hours.
Before deciding the final size, consider:
| Design Factor | Why It Matters |
|---|---|
| Number of cows | Determines total required usable area |
| Time spent outside | Longer use increases manure and surface loading |
| Surface type | Concrete, sand and natural surfaces require different designs |
| Local rainfall | Wet climates require stronger drainage |
| Cleaning system | Scraping and soft-surface maintenance need different layouts |
| Barn connection | Narrow entrances can create congestion |
| Water and shade | Additional facilities require usable space around them |
For commercial projects, usable space is more important than total fenced area.
A large yard can still perform poorly if much of the space is located behind narrow passages, unused corners or poorly positioned gates.
Surface Design Is One of the Most Important Decisions
The exercise-area surface directly affects hoof safety, drainage, cleaning and maintenance.
The best surface depends on how intensively the area is used.
Concrete or Hard-Surface Yards
Concrete is durable and relatively easy to clean, which makes it suitable for:
- Barn entrances
- Gateways
- Drinking areas
- High-traffic exercise yards
However, smooth concrete becomes dangerous when wet or contaminated with manure.
The surface therefore needs adequate traction.
Grooving, textured finishing or appropriate rubber surfacing can be considered in high-traffic locations.
Sand or Other Soft Surfaces
Sand provides softer footing and can work well in outdoor loafing areas.
But drainage becomes even more important.
Simply spreading sand over poorly drained soil usually does not solve the problem. Over time, the area may become compacted, contaminated and muddy.
A soft-surface yard should therefore be designed with:
- A stable base
- Controlled drainage
- Suitable surface depth
- Regular leveling
- Periodic material replacement
Reinforce High-Traffic Areas
The center of the exercise paddock is not always where surface problems begin.
The most heavily damaged areas are usually:
- Barn exits
- Gateways
- Water troughs
- Corners
- Narrow cow routes
These locations receive repeated hoof traffic and often need stronger surfacing than the rest of the yard.
Suggested image filename: dairy-cow-exercise-yard-drainage-surface.jpg
Drainage Should Be Designed Before the Yard Is Built
Many exercise-yard problems are actually drainage problems.
If rainfall, wash water and manure-contaminated liquid cannot leave the area properly, even a good surface will eventually deteriorate.
The yard should be designed so that water moves away from:
- Barn entrances
- Drinking points
- Main cow routes
- Gates
- Resting areas
For hard-surface yards, an engineered slope is commonly used to direct liquid toward a drainage or manure-management system.
But the correct slope depends on the surface material, local rainfall and cleaning method.
This means drainage should be considered together with the overall dairy-farm manure system rather than added after construction.
A common mistake is repeatedly adding gravel or sand to a wet area without correcting the underlying drainage problem.
That may temporarily improve the surface, but the mud usually returns.
Design Cow Traffic Before Installing the Fence
The exercise area should be easy for cows to enter and leave.
A large yard with only one narrow gateway can still create unnecessary competition.
Where possible, use a sufficiently wide opening or multiple access points between the barn and outdoor area.
The layout should avoid:
- Sharp corners
- Dead ends
- Narrow passages
- Sudden changes in direction
- Areas where dominant cows can block subordinate cows
Fencing also needs to be designed for mature dairy cattle.
Heavy-duty galvanized steel pipe is commonly used for permanent dairy-yard fencing because it is durable and can be integrated with gates and barn structures.
Whatever fencing system is selected, avoid:
- Sharp edges
- Exposed wire ends
- Large openings where legs may become trapped
- Damaged rails
- Weak posts around gateways
The key question is not simply “How high should the fence be?”
It is:
“Can cows move safely through the entire area without becoming trapped, crowded or injured?”

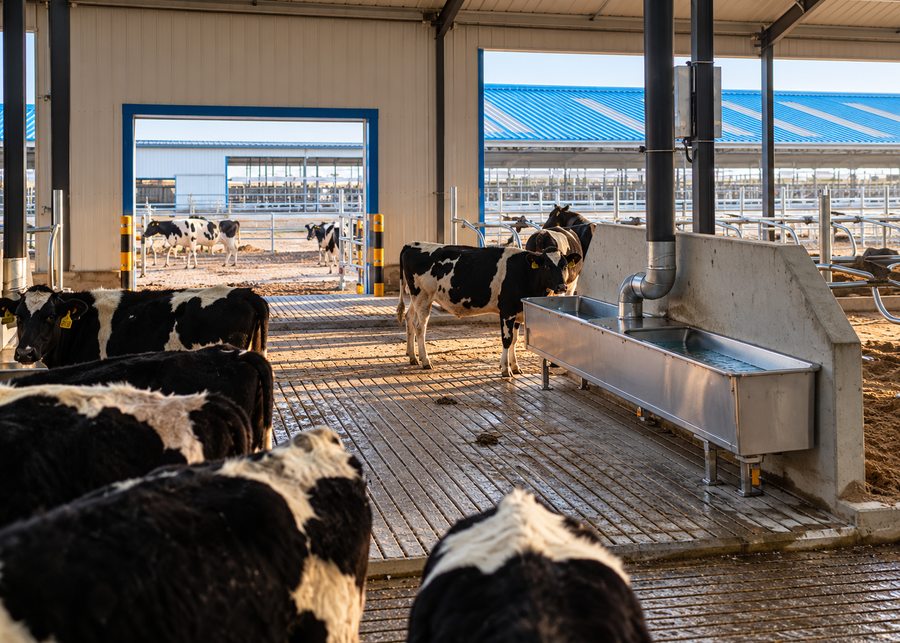

Water Should Be Easy to Reach Without Creating a Mud Zone
If cows spend meaningful time in the exercise area, access to drinking water should be included in the design.
The trough should be easy to reach but should not block the main cow route.
For larger groups, drinking access also needs enough usable perimeter so that dominant cows do not prevent lower-ranking animals from reaching the water.
A stainless steel cattle water trough is suitable for this type of area because it is durable, easy to clean and can be integrated into permanent outdoor layouts.
In colder regions, insulated or heated water troughs can also help maintain reliable water access during freezing weather.
Suggested image filename: outdoor-cattle-water-trough-exercise-yard.jpg
One detail that is often overlooked is the ground immediately surrounding the trough.
Cows repeatedly standing and turning in the same location can quickly damage an unprepared soil surface.
For this reason, the drinking area normally needs stronger surfacing and better drainage than low-traffic sections of the yard.
Should You Add Shade and Cow Brushes?
Once the basic layout is correct, additional cow-comfort features can be considered.
Shade
In hot climates, an outdoor exercise area without shade may receive very little use during the hottest part of the day.
If cows will spend long periods outside, shade should be considered as part of the heat-stress management strategy.
The structure should provide useful shaded space without creating another crowded location.
Cow Brushes
Cow brushes provide grooming opportunities and encourage natural behavior.
Automatic cow body brushes can be installed in barns or suitable outdoor loafing areas.
However, these should be treated as an additional comfort feature.
The priorities should still be:
Footing → Drainage → Cow flow → Water → Shade → Additional comfort equipment
Installing a cow brush will not compensate for a muddy yard or poorly designed entrance.
How Should a Cow Exercise Area Be Cleaned?
Cleaning depends strongly on the surface.
There is no universal rule that every exercise area must be cleaned in exactly the same way every day.
Hard-Surface Areas
Concrete yards can normally be cleaned using scraping, flushing or other manure-removal systems depending on the farm design.
High-traffic locations may require more frequent cleaning.
Sand or Soft-Surface Areas
Soft-surface exercise areas usually require a different approach.
Maintenance may include:
- Removing heavily contaminated material
- Leveling uneven surfaces
- Filling damaged areas
- Adding fresh material
- Restoring drainage routes
After heavy rainfall, check the areas around gateways, water troughs and barn entrances first.
If the same locations repeatedly become muddy, the problem is usually related to layout, surface construction or drainage, not simply cleaning frequency.
Example: Planning an Exercise Area for a 100-Cow Dairy Farm
Imagine a 100-cow dairy wants to build an outdoor exercise area beside an existing freestall barn.
Instead of immediately deciding on a fixed number of square meters per cow, start with the operating routine.
1. When Will Cows Use the Area?
Will cows have access for one or two hours, or will the yard remain open for much of the day?
Longer access normally requires more usable space and stronger manure-management planning.
2. How Will Cows Enter and Leave?
The exercise area should not interfere with:
- The milking route
- Feed delivery
- Feed bunk access
- Manure scraping
- Staff movement
3. Where Will Rainwater Go?
Before selecting the final surface, identify the drainage direction and where contaminated runoff will be collected.
4. Where Are the High-Traffic Points?
Gateways, barn entrances and water troughs often need reinforced surfaces even when the main exercise area uses sand or another softer material.
5. What Happens During Hot or Cold Weather?
The layout should also consider seasonal operation.
Hot climates may require shade, while freezing climates may require heated water systems and surfaces that remain manageable during winter.
This type of planning usually produces a more practical exercise area than simply applying one universal space figure.
Common Cow Exercise Area Design Mistakes
Most exercise-yard problems come from a small number of design mistakes:
- Building on poorly drained land
- Using smooth concrete in wet cow-traffic areas
- Leaving water troughs on unprepared soil
- Creating only one narrow entrance
- Ignoring manure and runoff collection
- Making cows walk unnecessarily long distances
- Adding comfort equipment before solving basic drainage and footing problems
The exercise area should be treated as part of the whole dairy barn system, not as an isolated fenced paddock.
Conclusion
A good cow exercise area is more than an open space beside the barn.
Its success depends on how well several elements work together:
Cow flow → Surface → Drainage → Water → Fencing → Weather protection → Maintenance
When these fundamentals are planned correctly, an exercise area can provide cows with additional movement, social interaction and environmental choice without unnecessarily interfering with feeding, resting or milking routines.
For new dairy projects, NexAgri Solutions can integrate exercise yards with barn layouts, water systems, cow-comfort equipment and manure handling during the farm planning and equipment configuration stage.
Planning these systems together is usually much easier than correcting drainage, cow-flow or surface problems after construction.
