A dairy processing line can look efficient on paper and still lose hours every day to waiting, filling delays, cleaning, changeovers, equipment faults, and small stops.
The biggest mistake is evaluating efficiency machine by machine.
A 2,000 L/h pasteurizer does not mean the plant will automatically produce 16,000 liters of finished product in an 8-hour shift. What matters is how much qualified product the entire line can consistently deliver.
When we review a dairy processing project, we usually start with three questions:
- Which machine is waiting for another machine?
- Is actual production reaching the expected output?
- Where are faults, alarms, or repeated small stops occurring?
Once these questions are clear, it becomes much easier to find the real bottleneck instead of simply buying a larger machine.
1. Start With Real Line Output, Not Nameplate Capacity
Equipment capacity is normally specified under stable operating conditions.
For example:
Pasteurizer capacity: 2,000 L/h
This tells you what the pasteurizer can process while it is running normally.
It does not mean the complete line will deliver 2,000 liters of finished product every hour.
Actual production also depends on:
- Startup and stabilization
- CIP cleaning
- Product changeovers
- Filling interruptions
- Cooling capacity
- Buffer-tank waiting
- Equipment faults
- Short stops
- Product recovery
- Rework and rejects
So instead of only asking:
How many liters per hour can this machine process?
Ask:
How many liters of qualified product can the complete line consistently deliver per shift?
That is the number that matters for production planning.
A Simple Example
Suppose a pasteurizer is rated at:
2,000 L/h
On paper:
2,000 L/h × 8 hours = 16,000 L
But an 8-hour shift may also contain:
- Startup
- CIP
- Product or packaging changeover
- Filler stops
- Cooling delays
- Minor faults
- Operator waiting
The real production window may therefore be much shorter than eight full hours.
Nameplate capacity tells you what one machine can do. Effective production time tells you what the plant can actually deliver.
2. Find Which Equipment Is Waiting for Which Equipment
One of the fastest ways to understand a dairy line is to observe where product flow stops being smooth.
If one machine is constantly waiting while another is always running at maximum speed, the line probably has a capacity imbalance.
For a full-stream line, size the pasteurizer and homogenizer for a compatible operating flow. A buffer downstream of the homogenizer stores product between processing and filling. It does not remove a flow constraint inside the upstream processing section. Partial-stream homogenization uses a different flow arrangement.
For example, a processing section running at 1,500 L/h can feed a filler running at 1,000 L/h through a hygienic buffer tank.
Compatible processing section: 1,500 L/h
↓
Hygienic buffer tank
↓
Filler: 1,000 L/hWhile both sections run, the tank gains 500 L/h.
Available buffering time (h) = Free tank capacity (L) ÷ 500 (L/h)
Use this time to plan when processing pauses, how long filling continues and whether product holding limits can be met.
3. In Small Dairy Lines, Check the Filling Machine First
In many small dairy plants, filling is one of the first places worth checking when actual output is lower than expected.
This is especially common with:
- Yogurt cups
- Bottled milk
- Flavored milk
- Small retail packages
- Lines with frequent packaging changes
A pasteurizer may be able to run continuously at high capacity while the filling machine slows the entire downstream process.
A practical way to identify a bottleneck is to watch for equipment that:
- Frequently runs at maximum speed
- Frequently alarms
- Has repeated short stops
- Causes the upstream buffer tank to become full
- Causes the downstream side to run empty
- Forces upstream equipment to stop
- Requires repeated operator intervention
The bottleneck is not always the machine with the lowest number on the specification sheet.
The real question is:
Which process step is restricting stable flow through the complete line?
For many small dairy lines, a useful investigation order is:
Filling → Cooling → Buffering → Pasteurization → Homogenization → CIP
This is not a universal ranking, but it is often a practical place to start.
4. Equipment Capacities Do Not Need to Be Identical
Different sections of a dairy plant can run on different schedules. In a full-stream processing section, the pasteurizer and homogenizer need a compatible operating flow. A downstream buffer lets the filler run to a separate schedule.
Buffer Tanks Help Balance Different Process Speeds
A buffer tank can separate upstream processing from downstream filling.
For example:
Pasteurizer
↓
Homogenizer
↓
Buffer Tank
↓
Filling MachineA buffer separates production schedules for a limited time. Its usable free volume determines how long upstream processing can continue while the filler runs more slowly.
Size the buffer around:
- Upstream flow
- Downstream flow
- Batch size
- Product holding time
- Product temperature
- Production sequence
- Changeover timing
A buffer tank that is too small fills quickly and stops upstream production.
A tank that is unnecessarily large increases holding time, cleaning volume, floor space, and investment.
Match each processing section to its operating flow, then size the buffer and filling schedule together.
5. Measure Effective Production Hours, Not Just Shift Length
An eight-hour shift rarely means eight full hours of processing.
CIP is one of the main reasons.
Cleaning time is not only the period when cleaning chemicals are circulating.
Total cleaning downtime may also include:
- Product draining and recovery
- Pre-rinse
- Heating
- Water and chemical switching
- Cleaning circulation
- Final rinse
- Cooling
- Manual valve operation
- Restart verification
Customers often underestimate the time lost before and after the main CIP cycle.
A better way to calculate production capacity is:
Scheduled Shift Time
↓
Minus Startup
↓
Minus CIP
↓
Minus Changeover
↓
Minus Faults and Small Stops
↓
Effective Production TimeIf the plant operates an 8-hour shift, planning should focus on how many of those hours are actually available for stable production.
6. Improve CIP Without Sacrificing Hygiene
CIP can consume a significant part of the available production window.
The solution is not simply to shorten the cleaning cycle.
The goal is to remove unnecessary waiting while still achieving the required cleaning result.
Product Recovery
Before CIP begins, recover as much usable product as practical instead of sending it directly to drain.
Poor product recovery increases both product loss and wastewater load.
Drainability
Poor pipe slopes, dead areas, or badly positioned return lines can leave product or rinse water inside the system.
This increases rinse time and makes cleaning less predictable.
Heating
If CIP takes too long to reach cleaning temperature, check:
- Hot-water availability
- Heat exchanger capacity
- Steam supply
- CIP tank volume
- Heating power
Valve Switching
Manual valves require operators to move around the plant and create more opportunities for routing mistakes.
Where justified, automated valve switching can reduce waiting and make the process more repeatable.
CIP Circuit Design
One large CIP circuit is not always the most efficient solution.
Separating suitable sections into logical cleaning loops can make scheduling easier and avoid cleaning equipment that does not need to be cleaned at the same time.
7. Heating and Cooling Can Limit the Entire Line
Increasing processing capacity does not help if the utility system cannot support it.
This is especially important for:
- Steam
- Hot water
- Chilled water
- Refrigeration
Plate Heat Recovery
For continuous pasteurization systems, regenerative plate heat exchange can transfer heat from outgoing hot product to incoming cold product.
This can reduce both:
- Heating demand
- Cooling demand
That is why plate heat recovery is often one of the first thermal-efficiency opportunities worth evaluating.
CIP Hot Water
CIP also consumes substantial hot water.
If useful hot water, condensate, or recoverable heat is discharged without evaluation, part of the plant's energy input is simply being lost.
A well-designed system should therefore consider whether heat can be recovered safely and reused.
Cooling Capacity
Cooling is another common bottleneck.
A larger pasteurizer will not improve plant output if the cooling system cannot remove heat fast enough.
Check:
- Chilled-water temperature
- Chilled-water flow
- Plate cooler capacity
- Refrigeration capacity
- Buffer storage
- Peak cooling demand
The production line can only run as fast as its utility system allows.
8. Automation Should Remove Repeated Errors and Waiting
More automation does not automatically mean more efficiency.
For a small dairy plant processing around 1,000–5,000 L/day, a well-designed semi-automatic line may be more economical than a highly automated system.
The better question is:
Where does automation actually remove labor, waiting, or operating mistakes?
The areas we would normally prioritize are:
| Area | Why It Matters |
|---|---|
| Temperature Control | Pasteurization, cooling, fermentation, and storage require stable temperatures |
| CIP | Makes cleaning more repeatable and reduces manual steps |
| Valve Switching | Reduces operator movement and incorrect flow routing |
| Dosing | Useful where recipe accuracy affects product consistency |
| Filling | Often controls output in small processing lines |
| Production Records | Makes downtime, CIP, output, and fault analysis easier |
Production records do not need to start with a complicated factory management system.
At minimum, it is useful to record:
- Batch number
- Product type
- Actual production volume
- CIP time
- Downtime
- Main faults
- Processing temperature
- Pressure where relevant
Without these records, monthly efficiency reviews often become based on memory instead of data.

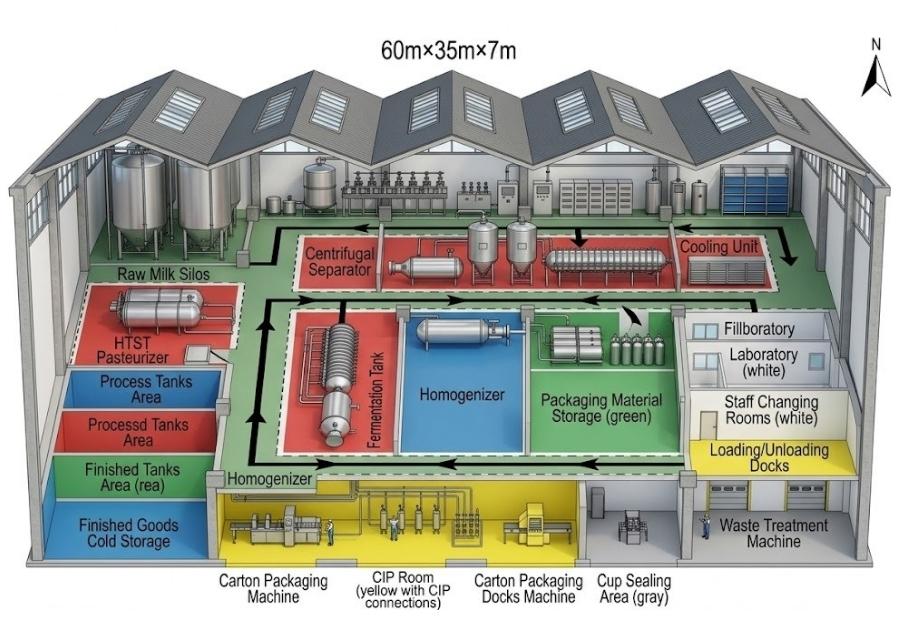

9. Design the Plant Around Product Flow
The process should start with the product you want to sell and work backward.
A pasteurized milk line, yogurt line, and cheese line do not need the same equipment or layout.
The basic planning logic is:
Raw Milk → Processing → Buffering → Packaging → Finished Product
The layout should also consider:
- Personnel movement
- Raw and finished product separation
- CIP flow
- Drainage
- Utility access
- Maintenance access
- Future expansion
A plant can contain good individual machines and still operate inefficiently if:
- Pipes are unnecessarily long
- Tanks are positioned poorly
- Operators repeatedly cross the production route
- Cleaning circuits do not drain properly
- Utility connections were planned after equipment installation
- No expansion space was reserved
This is why process design should come before final equipment placement.
10. Do Not Judge a Dairy Line Only by Equipment Price
When comparing dairy processing lines, purchase price is only one part of the decision.
A cheaper line may become expensive if it creates:
- More labor
- Longer CIP
- Frequent downtime
- Higher product loss
- Poor thermal recovery
- Difficult maintenance
- Repeated integration problems
A more useful comparison is:
| Question | Why It Matters |
|---|---|
| What is the real output per shift? | Shows actual line productivity |
| Where is the designed bottleneck? | Clarifies which process controls throughput |
| How long does CIP take? | Determines available production time |
| How are capacity differences buffered? | Reduces repeated upstream and downstream stops |
| How long does product changeover take? | Reveals hidden downtime |
| What utilities are required? | Prevents steam, hot-water, or cooling shortages |
| How is downtime recorded? | Makes future optimization possible |
The most suitable machine is not necessarily the machine with the highest capacity.
It is the machine that fits the operating logic of the complete production line.
Why Does an Integrated Supplier Still Matter?
When planning a dairy processing line, define the required product flow, buffer capacity, utilities and CIP responsibilities across the whole system. Review filling and packaging equipment against the same production schedule.
The more important benefit is reducing three project risks:
- Design mismatch
- Interface disputes
- Commissioning failure
When tanks, piping, controls, utilities, filling equipment, and CIP come from several unrelated suppliers, responsibility can become unclear if the line does not perform as expected.
One supplier may say the pump is too small.
Another may say the pipe diameter is wrong.
The filler supplier may blame unstable upstream flow.
The customer is left trying to decide who is responsible.
An integrated project approach makes it easier to coordinate:
- Process layout
- Tank capacity
- Pipe sizing
- Electrical requirements
- Valve logic
- CIP circuits
- Equipment interfaces
- Commissioning
- Future expansion
Using multiple suppliers is not automatically wrong.
The important question is:
Who is responsible for solving the problem if the complete line does not run as designed?
For a turnkey project, someone needs to take responsibility for system-level performance rather than only the individual machines they supplied.
A Practical Dairy Processing Efficiency Check
When a dairy plant is producing less than expected, we recommend checking the system in this order:
1. Line Balance
Which machine is waiting for another machine?
2. Actual Output
How much qualified product is produced per shift compared with the original target?
3. Downtime
Which faults, alarms, and small stops happen repeatedly?
4. Filling and Cooling
Can downstream equipment keep up with the upstream processing section?
5. Buffer Capacity
Are tanks repeatedly becoming full or empty?
6. CIP and Changeover
How much of the working shift is unavailable for production?
7. Heating and Cooling Utilities
Can steam, hot water, chilled water, and refrigeration support peak demand?
8. Automation and Records
Are repeated manual tasks being reduced, and are production losses actually being recorded?
This sequence usually tells you much more than simply comparing equipment specification sheets.
Conclusion
Making dairy processing more efficient is not about buying the fastest pasteurizer or adding automation everywhere.
The real goal is to make:
Processing → Buffering → Cooling → Filling → Cleaning
work together without unnecessary waiting.
Start by finding which machine is waiting for another machine. Then compare actual production with the design target and identify repeated faults or stops.
After that, review filling, cooling, buffer capacity, CIP, utilities, automation, and layout.
Individual machines create capacity. A balanced process turns that capacity into finished product.
