A cattle truck can arrive on schedule while some of the animals inside arrive dehydrated, injured, or too stressed to resume normal feeding. The consequences are not limited to the journey itself. Problems may become apparent during unloading and the following days.
Safe cattle transport starts with animals that are fit to travel, a vehicle with adequate usable space and ventilation, and a journey plan that accounts for weather, rest requirements, emergency delays, and prompt unloading. A loading calculator can support planning, but it cannot certify legal compliance or animal welfare on its own.

For livestock buyers, dairy farms, beef operations, and transport managers, five questions should come before departure: Are these cattle fit? Is the vehicle suitable? Is there enough space and payload capacity? Can heat and ventilation be managed? Is the destination ready to receive them?
This guide explains the checks and includes a practical Smart Load & Welfare Calculator for preliminary area, payload, and journey-risk screening.
1. Check Whether Every Animal Is Fit to Travel
A good loading plan cannot make an unfit animal suitable for routine transport.
Before loading, trained staff should observe each animal and identify those requiring a veterinary decision. Concerns include an inability to walk or bear weight normally, serious injury, pronounced weakness, severe illness, or dehydration. Animals close to giving birth and very young calves may also face specific restrictions depending on the journey and local regulations.
The WOAH Terrestrial Code, Chapter 7.3 recommends assessing fitness before loading and obtaining veterinary examination when fitness is in doubt.
A Practical Pre-Loading Check
- Movement: Can the animal stand and walk without significant difficulty or pain?
- General condition: Is it alert, responsive, and able to cope with handling?
- Clinical signs: Are there indications of serious respiratory illness, diarrhea, injury, or dehydration?
- Reproductive status: Could late pregnancy or recent calving make the planned journey unsuitable?
- Identification and documents: Do ear tags, movement permits, and required veterinary records match the load?
A dry nose or warm skin is not a reliable fever test. Where illness is suspected, use an appropriate clinical examination and veterinary guidance rather than a touch-based decision.
Do not load an animal merely to meet a target headcount. The applicable rules for unfit and compromised animals, emergency veterinary transport, and slaughter-bound animals must be checked in the relevant jurisdiction.
2. Calculate Loading Space Using Real Vehicle Dimensions
One of the most common mistakes is estimating capacity from the truck’s external dimensions or from the number of cattle another operator transported in a similar-looking vehicle.
The useful figure is the usable animal floor area inside each compartment. Posts, partitions, built-in equipment, and other non-usable areas must be accounted for.
Space requirements vary with liveweight, body size, horns, pregnancy, grouping, journey conditions, and the purpose of the trip. Animals must be able to balance as the vehicle accelerates, brakes, and turns; crowding increases welfare risks, while poorly managed excess space can allow animals to lose their footing.
A Scientific Space-Planning Reference
In its 2022 scientific opinion on cattle transport, the European Food Safety Authority (EFSA) recommended using an allometric relationship:
Floor area per animal (m²) = 0.034 × liveweight (kg)^(2/3)
The coefficient reflects a welfare-based scientific recommendation for room to adjust posture and lie down. It is not a universal legal loading rule and does not override national regulations or transport-specific veterinary requirements.
For illustration, a 500 kg animal gives approximately 2.14 m² with this formula. Forty similar animals would therefore give approximately 85.7 m² as a reference total before separately checking grouping, deck design, actual vehicle space, and permitted payload.
See EFSA: Welfare of cattle during transport.
Floor Area and Vehicle Payload Are Different Limits
A trailer may have enough space but still exceed its allowable livestock payload. Conversely, it may have adequate permitted weight but insufficient floor area.
Check both:
| Check | Information Needed | What It Tells You |
|---|---|---|
| Usable floor area | Internal dimensions and deductions for non-usable space | Whether the planned animals fit the selected welfare reference |
| Livestock payload | Permitted payload remaining after equipment and carried supplies | Whether animal weight exceeds the available allowance |
| Compartment layout | Partition locations and practical group sizes | Whether animals can be separated safely |
| Vertical clearance | Animal height, deck beams, roof and ventilation space | Whether cattle can stand naturally with suitable headroom |
| Legal limits | Countries and regions along the route | Whether the actual arrangement meets applicable requirements |
If a vehicle has two decks, calculate each deck separately rather than treating the total area as one open pen. Check deck structure and load distribution as well as floor area.

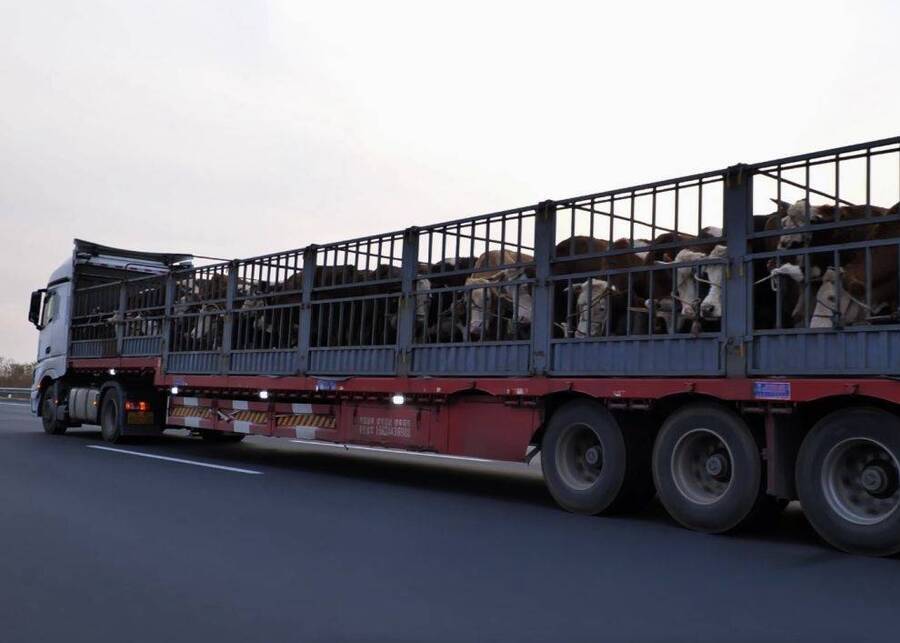

The photograph illustrates a livestock-transport arrangement; it does not establish that the shown stocking density, deck clearance, or load is compliant.

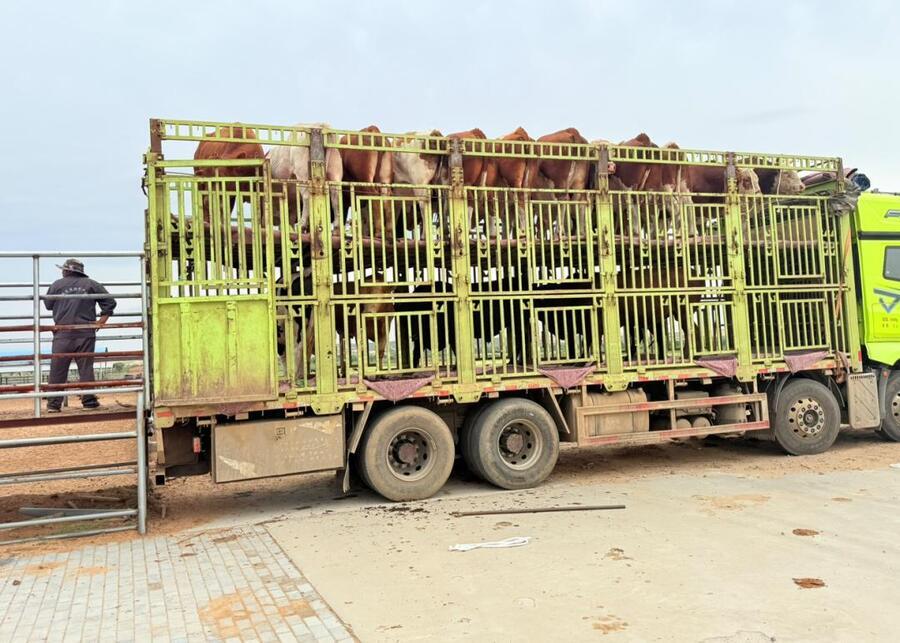

3. Pay Special Attention to Double-Deck Cattle Trucks
A double-deck vehicle does not simply provide twice the capacity of a single deck. Each level has its own physical and operational constraints.
Before selecting a two-level arrangement, verify:
- Internal clearance: The tallest animal must have suitable headroom; roof ribs and structural beams reduce usable height.
- Deck-specific load rating: The upper floor, supports, and lifting mechanisms must safely carry the actual animals and equipment.
- Ventilation: Air exchange must be adequate during travel and while stationary, including areas with restricted circulation.
- Floor traction and drainage: Surfaces must reduce slipping without creating hygiene or drainage hazards.
- Separation and handling: Internal gates and loading equipment must allow safe animal movement and emergency access.
EFSA’s cattle-transport opinion also provides a scientific recommendation for vertical clearance, including approximately 40 cm above the withers for adult cattle, but legal requirements and vehicle approval must be checked for the actual system.
Do not assume the upper deck always has a specific temperature difference or must always receive a fixed percentage fewer cattle. Measure and assess the real conditions of each compartment.
4. Manage Trailer Heat, Humidity, and Ventilation
Temperature matters, but air movement, humidity, radiant heat, animal condition, and the time spent stationary can all change the effective heat load inside a livestock vehicle.
A particularly overlooked problem occurs during delays. A vehicle may have adequate airflow while moving, then lose much of that natural ventilation while waiting in traffic or at a loading bay.
That makes journey planning and destination coordination part of temperature control.
What Should Be Checked Before Departure?
- Weather forecast along the full route, not only at the point of departure.
- Expected loading and unloading queues.
- Location of shaded waiting areas and safe emergency stopping points.
- Ventilation availability when the truck is stationary.
- Temperature and humidity monitoring at representative locations, including separate compartments where relevant.
- A clear response plan for heat-stressed animals.
EFSA identifies approximately 25°C vehicle temperature as an upper critical reference in its cattle transport welfare assessment. This should be treated as a risk-screening reference—not proof that every journey below this reading is safe or every journey above it causes a fixed loss.
Practical Heat-Risk Controls
Where feasible, schedule loading and travel outside the hottest hours. Limit waiting with animals on board. Maintain ventilation openings without exposing animals to dangerous drafts, road spray, or other hazards.
Some vehicles may require properly engineered mechanical ventilation, particularly if passive ventilation is inadequate while stationary. Portable or temporary equipment should be assessed for electrical, fire, and animal safety before use.
If animals show serious heat-stress signs—such as marked respiratory distress, collapse, or inability to remain standing—take immediate action under an emergency and veterinary plan. Simply increasing the planned space allowance does not resolve an acute heat emergency.
5. Plan Journey Time and Rest According to the Route
There is no worldwide 28-hour cattle-transport rule.
- United States: The federal Twenty-Eight Hour Law provides a general 28-hour confinement framework and at least five consecutive hours for unloading, feeding, watering, and rest when applicable, with specified exceptions and conditions.
- European Union: Council Regulation (EC) No 1/2005 establishes different journey and rest rules. Under specified conditions for approved long journeys, adult cattle may follow a 14-hour transport, at least one-hour rest, and further 14-hour transport sequence, followed by the prescribed longer rest. Other conditions may impose shorter limits.
- Canada: The Health of Animals Regulations set feed, water, and rest intervals by animal category, including special requirements for compromised animals. These do not match the U.S. or EU framework.
Always check the current requirements for the origin, destination, transit regions, animal category, and vehicle. A driver’s legally permitted driving time may be different from the animals’ allowable journey arrangements.
Official references: USDA Twenty-Eight Hour Law, EU Regulation 1/2005, and Canadian livestock transport guidance.
A Useful Route Plan Includes More Than Driving Hours
Confirm the destination’s receiving hours, unloading facilities, available pens, water supply, veterinary contact, and any border or document checks before departure.
Allow for traffic delays, bad weather, ferry or border queues, and breakdowns. Identify appropriate rest facilities in advance where the animals must be unloaded, fed, watered, or rested.
A fixed schedule such as stopping every four hours cannot substitute for the legal and welfare requirements of the specific route. During necessary stops, inspect animal condition where it is safe to do so and follow the approved journey plan.
A truck that arrives early but then waits for hours to unload may create avoidable welfare risk. Confirm receiving arrangements before dispatch.
6. Reduce Injuries During Loading and Unloading
Handling at the beginning and end of the journey can cause injuries even when the road trip itself is uneventful.
Use suitable ramps or loading facilities with secure footing, appropriate slope, side protection, and a clear path. Avoid aggressive driving of cattle, unnecessary noise, and handling methods that cause falls or panic.
Keep incompatible animals separated when appropriate and follow the applicable animal-welfare rules. Ensure trained staff can intervene safely if an animal becomes trapped or falls.
The goal is calm movement through the loading system, not maximum loading speed.
7. Treat Arrival as Part of the Transport Plan
One of the most underestimated costs appears after the journey: reduced intake, dehydration, injury, or respiratory disease that becomes evident during the receiving period.
Immediately After Unloading
- Count animals and verify identification and transport paperwork.
- Provide access to clean drinking water promptly and appropriate feed and rest facilities.
- Observe walking, breathing, alertness, injury, and signs of dehydration.
- Follow the receiving farm’s veterinarian-approved health and biosecurity plan.
- Record and investigate animals requiring extra attention.
Do not routinely withhold water for one or two hours or prescribe a fixed small first drink for every animal. Severely dehydrated or sick cattle may require veterinary-directed treatment.
Similarly, the transition to a new ration should be managed deliberately rather than automatically providing a large concentrate meal immediately after an exhausting journey.
Why Post-Transport Weight Loss Needs Careful Interpretation
Transport shrink may include gut fill, fecal and urinary losses, body water, and in some cases tissue effects. It should not be interpreted as a direct measurement of fat or muscle lost.
Mississippi State University Extension discusses how handling, transport duration, feeding conditions, and animal characteristics affect shrink.
Record weights consistently and assess recovery alongside drinking, feed intake, and health—not weight alone.
Where newly purchased cattle are arriving, follow a quarantine and testing plan appropriate to the source herd and regional animal-health requirements. Do not apply a single 21- or 30-day period as a universal legal rule.
8. Smart Load & Welfare Calculator: Check Space, Payload, and Journey Risks
A useful loading calculator should answer two basic questions: Is there enough usable animal floor area, and is the planned liveweight within the remaining allowed payload?
The interactive calculator below is designed as a preliminary screening tool. It uses the clearly identified EFSA welfare-space formula and compares it with real deck area and livestock payload where those figures are provided.
It also highlights weather and journey-planning issues. It does not certify loading legality, animal fitness, deck strength, vehicle approval, or transport safety.
Loading Smart Load & Welfare Calculator…
How to Interpret the Calculation
A positive numerical result only means that the proposed headcount passes the entered area and payload checks under the selected scientific reference. Before loading, verify local legal limits, individual animal condition, compartment design, structural deck ratings, headroom, axle loads, ventilation, and the journey plan.
For high-risk cattle, extreme temperatures, or uncertain vehicle specifications, seek professional review before transport.
9. A Practical Cattle Transport Checklist
| Stage | Essential Check |
|---|---|
| Before loading | Assess fitness to travel and required documents |
| Vehicle | Confirm usable floor space, payload, partitions, headroom, and ventilation |
| Grouping | Separate animals as needed by size, condition, or compatibility |
| Weather | Check route forecasts, humidity, stop conditions, and heat contingency |
| Journey | Confirm applicable travel/rest rules, facilities, and emergency contacts |
| Destination | Confirm receiving time, staff, unloading area, clean water, and pens |
| On arrival | Unload calmly, provide water and appropriate feed, assess health |
| Follow-up | Record injuries, delayed intake, respiratory signs, and recovery |
For transport operators, a brief signed checklist and a named person responsible for emergency decisions may be more valuable than an ambitious procedure that nobody uses.
10. How Can NexAgri Support Safer Cattle Handling?
NexAgri Solutions supplies cattle-handling and farm-management equipment, including suitable fencing and segregation arrangements, handling or restraint equipment for farm operations, and selected livestock monitoring systems.
For farms frequently receiving or dispatching cattle, the relevant project discussion may include handling-route layout, holding and separation areas, animal identification, and practical health-monitoring workflows.
Transport trucks themselves are not a core NexAgri product line. Vehicle manufacture, formal transport compliance approval, and operating certification should be handled by the appropriate vehicle suppliers and competent authorities.
Check which identification or health data the selected monitoring system can collect during transport, including connectivity inside the trailer. Continue direct animal checks throughout the journey; any in-trailer temperature or welfare-monitoring function needs a verified system configuration.
Frequently Asked Questions
How much space does a 500 kg cow need in a transport trailer?
EFSA’s welfare-oriented allometric formula gives approximately 2.14 m² per 500 kg animal. This is a scientific planning reference, not a universal legal minimum. Actual requirements depend on jurisdiction, animal category, and vehicle configuration.
Is a 28-hour cattle journey legal everywhere?
No. The 28-hour framework is associated with U.S. federal law and is subject to specified conditions and exceptions. EU, Canadian, and other rules differ. Verify the current rules for the full journey.
Can I calculate transport weight loss from temperature alone?
No. Shrink is influenced by feed and water withdrawal, journey time, handling, stress, animal condition, and other factors. A simple fixed percentage per degree of temperature change is not a reliable prediction.
Are double-deck cattle trailers always better for capacity?
Not necessarily. The upper and lower decks must each satisfy space, structural strength, headroom, ventilation, handling, and legal requirements. Gross vehicle and axle weight limits still apply.
Should cattle receive water immediately after a long trip?
Provide prompt access to clean water and suitable resting facilities. Do not impose blanket water restriction. Sick or severely dehydrated cattle require veterinary evaluation.
What is the most useful information to enter in a loading calculator?
Animal count and average weight, usable internal floor area for each deck, remaining permitted livestock payload, expected vehicle conditions, journey duration, and destination jurisdiction. Missing deck dimensions or payload information prevents a complete numerical screening.
Conclusion
Safe cattle transport is not simply a question of how many animals fit on the truck.
A sound plan begins with fit-to-travel animals, checks usable floor space and payload, accounts for compartment height and ventilation, and anticipates delays before they occur. It ends only after animals have been unloaded, watered, observed, and received into appropriate care.
Check fitness → Verify space and payload → Prepare for heat and delays → Follow applicable rest rules → Unload promptly → Monitor recovery.
The Smart Load & Welfare Calculator can improve early planning, but the final decision must always be based on the real animals, vehicle, route, and applicable transport requirements.
