A calf hutch may look like a simple piece of dairy farm equipment, but its performance depends heavily on where it is installed, how air moves around the calf, how dry the resting area stays, and how easily workers can feed, clean and inspect each unit.
For commercial dairy farms, the objective should not be to fit as many hutches as possible into a small area. A good calf hutch layout should support calf health while keeping feeding, bedding replacement, cleaning and future expansion practical.
For site selection, drainage comes first. For the calf's immediate housing environment, ventilation is often the most underestimated factor. Spacing, bedding, sanitation and operating access then need to work together around these two priorities.
What Matters Most in Calf Hutch Setup?
Calf hutch planning starts with two basic questions:
- Will the site stay dry?
- Will enough fresh air reach the calf?
A poorly drained calf area creates mud, wet bedding and difficult sanitation. Poor ventilation creates another set of problems: excess heat, humidity, ammonia and stagnant air around the calf.
Ventilation is especially easy to underestimate because the hutch itself may look open and clean while airflow at calf level is still poor.
For outdoor hutches, ventilation can be improved through:
- Correct hutch orientation
- Rear or side ventilation openings
- Adequate spacing between units
- Keeping large obstacles away from the airflow path
- Seasonal adjustments for wind and solar exposure
For indoor or covered calf housing, the problem becomes more complex.
A building may appear well ventilated while individual hutches or pens still develop stagnant microenvironments at calf level. This can happen particularly during cold weather when curtains, doors or vents are partially closed.
For larger indoor calf facilities, ventilation should therefore be evaluated where the calf actually rests, not only at roof or building level.
Depending on the facility, natural airflow may need to be supplemented with fans, air inlets or positive-pressure tube ventilation.
The key principle is:
Drainage protects the site. Ventilation protects the calf's immediate environment. Both should be planned before the hutches are installed.
Where Should Calf Hutches Be Located?
Choose a high, dry and well-drained site before worrying about detailed hutch orientation.
Wind direction matters, but a correctly oriented hutch on permanently wet ground is still a poor setup.
Rainwater, cleaning water and urine should move away from the hutch instead of accumulating underneath or around the resting area.
Does a calf hutch area need a concrete floor?
Not necessarily.
Different ground surfaces can work depending on climate, budget, sanitation requirements and farm management.
| Ground Type | Best Suited For | Main Consideration |
|---|---|---|
| Concrete | Farms requiring frequent cleaning and stricter sanitation | Easy to wash and maintain, but drainage and bedding must be properly designed |
| Gravel | Wet or high-rainfall areas | Good permeability and fast drainage |
| Sand | Warm climates and farms prioritizing drainage and comfort | Soft, permeable and relatively easy to maintain when kept clean |
| Natural soil | Lower-budget installations with available land | Requires more maintenance, bedding replacement and periodic ground management |
Natural ground can work, but it should not become a permanently muddy calf area.
Where natural soil is used, contaminated material should be removed regularly, the surface maintained, and sufficient bedding added to help absorb moisture.
Outdoor vs. Indoor Calf Hutches: Which Setup Fits Your Farm?
There is no single system that fits every dairy farm.
The better choice depends on climate, available land, herd size, labor system and the level of environmental control required.
Outdoor individual hutches
Outdoor hutches are common where land is available and climate conditions allow relatively simple housing.
Typical advantages include:
- Strong natural ventilation
- Lower infrastructure requirements
- Good physical separation between calves
- Relatively simple installation
- Easy individual observation
The main disadvantages are exposure to rain, heat, cold and strong wind.
Feeding, bedding replacement and cleaning may also become more difficult during severe weather.
Indoor or covered calf hutches
Covered or indoor systems are often more attractive for larger intensive dairies or regions with high heat, humidity, heavy rainfall or cold winters.
They offer:
- More controlled working conditions
- Easier centralized management
- Protection from extreme weather
- More flexible service routes
- Better integration with larger calf-rearing facilities
However, moving hutches indoors does not automatically improve calf housing.
If air exchange is poor, individual hutches can trap heat, moisture and contaminated air even when the overall barn appears open.
For this reason, indoor layouts should consider:
- Air movement at calf level
- Building width and sidewall openings
- Curtain management
- Hutch orientation
- Distance from solid walls
- Airflow around rows
- Supplemental ventilation where required
At NexAgri Solutions, outdoor or covered calf-hutch layouts are evaluated according to the customer's climate, herd size, site and daily operating system rather than using one standard configuration for every project.
What Should You Look for When Buying a Calf Hutch?
When comparing calf hutches and calf-rearing equipment, buyers should look beyond appearance and polyethylene thickness.
Material and durability
The hutch body should use durable, weather-resistant material suitable for long-term exposure.
For polyethylene hutches, UV resistance is particularly important in regions with strong sunlight.
Ventilation design
Rear, side or adjustable ventilation points can help maintain airflow while reducing excessive direct wind on the calf.
Ventilation openings should also be easy to operate and clean.
Easy-clean surfaces
Interior surfaces should minimize unnecessary corners or areas where manure and organic material can accumulate.
Fences, bucket holders and other removable components should also be easy to wash and disinfect.
Practical access
The hutch must work with actual farm routines.
Workers need enough access to:
- Feed milk and starter
- Replace bedding
- Observe calves
- Remove waste
- Clean and disinfect equipment
Safety and modularity
A good commercial hutch should minimize slippery surfaces, sharp edges and escape points.
Lightweight and modular construction can also make installation, relocation, cleaning and later layout adjustments easier.

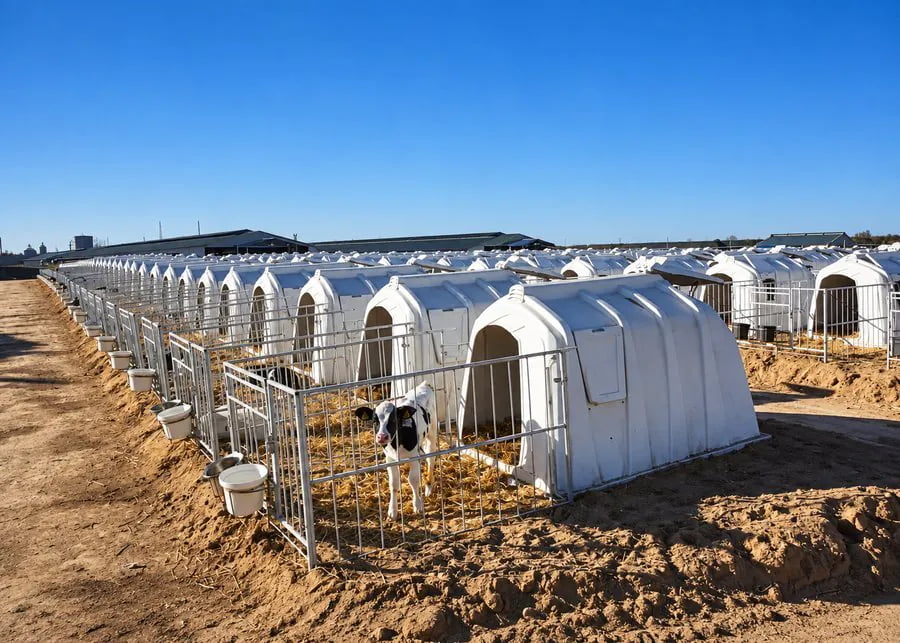

How Far Apart Should Calf Hutches Be?
Spacing should prevent unwanted calf-to-calf contact while maintaining airflow and allowing workers and equipment to move efficiently.
There is no universal spacing figure for every hutch system.
However, as a planning reference, some outdoor calf-hutch layouts use approximately:
- 1.2 m (4 ft) between individual hutches
- Around 3 m (10 ft) between rows
Another practical approach is to leave roughly one hutch width between individual units.
These numbers should be treated as reference points rather than mandatory minimum standards.
Final spacing should still be checked against:
- Actual hutch dimensions
- Front-fence size
- Feeding bucket position
- Feed-cart width
- Cleaning equipment
- Bedding replacement
- Waste removal
- Worker access
- Natural airflow
- Calf-to-calf contact
For larger dairies, the service aisle between rows is often just as important as the gap between hutches.
A layout that reduces calf contact but makes feeding or cleaning difficult will create new management problems.
How Does Herd Size Affect Calf Hutch Layout?
Herd size changes the complexity of the layout, but there is no rigid threshold that applies to every dairy.
A practical planning approach is:
| Dairy Herd Size | Typical Layout Approach |
|---|---|
| Around 100 cows | Simple individual-hutch rows may be sufficient if drainage, ventilation and access are good |
| Around 300 cows | Consider dividing calf areas by age or birth batch and creating clearer feeding and cleaning routes |
| 500+ cows | More systematic zoning, batch management, dedicated service lanes and all-in/all-out workflows become increasingly valuable |
These are planning references, not fixed rules.
A 100-cow dairy with poor drainage can have more calf-health problems than a much larger dairy with a well-designed system.
Likewise, a 500-cow dairy should not automatically build a highly complicated calf facility unless the labor system and calving pattern require it.
The final layout should reflect:
- Expected number of calves
- Calving pattern
- Available land
- Labor availability
- Feeding method
- Cleaning workflow
- Future expansion
What Bedding Works Best for Calf Hutches?
The best bedding is not determined by one material.
The main objective is to keep the resting area:
clean, dry, comfortable and appropriate for the local temperature.
Winter
Deep straw bedding is generally a strong option in cold conditions because calves can nest into it and reduce heat loss.
Dryness is especially important.
Wet bedding increases heat loss and can contribute to poor air quality around the calf.
Summer
For hot conditions, sand is often a practical choice.
It transfers heat well, drains effectively and provides less insulation than deep straw.
Sand should still be:
- Clean
- Dry
- Free from foreign material
- Regularly loosened to prevent compaction
Where sand is expensive or unavailable, rice husks, sawdust, wood shavings or locally available materials such as processed corn-cob bedding may also be used.
The selection should consider:
- Local climate
- Material cost
- Availability
- Drainage
- Cleaning frequency
- Manure-handling system
The general rule is more important than the exact material:
Choose bedding that stays cool or insulating when required, remains dry and can be removed before it becomes compacted, contaminated or moldy.
How Should Calf Hutches Be Cleaned and Disinfected?
One of the most common sanitation mistakes is applying disinfectant before the surface has been properly cleaned.
Disinfectant cannot work effectively through layers of manure, old bedding, milk residue and other organic contamination.
A more reliable workflow is:
Remove → Wash → Rinse → Disinfect → Dry

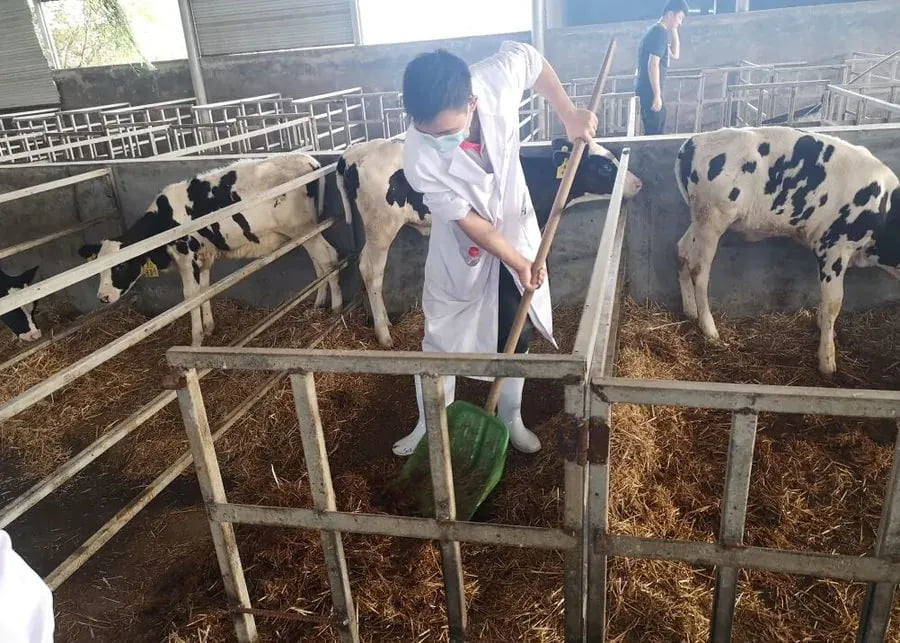

1. Remove organic material
Take out bedding, manure, leftover feed and visible contamination.
2. Wash the surfaces
Use water and an appropriate detergent to loosen and remove remaining organic material.
3. Rinse
Remove detergent and loosened contamination.
4. Disinfect
Apply an appropriate disinfectant using the correct concentration and contact time.
5. Dry completely
Whenever possible, allow the hutch and removable components to dry before introducing another calf.
Drying is part of the sanitation process, not an optional final step.
High-pressure washing should also be performed away from occupied calf areas whenever possible so contaminated spray and aerosols are not directed back toward clean hutches.
Calf Hutch Setup Checklist
Before installing calf hutches, check:
- Is the site high and well drained?
- Can rainwater and urine move away from the resting area?
- Can fresh air reach the calf at hutch level?
- Is the prevailing wind considered without creating strong drafts?
- Is the hutch suitable for the local climate?
- Can calves avoid unwanted nose-to-nose contact?
- Can feed carts and cleaning equipment move between rows?
- Can fences, buckets and accessories be removed for cleaning?
- Is there a clear cleaning and disinfection workflow?
- Is the bedding suitable for the season?
- Can the layout be expanded or reorganized later?
A good calf hutch system should make daily management easier rather than adding unnecessary labor.
Conclusion
Successful calf hutch setup depends on much more than choosing the hutch itself.
Drainage determines whether the site can stay dry, while ventilation strongly influences the calf's immediate environment. Spacing, bedding, sanitation and operating access then need to support these two basic conditions.
Outdoor hutches can work very well where climate and land allow strong natural ventilation. Covered and indoor systems can provide better environmental control, but they require more careful attention to calf-level airflow.
For smaller dairies, simple individual-hutch rows may be sufficient. Larger commercial farms often benefit from zoning, batch management and more structured service lanes.
NexAgri Solutions supplies commercial calf hutches and calf-rearing equipment for dairy farms in different climates and herd sizes. In addition to equipment selection, we help customers consider site conditions, hutch layout, ventilation, operating access and future expansion before installation.
When planning a calf-rearing area, the key question is not only:
Which calf hutch should we buy?
It is also:
How will the complete calf area operate every day after the hutches are installed?
