Choosing between a vertical and horizontal TMR mixer is not simply a matter of whether you raise beef cattle or dairy cows. Two farms with similar herd sizes may need very different machines because their forage, feeding routines, and barn layouts are different.
A vertical TMR mixer is often a strong choice for farms handling long hay, straw, or whole forage bales. A horizontal mixer may be more suitable where ingredients are already chopped, equipment height is restricted, or a particular horizontal mixing system fits the feeding process better. Neither design is automatically superior for beef or dairy cattle.
The most important question is not which mixer looks more powerful. It is whether the machine can handle your actual ingredients, produce a consistent ration, and complete daily feeding without unnecessary labor or equipment wear.
This guide compares vertical and horizontal TMR mixers from a practical equipment-selection perspective, including forage processing, working capacity, mixing quality, and operating costs.
1. What Is the Difference Between Vertical and Horizontal TMR Mixers?
The main difference is how feed moves inside the mixing chamber.
A vertical TMR mixer uses one or more upright augers to lift feed upward and circulate it through the chamber. Cutting knives attached to the augers can help process hay, straw, and other fibrous materials.
A horizontal TMR mixer uses horizontally arranged mixing elements. Depending on the design, these may include augers, reels, paddles, or a combination of components that move feed along and across the chamber.
This distinction matters because the mixing mechanism affects forage processing, ingredient circulation, power requirements, and the final particle-size distribution.
Vertical vs. Horizontal TMR Mixer Comparison
| Selection Factor | Vertical TMR Mixer | Horizontal TMR Mixer |
|---|---|---|
| Mixing mechanism | One or more upright augers | Horizontal augers, reels, or paddles |
| Long hay and straw | Often suitable, depending on knife and auger design | May require pre-processing, depending on the model |
| Whole forage bales | Many models can process them within specified limits | Capability varies considerably by design |
| Forage cutting | Can cut long forage while mixing | Cutting intensity depends on internal components |
| Equipment height | Often relatively tall | Some designs offer lower overall height |
| Mixing uniformity | Depends on loading, fill level, and operating conditions | Depends on loading, fill level, and operating conditions |
| Power requirements | Depend on forage resistance, capacity, and drive system | Depend on mixing mechanism, capacity, and workload |
| Maintenance | Augers, knives, liners, bearings, and transmission | Augers or reels, knives, bearings, liners, and transmission |
| Common purchasing priority | Forage-processing ability and usable batch capacity | Ingredient circulation, installation space, and feeding workflow |
The comparison should guide your shortlist, not replace a test using your intended feed materials.
For example, two horizontal mixers may perform differently if one uses an aggressive cutting auger and the other relies mainly on paddles or reels. Similarly, two vertical mixers may produce different particle sizes even when their nominal capacities are identical.
The TMR Mixer Management reference by Dennis R. Buckmaster discusses how mixer configurations, material flow, loading practices, and operating procedures affect the final ration.

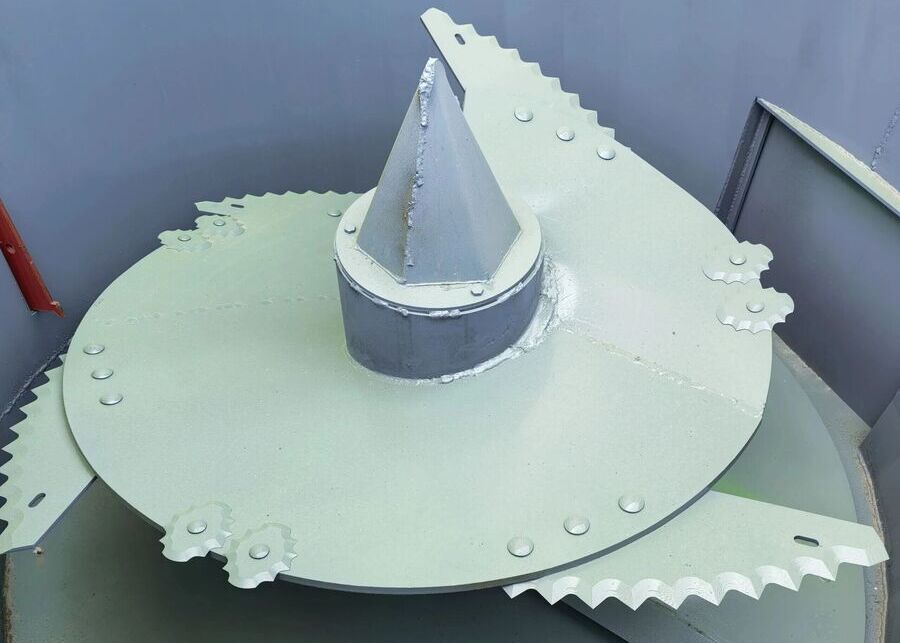

2. When Is a Vertical TMR Mixer the Better Choice?
Vertical mixers are particularly worth considering when the ration contains substantial amounts of long-stem forage or the farm needs the mixer to perform some forage processing.
The upright auger moves material through the chamber while its knives cut forage as the ration circulates.
This can be useful when a farm regularly handles:
- Long-stem hay or straw.
- Forage with inconsistent particle lengths.
- Certain round or square bales.
- Crop residues requiring additional processing.
- Mixed rations containing both fibrous and concentrated ingredients.
Why Vertical Mixers Are Commonly Considered for Beef Feeding
Some beef finishing operations use energy-dense rations containing substantial concentrate levels.
These rations still need appropriate physically effective fiber, as determined by the farm's nutritionist, to support normal rumination and rumen function.
A properly configured vertical mixer may help incorporate the required roughage into the ration while processing excessively long material.
However, choosing a vertical mixer does not automatically prevent ruminal acidosis.
The outcome depends on the ration formulation, fiber characteristics, mixing procedure, feeding management, and the animals themselves.
Also, vertical mixers are not limited to beef farms. Many commercial dairy operations can use vertical mixers effectively, particularly when long forage handling is part of their daily feeding process.
The Overlooked Cost of Processing Whole Bales
A vertical mixer may be advertised as capable of handling whole round bales.
That is useful information, but it should not be the end of the discussion.
There is an important difference between:
Can the mixer process this bale?
And:
Can the mixer process this type of bale efficiently every day without unreasonable operating costs?
Regular processing of long, tough, or densely packed forage can place substantial loads on cutting knives, augers, gearboxes, and drive components.
Before purchasing, confirm:
- Maximum supported bale dimensions and weight.
- Whether pre-cutting or bale breaking is recommended.
- Processing time for your actual forage.
- Required tractor horsepower or motor capacity.
- Knife inspection and replacement requirements.
- Wear protection around high-abrasion areas.
A machine that handles an occasional bale successfully may not be the most economical option for processing large quantities of difficult forage every day.
For some farms, preparing the forage before mixing can be more efficient than relying on the TMR mixer to perform all the cutting.

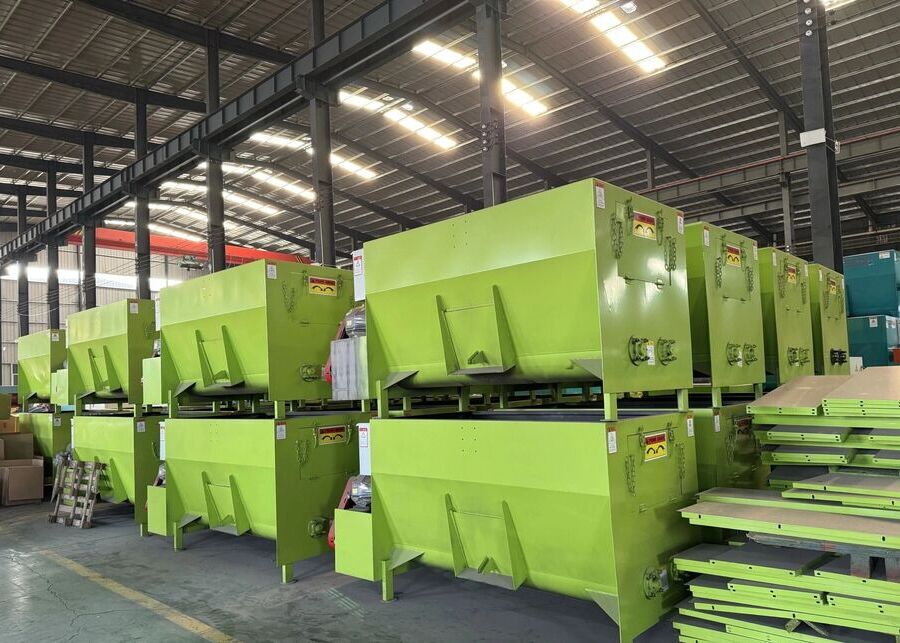

3. When Should You Consider a Horizontal TMR Mixer?
Horizontal mixers deserve consideration when the feed ingredients and farm layout suit their particular mixing mechanism.
Some horizontal designs work particularly well with previously chopped forage, silage, concentrates, and other ingredients that do not require substantial additional size reduction.
Potential advantages may include:
- A lower equipment profile for certain buildings.
- Efficient mixing of suitable pre-processed ingredients.
- Compact integration into some stationary feeding systems.
- Controlled ingredient movement and discharge.
- A mixing mechanism matched to specific feed materials.
However, these characteristics depend on the actual machine. They should not be assumed for every horizontal model.
Does a Horizontal Mixer Always Cut Forage More Aggressively?
No.
Horizontal mixers are not all built around the same mechanism.
A horizontal auger machine with substantial cutting components may reduce forage particle size considerably. A reel- or paddle-based machine can behave differently.
For this reason, statements such as "horizontal mixers always destroy fiber" or "horizontal mixers always produce a finer ration" are too broad.
The more useful questions are:
- How much does the mixer reduce particle length?
- Does it distribute forage and concentrate ingredients consistently?
- Can it handle the ration at the intended working load?
- Are there unmixed areas during operation?
- Does the delivered TMR maintain the particle-size distribution required by the nutritionist?
Are Horizontal Mixers Suitable for Beef Cattle?
They can be.
A horizontal mixer should not be rejected simply because the farm raises beef cattle.
If the ration ingredients are appropriately prepared, the mixer provides adequate uniformity, and the delivered feed meets nutritional requirements, a horizontal design may be suitable.
Likewise, a dairy farm should not automatically purchase a horizontal mixer simply because its ration is high in forage.
Beef versus dairy is not the deciding factor. The actual ration and the machine's demonstrated performance matter more.
4. How Do Mixer Type and Mixing Time Affect Rumen Health?
A TMR mixer is designed to distribute feed ingredients consistently, but mixing quality involves more than producing a visually uniform ration.
Two outcomes matter:
- Ingredients should be distributed consistently throughout the batch.
- Forage particles should remain within a nutritionally appropriate size distribution.
These objectives must be balanced.
Why Finer Feed Is Not Always Better
Long forage particles can make sorting easier when they are poorly incorporated into the ration.
However, cutting everything into very small particles is not the answer.
Over-processing forage can reduce its physical effectiveness and potentially interfere with normal rumination.
This is especially important when concentrate-rich diets are being fed.
The objective is not to produce the finest possible TMR. It is to produce a sufficiently uniform ration while maintaining the fiber characteristics required by the animals.
How Can You Check the Result?
For dairy rations, the Penn State Particle Separator provides a practical method for examining particle-size distribution.
Farm managers can compare:
- The original forage before mixing.
- Fresh TMR immediately after discharge.
- Samples collected at different points during unloading.
- Feed remaining in the bunk after animals have had time to eat.
These comparisons can help identify excessive particle reduction, inconsistent distribution, or feed sorting.
However, particle-size testing alone does not establish complete nutrient uniformity. Chemical or tracer-based testing may also be needed when evaluating mixer performance.
The University of Minnesota Extension guide to feeding total mixed rations also emphasizes ingredient loading order, mixing time, and avoiding excessive processing.
Is There an Ideal Mixing Speed or Time?
Use the operating speed and loading procedure specified for the selected mixer. Verify mixing time with the actual ingredients and batch size, checking samples from the beginning, middle and end of discharge for uniformity and excessive particle reduction.
Mixing requirements depend on:
- The specific auger or mixing-element design.
- Ingredient type and moisture.
- Forage particle length.
- Actual batch weight and fill level.
- Loading sequence.
- Whether additional cutting is required.
Ask the manufacturer for a recommended procedure and verify the resulting feed quality.
The shortest mixing time is not necessarily the best mixing time. The correct endpoint is a suitably mixed ration without unnecessary particle reduction.

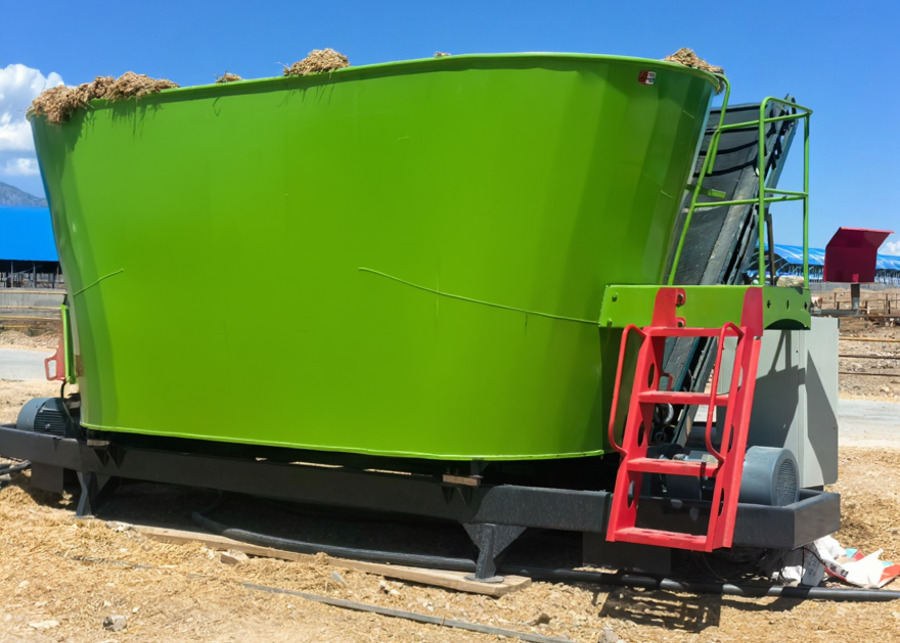

5. How Do You Calculate the Right TMR Mixer Capacity?
One of the most common purchasing mistakes is choosing equipment from its advertised cubic-meter capacity without checking how much feed it can actually process.
A mixer labeled 10 m³ does not necessarily provide 10 m³ of effective mixing volume under every operating condition.
The machine needs enough free space for its mixing mechanism to circulate ingredients.
It may also have a minimum recommended batch size below which mixing becomes less effective.
Start With Actual Batch Weight
For initial planning, use:
Daily TMR requirement (kg as-fed) = Number of cattle × Daily TMR allowance per animal (kg as-fed)
Then:
Batch weight (kg as-fed) = Daily TMR requirement ÷ Number of planned batches per day
The number of batches is not necessarily the same as the number of feeding events. Calculate it from how the farm actually prepares and distributes feed.
Next, estimate the necessary chamber volume:
Estimated nominal mixer volume (m³) = Batch weight (kg as-fed) ÷ [TMR bulk density (kg/m³) × Working fill fraction]
This formula is useful when the manufacturer's capacity rating refers to nominal chamber volume.
If the supplier already states a verified effective working capacity, compare the required batch volume directly against that rating instead of applying a second fill-factor adjustment.
The final selection must satisfy the manufacturer's recommended minimum and maximum batch limits.
Example: Why Feed Density Changes the Answer
Consider a hypothetical farm with:
- 100 growing beef cattle.
- An assumed daily TMR allowance of 18 kg as-fed per animal.
- One complete mixing batch per day.
- A daily batch weight of 1,800 kg.
Suppose two possible ration formulations have different bulk densities.
For illustration, assume a working fill fraction of 75%.
| Calculation | Ration A | Ration B |
|---|---|---|
| Batch weight | 1,800 kg | 1,800 kg |
| Assumed TMR bulk density | 250 kg/m³ | 350 kg/m³ |
| Feed volume | 7.20 m³ | 5.14 m³ |
| Assumed working fill fraction | 75% | 75% |
| Estimated nominal mixer volume | 9.60 m³ | 6.86 m³ |
Illustrative assumptions only. These densities and the 75% working fill fraction are not universal design standards.
The herd size and total feed weight are identical.
Yet the estimated mixer volumes are significantly different.
This is why choosing a TMR mixer purely from cattle numbers can produce the wrong result.
If the farm instead prepares two equal batches per day, the required volume per batch decreases. However, a larger mixer may then operate below its recommended minimum filling level.
A suitable machine must handle both the largest and smallest planned batches.
How Can You Estimate Actual Feed Density?
For an initial measurement, use a container with a known internal volume.
For example:
- Select a container with a verified volume of 0.10 m³ (100 liters).
- Fill it with a representative TMR sample without unusual compression.
- Weigh the feed after subtracting the empty container weight.
- Divide the feed weight by 0.10 m³.
If the net sample weighs 32 kg:
Bulk density = 32 kg ÷ 0.10 m³ = 320 kg/m³
Repeat measurements using representative feed samples and a consistent procedure.
This can provide a useful planning value, but it does not replace the supplier's working-capacity verification.
If your nutrition plan uses dry matter intake (DMI), convert it to as-fed weight using the ration's dry matter fraction before applying an as-fed bulk density.
Do not mix dry matter kilograms with an as-fed density value in the same calculation.
For a broader explanation of cattle feed mixer capacity, configuration, and purchasing requirements, see our Cattle Feed Mixer Buying Guide.
6. What Hidden Operating Costs Should You Compare?
A lower purchase price does not necessarily mean a lower total operating cost.
For a farm feeding cattle every day, the costs associated with the mixing process continue long after the equipment is delivered.
1. Knife and Auger Wear
Forage type and processing workload affect equipment wear.
Long straw, tightly packed hay, and abrasive ingredients may place different demands on cutting components.
Ask for replacement knife prices, wear-liner specifications, inspection intervals, and recommended spare parts.
2. Power Consumption and Operating Time
Power requirements should be assessed under realistic working conditions.
A machine that mixes chopped silage efficiently may require more time or power when processing difficult dry forage.
Compare both the expected operating load and the complete mixing cycle rather than relying only on nominal motor horsepower.
3. Barn Access and Discharge Arrangement
A mixer cannot be considered suitable if it cannot travel safely through the farm.
Check:
- Overall machine width, height, and length.
- Feed-alley width and available turning space.
- Roof beams, entrances, and overhead restrictions.
- Discharge direction and height.
- Compatibility with feed barriers and existing equipment.
- Safe access for loading and routine maintenance.
These details should be checked against equipment drawings before ordering.
4. Stationary Mixer Distribution Costs
A stationary mixer may be appropriate for a centralized feeding system.
However, it does not automatically eliminate the need for vehicles, conveyors, or other feed-distribution equipment.
A low-priced stationary unit can become a more expensive operating arrangement when additional transportation and labor are considered.
5. Downtime and Spare Parts
A broken weighing sensor, worn cutting knife, or unavailable gearbox component can disrupt feeding operations.
For imported machinery, ask about:
- Spare-parts availability.
- Component model numbers.
- Replacement procedures.
- Technical documentation.
- Warranty coverage.
- Remote troubleshooting arrangements.
The right comparison is not only the equipment purchase price. It is the cost and reliability of preparing feed throughout the machine's working life.
7. How Can You Verify a Mixer Before Making a Purchase?
Specifications help narrow the selection, but a practical mixing demonstration offers stronger evidence.
Where possible, arrange a test using the farm's actual ingredients or materials that closely resemble them.
Step 1: Confirm the Working Batch Range
Ask the supplier to identify:
- Nominal chamber volume.
- Recommended minimum batch size.
- Recommended maximum working batch size.
- Maximum permissible loaded weight.
- Applicable forage limitations.
A machine should not be assessed by nominal cubic meters alone.
Step 2: Check Mixing and Forage Processing
Use a representative ration with the intended loading order.
Observe whether long forage is processed adequately and whether ingredients circulate throughout the chamber.
Collect samples near the beginning, middle, and end of discharge.
Evaluate particle-size consistency and, where required, use suitable laboratory or tracer-based tests to assess nutrient distribution.
Step 3: Record the Complete Working Cycle
A useful test should include more than the final mixing period.
Record:
- Ingredient loading time.
- Any required pre-cutting time.
- Active mixing time.
- Discharge time.
- Feed remaining in the machine.
- Power demand or fuel consumption where measurable.
A machine that mixes quickly but requires extensive separate preparation may not provide the best overall workflow.
Step 4: Inspect the Components
Review the auger or reel structure, knives, wear protection, gearbox, bearings, weighing system, discharge mechanism, and safety guards.
Confirm which components are standard and which are optional.
Step 5: Compare Results Under Similar Conditions
A fair comparison requires similar feed materials, batch sizes, and evaluation procedures.
If one mixer is demonstrated with pre-chopped silage and another with whole dry bales, the different mixing times do not establish which machine is more efficient for your operation.
The objective is to confirm the most suitable machine for the actual feeding requirements, not simply the fastest machine under favorable conditions.
8. What Information Should You Provide When Requesting a TMR Mixer Quotation?
A supplier can recommend a more appropriate machine when the inquiry includes realistic farm information.
The most useful starting point is a complete picture of the herd, feed materials, site conditions, and investment plan.
| Information | What to Provide |
|---|---|
| Herd | Beef or dairy cattle, number of animals, feeding groups, planned expansion |
| Ration | Main ingredients, forage types, use of long hay or whole bales |
| Feeding demand | Daily TMR quantity, expected batch weight, number of batches |
| Site | Feed-alley dimensions, door height, turning space, loading method |
| Utilities | Available tractor power or electrical supply |
| Equipment preferences | Required discharge direction, weighing system, mobile or stationary arrangement |
| Project plan | Budget range, delivery location, expansion expectations |
Not every farm will have all these details at the first inquiry.
However, providing accurate information about the herd, feeding materials, and physical layout is much more useful than simply asking for a quotation for a 10 m³ or 20 m³ mixer.
If the ration is still being developed, involve the farm nutritionist before finalizing the equipment capacity.
9. How Can NexAgri Help You Select a Suitable TMR Mixer?
NexAgri Solutions supplies cattle feeding equipment and helps buyers evaluate TMR mixer configurations for different farm requirements.
Our TMR Mixer Equipment page introduces available feeding-system options.
For an actual project, the selection process should consider the ration, required batch capacity, forage-processing needs, power supply, and farm layout.
Vertical and horizontal alternatives can be evaluated against these requirements, with final model availability and specifications confirmed during technical quotation.
For a mixer quotation, send the ration ingredients, as-fed batch weight, smallest and largest batches, available power and barn access dimensions on WhatsApp.
The objective is to match the machine to the farm's daily work rather than recommend a particular mixer simply because it is the most familiar design.
Frequently Asked Questions
Is a vertical TMR mixer better for beef cattle?
Not necessarily. Vertical mixers are often useful when beef farms need to process long forage or whole bales. However, a horizontal mixer may also work when the ingredients, mixing performance, and feeding conditions are suitable. The ration and equipment design matter more than the animal category alone.
Which TMR mixer is better for dairy cows?
Both designs can be suitable. Dairy farms should compare forage processing, particle-size distribution, mixing consistency, loading requirements, and available barn space. A qualified nutritionist should establish the required ration characteristics.
Can a horizontal TMR mixer handle long hay?
Some models can, but performance varies by design. Ask the manufacturer about permitted forage length, bale handling, pre-processing requirements, and expected cutting performance. Do not assume every horizontal mixer has the same capabilities.
Does a vertical mixer always preserve more effective fiber?
No. Cutting-knife design, loading order, forage characteristics, and mixing duration influence particle-size reduction. A vertical mixer can also over-process forage when operated incorrectly.
What size TMR mixer do I need for 100 cattle?
There is no reliable answer based on headcount alone. Calculate the actual as-fed weight per batch, estimate or measure ration bulk density, and compare the result with the mixer's approved working range. The number of feeding groups and batches also matters.
How long should a TMR mixer run?
Use the manufacturer-recommended procedure as a starting point and verify the resulting ration. Mixing time depends on equipment design, ingredient preparation, batch size, and loading sequence. More mixing is not always better.
Should I buy a larger TMR mixer for future expansion?
Expansion plans should be considered, but oversizing can create problems if the machine cannot mix today's smaller batches effectively. Compare current and future batch requirements against the manufacturer's minimum and maximum working capacities.
Conclusion
The best TMR mixer is not determined by a simple rule that vertical machines are for beef cattle and horizontal machines are for dairy cows.
Vertical mixers are often worth considering for farms handling long or difficult forage. Horizontal mixers can also be effective when their mixing mechanism matches the ingredients and site conditions.
The final decision should be based on four practical questions:
- Can the mixer process the farm's actual feed ingredients?
- Can it produce a consistent ration without excessive particle reduction?
- Can it handle the required batch weight within its proper working range?
- Can the farm operate and maintain it economically every day?
Start with the ration, calculate the batch size, check the farm layout, and verify the machine's performance before comparing prices.
That approach offers a stronger basis for choosing a TMR mixer that will remain practical as the farm develops.
