Dirty teat ends, delayed cluster attachment, repeated liner slips and incomplete wash circulation are practical reasons to review a milking routine. Check these at the cow and equipment, then assign each operator a repeatable sequence and a way to report exceptions.
A practical dairy cow milking SOP gives the team the same working sequence for every cow and clear instructions for exceptions. It covers equipment readiness, teat preparation, attachment, milk-flow monitoring, abnormal milk, post-milking care and cleaning. The times and settings below are useful reference points; the farm's approved equipment configuration and veterinary hygiene plan determine its final operating values.
1. Before Milking: Five Equipment Checks That Matter
Complete the plant check before the first group enters. A running vacuum pump and a normal-looking control screen are only the beginning.
| Equipment | What the operator checks | When to stop and report |
|---|---|---|
| Vacuum system | Gauge reading at the documented setpoint, stable pump operation, obvious leaks and damaged connections | Persistent vacuum fluctuation, regulator or pump fault, or a leak that affects operation |
| Pulsation system | Regular pulsator sound, connected pulse tubes, dry and intact hoses | Irregular cycling, disconnected tubing or a suspected pulsator fault |
| Liners and claw assemblies | Liner condition and service records, claw air vents, seals and short milk tubes | Cracks, hardened liners, blocked air vents or repeated cluster slips |
| Milk transfer system | Receiver, milk pump, filter arrangement, pipeline valves and the route to cooling | Wrong valve position, poor drainage, pump alarm or milk-line leakage |
| Cluster removal and CIP readiness | ACR and retraction components, clean wash connections, previous cleaning records, emergency controls | Faulty vacuum shutoff, failed retractor, incomplete cleaning or an unsafe work area |
Useful machine reference settings
These are typical reference values for dairy cow milking equipment, not instructions to change a commissioned machine without testing.
| Parameter | Common reference | Practical interpretation |
|---|---|---|
| System vacuum, low milk line | 40–44 kPa | Check against the design setpoint and measured milking performance |
| System vacuum, high milk line | 44–48 kPa | Higher milk-line elevation changes vacuum requirements |
| Pulsation rate | Around 60 cycles/min | A common dairy-cow setting; actual pulsator performance needs instrument checks |
| Pulsation ratio | Around 60:40 | Liner open/closed timing must suit the liner and machine design |
The low-line and high-line ranges are published in AHDB's milking-machine maintenance guidance, while the 60 cycles/min rate and 60:40 ratio serve as standard industry baselines across commercial parlors. Technical testing should also check vacuum stability under load and pulsation characteristics, because a setpoint shown on the main gauge does not describe every condition at the teat end.
Liner replacement follows the selected liner manufacturer's recommended milking count or service interval. Keep the replacement date and usage record where the supervisor can find them. A blocked claw air vent or small leak often deserves attention before anyone starts adjusting the main vacuum regulator.
2. Teat Preparation: A Six-Step Routine for Every Cow
The working order should be easy to teach and repeat. In the routine below, heavily soiled teats are cleaned before the operator handles them for forestripping.
- Identify the cow and inspect the udder. Check treatment or milk-diversion status and look for swelling, injury or other visible changes.
- Remove visible manure or bedding material. Clean dirty teats using the farm's approved procedure. Avoid spreading dirt from the udder onto the teat ends; dry adequately when washing is needed.
- Apply the approved pre-milking teat disinfectant. Cover the whole teat and start the contact-time interval required by the product label. A commonly used minimum is 30 seconds.
- Forestrip each quarter. Express 2–3 streams of milk per teat into a strip cup or other approved examination surface. Check for flakes, clots, blood or watery milk. Keep foremilk away from gloves, towels and the milk pipeline.
- Wipe every teat dry. Use a clean individual towel for each cow, including a final wipe of the teat end. Complete the disinfectant contact time before drying.
- Attach the cluster at the planned interval. Aim for approximately 60–120 seconds from the first effective teat stimulation. Check cup position and minimize unnecessary air admission.
The University of Florida IFAS milking-management guide describes 2–3 foremilk streams per quarter and allows forestripping either before or after pre-dipping, provided it takes place before final drying. Farms using a different approved order can keep that sequence while maintaining the same hygiene and timing requirements.
How the timing fits together
For a group of cows, the first physical stimulation starts the preparation-to-attachment clock. Forestripping, teat wiping and other physical preparation help stimulate milk let-down. The dip must remain in contact for its specified period, and teats must be dry when the cluster goes on.
| Checkpoint | Common working target |
|---|---|
| Foremilk examination | 2–3 streams from each quarter |
| Pre-dip contact time | At least 30 seconds where specified by the approved product |
| Effective physical stimulation | Commonly around 10–20 seconds within the preparation routine |
| First stimulation to cluster attachment | Approximately 60–120 seconds |
Time a few cows at the beginning, middle and end of a row. If the first cow waits too long while staff prepare the whole side, reduce the number of cows handled in each preparation group. Check teat cleanliness and attachment timing together when adjusting the preparation group size.
3. When Foremilk Is Abnormal: Protect the Saleable Milk Route
Forestripping is also an early warning check. A cow with visibly abnormal milk, suspected mastitis or an active drug-withdrawal period needs a clearly defined milk-handling route.
Use this sequence: identify the cow → alert the responsible person → divert or segregate milk → clean affected equipment → record the decision.
For treated cows, confirm the animal ID and withholding status before connecting equipment to the saleable milk line. Depending on the farm layout and herd-health program, these cows may be milked last, through dedicated equipment or in a segregated area. The entire milk output from a treated cow may require withholding, even when only one quarter has been treated.
The person responsible for diversion should physically verify the milk route: the valve position, collection vessel or independent unit, and whether any shared equipment requires cleaning before normal use resumes. Record the cow ID, treatment, withdrawal information, actual milk destination and operator. The Cornell University College of Veterinary Medicine drug-residue guidance provides detailed principles for identification, separate milking and treatment records.
Where projects require electronic identification, alerts or automatic milk diversion, the required readers, valves, controls and fail-safe sequence should be defined together with the selected milking system. The essential acceptance test is simple: when a treated cow is identified, where does her milk actually go?
4. Cluster Attachment and Milk-Flow Monitoring

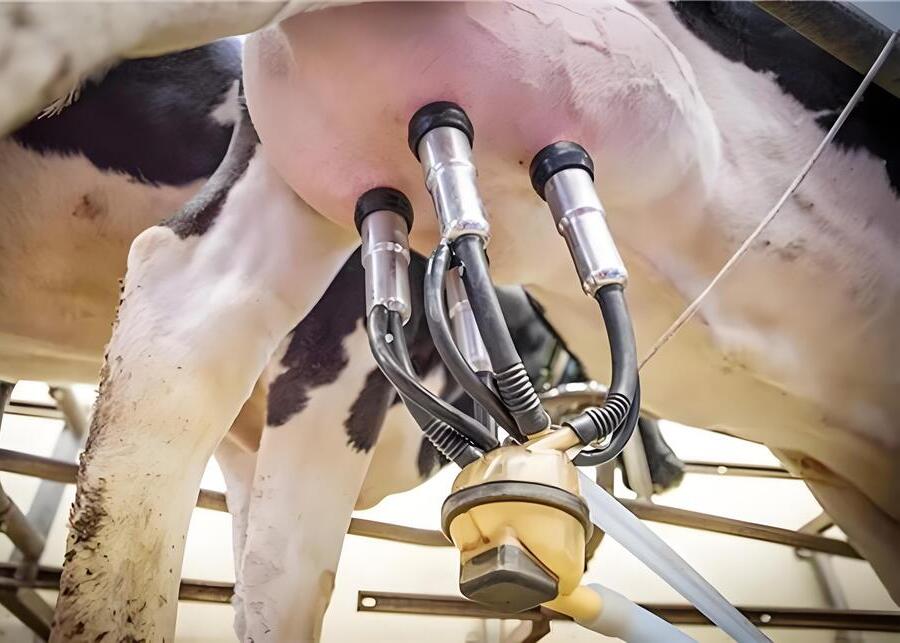

Bring the cluster to the udder without dragging the cups across dirty surfaces. Attach smoothly, keep the claw aligned and support milk and pulse hoses so their weight does not pull unevenly on the teats.
During milking, operators should watch for cluster slips, falling cups, irregular milk flow, cow discomfort and machine alarms. A cluster that repeatedly admits air can disturb vacuum stability and milk flow. Inspect the liner, teat fit, hose tension and claw air vent rather than simply reconnecting the same faulty unit.
Milk moves through the installed claw, pipeline, receiver and transfer system. Some parlors include plate precooling before the bulk milk tank. The Milk Cooling Tank Sizing Calculator can help with initial storage-volume planning; cooling performance and milk-transfer capacity must also be considered when specifying equipment.
The operator's aim is a smooth milk-flow curve and a timely end to milking. Milk yield, parity, milking frequency and individual flow rate affect how long a cow remains attached.
5. Automatic Cluster Removers: Settings That Deserve Attention
An automatic cluster remover (ACR) uses a milk-flow signal and programmed delay to trigger cup removal. It is particularly useful in larger parlors where many units reach the end of milking at different times.
Three settings and functions should be reviewed together:
- Take-off flow threshold: the milk-flow level used to begin the removal decision.
- Delay time: the period for which the flow condition must persist before removal.
- Vacuum shutoff and retraction: the physical sequence that releases and withdraws the cluster safely.
A field trial involving 689 Holstein cows compared ACR take-off thresholds of 0.8 and 1.2 kg/min. The 1.2 kg/min setting reduced cluster-on time and short-term teat-tissue changes without meaningful differences in measured milk yield over the trial. These were the study's tested settings, not a universal calibration pair. See the 2020 Journal of Dairy Science randomized trial.
When checking a parlor, look at the proportion of manual removals, repeated attachments, prolonged low-flow milking, post-milking teat appearance and the actual release of vacuum. If manual intervention becomes routine, inspect cow preparation and the equipment before changing the threshold.
NexAgri can specify ACR and milk-metering options within suitable herringbone, parallel and rotary parlor proposals. The requested functions, control arrangement and commissioning tests belong in the equipment schedule so that the operator knows exactly what the installed system will do.
6. Staff Organization: Batch Parlors Versus Rotary Parlors
Good staffing follows the movement of the cows.
Herringbone and parallel parlors
In a double-8 or double-12 parlor, the team works through groups. One operator may prepare a few cows, move along the row, then return for attachment when the preparation interval has elapsed. Other assigned staff handle attachment, monitoring, post-dipping, entry and exit as required by the number of operators on duty.
A four- or five-cow preparation group can be a useful starting point for observation. Test it against real timing: whether the first cow waits 60–120 seconds, whether the last cow is properly cleaned and dried, and whether the next group enters without disrupting the routine. Staffing should be based on the number of milking points, personnel available, cow traffic and actual task times.

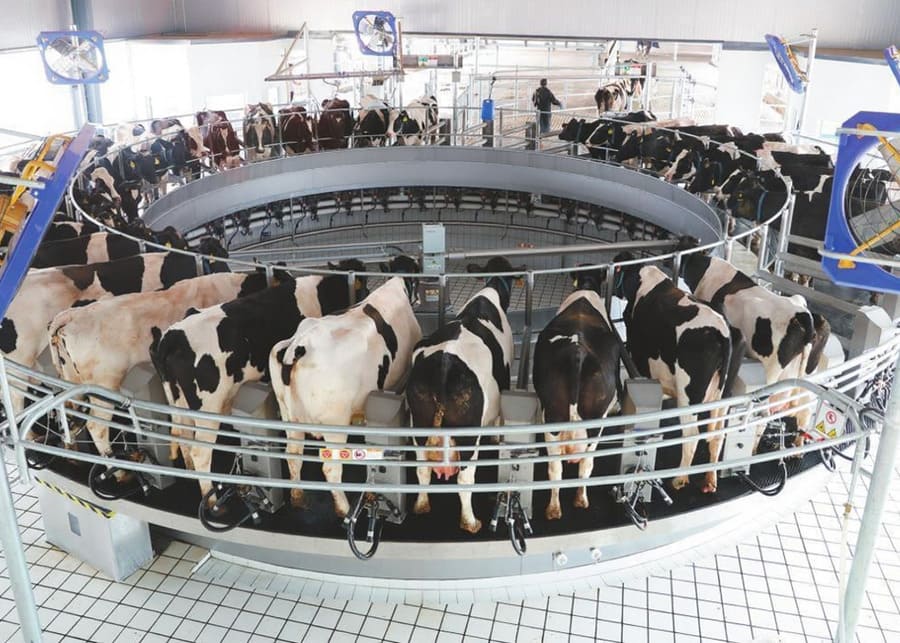

Rotary parlors
A rotary parlor is organized around fixed workstations. Operators must complete their assigned action before the next stall reaches the station.
Consider an 80-stall platform taking 8.5 minutes per revolution:
510 seconds ÷ 80 stalls = approximately 6.4 seconds between arriving stalls.
That 6.4-second interval is the average operator takt time at a fixed workstation. If one person is responsible for attaching clusters at that station, the workflow must allow that person to complete a cluster attachment for each arriving cow at the required pace. More complex jobs need additional staff, more than one station or a different platform speed.
The timing also helps locate preparation tasks around the platform. At the stated speed, a 30-second pre-dip contact interval spans about five stall positions, while a 60–120-second preparation-to-attachment interval spans approximately 10–19 positions. These are preliminary spacing calculations; real station placement also depends on access, task duration, cow behavior and the platform's actual working speed.
The practical lesson is to design staff positions and platform speed together. A faster rotation brings more cows to each operator per minute, but any unfinished teat preparation becomes the next station's problem.
7. After Removal: Teat Care and Cow Return Routes
Apply post-milking teat disinfectant promptly and cover the teat surface thoroughly. Allow the product to remain on the teat according to its label.
Keep the return route, feed area and stalls clean. Providing fresh feed encourages cows to remain standing after milking; roughly 30 minutes is a common management target, with actual cow behavior and barn design guiding the routine. Check the wet areas near water troughs, the entrance to the freestall barn and the condition of bedding where cows lie down.
Where automatic manure scrapers are installed, schedule cleaning around cow movement and ensure the equipment's safety systems suit the alley layout. A clean passage and dry lying area support the value of careful post-dipping.
8. CIP Cleaning: Temperatures, Flow and Verification
At the end of milking, prepare all connected milk-contact circuits for the specified cleaning cycle. That includes the receiver, milk lines, clusters and any meters or branches included in the installed wash arrangement.
A typical dairy pipeline cleaning sequence includes a warm pre-rinse, alkaline detergent wash, acid rinse when required, and sanitizing at the stage specified by the approved procedure. Equipment design, water quality and chemical formulation determine the exact program.
Practical CIP reference parameters
| Cleaning item | Useful reference | What staff should record |
|---|---|---|
| Pre-rinse | Often about 38–43°C (100–110°F) to remove milk residue without setting proteins | Water availability, visible residue and drainage |
| Hot alkaline wash | Some conventional guidelines start near 74–77°C (165–170°F) | Starting and return temperatures, circulation time, chemical dose |
| End-of-wash return temperature | Conventional guidance commonly uses minimums in the 43–49°C (110–120°F) range; approved cleaner instructions determine the project requirement | Actual return temperature at the end of circulation |
| Circulation time | About 6–10 minutes is cited for certain conventional hot-wash procedures | Programmed duration and recorded completion |
| Chemical strength and mechanical action | Determined by detergent, water hardness, line dimensions and pump or slug-flow design | Dosing, alarms, return flow and any unusual wash behavior |
The University of Maine cleaning guidance gives a conventional hot-wash example starting at 165–170°F with an end temperature of at least 120°F. Michigan's CIP cleaning guidance describes 110°F as a minimum under its stated conditions. Low-temperature cleaners and different plant designs can require other parameters, so the agreed CIP recipe must identify its own acceptance limits.
During the wash, confirm that solution reaches the intended clusters and branches, air injection or other cleaning action functions as designed, and low points drain properly. Chemical containers, dosing pumps, filters, valves and seals should be checked on the schedule appropriate to the installation.
What should happen when CIP reports an alarm?
Record the affected circuit, the failed parameter and the action taken. Repeat the wash only after identifying the likely cause—such as inadequate hot water, a failed dosing pump, a disconnected wash cup or incomplete drainage. Inspect problem areas and use the farm's approved hygiene verification methods before releasing the equipment for the next milking.
For project specifications, NexAgri can include automated CIP in the proposed milking system with the agreed wash circuits, controls, dosing arrangements and monitoring functions. An accurate equipment schedule makes it easier to train operators and maintain the installation after commissioning.
9. Daily Milking SOP Checklist
This checklist can be printed or adapted into the farm's shift log. Assign one person to complete each check and a supervisor to resolve exceptions.
| Stage | Operator action | Record or escalation |
|---|---|---|
| Before milking | Check vacuum, pulsation, liners, transfer route, teat-care supplies and treated-cow list | Equipment faults, missing supplies, unresolved diversion alerts |
| Teat preparation | Clean visibly dirty teats, apply pre-dip, forestrip all four quarters, dry and attach on time | Abnormal milk, incomplete drying, repeated timing problems |
| During milking | Watch cluster fit, liner slips, cow response, milk flow and ACR function | Reattachments, machine alarms and cows requiring follow-up |
| After removal | Apply post-dip and direct cows to a clean return route | Missed post-dip or unsafe/dirty return conditions |
| After the shift | Verify milk route, run CIP, review wash records and close equipment faults | Failed cleaning stages, corrective wash, maintenance request |
Abnormal-event response
Abnormal foremilk: Identify cow and quarter → keep suspect milk separate → notify the supervisor → follow the herd's veterinary protocol → record the disposition.
Treated cow: Verify ID and withholding status → confirm separate milk collection or diversion → record milk destination → authorize return to the saleable route only after the required release checks.
Milking-unit fault: Safely remove the affected unit from service → identify the problem → clean or replace affected parts as appropriate → return to service after the required functional check.
CIP fault: Record the failed stage → inspect water, chemicals, flow and drainage → correct the fault → perform the required re-cleaning and verification.
Supervisors should regularly review teat-dip coverage, actual preparation-to-attachment times, liner replacement records, ACR exceptions and cleaning trends. The purpose of the log is to make recurring problems visible before they become normal practice.
10. Match the Milking Parlor Configuration to the Routine
The layout of a new milking parlor determines how easily workers can follow the SOP. A practical equipment plan should address cow entry and exit, pit access, cluster reach, hose arrangement, operating vacuum, milk-transfer capacity, ACR coverage and CIP wash circuits in the same discussion.
For a herringbone or parallel project, the key questions are how many cows can be prepared and attached per group and how much time is available between groups. For a rotary project, station spacing, platform revolution time and operator task duration have to fit together. Automation then supports an established workflow rather than compensating for an impractical layout.
NexAgri offers herringbone, parallel and rotary milking parlor configurations, with milk metering, ACR and CIP arrangements defined for the selected project. Share the herd size, milkings per day, target milking window, available operators and required automation features through the NexAgri contact page to discuss an appropriate equipment scope and layout.
Frequently Asked Questions
What is the correct order for preparing a cow before milking?
Identify the cow, remove visible heavy contamination, apply the approved pre-dip, forestrip each quarter, allow the disinfectant's required contact time, dry every teat with an individual towel and attach the cluster at the intended preparation interval. Some farms forestrip before pre-dipping within an approved routine; cleaning, contact time and dry teat ends remain essential.
How many times should each quarter be forestripped?
Two to three streams per quarter is a commonly recommended procedure for checking abnormal milk and stimulating milk let-down. Use a strip cup or other suitable examination surface and follow the farm's mastitis protocol if milk appears abnormal.
What vacuum and pulsation settings are typical for dairy cows?
Published references include approximately 40–44 kPa for low-line systems, 44–48 kPa for high-line systems, and a common pulsation arrangement near 60 cycles/min with a 60:40 ratio. The plant's commissioned values, liner specifications and diagnostic measurements govern operation.
Does ACR reduce overmilking?
A correctly configured ACR can reduce time spent in low-flow milking and make cup removal more consistent. The flow threshold, delay and physical vacuum-release mechanism should be checked together, with cow outcomes reviewed after any setting change.
How do I know whether the CIP system cleaned properly?
Check the actual wash temperature, return flow, chemical dosing, circulation duration, circuit coverage and drainage against the approved CIP program. Investigate failed stages and use the farm's defined hygiene verification checks before the equipment returns to service.
Conclusion
A reliable milking routine is built around a short, repeatable sequence: inspect the plant, prepare clean and dry teats, attach on time, monitor milk flow, remove units correctly, protect the saleable milk route and verify the wash. Operators need clear assignments and a quick way to report exceptions. Managers need measured timing, machine records and periodic checks to keep the routine consistent.
When those working requirements are considered during equipment selection, a milking parlor is easier to operate, maintain and expand. NexAgri can help translate the farm's milking schedule and staffing plan into a defined parlor layout and equipment specification.
