A small dairy plant can run into expensive problems before its first production day. The building may be finished, but the milk reception area is too small; the pasteurizer is correctly sized, but the filler cannot keep up; or the equipment arrives before the steam, chilled-water and drainage connections have been planned.
The six most consequential planning mistakes are building before defining the process, overlooking hygiene zoning and milk reception, restricting maintenance and expansion access, undersizing utilities, mismatching equipment capacities, and leaving supplier interfaces undefined. A practical plant design starts with the products, the daily production schedule and the equipment flow. The building and utility connections follow from those decisions.
For a small dairy planning roughly 500–3,000 L/h, these checks are useful whether the intended products are pasteurized milk, stirred yogurt or a combination of both.
1. Building the Factory Before Defining the Production Process
The most expensive layout changes tend to involve things that cannot be moved easily: columns, floor drains, equipment foundations, service openings and the routes taken by large tanks. These need to be coordinated with the dairy process before civil work is finalized.
Start with a process design basis that answers six questions:
| Design input | Why it changes the building or equipment layout |
|---|---|
| Finished products | Pasteurized milk and yogurt need different downstream processing and packing areas |
| Daily finished volume | Determines raw milk intake, processing capacity and storage requirements |
| Operating hours | Establishes the hourly flow once cleaning and changeovers are considered |
| Packaging formats | Bottles, cups, cartons and pouches require different filler footprints and material flows |
| Cleaning and product changeovers | Affect CIP circuits, drain locations, production schedule and buffer capacity |
| Planned expansion | Determines which floor space, utility connections and access routes should be reserved |

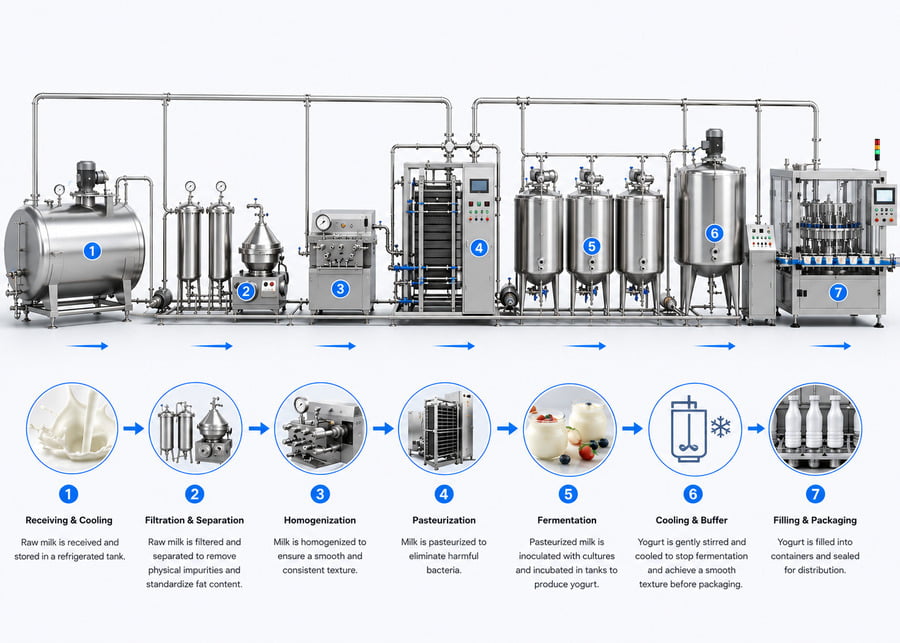

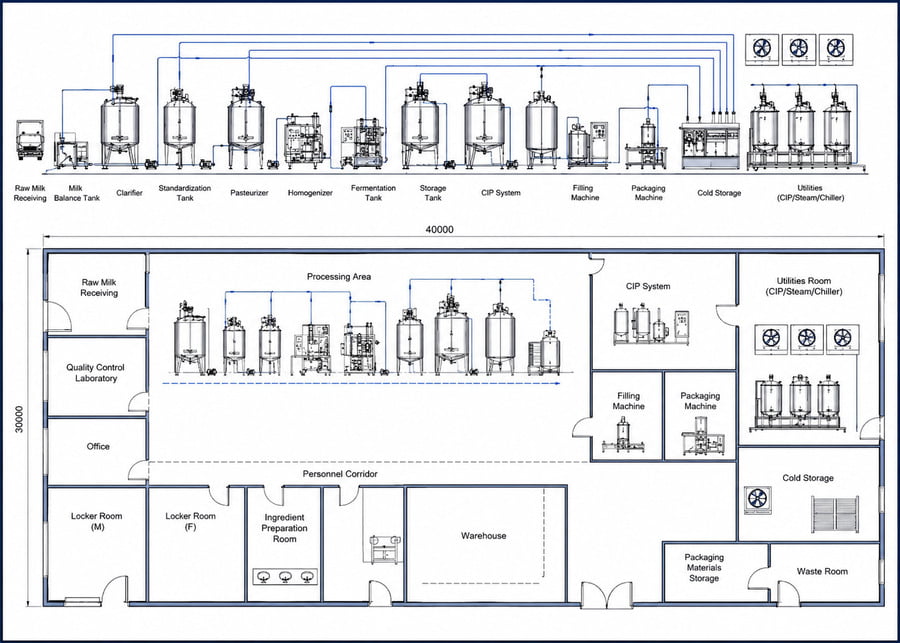

A useful early engineering package contains a process flow diagram (PFD), equipment list, 2D/3D equipment layout, initial utility schedule and an installation/access plan. Once the equipment arrangement is accepted, the piping and instrumentation diagram (P&ID), tank connections, floor loads, foundations, drainage and service clearances can be developed further.
In wet-processing rooms, a 1–2% floor fall toward suitable drains is a useful early planning range. Some dairy-premises guidance recommends 2% or more for effective drainage. Confirm the final slope, drain locations and floor finish with the civil designer so wash water moves away from equipment and exposed product areas without creating unsafe working surfaces.
A tall fermentation tank may fit on the floor plan but still lack room to lift its top-mounted agitator. For preliminary layouts, 0.8–1.2 m above the tank can be marked as an initial service allowance; the selected agitator's removal height and lifting arrangement determine the actual building clearance. A pasteurizer also needs room for its plate pack and pumps, even when the skid footprint fits the room. These access envelopes belong on the 2D/3D layout before construction.
At NexAgri, we can prepare process and equipment layout information, including PFDs, P&IDs, equipment dimensions and utility interface schedules. The local building, structural, fire-safety and permit drawings are then completed by the responsible qualified design team under the project's agreed scope.

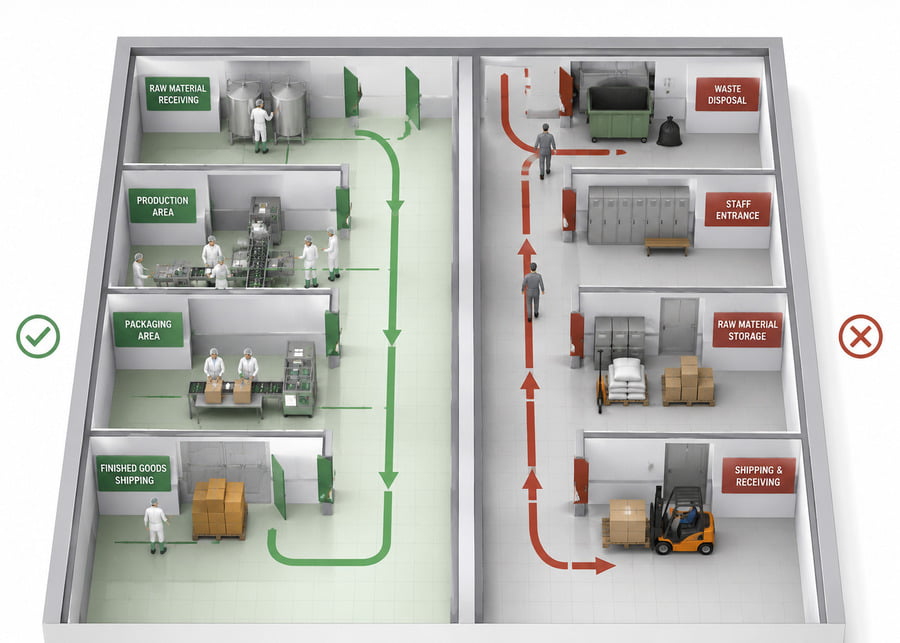

2. Treating Raw Milk Receiving and Hygiene Zoning as Afterthoughts
Raw milk acceptance and finished-product packing have very different hygiene needs. A small plant can share some corridors or service facilities where the risk assessment and operating controls support it, but its material, personnel, waste and product movements still need a deliberate plan.
A practical layout normally puts raw milk receiving close to the incoming vehicle route, processing between reception and packing, and finished-product storage close to dispatch. The CIP room, chemical storage, personnel changing area and wastewater connections should have suitable access without disrupting hygienic production.
Plan the milk receiving route before selecting tanks
A receiving area needs room for sampling and identification, unloading, filtration, measurement, cooling or chilled storage, and the handling of batches held for investigation. If milk arrives in several deliveries, the receiving and storage schedule must account for peak intake and the time needed for quality checks.
| Area or movement | Early design decision |
|---|---|
| Raw milk receiving | Vehicle access, sample point, unloading pump, filter, meter and drain |
| Accepted raw milk storage | Tank capacity, temperature record, CIP access and route to processing |
| Held or rejected milk | Clear identification and a segregated holding or disposal route |
| Processing room | Hygienic pipe runs, equipment access and product transfer routes |
| Filling area | Controls suited to the exposed product and selected packaging process |
| Finished goods | Chilled storage where required and a dispatch route away from raw intake |
| Personnel and waste | Entry/change facilities and waste removal without avoidable cross-traffic |
The Codex General Principles of Food Hygiene address separation of areas with different hygiene risks through layout, barriers, traffic direction, airflow and appropriate time separation with cleaning. In enclosed hygienic filling areas, filtered supply air can establish a pressure cascade toward less-clean adjoining spaces. Around +5–15 Pa is one preliminary differential-pressure range used for some controlled food-filling zones; the approved design pressure, ventilation rate and monitoring points are set for the filling process and the site's applicable hygiene requirements.
For a plant making both pasteurized milk and stirred yogurt, we would normally consider shared raw milk reception and selected pre-processing equipment, followed by separate fermentation, cooling and filling arrangements. Product routing and a verified cleaning schedule are particularly important when cultured yogurt and pasteurized drinking milk use common product-contact equipment.

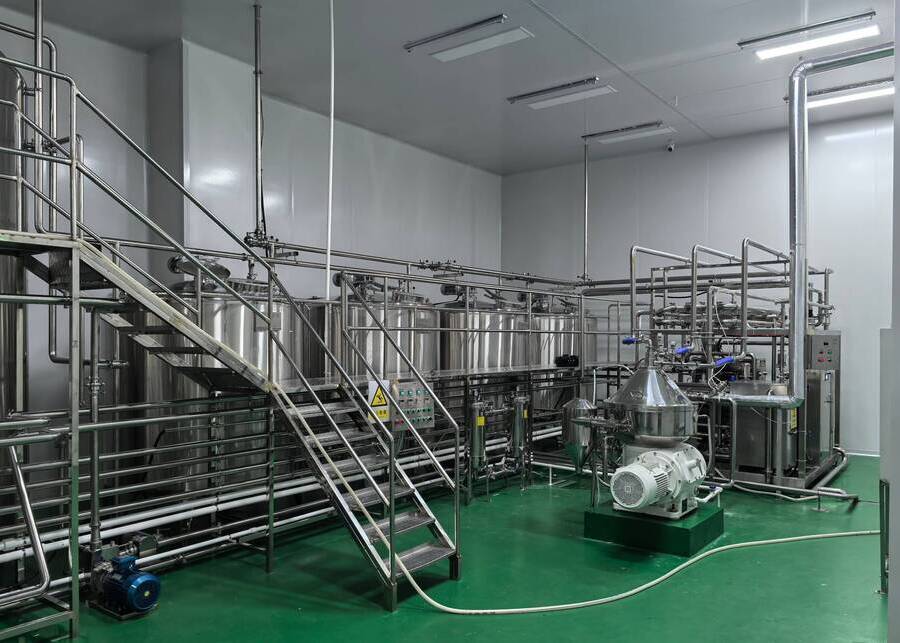

3. Leaving Too Little Space for Maintenance and Future Expansion
A compact layout saves floor area only when operators can still clean, inspect and service the machinery. Equipment availability drops quickly when pumps, valves, seals and heat exchanger plates cannot be accessed without removing neighboring equipment.
Check access around the parts that actually require attention: pump motors and mechanical seals, agitator gearboxes, tank manways, filter elements, heat exchanger plate packs, valve clusters, electrical panels and CIP spray devices. A preliminary 0.8–1.2 m service aisle can help establish the first layout, but a plate heat exchanger may need considerably more space on the opening side to pull out its plates. The final maintenance envelope should use the supplier's plate-pack draw-out and lifting dimensions; for example, Danfoss's plate heat exchanger instructions express service space in terms of the exchanger's own width and height.
For future production growth, reserve practical items early: a route for moving large equipment into the building, a location for another tank or filler, spare electrical and control capacity where justified, and space for an additional hygienic pipe connection. Any unused branch must drain and clean properly. A useful hygienic-design reference for food equipment is to avoid dead legs and, where unavoidable, keep branch depth no greater than its internal diameter (L/D ≤ 1), measured according to the chosen design standard. The hygienic piping guidance on dead legs explains why deeper branches become difficult to clean.
A small plant may begin at 500 or 1,000 L/h and later expand. Whether its original cooling tanks, homogenizer and filler can be reused depends on their actual flow rates, sanitary connections, control compatibility and available operating hours. An expansion drawing should show the future equipment and the interfaces that will remain in use.

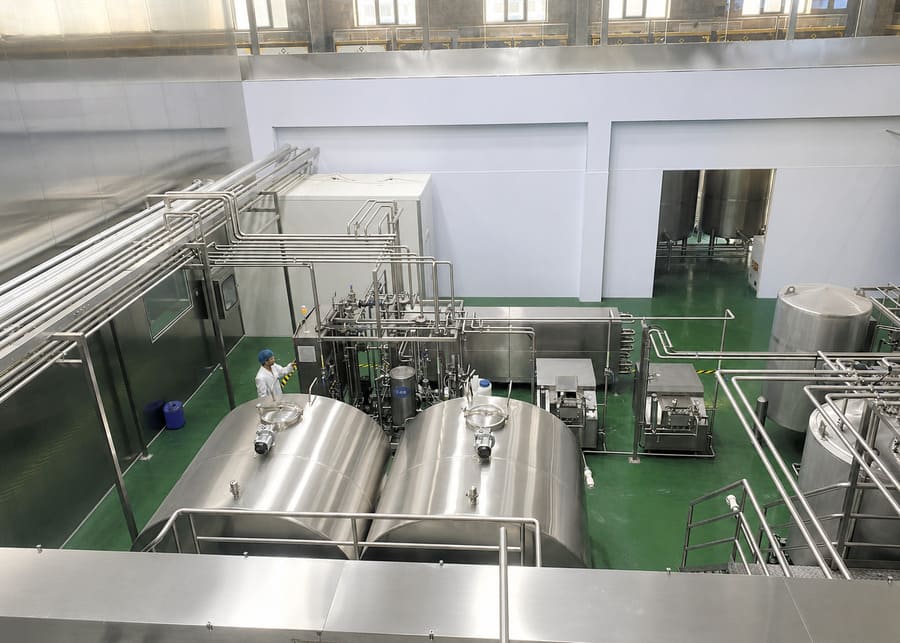

4. Sizing Utilities From Machine Nameplates Instead of Peak Plant Demand
Adding up the electrical ratings on equipment quotations gives only part of the picture. The plant also has heating and cooling loads, wash-water demand, compressed air, drainage and wastewater peaks. Several of these loads can occur together during production or cleaning.
| Utility or service | What to calculate before construction |
|---|---|
| Electricity | Installed power, expected simultaneous demand, startup loads, control supply and expansion allowance |
| Steam or hot water | Product heating, tank heating, CIP preparation and simultaneous users |
| Chilled water and refrigeration | Raw milk cooling, pasteurized milk cooling, fermentation cooling and cold rooms; 1–2°C ice-water supply is a common reference for some final milk-cooling circuits |
| Process and CIP water | Water quality, flow and pressure; about 1.5–3.0 L water per L milk processed is a practical initial site-consumption estimate for some dairy operations |
| Compressed air | Dry, clean instrument air; many hygienic pneumatic actuators use about 5–6 bar at the point of use, with a central compressor commonly set around 7 bar to cover distribution losses |
| Drainage and wastewater | CIP discharge peaks, milk losses, floor drains, cleaning chemicals, solids and local discharge requirements |
A separate utility-load schedule should state required quantity, pressure or temperature, connection size and operating condition for each major machine. For example, a plant processing 10,000 L raw milk/day might initially budget around 15–30 m³/day of incoming water using the 1.5–3.0 L/L reference. The daily allowance is then broken down by cleaning sequence and simultaneous demand to size tanks, pumps and drains. Published dairy-site surveys show that water consumption varies considerably with product mix and water recovery; see this 2025 dairy water-use study. The Tetra Pak guide to dairy service systems also describes typical compressed-air service pressures and refrigeration utilities.
This utility schedule helps the civil and MEP teams select power distribution, boilers, chillers, pumps, drains and service routes for the plant as a whole. Ice-water temperature and compressor pressure are design inputs for the selected loads: the final values follow the heat-exchanger duty, valve/filler specifications and distribution pressure losses.
Remember the CIP system when calculating water and wastewater
A dairy CIP station may serve receiving tanks, cold pipelines, pasteurizers, yogurt vessels and filling-related circuits. Their cleaning cycles differ, and two circuits cannot automatically be cleaned at the same time just because they connect to one CIP station. The Tetra Pak cleaning-of-dairy-equipment guide explains how circuit design, residue type, chemical compatibility and scheduling influence the cleaning system.
Wastewater planning also needs attention. Milk and yogurt residues, fat, cleaning chemicals and concentrated CIP discharges affect wastewater loading. Depending on the site and permit conditions, the project may require screening, equalization, pH adjustment and further treatment. We can support wastewater load calculations and include treatment equipment when that scope is defined in the project contract.
Boilers, chillers, air compressors, water-treatment equipment and wastewater systems can be included in the equipment schedule. Local installation permissions, statutory inspections and civil construction responsibilities should be assigned in the contract and project interface schedule.

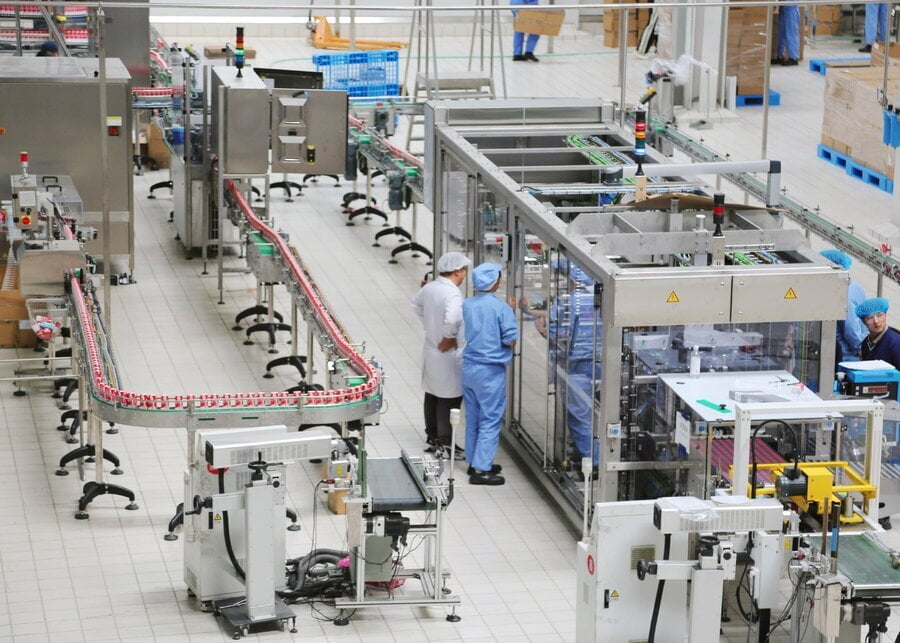

5. Matching Pasteurizer Capacity but Forgetting the Filling and Product Schedule
For a small dairy, daily sellable output is more useful than the nameplate capacity of one machine. A line's true capacity depends on how long it produces, how much material is lost, how often it changes products, and which downstream machine limits the flow.
Example: selecting a line for 10,000 L of milk per day
Suppose the project target is 10,000 L of finished pasteurized milk per day. The planned shift is eight hours, with 1.5 hours allocated to startup, cleaning, changeover and other non-production time. Assume a 97% saleable yield for this preliminary calculation.
Required processing rate = 10,000 ÷ [(8 − 1.5) × 0.97] ≈ 1,586 L/h.
A 2,000 L/h HTST system is one option to evaluate. It gives room for some operating variation, but it can achieve the intended daily output only if the receiving, cooling, buffer and filling stages can maintain the required flow.
Now suppose the selected filler runs at 2,400 bottles/h, with 500 mL per bottle:
Filling capacity = 2,400 × 0.5 = 1,200 L/h.
Over the same 6.5 hours, that filler handles 7,800 L before any additional filling losses. The pasteurizer's 2,000 L/h rating therefore does not solve the daily output target. The project needs a faster filler, more effective filling time, another shift or a revised production plan.
| Equipment or stage | Example rating | What to check |
|---|---|---|
| HTST pasteurizer | 2,000 L/h | Operating flow, holding time and available production hours |
| Homogenizer | Selected to match the process flow | Pressure, product conditions and actual rated throughput |
| Buffer tank | Sized for production interruptions | Usable capacity, holding conditions and hygienic transfer |
| Bottle filler | 2,400 × 500 mL/h = 1,200 L/h | Effective packs per hour, stoppages and changeovers |
| CIP and changeover | 1.5 h in this example | Actual cleaning circuits, startup and product schedule |
The same planning logic applies to milk plus yogurt, but the processes have different timing needs. Conventional drinking milk HTST processing often uses about 72–75°C for 15–20 seconds, while a stirred-yogurt milk base may use 90–95°C for about five minutes to develop the desired gel properties. The Tetra Pak fermented-milk chapter explains the longer yogurt heat-treatment step and subsequent fermentation.
The front end can share compatible receiving, standardization, homogenization and heating equipment when the selected system can provide both validated heat-treatment programs. Standard short-hold HTST equipment may need a different holding section or a dedicated yogurt-base heating arrangement. The yogurt route then adds fermentation tanks, controlled cooling and appropriate cup or bottle filling. This should appear in the process flow and production schedule before the equipment is ordered.
6. Buying Machines Without One Agreed Interface and Acceptance Plan
Equipment may come from several specialized manufacturers while still forming a coordinated production line. The central issue is who checks the interfaces and who is responsible for demonstrating that the combined system works.
An interface register brings these questions into one place:
| Interface | What the register should identify |
|---|---|
| Product transfer | Equipment IDs, flow range, pipe sizes, materials, connection locations and required pressures |
| Controls | Start/stop, ready, fault, level, valve feedback, interlocks, signal type and PLC responsibility |
| Cleaning | CIP supply/return route, cleaning flow, drainability, valve states and verification method |
| Utilities | Electrical supply, steam, cooling, air, water and drain connections by equipment |
| Installation | Foundation, lifting, access, welding, local contractor and inspection responsibilities |
| Acceptance | Tests, measuring method, performance criteria, documents and sign-off owner |
For example, the pasteurizer must respond correctly if the downstream filler stops. The control system needs a documented response for buffer-tank levels, feed permissives and diversion or shutdown conditions. The same is true when CIP begins: each valve route and participating machine should be in the correct cleaning state.
A clear project handover can include factory acceptance testing (FAT), site acceptance testing (SAT), dry and wet commissioning, trial production using the customer's product, CIP checks, operator training and a final equipment documentation package. Process-validation and regulatory activities involving a licensed local authority or independent laboratory are coordinated under the agreed scope.
NexAgri can coordinate equipment selection, process and piping diagrams, layout, interface schedules, installation support and line commissioning. For projects with local civil contractors or specialist utility packages, the responsibility matrix should identify exactly who supplies, installs, connects, tests and signs off each part. Our dairy production line solutions can be configured for pasteurized milk and yogurt, with matching processing equipment and packaging systems.
A Pre-Construction Checklist for a Small Dairy Plant
Before approving the final factory layout or releasing equipment for manufacture, make sure the project team has completed these checks:
| Check | Evidence to request |
|---|---|
| Product plan and capacity | Product mix, daily target, shifts, changeovers and output calculation |
| Process design | PFD, major operating conditions and equipment list |
| Equipment and factory layout | 2D/3D layout, delivery route, maintenance space and expansion zones |
| Raw milk acceptance | Receiving, sampling, measurement, cooling and held-batch arrangements |
| Hygiene zoning | Material/personnel flows, filling-area controls and cleaning/changeover plan |
| Utility demand | Peak electrical, heating, refrigeration, water, air and drainage schedule |
| CIP and wastewater | CIP circuits, concurrent-cleaning plan, wastewater quantity and treatment interface |
| Integration | P&ID, interface register, control permissives and responsibilities |
| Acceptance | FAT/SAT scope, performance testing, training and document handover |
A useful preliminary inquiry includes the site plan, intended products, finished volume per day, available operating hours, package sizes, existing utilities and anticipated expansion. These inputs allow an engineering team to develop a practical first equipment layout and a more meaningful quotation.
Frequently Asked Questions
What should be designed first for a small dairy processing plant?
Start with the product list, daily production schedule, process flow and major equipment capacities. These determine the layout, hygiene zones, drainage, access and utility connections that the building needs.
Can a small dairy factory use the same equipment for milk and yogurt?
Yes, selected front-end equipment and CIP facilities can be shared. The heating arrangement must accommodate the different treatment requirements, while the yogurt line needs its own fermentation and cooling stages. The filling and changeover plan depends on the finished products and packaging.
Is a 1,000 L/h dairy line the same as 8,000 L/day of finished product?
That figure assumes eight uninterrupted hours at the full rated flow. Cleaning, startup, packaging stoppages and product losses reduce the effective daily output. Calculate capacity from the production schedule and the slowest process stage.
Who should prepare the civil and permit drawings for a turnkey dairy plant?
NexAgri can provide process engineering information, equipment layouts, installation dimensions, P&IDs and utility conditions. Qualified local design and construction professionals normally prepare and submit the building, structural, fire and permit documents unless another arrangement is explicitly contracted.
Does a turnkey dairy processing plant include wastewater treatment?
It can be included. The proposal should identify wastewater load estimates, treatment equipment, civil work, discharge connection and commissioning responsibility. Inclusion depends on the site's requirements and the agreed scope of supply.
Conclusion
Most expensive small-dairy plant mistakes begin with decisions made before installation: an unsuitable building layout, unclear hygiene routes, insufficient utilities or a production schedule that the selected machines cannot achieve. The best time to resolve these issues is while the process flow, equipment specifications and factory drawings can still be adjusted.
