Two dairy barns can have the same number of cows and need completely different manure-scraper systems. An 80 m concrete alley with little bedding is a straightforward cleaning route. Add sand bedding, multiple corners, rubber flooring or an awkward discharge pit, and the pulling load, blade design and maintenance requirements change.
For most buyers, the starting decision is between a chain-driven and a steel-cable scraper. Both can automate regular cleaning of dairy alleys. Hydraulic systems use a different mechanism and are worth understanding when comparing building layouts. Alley dimensions, floor construction, bedding and the manure collection point should determine the equipment specification.
Chain vs. Steel Cable vs. Hydraulic: Quick Comparison
| System | How it drives the blade | Best reason to consider it | Main wear and service points |
|---|---|---|---|
| Chain-driven | Geared motor and sprocket pull the scraper through a chain circuit | Defined alley routes, paired lanes and a mechanically accessible drive arrangement | Chain links, sprockets, guides, alignment and tension |
| Steel-cable | A winding drum or traction-wheel system moves wire rope and the scraper | Long routes where cable routing and weight suit the layout | Broken wires, cable corrosion, drum or pulley grooves, terminations |
| Hydraulic | A hydraulic power unit drives cylinders, a reciprocating rail or another mechanical linkage | Particular layouts that benefit from a step-by-step or reciprocating mechanism | Cylinders, seals, hoses, power unit and guide rail |
A three-way comparison is useful, but alley length alone does not assign a drive type. Compare the complete route and the selected model's rated stroke, load and maintenance access. NexAgri's automatic manure-scraper range includes chain configurations for alleys up to 200 m; steel-cable systems are another option for long or demanding routes.
How Chain, Steel-Cable and Hydraulic Drives Work
Chain-Driven Scrapers

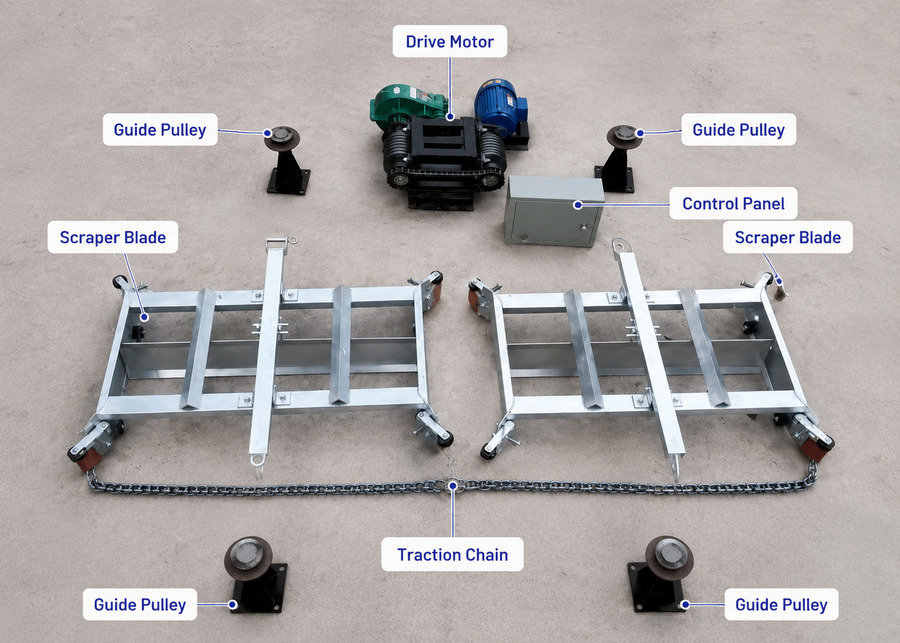

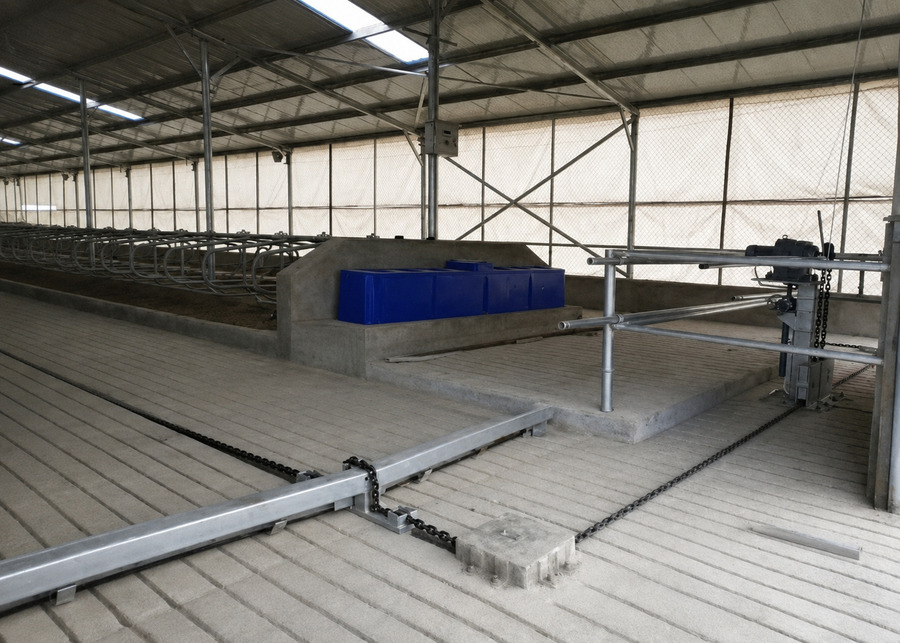

A reduction gearbox turns a sprocket that advances a chain connected to the scraper assembly. Depending on the arrangement, one drive can operate a single alley or linked scraper routes, with guide wheels around the return path.
Chains are specified by more than diameter. Ask for the link size and pitch, steel grade, heat treatment, rated working load, breaking force, sprocket match and corrosion protection. Commercial agricultural scraper equipment includes hardened link chains around 13 mm, but different chains of the same nominal diameter can have different strength and wear characteristics. The breaking force on a data sheet is not the permissible continuous pulling load.
NexAgri's published chain configurations include 0.75–1.5 kW drive-motor options and layouts reaching 200 m. The equipment list should identify the motor and gearbox selected for the actual loaded scraper width, floor friction, drive route and number of blades.
For maintenance, the points to inspect are visible and practical: chain stretch and wear, sprocket tooth condition, chain tracking, tensioner travel, corner-wheel bearings and the scraper's attachment points. Check that workers can reach the drive and guides without dismantling occupied cow lanes.
Steel-Cable Scrapers

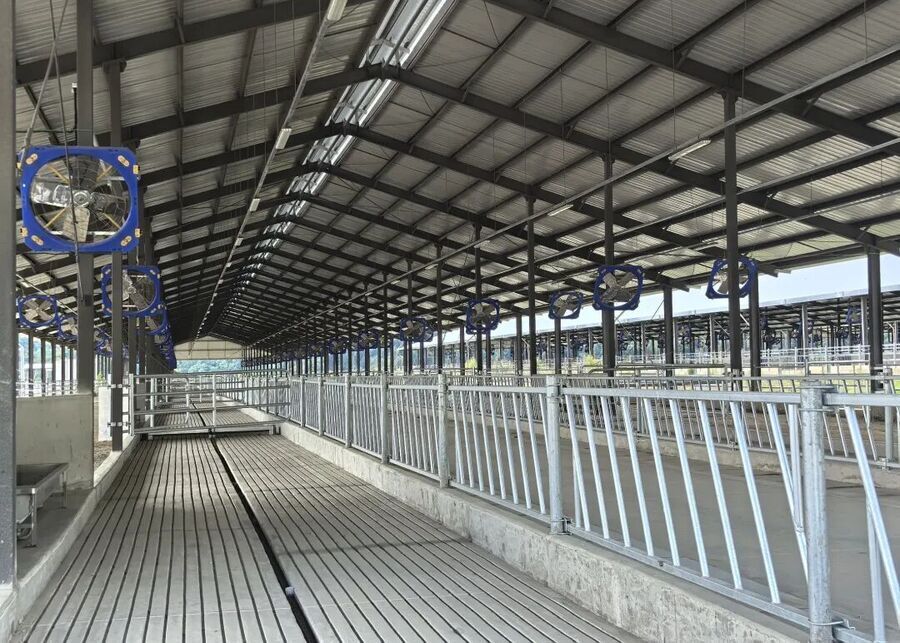

A steel-cable scraper uses wire rope connected to a blade assembly. Depending on the design, a drum winds and pays out the cable, or a powered wheel provides the pulling motion. These are different drive arrangements, so the cable path and tensioning method need to match the machine.
Wire-rope specifications should include diameter, strand construction, steel grade, galvanizing or stainless-steel material, minimum breaking force, drum/pulley diameter, groove profile and end fittings. Commercial systems use various sizes, including wire ropes around 8–12 mm and coated constructions whose external diameter differs from the steel core. The specified rope must fit the actual drive and pulleys.
Cable systems can reduce the moving weight on a long route, but wire rope bends at every pulley. In sand-laden manure, abrasive particles and grit accelerate surface wear and can work into the strands. Inspect for broken wires, flattened areas, corrosion, irregular winding and damaged terminations. Cable replacement access and the availability of a correctly matched spare rope should be part of the layout review.
A synthetic-rope scraper uses different materials, stretch characteristics and drive components. It can be examined for specific applications, but it should not be treated as interchangeable with steel wire rope.
Hydraulic Scrapers
A hydraulic system uses a power unit and a mechanical arrangement—often a reciprocating rail or shuttle—to move the scraper incrementally along an alley. It can be useful where the proposed lane arrangement favors that mechanism. Installation involves the rail or channel, hydraulic supply, cylinders or motors, and access to seals and controls.
Hydraulic layouts also bring maintenance considerations: oil leaks, fluid condition, hoses, cylinder seals and rail fouling. In freezing climates, hydraulic-fluid selection and exposed or recessed rail conditions must be included in the winter plan. The chain and cable options above form NexAgri's regular equipment offering; the drive comparison helps buyers assess the installation as a whole.
Measure the Full Alley Route Before Choosing a Drive
A scraper quote should start from the barn drawing rather than a single number for building length. Mark:
- Clear alley width, cleaning length and any floor slope.
- Number of scrapers and whether one motor is planned to serve one or two lanes.
- Corners, crossovers, return sections and changes in floor level.
- Stall curbs, feed barriers, service doors and places where a blade may snag.
- Discharge point, cross-channel, reception pit and transfer equipment.
- Electrical supply, control-box position and access to the drive and tensioner.
A straight 120 m route and a 120 m route with several direction changes place different demands on the drive. Every turn adds a guide point and another possible wear or alignment problem. Cable and chain proposals should therefore show the complete pulling route, not just the length cleaned by the blade.
Calculate the Cleaning-Cycle Time
One-way scraping time (minutes) = Scraper travel distance (m) ÷ Travel speed (m/min).
For an 80 m alley and a quoted scraper speed of 4 m/min, one loaded stroke takes approximately 20 minutes. If the machine returns over the same distance at the same speed, allow roughly 40 minutes for travel, plus reversal and control delays.
This calculation matters when programming several cycles per day. A two-alley system operating on one drive may have a different sequence from a single blade moving back and forth. Confirm actual full-cycle time with the equipment supplier before choosing the timer intervals.
Floor Material and Bedding: Where Wear Really Starts

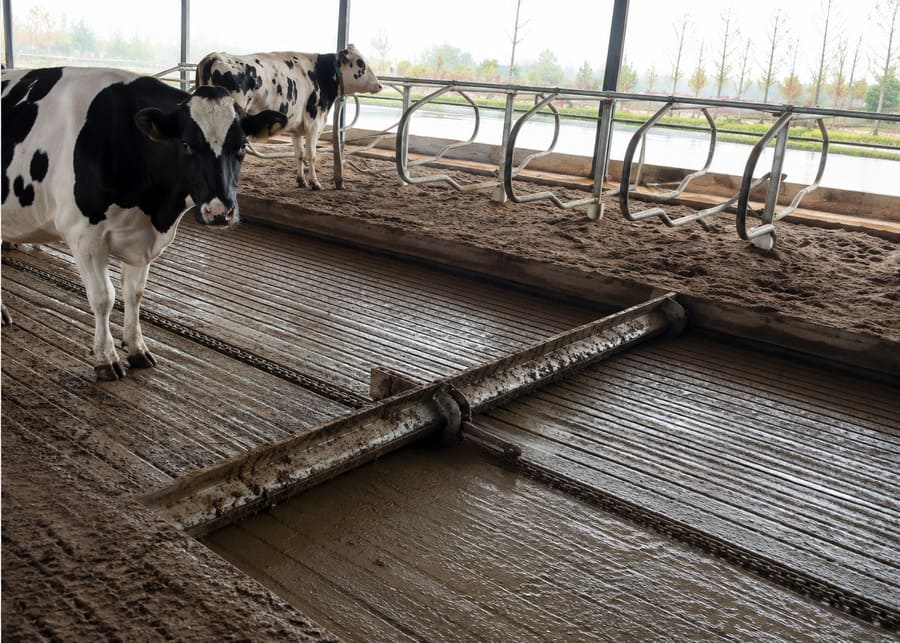

The blade edge and pulling mechanism should be chosen together. A scraper that leaves manure at the sides may need a different blade profile; one that catches rubber-mat joints may damage an otherwise good floor.
| Barn condition | Equipment detail to check |
|---|---|
| Grooved concrete | Scraper edge contact, groove direction, blade wear and traction for cows |
| Rubber flooring | Flexible blade edges, mat seams, anchors and transitions to concrete |
| Slatted flooring | A purpose-designed scraper and supporting/guide arrangement for the slots |
| Sand bedding | Abrasion of links or cable, guide wear, scraper load and sand handling downstream |
| Straw or fibrous bedding | High-sided or folding blade design, bulky material at corners and discharge points |
| Cold or exposed alleys | Ice accumulation at the blade, guide track, corners, discharge opening and drive station |
Sand is a wear problem for both chain and cable systems. Hardened chain links and suitable sprockets can be specified for abrasive duty, while steel cable must be checked where it repeatedly flexes over sheaves. The choice depends on the construction of the proposed components and the route, rather than assuming that one material always lasts longer in sand.
For cow walking surfaces, the blade should also preserve the floor finish. Ontario's dairy-floor guidance discusses how scraper operation wears concrete and why resilient contact edges can help protect flooring.
Blade Shape, Guide Tracks and Floor Construction
Straight blades, V-shaped blades, folding wings and replaceable flexible edges all serve different routes. A folding V-blade may open to collect manure on its working stroke and reduce drag on the return; a straight blade can be simpler where there is an uncomplicated alley and discharge point. Width, wing geometry and edge material must match the actual floor.
Should the Traction Chain or Cable Sit in a Center Groove?
Many automatic alley scrapers use a recessed center guide groove to protect the chain, cable or other pulling mechanism. Other designs use a surface-mounted track or a guide arrangement that needs different concrete work.
As a reference, approximately 50 × 50 mm guide grooves appear in some commercial chain-system installations. The suggested 50–75 mm depth and 60–100 mm width range in equipment discussions is not a universal barn-building specification. A different chain section, cable track or scraper drawbar can require another profile entirely.
Before casting a new floor, request a cross-sectional drawing that shows:
- Internal guide width and depth, including construction tolerances.
- Pulling element, wheel or shoe clearance and the scraper's connection to it.
- Drive and corner-wheel foundation positions.
- How the groove drains and how it can be cleaned or inspected.
- Separation between the traction groove and any deeper manure-drainage channel.
- Scraper movement over crossovers and transitions to rubber flooring.
A traction groove and a manure drainage slot do different jobs. In particular, a deeper center manure channel with a scraping paddle should never be dimensioned from the small guide-groove example above. DairyNZ's Dairy Housing guidance describes the recessed pulling-element arrangement in typical passageway scrapers.
For an existing barn, assess whether cutting a channel is structurally practical. A compatible surface-mounted track can sometimes avoid major concrete work, but its height, alignment, crossing points and hoof contact need to be addressed in the layout.
How Often Should Dairy Barn Scrapers Run?
For an occupied freestall alley, one cleaning cycle every 2–4 hours is a reasonable initial scheduling example—roughly 6–12 cycles in 24 hours. Farms with heavy manure accumulation or particular floor systems may operate more frequently. The schedule should be adjusted after observing the amount of manure carried ahead of the blade, floor cleanliness, cow traffic and equipment wear.
The AHDB guidance on cattle-house flooring discusses automatic alley scrapers running as frequently as hourly. Large piles of manure pushed ahead of an infrequently run scraper can reach the cows' feet and reduce the cleaning benefit.
Use milking and feeding routines to identify times when the alleys are less congested, while still maintaining the required cleaning frequency. The complete scraper cycle time, not simply a timer setting, determines whether a schedule can actually be achieved.
Winter Operation in Freezing Conditions
In cold conditions, manure may freeze to the floor or around the guide and discharge point before the next scraping cycle. Shorter intervals, sometimes around 1–2 hours, can be evaluated where the drive and barn operation permit them. That is only one part of a winter plan.
Protect exposed drive stations, maintain drainage, and check whether perimeter channels and discharge openings need insulation or heating. Frozen material can immobilize a scraper even when the timer requests another run. Before restarting a machine that has stopped in ice, inspect the blade and traction route rather than repeatedly forcing the motor against the obstruction.
Ontario's manure-handling guidance notes that winter conditions can require more frequent scraping and that sand increases wear. Extreme cold may need additional measures beyond a more frequent timer setting.
Scraper Speed, Cow Safety and Control Functions
Some commercial scraper systems operate at roughly 2.5–4 m/min. At this speed, a blade moves slowly enough for cattle to notice and react, but movement speed alone is not an animal-protection system. A cow lying across the route, a young animal, a narrow crossover or a damaged scraper can still create a hazard.
For the controls, separate standard functions from the extras requested for a particular site:
| Control item | What to agree with the supplier |
|---|---|
| Timer and manual jog | Available schedules, local start/stop and direction controls |
| End-position control | Travel limits and response when a position signal is missing |
| Motor protection | Overload device, settings and fault indication |
| Resistance/torque sensing | Sensor type, test procedure and stop threshold under actual load |
| Automatic short reverse | Whether included, direction and travel limits, restart logic and alarm response |
| Emergency stop | Locations, stopping action and manual reset |
| Cold-weather mode | Adjustable interval or movement program and low-temperature limitations |
| Power failure | Machine state after power returns and operator checks before restart |
NexAgri's scraper product range distinguishes timer-based systems from PLC-controlled options with resistance monitoring, auto-reverse and frost-protection features. The final quotation should identify which controller and sensors are included.
Overload sensing is useful for protecting the drive and can contribute to animal-safety functions. Setpoints and reaction time need commissioning tests: an electrical current spike can result from manure load, ice, a jammed guide or an animal obstruction. Do not substitute a single generic current value or fixed reversing delay for the actual tested control logic.
For any obstruction or maintenance work, stop and isolate the equipment and prevent unexpected restart before entering the scraper route.
Make Sure the Manure Has Somewhere to Go

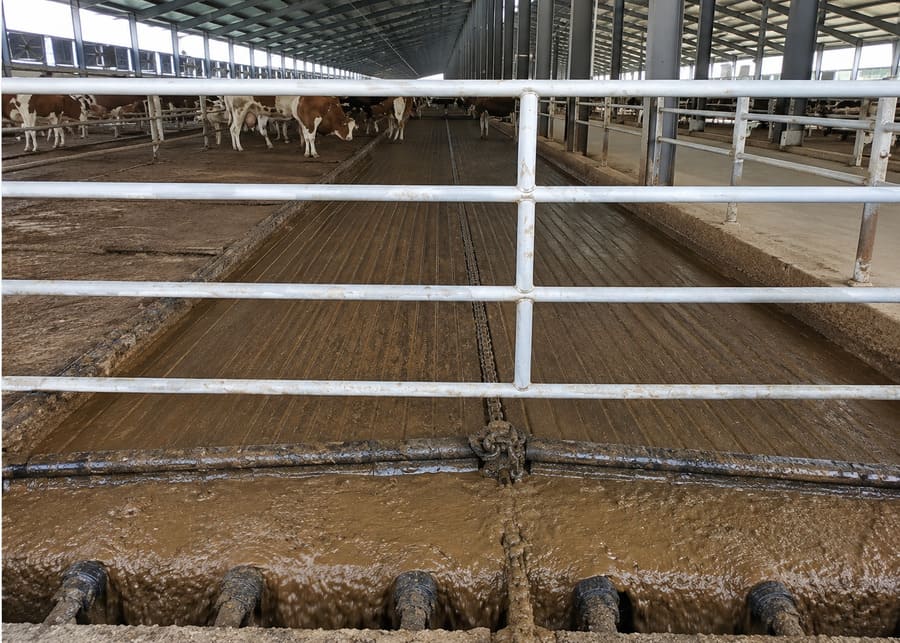

The scraper pushes manure to a channel, pit or other collection point. That interface determines whether the system continues working during peak manure loads.
Check the discharge opening and the elevation of the collection pit, the amount arriving during one cleaning cycle, pump or conveyor capacity, and access for clearing blockages. A narrow outlet or poorly drained pit can leave material piled against the end of the alley.
Where a farm also uses a solid-liquid separator, the reception and transfer equipment should handle the actual manure consistency, sand and bedding content. NexAgri can coordinate scraper layouts with manure pits, transfer equipment and solid-liquid separators, using a common equipment and interface plan.
Compare Total Cost and Maintenance Requirements
Initial price alone is a weak basis for comparing drives. The useful cost items are the drive and blades, civil work, control panel, installation, electricity, periodic service, spare pulling elements and production downtime.
| Cost item | Chain | Steel cable | Hydraulic |
|---|---|---|---|
| Drive and traction | Gearmotor, sprocket, chain, tensioner | Gearmotor, drum/traction wheel, wire rope | Hydraulic power pack, cylinders or shuttle mechanism |
| Concrete and installation | Chain route, guide wheels and foundations | Cable route, pulley/drum locations and foundations | Reciprocating rail or guide system and power unit |
| Routine inspection | Chain links, sprockets, bearings, tension | Rope strands, end fittings, sheaves, winding | Seals, hoses, leaks, rail alignment |
| Common spare parts | Chain sections, wear edges, guide wheels | Cable lengths, terminations, wear edges | Seals, hydraulic parts, wear edges |
A farm partner handling manure at an operation of nearly 10,000 cows reported approximately 50 kWh/day for its manure-scraping equipment. For a new project, electricity should be budgeted from the number of drives and their operating hours. For example, two drives drawing an average of 1.0 kW each for three hours per day each use approximately 6 kWh/day, excluding other auxiliaries.
Daily drive electricity (kWh) = Sum of average electrical input (kW) × running time (hours).
Include the cost and access needed for replacement parts. Threading a long wire rope through difficult corners may be more expensive in labor than the rope itself. Similarly, a misaligned chain can damage sprockets and links along a large portion of the route.
What to Include in a Scraper Equipment Inquiry
An equipment supplier can give a far more useful configuration when the request includes a marked barn plan, rather than just a cow count or the name of the drive type.
Send:
- Alley dimensions and a drawing showing every lane and crossover.
- Floor construction, grooves, rubber-mat details and photos.
- Bedding material, manure consistency and expected scraping schedule.
- Discharge location, cross-channel, collection pit and transfer method.
- Available power supply and proposed drive/control locations.
- Climate conditions, exposed sections and winter operation needs.
- Whether the project is a new barn or a retrofit with existing foundations and channels.
Ask the supplier to return the drive and blade specification, full pulling-route drawing, guide/channel cross section, motor/control details, equipment list, installation interfaces and maintenance plan. Confirm the actual scraper model, speed, load limits, protective functions and parts availability before construction or purchase.
How NexAgri Supports Barn Manure Scraper Projects
NexAgri Solutions supplies chain-driven and steel-cable manure scraper systems for commercial dairy barns. Available chain configurations include 0.75–1.5 kW motor options and project layouts for scraping routes up to 200 m. The equipment package can be configured around the barn's floor type, alley dimensions, scraper blade, pulling route and manure discharge arrangement.
For new barns and retrofits, NexAgri can prepare cleaning-route suggestions, drive and guide-wheel positions, scraper dimensions, foundation and channel interface drawings, electrical connection information, installation guidance and a list of wear parts. Related collection and manure-separation equipment can be included in the project plan.
View our automatic manure scraper systems or contact NexAgri with your barn drawing, floor type, bedding details and planned manure collection point.
Frequently Asked Questions
Is chain drive suitable for a 150–200 m dairy barn alley?
NexAgri has chain configurations covering layouts up to 200 m. The selected drive must also accommodate the width, scraper load, chain route, number of blades and operating schedule. Steel cable is another option worth comparing on a long route.
Which lasts longer in a sand-bedded barn: chain or steel cable?
Sand wears scraper edges and traction components in both systems. For chain, check link hardness, sprocket contact and guide wear. For cable, check strand abrasion, sheaves and corrosion. Compare spare-part access and the actual pulling-load calculation for the proposed layout.
Do manure scrapers need a central floor groove?
Many designs use a recessed guide, while others permit surface-mounted arrangements. The groove profile and concrete detail must match the selected drive and scraper. Keep the small traction-guide groove distinct from a manure-drainage slot or under-floor channel.
How often should dairy manure scrapers run in winter?
A normal occupied-alley schedule might begin at 2–4-hour intervals and be adjusted based on conditions. In freezing weather, shorter intervals can reduce build-up, but exposed guides and discharge points may also need insulation, drainage measures or heat. Check for immobilized blades before restarting.
Does every scraper include automatic obstacle reversal?
No single control package covers every installation. Timer-based systems and PLC systems with load sensing or automatic reversal have different functions. Ask for the control schedule, protection list and on-site fault tests in the equipment proposal.
Conclusion
Choose a manure scraper around the cleaning route, the floor and the material being moved. Chain systems offer a direct mechanical solution for many dairy alleys. Steel-cable systems can work well on long routes when the drum, rope and guide arrangement fit the site. Hydraulic designs are another engineering approach for particular layouts.
The most useful purchase decision comes from a complete route drawing, an appropriate blade and drive specification, workable cleaning intervals, and clear discharge and maintenance arrangements. Those details matter far more than a generic claim that one drive type is always better.
