Should You Clarify Milk Cold or Preheat It First?
Choose the clarification temperature around the production schedule. Cold clarification suits certain reception-and-storage arrangements. Warm clarification is often preferred when milk moves directly into continuous heat treatment.
| Selection point | Cold clarification | Warm clarification |
|---|---|---|
| Reference inlet temperature | Around 4–10°C | Around 50–55°C |
| Typical place in the line | Milk reception or cold handling before storage | Between regenerative preheating and later HTST heating |
| Milk viscosity | Higher | Lower, improving centrifugal separation of fine solids |
| Added heating stage | Usually unnecessary for the clarification step | Required; regenerative preheating can reduce external heat demand |
| Equipment check | Confirm cold-milk capacity, inlet pressure and sludge handling | Confirm rated warm-milk capacity, temperature stability and return pressure |
| Useful operating scenario | Milk is received, clarified and held refrigerated for later processing | Milk is fed continuously into pasteurization or another downstream process |
Clarifier capacity should be specified at the actual inlet temperature. A unit rated at 55°C may need a different feed-flow setting when processing milk at 4°C. Some disc-stack models are built for cold duty, others for warm duty, and some cover both.
Why does milk temperature affect centrifugal clarification?
Disc-stack clarifiers separate particles according to differences in density, particle size and movement through narrow separation channels. As milk warms, its viscosity generally falls. Smaller, heavier particles can migrate more readily toward the outer region of the rotating bowl, where they collect as sludge.
The relationship can be estimated from Stokes' law for small particles moving through a fluid:
Radial migration velocity ∝ particle diameter² × density difference × centrifugal acceleration ÷ dynamic viscosity.
For example, if viscosity falls from 2.0 to 1.0 mPa·s while particle size, density difference and centrifugal acceleration stay unchanged, the ideal migration velocity doubles. Milk is more complex than this simplified particle model, especially at low temperatures. For equipment selection, the result to request is the actual rated flow at the specified milk temperature and separation target. Disc area, bowl geometry, sediment volume and feed distribution also affect capacity. University of Guelph's dairy science reference discusses milk viscosity and the effect of temperature.
This is why warm clarification at about 55°C is a common feature of dairy processing line designs. The Tetra Pak Dairy Processing Handbook's process-line design chapter discusses both cold clarification below 6°C and more efficient clarification at approximately 55°C.
Temperature alone cannot compensate for excessive throughput or poorly managed sediment. A clarifier running beyond its suitable flow rate may give incoming particles less time to separate. High dirt or sediment loads may also require shorter sludge-discharge intervals.
What Is the Difference Between a Milk Clarifier, Cream Separator and Bactofuge?
These machines often look similar because all three may use a disc-stack centrifugal bowl. Their jobs and process outlets are different.
| Machine | Main duty | What leaves the machine | Key buying question |
|---|---|---|---|
| Milk clarifier | Remove sediment, dirt, cell debris and some heavier suspended particles | One main clarified-milk outlet, plus discharged sludge | What flow and solids-removal performance are available at the selected inlet temperature? |
| Cream separator | Divide milk into cream and skim milk for fat standardization | Separate cream and skim-milk outlets, plus sludge discharge | What cream fat content and skim-milk residual fat are required? |
| Bactofuge / bacteria-removal separator | Reduce selected bacteria and spore loads by centrifugal separation | Treated milk and a concentrated heavy fraction | What reduction objective and downstream heat-treatment process are specified? |

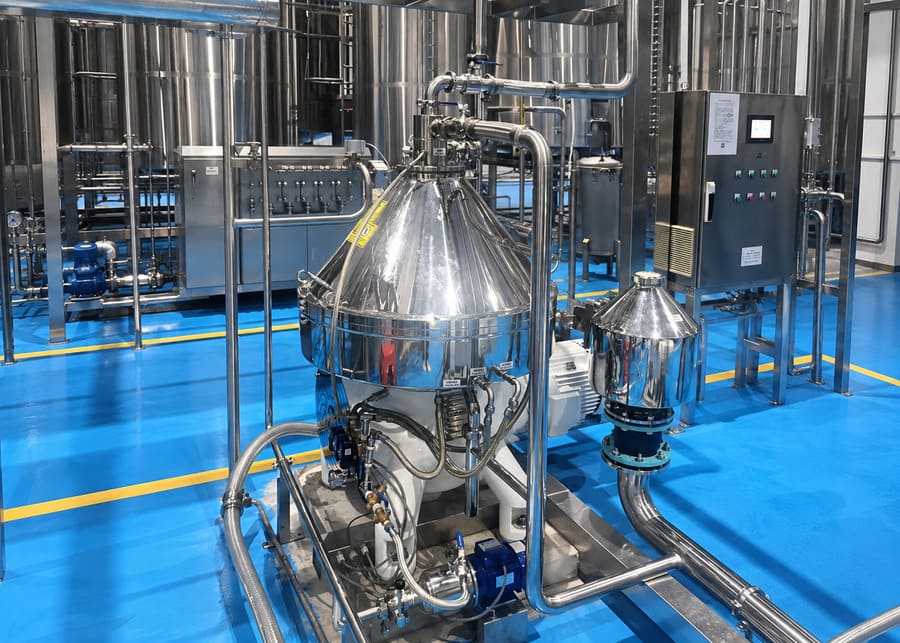

A milk clarifier is usually the straightforward choice when the customer wants to clean whole milk before pasteurization while keeping the fat in the milk stream. A cream separator is needed when the production plan calls for fat standardization. A bactofuge serves a more specialized microbial-load-reduction duty and is not a replacement for validated heat treatment.
During clarification, sediment may contain dirt, straw fragments, epithelial cells, leukocytes and some bacteria associated with the separated material. A clarifier helps remove these heavier fractions; its effect on somatic-cell counts or bacterial loads depends on the machine and milk. Microbial safety is managed through incoming-milk controls and the appropriate heat-treatment process. The different disc-stack designs and outlet arrangements are explained in the Tetra Pak guide to centrifugal separators and milk standardization.
How Do You Integrate Warm Clarification into an HTST Pasteurization Line?

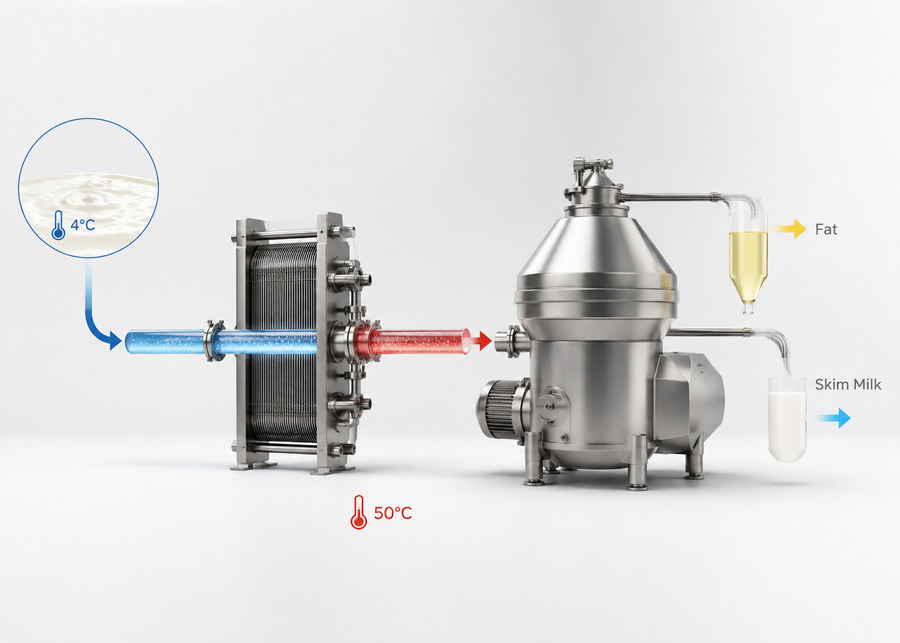

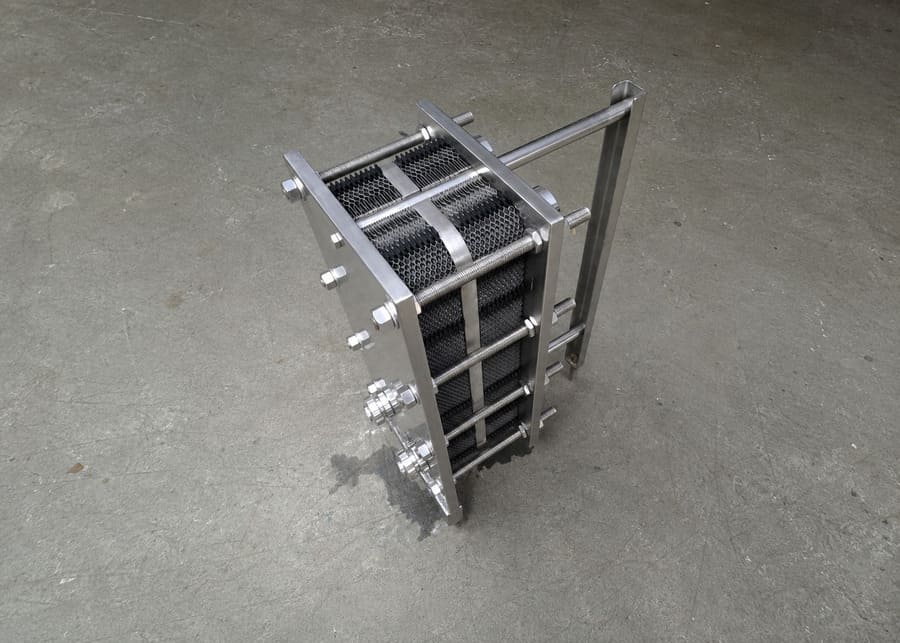

The most practical warm-clarification arrangement uses regenerative preheating, rather than installing an isolated heater that operates independently of the pasteurizer.
A typical continuous process can be laid out as follows:
Raw milk tank (approximately 4°C) → first plate regeneration section (approximately 55°C) → centrifugal clarifier → second regeneration section → final heating and holding → cooling → finished-milk handling.
The first regeneration section transfers heat from outgoing pasteurized milk to the incoming raw milk. After clarification, the milk returns to the plate unit for further preheating before it reaches the final heat-treatment section.
For a plant processing pasteurized drinking milk, the operating details usually include:
- Temperature control at the clarifier inlet. A temperature sensor confirms that milk reaches the selected separator's operating range. Where needed, the system includes a small trim-heating duty.
- Stable feed flow and inlet pressure. The feed pump, control valve and clarifier inlet arrangement must match the separator's hydraulic requirements.
- Return-side pressure management. Clarifier discharge pressure and the plate heat exchanger's pressure drop must be checked together; added pipework cannot be treated as a zero-resistance connection.
- Sludge discharge integration. Automatic discharge sequences need a defined sludge collection path, utility connections and control signals. Their effect on product flow depends on the bowl and discharge design.
- Pasteurization safety controls. Holding time, temperature monitoring, flow diversion and the appropriate pressure hierarchy between raw and pasteurized sections remain part of the HTST design.
- CIP routing. The separator, regenerative plate sections, bypasses and product piping need a cleaning sequence that reaches the required surfaces and accommodates the bowl's specified cleaning procedure.
The Tetra Pak process-line design example uses a split regenerative section with clarification at 55°C, then returns the milk for further preheating. It is a useful engineering arrangement for planning the interfaces among the plate unit, clarifier and final heating stage.

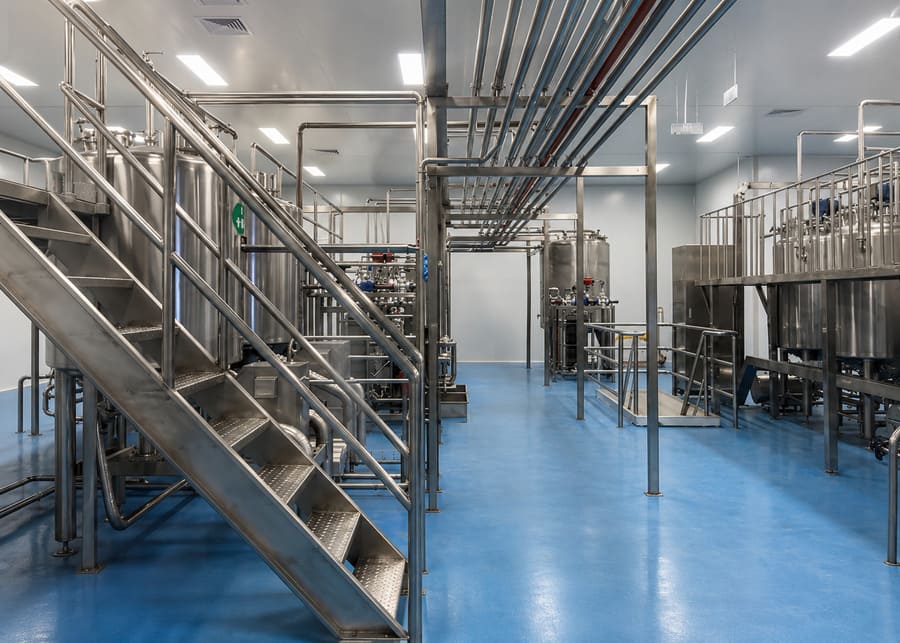

At NexAgri Solutions, we can configure the plate heat exchanger, centrifugal clarifier, sanitary pumps, valves and CIP connections as a linked system. Our plate pasteurization equipment can be considered alongside the complete dairy production line when the project requires a shared heating and clarification arrangement.
How Much Heating Duty Does Warm Clarification Add?
A process diagram should be accompanied by a heat balance. Consider a milk line processing 3,000 L/h, with incoming milk at 4°C and a clarification target of 55°C.
For an initial calculation, use milk density of approximately 1.03 kg/L and specific heat capacity of 3.9 kJ/(kg·K).
The sensible heating duty is:
Q = (3,000 L/h × 1.03 kg/L × 3.9 kJ/(kg·K) × 51 K) ÷ 3,600 ≈ 171 kW.
| Calculation input | Value |
|---|---|
| Milk flow | 3,000 L/h |
| Approximate mass flow | 3,090 kg/h |
| Inlet temperature | 4°C |
| Clarifier inlet target | 55°C |
| Temperature increase | 51°C |
| Calculated sensible heating rate | Approximately 171 kW |
The 171 kW is heat transferred into the milk, not necessarily an additional boiler load. In a regenerative HTST arrangement, part or most of this preheating duty can be supplied by the outgoing hot product stream. External heating requirements depend on the complete temperature program, heat exchanger design, losses and operating conditions.
A purchase comparison should therefore consider the cost of the whole line, including available thermal regeneration, pumps, discharge utilities, cleaning and production scheduling. The relevant question is how much additional purchased heat and capital equipment the warm route requires at the plant's actual throughput.
What Should You Check Before Ordering a Dairy Milk Clarifier?
The easiest specification to compare is the machine's nominal capacity. The most expensive mistakes tend to appear in details that are missing from a short equipment quotation.
| Specification to confirm | Why it matters to plant operation |
|---|---|
| Product duty | Clarification, cream separation and bactofugation have different operating objectives and equipment configurations. |
| Rated capacity at inlet temperature | A machine's rated flow for warm milk may differ from its cold-milk performance. |
| Incoming sediment load | Affects sludge-space demand, discharge frequency and cleaning schedule. |
| Automatic discharge type | Defines product interruption, utility demand, solids removal and recovery arrangements. |
| Feed and outlet pressure | Determines pump choice and compatibility with upstream and downstream heat exchangers. |
| CIP coverage and drainability | Controls cleaning arrangements, residual product handling and scheduled maintenance. |
| Motor power, bowl speed and centrifugal acceleration | Confirm the actual motor rating, rpm and bowl geometry; separation force depends on both speed and radius. |
| Automatic sludge ejection interval and volume | Record full/partial discharge type, duration, sludge quantity per event, water demand and feed interruption. |
| Pressurized outlet and available backpressure | Confirm outlet pressure in bar at design flow and the pressure drop through the downstream plate section; size a booster pump if required. |
| Service access and lifting space | Disc stacks, seals and bowl parts require planned inspection and maintenance. |
| Commissioning acceptance points | Establishes what the plant will measure before accepting the equipment. |
Bowl speed, sludge discharge and outlet pressure: useful engineering references
The centrifugal force in a disc stack depends on both rotational speed and bowl radius. In a worked example from the Tetra Pak Dairy Processing Handbook, a bowl running at 5,400 rpm with a 0.20 m radial position generates approximately 6,500 g of centrifugal acceleration. It illustrates why comparing rpm alone does not establish the separating performance of different bowls.
For self-cleaning dairy separators, an automatic sludge-ejection interval of 30–60 minutes is a useful published operating reference. The discharge action itself may last only a fraction of a second. The interval and discharged volume are set around the actual sediment load, bowl volume, hydraulic operating-water system and product-loss target. The selected equipment must also specify whether product flow is maintained during a partial ejection or briefly interrupted for a full ejection.
The outlet side needs the same attention. Clarified milk may leave through a centripetal or paring-disc pump that develops pressure for downstream pipework. The available outlet pressure, permissible backpressure and separator feed-pump arrangement must be compared with the plate heat exchanger's pressure drop. Those values belong in the equipment's hydraulic interface schedule, alongside inlet pressure and flow. GEA's milk-clarifier guidance describes pressurized outlet pumping and adjustable sludge ejection.
NexAgri can supply milk clarifiers, cream separators and bacteria-removal centrifuges, with configurations for projects from approximately 500 L/h up to 20,000 L/h. Disc-stack equipment, automatic sludge discharge and CIP integration are available within the project scope. We confirm the selected unit's motor rating, rpm, discharge type, cold/warm capacity and outlet-pressure limits in the project specification.
For a plant that already has a pasteurizer, we review the existing inlet and outlet connections, electrical supply, available regeneration temperature, control signals and cleaning system before specifying the new separator. Customers considering a wider equipment upgrade can also review our dairy processing equipment. For a new line, these interfaces can be included in the initial PFD and P&ID.
What should commissioning verify?
Acceptance should use the customer's actual milk where practicable. A useful commissioning record includes:
- Milk temperature, feed flow, inlet and outlet pressure, and machine operating stability.
- Sludge-discharge operation, alarm response and any effect on upstream and downstream flow.
- CIP sequence execution and accessibility for routine cleaning and maintenance.
- Product loss or fat loss where relevant to the equipment duty.
- Clarification results tested using an agreed sampling method and acceptance criterion.
This makes it possible to compare the quoted model with the actual milk and production schedule. The test plan should define the required measurements before equipment acceptance.
Which Arrangement Makes More Sense for Your Dairy Plant?
Cold clarification is worth evaluating when milk is received in batches and must remain refrigerated until processing. It can simplify the reception sequence by avoiding a separate preheat-and-recool cycle. The separator must, however, be sized for its real cold-milk conditions rather than a warm-milk nominal flow rating.
Warm clarification is usually the stronger candidate for a continuous pasteurization line. When the HTST unit already has regenerative heating, the milk can reach approximately 50–55°C on its way through the process. The additional integration work focuses on separator hydraulics, temperature control, sludge discharge and CIP.
For either route, decide in this order: product duty → milk storage and production schedule → clarification temperature → confirmed machine capacity → line interfaces and operating costs.
We can help turn those inputs into an equipment list and a practical preheating/clarification arrangement. For a proposal, share your milk flow rate, incoming temperature, daily production hours, product type, sediment conditions and existing pasteurizer layout. Contact NexAgri to review a centrifugal clarifier and processing-line configuration.
Frequently Asked Questions
Is 55°C always the best temperature for milk clarification?
About 50–55°C is a useful warm-clarification reference because lower viscosity supports centrifugal separation. Plants with refrigerated reception and storage may use cold clarification instead. The operating point and capacity must match the selected machine.
Can a cream separator be used instead of a milk clarifier?
A cream separator may remove some sludge as part of fat separation, but its main job is to produce separate cream and skim-milk streams. If the goal is to clean whole milk while retaining its fat, specify a clarifier designed for that duty.
What processing step follows milk clarification?
For pasteurized drinking milk, clarified milk continues through the heating and holding sections of the HTST line, followed by cooling and hygienic handling. Centrifugal clarification removes selected suspended material mechanically; pasteurization provides the required heat treatment.
What determines sludge-discharge and CIP frequency?
Milk separators commonly use automatic sludge ejection at roughly 30–60-minute intervals, but the actual setting depends on sediment load, bowl size, partial/full discharge design and product losses. CIP frequency follows the plant's operating schedule and validated cleaning program.
What information is needed to size a clarifier?
Provide the milk flow in L/h, feed temperature, expected sediment load, operating hours, upstream and downstream equipment, available utilities, and required discharge/CIP functions. A confirmed machine datasheet and commissioning plan should follow from those inputs.
Conclusion
Cold and warm clarification solve the same basic problem in different production settings. Warm milk generally offers better centrifugal removal of fine particles, while cold clarification can fit plants that clean milk during reception and hold it refrigerated before processing.
The most useful purchasing decision is made at the process-line level: choose the correct separator duty, confirm real throughput at the selected temperature, and design its pumps, regeneration sections, sludge handling and CIP as one connected system.
