Dairy cow headlocks can become a costly bottleneck when a farm relies on manual restraint for routine herd work. Delayed pregnancy checks, vaccinations, hoof care, and treatment tasks can require several workers and increase handling risks. We help dairy operators address this issue with correctly specified automatic locking headlocks and practical bunk-layout planning.
Dairy cow headlocks are feed-bunk restraint systems that allow operators to secure multiple cows quickly for feeding, health checks, breeding work, and treatment. When buyers select the right spacing, material, locking mechanism, and installation angle, automatic headlocks can reduce labor dependence, support more consistent feeding access, and improve the safety and repeatability of routine herd-management tasks.
At NexAgri Solutions, we view headlocks as more than galvanized steel barriers. They are part of a complete livestock-management workflow. The right equipment must fit the cattle, the barn dimensions, the feeding process, and the operating team. Below, we explain the main engineering and procurement factors we discuss with dairy farms, cooperatives, and equipment distributors.
How Do Dairy Cow Headlocks Reduce Labor and Improve Handling Efficiency?
Dairy cow headlocks solve a common labor challenge: holding individual animals safely without repeatedly chasing, roping, or manually restraining them. When a headlock system is properly installed and operated, one trained worker can generally lock a group within seconds, rather than requiring multiple people to restrain cows one by one.
A manual cattle-restraint process can interrupt the entire daily schedule. Workers may need to move cows into a separate area, isolate one animal, and hold the animal during a health or breeding procedure. This process consumes labor and can increase stress for both cows and staff when handling is inconsistent.

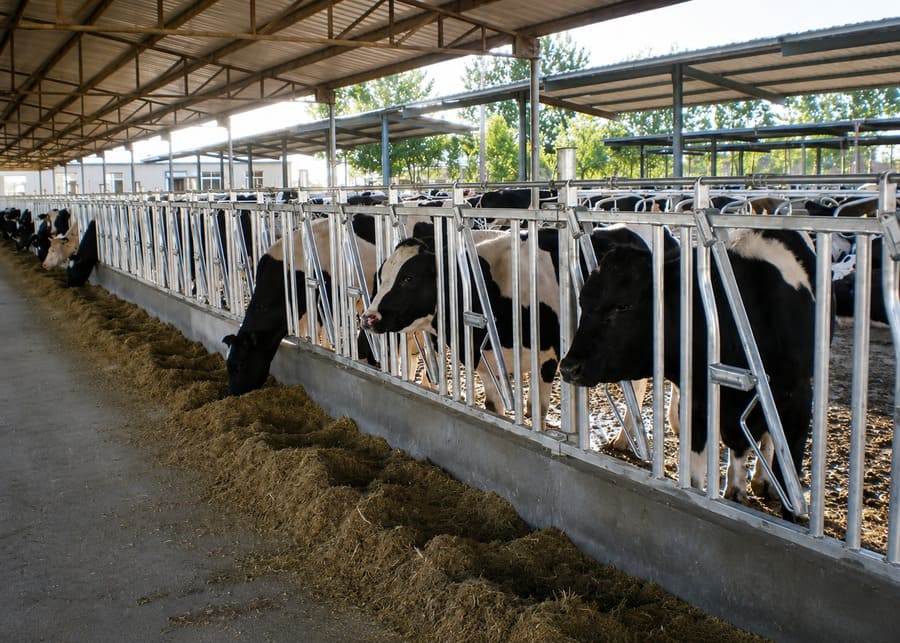

Automatic locking headlocks simplify this process. Once cows approach the feed bunk, the operator can activate the locking bar and secure multiple animals in a standardized position. For many routine tasks, the locking action can be completed by one person in approximately three seconds, depending on the system design, herd behavior, and operator training.
Why labor efficiency matters in dairy operations
Labor is often one of the largest cost categories in commercial dairy farming. In many operations, it is commonly considered the second-largest operating cost after feed. A headlock system does not eliminate the need for skilled workers, but it can reduce unnecessary movement, repeated animal catching, and the number of workers needed for basic handling tasks.
We often discuss these practical uses with customers:
- Vaccination and deworming
- Pregnancy checking
- Artificial insemination support
- Body-condition scoring
- Routine veterinary examination
- Hoof trimming preparation
- Health treatment and follow-up observation

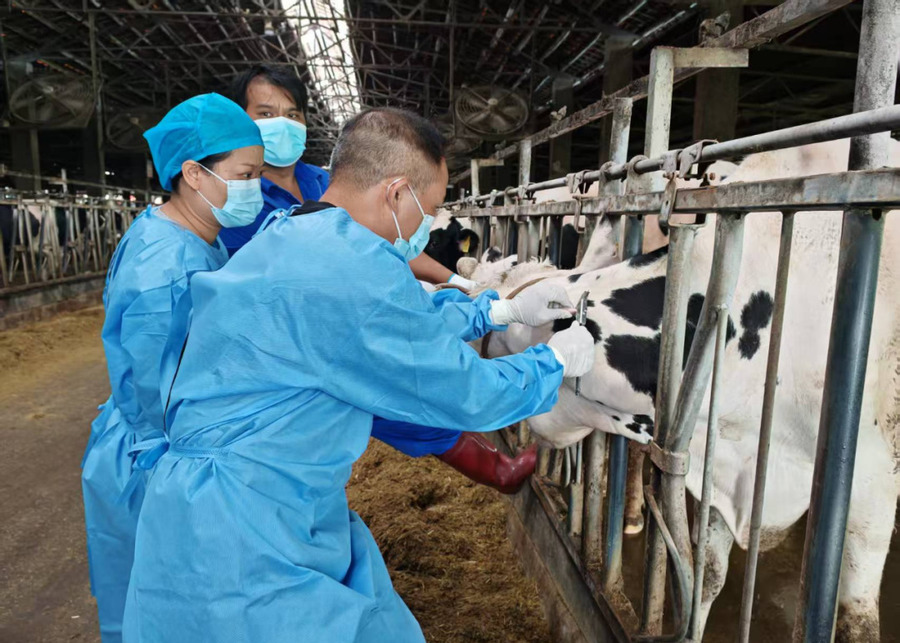

- Ear-tag checking and identification work
Standardized restraint supports standardized management
The value of dairy cow headlocks extends beyond the restraint event itself. A properly designed feed-bunk headlock line can help create a repeatable management process. Cows are approached in a familiar feeding environment rather than being moved through several gates into a separate handling facility.
We have seen during customer planning discussions that farms often lose time not because a treatment takes long, but because locating, separating, and holding the correct animal takes long. Headlocks can reduce these hidden delays.
A locking headlock should support good stockmanship, not replace it. Operators should release cows promptly after the task, monitor animal behavior, and avoid extended restraint periods unless a qualified veterinarian or herd-management professional recommends otherwise.
Correct equipment selection also matters for welfare. Properly sized openings, smooth galvanized surfaces, reliable release function, and trained handling can help reduce avoidable impacts and crowding. Buyers should evaluate headlock design alongside their own animal-welfare protocols and local regulatory requirements.

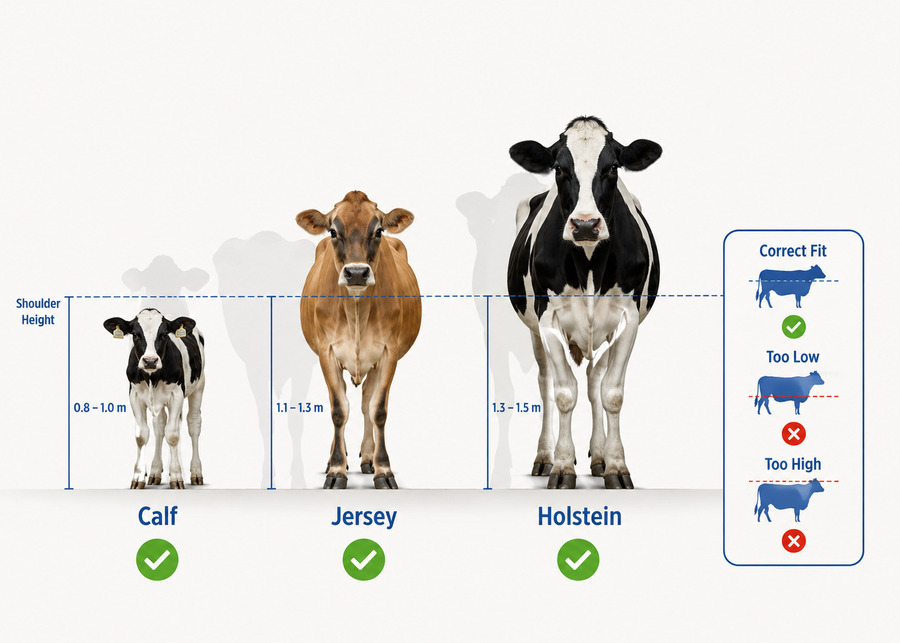

What Dairy Cow Headlock Size Fits Holsteins, Jerseys, and Calves?
Dairy cow headlocks must match the actual body size and age of the herd. Incorrect spacing can reduce feeding access, increase competition, and create unnecessary handling difficulty. We recommend that buyers begin with breed, age group, average body size, horn status, and expected herd development before selecting a headlock specification.
The most important sizing measurement is usually the center-to-center stall spacing. This is the distance between adjacent cow positions along the feed bunk. Adult Holstein cattle generally need more space than Jerseys, while calves require a much narrower headlock design.
Typical cattle headlock spacing guidelines
The following dimensions are common starting points for procurement discussions. They are not universal engineering rules. Buyers should confirm measurements based on actual herd dimensions, feeding strategy, and barn conditions.
| Cattle group | Typical recommended spacing | Key consideration |
|---|---|---|
| Adult Holstein cows | Approximately 75 cm | Suitable for larger mature dairy cows |
| Jersey cows | Approximately 70 cm | Jerseys may be 15–20% smaller than Holsteins |
| Calves | Approximately 50 cm | Requires a dedicated calf-size design |
| Heifers | Usually between calf and adult dimensions | Select according to age and average frame size |
| Mixed herd | Customized spacing may be required | Separate groups when practical |
Why one standard size does not fit every herd
A 75 cm spacing may work well for a mature Holstein group, but it can be inefficient for smaller Jerseys. On the other hand, using a 70 cm spacing for a large-framed Holstein herd can create crowding and reduce comfortable feeding access.
We encourage procurement teams to avoid choosing headlocks only by a catalog photograph or a low unit price. The buyer should collect basic herd data first:
- Primary breed or breeds
- Average mature cow size
- Number of lactating cows, dry cows, heifers, and calves
- Whether horns are present
- Expected expansion during the next three to five years
- Feeding frequency and TMR delivery method
- Current feed-bunk length
Common assembly modules
Many dairy farms use standardized module lengths to make transport, installation, and maintenance simpler. Common configurations include:
| Module length | Typical number of positions | Common application |
|---|---|---|
| 3 meters | 4 positions | Smaller sections or shorter barns |
| 6 meters | 8 positions | Standard adult Holstein configuration |
| 4 meters | 6 positions | Flexible layout where space is limited |
| 5 meters | 10 positions | Higher-density layouts for smaller cattle |
At NexAgri Solutions, we can support OEM/ODM and project-based customization. We can adjust the number of positions, frame length, spacing, and mounting details to fit a buyer’s barn layout. However, we always recommend that the final specification be reviewed against actual on-site measurements before production begins.
Headlock geometry also affects usability
The opening width is only one part of the design. Buyers should also inspect:
- Neck opening shape
- Locking-bar movement
- Swing-arm clearance
- Emergency release arrangement
- Sharp-edge control
- Weld quality
- Post diameter and wall thickness
- Compatibility with concrete feed curbs
A well-sized system helps cows enter and exit normally. A poorly specified system may create hesitation, uneven feeding access, or difficult release. We recommend that each farm consult a qualified livestock-facility professional when animal groups or barn conditions are unusual.
Which Materials and Locking Designs Should Buyers Evaluate?
Dairy cow headlocks operate in demanding environments that include moisture, manure gases, feed acids, wash-down activity, and daily mechanical movement. Buyers should prioritize corrosion resistance, structural consistency, weld quality, and serviceable locking components rather than evaluating a headlock only by initial purchase cost.
The preferred material for many commercial dairy projects is hot-dip galvanized steel. This process coats the steel with zinc to improve resistance against corrosion.1 In wet, manure-exposed barn environments, a durable coating can have a major effect on maintenance requirements and expected service life.
Why hot-dip galvanizing matters
Headlocks are frequently positioned close to feed, water, manure, and cleaning zones. Painted steel can be appropriate in some controlled environments, but damage to the coating may expose bare steel. In contrast, hot-dip galvanizing offers broader coating coverage around many steel surfaces, joints, and fabricated components.
We recommend that buyers ask suppliers specific questions:
- Is the product hot-dip galvanized after fabrication or made from pre-galvanized tube?
- What are the tube diameter and wall-thickness specifications?
- Are welds cleaned and protected before galvanizing?
- Is the locking bar designed for repeated daily use?
- Can damaged or worn lock components be replaced?
- Does the supplier provide drawings and installation instructions?
- Are there samples or reference installations available for review?
Comparing common headlock material options
| Material or finish | Advantages | Limitations | Best procurement use |
|---|---|---|---|
| Hot-dip galvanized steel | Strong corrosion resistance and robust appearance | Higher initial cost than light painted steel | Long-term commercial dairy projects |
| Pre-galvanized steel tube | Often lower cost and readily available | Cut edges and weld areas may need added protection | Budget-sensitive, lower-exposure applications |
| Painted steel | Can offer color options and lower upfront cost | Paint can chip in harsh dairy environments | Dry indoor or temporary applications |
| Stainless steel | High corrosion resistance | Usually expensive for full structural frames | Specialized high-hygiene areas |

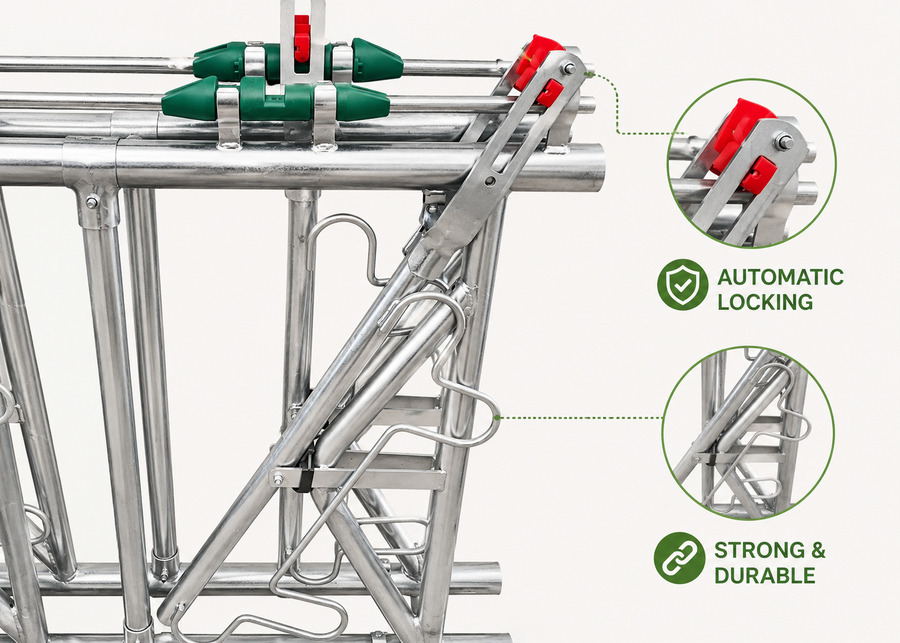

The locking mechanism deserves close inspection
An automatic headlock system should lock smoothly, release reliably, and avoid abrupt movement that could create animal or operator risk. Buyers should evaluate the complete mechanism, not only the visible frame.
Important checks include:
- Manual and group locking function
- Individual release capability
- Emergency release access
- Pivot and bushing condition
- Clearance between moving parts
- Noise during operation
- Ability to return to the normal open position
- Availability of replacement parts
We also recommend that distributors and project contractors request a detailed bill of materials. This document helps compare steel grades, galvanizing approach, post dimensions, and accessories across suppliers.
NexAgri Solutions manufactures livestock farm equipment for B2B projects, wholesale supply, and customized farm integration. We can provide drawings and configuration support for buyers assessing dairy cow headlocks as part of a larger feeding, housing, or milking-area project. Buyers should independently verify applicable certification documents, material specifications, and site suitability before purchase.

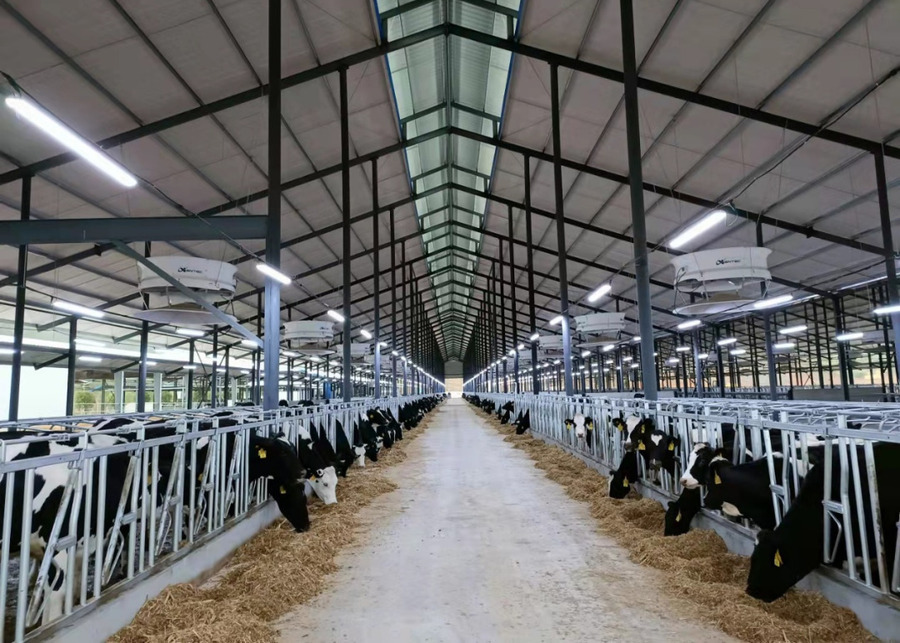

How Should Dairy Cow Headlocks Be Installed Along the Feed Bunk?
Dairy cow headlocks need correct placement to function safely and efficiently. Even a strong galvanized headlock can perform poorly if the feed curb, cattle standing area, access lane, or installation angle is wrong. We recommend that each installation begin with a measured layout plan rather than an on-site guess.
The installation must allow cows to reach the ration comfortably while maintaining clear worker access and safe movement around the feed bunk. A planning error of only a few centimeters can affect headlock alignment, feed reach, swing-arm movement, and the ability to clean or maintain the line.
Straight installation: the standard approach
Straight installation places the headlock system vertically, typically perpendicular to the ground and mounted along a concrete feed curb or low wall. This is the most common arrangement for many dairy barns because it is relatively simple to install and maintain.
Typical mounting methods include:
- Post-clamp installation: Brackets clamp the headlock structure to vertical support posts.
- Welded installation: Components are welded to prepared steel supports.
- Concrete-anchor installation: Base posts or brackets are fixed to concrete with suitable anchors.
Straight installation can provide stable geometry and easier adjustment. It is suitable for many standard barns, especially where the feed bunk and cow standing surface are already aligned.
Angled installation: a specialized option
Angled installation places the headlock toward the feed alley at an acute angle. In many projects, the forward angle is approximately 10° to 15°. The purpose is to shorten the cow’s feed reach and improve access where the concrete feed curb geometry requires it.
However, angled installation requires more careful execution. The installer must balance the angle, bracket position, and structural fixation. If the angle becomes too large, the swing arms may not return correctly, and the self-locking function may be affected.
| Installation type | Typical orientation | Benefits | Main consideration |
|---|---|---|---|
| Straight installation | Vertical to ground | Easier construction and maintenance | Requires correct bunk dimensions |
| Angled installation | Forward angle of about 10°–15° | Can improve feed reach | Needs precise adjustment and secure fixing |
Essential clearance and safety planning
We generally recommend that buyers assess at least the following dimensions during barn planning:
- Access walkway width: Reserve at least 1.2 meters where operational traffic and worker access require it.
- Distance from TMR feeding or delivery area: Maintain approximately 3 meters of safe separation where practical.
- Feed curb width and height: Confirm that cows can reach the feed without excessive stretching.
- Post spacing: Match the headlock module and structural support plan.
- Floor condition: Ensure the standing surface provides adequate traction and drainage.
- Gate and cross-passage locations: Avoid creating dead ends or animal-flow conflicts.
A headlock line should also work with the farm’s TMR feeding process. If a feed pusher, mixer wagon, or tractor must move near the bunk, the layout should protect both cattle and operators. We encourage buyers to provide us with barn drawings, feed-lane width, curb dimensions, herd size, and photographs before finalizing a quotation.

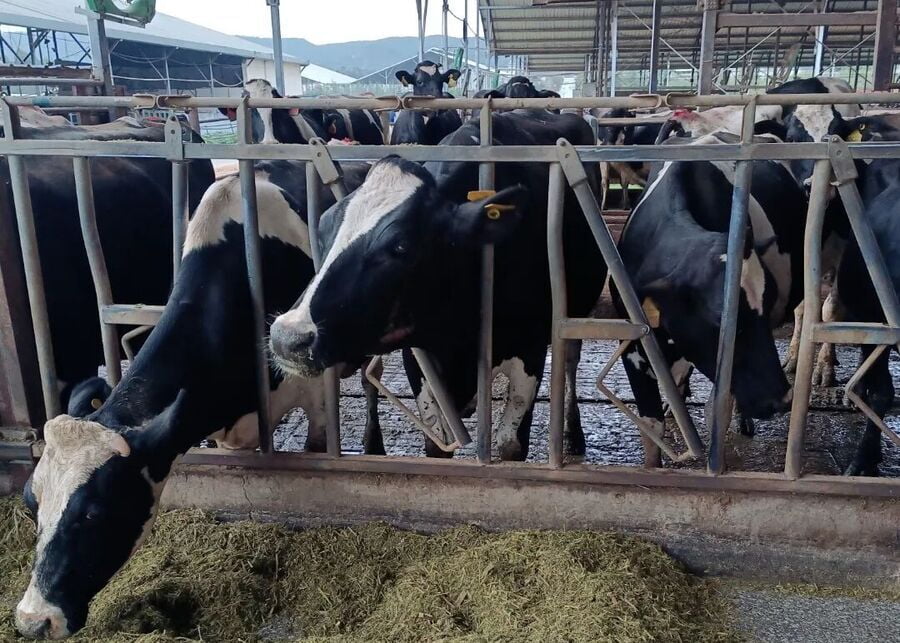

How Can Headlocks Support Better Bunk Management and Animal Care?
Dairy cow headlocks can support better bunk management when they are used as part of a structured feeding and health program. The equipment itself does not guarantee uniform intake or better health outcomes. However, it can give farm teams a more controlled setting for observation, feeding access, and routine care.
A common concern is whether automatic locking headlocks make cattle uncomfortable. In our experience as an equipment supplier, this concern should be addressed through design, correct sizing, operating time, and handling quality. A correctly specified headlock should align with normal feeding behavior and should not create avoidable discomfort when cows are released promptly and handled properly.
Supporting more consistent feeding access
A well-planned headlock line can help create clearer feeding positions. This may reduce physical competition at the bunk, especially when farms provide sufficient feeding space and manage cow grouping appropriately.
Potential operational benefits include:
- More orderly access to TMR rations
- Easier observation of appetite and feeding behavior
- Faster identification of cows that do not approach feed
- More consistent positioning during health checks
- Reduced need for repeated manual restraint
Still, headlocks cannot correct inadequate bunk space, poor ration formulation, overcrowding, or inconsistent feed delivery. Those issues require separate management action. We advise farms to work with their nutritionist, veterinarian, and facility consultant for application-specific decisions.
Prevention is often less expensive than reaction
When cows can be restrained quickly at the bunk, farm staff may be more likely to complete preventive work on schedule. This can support more consistent vaccination, deworming, pregnancy examination, and early treatment procedures.
The equipment can also reduce the risk of injury associated with improvised handling. Manual catching may involve pushing, pulling, crowding, or moving cows through narrow passages. Standardized restraint can reduce some of these variables, provided that the system is used responsibly.
A practical procurement checklist
Before purchasing, we recommend that B2B buyers review this checklist:
- Confirm herd breed, age groups, and target headlock spacing.
- Measure total bunk length and available cow positions.
- Select hot-dip galvanized construction for corrosive dairy environments.
- Review locking, individual release, and emergency-release functions.
- Choose straight or angled installation based on feed-curb geometry.
- Confirm at least 1.2 meters of practical access clearance.
- Verify feed-lane and TMR delivery safety distances.
- Request drawings, steel specifications, and installation guidance.
- Plan spare parts and routine inspection procedures.
- Validate the final layout with qualified livestock-facility professionals.
At NexAgri Solutions, we can help procurement teams convert these requirements into a customized headlock configuration. Our B2B-focused manufacturing model supports bulk orders, OEM/ODM requirements, and integrated livestock-equipment projects for farms, cooperatives, contractors, and distributors.
Frequently Asked Questions
What is the standard spacing for dairy cow headlocks?
We generally use approximately 75 cm spacing for adult Holstein cows, 70 cm for Jerseys, and 50 cm for calves as starting references. The final spacing should reflect actual animal size, grouping, horn status, and feeding management. Buyers should avoid applying one size to every herd category.
Are hot-dip galvanized dairy cow headlocks worth the higher cost?
We believe hot-dip galvanized dairy cow headlocks are often a practical long-term choice for wet, manure-exposed dairy environments. The initial cost may be higher, but corrosion resistance can reduce replacement and maintenance pressure. Buyers should verify the galvanizing process and steel specifications with the supplier.
Can one person operate automatic dairy cow headlocks?
A trained operator can often lock a group of cows quickly with an automatic system. Actual performance depends on cow familiarity, equipment condition, layout, and operating procedures. We recommend that farms train staff on locking, individual release, emergency release, and appropriate restraint duration.
Should dairy cow headlocks be installed straight or at an angle?
Straight installation is the standard choice for many barns because it is easier to install and maintain. Angled installation of about 10° to 15° can improve feed reach in certain bunk designs. We recommend a site-specific review because excessive angle can affect arm return and locking performance.
Can NexAgri Solutions customize dairy cow headlocks?
Yes. We provide B2B customization for headlock spacing, module length, material configuration, mounting style, and project quantity. We recommend that customers share barn dimensions, cattle-group information, feed-curb details, and layout drawings so we can propose a more suitable configuration.
Conclusion
Dairy cow headlocks are an important investment for farms seeking more efficient cattle handling, safer routine procedures, and better feed-bunk organization. The strongest results come from correct sizing, durable hot-dip galvanized construction, reliable locking mechanisms, and careful installation planning. At NexAgri Solutions, we support global dairy projects with customized headlocks and complete livestock-equipment integration. Contact us at info@dignx.com or WhatsApp +86 18915673509 to discuss your herd size, barn layout, and bulk procurement requirements.
