One of the most common mistakes in goat feeding equipment is treating a goat headlock as nothing more than a smaller cow headlock.
That approach looks reasonable on a drawing, but it often fails in actual use.
Goats are smaller, more agile, and more sensitive to opening geometry than cattle. Their head size, neck width, horn status, age, and feeding posture can vary significantly between groups.
A properly designed goat headlock therefore needs to consider more than overall dimensions.
The key factors are:
- Animal fit
- Neck opening
- Head spacing
- Locking response
- Emergency release
- Feed curb and installation height
- Structural strength
The goal is not to make the opening as tight as possible. It is to control the animal when required without interfering with normal feeding.

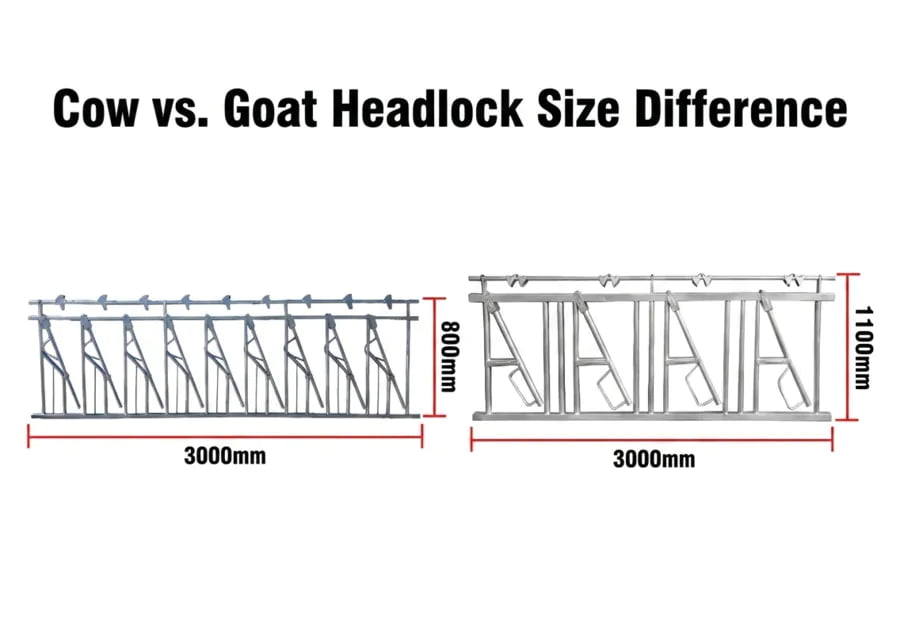

The Biggest Mistake: Simply Scaling Down a Cow Headlock
Cow and goat headlocks may look similar, but the operating geometry is different.
A cow headlock is designed around a much larger animal with:
- A wider neck
- A larger head
- Greater body weight
- Slower movement through the opening
- Wider feeding positions
Simply reducing all dimensions by a percentage does not automatically produce a safe goat headlock.
For goats, two design differences become especially important:
1. Denser Head Spacing
Goats require more feeding positions over the same length of feed barrier.
The spacing between locking positions therefore needs to match the actual goat group instead of following cattle dimensions.
2. Faster, Lighter Locking Action
Goats move their heads more quickly and are generally more agile around the feed barrier.
A heavy locking mechanism designed for cattle may respond too slowly or feel unnecessarily restrictive.
For goat applications, the moving parts should operate smoothly and react quickly without creating excessive resistance.

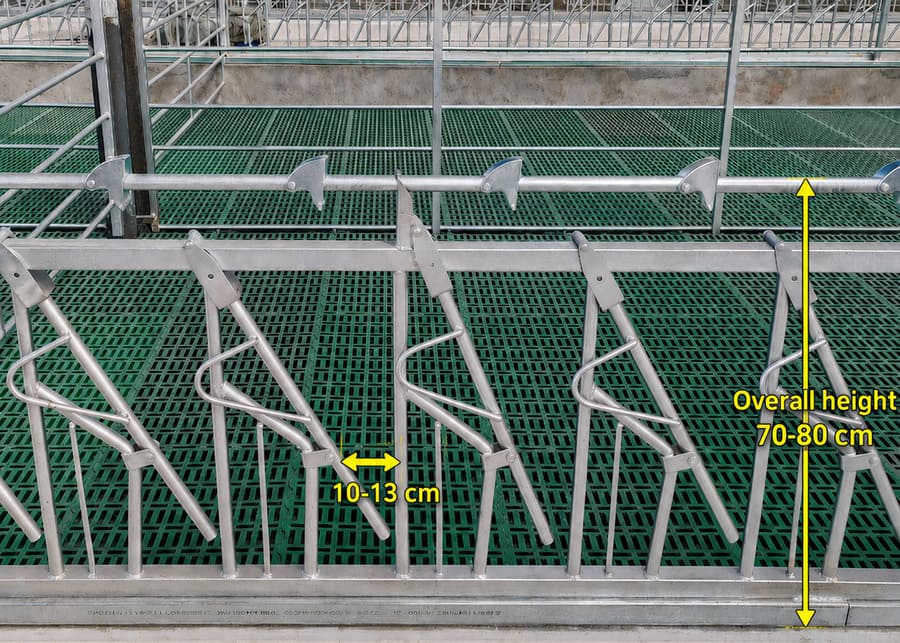

Figure note: The 10–13 cm goat opening, 18–22 cm cow opening and 8–10 positions per 3 m shown are illustrative comparison labels, not verified specifications for a supplied headlock. Final clearances and position spacing must be checked against breed, age, head and neck dimensions, horn status, feeding access and the selected locking and emergency-release mechanism. Confirm the layout with the supplier before fabrication or installation.
There Is No Universal Goat Headlock Opening
A common assumption in goat-headlock specifications is that a fixed neck opening such as 10–13 cm can be used for all dairy goats.
That is too simple.
The correct opening should be selected according to:
Neck Width + Head Size + Breed + Age + Horn Status
A range around 10–13 cm may be useful as an initial reference for some medium-sized adult dairy goats, but it should not be treated as a universal specification.
A young replacement goat and a mature dairy doe may need different geometry.
The same applies between breeds.
If the Opening Is Too Wide
The goat may:
- Pull its head back too easily
- Move sideways excessively
- Defeat the restraint function
- Increase interference between neighboring animals
If the Opening Is Too Narrow
The goat may:
- Hesitate before entering
- Experience rubbing around the neck
- Have difficulty changing feeding position
- Reduce normal feed intake
- Become uncomfortable while restrained
The correct opening is therefore not the smallest opening that prevents escape.
It should provide enough clearance for normal feeding while still giving the farm effective control when the locking function is required.
Do Not Specify Headlock Height Without Considering the Feed Curb
The same problem appears when headlock height is described using one fixed number.
A specification such as:
70–80 cm total height
may work in some installations, but it does not tell us whether the goat will actually feed comfortably.
The more important relationship is between:
- Goat standing surface
- Feed curb height
- Trough or feed-table level
- Lower rail position
- Neck opening position
- Goat shoulder and neck height
In other words:
Installation height should be measured from the actual standing and feeding geometry, not only from the overall height of the headlock panel.
A headlock installed at the wrong elevation can still perform badly even if the panel itself was manufactured to the "correct" nominal height.
This is especially important when designing for:
- Mature dairy goats
- Replacement animals
- Mixed-age groups
- Different breeds
The animal group should be confirmed before finalizing the installation dimensions.
Horned Goats Need a Different Safety Assessment
Horn status should be confirmed before selecting a self-locking headlock.
A horned goat may be able to insert its head through an opening but have difficulty withdrawing it.
Horn shape can also change the effective clearance required around the head.
This creates additional risk if the animal:
- Turns suddenly
- Becomes frightened
- Tries to reverse quickly
- Gets pushed by another goat
For this reason, we generally do not recommend applying a conventional self-locking goat headlock to horned animals unless the headlock has been specifically designed and tested for that group.
For horned goats, alternative feed-barrier arrangements may be safer than simply increasing the opening.
Making the opening larger can solve one problem while creating another: reduced restraint and easier escape.
Horn configuration therefore needs to be considered at the beginning of the design.
A Good Headlock Should Control the Goat Without Interrupting Feeding
It is easy to focus too much on whether the headlock can "hold" the goat.
But a headlock spends most of its working life as part of the feeding system.
The goat needs to:
Approach → Insert Head → Reach Feed → Eat Normally → Withdraw Safely
If the opening is too restrictive, the equipment may technically prevent escape but still fail as a feeding barrier.
Signs of poor fit may include:
- Goats hesitating before entering
- Repeated head withdrawal
- Neck rubbing
- Animals crowding certain positions
- Reduced use of some feeding spaces
- Uneven access along the feed bunk
The best geometry balances two requirements:
Normal Feeding + Controlled Restraint
Neither should be sacrificed completely for the other.
Locking and Emergency Release Should Be Checked Before Anything Else
When we inspect a goat headlock system, safety comes before convenience.
The locking mechanism should:
- Engage consistently
- Move freely
- Avoid excessive force
- Release reliably
- Allow quick manual intervention
Emergency release is especially important.
If a goat becomes incorrectly positioned or trapped, staff need a way to release the animal quickly without dismantling the feed barrier.
This is why a goat headlock should not simply use a smaller version of a heavy cattle locking mechanism.
The moving components need to suit the lighter and faster movement of goats.
A good locking system should feel controlled—not heavy.

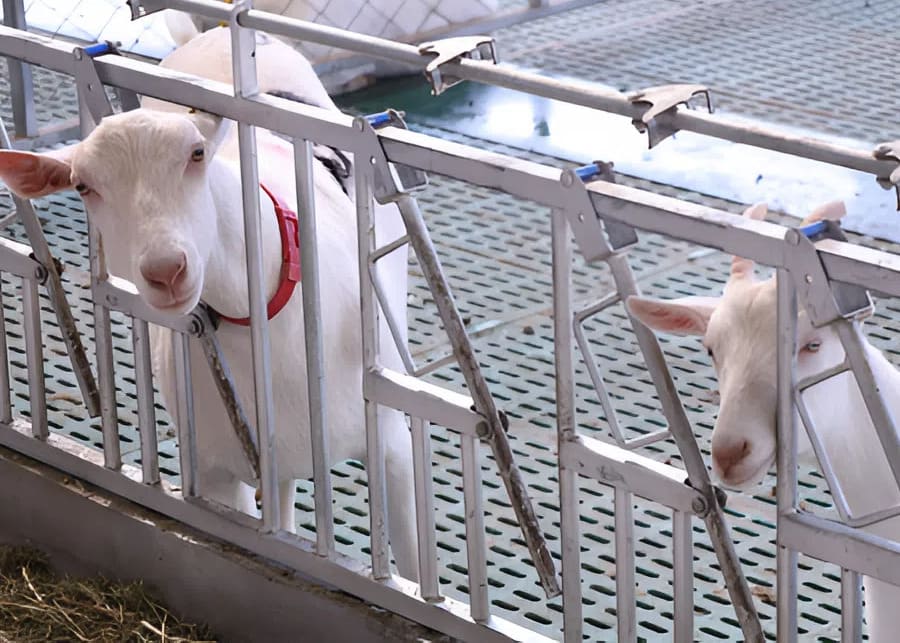

Head Spacing Matters as Much as Neck Opening
Neck opening and feeding-space width are two different design questions.
Even if each individual opening fits correctly, the entire feed barrier can still perform poorly if head positions are too widely spaced.
Goats are smaller than cows, so more feeding positions can normally be arranged along the same length of feed bunk.
Correct spacing helps:
- Improve feed access
- Reduce competition
- Use bunk length efficiently
- Prevent goats from crowding one section
- Maintain more even group feeding
The exact spacing should still be selected according to breed, body size, age, and management system.
This is another reason why simply shrinking a cow headlock does not work well.
Material Still Matters, but It Does Not Need to Be Complicated

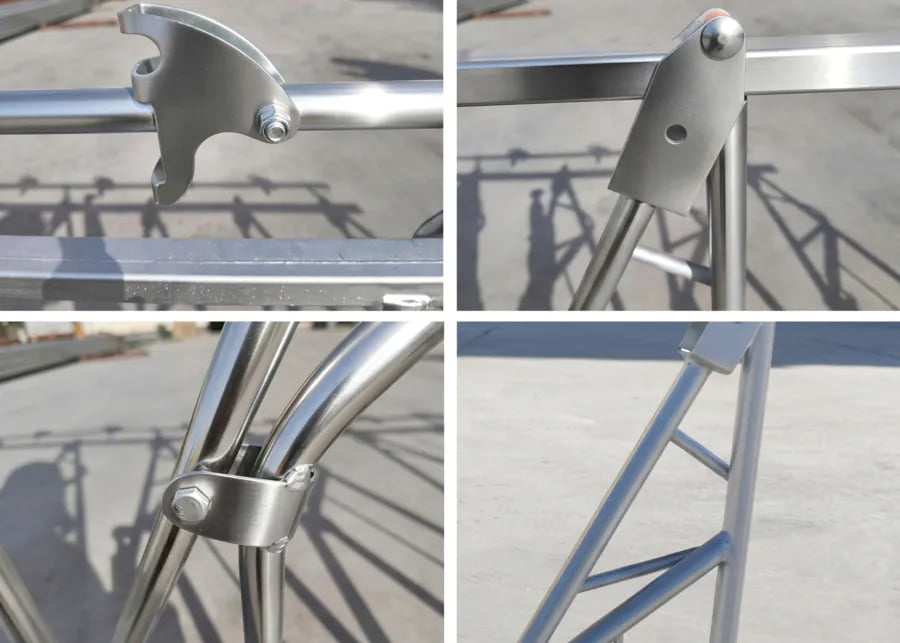

For most commercial goat barns, hot-dip galvanized steel remains a practical choice.
Barn equipment is continuously exposed to:
- Humidity
- Manure
- Wash water
- Feed residues
- Outdoor or semi-outdoor conditions
Hot-dip galvanizing provides a useful balance between corrosion resistance, structural strength, and cost.
| Material | Main Advantage | Main Limitation |
|---|---|---|
| Painted Steel | Low initial cost | Coating damage can expose steel to corrosion |
| Hot-Dip Galvanized Steel | Good durability and corrosion resistance | Galvanizing and weld quality still need control |
| Stainless Steel | Excellent corrosion resistance | Usually unnecessary cost for standard headlock frames |
For headlocks, stainless steel is usually not required in the same way it is for milk-contact equipment.
But galvanized steel should still be evaluated carefully.
A thick zinc coating cannot compensate for:
- Poor welding
- Weak joints
- Incorrect tube dimensions
- Bad locking geometry
- Rough edges
Material quality and fabrication quality need to work together.
Five Checks Before Approving a Goat Headlock
When reviewing a goat headlock project, we would check these five areas first.
| Priority | What to Check | Why It Matters |
|---|---|---|
| 1. Animal Fit | Breed, age, body size and horn status | Determines the basic geometry |
| 2. Locking & Emergency Release | Smooth engagement and fast release | Directly affects animal safety |
| 3. Neck Opening | Enough clearance without losing control | Affects feeding comfort and restraint |
| 4. Feed Curb / Installation Height | Correct position relative to the standing floor | Determines natural feeding posture |
| 5. Structural Strength | Frame, welds, tubes and anchors | Prevents long-term deformation or failure |
This order is deliberate.
A structurally strong headlock is still a poor design if animals do not fit correctly or cannot be released safely.
What Information Should Be Confirmed Before Ordering?
Before manufacturing or purchasing goat headlocks, we recommend confirming:
- Goat breed
- Average mature body size
- Age group
- Horned or dehorned animals
- Number of goats
- Available feed-bunk length
- Feed curb height
- Standing-floor level
- Required restraint function
- Barn layout
Photos and basic measurements of the actual feeding area are often more useful than selecting a headlock only from a catalog.
For new projects, the headlock geometry should ideally be coordinated with the feed bunk and barn layout before the concrete work and barriers are finalized.
Conclusion
The correct dairy goat headlock is not simply a smaller cow headlock.
It should be designed around the actual animals and feeding system.
The most important sequence is:
Animal Fit → Locking & Safety → Neck Opening → Feed Curb & Installation Height → Structural Strength
Reference dimensions can help during early planning, but they should not replace actual animal and installation measurements.
For horned goats, the restraint strategy deserves additional attention, and a conventional self-locking headlock may not be the best solution.
For commercial goat farms, the best headlock is one that animals can use naturally every day while still giving staff reliable control when restraint is actually needed.
