Milk is commonly warmed before high-pressure homogenization because milk fat needs to be sufficiently liquid to disperse effectively into smaller droplets. Preheating also reduces viscosity and prepares the product for the next stage of the processing line.
For many conventional fluid-milk lines, milk enters the homogenizer at around 55–65°C (131–149°F). The selected inlet temperature and pressure depend on the milk composition and whether the product is pasteurized milk, UHT milk or yogurt base.
For an equipment buyer, the important questions are straightforward: What temperature reaches the homogenizer inlet? What pressure does the product need? And where should the homogenizer sit in the heating process?
What Does Preheating Actually Do Before Homogenization?
Milk is an oil-in-water emulsion. Its fat is naturally distributed in droplets surrounded by a protective membrane. Without homogenization, those droplets tend to rise and form a cream layer during storage.
A high-pressure homogenizer forces milk through a narrow valve at high velocity. The resulting forces break large fat globules into smaller ones. Milk proteins then help stabilize the newly created fat-droplet surfaces, as described in the University of Guelph's guide to milk homogenization.
Temperature matters for three practical reasons:
- Milk fat becomes liquid. Below approximately 40°C, part of the milk fat may remain crystallized. Warmer milk lets the homogenizing valve disperse that fat more effectively.
- Viscosity decreases. Warm milk generally flows more readily, helping the line maintain stable processing conditions and predictable pressure response.
- The process can use heat regeneration. In a continuous plate pasteurizer, outgoing warm product transfers heat to incoming cold milk. The preheated milk can then pass through the homogenizer before returning to the final heating section.
Homogenization improves resistance to cream separation. The finished result still depends on pressure, fat concentration, milk proteins, product storage conditions and the design of the homogenizing valve.
How Does Homogenization Affect Lipase-Related Rancidity?
Homogenization disrupts the original fat-globule membrane and creates much more fat surface. Milk proteins quickly adsorb onto those surfaces, but in raw milk, active lipoprotein lipase may also gain greater access to milk fat. The resulting release of free fatty acids can produce a rancid flavor if the milk is held under conditions that allow lipolysis.
In a typical continuous HTST line, milk is therefore preheated, homogenized and then promptly pasteurized. Conventional pasteurization greatly reduces the activity of milk's native lipoprotein lipase. The time between homogenization and final heating remains part of the process design, especially when raw milk is being handled.
A separate concern is lipase produced by psychrotrophic bacteria during raw-milk storage. Some of these microbial enzymes are heat-resistant and may remain active after conventional pasteurization or even more intensive heat treatment. Good raw-milk quality, rapid chilling and hygienic storage are important long before the milk reaches the homogenizer. The Tetra Pak Dairy Processing Handbook discusses native milk lipase, bacterial lipases and their effects on milk quality.
What Temperature Should Milk Reach Before Homogenization?
Different products use different inlet temperatures and homogenization pressures. The following ranges are useful for early equipment selection.
| Product or process | Homogenizer temperature: practical starting range | Common pressure discussion | Typical position |
|---|---|---|---|
| Refrigerated pasteurized drinking milk | 55–65°C | Approximately 10–20 MPa, adjusted for creaming stability | After regenerative preheating, before final pasteurization |
| Yogurt milk base | 55–70°C | Often 15–25 MPa, depending on composition and texture target | Usually after standardization/blending and before the yogurt base's final heat treatment |
| Indirect UHT milk | Frequently 65–80°C | Often 15–25 MPa | Commonly upstream of the final UHT heating section |
| Direct UHT milk | Product cooled to a suitable homogenizing temperature after UHT heating | Selected for the product and aseptic homogenizer | Downstream, in the aseptic section |
When specifying the machine, pair each target pressure with its required production flow and product temperature.
What happens when the temperature is too low?
When the milk contains partly solid fat, homogenization becomes less effective at producing the intended droplet distribution. The finished product may show more creaming than expected at the selected pressure. If a batch performs poorly, check the actual temperature at the homogenizer inlet, rather than relying on the plate heat exchanger's temperature setpoint alone.
If the milk also develops rancid notes, investigate raw-milk handling, lipase activity and the time between homogenization and final heat treatment. Poor cream stability and hydrolytic rancidity call for different checks.
Can the milk be homogenized above 75°C?
Yes, certain dairy processes use higher homogenization temperatures. The resulting product quality depends on its formulation, total heating history and treatment time. Milk proteins undergo thermal changes at elevated temperatures, and some products deliberately use those changes—for example, yogurt mixes receive more intensive heat treatment to develop the desired gel structure.
For procurement purposes, specify the permitted inlet temperature range and the target operating temperature separately. The machine, valve components and sealing/cooling arrangements should match the intended process.

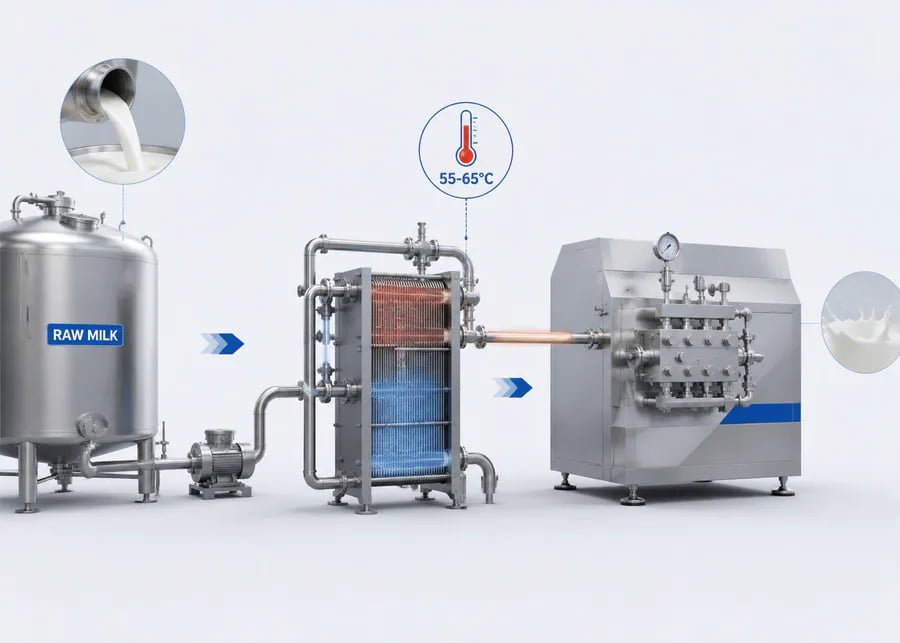

How Does Preheating Fit Into an HTST Pasteurization Line?
A common configuration routes milk out of the first regenerative heating section into a high-pressure homogenizer, then returns it to the pasteurizer for final heating and holding.
Simplified fluid-milk process:
Raw milk storage
↓
Balance tank and feed system
↓
Plate heat exchanger — regenerative preheating
↓
Milk at approximately 55–65°C
↓
High-pressure homogenizer
↓
Final heating section
↓
Validated holding section and flow-diversion system
↓
Regenerative cooling and final chilling
↓
Pasteurized milk tank / hygienic fillingThe plate heat exchanger recovers heat from outgoing milk to warm the incoming product. At the homogenizer connection, the engineering team needs to confirm:
- Inlet temperature and pressure: a temperature sensor close to the homogenizer inlet, stable feed pressure and a supply arrangement that prevents air entering the pump.
- High-pressure protection: pressure instruments, the manufacturer's required relief device and controls that prevent operation against a blocked discharge.
- Flow and holding time: the interaction between the homogenizer's positive-displacement pump, the HTST flow-control device and the approved holding section.
- Hygienic piping and cleaning: sanitary connection sizes, drain points, and CIP supply/return paths through the homogenizer and the heat exchanger.
This sequence is a simplified PFD (process flow diagram). The detailed P&ID defines the actual valve and instrument locations, interlocks, utility connections and cleaning routes. The flow-diversion system, minimum holding time and pressure differentials are designed according to the destination market's pasteurization requirements. See the University of Guelph's pasteurization guide for the underlying HTST principles.
Why must the homogenizer and pasteurizer capacities match?
A 2,000 L/h pasteurizer running at its intended production rate needs a compatible homogenization arrangement. The engineering team checks:
- The homogenizer's actual throughput at the required pressure and product temperature.
- The feed conditions, inlet pressure and ability to maintain stable flow.
- The high-pressure pump's interaction with other positive-displacement pumps, flow controls and relief or bypass arrangements.
- The pasteurizer's approved holding time and flow-diversion logic.
- CIP circulation and draining through the connected equipment.
A homogenizer can serve as part of an HTST flow-control arrangement, so its position, speed control and bypass or pressure-relief scheme must be coordinated with the pasteurizer design.
First-Stage and Second-Stage Pressure: What Should Buyers Specify?
A two-stage homogenizer has two homogenizing devices connected in series. The first stage performs most of the fat-globule disruption. The second stage creates controlled backpressure and helps break up clusters formed after the first stage.
For example, a technical discussion may specify 18 MPa total upstream pressure and 3 MPa second-stage backpressure. Under that convention, the approximate pressure drop across the first stage is 15 MPa. Some supplier documents use different pressure-label conventions, so the quotation should identify precisely what each displayed value means.
| Item | What to confirm |
|---|---|
| Total operating pressure | Required value in MPa or bar, at the stated production flow |
| First-stage setting | Main homogenizing pressure drop or defined gauge reading |
| Second-stage setting | Backpressure and adjustment range |
| Operating temperature | Temperature at the actual homogenizer inlet |
| Product | Fat content, protein level, viscosity and any added ingredients |
| Acceptance criterion | Fat-globule distribution, creaming index or another agreed product test |
Pressure increases energy demand. For perspective, the ideal hydraulic power for a 2,000 L/h flow at a 20 MPa pressure rise is approximately:
2,000 × 20 ÷ 3,600 = 11.1 kW
The motor needs more power than this theoretical hydraulic figure because of mechanical and pump losses. Actual sizing also considers the pump configuration and operating duty. This is why two homogenizers with the same nominal flow can have different motor ratings.
Does UHT Milk Use the Same Homogenization Sequence?
Not always. UHT lines use different equipment arrangements depending on the heating method and the product.
Indirect UHT: often homogenized before final heating
Indirect UHT systems transfer heat through a plate or tubular heat exchanger. A common configuration preheats and homogenizes the product upstream of the final UHT heating section. This allows use of a conventional hygienic homogenizer in the pre-treatment section.
Higher-fat or higher-protein products may use a different arrangement when their heat treatment produces aggregates that need to be dispersed afterward.
Direct UHT: aseptic homogenization after heat treatment
In direct UHT systems, milk is heated rapidly by steam injection or infusion. The product can then be flash-cooled and passed through an aseptic homogenizer downstream of the UHT treatment. The downstream homogenizer requires an aseptic mechanical design, suitable seals, sterile barriers and an appropriate cleaning and sterilization procedure.
That is a different machine and installation requirement from placing a conventional homogenizer before a pasteurization section.
A typical UHT process treats milk at approximately 135–150°C for a few seconds, depending on the product and validated process.
What About Milk Intended for Yogurt?
Yogurt base often requires a stronger heat treatment than ordinary pasteurized drinking milk. The purpose includes improving the interaction of whey proteins with the casein network, which influences gel strength, viscosity and whey separation.
A common process sequence is:
Ingredient blending and standardization → preheating → homogenization → yogurt-base heat treatment → cooling to inoculation temperature → fermentation.
The homogenization stage may operate around 55–70°C and in a pressure range such as 15–25 MPa, while the yogurt-base heat treatment is specified separately. Product formulation, solids content and the target yogurt texture determine the final settings.
For example, heat treatment around 90–95°C for several minutes is used in established yogurt-processing designs. This is a different thermal objective from the temperature needed to bring milk fat into a suitable condition for homogenization.
The engineering team should check the formulation and process sequence together, particularly if the line also includes a deaerator, fermentation tanks, fruit addition equipment or a separate yogurt filling system.
How to Investigate Poor Homogenization Performance
If a dairy reports cream separation, unstable pressure or variable texture, the first useful step is to compare the machine's actual readings with the approved process data.
| Observed problem | First checks | Possible equipment response |
|---|---|---|
| Cream layer develops in bottled milk | Inlet temperature, total and second-stage pressure, fat content, homogenizing valve wear | Review settings, inspect valve assembly, check product test results |
| Homogenizer pressure fluctuates | Inlet supply, entrained air, filters, check valves, piston seals and pressure instruments | Inspect the feed system and compatible replacement parts |
| Flow falls below the line target | Actual speed, pump condition, suction pressure, piping resistance and connected process control | Review flow matching and selected machine capacity |
| Temperature fluctuates at the inlet | Regeneration performance, flow variation, fouling, temperature sensor position and control valve response | Review heat exchanger and temperature-control arrangement |
| Leakage or unusual mechanical noise | Plunger packing, valve seats, drive and cooling/seal circuits | Planned inspection and replacement of worn components |
| Yogurt base becomes inconsistent | Composition, homogenization settings, heat-treatment history and subsequent fermentation conditions | Evaluate the complete processing sequence |
For equipment upgrades or replacement projects, NexAgri can provide compatible spare parts, equipment specifications, technical drawings and remote installation guidance. On-site engineering and commissioning support can be arranged as part of the agreed project scope.
For an existing machine, a useful technical inquiry includes the manufacturer and model, flow, pressures, temperature records, fault photos, available P&ID and recent maintenance history. These details help identify suitable replacement parts, compatible equipment and possible process improvements.
What Can NexAgri Supply for Milk Preheating and Homogenization?
NexAgri Solutions supplies high-pressure homogenizers, continuous plate pasteurization equipment and integrated dairy production-line configurations. Its available homogenizer range includes capacities across 500–10,000 L/h, configurations rated up to 25 MPa, and 36–72 kW motor options across the product range. Single- or two-stage arrangements are selected for the processing requirement.
The technical quotation matches flow, pressure and motor power at the same operating point for the selected model. For a complete line, NexAgri can configure an intermediate homogenizer connection between the preheating and final heating sections of a plate pasteurizer.
Depending on the project stage, technical documentation can include:
- Quotation and concept design: equipment specifications, preliminary PFD, equipment list, pressure and temperature ranges, dimensional drawings and utility/interface schedules.
- Detailed coordination: project P&ID, electrical and control interfaces, sanitary piping connections, CIP paths, cooling-water requirements and equipment layout.
- Manufacturing and handover: agreed inspection records, manuals, spare-parts documentation and applicable materials or test certificates.
The NexAgri processing equipment range covers homogenizers and related plant equipment. The plate pasteurizer range and dairy production line pages provide starting points for integrated equipment requests.
What should be included in the factory acceptance test?
For a homogenizer, the factory acceptance test (FAT) can include mechanical and electrical inspections, startup checks, water-run pressure and flow testing, leakage inspection, pressure-gauge verification, safety-function testing and operating records.
For product-performance testing, the buyer and supplier can agree on a trial using the actual milk or representative product. Record sample identification, flow, inlet temperature, first- and second-stage pressures, and operating conditions. Product results can be evaluated by an agreed method such as fat-globule size distribution, microscopy or a creaming-stability test.
A water run confirms mechanical and hydraulic operation under the test conditions. A milk trial provides the information needed to assess the finished product's homogenization performance.
Frequently Asked Questions
Why is milk usually heated to 60–65°C before homogenization?
At this temperature, milk fat is liquid and its viscosity is lower, giving the homogenizer suitable conditions for fat-globule dispersion. Many HTST lines reach this range through regenerative preheating. Some products use higher homogenizing temperatures.
Does preheating pasteurize the milk?
Preheating to the homogenizer inlet temperature serves a different purpose from a validated pasteurization process. Product safety depends on the specified heat-treatment temperature, holding time, equipment controls and hygienic handling.
What pressure is used for milk homogenization?
Commercial milk homogenization commonly operates in the broad range of 10–25 MPa. A two-stage machine also needs an agreed second-stage backpressure. The correct pressure follows the product's fat content, desired creaming stability, temperature and flow rate.
Is a two-stage homogenizer better than a single-stage unit?
A two-stage machine gives independent control of downstream backpressure and helps disperse post-homogenization clusters. Many drinking-milk and yogurt-base applications use two-stage arrangements. A single-stage unit may be appropriate for certain products or processing requirements.
Should the homogenizer be before or after pasteurization?
In many continuous HTST fluid-milk lines, it is located after regenerative preheating and before final pasteurization. Indirect UHT commonly uses upstream homogenization. Direct UHT generally uses an aseptic homogenizer downstream of the heat treatment.
What information is needed to quote a homogenizer and preheating system?
Send the product type, hourly flow, fat and solids content, target homogenization temperature, required pressure, existing heat-treatment system, electrical supply and available plant drawings. For an upgrade, add the current homogenizer model, performance readings and piping interfaces.
Conclusion
Milk is preheated before homogenization so that its fat can be dispersed effectively under controlled temperature and pressure. Around 55–65°C is a common starting point for conventional fluid-milk equipment, while yogurt and UHT systems require product-specific settings and different heat-treatment arrangements.
When purchasing or upgrading a processing line, check the homogenizer inlet temperature, flow and pressure together, then confirm the position of the homogenizer within the pasteurization or UHT system. NexAgri can help configure the equipment, document the interfaces and arrange the agreed factory tests.
For equipment selection or line integration, contact NexAgri with your production flow, product type and existing processing layout.
