A dairy farm can install a new cooling system and still outgrow it after the next barn or milking-parlor expansion. The problem often begins before the equipment arrives: the first project allows enough room for today's fans, water pumps and bulk milk tank, but the next stage has nowhere to connect.
A practical expansion plan separates the equipment needed now from the capacity and connections needed later. Barn heat-abatement systems must cover the cows occupying each new building. Milk-cooling equipment must handle the milk arriving from a larger or faster parlor. Water, power, pipe routes and service access connect the two projects—and are often the hardest parts to rebuild after the farm opens.
For a farm expanding from 300 to 600 milking cows, the first equipment schedule should therefore show two things: what will operate at 300 cows and where the equipment for 600 cows will go. The goal is a workable first phase and a clear route to the second.
Build the Cooling Plan Around Two Operating Stages
Start with a staged equipment schedule and a simple site drawing. Record the present herd, the intended herd after expansion, the likely construction sequence and any changes to the milking system or milk collection timetable.
The following two-stage baseline shows how growth from 300 to 600 milking cows changes the daily milk volume, storage requirement and cooling schedule:
| Planning input | Phase 1 | Future phase |
|---|---|---|
| Milking cows | 300 | 600 |
| Assumed milk yield per cow | 25 L/day | 25 L/day |
| Estimated daily milk production | 7,500 L | 15,000 L |
| Milkings per day | 2 | 2 |
| Milk per milking, at equal split | 3,750 L | 7,500 L |
| Average milk delivery over an assumed 2-hour milking | 1,875 L/h | 3,750 L/h |
| Barn accommodation | First barn and associated holding/feeding areas | Additional housing and expanded cow movement routes |
The hourly figures describe an average over the assumed milking period. The peak flow through the milk pump may be substantially higher and must be obtained from the proposed parlor and pump configuration. That peak is a key input for the plate heat exchanger (PHE).
This scenario also separates two purchases that are sometimes bundled together. More storage is needed as milk accumulates between pickups; greater refrigeration duty may be needed to cool each batch within the required time. The two capacities should appear as separate lines in the equipment proposal.
Before equipment selection, mark on the Phase 1 layout where Phase 2 fans, pumps, cooling units, milk tanks, pipes, drains, control cabinets and service routes will be located. The drawing should show accessible future connection points, not just an empty plot labelled future expansion.
Phase the Barn Fans and Soakers Without Restricting Future Airflow

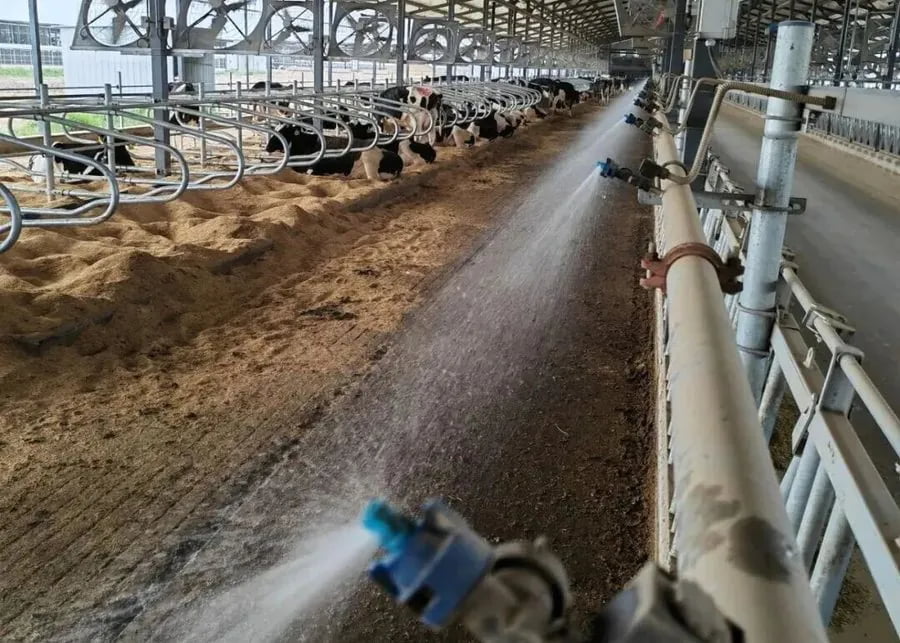

For most phased dairy-barn projects, the practical approach is to install the fans and soaker zones required for the occupied Phase 1 buildings and prepare mounting, power, water and control connections for the next buildings.
The fan plan starts with the finished barn geometry. Air exchange removes heat and moisture from the building; circulation fans deliver useful air speed over cows at the feed bunk, in resting stalls and in holding areas. Their performance depends on fan position, inlet and outlet openings, nearby obstructions and the actual air path.
As a benchmark for lactating-cow resting areas, the University of Wisconsin–Madison Division of Extension describes at least 200 ft/min (about 1 m/s) of cow-level air movement, with 400 ft/min (about 2 m/s) preferred in its summer heat-abatement guidance. Use the chosen target to examine coverage at cow height and select fan quantity, mounting position and controls for the barn's ventilation arrangement.
A staged installation might include:
- Phase 1: Install the fans, inlets, soaker branches and control zones serving the first barn, feed line and holding area.
- Before Phase 2 construction: Confirm roof mounting locations, structural loads, unobstructed air paths, cable routes, panel space and room for future inlets or exhaust fans.
- Phase 2: Add the required fan groups, nozzle zones and controls as the new building becomes occupied, then check cow-level air movement and water distribution under operating conditions.
Soaker lines require their own hydraulic calculation. A zone with 40 active nozzles rated at 1 L/min each draws 40 L/min while that zone runs. Actual nozzle flow depends on pressure, so the pump and pipework must be selected using the manufacturer's flow-pressure data and the number of zones that can run together.
Fan spacing, soaker height and nozzle pitch should be determined by the equipment geometry and intended coverage. A fixed spacing copied from another barn can leave blind spots when roof height, stall arrangement or cow traffic differs.
Plan Water for Drinking, Cow Cooling and Milk Pre-Cooling Together
Water demand often reaches its highest point when several systems operate during the same hot period: cows drink more, feed-line soakers cycle, holding-area cooling runs and fresh milk moves through the PHE.
A water-balance worksheet should record the peak flow and timing of each service:
- Drinking water: required flow and pressure at the most distant trough, including the future cow population.
- Soakers: nozzle flow at working pressure multiplied by the number of simultaneously active nozzles, with the planned duty cycle.
- Milk pre-cooling: cooling-water flow while milk is passing through the PHE, at the design water inlet temperature.
- Cleaning and other users: milking-system cleaning, yard washing and any processes coinciding with these peaks.
Consider a future PHE handling 4,000 L/h of milk. At a preliminary water-to-milk flow ratio of 2:1, its water-side demand during pumping would be 8,000 L/h, or about 133 L/min. A separate soaker zone using 40 L/min brings these two operating flows to about 173 L/min, before adding drinking water and any other simultaneous demand. The final PHE ratio comes from the heat-exchanger design and source-water temperature.
The main pipe, pump and water source should be assessed for the combination of demands that can genuinely occur together. Where the source has limited short-term output, a storage tank and booster arrangement can bridge the difference between supply and peak consumption. The required usable storage volume follows from the flow deficit and its duration.
Separate distribution branches make the system easier to manage: drinking-water supply, soakers and PHE supply can each have appropriate metering, pressure control, filtration and isolation. Soaker zoning limits simultaneous draw where the cooling design permits it. Milk pre-cooling should retain its necessary water flow during milking, and drinking troughs should maintain reliable supply at all times.
In water-scarce locations, it is worth assessing whether water warmed in the PHE can be recovered for a suitable secondary use. AHDB's milk pre-cooling guidance describes reuse opportunities. Water quality, hygienic separation and local requirements determine where that water can go.
Recalculate Milk Pre-Cooling When the Milking Parlor Gets Faster
Upgrading from a 2 × 8 to a 2 × 16 parallel parlor can shorten milking time and send more milk through the plate heat exchanger during peak pumping. Use the new parlor throughput and milk-pump flow profile to check the existing PHE, water circuit and downstream refrigeration as one cooling path.
A sound upgrade review checks the milk path in order:
- Obtain the future milk pump's maximum operating flow and normal flow profile.
- Define milk temperature entering the PHE and the cooling-water temperature during the warmest design season.
- Check PHE heat-transfer area, water flow, pressure drop and target milk outlet temperature at peak milk flow.
- Use that outlet temperature to calculate the remaining heat that bulk-tank refrigeration or a rapid cooling system must remove.
- Confirm storage volume and the time available for final cooling before the next milking or milk collection.
For an initial thermal check, the sensible heat-removal rate is:
Milk heat-removal rate (kW) = Milk flow (L/h) × Milk density (kg/L) × Specific heat (kJ/kg·°C) × Temperature drop (°C) ÷ 3,600
With a milk flow of 4,000 L/h, density of 1.03 kg/L, specific heat of 3.9 kJ/kg·°C, and cooling from 35°C to 18°C, the estimated heat transfer is:
4,000 × 1.03 × 3.9 × 17 ÷ 3,600 ≈ 76 kW
At these flow and temperature conditions, the PHE must remove approximately 76 kW of heat. Its final plate configuration depends on the milk and water circuits, required outlet temperatures and acceptable pressure losses. The refrigeration equipment downstream is sized against the remaining cooling load and the time available to remove it.
Estimate Peak Milk Thermal Load
Use the calculator to separate the heat removed during pre-cooling from the remaining milk-cooling duty. Its default inputs reproduce the 4,000 L/h, 35°C-to-18°C example above, then show the additional duty to reach 4°C.
Interactive milk cooling estimator: enable JavaScript to use this tool.
For water-cooled PHEs, DairyNZ's milk-cooling guide recommends checking performance at peak milk flow and monitoring cooling-water inlet and milk outlet temperatures. Its guidance also explains why plate arrangement, water flow and milk pump behavior affect cooling effectiveness. These measurements help decide whether the next investment belongs in the PHE, water circuit or downstream refrigeration.
Specify a Plate Heat Exchanger That Can Expand Later
For a dairy planning a second-stage parlor upgrade, a gasketed plate-and-frame heat exchanger can offer a practical expansion route. Its plate pack is held between a fixed frame plate and a movable pressure plate. In a suitable design, additional plates can be fitted to increase heat-transfer area while keeping the existing frame.
Consider a PHE specified for 2,000 L/h of milk in Phase 1 and 4,000 L/h after expansion. The initial order can include a frame with room for the larger future plate pack. Ask the supplier to rate both operating cases at the relevant water temperatures and flow rates before the first unit is ordered.
Specify the future maximum plate count, carrying-bar length, tie-bolt capacity, port sizes and available service clearance. Confirm the future plate arrangement, pressure drop on both circuits, pump duty, gasket material and cleaning method. The final 4,000 L/h rating must account for the changed plate arrangement, channel velocities, flow distribution and hydraulic resistance.
Alfa Laval's gasketed plate heat exchanger guidance describes this add-or-remove-plates capability. This expansion approach uses a serviceable gasketed plate-and-frame model; brazed and welded plate coolers have different upgrade options. Major flow increases may also require new connections, pumps or a different PHE model.
Size Milk Storage and Refrigeration as Separate Decisions
As production increases, the storage requirement depends on the milk accumulated between collections. Refrigeration duty depends on the quantity and temperature of milk arriving during each cooling period.
In the 600-cow scenario, production reaches 15,000 L/day. With collection every 48 hours, the baseline milk volume between pickups is 30,000 L. The specified usable storage capacity should also allow for peak output and possible collection delays. Cleaning, minimum operating fill, product temperature control and the milk buyer's collection arrangements influence the final tank configuration.
For storage estimates under different pickup intervals, the NexAgri Milk Cooling Tank Sizing Calculator provides a separate starting point.
Two investment routes are available for the existing equipment:
Keep a suitable Phase 1 tank and add another. This can spread equipment spending across construction stages and retain usable equipment. The project must provide milk-routing, cleaning and sample-handling arrangements for both tanks, plus enough independent cooling to meet their intended duties.
Install a larger tank earlier. This may reduce future relocation and milk-room construction, particularly when the expansion date is near. Confirm the selected model's minimum cooling and agitation fill, partial-load operation, cleaning requirements and electrical demand for the smaller Phase 1 milkings.
At 30,000 L of Storage, Compare Indoor Tanks With an Outdoor Milk Silo

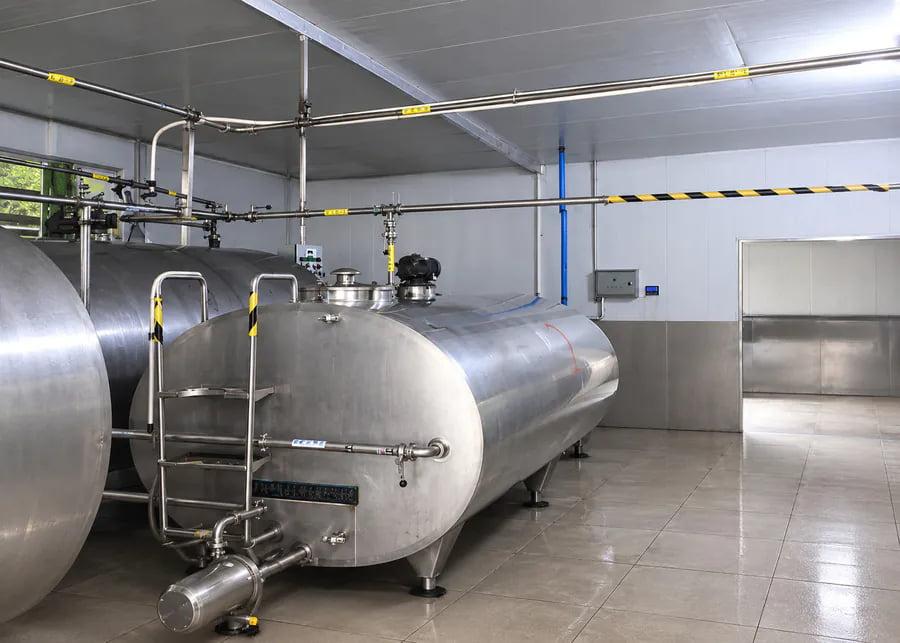

A farm with a 30,000 L baseline storage requirement can compare several horizontal cooling tanks in the milk room with an outdoor vertical milk silo. Outdoor silos concentrate large storage volumes on a smaller floor footprint and can free indoor space for pumps, cleaning equipment and access. They require a suitable foundation, weather-resistant installation, service access and an organized connection to the milk room.
The layout decision should include milk collection and sampling access, sanitary transfer lines, CIP coverage, drainage, level monitoring and the usable volume during each stage of expansion. The cooling arrangement is especially important: some outdoor silos are designed primarily to hold milk that has already been cooled, while others incorporate active cooling or chilled-water connections. Match the incoming milk temperature and required cooling duty to the selected system.

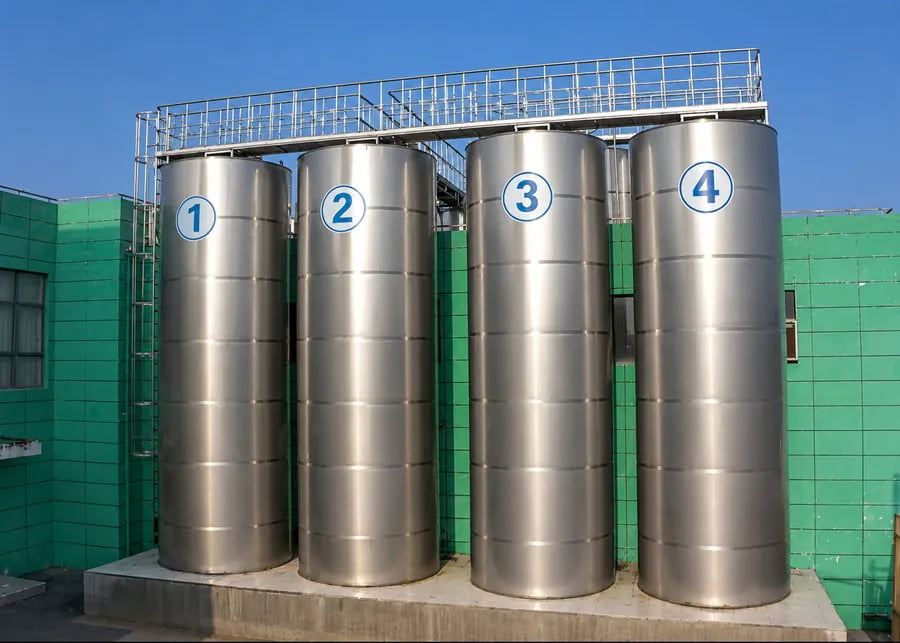

For an outdoor silo option, reserve foundation space, wall penetrations or a service alcove, pipe and electrical routes, and safe access for maintenance during Phase 1. Tetra Pak's dairy processing handbook describes outdoor silo storage for larger milk volumes. NexAgri also offers outdoor milk silos as part of its milk storage range. Select the layout around available building space, operating schedule, cooling arrangement, site costs and the milk buyer’s collection requirements.
The same decision applies to refrigeration. A staged system might begin with the refrigeration equipment needed for initial production and leave the foundations, pipe branches, electrical feeders and controls ready for a second module. A single larger unit may suit a project with an imminent expansion and effective capacity control at low load. Reliability planning should also account for shared pumps, power supplies and controls when multiple modules are used.
What Should Be Installed Now—and What Should Be Reserved?
The dividing line is usually construction disruption. Parts buried under floors, routed through completed buildings or needed for safe equipment access are worth considering early. Equipment that can be connected later from an accessible branch may be better purchased when the next stage is ready.
| System | Install for Phase 1 | Prepare for Phase 2 |
|---|---|---|
| Barn fans and cow soakers | Equipment needed in occupied areas | Mounting locations, ventilation openings, branch points, circuits and control zones |
| Water supply | Reliable drinking, soaker and milk pre-cooling service | Main routing, source/storage capacity plan, isolation points and room for extra pumps |
| Plate heat exchanger | Plate pack matched to Phase 1 milk flow | If choosing an expandable gasketed unit: frame/bolt allowance, future plate count, ports and water-pump capacity |
| Milk refrigeration | Duty required for Phase 1 cooling schedule | Space, electrical feeders, connections and controls for additional duty |
| Bulk milk storage | Suitable working volume and first-fill performance | Space for another tank or outdoor silo, sanitary transfer lines, CIP connections, drainage and collection access |
| Power and controls | Safe distribution for installed equipment | Verified future load allowance, feeder routes, panel expansion space and control interfaces |
| Civil works | Equipment bases and service clearances required now | Accessible future foundations, pipe corridors, door openings and drainage routes |
A useful specification assigns a future duty to each reservation: expected water flow in L/min, future electrical load in kW or kVA, additional milk flow in L/h, or the footprint of a defined equipment module. That is more actionable than a drawing marked simply allow for future use.

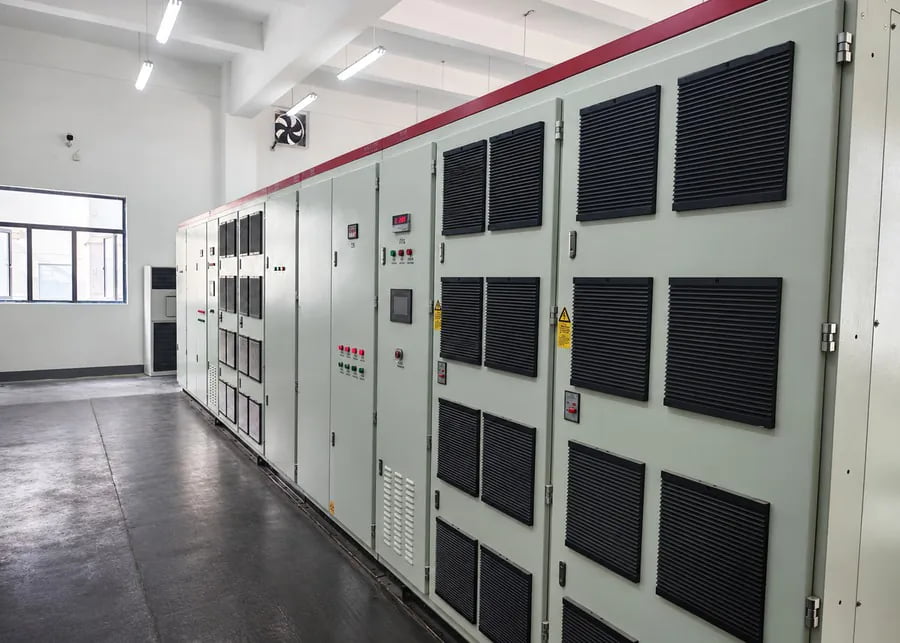

Electrical studies should show the expected equipment running together on a hot milking day: barn ventilation, water pumps, the milking system, milk refrigeration and other essential loads. Starting currents, available transformer capacity, cable runs, protection and backup supply belong in the design. Panel space without adequate upstream electrical capacity offers little benefit.
Likewise, future water branches need an assessed supply and pump duty; future chiller connections need an appropriate hydraulic or refrigerant design; and milk-room access must permit equipment delivery and removal without dismantling finished structures.
A Three-Stage Check Before Approving the Equipment Order
Before placing the first order, review the project in this sequence.
1. Operating schedule. Obtain Phase 1 and future cow numbers, milking capacity, litres per milking, peak milk pump flow, pickup interval, occupied barn areas and climate design conditions. Confirm which hot-weather systems operate at the same time.
2. Load and interface schedule. For each stage, record the required barn airflow and cow-level coverage, peak soaker-water flow, PHE flow and heat duty, remaining refrigeration load, storage volume and simultaneous electrical demand. Show the corresponding equipment layout, connections, installation clearances and maintenance access.
3. Purchase and construction split. Identify equipment required for current production, equipment to be bought later, and infrastructure that must be embedded in Phase 1 construction. Compare the additional cost of preparing an interface now with the likely demolition, shutdown and relocation work needed later.
The outcome should be an actionable package: two-stage equipment lists, a coordinated layout, the relevant capacity calculations and an interface schedule. A construction project may then develop detailed PFDs, P&IDs, electrical drawings, water-system calculations and civil details around the confirmed equipment.
How NexAgri Can Support Phased Cooling Equipment Planning
NexAgri Solutions supplies equipment for barn environments, milk cooling and storage. For phased projects, we can use the buyer's herd-growth plan and site information to develop preliminary equipment configurations, schedules, dimensions and layout suggestions for each stage.
We can provide equipment data for electrical loads, water demand, foundation loading, pipe connections and service access, and coordinate process-flow information, controls and equipment interfaces with the buyer's local civil and MEP teams. These teams can then incorporate the confirmed equipment requirements into their construction and installation drawings.
Buyers can review NexAgri barn ventilation fans and milk cooling and storage equipment, or contact NexAgri with their two-stage capacity target and existing layout.
The most useful inquiry includes a current farm drawing, proposed Phase 2 boundary, cows milked per day, litres of milk per milking, milking-system plan, milk pickup schedule and available electrical and water services. These details allow the initial and future equipment schedules to be compared on the same basis.
Frequently Asked Questions
Should a farm buy all the future fans and cooling equipment in Phase 1?
For a phased construction program, install the cooling capacity required for the occupied barns and present milk production, with the future equipment locations and utility connections already planned. Buying the full future system earlier can be reasonable when expansion is imminent or later installation would disrupt operating buildings.
Can the existing plate heat exchanger remain after a parlor upgrade?
Check the next-stage milk flow, cooling-water temperature and flow, pressure losses, and required milk outlet temperature. A gasketed plate-and-frame model with spare frame length and suitable ports may accept extra plates; the upgrade should be rated for both circuits and the existing pumps. Other plate cooler types or undersized frames may need replacement.
Is modular refrigeration the same as having backup cooling?
Several refrigeration modules can share the duty and permit staged capacity additions. Backup capability depends on what remains available after a failure, including pumps, power, controls and heat rejection. The desired amount of cooling during maintenance or an outage should be specified explicitly.
Conclusion
The strongest phased cooling plan puts the present operating load and the future equipment interfaces on one coordinated drawing. Fans and soakers can be added with the next barn, an expandable plate heat exchanger can be configured for higher milk throughput, and additional refrigeration or storage can be brought online as production grows. At larger milk volumes, the farm can assess an outdoor silo alongside conventional indoor tanks.
Sizing the water, power, cooling duty and installation routes for the planned stages makes the next expansion a controlled equipment addition rather than a rebuild of the milk room and utilities.
