Finding a cow that needs breeding, veterinary treatment, or hoof trimming sounds simple—until you have hundreds of cows moving through a busy dairy farm.
Traditionally, workers must locate the animal, separate her from the group, and move her to the correct handling area. This takes time, interrupts routines, and can create unnecessary stress for both cows and employees.
Automated cow sorting gates use electronic identification, control software, and mechanical gates to direct selected cows into designated lanes. They can reduce repetitive manual sorting, improve herd-management visibility, and make routine handling more consistent—provided the identification system, cow traffic, and barn layout work together reliably.
The biggest change is not simply replacing a manual gate with an electric one.
It is moving from "people searching for cows" to "the system identifying and directing cows as they pass through."
However, successful automation requires more than installing equipment. RFID recognition, animal movement, software decisions, gate timing, and holding-pen design all influence the result.
This guide explains how intelligent dairy cow sorting gates work, where problems commonly occur, and what farms should expect from a properly integrated system.

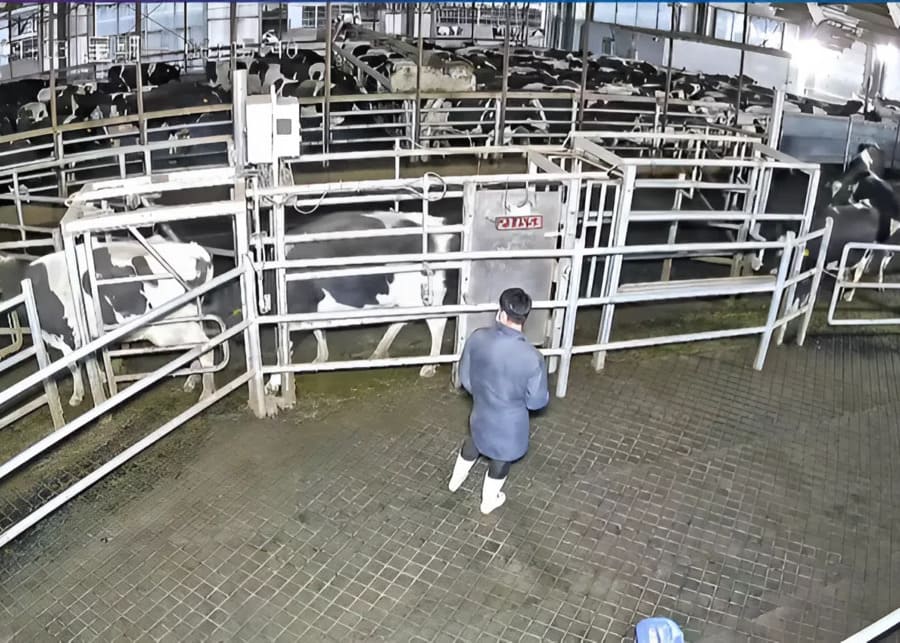

1. What Is an Intelligent Cow Sorting Gate System?
An intelligent cow sorting gate, also called an automated cow drafting system, identifies individual cattle and directs them into selected routes according to predefined management instructions.
For example, a cow may be scheduled for a pregnancy examination after morning milking. Instead of having employees search the barn, the system can recognize her electronic identification tag as she passes through the sorting lane and guide her toward a veterinary holding area.
A complete system generally contains several connected components.
| Component | Main Function |
|---|---|
| Mechanical Sorting Gate | Directs cows into the appropriate exit lane |
| Electronic Identification System | Reads the animal's compatible RFID identification |
| Position and Gate Sensors | Detect cow presence, passage, or gate position where configured |
| Controller and Actuators | Execute the required gate movement |
| Sorting Management Software | Stores sorting rules, animal lists, and operating records |
| Farm Management Interface | Exchanges selected animal and task information with other systems when supported |
| Manual Override and Safety Controls | Allow trained staff to respond to faults and unsafe operating conditions |
These components must work as one coordinated process.
A mechanically reliable gate is not enough if the reader identifies the wrong cow. Likewise, accurate identification is of little value if the cow enters the wrong lane or the holding pen is already overcrowded.
The real performance of a sorting system is measured by the entire process, not by the gate mechanism alone.
For an equipment-focused comparison of lane configurations, identification technology, and purchasing considerations, see our Dairy Cow Sorting Gate Buying Guide.
2. How Does Automated Cow Sorting Work Step by Step?
Most intelligent sorting systems follow a basic process:
Set the sorting task → Identify the cow → Check the sorting rule → Operate the gate → Verify the result
Understanding each stage makes it easier to recognize what the equipment can automate and where staff supervision remains necessary.
Step 1: The Farm Creates a Sorting List
Before milking or another scheduled movement period, the farm identifies cows requiring specific management tasks.
Common examples include:
- Breeding or artificial insemination.
- Pregnancy examinations.
- Veterinary treatments.
- Hoof trimming.
- Health observations.
- Vaccination or routine handling.
- Transfers between management groups.
The list may be created manually by staff or generated from information held in compatible farm management software.
For example, a cow identified for reproductive examination can be included in the next sorting schedule.
The system needs an accurate cow identification number, the required destination, and an appropriate time or operating rule.
Step 2: The RFID Reader Identifies the Cow
As the animal enters the identification area, a compatible RFID reader detects her electronic identification tag.
The identification number is passed to the controller or connected software.
If the cow appears on the active sorting list, the system prepares the required route.
If she has no active sorting instruction, she normally follows the configured default route.
However, the behavior for an unreadable or unidentified tag must be defined separately as part of the system's operating and safety logic.
Step 3: The Controller Selects the Route
The controller compares the identified cow with the current sorting instructions.

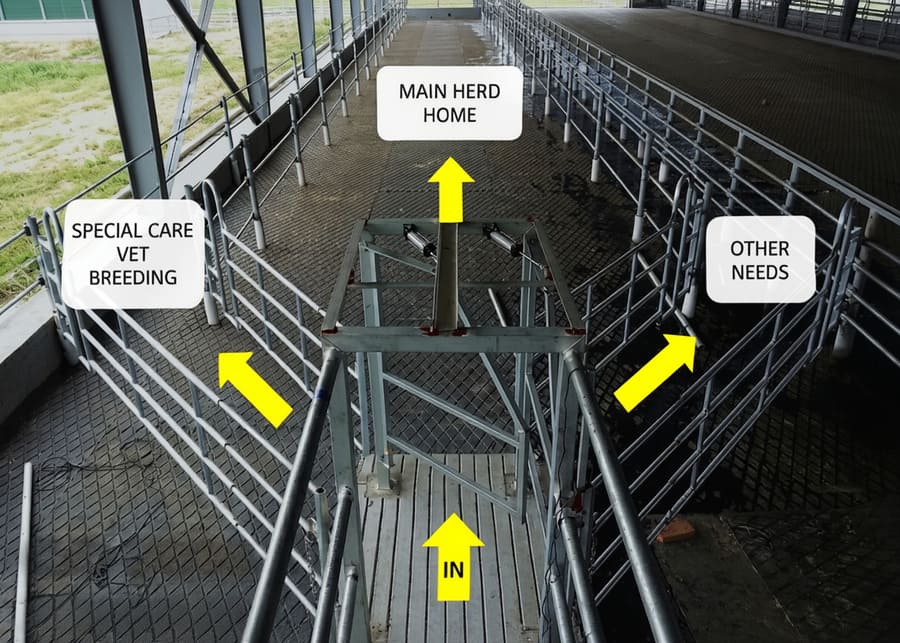

Suppose the farm operates a three-way sorting system:
- Route A: Return to the main herd.
- Route B: Breeding or pregnancy examination.
- Route C: Veterinary treatment or hoof care.
The controller determines which route is required for the individual cow.
This one-entry, three-exit arrangement is one possible design, not a universal requirement.
Some farms only need two routes, while more complex installations may require additional sorting arrangements or multiple stages.
The appropriate configuration depends on the daily management tasks and available space.
Step 4: The Gate Directs the Animal
After the system identifies the required destination and determines that the lane is ready, the controller activates the appropriate gate mechanism.
Depending on the equipment design, additional sensors or separation gates may help prevent the following cow from entering before the previous sorting cycle is complete.
This is especially important during busy milking periods.
If the next cow follows too closely, the system may not have enough time to identify both animals and complete the required gate movements.
Step 5: The System Records the Result
Where suitable sensors and software functions are configured, the system can record whether the cow entered the sorting area and whether the expected passage was detected.
This information supports follow-up management.
However, a gate-opening command is not the same as confirmation that the cow reached the correct destination.
Similarly, a cow successfully entering the veterinary holding pen does not mean her treatment has already been completed.
The farm should define how each stage is confirmed and who is responsible for unresolved tasks.
This distinction becomes particularly important when many cows are scheduled for different procedures during the same milking session.
3. Why Do Some Automated Sorting Gates Miss or Misroute Cows?
One of the most important lessons in automated sorting is that problems often arise from the interaction between components rather than from a single defective mechanical part.
Several operational issues deserve attention.
Problem 1: Unstable RFID Identification
A cow may pass through the identification area without being read correctly.
Possible contributing factors include:
- Incompatible electronic identification standards.
- Poor reader or antenna positioning.
- Unfavorable tag orientation.
- Nearby metal structures affecting antenna performance.
- Electrical interference.
- Damaged or improperly fitted tags.
- Multiple animals entering the reading area too closely.
The result may be a missed sorting instruction or an incorrect association between a cow and a particular movement.
For this reason, checking the RFID reader's published specifications is not enough.
Identification performance should be tested with the actual tags, installed antenna arrangement, and normal cattle movement conditions.
DairyNZ also identifies poor electronic identification performance as a factor that can reduce automated drafting reliability. See its guidance on dairy drafting systems.
Problem 2: Cows Follow Each Other Too Closely
Cows do not always approach a sorting gate at perfectly spaced intervals.
During peak milking periods, several animals may move closely together.
Consider what happens if Cow A requires veterinary sorting and Cow B should return to the main herd.
The system must:
- Identify Cow A.
- Prepare the veterinary route.
- Allow Cow A to pass.
- Confirm sufficient clearance.
- Reset or change the gate position for Cow B.
If the animals are too close together, the available response time may be insufficient.
Depending on the design, this can result in incorrect routing, congestion, or interrupted cow flow.
Potential engineering measures include suitable entry-lane geometry, animal-presence sensors, controlled separation, and operating logic that prevents unsafe or conflicting gate movements.
The solution should be evaluated using the farm's actual peak traffic—not only a demonstration with widely spaced cows.
Problem 3: The Sorting Pen Is Too Small
A sorting gate can direct animals correctly and still create a serious workflow problem.
Imagine that several cows are selected for treatment, but the receiving pen is already full.
Additional cows arriving at the sorting gate may have nowhere to move.
The resulting congestion can affect the main return lane and interrupt the normal flow of animals leaving the milking parlor.
This is why holding-pen capacity matters just as much as the number of sorting routes.
Before installation, consider:
- How many cows may be diverted during the busiest period?
- How long will animals wait before staff attend to them?
- Can workers safely access the selected group?
- Is there a practical route for animals to return afterward?
- Could congestion in one lane obstruct another?
A three-way gate cannot compensate for three poorly planned destinations.
Problem 4: Outdated or Incorrect Sorting Instructions
The software may function correctly while following information that is no longer accurate.
For example, a cow may already have completed her veterinary examination, but her identification number remains on the active sorting list.
Alternatively, a cow that requires attention may have been omitted from the latest schedule.
The system could then carry out an outdated instruction perfectly.
This is not necessarily a gate failure. It is a management-data problem.
Farms should define who can create, update, cancel, and confirm sorting tasks.
Data synchronization between systems should also be checked whenever the farm uses third-party software.
Problem 5: No Practical Manual Override
Automated equipment occasionally requires intervention.
A reader fault, control issue, interrupted utility supply, blocked lane, or damaged component may prevent normal operation.
If employees have no safe way to take control, the failure may interrupt a much larger part of the milking workflow.
A well-planned installation should include a clearly documented manual operating procedure and appropriate local controls.
The exact manual and emergency behavior must be designed for the installed mechanism.
Staff should never attempt to force a moving gate or enter an unsafe area to correct a fault.
Automation should reduce routine manual work without removing the farm's ability to respond safely when something goes wrong.
4. Why Does Cow Traffic Matter More Than Gate Speed Alone?
When evaluating intelligent sorting equipment, buyers naturally ask how quickly the gate can open and close.
But mechanical speed alone does not determine how many cows can be sorted successfully.
The complete process also includes identification, decision-making, cow movement, and clearance before the next cycle.
A fast gate installed in a poorly designed passage may perform worse than a slower system with more predictable animal movement.
The Importance of Sorting Gate Location
In many conventional milking systems, sorting gates can be installed along the exit route after cows leave the milking parlor.
This is practical because the animals already pass through a predictable location during normal farm operations.
However, the exact position depends on:
- The milking parlor arrangement.
- Existing exit passages.
- Available straight approach length.
- Floor conditions.
- Turning angles.
- Holding-pen access.
- Worker movement and maintenance access.
Poor placement can make cows hesitate, stop, or turn unexpectedly.
DairyNZ recommends considering cow movement patterns and positioning sorting systems to encourage consistent passage with minimal disruption.

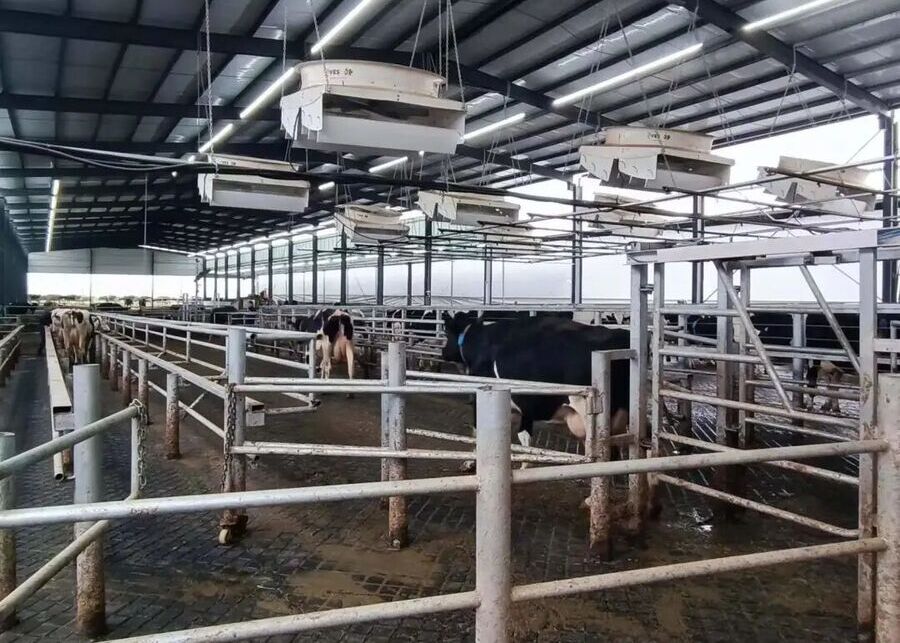

Avoiding Congestion and Unnecessary Stress
Cows generally move more predictably when passages provide suitable visibility, secure footing, and a clear direction of travel.
Problems can occur when:
- The route contains sharp or awkward turns.
- Animals encounter sudden changes in lighting.
- The floor is slippery.
- The entrance is crowded.
- A closed or moving gate causes hesitation.
- The receiving pen is already congested.
The aim is to allow cows to move calmly through the system as part of their normal routine.
This can reduce the need for repeated chasing and manual separation.
However, automated gates do not automatically eliminate animal stress. Their welfare benefits depend on the actual handling conditions and system design.
The DairyNZ guidance on handling facilities provides further information on designing cattle movement routes.
What About High-Throughput Milking Parlors?
Large rotary and parallel parlors can release substantial numbers of cows within a relatively short period.
For these projects, the key design question is not simply how many cows are in the herd.
It is how many cows must pass through the sorting point during the busiest operating period.
A system serving a high-throughput parlor must be checked against realistic cow spacing, identification performance, mechanical response, and available exit capacity.
The design should be tested under representative operating conditions before normal use.

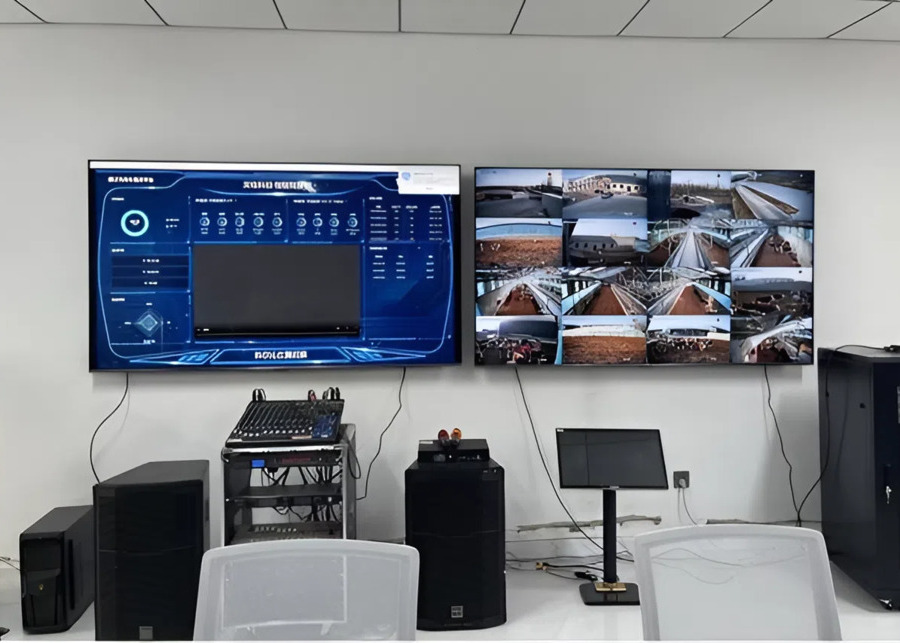

5. How Does Intelligent Sorting Improve Herd Management Visibility?
An automated sorting system can provide information that is difficult to maintain consistently through manual observation and handwritten lists.
Instead of relying entirely on staff memory, a connected system can maintain records of scheduled sorting tasks and equipment events.
However, there is an important difference between recording a system action and confirming a completed management task.
Understanding the Different Sorting Statuses
Consider a cow scheduled for a pregnancy examination.
A properly designed workflow may involve several separate statuses.
| Status | What It Actually Means |
|---|---|
| Scheduled | The cow has been added to the sorting list |
| Identified | The electronic identification system has recognized the cow |
| Gate Commanded | The controller has issued the appropriate routing instruction |
| Passage Confirmed | Available sensors have verified the relevant passage event |
| Task Completed | Staff or the connected management system have confirmed that the examination was performed |
Not every sorting system measures all these stages.
For example, without suitable passage-detection hardware, the software may know that a gate command was issued but may not independently verify which route the animal actually entered.
Likewise, completion of a veterinary examination normally requires a separate management record.
These distinctions should be considered when defining the software and hardware integration requirements.
Why Exception Records Are Valuable
Suppose twelve cows are scheduled for veterinary examination, but only eleven have verified sorting records.
The missing record should trigger a follow-up rather than automatically being treated as a completed task.
Possible explanations include:
- The cow did not pass the sorting point.
- Her RFID tag was not read.
- The gate did not complete the expected action.
- Passage confirmation was unavailable or unsuccessful.
- The sorting list was incorrect.
A useful management interface should help staff identify unresolved events and investigate them.
The value of a dashboard is not how much information it displays, but whether its records help employees identify and complete outstanding work.
6. How Much Labor Can Automated Cow Sorting Actually Save?
Automated sorting can reduce several time-consuming tasks, particularly on farms where employees regularly search for individual cows and separate them manually.
Potential labor savings include:
- Less time spent identifying and locating selected cows.
- Less repeated manual movement between groups.
- Fewer interruptions to normal milking routines.
- More consistent preparation of breeding and treatment groups.
- Easier follow-up when selected animals are missed.
However, these benefits depend on herd size, existing facilities, sorting frequency, and how the system is integrated into daily work.
A fixed claim such as "50% labor efficiency improvement" should not be applied to every farm without measured operating data.
Manual Sorting vs. Automated Sorting
| Management Task | Manual Sorting | Automated Sorting |
|---|---|---|
| Identifying selected cows | Workers identify or locate animals | Compatible RFID identifies cows at the sorting point |
| Directing cows | Employees operate gates or move animals | Controller operates the configured sorting gate |
| Maintaining sorting lists | Paper records or manual coordination | Digital lists where software is configured |
| Checking missed cows | Depends on manual observation and records | Exception records can support follow-up |
| Handling unexpected problems | Employees intervene directly | Employees still manage faults and exceptions |
| Labor requirement | Depends on herd and facilities | Can reduce repetitive sorting work but still needs oversight |
Automation does not eliminate the need for farm employees.
People remain responsible for animal health decisions, treatments, software management, equipment inspection, and exceptional situations.
How Should a Farm Measure the Benefits?
Before installing an intelligent sorting system, record the current manual process.
Useful baseline measurements include:
- Staff minutes spent on sorting tasks per day.
- Number of cows requiring sorting.
- Number of animals missed or sorted incorrectly.
- Additional time needed for corrections.
- Interruptions caused to milking or herd movement.
After commissioning, measure the same indicators over a representative period.
For example:
Daily labor hours saved = Previous sorting labor hours − Current sorting labor hours
Then calculate potential labor-cost savings using the farm's actual labor cost.
This calculation should include remaining supervision, exception handling, and routine equipment work.
A broader investment assessment should also consider installation costs, software expenses, maintenance, electricity or compressed-air requirements where applicable, and potential downtime.
For commercial farms, measured operational improvements are more useful than unsupported percentage claims.
7. What Should Happen When the Sorting System Fails?
System reliability includes the ability to handle abnormal situations safely.
Before commissioning, the farm and equipment supplier should agree on how the system responds to:
- Failure to recognize an animal.
- Multiple cows entering too closely.
- A blocked passage.
- Incorrect or unavailable sorting instructions.
- Gate-position or actuator faults.
- Communication interruptions.
- Loss of electrical or other required operating power.
Safe Operating Modes and Manual Control
Depending on the installation, suitable measures may include local manual controls, alarm functions, status indicators, emergency stopping arrangements, and designated operating procedures.
The correct fallback gate position cannot be assumed for every farm.
It depends on the gate mechanism, cow movement routes, and the risk associated with each possible exit.
For example, automatically returning every unidentified animal to the main herd may be acceptable in one workflow but inappropriate in another where a particular animal requires urgent separation.
The response should be agreed upon during design and verified during commissioning.
Manual controls should be accessible to trained operators without requiring them to enter dangerous areas around moving gates.
Test the System Before Normal Operation
Commissioning should cover more than whether the gate opens.
A practical test should verify:
- Identification using the intended ear tags.
- Correct routing under normal traffic.
- Operation when cows follow closely.
- Response to unreadable tags.
- Safe behavior when the receiving lane is obstructed.
- Communication and power interruption procedures.
- Manual override and restart.
- Sorting event records and software synchronization.
The acceptance criteria should be agreed upon before installation is considered complete.
These tests are especially important when the sorting equipment is being connected to existing third-party herd management systems.
8. What Information Is Needed Before Planning an Automated Sorting Project?
For a real dairy farm project, the first priority should be understanding the physical site rather than choosing a gate model from a catalog.
Four areas have the greatest influence on the initial feasibility assessment.
1. Existing Barn and Passage Layout
The buyer should provide a layout showing the intended sorting location and surrounding cow traffic routes.
Important details include:
- Milking parlor exit position.
- Available passage width.
- Entrance and exit directions.
- Turning space and nearby obstructions.
- Existing fencing and gates.
- Receiving-pen location and capacity.
- Maintenance and worker access.
Site photographs and simple dimensioned drawings are often useful for the initial discussion.
For more complex installations, detailed drawings and an engineering review may be required.
If the existing cow route cannot accommodate safe sorting and holding areas, the layout must be addressed before the automation equipment is finalized.
2. Cow Traffic and Sorting Demand
The supplier needs to understand:
- Total number of cows using the passage.
- Number of milking sessions.
- Peak cow flow at the sorting location.
- Typical number of animals selected for sorting.
- Required management destinations.
- Future expansion plans.
These details help establish whether the proposed identification, gate control, and lane arrangement can keep up with actual operation.
3. Existing RFID and Management Systems
Before specifying new identification hardware, confirm whether the farm already uses electronic identification tags.
The supplier should check the tag standard, reader compatibility, and how individual animal numbers are maintained.
If the farm already operates herd management software, the integration requirements should also be reviewed.
A software connection may require supported interfaces, data mapping, access permissions, and testing.
Do not assume that any RFID tag or wireless collar automatically works with any sorting gate.
For example, GPS tracking or BLE communication alone does not establish compatibility with a gate's RFID identification reader.
4. Power, Network, and Operating Requirements
The proposed installation should also consider:
- Required electrical supply.
- Actuator requirements, including compressed air if applicable.
- Local network availability.
- Controller-to-software communication.
- Equipment protection in wet and corrosive barn conditions.
- Safe maintenance access.
- Operating procedures during communication or power failure.
Some systems may be designed to continue limited local operation when communication with central software is interrupted, but this must be confirmed for the selected configuration.
A reliable installation depends on both the equipment and the supporting infrastructure.
9. How Can NexAgri Support a Complete Cow Sorting System?
NexAgri Solutions can provide an integrated dairy cow sorting solution covering mechanical gates, electronic identification hardware, control components, supporting software, and project-specific data integration.
Rather than treating the sorting gate as an isolated product, we evaluate how the equipment fits into the farm's existing movement routes and management procedures.
The project scope can include:
- Mechanical sorting gate configuration.
- Compatible RFID identification hardware.
- Controllers and associated electrical equipment.
- Sorting management software.
- Interface planning for existing farm management systems.
- Cow traffic and installation layout review.
- System integration and commissioning coordination.
Actual hardware, software interfaces, and integration functions should be confirmed according to the selected project configuration.
For farms using electronic identification, NexAgri-Sense Smart Ear Tags include selected configurations supporting HDX RFID identification for use with compatible readers.
The compatibility of existing tags, collars, gateways, and software platforms should always be checked before finalizing a proposal.
For an initial sorting-gate project review, share the parlor exit plan, peak cow flow, required destinations and existing RFID details on WhatsApp.
This provides a more reliable starting point than choosing a two-way or three-way system based on herd size alone.
Frequently Asked Questions
How does an automated cow sorting gate identify individual cows?
Most conventional systems use compatible electronic identification tags and RFID readers. The reader captures the cow's identification number, and the controller checks whether an active sorting instruction exists. The exact identification method and operating conditions depend on the system design.
Can automated sorting gates work with existing RFID ear tags?
Often, but compatibility must be verified. The tag's identification standard, reader technology, antenna arrangement, and software ID mapping all need to match. Having an RFID tag does not automatically guarantee compatibility with every gate.
Can smart collars automatically trigger a sorting gate?
They can support sorting decisions when the required animal information is correctly integrated into the herd management system. However, collar connectivity and gate identification are separate technical functions. The installed system still needs a reliable way to identify the animal at the sorting point.
Are three-way sorting gates better than two-way gates?
Not always. Three-way systems provide more routing options, but they also require suitable passage and receiving-pen arrangements. Farms with simpler handling requirements may only need two routes.
What happens if two cows pass through a sorting gate together?
Closely following cows can cause identification and routing problems if the system cannot distinguish their positions or complete the gate movement in time. Suitable passage design, sensing, separation measures, and control logic can reduce this risk. Performance should be verified under realistic conditions.
Can an automated sorting gate operate without internet access?
That depends on the equipment architecture. Some functions may be managed by a local controller, while others depend on network communication or central software. The supplier should specify which operations remain available during a connection failure.
Do automated cow sorting gates eliminate manual labor?
No. They can reduce repeated identification and sorting work, but employees are still needed for animal care, treatment, follow-up, supervision, and maintenance. Labor savings should be measured against the farm's previous process.
Where is the best place to install a cow sorting gate?
A location along an existing, predictable cow movement route—often after the milking parlor—is commonly practical. However, the final position must be determined from the farm layout, traffic density, holding-pen access, and safe operating conditions.
Conclusion
Intelligent sorting gates can make dairy herd management more organized by replacing repeated manual cow selection with automated identification and routing.
However, the value of the system does not come from the moving gate alone.
It comes from reliable identification, accurate sorting rules, appropriate cow spacing, suitable receiving-pen capacity, useful management records, and a safe way to handle unexpected problems.
Successful automated sorting follows a complete process: identify the cow, select the correct route, direct her safely, verify the result, and follow up on any unfinished task.
For farms considering this technology, the best starting point is to evaluate the actual cow traffic and existing facilities before deciding on the hardware.
A well-integrated system should make everyday herd management easier to carry out—not create another complicated process for employees to manage.
