Manure leaves a dairy barn every day, whether it is pushed out by scrapers or washed into a collection channel. The difficulty often comes later: thick slurry is harder to pump, fibers accumulate in storage, and moving a large volume of mixed manure takes time, equipment and money.
Solid-liquid separation divides dairy manure slurry into a fiber-rich solid fraction and a more fluid liquid fraction. The solids can be stored, composted, transported or processed for other uses. The liquid can be pumped to storage, applied to cropland under a nutrient-management plan or sent for further treatment. Handling the two streams separately gives the farm more options.
How Does a Screw Press Manure Separator Work?
A screw press receives pumpable manure slurry through an inlet. Inside the machine, a rotating screw carries the material along a screen. Water and fine particles pass through the openings, while larger fibers move toward an outlet with adjustable resistance. The compacted solids leave through the discharge, and the liquid drains away through a separate connection.
The process produces two fractions:
- Separated solids: A stackable, fiber-rich material that may be composted, removed from the site or processed further.
- Separated liquid: A stream with fewer coarse particles, suitable for pumping to an appropriate storage or treatment system.
Screw pressing dewaters slurry mechanically without thermal drying. As documented in NC State Extension's technical guide on screw press manure separation, commercial dairy installations typically produce separated solids around 30% dry matter, with final cake moisture and texture governed by incoming manure consistency, screen slot width, feed rate and discharge counter-weight pressure.
What Does Separation Change on a Dairy Farm?
Less fiber accumulates in liquid storage
Removing coarse organic material before a storage lagoon or tank helps reduce sediment and crust-forming fibers. Transfer lines and downstream pumping equipment may also handle a more consistent liquid stream.
The Dairy Conservation Navigator gives a typical 5–18% reduction in liquid volume after coarse solid-liquid separation. That volume moves into the separated wet solids. The farm then manages a smaller liquid stream and a separate solid stream.
Nutrients are divided between the two outputs
Most of the easily dissolved nutrients stay with the liquid. A portion of the phosphorus and organic nutrients leaves with the separated fibers. This affects how each fraction can be stored, transported and applied to land.
A study of Wisconsin dairy separators, reported by NC State Extension, measured the following shares recovered in the solid fraction:
| Constituent | Share captured in separated solids |
|---|---|
| Total solids | 40% |
| Total phosphorus | 25% |
| Total nitrogen | 11% |
| Total potassium | 7% |
The differences are useful when planning manure reuse: separating fiber can move a meaningful share of phosphorus into a stackable material, while the liquid still carries much of the nitrogen and potassium. The values above come from the study and will vary with the manure and separator configuration.
Storage and transport become easier to organize
A farm can schedule solid removal separately from liquid pumping and field application. Where cropland is available, composted solids may be applied as a soil amendment. Where land is limited, an external processor may take the solids. The financial benefit comes from choosing a workable route for both materials.

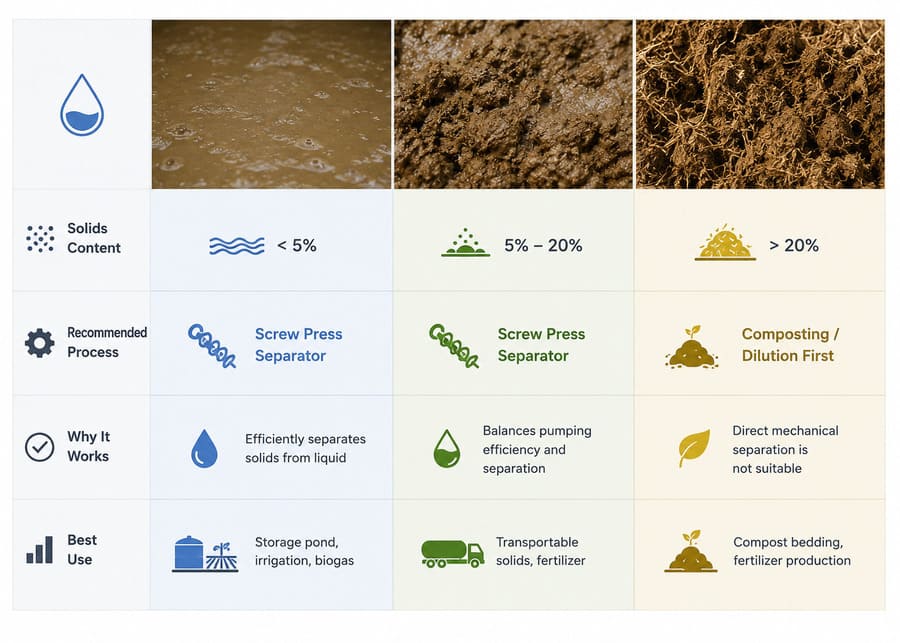

Which Dairy Manure Conditions Work Best?
The first useful measurement is total solids (TS)—the dry matter contained in the incoming slurry. TS affects pumping and separation, but fiber length, sand content and bedding material can be equally important.
| Incoming manure | Typical handling considerations |
|---|---|
| Flush-collected slurry | Often dilute and easy to pump. A separator may process substantial liquid volume while recovering relatively little fiber. |
| Scraped manure mixed in a collection pit | Can provide a consistent feed once large debris is removed and the slurry is mixed to the required flow characteristics. |
| Very thick or partly stacked manure | May bridge in the hopper or interrupt pump feeding. Slurry preparation or another treatment route may be needed. |
| Sand-heavy manure | Requires attention to grit settling, abrasive wear and suitable upstream sand removal. |
For scraped dairy manure, 8–12% TS is one practical range to assess during slurry preparation when the chosen pump and press can accommodate it. More dilute systems can also work: extension research reports stronger screw-press solids capture from manure above about 4% TS than from highly diluted slurry. Feed stability and the machine's operating range are more useful selection criteria than a single target percentage.
Sand bedding deserves special planning. Settled grit wears pumps and screw components and can collect at the bottom of pits. A sand recovery or grit-removal stage upstream of the press often saves maintenance work later.
Which Screen, Material and Motor Specifications Matter?
The screen determines how much fiber remains in the solid fraction. Smaller openings catch more fine particles, but may also produce wetter retained solids and require more attention to cleaning. Wider openings favor drainage and throughput while allowing more fine material into the liquid.
Wedge-wire screens are commonly used in manure separation. Published equipment studies and commercial screen specifications include openings around 0.5 mm, 0.75 mm and 1.0 mm. These are useful sizes to compare during selection, based on the feed and intended output.
| Screen opening | Practical selection consideration |
|---|---|
| 0.5 mm | Captures smaller particles; check flow rate, retained moisture and cleaning frequency. |
| 0.75 mm | Intermediate option for balancing fiber recovery and drainage. |
| 1.0 mm | Allows coarser separation and freer drainage; more fine particles can remain in the liquid. |
For wet manure contact, stainless-steel screens and augers provide essential corrosion resistance. Our standard HL-series separators use AISI 304 stainless steel for both the screw auger and wedge-wire screen, while 316L stainless steel and tungsten-carbide flight hardfacing can be specified for high-chloride environments or abrasive slurry. Even with hardened flight edges, removing coarse sand before the feed pump remains the best first line of defense.
Our screw press manure separator range covers two core dairy models:
| Specification | HL200-2 | HL280-2 |
|---|---|---|
| Handling capacity | 2–7 m³/h | 4–15 m³/h |
| Main drive motor | 5.5 kW | 5.5 kW |
| Power supply | 380 V / 50 Hz (customizable to local grid) | 380 V / 50 Hz (customizable to local grid) |
| Machine weight | 600 kg | 650 kg |
| Standard screw & screen material | AISI 304 stainless steel | AISI 304 stainless steel |
Each complete unit ships with a matched submersible feed pump, PVC piping kit and electrical control cabinet. During quotation, we configure the exact screen slot width (0.5 mm, 0.75 mm or 1.0 mm) and feed-pump head/power to match your reception-pit depth and slurry consistency.
What Can Farms Do With the Separated Solids?
In many dairy manure projects, the immediate destination is a covered storage area. From there, solids may be composted, applied to land or collected by an external processor. Recycled bedding is another possibility, but it requires a separate management plan.
Composting and land application. Recovered fibers can be composted into a more stable soil amendment. Moisture, aeration and turning influence the process, while nutrient testing helps determine appropriate application rates.
Transport to another facility. Farms without sufficient cropland or composting area may send solids to an organic fertilizer producer or centralized processing site. Haulage distance, material moisture and contract charges determine the cost.
Recycled manure solids (RMS) bedding. Some freestall dairies use processed manure fiber as bedding. Freshly pressed solids still contain moisture and microorganisms, so bedding suitability depends on treatment, hygiene controls, stall management and local requirements. We cover the processing options in our RMS bedding guide.
The intended destination should be decided before sizing the solids discharge, conveyor or storage area. A machine running continuously can produce a substantial pile even when its liquid output is being managed efficiently.
Where Does the Separated Liquid Go?
On farms with suitable land, the liquid typically moves into storage until it can be applied to crops. It retains dissolved nutrients and some fine solids, making nutrient testing and application planning important.
Other dairy operations may use the liquid in a managed flushing system or send it through additional settling or biological treatment. Reuse decisions depend on solids content, sanitation needs and the equipment receiving the liquid.
Biogas projects have more than one possible process sequence. A separator may remove coarse solids before digestion, or it may process the digestate after an anaerobic digester. Removing fiber before digestion also removes some organic matter that could otherwise contribute to gas production. The right sequence depends on digester design and the intended use of the separated fractions. The US EPA AgSTAR system guide describes these arrangements.
How Does the Separator Connect to the Barn's Manure System?

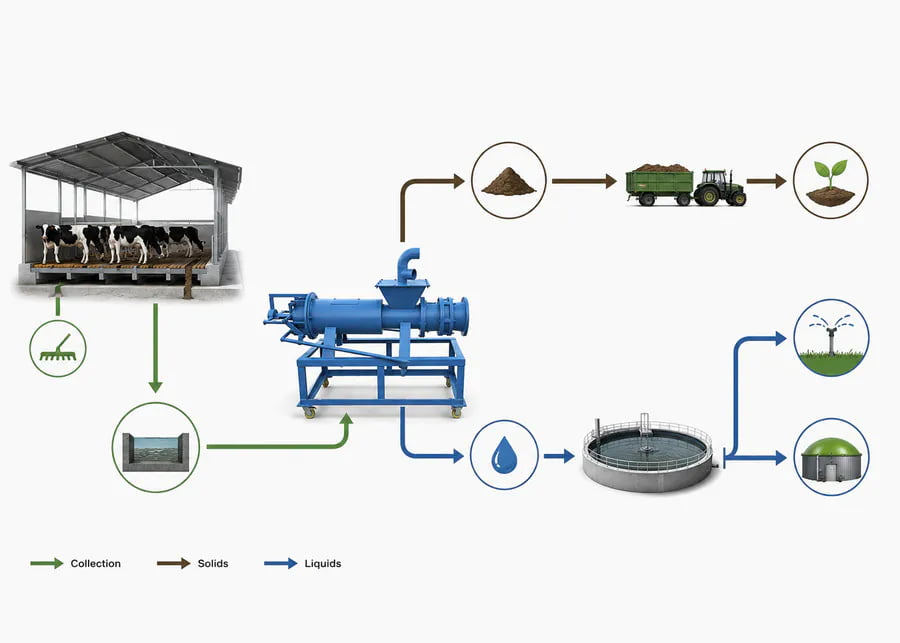

For a dairy using mechanical scrapers, the flow often follows this route:
Barn scraping → collection pit → debris and sand removal where needed → mixing and transfer pump → screw press → separate solid and liquid handling.
Example of collection, separation and output handling. Farms with anaerobic digestion may use a different process sequence.
The most common integration problems are found around the main machine:
- Collection and mixing: The pit needs adequate working volume and mixing for stable feeding. An accumulation of heavy grit calls for its own removal arrangement.
- Pump and piping: The selected pump must handle the actual slurry. Pipe diameter, bends and elevation affect flow and blockage risk.
- Solids discharge: Allow room for the growing solids pile, a conveyor or a loader to reach the discharge area.
- Liquid storage: Size the receiving facility for the liquid volume and the periods when land application is unavailable.
Existing automatic manure scraper systems also influence the timing and volume of slurry entering the collection pit. Coordinating scraping cycles with the separation schedule can make a significant difference to daily operation.

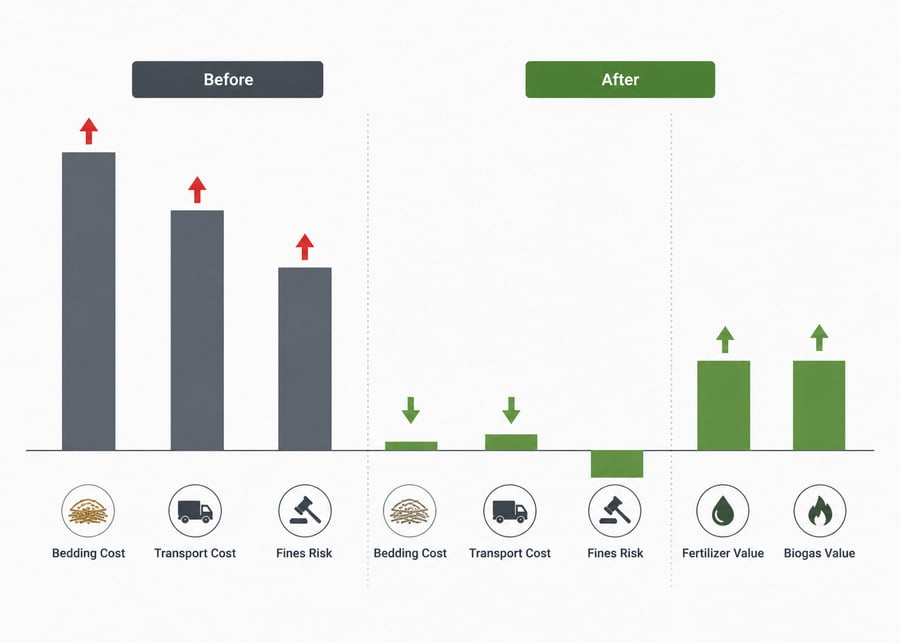

Is Solid-Liquid Separation Worth the Investment?
The return usually comes from lower handling costs and better use of separated material. Reduced sediment cleanouts, easier pumping, less hauling of mixed slurry and a reliable composting or bedding route can all contribute. A farm still pays for the separator, pump, energy, wear parts, labor and downstream storage.
A simple material balance shows what the machine changes. Consider 10 tonnes of slurry per day at 8% TS. That represents 800 kg of dry solids. If the press captures 40% of the dry solids and the resulting cake contains 32% dry matter, the approximate daily balance is:
| Stream | Daily mass |
|---|---|
| Incoming slurry | 10.0 tonnes |
| Separated wet solids | 1.0 tonne |
| Remaining liquid | 9.0 tonnes |
The calculation uses a 40% solids-capture assumption for illustration. The wet solids contain 320 kg of captured dry matter (800 × 40%), and at 32% dry matter they weigh 1,000 kg (320 ÷ 0.32). The remaining mass stays in the liquid stream.
For an operating-cost estimate, our HL-series machines have a 5.5 kW rated main motor. Six hours at that rated power corresponds to 33 kWh for the separator drive. Pumping, mixing and conveying add to the system's electricity use; actual consumption should be taken from measured operating loads.
The next questions are commercial: What does the farm currently pay to handle manure? Can the separated solids be used or removed economically? Will the reduced coarse fiber simplify liquid storage? Those answers provide a more useful payback estimate than a fixed percentage promised for every farm.
What Causes Poor Separation Performance?
Several problems recur across screw-press installations:
- Variable feed consistency. Slurry that alternates between watery liquid and thick settled material causes unstable throughput and inconsistent solids discharge.
- Sand and debris. Stones, metal, long foreign fibers and grit can damage pumps, screens and screw components.
- Incorrect discharge adjustment. Too little resistance leaves the cake wetter; excessive resistance can slow discharge and increase mechanical load.
- Insufficient cleaning and access. Hardened residue and a blocked discharge area can interrupt the next operating cycle.
Regular checks of screens, screws, bearings, gearbox lubrication and the feed pump are part of keeping the system productive. A stable flow from the collection pit generally does more for day-to-day performance than frequent adjustment of the press itself.
Frequently Asked Questions
Does a manure separator reduce lagoon storage requirements?
It reduces the amount of coarse fiber and can reduce liquid volume. Storage capacity still needs to cover the remaining liquid, rainfall, collection cycles and the period between field applications.
Is a screw press suitable for sand-bedded dairy barns?
It can be part of the process, especially where sand is removed upstream. Sand quantity, particle size and the chosen wear components are important considerations.
Do smaller screen openings always give better manure separation?
They generally retain more fine particles, but may also increase cake moisture or restrict throughput. The intended use of the solids and the liquid determines the better screen choice.
Can the separated solids be used directly as cow bedding?
Fresh solids require a bedding-specific hygiene and management assessment. Mechanical separation supplies the fiber; subsequent handling and treatment determine whether it is suitable for use in stalls.
What information helps size a separator for a dairy farm?
Start with daily manure volume, collection method, estimated TS, bedding material, working hours and the destinations for the solids and liquids. These details are more useful than herd size alone.
Conclusion
Solid-liquid separation gives dairy farms a practical way to handle manure in two streams. Removing coarse fiber can simplify liquid storage and pumping, while the solid fraction offers options for composting, transport or further processing. Consistent slurry preparation, sand control and suitable downstream storage determine how much value the system delivers.
At NexAgri Solutions, we supply screw press separators together with compatible pumps, conveying equipment and controls. We can also provide installation and commissioning support, remote technical assistance and on-site guidance for agreed projects.
If you are planning a manure-handling upgrade, contact our team with your daily slurry volume, barn-cleaning method and bedding type. We can help you review a practical equipment configuration for your farm.
