A dairy goat barn can have plenty of fans and still feel hot at animal level. Air may bypass the pens, an evaporative pad may be undersized, or misting may leave bedding damp. These problems become more expensive to correct in large, enclosed facilities where more than 1,000 goats share the same ventilation system.
An effective dairy goat cooling system starts with reliable air exchange, then adds evaporative cooling where the local climate allows it. Fan capacity, inlet placement, humidity monitoring, drainage and control sequences must work together. For farms in hot, dry parts of the Middle East and Africa, a well-designed pad-and-fan system can be a practical option; open-sided or humid-climate barns may need a different approach.
What Should You Check Before Designing a Goat Barn Cooling System?
Start with the building dimensions and local summer weather records. The same equipment will perform differently in a sealed tunnel-ventilated house and an open-sided shed.
| Design input | Why it matters |
|---|---|
| Outdoor dry-bulb temperature and relative humidity | Determine the cooling potential of pads or misting, especially during the hottest occupied hours. |
| Barn length, width and usable cross-section | Set the airflow path, inlet and exhaust positions, and resistance to air movement. |
| Adult goats, youngstock and stocking density | Affect ventilation demand, heat production and the distribution of animals within pens. |
| Roof, insulation and sidewall openings | Influence solar heat gain and whether incoming air can bypass the planned cooling equipment. |
| Floor and manure collection method | Determine where moisture collects and whether a belt system, scraper or bedding management is appropriate. |
| Water supply, quality and electricity | Determine whether evaporative equipment and automated controls can operate through peak summer demand. |
Goats may begin to show heat-stress responses before staff see a major change in milk production. Research reviews commonly associate THI above about 75 with increased heat-stress risk in goats, although the published thresholds and THI equations differ. Observe respiration, appetite, activity and resting behavior along with temperature and humidity. See Heat Stress and Goat Welfare: Adaptation and Production Considerations.
Which Ventilation Layout Works Best for a Dairy Goat Barn?
Ventilation removes accumulated heat, moisture and manure gases. The layout has to bring fresh air through the occupied pens and exhaust it without leaving stagnant corners.
| Barn layout | Practical equipment arrangement | Main design concern |
|---|---|---|
| Enclosed or semi-enclosed barn in a hot, dry climate | Evaporative pads at the controlled inlet, exhaust fans at the opposite end, with a defined longitudinal air path | Air leakage, pad resistance, fan capacity and even air distribution |
| Wide barn better suited to cross-ventilation | Sidewall inlets and fans on the opposite wall, divided into appropriate zones | Reaching middle pens and avoiding short-circuited airflow |
| Open-sided barn | Shade, roof ventilation and appropriately positioned circulation or extraction fans | Wind direction, roof heat and limited ability to draw all incoming air through a wet pad |
In an enclosed tunnel system, the inlet and exhaust need to operate as a pair. If large side openings remain uncontrolled, a portion of the air will enter without passing through the cooling pad. Fans may still run at full speed while the rear pens receive insufficient cooling.
For fan selection, use the fan performance curve at the expected operating static pressure, including resistance from pads, shutters, guards and inlets. Our barn fan systems can be selected and positioned around the barn dimensions, airflow route and required duty point.
How Much Summer Ventilation Does a Large Goat Barn Need?
The University of Missouri Extension's dairy goat housing guidance describes a summer ventilation reference of approximately 150–200 cubic feet per minute (cfm) per adult dairy goat. It is a useful preliminary sizing benchmark for mechanically ventilated housing.
For a barn containing 1,000 adult goats:
- At 150 cfm/goat: about 150,000 cfm, or 255,000 m³/h.
- At 200 cfm/goat: about 200,000 cfm, or 340,000 m³/h.
These figures provide an initial total airflow requirement. The next step is to select the number and arrangement of fans from their rated duty-point airflow, allowing for the pressure drop across the evaporative pads and the building's air path. Barn geometry, animal groups, inlet area and fan staging also need to be checked before the layout is finalized.
When Do Evaporative Cooling Pads Make Sense?
A fan-and-pad system draws outside air through wet pad media before the air moves through the barn. Evaporation lowers the air's dry-bulb temperature and raises its humidity. This works best when the outside air is hot and relatively dry.
Its cooling potential is governed by the difference between the outdoor dry-bulb and wet-bulb temperatures. A simple design estimate is:
Pad outlet temperature ≈ outdoor dry-bulb temperature − pad efficiency × (dry-bulb temperature − wet-bulb temperature)
For an illustrative hot, dry day:
- Outdoor dry-bulb temperature: 38°C
- Outdoor wet-bulb temperature: 24°C
- Assumed pad effectiveness: 70%
- Estimated air temperature immediately leaving the pad: 38 − 0.70 × (38 − 24) = 28.2°C
That is a 9.8°C calculated reduction at the pad outlet, not a guaranteed temperature across every pen. Heat gained along the barn, airflow leakage, pad maintenance and the ventilation rate all affect the result. The calculation follows the principles described in the University of Illinois Extension guide to evaporative cooling pads.
In humid weather, the wet-bulb temperature approaches the dry-bulb temperature, so the available reduction becomes smaller. The control system should respond to actual barn humidity and bedding conditions instead of running the pads whenever air temperature alone rises.
What about high-pressure misting?
Misting can supplement a ventilation system at selected locations, such as an outdoor air inlet or a suitable waiting area. Droplet size, nozzle pressure, water treatment and air movement all influence whether the spray evaporates before reaching surfaces.
For dairy goat housing, the design priority is dry lying areas, dry feed and effective drainage. Fine mist that reaches bedding or keeps pens humid can create a worse environment even when a nearby sensor shows a lower temperature. High-pressure misting and low-pressure pad recirculation also need differently sized pumps, filtration and pipework.
An enclosed, arid-climate barn may suit pads as the main evaporative cooling stage, with limited misting where needed. An open-sided building or a humid coastal site may benefit more from shade, airflow and water access than from additional moisture in the air.
How Should Sensors and a PLC Control the Cooling Equipment?
A practical control system links temperature and humidity sensors → PLC → fan drives, pumps and valves. It should respond to conditions in the areas where goats actually spend time, rather than relying on one sensor near a roof vent.
A typical operating sequence is:
- Base ventilation: Maintain fresh-air exchange and monitor temperature, relative humidity and, where specified, ammonia and CO₂.
- Rising heat load: Stage additional exhaust fans or increase VFD-controlled fan speed.
- Evaporative cooling enabled: Start the pad water circuit when the temperature and humidity conditions support useful cooling and adequate airflow has been established.
- High humidity or wet surfaces: Reduce or stop misting and adjust pad operation while maintaining ventilation. The actual limits are set from the site's climate, sensors and welfare requirements.
- Fault condition: Report sensor, pump, fan or valve faults; use a defined safe ventilation response and provide manual override for authorized staff.
- Log and review: Record alarms, equipment run time and selected environmental measurements so settings can be adjusted after commissioning.
The standard arrangement can use local PLC control with an on-site display. Remote viewing and phone alerts can be added when the project includes a compatible connected management system.
Sensor locations need care. Use representative pen-level positions, shield sensors from direct spray and sun, and avoid placing every probe beside the cooling pad. A humid inlet zone and a hot exhaust-end zone can otherwise give very different readings.
Why Are Manure Removal and Dry Flooring Part of Summer Cooling Design?
Ventilation works harder when manure, wet bedding and trapped moisture are allowed to accumulate. Goat housing must have a way to remove humid air and manure gases while keeping resting areas dry. The Canadian Code of Practice for Goats calls for corrective action when ammonia is detectable by smell or reaches more than 25 ppm; local requirements may be stricter.

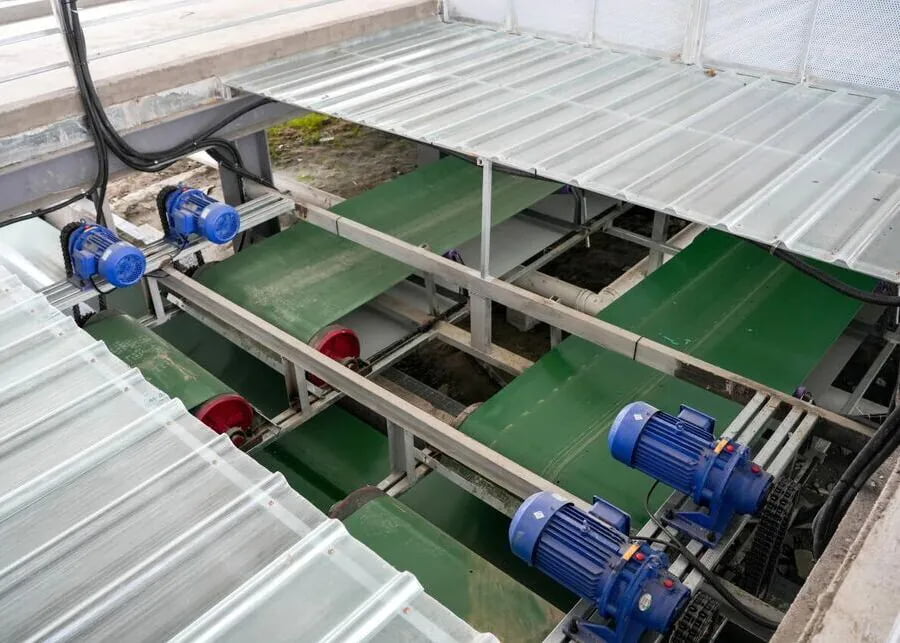

For barns with slatted floors, one equipment option is an automatic manure conveyor belt beneath the slats. It collects droppings below the animal area and moves them toward a discharge point on a programmed schedule. The belt width and layout must fit the supports, pen arrangement, cleaning access and manure characteristics.
NexAgri can supply goat-barn belt-removal configurations with belt tracking, roller-cleaning arrangements and scheduled PLC operation according to the selected system. Ammonia-sensor-linked cleaning can also be incorporated into a configured control scheme, with a minimum cleaning routine maintained independently of the alarm.
Removing manure supports hygiene and moisture management; air exchange remains the primary means of clearing accumulated heat and barn gases. For conventional solid floors, the appropriate cleaning equipment and frequency may be different from an under-slat belt installation.
What Feeding and Water Equipment Should Be Included?
Summer equipment planning should include clean drinking water, reliable automatic refilling and a feeding schedule that makes feed accessible during cooler hours. These services need to be planned alongside the ventilation and cooling equipment.
For large goat units, goat-sized drinking troughs and automatic valves can be arranged around pen groups and traffic routes. Size the incoming water supply for peak simultaneous demand from drinking points and cooling equipment, with separate branches or priority controls where required to maintain dependable water delivery to the animals.
NexAgri supplies goat-specific drinking and feeding equipment and can match TMR mixing and feed-delivery equipment to the farm's daily workflow. For summer ration and milking management, see our dairy goat summer management guide.
What Should Be Tested Before a Cooling System Is Handed Over?
Commissioning should verify airflow, evaporative cooling, humidity control and equipment operation at the intended operating conditions. The handover checklist should cover:
| Commissioning check | What the team verifies |
|---|---|
| Installed airflow | Fan operation at expected static pressure, inlet positions and air movement through occupied pens |
| Pad operation | Uniform wetting, water distribution, drainage, filter condition and actual inlet-air temperature change |
| Humidity protection | Pad and mist response when humidity rises, including dry bedding and absence of water overspray |
| Sensor and control sequence | Sensor readings, VFD stages, pump/valve actions, alarms and manual override |
| Manure handling | Belt tracking, discharge, cleaning access and programmed operating intervals |
| Water and electrical capacity | Available supply during peak fan and pump demand, including emergency operating procedures |
| Operator handover | Cleaning schedules, spare parts, sensor calibration, fault responses and staff training |
In hot, dusty regions, pad scale, algae, blocked filters, worn belts, dust-coated fan guards and damaged sensors deserve scheduled checks. Include water distribution, filter cleaning, belt tracking, sensor calibration and spare-parts availability in the maintenance plan.
Common Dairy Goat Barn Cooling Problems and What to Check
| Symptom | First checks |
|---|---|
| Fans run, but rear pens remain hot | Inlet leakage, fan staging, air short-circuiting, obstructions and delivered airflow |
| Pad is wet, but temperature reduction is small | Outdoor wet-bulb temperature, pad condition, water distribution and air bypass |
| Barn becomes humid or bedding stays wet | Excess misting, inadequate exhaust, blocked drains and unsuitable control settings |
| Ammonia odor persists | Manure-removal frequency, wet manure accumulation and fresh-air distribution |
| Electricity or water costs rise sharply | Continuous full-speed operation, leaks, clogged pads and control schedules |
| Sensors give inconsistent readings | Probe location, direct sunlight, water exposure, wiring and calibration |
A large goat farm should review the results across several summer days, including the hottest period and humid mornings. The goal is consistent air movement and manageable humidity throughout the pens, with equipment that staff can maintain.
Frequently Asked Questions
What is the best cooling system for a dairy goat barn in the Middle East?
For a well-enclosed barn in a hot, dry location, a properly designed evaporative pad-and-fan system is often a strong option. An open-sided barn, or a location with high summer humidity, needs a different balance of shade, ventilation and water-based cooling.
At what THI do dairy goats begin to experience heat stress?
Published research commonly reports increased risk once THI exceeds approximately 75, with more serious stress at higher values. Thresholds vary by breed, acclimation and calculation method. Use animal observations alongside environmental measurements when setting alarms.
Can evaporative pads cool a goat barn by 10°C?
That may be possible at the pad outlet during sufficiently hot, dry weather, but the result depends on the outdoor wet-bulb temperature and pad effectiveness. Conditions inside the barn will also reflect airflow, roof heat and animal load.
Can goat barn fans, wet pads and manure belts work from one controller?
Yes. A project-specific PLC can coordinate fan stages, pump and valve actions, sensor alarms and scheduled manure removal. Local control is available; remote access requires an additional compatible connected system.
How do you calculate the number of exhaust fans for a goat barn?
Divide the total required airflow by the capacity of each fan at the expected operating static pressure. Round up to a workable number of units, then arrange them to provide suitable inlet capacity, coverage and staged operation.
Conclusion
For large dairy goat barns in hot climates, cooling performance depends on the entire airflow path: outside air enters, heat and moisture leave, and evaporative equipment operates only when it can deliver useful cooling without wetting the animal area. Good control logic, manure removal and dependable drinking water complete the system.
At NexAgri Solutions, we design ventilation layouts and supply fans, evaporative pads, local PLC controls, under-floor manure belts and related watering equipment for commercial dairy goat barns. For agreed turnkey projects, we provide on-site installation, commissioning and operator training. Where the farm uses local installation contractors, we can provide installation drawings, engineering guidance and site supervision. Remote technical support and spare-parts assistance are available for ongoing operation.
Share your barn dimensions, goat numbers, local summer climate data and existing drawings through our contact page to discuss an equipment layout and project quotation.
