A milk tanker can arrive with normal-looking milk and still have an abnormal composition. Water may have been deliberately added before delivery, or it may have entered through a poorly drained milk line, tanker or CIP system. Either way, the processor needs a reliable test and a clear decision before the load enters the main raw milk silo.
A cryoscope freezing point test is the reference method for investigating added water in milk. Density and milk-composition tests can flag unusual samples, while supplier records and follow-up testing help explain the result. For dairy plants, the testing method matters as much as how samples are collected, held and released.
How Does a Freezing Point Test Show Added Water in Milk?
Lactose and dissolved minerals lower milk's freezing point below that of pure water. Cow's milk is often reported around −0.54°C, although its natural freezing point varies with herd, season and composition. Added water dilutes those dissolved substances and moves the reading closer to 0°C.
A milk cryoscope measures the freezing point under controlled conditions. ISO 5764:2009 / IDF 108:2009 specifies the thermistor cryoscope reference method used for this measurement.
How to estimate the percentage of added water
When a dairy has a reliable normal freezing-point baseline for the milk supply, it can make an initial calculation:
Estimated added water (%) ≈ (|baseline freezing point| − |sample freezing point|) ÷ |baseline freezing point| × 100
For example, assume a supplier's established baseline is −0.540°C, and the incoming sample reads −0.510°C:
(0.540 − 0.510) ÷ 0.540 × 100 = 5.56% estimated added water.
The example corresponds to a change of 0.030°C. With this particular baseline, a movement of 0.0054°C toward zero corresponds to roughly 1% on the simple calculation.
| Sample freezing point | Change from −0.540°C baseline | Estimated added water |
|---|---|---|
| −0.540°C | 0.000°C | 0.00% |
| −0.530°C | 0.010°C | 1.85% |
| −0.520°C | 0.020°C | 3.70% |
| −0.510°C | 0.030°C | 5.56% |
These figures illustrate the calculation using one established baseline. For an actual acceptance decision, the laboratory also checks sampling, instrument calibration, supplier history and the applicable milk standard. ISO 5764 covers the freezing-point measurement; local rules and the buyer's validated method determine how a calculated water percentage is used.
What freezing point should trigger an investigation?
There is no single worldwide rejection value. Natural milk freezing points differ between regions, and individual buyers may use different screening and acceptance limits. A plant should record its regulatory requirement and, where appropriate, the historical baseline for each supplier or milk pool. A confirmed upward shift toward zero is a reason to check the load and the equipment that handled it.
Can a Lactometer or Milk Analyzer Detect Watered-Down Milk?

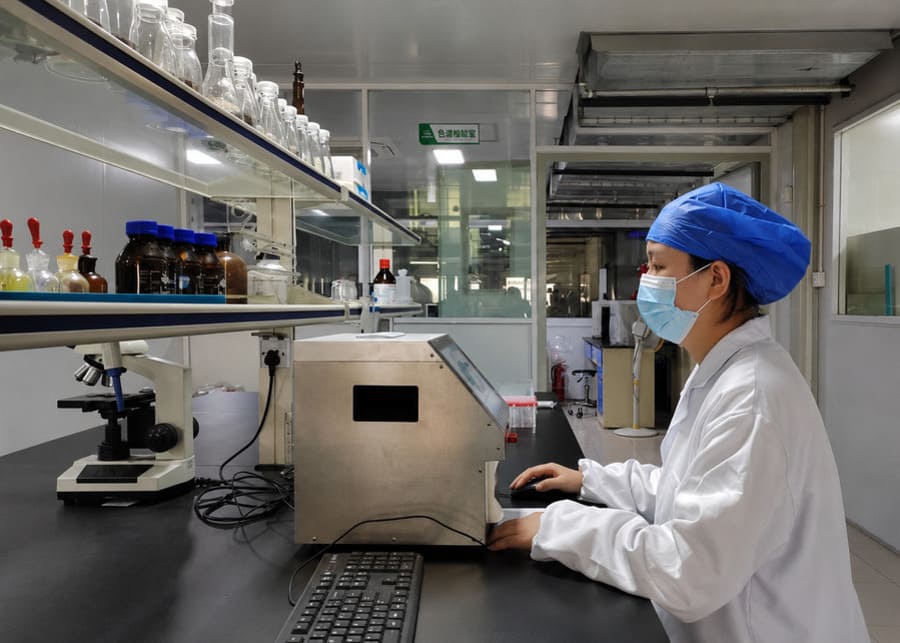

A reception laboratory may use several tests on the same sample. The results are most useful together because milk composition affects more than one physical measurement.
| Method | What it measures | Role in milk reception |
|---|---|---|
| Cryoscope | Milk freezing point | Reference measurement for suspected added water |

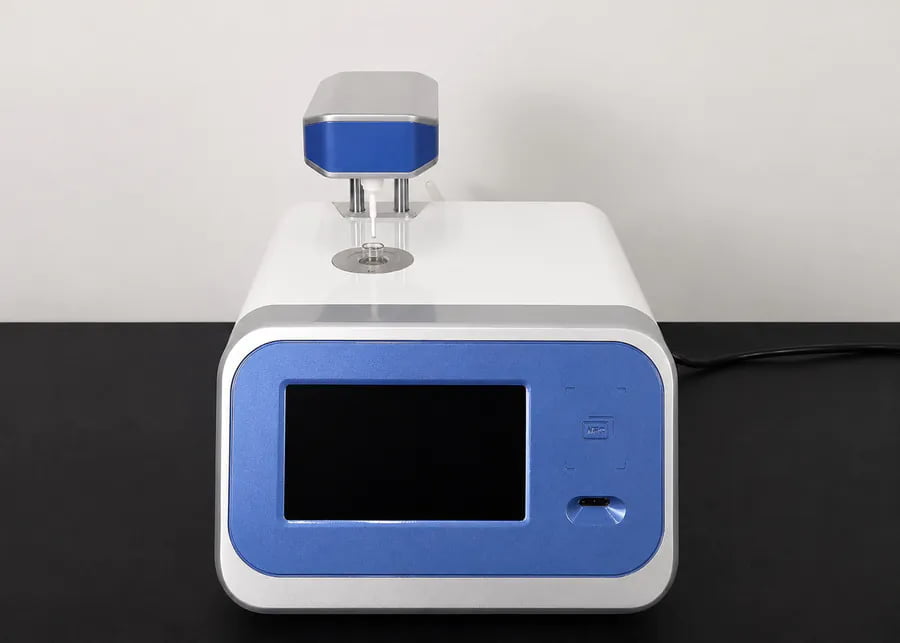

| Lactometer / density meter | Density at a specified temperature | Low-cost screening alongside fat and solids results |
| MIR / FTIR analyzer | Calibrated fat, protein, lactose and other composition values | Supplier grading and quality-based payment |

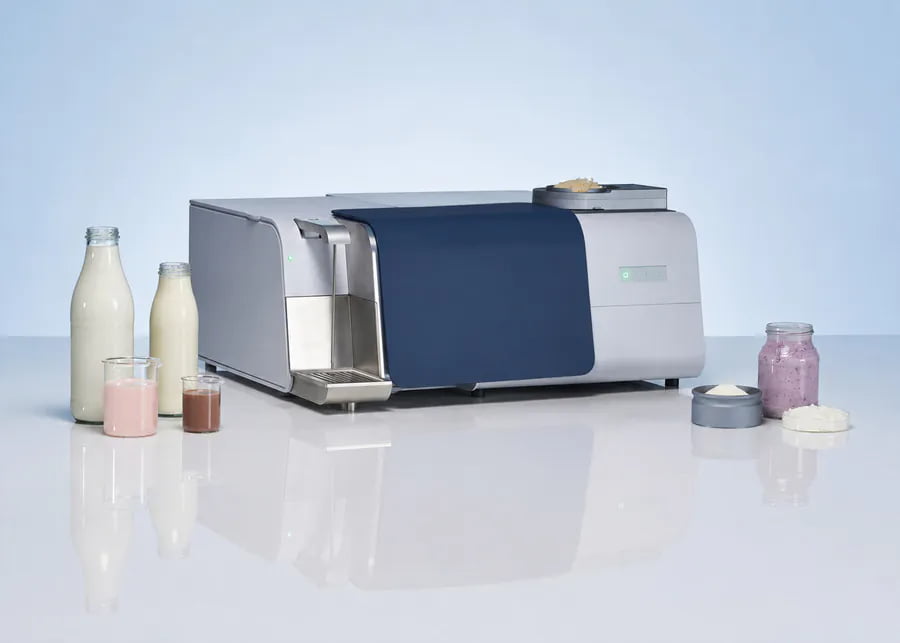

| NIR analyzer | Spectral data interpreted through a validated calibration model | Rapid supplementary composition or adulteration screening |
| Total solids test | Dry matter content | Cross-check of unusually dilute samples |
Density is inexpensive to measure, but fat content and temperature influence the reading. Milk with abnormal density needs further testing; a normal density reading alone cannot establish that the milk is free of added water.
Infrared analyzers are particularly useful when a plant pays suppliers according to fat, protein and other composition results. Some systems offer added-water screening or calculated freezing-point functions, depending on their calibration and installed methods. A cryoscope provides a direct freezing-point measurement when that specific result is needed. ISO 9622:2013 / IDF 141:2013 covers guidance for mid-infrared milk-component measurement.

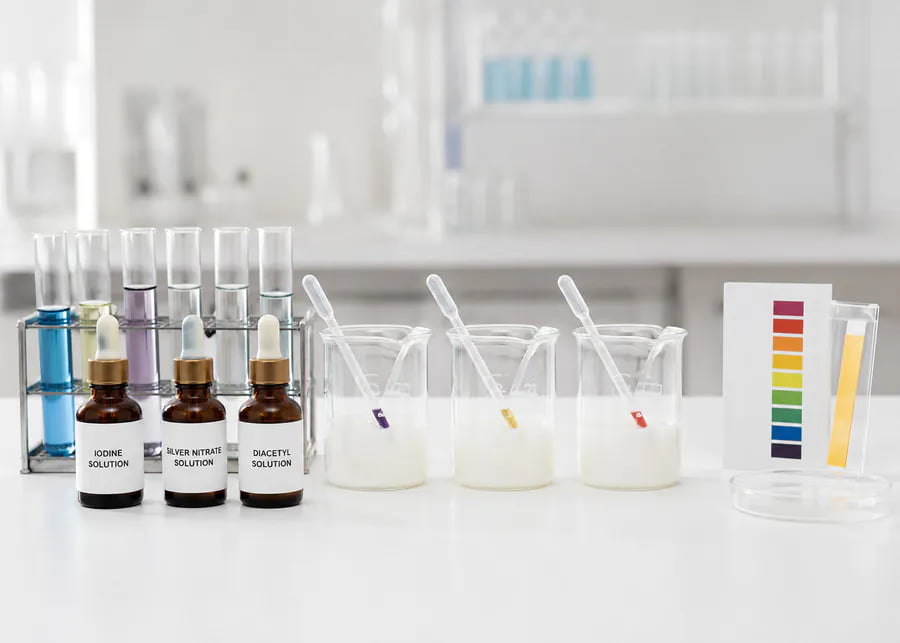

Which Chemical Tests Help Investigate Milk Adulteration?
If a sample has an unusual freezing point, density or composition, a laboratory may also investigate other added substances. These tests identify different problems and should be selected according to the suspected adulterant.
| Substance under investigation | Common laboratory approach | Interpretation |
|---|---|---|
| Starch or flour | Iodine-based starch test | Characteristic color change indicates starch |
| Added salt | Validated chloride analysis | Compare against the milk's natural chloride background |
| Added urea | Quantitative urea analysis | Distinguish an abnormal result from naturally occurring milk urea |
| Neutralizing agents | Specific tests for added alkaline substances | pH may flag a problem but does not identify the additive |
These checks are useful for follow-up investigations and supplier audits. Routine intake testing also needs to address other important hazards, including antibiotic residues, abnormal sensory condition and temperature, according to the plant's approved acceptance plan.
How Can CIP Rinse Water Get Into Raw Milk?
Not every abnormal freezing-point result starts with deliberate adulteration. Residual water can enter a milk load during collection, transfer or changeover from cleaning to production.
Three equipment details are especially important.
Draining tanks and transfer lines
Residual rinse water can remain in pump housings, filters, pipe low points, sampling branches and tank outlets. Drains and pipework need to be designed around the complete flow path. A clean, empty main tank does not guarantee that every connected branch is drained.
Separating the CIP and milk routes
The chosen valve arrangement should prevent unintended connections between cleaning and product lines. Depending on the project, this may involve physical separation or suitable hygienic mixproof valve arrangements. Automatic valves also need reliable position feedback and correct changeover sequencing.
Releasing the line for milk service
A PLC-controlled receiving system can be designed to verify the CIP cycle status, valve positions and required drain or inspection steps before opening the milk route. Recording the changeover and the receiving batch makes later investigation easier. A missed valve movement or an undrained branch is much easier to trace when these events are logged.
These controls are part of how we approach raw milk intake, hygienic piping and CIP integration in NexAgri dairy production lines.
What Should a Dairy Plant Do When a Milk Sample Is Abnormal?
A useful milk test leads to a clear acceptance decision. On a small processing line, this should happen before the tanker is connected to an approved raw milk storage route.
- Verify the delivery. Record supplier or farm, truck and compartment number, seals where used, volume, temperature and arrival time.
- Take a representative sample. Use the approved mixing and sampling procedure, and label separate compartments independently.
- Run intake checks. Follow the plant's requirements for temperature, appearance, odor, antibiotic residues and other rapid tests; add composition and freezing-point testing where specified.
- Hold an abnormal load. Keep it in the tanker or an isolated receiving route while the result is reviewed. Collect a repeat sample when the test method calls for it.
- Release or reject the batch. Record the authorized decision, destination tank, testing result and final disposition.
Receiving flow: identify the load → sample and test → approve or hold → route to the correct tank → record the decision.
This is where layout and automation affect quality control. A plant may have a capable laboratory yet still risk cross-mixing if the rejected-milk route, receiving valves or release permissions are poorly arranged. Canadian Food Inspection Agency guidance describes load-by-load acceptance checks, records and segregation of nonconforming milk.
What Temperature Should Raw Milk Be at Receiving and Storage?
Temperature is one of the first checks on an incoming tanker. The exact acceptance limit depends on the market and the plant's milk supply program.
For a useful regulatory reference, EU Regulation (EC) No 853/2004 sets a normal 10°C maximum on arrival at the processing establishment and calls for accepted milk to be cooled promptly to 6°C or below and maintained there until processing, with specified exceptions. The CFIA dairy processor guidance gives 6°C or below as an example receiving criterion and requires a documented procedure for temperature deviations.
For many dairy cooling projects, 4°C is a practical design target for chilled milk storage. That target gives the process designer a clear basis for selecting refrigeration capacity and milk holding equipment, while the plant follows the legal requirements of its destination market.
A plate heat exchanger (PHE) can pre-cool milk before a refrigerated holding tank where the process requires it. The final design depends on incoming milk temperature, peak hourly receiving flow, chilled-water temperature and required holding time. A milk load arriving above the plant's acceptance limit still needs a documented assessment; cooling it after arrival does not reverse earlier microbial growth or automatically make it acceptable.
Small processors should size the reception and cooling system around the busiest delivery period, not only the average daily volume. A plant receiving most of its milk in the morning may need several hours of refrigerated buffer capacity before pasteurization begins.
NexAgri supplies milk cooling tanks, sanitary transfer equipment and milk processing lines. We can match tank capacity, cooling equipment and receiving flow to the plant's planned daily schedule.
How Should a Small Dairy Plant Equip Its Receiving Area?
The receiving area needs to connect laboratory results to the actual movement of milk. Planning these functions before installing the pasteurizer avoids costly changes to piping and tank layout later.
A practical equipment package may include:
- Sampling and measurement: Hygienic sampling points, flow measurement and a dedicated sample identification process.
- Receiving and storage: Filters, sanitary pumps, receiving vessels, refrigerated tanks or silos, and separate handling for batches under investigation.
- Testing equipment: A project-matched laboratory package with milk composition analysis, freezing-point testing and other instruments selected to the plant's acceptance requirements.
- Control and traceability: Valves, position feedback, PLC logic and batch records linking each delivery to its testing and storage decision.
- Cleaning and drainage: Drainable pipework, hygienic valve arrangements and an appropriate CIP system.
At NexAgri Solutions, we can supply a matched raw milk reception and laboratory equipment package alongside the intake and processing line. Our work can cover equipment selection, receiving-area layout, sanitary piping, cooling, control integration, installation, commissioning and operator training. Laboratory instruments are selected and sourced for the specific project rather than treated as a fixed part of every processing line.
Frequently Asked Questions
What is the most reliable test for added water in milk?
The thermistor cryoscope freezing-point method is the international reference approach. It is especially useful when the laboratory has a validated baseline and appropriate acceptance criteria.
How do you calculate the percentage of added water from freezing point?
Subtract the absolute sample freezing-point value from the absolute baseline value, divide by the absolute baseline, and multiply by 100. For example, −0.540°C to −0.510°C gives an approximate 5.56% using the simple baseline calculation.
Does a freezing point of −0.520°C mean the milk is adulterated?
It needs to be interpreted against the applicable local standard and the supply's normal freezing point. Regional and seasonal differences affect the expected range.
Can a lactometer replace a cryoscope?
A lactometer is helpful for low-cost screening, but density is influenced by fat, temperature and other compositional changes. A cryoscope measures freezing point directly.
Can a milk cooler fix a tanker load that arrived too warm?
Cooling controls the milk's temperature after receipt. The processor must still follow its acceptance and deviation procedure to decide whether that load can enter production.
Can cleaning water cause a failed freezing-point test?
Yes. Water retained in a tanker, tank outlet, filter, pump or CIP-connected pipe can enter the next batch. Drainage and correct line changeover should be part of the investigation.
Conclusion
Freezing-point testing provides a practical way to investigate added water in milk, and a simple baseline calculation can give an estimated dilution percentage. Density, composition and targeted tests help the laboratory check the wider picture. Reliable receiving procedures keep an abnormal batch from reaching approved milk storage before the results are reviewed.
For a dairy plant, the equipment side of quality control includes sampling access, cold storage, drainable piping, CIP separation and authorized milk routing. NexAgri Solutions can supply these systems as part of a coordinated dairy processing line. Contact our team with your daily milk intake, delivery schedule and planned products to discuss a suitable receiving and processing configuration.
