A manure separator divides slurry into two streams that can be handled differently: a fibrous solid fraction and a liquid fraction containing water, dissolved nutrients and remaining fine particles. The practical benefit is easier manure handling and more options for storage, further treatment and on-farm reuse.

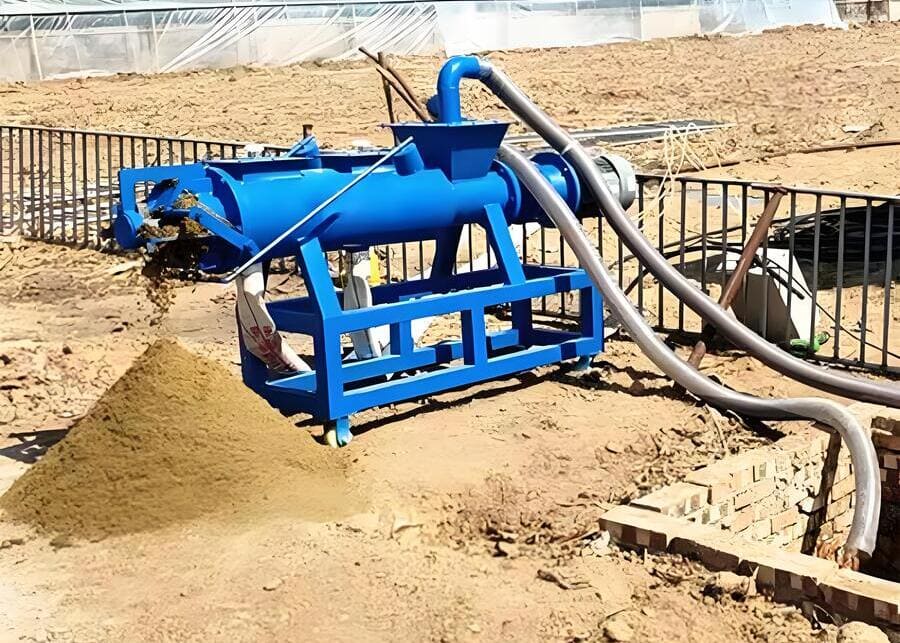

In a screw press manure separator, pumpable slurry enters a screened chamber. A rotating screw moves the material forward and applies pressure, allowing liquid to pass through the screen while the retained solids leave through a separate outlet. The solids may be further processed for compost or, under an appropriate hygiene programme, recycled dairy bedding. The liquid still needs a storage, land-application or treatment plan.
The right system depends on more than herd size or motor power. Before selecting a machine, a farm needs to know what enters it, how much slurry must be processed each day, and where both separated streams will go.
What Does Solid-Liquid Manure Separation Actually Achieve?
A separator changes the physical form of the manure. It does not remove every nutrient, destroy every pathogen or turn the separated liquid into clean water.
| Output | What changes | What the farm still needs to manage |
|---|---|---|
| Separated solids | A more concentrated fibrous material that is easier to collect or transport than raw slurry | Moisture, storage, possible composting or drying, hygiene and final use |
| Separated liquid | Lower coarse-fiber content and often easier pumping or transfer | Dissolved nutrients, fine solids, pathogens, storage, treatment and land-application limits |
This distinction matters when estimating the value of a separator. Reducing coarse solids in a storage system may reduce some sediment-handling work, but the farm still has to manage the liquid volume and nutrients. The actual outcome depends on the separator and the complete manure system.
Which Type of Manure Separator Is Right for Your Farm?

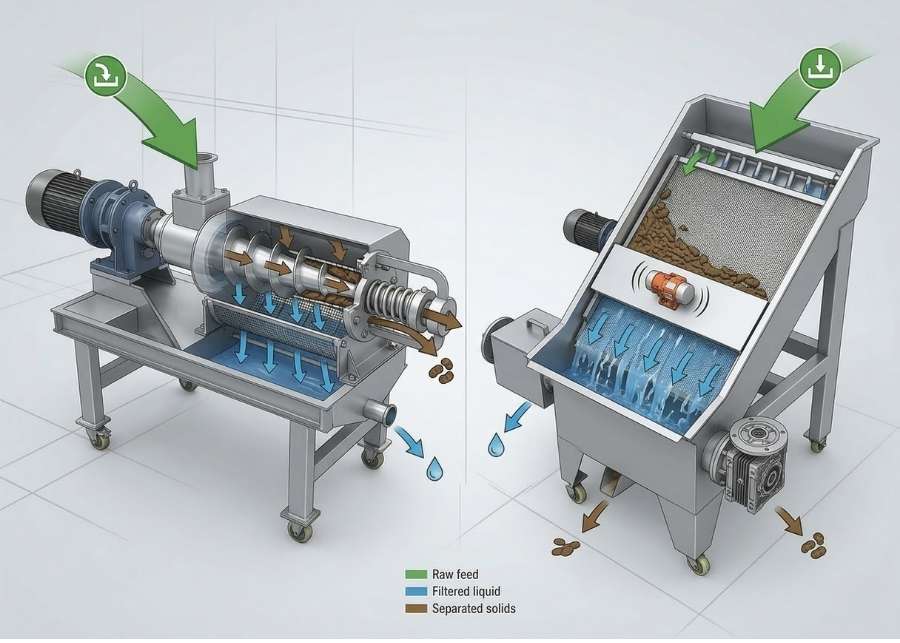

Two common mechanical options are screw press separators and sloped screen separators. They work differently and are not interchangeable for every type of manure.
| Selection factor | Screw press separator | Sloped screen separator |
|---|---|---|
| Separation method | Screw conveys and compresses slurry against a screen | Liquid drains through an inclined screen under gravity |
| Typical feed characteristic | Pumpable slurry with sufficient suspended and fibrous solids | More dilute, free-flowing flushed manure |
| Main strength | Mechanical dewatering of retained solids | Removing larger particles from high-flow, dilute streams |
| Main limitation | Abrasive sand, long fibers, unsuitable solids concentration or difficult pumping | Wet separated solids, fine particles passing through the screen and screen cleaning |
| Possible system role | Stand-alone separation or a stage within a larger process | Primary screening or pretreatment before further separation |
As a general research guide, NC State Extension reports that screw presses tend to remove solids more effectively from slurry containing more than about 4% total solids, while sloped screens are commonly used for slurry in the 2%–4% dry-matter range. These are not universal operating limits; manufacturer configuration and actual manure characteristics still determine suitability. See NC State's screw press guide and sloped screen guide.
Feed preparation matters as much as separator type
- Scraped dairy manure: Check whether it is pumpable and how much bedding fiber it contains. Sand-bedded manure may require grit or sand separation first.
- Flush-system manure: Often needs evaluation for its low solids concentration. A sloped screen or multistage design may be more appropriate than a screw press alone.
- Straw-rich manure: Long fibers, bedding clumps and foreign objects can affect pumps and screens. Cutting, screening or other preparation may be needed.
- Digested slurry: A screw press may be used to manage digestate, but fiber structure and solids content can differ from fresh manure.
- Dry poultry litter or nearly solid manure: Do not assume it can be pumped directly into a conventional slurry-fed screw press. A different handling process may be more practical.
Diluting manure simply to make it pumpable is not always economical: additional water increases the volume that must later be stored, moved or treated. A representative feed sample and, where possible, a trial under realistic conditions provide better selection data than a description such as “thick cow manure.”
How Does a Screw Press Manure Separator Work?
A screw press is one part of a manure-handling line. The typical operating sequence has five stages.

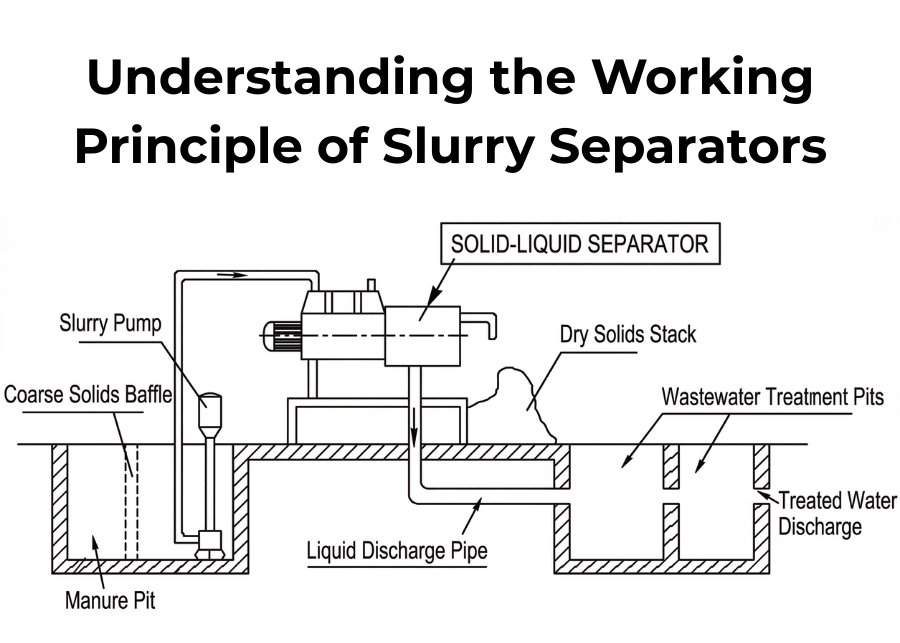

Illustrative layout: solids are collected separately, while liquid is stored for further treatment or an approved nutrient-management route. Separation alone does not establish discharge compliance.
1. Collect and condition the manure
Manure is collected from scraper alleys, channels or other collection points. Depending on the site, a reception pit, mixing equipment, coarse screening or sand removal may be needed to provide a reasonably consistent feed to the separator.
2. Transfer slurry to the separator
A suitable pump delivers the slurry at a rate the machine can accept. Feed piping, valves, levels and controls should be designed together so the separator is not repeatedly starved, overloaded or flooded.
3. Move and screen the material
Inside the machine, a rotating screw conveys manure through a screen. Part of the liquid drains through the openings, while larger retained particles remain in the press chamber.
4. Apply pressure and discharge solids
Resistance near the discharge end helps express additional liquid. Adjusting discharge resistance may change the solids' dry-matter content, but it can also affect throughput, screen loading, power demand and the risk of plugging. Higher pressure is not automatically the best operating setting.
5. Handle each output separately
The solid fraction needs a collection area, conveyor or container and an identified downstream use. The liquid needs controlled transfer to suitable storage, further treatment or a nutrient-management system. Keeping both routes clear is essential for continuous operation.
The process can be automated, but it is not maintenance-free. Pumping, screening, bearings, seals, wear parts and discharge areas still require checks and cleaning.
How Dry Are the Solids From a Manure Separator?
One of the most common purchasing errors is confusing dry matter with moisture content.
- 30% dry matter (DM) means 30 kg of dry material and approximately 70 kg of water in every 100 kg of wet separated solids.
- 30% moisture means approximately 70% dry matter—a very different, much drier product.
Research summarized by NC State Extension describes separated screw press solids with dry-matter content around 30% in the systems reviewed, with substantial variation. A machine's actual result depends on incoming manure, particle size, screen openings, fiber, feed rate and discharge settings.
Do not treat a brochure's highest dry-matter value as a constant operating guarantee. For equipment evaluation, request three distinct measurements:
| Performance measure | Why it matters |
|---|---|
| Incoming total solids (% DM) | Describes the slurry being fed into the machine |
| Separated solids dry matter (% DM) | Shows how concentrated the discharged solid fraction is |
| Total-solids capture (%) | Shows what proportion of incoming dry solids is retained in the solid stream |
The machine's slurry throughput (m³/h) is a fourth, separate measure. A separator can produce relatively dry solids while capturing a smaller proportion of the feed's total solids; these results should not be confused.
A simple material-balance example
Consider 1,000 kg of slurry containing 8% total solids. This example assumes that 60% of the incoming dry solids are captured and that the discharged cake is 30% dry matter. These values are illustrative assumptions, not NexAgri machine specifications.
| Calculation | Result |
|---|---|
| Dry solids entering the machine: 1,000 × 8% | 80 kg |
| Dry solids captured: 80 × 60% | 48 kg |
| Wet separated solids: 48 ÷ 30% | 160 kg |
| Remaining liquid stream: 1,000 − 160 | 840 kg |
The remaining liquid still contains 32 kg of the incoming dry solids, along with most of the original water. This is why measuring only cake dryness does not tell a farm how much material has actually been removed from its liquid stream.
For a real project, the calculation should be based on sampled manure and a defined equipment operating condition.
What Can You Do With the Separated Manure Solids?
Separated manure solids can be useful, but their value depends on how they are processed and whether the farm has a safe, lawful and economical use for them.
Compost and fertilizer production
Separated solids can be a feedstock for controlled composting and, where appropriate, land application. Mechanical separation alone does not mean the material is fully composted or ready for sale as a finished organic fertilizer.
Plan for moisture and aeration management, sufficient treatment time, nutrient testing, runoff control and any local fertilizer rules. The business case is stronger when the farm has suitable land or a dependable buyer, rather than assuming every tonne of solids will be sold.
Recycled manure solids (RMS) for dairy bedding
Using processed manure fiber as dairy bedding can reduce purchases of other bedding materials on some farms. It also introduces hygiene requirements that must be considered before installation.
Freshly separated manure solids are not automatically hygienic bedding. Depending on the chosen management programme and local rules, additional drying or biological treatment, suitable storage and regular bedding management may be needed. Monitor moisture, cleanliness, environmental pathogens, udder health, mastitis and somatic cell counts. An operating temperature or short processing time alone is not proof of safety.
A review of recycled manure solids bedding highlights how farm conditions and hygiene management affect the risk, especially when practices are transferred between climates. RMS is a management system, not simply another name for separator discharge.
Other processing and external sales
Some operations send separated solids to composting businesses, use them in permitted soil-improvement applications, or evaluate further processing such as pellet production. All of these options require suitable quality, transportation economics and a market.
Keep separated manure out of livestock feed. Mechanical dewatering does not make it a safe feed ingredient.
What Happens to the Separated Liquid?
The liquid stream is easier to move through some pipes and pumps because a portion of the larger fiber has been removed. However, it still contains fine suspended material, organic matter, dissolved nitrogen and potassium, and potentially pathogenic organisms.
Possible destinations include:
- A suitably designed liquid-manure storage facility.
- A farm nutrient-recycling or land-application system, where permitted and supported by nutrient testing.
- Additional treatment, including settling, biological treatment or other site-specific processes.
A separator is not a wastewater purification unit. Removing fiber does not automatically make the liquid safe for discharge to a river, drainage channel or unrestricted irrigation system.
When assessing the downstream system, consider wet-season storage, available farmland, nutrient application limits, pumping equipment and the possibility of remaining sediment or clogging.
Should the Separator Go Before or After a Biogas Digester?
There is no universal answer. The correct location depends on whether the priority is protecting equipment, preserving biogas feedstock, managing digestate or producing a usable solid fraction.
| Location | Possible benefit | Important trade-off |
|---|---|---|
| Before anaerobic digestion | Removes selected coarse solids, potentially reducing fibrous loading and downstream handling problems | May remove biodegradable material that could otherwise produce biogas |
| After anaerobic digestion | Separates digestate into fractions for further storage, composting or land application | Does not solve all upstream grit, floating-layer or mixing problems in the digester |
| No screw press at that point | Retains feed characteristics required by certain digestion systems | May require other solids-handling or pretreatment methods |
For sand-bedded dairy manure, sand removal is a separate engineering decision; an ordinary manure screw press should not be assumed to replace an appropriate grit-separation system.
If methane production is the main project objective, review the digester's organic loading, volatile solids and methane potential before removing a large portion of the solids. If digestate handling is the priority, downstream separation may be more appropriate. The University of Wisconsin manure separation guide discusses separators operating before or after digesters within different process layouts.
What Does a Complete Manure Separation Process Need?
A separator cannot operate continuously if the farm has nowhere to collect incoming slurry or receive the two outputs. A typical process is:
Manure collection → Feed conditioning and storage (as needed) → Pump and flow control → Screw press separator → Separate solid and liquid handling.
The actual supporting equipment depends on the manure collection system and the project boundary.
| Process area | Questions to answer during planning |
|---|---|
| Collection | Where does manure arrive, and how variable is the daily flow? |
| Feed preparation | Is mixing, debris screening, fiber cutting or sand removal needed? |
| Pumping | Can the pump handle the slurry at the required pressure and rate? |
| Separator | Which screen and discharge arrangement suit the feed and desired output? |
| Solids discharge | Is there enough space for collection, transfer and weather-protected storage? |
| Liquid discharge | Where will the liquid go, and is the available storage sufficient? |
| Utilities and safety | Is electrical capacity adequate, and are guards, access and maintenance procedures in place? |
Manure pits and enclosed storages can release hazardous gases, especially during agitation. Collection and maintenance arrangements must follow an appropriate site safety procedure; workers must not enter confined manure spaces without trained, authorized precautions.
The most frequently underestimated items are often feed consistency, sand handling, discharge space and liquid storage, rather than the footprint of the separator itself.
What Does a Manure Separator Really Save?
The value of separation is usually a combination of avoided handling costs, improved downstream processing and potentially useful solids. It should not be calculated by multiplying the wet solid output by an assumed fertilizer selling price.
| Potential financial benefit | Costs that must also be included |
|---|---|
| Less coarse-fiber accumulation in some storage or transfer systems | Equipment purchase, installation and maintenance |
| Reduced hauling of selected solid material | Pumping, mixing, separation and conveying electricity |
| Partial replacement of purchased bedding, where RMS is suitable | Further treatment, bedding management and hygiene monitoring |
| Compost or other product sales, if a buyer exists | Processing, quality testing, packaging, labor and transport |
| Better integration with a nutrient-management plan | Liquid storage, handling and permitted application costs |
A practical annual comparison is:
Annual operating benefit = Verified cost savings + Realistic additional revenue − Added operating and downstream treatment costs.
Then compare that operating benefit with the full project investment, including site works and the cost of capital. Do not count the same solids twice as both bedding savings and sold product. Without measured slurry composition, local operating costs and a confirmed end use, a fixed payback period is not credible.
What Information Should You Send Before Requesting a Separator Quote?
For a useful equipment recommendation, prepare the following information:
- Livestock and collection system: Dairy cows, beef cattle, pigs or other stock; scraper collection, flushing, bedding system or digester discharge.
- Actual manure volume: Cubic meters per day, peak collection rate and preferred daily operating hours.
- Slurry condition: Approximate total solids or moisture, presence of long fibers, sand, grit and foreign objects. Provide a representative sample analysis where possible.
- Project objective: Easier liquid handling, compost feedstock, possible RMS bedding, digestate management or another defined goal.
- Existing infrastructure: Collection layout, pit dimensions, pump arrangements, power supply, access and available discharge area.
- Output destination: How solids will be stored or treated and how the liquid will be contained, processed or land-applied.
NexAgri supplies screw press manure separation equipment for livestock operations. Machine model, capacity and expected output characteristics should be confirmed against the actual manure and agreed operating conditions before quotation. Site-specific civil works and any wider treatment equipment should be defined separately in the project scope.
Frequently Asked Questions
Does a screw press turn manure into dry fertilizer?
No. It separates a wetter input into a solids-rich fraction and a liquid fraction. The solids may still contain substantial moisture and may require composting, drying, testing or other processing before their intended use.
What is the difference between 30% dry matter and 30% moisture?
At 30% dry matter, a 100 kg sample contains about 30 kg of dry solids and 70 kg of water. At 30% moisture, it contains about 70 kg of dry solids and 30 kg of water. Always check which measure a specification uses.
Can separated manure solids go directly into dairy cow stalls?
Do not assume so. Recycled manure bedding requires an appropriate handling and hygiene programme, and its suitability depends on local conditions and veterinary, milk-quality and regulatory requirements. Mechanical separation alone does not make bedding sanitary.
Will the separated liquid be clean enough to discharge?
No. The liquid can still contain dissolved nutrients, organic matter, microbes and fine solids. It must be managed according to its tested quality and the relevant storage, treatment or land-application rules.
Is a screw press suitable for sand-bedded dairy manure?
It may be part of the system, but sand is abrasive and can damage pumps, screens and screws. First assess sand concentration and the need for appropriate sand or grit separation.
Does a larger motor guarantee higher throughput?
No. Throughput depends on slurry properties, screen design, feed pumping and discharge settings, not motor power alone. Ask for performance information under conditions comparable to your farm.
Should manure be separated before or after biogas production?
Either can be appropriate. Upstream separation may reduce selected solids entering the digester but can remove biogas-producing organic matter. Downstream separation helps manage digestate. The choice should follow the digestion process and the farm's primary objective.
Conclusion
A manure separator turns one difficult-to-handle slurry stream into two streams that can be managed for different purposes. The screw press provides mechanical separation; the farm's collection system, treatment decisions and end-use plan determine whether that separation creates real value.
Before buying, check the incoming manure, sand and fiber content, actual daily volume, expected output characteristics and the full cost of handling both fractions. When those details are clear, the farm can compare the equipment proposal with its storage capacity, treatment needs and daily handling costs.
