A large water trough does not always mean your dairy cows have enough water.
A trough may hold hundreds of liters, yet the water level can fall quickly when several cows drink at once. The problem may not be the trough itself. It could be an undersized supply pipe, a slow float valve, poor placement, or insufficient drinking space.
The right dairy cow water trough must provide enough accessible drinking space, refill quickly during peak demand, and remain easy to clean and maintain.
For commercial dairy barns, five factors deserve attention:
- Refill rate and water-supply reliability.
- Accessible drinking space and the number of watering points.
- Trough placement and cow traffic.
- Drainage, cleaning, and maintenance.
- Construction material and winter freeze protection.
From an equipment planning perspective, one of the most easily overlooked mistakes is choosing a large trough without checking how quickly the inlet system can replace the water cows drink.
A poor location is usually visible. Inadequate refill capacity may remain unnoticed until the busiest drinking period.
This guide explains how to assess both problems before purchasing or installing dairy barn water troughs.
1. Why Does Refill Rate Matter More Than Trough Volume?
Trough capacity and refill rate perform different functions.
Trough volume provides a temporary water reserve. Refill rate determines how quickly that reserve is restored.
Consider two watering systems:
- Trough A: A large tank with a slow inlet valve.
- Trough B: A smaller tank with a reliable, high-flow refill system.
When only one cow is drinking, both may appear satisfactory.
The difference becomes clear when several cows arrive after milking or feeding.
If water is removed faster than it enters, the level falls. Cows drinking later may have less water available.
What Determines Actual Refill Performance?
The complete supply system matters:
- Main water-pipe diameter.
- Branch pipe size and length.
- Water pressure at the trough.
- Float-valve flow capacity.
- Water demand from other farm equipment.
- Pressure losses through fittings and valves.
- Sediment or blockage in the supply line.
A float valve advertised as high-flow may not achieve that performance when installed on an inadequate water-supply line.
This is why equipment specifications should be checked against actual site conditions.
How Can You Check Refill Rate?
A practical test is to measure water delivery at the intended installation point.
Where safe and practical, farm staff or a qualified installer can:
- Measure actual flow with suitable equipment.
- Check the water level and refill-valve operation.
- Repeat the test when other major water-consuming systems are operating.
- Observe trough recovery during a normal peak drinking period.
- Investigate substantial pressure drops, slow recovery, or valve restrictions.
The result should represent the installed system, not just the valve's laboratory rating.
The Merck Veterinary Manual notes that individual cows may drink at approximately 4–15 L/min during a drinking event. Because several animals may drink simultaneously, both water availability and refill capacity must be considered.
Is 20 L/min Enough for a Dairy Cow Trough?
It depends.
A measured refill rate of 20 L/min may work for one arrangement but be insufficient for another.
The answer depends on the number of cows drinking, how long they drink, the usable water reserve, and the rest of the water system.
Do not use a single refill-flow number as a universal specification for every herd and trough.
Instead, test whether the water level remains suitable under realistic peak-demand conditions.
2. How Many Water Troughs Does a Dairy Farm Need?
The number of troughs should be calculated by cow group rather than total farm size alone.
For example, a 300-cow farm divided into three groups requires a different watering layout from a 300-cow farm where all animals share one large pen.
Start with:
Cow Group Size → Accessible Drinking Space → Watering Locations → Peak Refill Capacity
Consider Accessible Drinking Space
Penn State Extension gives 3.5–4 inches (about 9–10 cm) of accessible waterer perimeter per cow as a starting point for planning.
For a 100-cow group, that is about 9–10 m of usable drinking edge distributed across the pen.
When calculating accessible drinking space:
- Count only edges cows can actually reach.
- Do not count a wall-facing or blocked side.
- Check whether cows can stand and drink comfortably.
- Allow sufficient room for approaching and leaving.
- Avoid placing all drinking capacity in one congested location.
Observe peak drinking periods for queues and slow refill before choosing the number and length of troughs.
Distribute Watering Points Across the Cow Group
For group-housed dairy cows, providing at least two separated watering locations per group is commonly recommended.
This reduces dependence on a single location and helps prevent dominant animals from restricting access.
| Herd Size | Preliminary Planning Approach | Important Check |
|---|---|---|
| 100 cows | Two separated watering locations can be a starting point for one group | Verify total accessible drinking space, flow, and actual barn layout |
| 300 cows | Three or four distributed locations may be considered for a large group | Recalculate separately if cows are housed in multiple pens |
| 1,000+ cows | Design watering points for each independently housed group | Avoid using one farm-wide trough count; verify every group's access and supply capacity |
These are illustrative planning approaches, not fixed purchasing quantities.
A farm with ten separately housed groups may need considerably more individual drinking locations than one with only a few large groups.

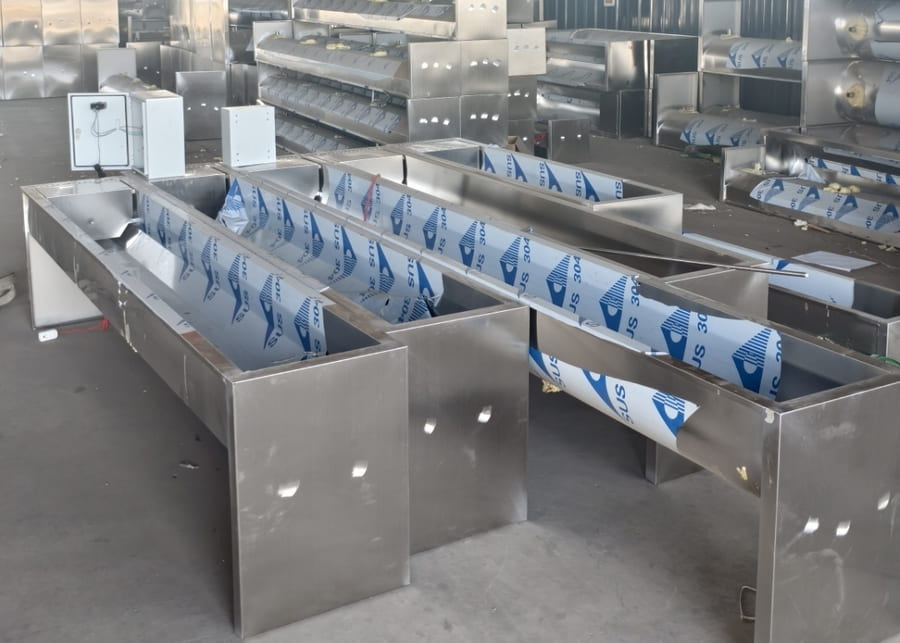

Why Is One Long Trough Not Always Better?
A single long trough can provide considerable drinking space, but it may also concentrate cow traffic in one area.
Several well-positioned watering points can help:
- Reduce unnecessary walking.
- Improve access for lower-ranking cows.
- Reduce local congestion.
- Provide access when one trough is being cleaned or serviced.
However, adding more troughs will not solve a water-supply problem if the main pipe and available flow remain inadequate.
The distribution system must support the full installation.

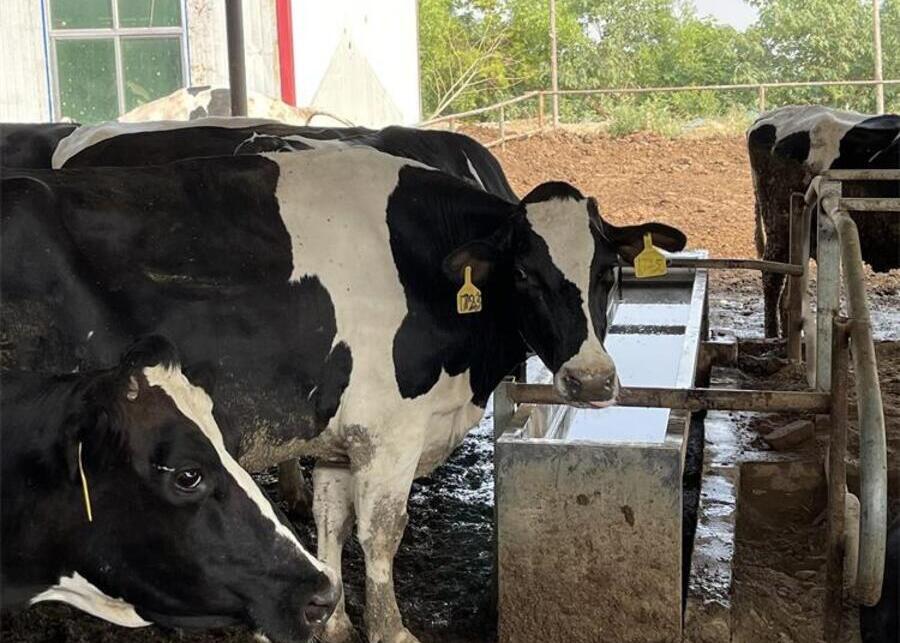

3. Where Should Cow Water Troughs Be Installed?
Correct placement is just as important as the equipment specification.
Cows should be able to approach the trough, drink, and leave without interfering with normal barn traffic.
Common locations to evaluate include:
- Suitable areas near feeding lines.
- Wide freestall crossovers.
- Locations accessible after milking.
- Outdoor exercise areas with adequate access.
- Other open areas that can accommodate drinking activity.
Avoid Narrow Passages and Corners
A trough installed in a narrow passage may block other cows when one or two animals stop to drink.
Problems can also occur when the trough is placed:
- Immediately beside a sharp turn.
- In front of a gate.
- Near a crowded sorting point.
- In a location shared with machinery.
- Too far from commonly used feeding or milking routes.
The correct location should support three simple actions:
Approach → Drink → Leave
If a drinking cow blocks the main passage, the location may need to be reconsidered.
Plan Watering Points Before Finalizing the Barn
For a new dairy barn, trough positions should be reviewed together with:
- Cow movement routes.
- Freestall crossovers.
- Feed alleys.
- Manure scraper routes.
- Water supply and drainage.
- Electrical access for heated models.
- Equipment service clearance.
A small change in position during the design stage is usually easier than relocating water pipes, drains, and concrete anchors after construction.
What About an Existing Dairy Barn?
If the barn is already operating, focus first on problems affecting access.
Check whether:
- Cows must travel unnecessarily far to drink.
- Drinking animals regularly obstruct an alley.
- The surrounding floor remains wet.
- Watering points are difficult for some groups to reach.
These problems often deserve attention before replacing an otherwise serviceable trough with a more expensive model.
4. What Should Be Checked Before Installing a Water Trough?
Installing a trough involves more than placing a tank on the floor.
The trough must work with the barn's plumbing, drainage, structural protection, and maintenance arrangements.
Verify the Water Supply
Before installation, confirm the actual supply conditions:
| Item | What to Confirm |
|---|---|
| Supply pipe | Suitable diameter, routing, and available capacity |
| Water pressure | Adequate pressure under expected operating conditions |
| Float valve | Compatible flow, shutoff function, and service access |
| Water level | Consistent level during normal use |
| Water quality | Suitable drinking-water quality and any necessary testing or treatment |
| Isolation valve | Accessible shutoff for maintenance |
| Peak demand | Performance when other farm water systems operate |
Do not assume that a larger trough or larger float valve will compensate for an undersized supply line.

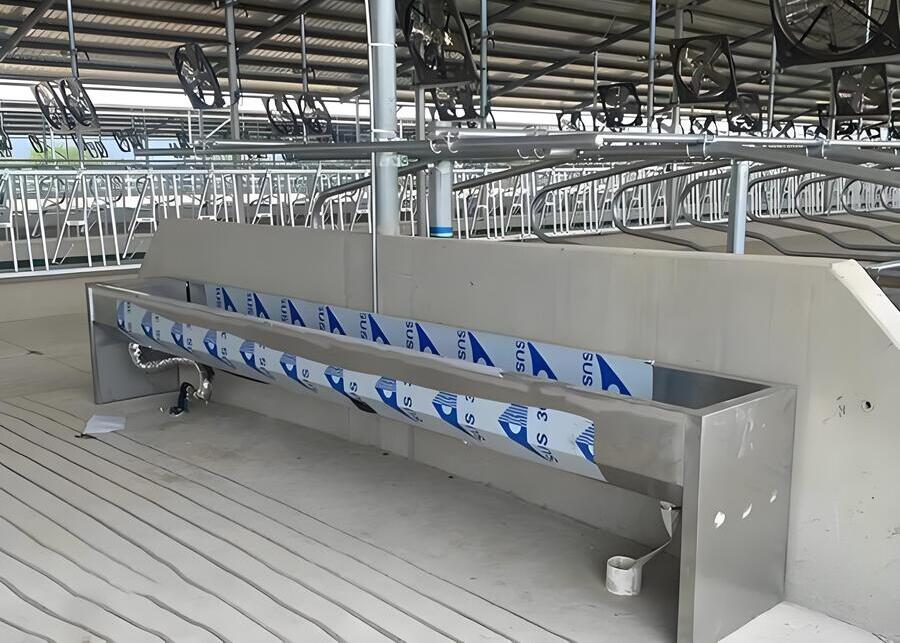

Check Mounting and Physical Protection
Depending on the installation, a stainless steel trough may use direct floor anchoring or additional protective guards.
The appropriate arrangement depends on cow traffic, collision risks, cleaning equipment, and available floor space.
Confirm that guards and anchors do not create sharp edges, trapping points, or unnecessary restrictions around the drinking area.
Keep Maintenance Components Accessible
Staff should be able to reach the float valve, water connection, and drain without moving large amounts of fencing or dismantling unrelated equipment.
An installation that is difficult to maintain often becomes more expensive over time.
5. How Do You Make a Dairy Cow Water Trough Easy to Clean?
Stainless steel is useful for dairy farm equipment, but a stainless steel surface does not clean itself.
Feed particles, saliva, manure, sediment, and biofilm can still contaminate a trough.
A practical purchasing question is:
Can the trough be emptied, cleaned, inspected, and refilled without unnecessary work?
Features Worth Checking
Look for:
- A drain outlet that allows practical emptying.
- An internal shape that does not trap large amounts of residue.
- Easy access to corners and the tank bottom.
- An accessible float-valve compartment.
- Durable fittings that can be serviced.
- A discharge route that does not flood the cow alley.
- Suitable cleaning access around guards and mounting points.
How Often Should the Trough Be Cleaned?
Inspect drinking-water cleanliness daily.
Actual cleaning frequency should respond to:
- Visible feed and manure contamination.
- Sediment and algae.
- Water quality.
- Season and temperature.
- Trough design.
- The farm's established hygiene program.
Penn State Extension recommends regular cleaning, with at least weekly cleaning of waterers as a general management guideline.
More frequent cleaning may be needed when contamination develops quickly.
See Clean Drinking Water Is Essential to Cows.
The goal is not simply to complete a cleaning task on the calendar.
It is to maintain clean, palatable water and identify recurring sources of contamination.
6. Why Does Floor Drainage Around the Trough Matter?
A well-designed trough can still create poor barn conditions when installed over inadequate floor drainage.
The drinking area receives water from:
- Normal drinking and splashing.
- Overflow or valve faults.
- Routine trough emptying.
- Cleaning operations.
- Water carried by animal movement.
If water remains on the floor, the area may become wet and slippery.
Check Both Types of Drainage
There are two separate drainage questions.
Trough drainage: Can workers discharge the contents and remove sediment without difficulty?
Floor drainage: Can spilled and discharged water leave the cow standing area safely?
Solving only the first problem is not enough.
For example, a large discharge valve can empty a tank quickly, but if the surrounding drain cannot handle the flow, the barn floor may become flooded.
Before approving an installation, check:
- Floor condition and slip resistance.
- Suitable drainage routes.
- Drain capacity for expected discharge.
- Cleaning access.
- Whether runoff can reach bedding or feeding areas.
- Whether drainage components interfere with manure scrapers.
Good drainage should be considered during barn planning, not added only after repeated flooding problems appear.
7. How Should Heated Water Troughs Be Selected for Winter?
For cold-climate dairy farms, the main objective is reliable access to drinkable water during freezing conditions.
A heated tank alone does not guarantee this.
Water can also freeze inside the supply pipes, inlet valves, fittings, and drainage components.
Treat Freeze Protection as a Complete System
Check the entire water route:
Water Supply → Pipe Protection → Inlet Valve → Insulated Trough → Heating Control → Drain Protection
Possible protection measures depend on the climate and installation.
These may include insulation, appropriate heating arrangements, protected pipe routing, and suitably designed controls.
What Matters in a Heated Stainless Steel Trough?
Important specifications include:
Stainless steel construction: Check the actual material grade, finish, joints, and fabrication quality.
Insulation: Confirm the insulation structure and whether the selected configuration suits the intended climate.
Heating control: Check thermostat operation, temperature sensing, and control settings.
Electrical safety: Confirm protective grounding, suitable electrical protection, enclosure rating, and compliance with local electrical rules.
Maintenance access: Ensure that heating, float-valve, and drainage components can be inspected safely.
Freeze protection: Check vulnerable external pipework and valves separately from the tank body.
The correct system depends on the local winter temperature, water turnover, exposure, available electricity, and installation conditions.
Do Heated Troughs Always Prevent Freezing?
Check the heater, insulation, float valve and exposed pipework as one installation. A heated tank can still lose its water supply if an upstream pipe freezes. Test the complete installation before winter, then check water level, valve operation and vulnerable pipes during freezing conditions.
8. Stainless Steel vs. Concrete vs. Plastic Water Troughs
Trough material affects durability, cleaning, installation, and long-term costs.
However, the correct material still depends on the actual farm environment.
| Material | Potential Advantages | Main Considerations |
|---|---|---|
| Stainless Steel | Durable, cleanable surface; can accommodate insulated and heated designs | Higher initial cost; material grade, workmanship, fittings and maintenance matter |
| Concrete | Heavy, stable, suitable for permanent installations | Difficult to relocate; surface condition, cracks and cleaning access require attention |
| Plastic / Polyethylene | Lightweight, easy to transport, often economical | Physical protection, UV resistance, cleaning and freeze protection depend on the product |
For commercial dairy barns, stainless steel can be practical where repeated cleaning, durability, and integrated heating are important.
But a high-quality stainless steel trough in the wrong location will still be an ineffective watering point.
Water access, supply performance, and maintenance should come before material preference.
9. What Costs Are Commonly Overlooked?
The trough purchase price is only one part of the installed cost.
Three expenses deserve particular attention.
1. Water Supply Upgrades
An existing pipe may not be large enough to serve the intended number of troughs during peak demand.
Potential additional work includes:
- Replacing or extending supply lines.
- Installing larger valves or fittings.
- Correcting pressure or flow restrictions.
- Adding suitable isolation and service connections.
2. Floor and Drainage Construction
A new trough may need concrete work, a dedicated discharge route, or changes to surrounding floor drainage.
These costs can be substantial when a barn is already operating.
3. Winter Heating and Electrical Safety
A heated water trough may also require:
- Appropriate electrical connections.
- Protective grounding and circuit protection.
- Water-line insulation or other freeze protection.
- Heater and thermostat maintenance.
- Additional energy costs during cold weather.
Other costs may include transport, anchors, protective guards, cleaning labor, float valves, seals, and spare parts.
For larger commercial dairies, the ease of cleaning and servicing equipment over several years can matter more than a small difference in purchase price.
10. Dairy Cow Water Trough Installation and Acceptance Checklist
Before accepting a new or upgraded water-trough installation, check the actual system under operating conditions.
| Inspection Item | What to Verify |
|---|---|
| Cow Access | Cows can approach, drink, and leave comfortably |
| Drinking Space | Accessible edge length and drinking-point distribution match the cow groups |
| Refill Performance | Installed inlet flow supports expected demand |
| Water Level | Float valve refills and shuts off reliably |
| Trough Stability | Mounting, guards, and surrounding structures are secure |
| Cleaning | Tank bottom, corners, and valve areas are accessible |
| Drainage | Discharged water does not create persistent puddles |
| Floor Safety | Standing surfaces provide suitable footing |
| Winter Protection | Required trough, pipe, valve, and drain protection has been checked |
| Electrical Safety | Heated systems meet the site's electrical requirements |
| Maintenance | Spare parts, inspection access, and service responsibilities are understood |
The Most Valuable Acceptance Test
Do not stop after confirming that the tank fills with water.
Test the refill rate at the installed location and observe how the system performs during actual high-demand use.
Also verify drainage, cleaning access, float-valve operation, and the condition of the surrounding floor.
If a problem is found, correct its source.
A slow refill problem may require plumbing changes, not a larger tank.
A congested drinking area may require relocation, not a more expensive trough.
A wet floor may require drainage improvements, not a different stainless steel grade.
How Can NexAgri Support Water Trough Selection?
NexAgri Solutions supplies stainless steel livestock water troughs for commercial dairy and livestock housing.
Available product configurations include AISI 304 double-wall stainless steel construction, polyurethane insulation, automatic float-valve refilling, manual drainage, and thermostatic heating arrangements.
Depending on the installation, floor-mounted and protective-guard configurations may also be considered.
Equipment selection should begin with the cow group size, intended trough location, available water supply, cleaning requirements, and winter climate.
For a trough quotation, share the cow group size, usable drinking space, measured inlet flow, site photographs and winter conditions on WhatsApp. We can then work through trough size, refill arrangements and installation layout.
Frequently Asked Questions
Is a larger water trough always better?
No. A larger trough provides more stored water, but refill performance, drinking access, and placement are equally important.
How many water troughs should 100 dairy cows have?
Two separated watering locations can be a useful starting point for one group of 100 cows. The final number and sizes depend on accessible drinking space, refill capacity, barn layout, and actual cow access.
What is a suitable water trough refill rate?
There is no universal flow rate for every trough. The required capacity depends on peak simultaneous drinking, usable trough volume, and the farm's supply system.
Where should water troughs be located in a freestall barn?
Suitable locations often include wide crossovers, areas near feeding, and routes accessible after milking. Avoid narrow alleys and positions that obstruct cow traffic.
Are stainless steel troughs easier to clean?
Stainless steel provides a durable, cleanable surface, but ease of cleaning also depends on the basin shape, drain outlet, valve access, and regular maintenance.
Does an insulated trough need heating?
Not necessarily. Heating requirements depend on climate, water turnover, exposure, and the complete installation. Insulation alone should not be assumed to prevent freezing in every condition.
What should be tested after installation?
Check the installed refill rate, water-level control, cleaning and drainage, surrounding floor conditions, and any necessary heating and electrical protection.
Conclusion
Choosing a dairy cow water trough involves more than selecting a material, length, or volume.
A reliable watering point must combine sufficient accessible drinking space, distributed watering locations, stable refill capacity, safe placement, and practical maintenance.
For cold-climate barns, the complete water system also needs appropriate freeze protection.
The best trough is not necessarily the largest or most expensive one. It is the one that provides dependable water access under the farm's real operating conditions.
Before purchasing, review the cow groups, supply performance, barn layout, drainage, and ongoing maintenance requirements together.
That approach helps prevent expensive installation mistakes and creates a watering system that is easier to operate over the long term.
