A 200-head beef feedlot needs more than a TMR mixer and a loader. The feeding route, pen layout, drinking-water supply and cattle-handling area must work together. A machine that looks suitable on a quotation can become difficult to use if the feed road is too narrow or the daily batches exceed its practical capacity.
Start with the site layout and daily workload. For most new 200-head projects, the priorities are secure pens, accessible feed bunks, dependable water, a workable feeding system, manure removal and a safe weighing and handling route. Additional automation should be selected only when it fits the operating plan and budget.
NexAgri can help prepare an equipment list and preliminary arrangement for open-lot, semi-open or enclosed beef facilities. A useful first quotation reflects the farm's location, cattle weights, feed ingredients and machinery already on site.
1. What Equipment Does a 200-Head Beef Feedlot Need?
For a new facility, separate essential infrastructure from machinery that depends on the feeding method.
| Work area | Core equipment or facility | What determines the configuration? |
|---|---|---|
| Housing and movement | Beef-cattle pens, fences, gates and handling lanes | Outdoor, semi-open or enclosed housing; cattle size; group management |
| Feeding | Feed bunks, ingredient loading method and a suitable TMR mixer or purchased-feed delivery arrangement | Ration type, daily feed quantity, batch schedule and existing equipment |
| Drinking water | Troughs, refill valves, distribution pipes and cleanout access | Peak demand, water pressure, climate and pen arrangement |
| Manure and drainage | Mechanical cleaning access, collection area and drainage or runoff provisions | Floor type, manure consistency, rainfall and local environmental requirements |
| Animal handling | Sorting gates, a secure handling chute and a weighing point | Receiving, treatment, routine weighing and shipping workflow |
| Climate management | Shade, natural ventilation or suitable fans and cooling equipment | Building type, heat exposure, humidity and water availability |
An outdoor earth-pen feedlot and a roofed concrete-floor barn need different manure-removal and ventilation arrangements. The Nebraska Extension feedlot planning guide treats pen layout, feed roads, water and runoff management as linked design decisions.
2. How Much Feed Must the TMR Mixer Handle?
Calculate mixer capacity from feed per batch. Herd size is just the starting point. The relevant inputs are average liveweight, expected dry-matter intake (DMI), total-ration dry matter, feeding frequency, mixed-ration bulk density and the mixer's verified usable fill range.
For finishing cattle, dry-matter intake varies with cattle weight, growth stage, diet and management. The MSD Veterinary Manual's beef feeding guidance describes intake commonly around 2.0–2.3% of bodyweight when cattle are on full feed. Use the nutritionist's ration and actual herd data for a purchase decision.
Example: 200 cattle fed in two equal batches
Here is a worked example using two feedings per day and a set of practical sizing assumptions:
| Input | Assumption |
|---|---|
| Cattle | 200 head |
| Average liveweight | 450 kg/head |
| Daily DMI | 2.3% of bodyweight |
| Daily feeding schedule | 2 equal batches |
| Assumed mixed-ration bulk density | 300 kg/m³ |
| Assumed usable mixer fill | 75% of rated volume |
Daily feed DM = 200 × 450 kg × 2.3% = 2,070 kg DM/day.
As-fed feed required = Daily feed DM ÷ Ration DM fraction.
Indicative rated mixer volume = (As-fed feed per batch ÷ Bulk density) ÷ Usable fill fraction.
| Ration DM | Daily feed as fed | Feed per batch | Calculated rated volume |
|---|---|---|---|
| 60% | 3,450 kg | 1,725 kg | 7.7 m³ |
| 50% | 4,140 kg | 2,070 kg | 9.2 m³ |
Under the first set of assumptions, an 8 m³ mixer is a reasonable model to evaluate. Under the wetter-ration scenario, a 10 m³ model or a different batching schedule may be more suitable. The calculation is a screening step: confirm actual ration density, the specific machine's mixing performance at the proposed fill, available tractor power or electrical supply, loading height and discharge arrangement before selecting the model.
A smaller mixer can work with more batches. An oversized mixer handling small loads may circulate the ration poorly, so future expansion should be assessed against the daily mixing schedule.
3. Trailed TMR Mixer or Stationary Feeding Center?
A trailed mixer and a stationary system solve different logistics problems.
| Configuration | Suitable operating situation | Items to check before purchase |
|---|---|---|
| Trailed TMR mixer | A farm with a compatible tractor and practical driving access to the feed bunks | PTO power, turning area, discharge side, loaded weight, road width and mixer capacity |

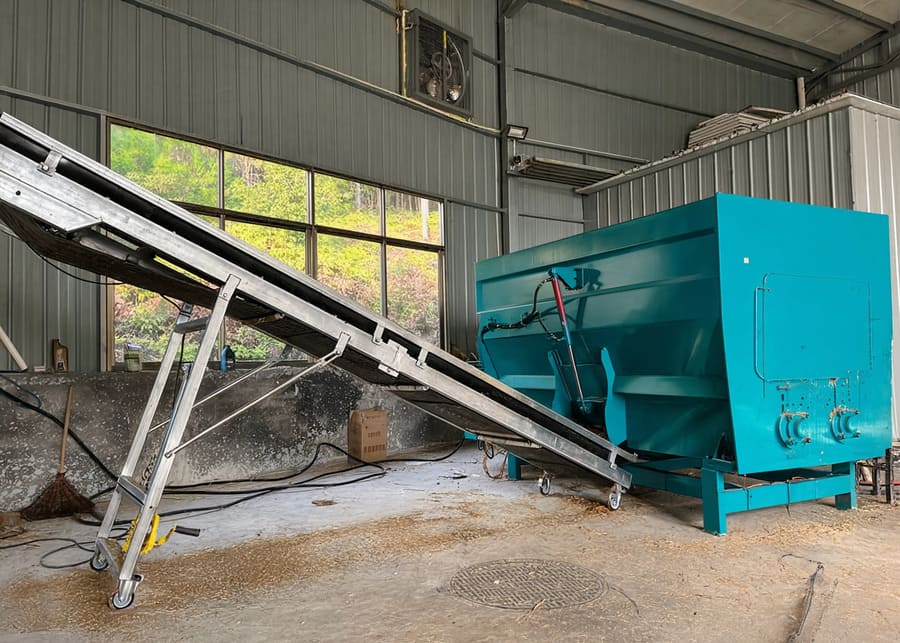

| Stationary TMR mixer | Ingredients are handled at a central feeding point | Electrical supply, loading equipment, discharge height and a separate distribution method |
| Fixed TMR feeding center with batching | Several ingredients or ration groups require more controlled loading | Bin arrangement, weighing, conveying, controller functions, cleanout access and maintenance skills |
A trailed unit can mix and distribute the ration on the same trip where the machine configuration and feed road allow it. A stationary mixer normally needs another way to move the finished ration. For a 200-head project, a 3–5 m³ feed distribution vehicle may be a candidate for evaluation, but its load rating, number of trips and actual route must be checked.
NexAgri can supply trailed and stationary TMR mixer configurations and discuss fixed feeding-center equipment. When comparing models, ask which weighing and control functions are included. Weighing accuracy, auger-speed options, recipe storage and moisture-adjustment features vary by configuration.
For a detailed explanation of loading order and mix quality, see our TMR feeding and mixer management guide. The feedlot procurement decision here is about the whole handling route, rather than the mixing procedure alone.
4. Should the Farm Buy Its Own Feed-Processing Machinery?
Some 200-head operations buy prepared concentrates and ready-to-use silage. Others purchase whole grains or long forage that require additional processing. Those two farms should not receive the same equipment list.
When concentrates and silage arrive in a usable form, the daily work is mainly storage, loading, weighing and TMR mixing. Whole grains or long forage change that workflow. Their processing needs depend on the ingredient's delivered condition and the particle size specified in the feeding plan.
Grain-processing methods and particle size also affect digestion and feeding risk. The Oklahoma State University finishing-beef guide explains why high-concentrate feeding requires gradual diet adaptation. A nutritionist should set the ration and processing specification.
For farms using prepared ingredients, NexAgri can configure a trailed TMR mixer or a stationary feeding center with weighing, batching and conveying equipment. This helps buyers match the mixing system to daily feed quantities, ingredient handling and the route to the cattle pens.

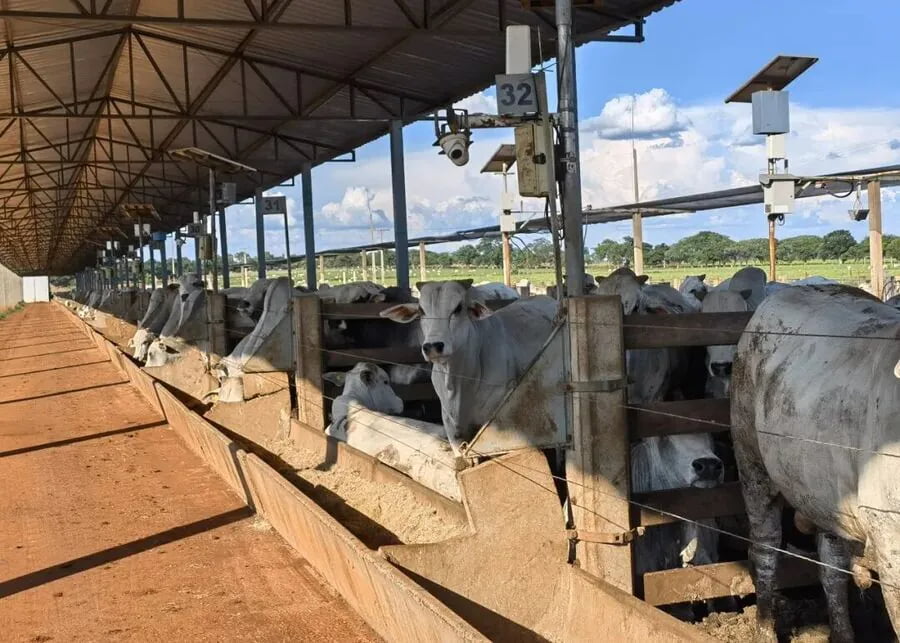

5. How Should Pens, Feed Bunks and Machinery Routes Be Laid Out?
A useful starting arrangement for 200 cattle is four management groups of about 50 head, with a central feed road and dedicated routes to the weighing and loading areas. The grouping can be adjusted as the herd changes. Groups may need to change according to cattle weight, arrival date, sex, health status and farm operating methods.
A central feed road can serve two rows of pens, with cattle-handling and manure-removal routes kept separate where the site permits. Position the weighing chute, loading area and receiving pens so cattle can be moved without repeatedly crossing the feed delivery route.
Feed-bunk frontage for four groups
The required frontage depends on the animals and how feed is offered. Nebraska Extension describes approximately 0.23–0.30 m/head (9–12 inches) for finishing cattle, while newly received or younger cattle often need closer to 0.46 m/head (18 inches). The University of Minnesota Extension advises at least 12 inches, with 18 inches preferable for newly received cattle.
| Planning case | Bunk space per head | Frontage per 50-head pen | Total for four pens |
|---|---|---|---|
| Established finishing groups, using 0.30 m/head | 0.30 m | 15 m | 60 m |
| Receiving groups, using 0.45 m/head | 0.45 m | 22.5 m | 90 m |
These are comparisons for preliminary planning. Final frontage should reflect cattle size, feed delivery and bunk-management practice, competition at feeding, and the space required by the applicable welfare rules.
Site area and feed-road access
For an open-earth feedlot, Kansas State University's planning guide describes approximately 19–28 m² of pen space per animal under its regional conditions. At 200 head, that equals roughly 3,800–5,600 m² of pen area, before access roads, the feed center, handling facilities and drainage works are included. Its early land-survey reference is about one acre per 100 head for pens, feed roads and alleys—roughly 0.8 hectares for 200 head. These open-lot figures should not be transferred directly to an enclosed barn or to a different climate.
For a double-row feedlot, the same Kansas State guide describes feed-road widths of roughly 4.9–9.1 m (16–30 ft) depending on traffic and drainage arrangements. The actual road must accommodate the selected mixer or feed vehicle, discharge mechanism, turning movements, gates and safe working clearance.
Before fixing the layout, check the following together:
- Pen dimensions: Calculate usable pen area and bunk frontage, then confirm there is room for manure-removal equipment to enter and turn.
- Feed and cattle traffic: Keep routine feed delivery separate from weighing, treatment and shipment movements wherever feasible.
- Drinking points: Place troughs where cattle can reach them without creating muddy bottlenecks, and allow enough space for cleaning and pipe maintenance.
- Drainage: Direct stormwater and manure runoff away from feed storage and clean-water services, using a locally engineered collection arrangement.
- Future extension: Leave an accessible direction for adding pens and extending water mains, feed-road access and cattle-handling lanes.
Covered beef barns require their own floor-area and ventilation calculations; site footprint and pen density cannot be chosen from headcount alone.
6. How Much Drinking-Water Capacity Is Needed?
Start with the number of cattle, the local climate and the daily drinking requirement, but size the refill system for peak demand, not a 24-hour average. A four-pen arrangement may use one or more drinking points per pen, depending on trough length, herd access and water recovery.
Under hot-weather feedlot conditions, Nebraska Extension describes daily consumption of around 25–30 US gallons (95–114 L) per head for cattle eating 25–30 lb of dry matter. For 200 head, that is approximately 19,000–22,700 L/day in that example.
The same guidance recommends planning to deliver daily water needs within 4–6 hours during heat stress and refers to a minimum supply of 8–10 US gal/min per 100 head. That corresponds to roughly 61–76 L/min combined for 200 head, as a hot-weather supply-flow reference. It is not a fixed specification for every feedlot; the local design may require greater capacity or a different arrangement.
Water at the farthest pen must still arrive at sufficient pressure while other troughs are refilling. Check main-pipe sizing, valves, storage reserve, simultaneous demand, trough access and refill recovery. A single trough with a large inlet does not solve crowding if too few cattle can drink at the same time.
NexAgri can discuss stainless-steel drinking troughs, refill components and suitable cold-climate heating configurations. Select the trough length, inlet specification and protection guards for the actual pen and vehicle routes. Test refill and recovery under simultaneous demand during commissioning.
7. What Manure-Handling and Climate-Control Equipment Makes Sense?
For open earth pens, a loader or skid-steer-type machine may be a practical method for collecting solid manure and handling bedding. The site also needs a collection and storage plan and provision for stormwater runoff. Machine access should be designed into the gate and pen layout from the beginning.
For roofed facilities, scraper equipment may be appropriate on compatible solid-floor alleys with a planned discharge route, or in other specifically engineered manure-handling arrangements. Slatted-floor systems typically have a different manure collection pathway below the floor. Neither system should be specified by the words “semi-open barn” alone.
A screw-press solid-liquid separator belongs in the plan only where the farm collects suitable pumpable slurry. Its suitability depends on slurry characteristics, collection method and required throughput.
Climate equipment follows the housing type. Outdoor sites may prioritize shade, wind protection and reliable water. Semi-open or enclosed facilities may also use fans, with spray or misting only where water supply, ventilation, drainage and local humidity make the system appropriate. Layout and maintenance access matter as much as equipment quantity.
8. How Should Cattle Be Weighed, Identified and Sorted?
A 200-head farm needs a practical route for receiving, restraint, routine weight checks, treatment and shipment. Start with a safe handling alley and chute, a suitable livestock scale and gates that allow cattle to be directed into the correct group. Check cattle flow and operator escape space before choosing the electronic functions.
Where individual records are required, RFID identification can help connect a cattle ID to its weighing record if the selected reader, scale and software are compatible. That compatibility should be demonstrated for the proposed configuration, including how records are stored or exported.
Average daily gain (ADG) can then be calculated from two valid weights:
ADG (kg/day) = [Later liveweight (kg) − Earlier liveweight (kg)] ÷ Days between measurements
For example, a change from 420 kg to 455 kg over 35 days gives an ADG of 1.0 kg/day. Weight changes can also reflect gut fill, weighing conditions and animal health, so avoid interpreting a single reading as proof that a ration is succeeding or failing.
A manual or semi-automatic weighing routine is adequate for many 200-head operations. Continuous automatic weighing can be evaluated later if its data and labor benefits justify the system cost.
9. Essential, Conditional and Optional Equipment: A Buying Checklist
| Priority | Equipment or provision | Purchasing decision |
|---|---|---|
| Essential to the site | Pens, fences, gates, water, feed access, drainage and cattle-handling route | Finalize the arrangement before ordering machines |
| Essential to the feeding plan | Appropriate feed delivery and weighing method | Check actual ration, daily batches and existing machinery |
| Usually useful | TMR mixer where on-farm ration mixing is planned | Size by working batch, not herd count alone |
| Conditional | Separate feed distribution vehicle | Often needed for a stationary mixer, not automatically for a trailed unit |
| Conditional | Loader or skid steer | Confirm whether the farm already has a suitable machine and attachments |
| Conditional | Automatic manure scraper | Use only where floor and manure routes are compatible |
| Conditional | Fixed mixing center, batching bins and system conveyors | Justified by ingredient mix, labor plan and operating volume |
| Conditional | Barn fans, shade and cooling equipment | Specify for the climate and housing design |
| Optional / upgrade | RFID-linked records, automatic sorting and advanced monitoring | Verify integration, operator skills and business value |
10. Planning Expansion from 200 to 500 Cattle
Expanding the cattle population does not mean every machine has to become 2.5 times larger immediately. It means checking which early decisions would be expensive to reverse.
Reserve or assess the following before construction:
- Land and pen arrangement: Identify the space for additional pens, feed frontage, cattle lanes and manure handling.
- Main circulation: Check whether future feed trucks, turning points and delivery routes can handle longer operating hours or additional equipment.
- Water infrastructure: Review the eventual peak demand, source capacity, main-pipe size, valves and storage provisions—not only the number of future troughs.
- Electrical and fixed equipment: Check space for a possible feeding-center expansion, control panels, additional load points and cable routes.
- TMR workload: Estimate future daily feed DM, ration volume, batches, mixing-cycle time and delivery time. An existing mixer may handle more cattle through additional batches if the schedule remains practical.
- Animal handling: Keep the weighing and loading route accessible when more pens are added.
If expansion to 500 head is a firm near-term plan, it may justify larger shared infrastructure from the start. If expansion is only a possibility, a practical mixer for today's workload plus reserved space and service connections may be the better investment.
11. What Can NexAgri Provide for a 200-Head Feedlot Project?
NexAgri can assist with the equipment list, preliminary layout coordination and equipment selection for new beef feedlot projects, including arrangements that allow for future expansion. Available equipment and support include:
- Trailed or stationary TMR mixers and relevant weighing options.
- Fixed TMR feeding-center systems, batching arrangements and integrated conveying where specified.
- Beef-pen fencing, gates, sorting and cattle-handling equipment.
- Drinking troughs and selected water-system components.
- Fans and suitable environmental-control equipment for the chosen housing type.
- Livestock weighing and RFID-related hardware, with software compatibility reviewed per project.
- Equipment documentation, technical guidance, remote troubleshooting or commissioning support where agreed, and replacement parts.
We can provide equipment specifications and interface information that buyers can use when coordinating civil construction, local installation and other site works with their contractors. For RFID and data systems, the required reader, scale and software connections should be reviewed with the proposed equipment configuration.
For an initial proposal, send the planned location, site dimensions, open/semi-open/enclosed housing preference, expected cattle weights, feed ingredients and ration DM, feeding frequency, available tractor and loader, water and power information, and whether 500-head expansion is planned.
Request a 200-Head Feedlot Equipment List and Preliminary Layout
Frequently Asked Questions
Is an 8 m³ TMR mixer enough for 200 beef cattle?
It can be, particularly with two daily batches and a ration that fits the mixer's verified working volume. The example in this article gives about 7.7 m³ rated volume at 60% ration DM, but about 9.2 m³ at 50% DM under the same other assumptions. Confirm the specific machine, ration and batch schedule before ordering.
Does a 200-head feedlot need both a TMR mixer and a feed spreader?
Not always. A trailed mixer may mix and distribute feed itself. A stationary mixer generally requires a separate delivery method. The site road and loading route should determine the arrangement.
How much land is needed for a 200-head beef feedlot?
It depends mainly on housing type, climate, pen surface and drainage. For an open-earth feedlot, the Kansas State planning reference discussed above suggests approximately 3,800–5,600 m² for pen space at this herd size. Allow additional room for feed roads, cattle handling, feed storage, manure collection and any locally required setbacks. A roofed barn needs a separate space calculation.
Is an automatic manure scraper necessary?
No. Outdoor earth pens often use mechanical cleaning equipment. Automatic scrapers are an option where floor surfaces, lanes and discharge arrangements have been designed for them.
Can the same feeding system be used after expansion to 500 cattle?
Possibly. Recalculate feed quantity, batch count, mixing time, delivery hours and access routes. The mixer may still be usable with more batches, while water mains and traffic space may require earlier expansion provisions.
Conclusion
For a 200-head beef feedlot, the pen and traffic layout, feeding workload and drinking-water capacity should drive equipment selection. Calculate TMR batch size before choosing a mixer, keep manure handling matched to the floor system, and make the weighing route safe and practical. Purchase more automation only where the farm can use and maintain it.
A well-defined equipment list also makes a future move to 500 cattle easier to evaluate, because the required space, service capacity and operating workload are visible before the first order is placed.
