A dairy plant can produce milk containing 4–6% protein from an ordinary milk supply, but the equipment arrangement depends on how the additional protein is obtained. Some manufacturers concentrate the proteins already present in milk through ultrafiltration (UF). Others standardize the drink by adding milk protein concentrate (MPC), milk protein isolate (MPI) or another suitable dairy protein ingredient.

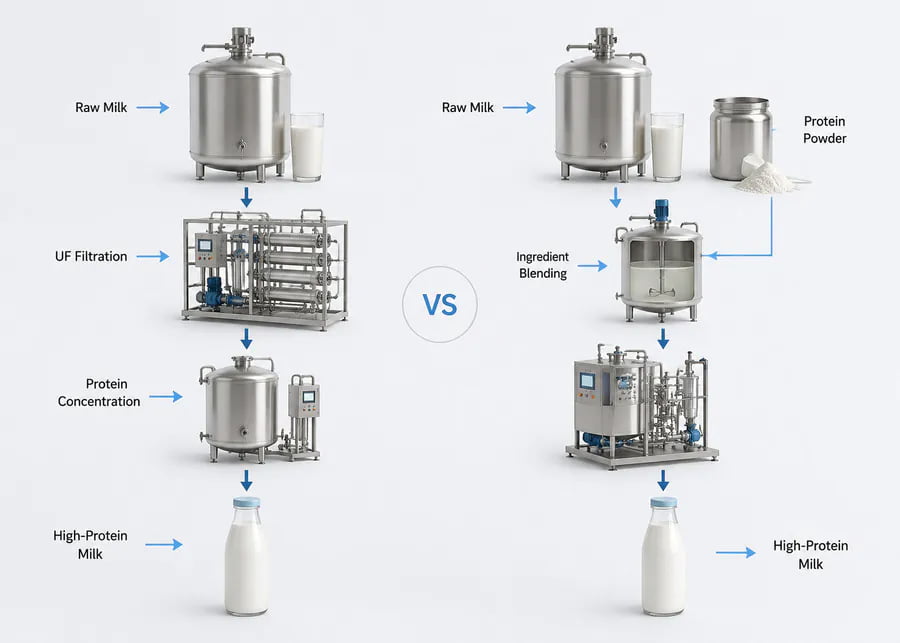

The two main routes are membrane concentration and protein formulation. Both can produce high-protein liquid milk, provided the final composition, heat treatment, texture and shelf life are validated. For equipment buyers, the early decisions are the target protein percentage, the required final output, the treatment of UF permeate and whether the product will be refrigerated or shelf-stable.
How Does Ordinary Milk Become a 4–6% Protein Drink?

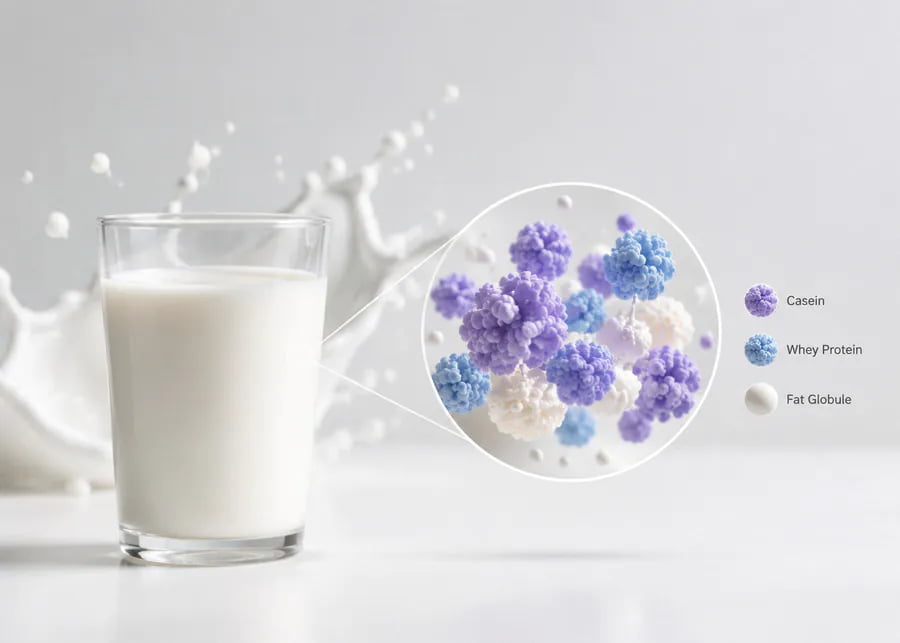

Cow milk commonly contains approximately 3.2–3.4% protein, although the composition varies by herd, season and milk supply. A 5% protein product can be made by removing part of the smaller components from milk while retaining most of its proteins, or by blending additional milk protein into a prepared milk base.
A key distinction is protein concentration in the finished drink versus protein content in a dry ingredient. A drink labeled 5 g protein per 100 g contains about 5% protein by mass. MPC80 is a high-protein milk powder; its declared protein value may be reported on an as-supplied or dry-matter basis depending on the specification. For batching, use the supplier's actual protein percentage in the powder delivered, including its moisture content. The U.S. Dairy Export Council's MPC specifications are a useful ingredient reference.
Some premium products use a combination of UF and ingredient standardization to reach their final protein, fat and lactose specifications. The appropriate route also affects viscosity, flavor, operating costs and how the ingredient list is presented in the destination market.
Which Membrane Technology Actually Concentrates Milk Protein?

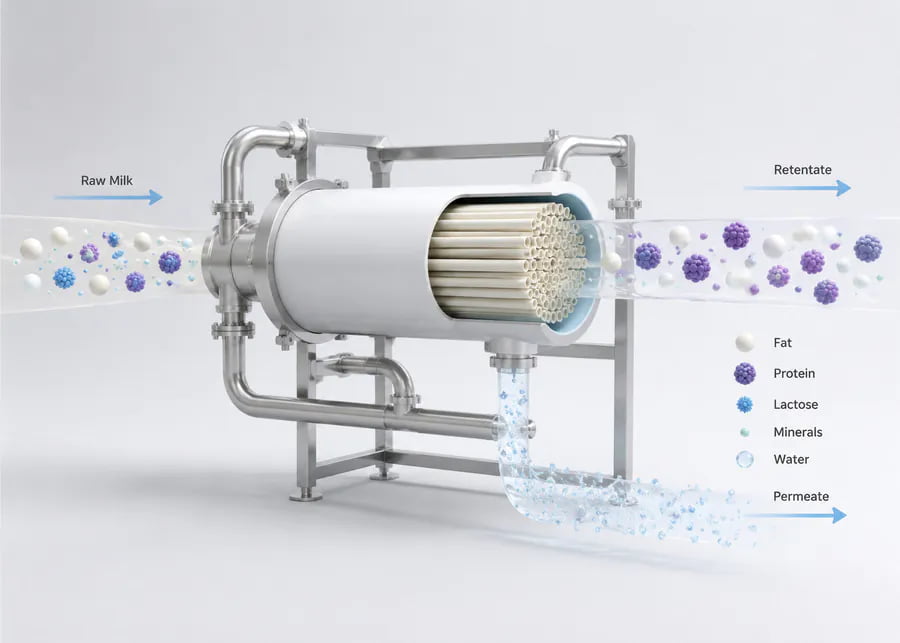

Ultrafiltration (UF) is the main membrane method for concentrating both casein and whey proteins in milk. The feed passes through a membrane system and leaves as two streams:
- Retentate: the concentrated liquid containing most of the original milk proteins.
- Permeate: a stream containing water, lactose and part of the dissolved mineral content.
Other membrane operations are useful, but they serve different purposes.
| Technology | Main separation task in dairy | Typical role in a high-protein project |
|---|---|---|
| Microfiltration (MF) | Remove bacteria or fractionate casein micelles from serum proteins, depending on membrane size | Optional fractionation or pretreatment; not the usual whole-protein concentration stage |
| Ultrafiltration (UF) | Retain and concentrate larger milk proteins while allowing lactose, water and some minerals to pass | Primary protein-concentration step for liquid high-protein milk |
| Nanofiltration (NF) | Concentrate selected dissolved components while allowing partial mineral passage | Additional treatment or partial demineralization of suitable streams |
| Reverse osmosis (RO) | Remove water while retaining most dissolved solids | Reduce UF-permeate volume or pre-concentrate suitable dairy streams |
These distinctions are covered in the International Dairy Federation's membrane-processing overview and the Tetra Pak Dairy Processing Handbook.
What does diafiltration add?
For some products, water is added during UF as diafiltration (DF) to wash more lactose and minerals into the permeate. DF is valuable when the product specification calls for reduced lactose or a higher protein share of total dry matter. It also increases water use and permeate volume. A regular 4–6% protein milk drink may not need the same DF intensity as an MPC or MPI ingredient process.

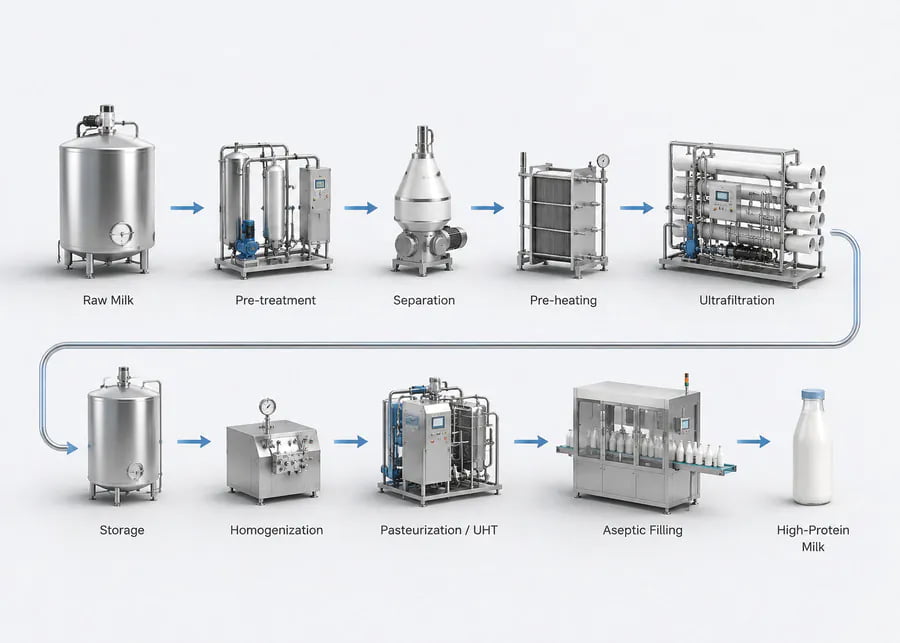

What Does a UF High-Protein Milk Production Line Look Like?
One practical process arrangement is:
Raw milk reception → clarification and cooling → cream separation → skim-milk conditioning → UF concentration → cream/fat standardization → homogenization as required → validated pasteurization or UHT → appropriate filling.
Depending on the selected process and microbiological plan, a heat-treatment stage may also be included before UF. The location of each heating step must suit the membrane and finished-product requirements.
1. Prepare and standardize the incoming milk
The receiving section checks raw milk quality, temperature and composition before the milk enters the processing system. Clarification and controlled storage protect the downstream equipment. Separating cream before UF can make fat standardization easier and reduce the influence of fat on membrane operation.
The recovered cream can be stored in a separate sanitary tank and metered back into the UF concentrate. This allows the final fat-to-protein ratio to be adjusted without requiring every batch of incoming milk to have the same composition.
2. Run the UF stage
Skim milk enters a membrane skid with feed and circulation pumps, filtration modules, pressure and temperature instruments, and separate retentate/permeate outlets. The process controls the concentration factor (CF), defined as feed quantity divided by retentate quantity, alongside permeate flow and product conditions.
Membrane performance changes as the milk becomes more concentrated. Higher viscosity, concentration polarization and fouling can reduce permeate flux. The design must therefore be based on the target concentration and tested operating conditions, not just the nameplate feed flow.
3. Standardize and finish the product
The UF concentrate is blended to the approved fat, protein and total-solids targets. Homogenization may be used to obtain the desired emulsion stability and mouthfeel. The product then moves to the validated thermal process and to a filling line suitable for its planned shelf life.
For refrigerated high-protein milk, this may involve HTST processing, rapid cooling and hygienic filling with cold-chain distribution. Shelf-stable milk needs a suitably developed UHT process and aseptic handling and packaging. Higher protein content can change heat stability, viscosity and fouling behavior, making product trials particularly important.
How Much Milk Is Needed to Make 5% Protein Milk?
A mass balance is the clearest way to estimate UF output. Consider 1,000 kg of skim-milk feed containing 3.2% protein. The feed has 32 kg of protein. Assume the UF system retains 98% of the incoming protein in its retentate.
Protein in retentate = 1,000 × 0.032 × 0.98 = 31.36 kg
For a retentate containing 5.0% protein by mass:
Retentate mass = 31.36 ÷ 0.05 = 627.2 kg
Permeate mass = 1,000 − 627.2 = 372.8 kg
The same assumptions give the following preliminary outputs:
| Protein target in UF retentate | Retentate from 1,000 kg feed | Permeate generated | Mass concentration factor |
|---|---|---|---|
| 4.0% | 784.0 kg | 216.0 kg | 1.28× |
| 5.0% | 627.2 kg | 372.8 kg | 1.59× |
| 6.0% | 522.7 kg | 477.3 kg | 1.91× |
This mass balance uses an illustrative 98% protein retention for all three product targets. During a membrane trial, measured protein in the feed, retentate and permeate is used to refine the recovery figure. The permeate contains lactose and soluble minerals, along with water.
These calculations describe the UF retentate before final formulation. Adding cream, milk or other ingredients changes the mass and the protein concentration of the finished drink. A complete quotation should therefore show both the UF mass balance and the final packaged-product balance.
What happens if the UF skid receives 1,000 L/h?
1,000 L/h is the feed rate, not the finished high-protein milk output. The retentate flow depends on the required concentration factor, milk composition, density and protein recovery. The downstream pasteurizer, storage tanks and filler should be sized from their own actual stream flows and operating schedules.
Which UF Membrane Specifications Matter Most?
NexAgri supplies integrated dairy-grade UF, MF, NF and RO membrane systems, with membrane selection, sanitary piping, controls and production-line integration configured around the project. For liquid high-protein milk, the UF specification normally starts with the following items.
| Specification | Practical engineering reference | What needs verification |
|---|---|---|
| Membrane cut-off (MWCO) | Around 10 kDa is widely used for milk-protein UF | Protein retention and permeate composition with the selected membrane |
| Membrane format and material | Dairy UF commonly uses sanitary spiral-wound polymeric elements, including PES (polyethersulfone); PVDF and ceramic formats may suit specific duties | Confirm the actual membrane chemistry, spacers, housing and cleaning compatibility |
| Transmembrane pressure (TMP) | A published skim-milk UF study investigated roughly 0.28–0.67 MPa (2.8–6.7 bar) during trials; a 0.2–0.6 MPa preliminary discussion window is useful for some UF designs | Set operating TMP from the element's pressure rating and tested milk flux, separately from feed-line pressure |
| Processing temperature | Dairy plants may run cold UF around 10°C or warm UF near 50°C | Milk hygiene, residence time, protein performance and the selected element's temperature rating |
| Permeate flux | Flux is measured in LMH = L/m²·h. One dairy UF element datasheet gives 8–34 LMH as typical operating flux; published skim-milk trials have recorded starting flux near 11–18 LMH under other conditions | Confirm a sustainable average LMH at the required concentration, including fouling and cleaning cycles |
| CIP | Typical membrane-cleaning plans include alkaline and acidic phases, with enzymatic cleaning where useful. pH, temperature, contact time and oxidant tolerance are element-specific | Verify cleaning recovery using standardized water permeability and the membrane supplier's allowable limits |
A skim-milk UF study using a 10 kDa PES spiral-wound membrane compared performance at 10°C and 50°C under different TMP settings. A separate study of skim-milk UF temperature and flux measured how permeate flow declined during concentration. Their results are more useful for equipment sizing than one fixed flux figure for every milk and membrane.
The central sizing question is how much membrane area will deliver the required retentate continuously as flux declines? Pilot data should include actual raw material, target protein level, operating duration and cleaning recovery.
For example, the earlier 1,000 kg/h feed → 5% retentate balance produces about 373 kg/h of permeate. Approximating its density as 1 kg/L gives around 373 L/h. If pilot testing supports an average operating flux of 20 LMH, the theoretical membrane area is 373 ÷ 20 ≈ 18.7 m². The equipment design then accounts for flux decline, module arrangement, operating schedule and cleaning downtime.
CIP details can vary substantially even among PES membranes. One Dairy Ultra UF element datasheet specifies a maximum cleaning temperature of 50°C and a particular controlled chlorine-cleaning regime; an HpHT UF element datasheet allows different pH and temperature limits. We specify the cleaning program against the actual purchased membrane model, its chemical compatibility and the target cleaning-recovery result.
What Happens to the Lactose-Rich UF Permeate?
Every concentration step creates a second product stream. In the 5% protein example above, more than 370 kg of permeate is generated from 1,000 kg of skim-milk feed. Its handling cost and potential use belong in the original plant design.
Three practical equipment scopes are available:
- Collect and transfer: Sanitary permeate tanks, pumps, transfer lines and connection points for existing off-site utilization or treatment.
- Concentrate with RO: Further reduce the liquid volume, creating a concentrated lactose/mineral stream and an RO water permeate. Any recovered-water use must meet the site's hygiene and water-quality requirements.
- Process further: Where the quantity and business case support it, add evaporation, lactose crystallization, separation and drying to produce an appropriate co-product.
NexAgri can include permeate collection, RO concentration and, for larger projects, an evaporation/crystallization/drying route in the equipment scope. A staged project may start with collection and RO while reserving space and interfaces for later co-product processing.
UF-permeate treatment should be reflected in the water balance, utility balance, wastewater plan and CIP design. Its value depends on the stream composition and the customer's available downstream markets.
Can High-Protein Milk Be Made by Adding MPC, MPI or WPC?
Yes. A powder-based route can be suitable when the processor already has a filling line and wants a more flexible way to introduce high-protein products. The basic sequence is:
Milk base or water preparation → ingredient weighing and powder addition → dispersion and hydration → standardization → homogenization as needed → validated heat treatment → filling.
MPC and MPI contain milk proteins with casein as a major fraction. WPC is a whey-derived ingredient with different functional properties. Their solubility, viscosity, heat stability and flavor effects differ, so a formula developed with one ingredient cannot be assumed to behave identically with another.
A powder-adding line can include bag-dumping or vacuum powder transfer, load-cell dosing, water-powder mixing, recirculation, ingredient tanks, filtration, sanitary pumps and homogenization. These are equipment modules NexAgri can provide as part of a tailored line.
Hydration time and temperature deserve particular attention. As an initial process-trial setting, high-protein MPC may be dispersed in a controlled mixing loop at around 45–55°C, followed by 30–60 minutes of mixing or hydration assessment. This improves initial wetting for some powders, but high-protein grades can still contain undissolved particles and may benefit from longer holding or a cool hydration stage. A study of MPC powder rehydration found that higher-protein MPC grades were harder to dissolve even with warm-water processing.
The mixing system should therefore be sized for the actual powder's wetting, agitation and holding requirements, with samples checked for sediment, viscosity and heat stability before the product enters the sterilizer.
Example: how much MPC80 is needed to reach 5% protein?
Start with 1,000 kg of skim milk at 3.2% protein, or 32 kg of milk protein. If the MPC80 powder contains 80% protein in its as-supplied mass, let the amount of powder added be x kg:
(32 + 0.80 × x) ÷ (1,000 + x) = 0.05
x = (50 − 32) ÷ (0.80 − 0.05) = 24 kg MPC80
That produces 1,024 kg of formulated milk at approximately 5% protein, before any other ingredients or losses, with no UF permeate stream. If the supplier declares 80% protein on a dry-matter basis and the powder contains 5% moisture, the as-supplied protein fraction is approximately 76%; the same balance then requires about 25.4 kg. The actual recipe should use the batch certificate and account for the desired final fat and total solids.
The processor's approved formula determines the ingredient quantity and nutrition claims. Our equipment scope covers controlled dosing, mixing, thermal processing and production records.
IMAGE TO ADD — 900 × 643 JPG
Suggested filename:high-protein-milk-mpc-powder-mixing-tank.jpg
Photo brief: Real industrial milk-protein powder induction and blending station: sanitary stainless-steel mixing tank, powder hopper or vacuum powder inlet, recirculation pipework and operator access. No text or logo.
Suggested alt text:Stainless-steel powder blending equipment for high-protein milk formulation
Replace this block with the uploaded image Markdown before publishing.
UF or Added Protein Powder: Which Is Better for a Dairy Plant?
| Decision factor | UF concentration | Protein powder formulation |
|---|---|---|
| Protein source | Concentrates proteins already in the milk feed | Adds specified dairy protein ingredients |
| Main investment | Membrane skid, pumps, instrumentation, cleaning and permeate handling | Powder receiving, weighing, mixing and hydration equipment |
| Material balance | Retentate plus lactose-rich permeate | Ingredient addition; no UF permeate stream |
| Operating focus | Membrane flux, yield, replacement membranes and CIP | Powder cost, dispersion, hydration and batch consistency |
| Product development | Final fat/protein/lactose composition and heat stability | Protein functionality, sediment, flavor and heat stability |
| Ingredient declaration | Depends on what remains in the product and applicable labeling rules | Reflects the ingredients actually added and local rules |
For some products, UF helps reduce lactose relative to protein and provides a way to use the dairy's own milk supply. Adding powders may reduce initial machinery investment and provide greater recipe flexibility, but it introduces ingredient cost and hydration requirements. Both methods can produce premium products if the quality and customer requirements are met; neither has a universal cost or label advantage.
What Processing Equipment Is Needed After Protein Standardization?
The UF system or powder-mixing section is only part of the line. The finished high-protein milk still needs suitable heat treatment and hygienic filling, with equipment selected for the product's viscosity and storage requirements.
| Finished-product route | Main equipment | Key process checks |
|---|---|---|
| Chilled high-protein milk | HTST pasteurizer, cooling, hygienic storage and chilled filling | Heating/holding performance, cooling, product composition and cold-chain life |
| Shelf-stable high-protein milk | UHT system, aseptic buffer and filling, CIP/SIP | Heat stability, fouling, commercial sterility, packaging and shelf-life tests |
| High-protein yogurt base | Mixing or UF, yogurt-base heat treatment, fermentation vessels and cooling | Protein gelation, acidification, viscosity and syneresis |
| Milk protein concentrate/powder | UF/DF as required, concentration, evaporation and drying | Dry-solids target, ingredient specification, dryer feed properties and powder functionality |
High-protein beverages can be especially sensitive to heat-induced aggregation, exchanger fouling, sedimentation and gelation during storage. These are established challenges in the scientific review of UHT milk protein stability. Pilot or factory trials should check protein concentration and sensory quality after processing, rather than assuming standard fluid-milk settings will deliver the desired result unchanged.

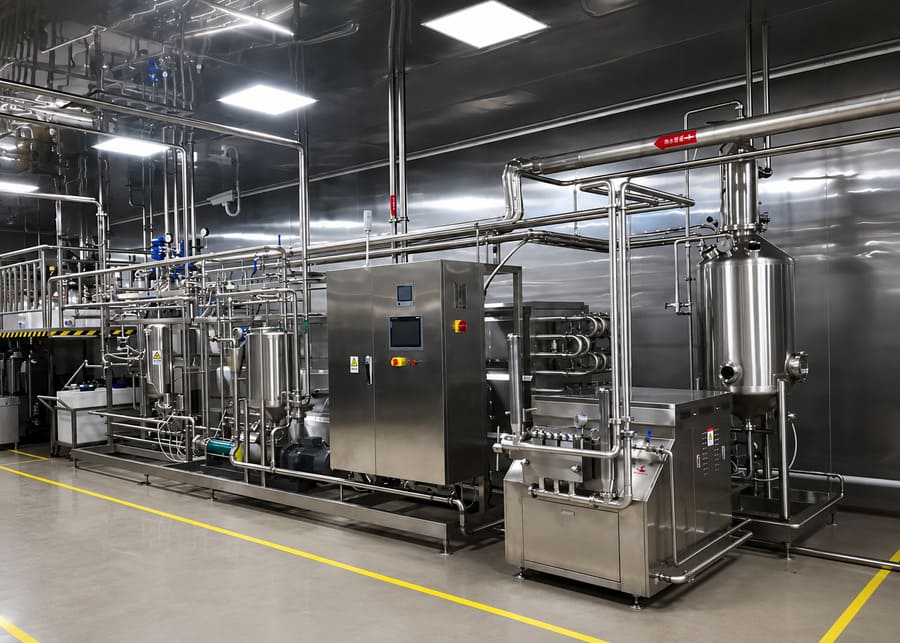

We can supply dairy processing equipment, dairy production lines and packaging systems alongside the membrane or powder-preparation package.
How Should a 500–3,000 L/h Project Be Specified?
NexAgri can coordinate modular membrane solutions with 500, 1,000 and 3,000 L/h feed capacities, plus larger custom arrangements. These are nominal milk-feed figures. The equipment schedule must separately show the UF retentate flow, permeate flow and finished packaged-milk output.
Before selecting a membrane area, tanks or filler, we would request:
- Incoming milk protein, fat, lactose, solids and expected daily variation.
- Finished drink target: 4%, 5% or 6% protein, fat level, lactose/solids targets and package format.
- Required packaged product per hour or per day, rather than just the UF feed rate.
- Intended cold or warm UF operating conditions, membrane trial results and target concentration factor.
- Retentate and permeate destinations, water supply and available utilities.
- Chilled or ambient product, required shelf life and planned production hours.
The detailed equipment proposal can then cover membrane modules and circulation loops, separate cream storage, mixing and homogenization, thermal processing, packaging, PLC instrumentation, CIP and utility connections.
What should acceptance testing measure?
| Area | Practical acceptance item |
|---|---|
| UF system | Verified feed, permeate and retentate flows; concentration factor; TMP; pressure drop; operating flux and cleaning recovery |
| Composition | Measured protein, fat and total solids in incoming milk, retentate and finished product |
| Powder preparation, if used | Dosing accuracy, hydration, visible particles, viscosity and batch uniformity |
| Thermal equipment | Approved temperature/holding conditions, capacity, cleaning performance and product behavior after treatment |
| Filling and hygiene | Fill accuracy, packaging integrity, agreed CIP/SIP tests and production records |
| Finished product | Laboratory composition, sensory acceptance, sediment/viscosity stability and shelf-life performance |
Our equipment work can include layout development, process and instrumentation drawings (P&ID), integration with the dairy's existing plant, installation and commissioning, trial-run parameter adjustment, FAT/SAT support, operator training and spare-parts assistance. Product composition and shelf-life approval remain with the processor's quality and development teams, supported by process and equipment data from the commissioning trials.
Frequently Asked Questions
Does 5% protein milk come from a special breed of cow?
Milk protein varies naturally among breeds and farms, but commercial 4–6% protein beverages can be produced from conventional dairy milk through UF concentration, added milk-protein ingredients or a combination of the two.
Does UF remove only water from milk?
No. UF permeate contains water along with lactose and some soluble minerals. The protein-rich retentate becomes more concentrated as permeate is withdrawn.
Is a 10 kDa UF membrane always required?
Ten kDa is a common reference for dairy protein concentration. Final membrane selection also depends on protein retention, milk composition, flux, fouling, cleaning and replacement costs.
Is 1,000 L/h UF capacity the same as 1,000 L/h bottled milk?
No. UF feed flow splits into retentate and permeate. Cream addition or other standardization can further change the final packaged volume.
Can an existing dairy pasteurization and filling line be upgraded?
Often, yes. The engineering check focuses on space for UF or mixing equipment, pressure/flow interfaces, extra tanks, product viscosity, CIP and the existing thermal and filling system's actual capacity.
Can the same line make both regular and high-protein milk?
A suitably configured line can support both products, using separate formulation settings, hygienic routing, cleaning/changeover controls and batch identification. The production schedule and thermal equipment must accommodate each product's properties.
Conclusion
High-protein liquid milk can be made by concentrating milk proteins with ultrafiltration or by adding approved dairy protein ingredients. The choice affects process flow, product composition, equipment investment and co-product handling. UF design begins with an accurate protein mass balance, while powder formulation depends on controlled ingredient dosing and hydration. Both routes need heat-treatment and packaging systems matched to the finished product.
