A farm may purchase hundreds of smart ear tags and still struggle to use the data. The tags may be working, but the reader misses animals at a busy passage, a gateway has weak coverage, or the farm's software cannot match incoming records to the correct cows.
A successful smart ear tag deployment starts with a clear management task, then matches the device, communication network, animal IDs, and software to that task. For a commercial dairy, a site survey, a controlled pilot, and agreed acceptance tests are more useful than ordering a large quantity based on a feature list alone.
This guide focuses on implementing a working identification or monitoring system. For individual ear tag models and specifications, see the NexAgri-Sense smart ear tag range. A separate dairy cow sorting gate guide covers gate mechanics and lane selection; the discussion here concerns the ear tag and data system that must work around the animal.
1. Define the Farm’s Identification or Monitoring Task
Before comparing devices, define the one or two tasks the farm needs to improve. A request for "real-time cattle monitoring" can mean several different things.
| Farm requirement | What the system actually needs to do | First question to ask |
|---|---|---|
| Animal identification | Associate a unique tag ID with the correct cow | Where will the ID be read: at a handheld reader, passage, parlor, or sorting point? |
| Temperature monitoring | Collect a time-stamped ear-temperature trend | What reporting interval and follow-up procedure are required? |
| Pasture location | Produce location observations from a positioning-enabled device | How accurate and frequent must the positions be, and where is cellular coverage available? |
| Behavior monitoring | Gather and interpret suitable motion or behavioral data | Which device and validated software actually generate the requested indicators? |
| Existing-software integration | Deliver usable events to the customer's database | What fields, identifiers, access method, and testing responsibilities are agreed? |
Then confirm the species, herd size, housing or grazing arrangement, local climate, and destination country. A barn housing 1,000 milking cows has different coverage and installation constraints from a remote grazing ranch with the same number of animals.
The most common misunderstanding is confusing the location of a reader event with the location of the animal. A passive RFID read can establish that an identified cow passed a particular point. It does not provide a live GPS position across the farm.
2. Match the Device to the Data You Actually Need
"Smart ear tag" describes several different hardware arrangements. One device should not be assumed to provide every function.
| Technology or device | Suitable role | Important limitation to check |
|---|---|---|
| Passive LF RFID ear tag | Individual identification at compatible handheld or fixed readers | Read events are not GPS tracking or continuous health data |
| Temperature-enabled smart ear tag | Ear-temperature measurements and trends | Ear temperature is not the same as independently verified core body temperature or a disease diagnosis |
| GPS-enabled cellular ear tag | Position observations in a suitable coverage area | Location reporting depends on positioning conditions, communications, and power |
| Activity-sensing ear tag model | Device-specific movement or step data, if provided | Raw activity is not automatically validated rumination, resting, estrus, or illness analysis |
| Behavior-monitoring collar | Behavioral measurements and analysis using the compatible platform | Outputs depend on the collar hardware, algorithms, and software access |
Within the NexAgri range, selected ear tags are available for RFID identification, temperature monitoring, and GPS-oriented tracking. Some listed ear tag configurations also include basic motion or step sensing. For projects requiring developed behavioral analysis, NexAgri also offers a separate smart collar solution. The buyer should confirm the exact output of the selected equipment rather than combining all these claims into one ear tag specification.
The NexAgri-Sense ear tag configurations and NexAgri-Guard collar options described here do not include confirmed heart-rate monitoring. Keep this function separate from the supported temperature, activity and positioning outputs when comparing systems.
For animal identification, the ICAR animal-identification certification guidance explains the role of ISO 11784/11785 in compatible livestock RFID systems. An RFID standard helps define identification technology; it does not guarantee that a particular reader, installation, and herd-management database will work together without testing.
3. Survey the Farm Before Sending Samples
For a proposed 500–2,000-tag rollout, start with a simple site and workflow survey. It is easy to ship a sample and later discover that the farm has no suitable reader position, no reliable gateway backhaul, or no available software endpoint.
The survey should document four areas:
Animals and daily movement. Identify which animals will wear the devices, how groups move, where tags may snag or become damaged, and how staff replace a lost tag. Record the identification system already used by the farm.
Buildings and terrain. Mark barns, passages, milking entrances, holding yards, open pastures, metal structures, and places where equipment can be safely mounted and maintained. A clear sightline on a plan is not proof of reliable radio coverage at animal level.
Power and communications. Check where electricity, wired internet, local wireless access, and mobile networks are actually available. For cellular options, confirm supported bands and the local carrier before placing an order.
People and software. Identify who maintains the animal list, who will install tags, who controls the customer's database, and who responds to missing data or system alerts.
The output should be a short deployment brief: required functions, estimated quantities, candidate reader or gateway positions, existing software, connectivity constraints, and a pilot test plan. It does not need to be a fully engineered drawing at this stage.
4. How Should Readers and Gateways Be Planned?
The communications path depends on the selected device. A passive RFID tag is energized and read by an appropriate RFID reader; an active sensor device may transmit through BLE, LoRaWAN, NB-IoT, or cellular connectivity, depending on its architecture.
For RFID identification, test the reader where animals actually pass. Consider tag orientation, mounting distance, the speed and spacing of cows, nearby metalwork, and how the software handles more than one read of the same animal. A reader logging one animal during a demonstration does not establish whole-herd inventory accuracy.
For local wireless devices, check gateway positions, power, physical obstructions, coverage at animal height, and the connection from gateway to server. The nominal radio range in a specification sheet is not the same as verified coverage in a particular barn or pasture.
For cellular or GPS-enabled devices, verify carrier compatibility, SIM arrangements, reporting intervals, positioning conditions, and how communication costs change with data volume. GPS determines positions; the cellular or other data link determines how those positions are delivered to the user.
During the pilot, record coverage gaps and whether delayed data are recovered when connectivity returns. Offline storage, retransmission, and recovery behavior must be confirmed for the exact model and firmware; they should not be assumed. More frequent reports may also reduce battery endurance, so reporting settings belong in the deployment specification.
5. How Does Ear Tag Data Reach the Farm's Own Software?
A typical project may follow either of these paths:
Passive identification: RFID tag → compatible reader → reader software or controller → animal-ID database.
Active sensing: sensor-enabled tag → supported wireless or cellular connection → gateway or server endpoint → agreed API/data feed → herd-management software.
The main implementation challenge is usually not moving a number across a network. It is making sure each event belongs to the correct animal, is understood in the correct units and time zone, and can be used by the customer's existing workflow.
| Data item to define | Why integration teams need it |
|---|---|
| Device or electronic tag ID | Prevents confusion between the physical tag and the animal wearing it |
| Farm animal ID | Connects the device to the herd's established records |
| Measurement and unit | Distinguishes temperature, coordinates, step count, or other available outputs |
| Event timestamp and receipt timestamp | Separates when data were measured from when the server received them |
| Device or reader location | Distinguishes a GPS position from a fixed reader location |
| Device status and missing-data indicators | Supports maintenance, investigation, and exception handling |
| Authentication and message format | Determines how the customer's application securely receives and parses data |
Not every field is produced by every model. For example, rumination, resting, feeding, and other behavior-analysis outputs may depend on a compatible collar and analytics platform rather than an identification or temperature ear tag. The interface specification should list which fields are available from the exact hardware and which require separate software or sensors.
NexAgri can discuss interface access for integration with a customer's own software; use of a NexAgri-hosted dashboard is not necessarily mandatory. The agreed project scope should cover available fields, units, authentication, documentation, test data, and joint integration tests. The customer's technical team remains responsible for its application, database, internal business logic, and server environment unless a separate scope is agreed.

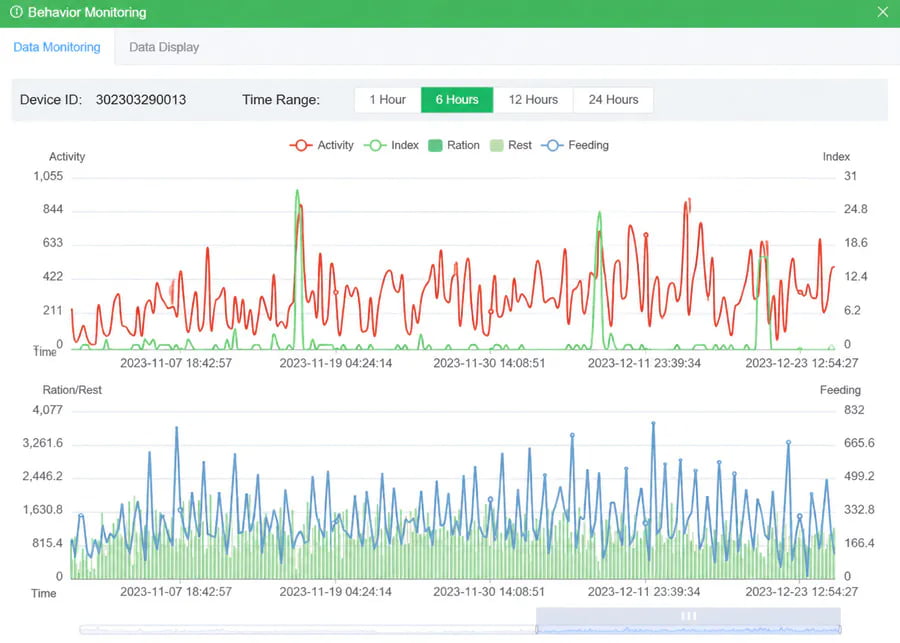

A livestock monitoring dashboard can combine information from different devices, including ear tags and behavior-monitoring collars. Available measurements and analytics depend on the selected hardware, software, and integration configuration. For projects using an existing herd-management platform, the available data fields and their sources should be confirmed during integration testing.
6. Why Run a Pilot Before a Full-Herd Rollout?
A small pilot is not just a product demonstration. It tests the interaction between animal, tag, radio infrastructure, software, and farm staff under everyday conditions.
A practical pilot can follow six steps:
- Agree on one use case. For instance, verify animal ID at a particular passage or transmit temperature data into the farm's existing software.
- Select representative animals and locations. Include the groups and conditions likely to cause difficulties, not only the easiest animals to reach.
- Install and register devices. Record the tag ID, animal ID, installation date, selected firmware/settings, and responsible staff member.
- Test the data path end to end. Confirm that readings reach the intended screen or database with correct IDs, fields, timestamps, and units.
- Test ordinary failures. Investigate missed reads, temporary network loss, delayed events, dead zones, lost tags, and replacement procedures.
- Review findings before scaling. Adjust placement or system settings, document unresolved issues, and agree on expansion criteria.
There is no universal pilot size or duration appropriate for every dairy. The number of test animals and the test period should be selected to cover the required use cases and normal operating conditions. A few functioning devices in an office do not establish reliable performance in a busy, wet, metal-framed dairy barn.
NexAgri can provide product selection guidance, available installation instructions, and remote technical coordination for agreed equipment. The overseas customer normally carries out on-site installation and testing and develops its own application integration, unless those responsibilities are separately contracted.
7. What Should Be Checked at System Acceptance?
An installation should not be accepted merely because the app displays changing numbers. The three most important questions are: Did the data reach the required system? Can the system operate reliably on site? Do the delivered features match the agreed requirement?
| Acceptance area | Practical test | Evidence to keep |
|---|---|---|
| Animal identity | Compare test reads with known animal IDs; investigate missed or duplicate events | Test-animal list and reader logs |
| Connectivity | Test intended locations, reporting intervals, interruptions, and recovery | Coverage notes, gateway or server logs |
| Software integration | Verify IDs, field names, units, timestamps, authentication, and exception handling | API tests and sample database records |
| Temperature data, if specified | Check continuity and measurement specifications; define veterinary follow-up for abnormal trends | Time-stamped samples and applicable device documentation |
| Location data, if specified | Compare observations in representative farm areas under agreed conditions | Timestamped position records and field notes |
| Behavior analysis, if specified | Confirm the exact collar/sensor, software function, and evidence supporting the claimed output | Device scope, interface examples, and agreed test method |
| Maintenance | Confirm tag attachment, device status reporting, replacement, and servicing procedures | Installation and maintenance checklist |
Agree on measurable acceptance criteria before the pilot. Record the test conditions, sample size, thresholds and how missed, duplicate or delayed data will be assessed.
This distinction is especially important for animal-behavior outputs. A 2025 scientific review of dairy cattle behavior sensors found that validation methods and reporting quality varied considerably. A trend graph can be useful without proving that the system accurately diagnoses a particular disease.
NexAgri can discuss product specifications, interface documentation, available test data, remote coordination, and demonstrations for an agreed configuration. Formal acceptance reports, specific certification evidence, and third-party testing should be defined separately for each project.
8. What Does the Complete Smart Ear Tag Project Cost?
Comparing only the unit price of an ear tag can conceal major deployment differences. Buyers should request a quotation that separates hardware, implementation, and ongoing operating costs.
| Cost category | What may be included |
|---|---|
| Devices | Ear tags, attachment components, spare tags, compatible readers or collars |
| Communications | Gateways, antennas, site networking, cellular SIMs and data charges if required |
| Software and integration | Available API access, field mapping, customer-side development, testing |
| Site implementation | Tag application, gateway mounting, wiring, configuration, operator training |
| Maintenance | Lost-tag replacement, battery or device replacement, firmware support and servicing |
| International delivery | Freight, customs, local installation or service arrangements |
NexAgri currently does not charge its own standard platform subscription or annual platform fee. This does not mean every possible project has zero recurring cost: cellular operators, third-party software providers, hosting, data storage, and custom support can still involve charges. Clarify what is included in the quotation for the selected model and system scope.
A battery-life claim also needs operating conditions. More frequent reporting, GPS operation, weak radio coverage, temperature, and the chosen communication architecture can affect real-world endurance. Ask for the assumptions behind the stated lifespan, and plan a practical replacement process.
9. Common Deployment Mistakes to Avoid
Buying one feature list for every animal. Some groups may need only identification, while others need temperature trends or GPS tracking. Start with tasks and animal groups rather than assuming the most expensive tag is best for the whole herd.
Treating RFID reads as continuous tracking. A successful read proves identification at a compatible reader point; it does not continuously show an animal's position. If pasture coordinates are required, specify positioning-enabled hardware and a communication plan.
Expecting one tag to supply a complete health diagnosis. Ear temperature is a monitoring signal, not a direct medical diagnosis. Advanced behavior interpretation requires the correct sensor and software, with appropriate validation and farm follow-up.
Sending samples before checking network and software requirements. Confirm carrier bands, reader or gateway needs, and the customer's receiving system first. The best laboratory demonstration will not solve an incompatible local network.
Skipping animal-ID mapping and failure tests. An accurate temperature value assigned to the wrong cow is not useful. Confirm tag-to-cow registration, duplicated events, offline recovery, replacement procedures, and personnel responsibilities before expanding.
10. What Should You Send NexAgri Before Requesting a Proposal?
For an initial technical discussion, share the animal species and herd size, housing or pasture layout, intended monitoring function, country and available connectivity, existing identification system, and whether your own software will be used. If possible, include a simple site drawing with candidate reader or gateway locations and a description of the data fields you need.
NexAgri can help match available ear tag, reader, gateway, and communication options to that information, then discuss product documentation, sample testing, and potential integration work. The final hardware capability, interface scope, test method, pricing, and division of implementation responsibilities should be confirmed for the project.
For product configurations, review the NexAgri-Sense smart ear tag system. If the project principally involves collar-based monitoring or pasture tracking, compare the NexAgri livestock monitoring systems before selecting hardware. To discuss the initial requirement, contact NexAgri.
Frequently Asked Questions
Do all smart ear tags provide RFID, temperature, GPS, and activity analysis together?
No. These features depend on the selected hardware. RFID, temperature monitoring, GPS positioning, and advanced behavioral analysis should be listed separately in the purchase specification. NexAgri also offers smart collars for behavior-related monitoring requirements.
Can NexAgri ear tag data go into my own farm-management software?
Integration can be discussed through available interfaces and joint technical testing. Confirm the chosen device, supported fields, authentication method, timing, and customer-side integration responsibilities before ordering. Do not assume every field on a combined dashboard comes from the ear tag.
Can an RFID ear tag show where a cow is anywhere on the farm?
A passive RFID tag identifies a cow when read by compatible equipment at a particular location. It is not the same as continuous GPS positioning. Location tracking requires an appropriate positioning-enabled device and a working data-transmission method.
Should a farm buy all 1,000 tags before testing?
A full-farm order is better considered after a survey and representative pilot, especially when the project includes readers, wireless coverage, health data, or integration with an existing platform. Agree on acceptance criteria before expansion.
Are there monthly platform fees or other recurring costs?
NexAgri does not currently charge a standard platform subscription or annual platform fee, but some configurations may need carrier data, third-party services, hosting, maintenance, or custom integration support. Confirm the actual cost breakdown in the quotation.
Conclusion
Accept a smart ear tag deployment when staff can identify the correct animal, retrieve the required data in the intended software and complete the agreed follow-up under normal farm conditions. Keep the pilot records as the basis for expansion.
Start with the management task and a site survey. Match the sensor and network to the operating conditions, define interface responsibilities, test with representative animals, and accept the system only after the agreed workflow works end to end. NexAgri can support equipment selection and technical coordination around these steps, with the final configuration and delivery scope confirmed for each project.
