How to Choose the Right Milk Cooling Tank for Your Dairy Farm?

Choosing a milk cooling tank requires two checks: how much milk must be held between collections, and how quickly the refrigeration system must remove heat under the site’s peak conditions.

Match working storage volume to peak milk output and the longest planned pickup interval. Then compare minimum fill, refrigeration duty, cleaning configuration and available space. Confirm target temperature and cooling time against local requirements, the processor’s receiving standard and the supplier’s rated test.

Compare capacity, minimum working volume, refrigeration duty, cleaning method and site access together. An oversized tank may not mix or cool a small first milking correctly, while insufficient refrigeration can delay cooling at the peak load.

How Do You Calculate the Perfect Milk Cooling Tank Size?

Buying the wrong size tank is a costly mistake. Too small, you risk losing milk during peak production. Too big, you're just wasting energy and money on cooling empty space.

Estimate storage as peak daily milk volume × the longest planned interval between pickups. Add a stated planning allowance for seasonal peaks or collection delays, then confirm the model’s usable working volume and minimum operating fill.

Use the Milk Cooling Tank Sizing Calculator to compare storage volumes under your chosen yield, pickup interval and planning allowance.

Record the inputs for the peak collection period:

• Peak Daily Milk Yield: Don't use your average. Look at your highest production days to make sure you're always covered.
• Collection Interval: How often is your milk picked up? If it's every day, the interval is 1. If it's every other day, the interval is 2.
• Planning allowance: State the reason and amount separately. For example, 800 L/day × 2 days × 1.10 gives 1,760 L with an illustrative 10% allowance. The selected allowance does not establish the tank’s nominal size, minimum fill or cooling performance.

Review the refrigeration package separately from storage volume. Ask for the compressor and condenser configuration, ambient rating, electrical requirements, protection controls and cooling test at the intended milk load. Include condenser cleaning and local service access in the operating plan.

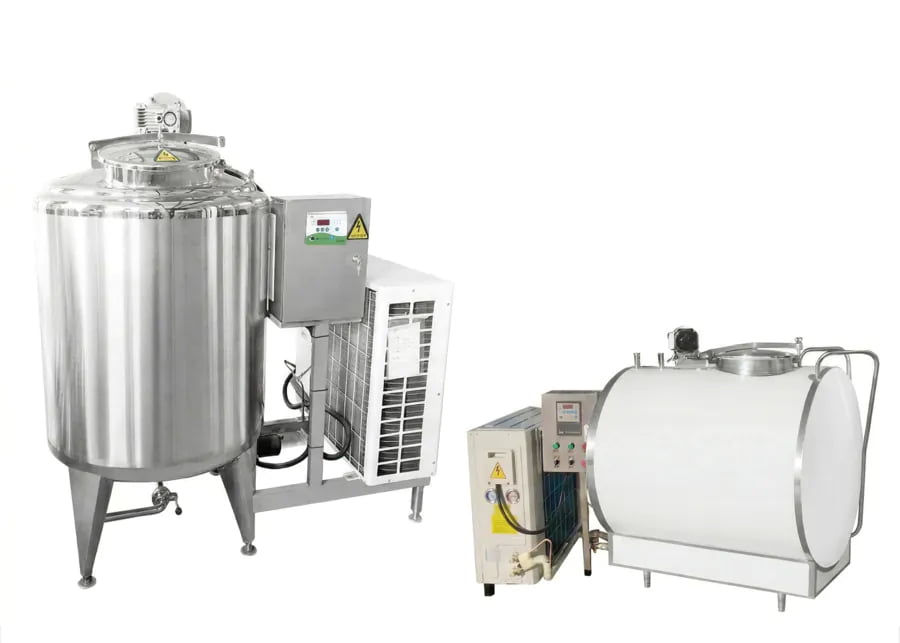

Vertical vs. Horizontal: Which Milk Cooling Tank is Right for My Barn?

Your barn's layout is unique. Choosing the wrong tank shape can waste valuable space or, even worse, not fit through the door at all. You need to match the tank to your space.

For tight floor space or converted barns, a vertical tank is best. For new barns with low ceilings or plenty of width, a horizontal tank is the ideal choice. Very large dairies should consider outdoor milk silos for maximum capacity.

Compare the quoted models’ footprint, height, access and cleaning arrangements. NexAgri’s vertical range can be supplied for accessible manual cleaning or configured with automatic CIP; confirm whether CIP is included or optional on the selected tank. Review the agitator, milk-contact material and insulation specification with the same quotation.

Tank Type by Farm Layout

Dimensions to Request for the Selected Tank

Use the quoted model’s general-arrangement drawing to check the building and delivery route:

Confirm the dimensions and service clearances before preparing the floor, doorway or pipe connections.

Is a Rapid Milk Cooling System Worth It for My Farm?

Pre-cooling can reduce the heat that the bulk-tank refrigeration system must remove. Whether it is worthwhile depends on incoming milk volume and temperature, available cooling water, flow rates, ambient conditions and the complete system's operating cost.

Orange shows milk passing through the exchanger to storage. Blue shows the separate chilled-coolant supply and return. Select the cooling-water or refrigerated-coolant arrangement for the required milk flow and inlet/outlet temperatures.

Match the Cooling Stages to the Site

1. Water pre-cooling: Milk passes through a suitable exchanger while clean cooling water absorbs heat. Outlet temperature depends on water temperature, milk and water flow, exchanger performance and operating condition.
2. Refrigerated cooling and storage: The selected refrigeration stage removes the remaining heat and maintains the agreed holding conditions. It may use in-tank DX or a specified chilled-water arrangement.

For a quick milk cooling system, request the milk duty, exchanger type, coolant circuit, controls and cleaning scope. The linked NexAgri page presents a tubular skid; include its model-specific flow diagram in the quotation review.

Teagasc's dairy infrastructure handbook describes pre-cooling and the importance of the complete water and refrigeration arrangement.¹ Use site measurements to compare the proposed system with the existing one.

Compare energy per consistently defined milk volume and cooling duty. Do not assume a fixed 50% saving or a universal 20°C milk outlet. Water reuse also needs a quality and plumbing review for the intended use; warm recovered water is not automatically suitable for every cleaning or drinking task.

Conclusion

Use peak volume and pickup timing to plan storage, then check cooling duty, first-fill limits, cleaning and the actual installation drawing. Compare quotations on the same milk load and site conditions so the selected tank fits both the production schedule and the building.
