How to Master CIP Automation for Pasteurs & Homogenizers: Valving & PLC Logic

You spend money on new dairy recipes and fast machines. But your milk still goes bad. Poor equipment cleaning ruins your hard work and causes big losses.

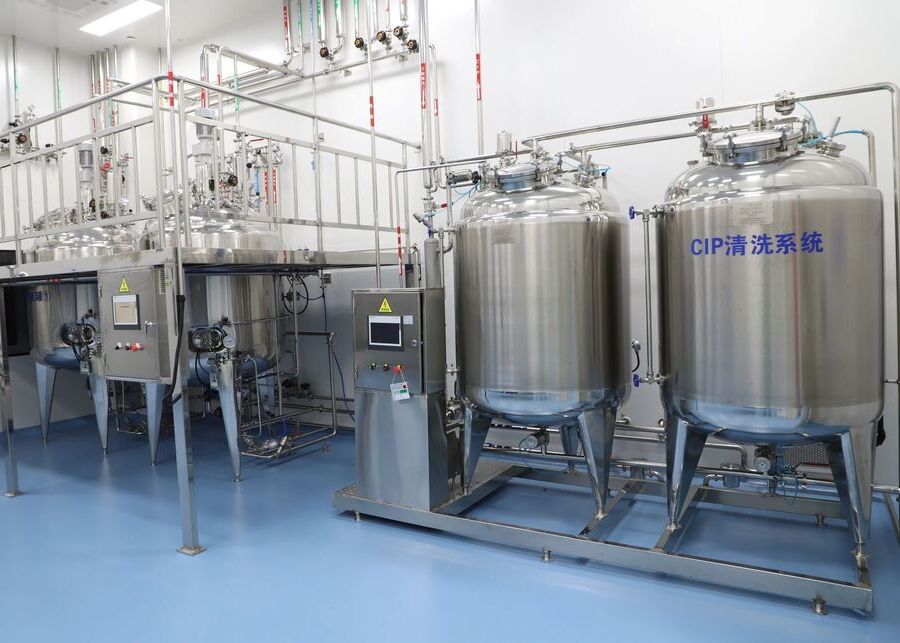

An intelligent CIP (Clean-in-Place) system cleans and sterilizes dairy processing equipment without taking it apart. It uses controlled water, acid, and alkali cycles to stop bacteria growth. This saves labor and ensures total food safety.

Many factory managers think simple manual washing is enough for their pipes. I will show you why that is a dangerous mistake that will cost you your business.

Why do dairy plants fail at food safety without a CIP system?

Hand washing takes too long and tires workers. Workers miss blind spots inside long pipes. Bacteria grow quickly in these spots and ruin your whole milk batch.

Manual cleaning is not stable and lacks strict standards. It leaves milk residue inside pipes and tanks. This causes high microbe levels and fast product spoilage. A CIP system solves this problem by washing inside automatically.

I visited a dairy plant two years ago. The owner spent a lot of money on a new pasteurization line. But he used workers to wash the pipes with hoses. One day, a whole batch of milk spoiled. He lost thousands of dollars. The problem was a hidden dirty spot inside a pipe valve.

In the food and dairy industry, companies focus on recipes and capacity. They often ignore cleaning. But cleaning is the most basic and deadly step. If you do not clean well, you get biofilms. Biofilms are sticky layers of bacteria on metal walls.¹ You cannot see them. You cannot wash them away with just water. You must remove them to keep your food safe. Manual workers cannot see inside the dark pipes. They will always miss some spots.

The Hidden Danger of Biofilms

When milk fat and protein stay in pipes, bacteria build homes there. These homes are biofilms. Manual washing cannot break them. Only a smart CIP system with strong chemicals and hot water can destroy them.

How does an intelligent CIP system protect your dairy equipment?

Bad cleaning machines can break your expensive dairy tools. Homogenizers burn out when the pressure stays high during washing. You need a smarter, safer control system.

A smart CIP system controls temperature, liquid levels, and chemical concentration. It connects safely with pasteurizers, cooling tanks, and homogenizers. It forces pressure to zero during washing to protect machine parts from dry friction.²

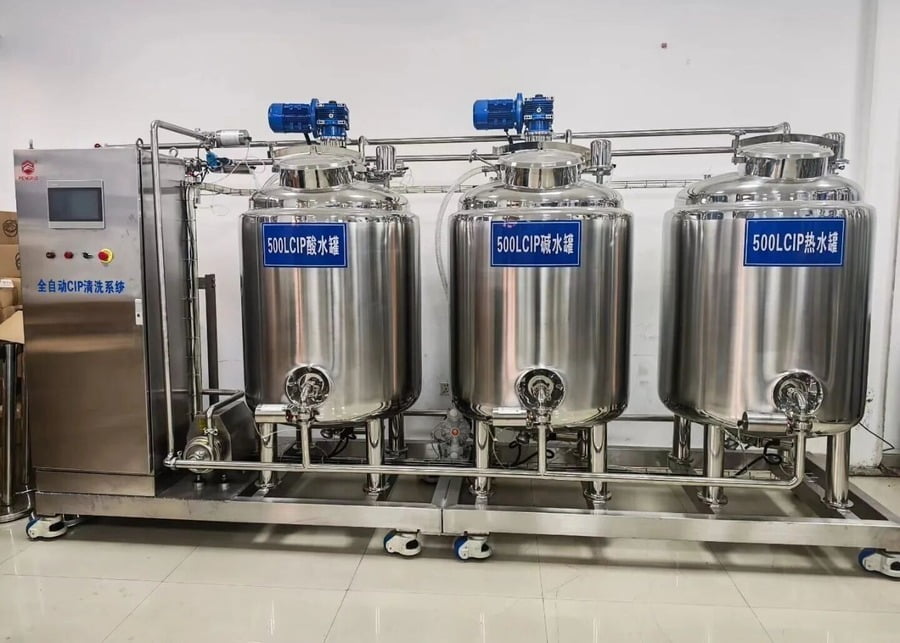

At NexAgri Solutions, we provide a one-stop service. We build equipment and we make sure it works perfectly with your production line. Our system connects perfectly with all your pasteurization and filling machines. We help you set up and test everything in your factory. Let me use our 500L CIP system as an example. We build it with AISI 304 stainless steel. We polish the inside walls very carefully. This smooth surface stops bacteria and biofilms from sticking. It has three tanks: one for acid, one for alkali, and one for clean water. It runs automatically with one button.

Smart Interlocks Save Your Machines

Many cheap CIP systems damage other machines. For example, when they wash a homogenizer, they do not release the pressure head. The plunger runs dry, gets hot, and burns out. We fix this with a hard interlock design. When our CIP program starts, it forces the homogenizer pressure to zero. At the same time, it opens a bypass valve. This simple logic extends the life of your homogenizer seals by three times.

What are the different types of CIP systems for dairy farms?

You want to buy a new cleaning system. But you do not know which type fits your factory space. A wrong choice wastes your money and energy.

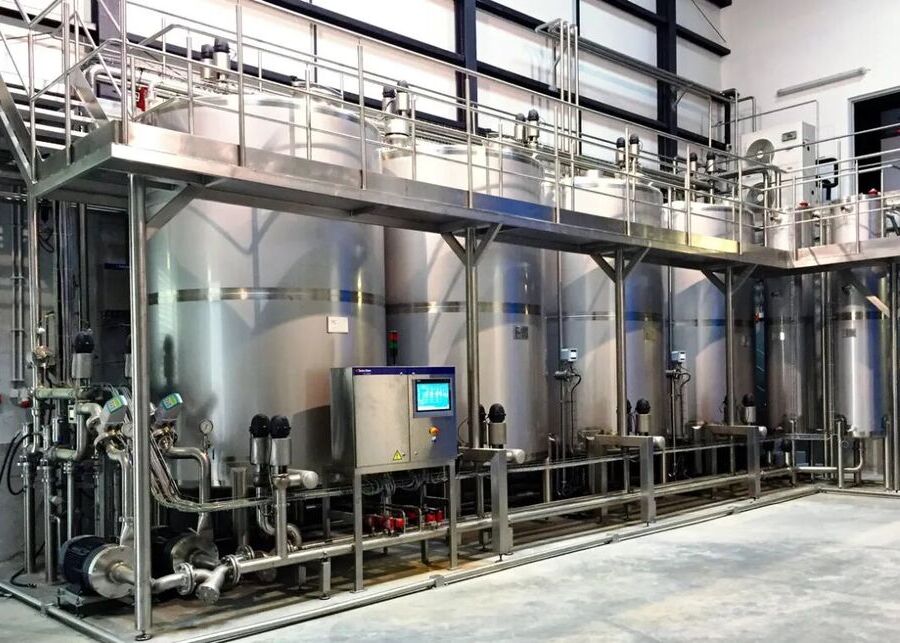

CIP systems come in integrated types for small factories and split types for large lines. You can heat them with steam or electricity. Fully automatic systems are the best choice for modern plants.

Every dairy factory is different. I always ask my clients about their factory size and daily milk volume first. You cannot use a small CIP for a giant milk line. The cleaning water will lose its heat and power before it reaches the end. You must pick the right size to save water and chemicals. A good match will lower your daily running costs. We divide CIP systems into different groups so you can make the right choice.

Choosing the Right CIP Configuration

First, we look at the physical structure. If you have a small space, you need an integrated CIP. All tanks sit on one base. If you run a large production line, you need a split CIP. Second, we look at heating. If you have a boiler, steam heating is fast and cheap. If you do not have a boiler, electric heating is easy to install. Finally, we look at control. Manual and semi-auto systems are old. Fully automatic systems are the mainstream trend because they do not make human mistakes.

What is the standard operating procedure for CIP cleaning?

You turn on the washing machine to clean the pipes. But you do not know the correct steps. Wrong steps leave dangerous washing chemicals in your milk.

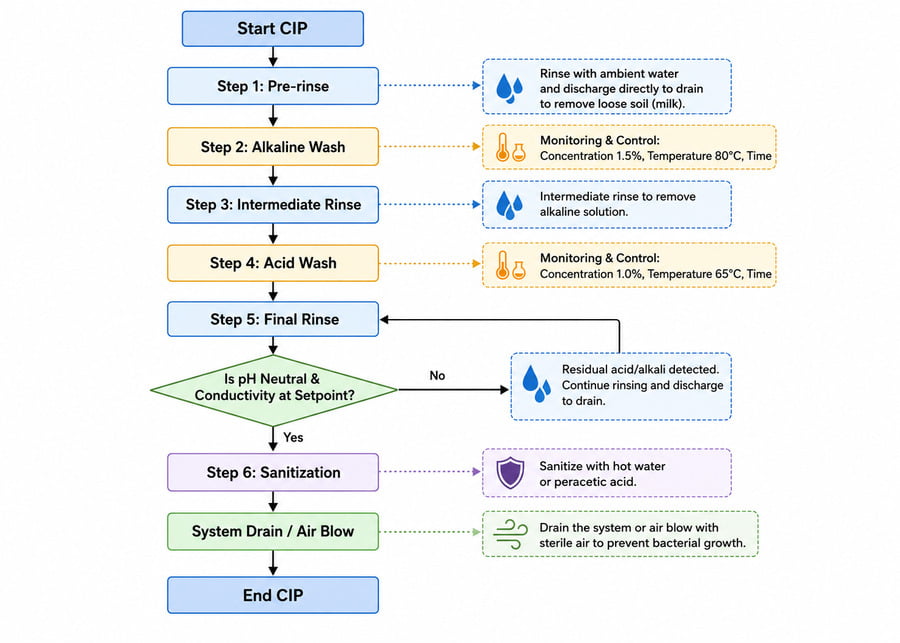

A standard CIP process has four main phases. It starts with a pre-rinse, uses an alkali wash for fat, an acid wash for minerals, and ends with a final rinse and sterilization.

A good CIP system is like a smart robot. It follows strict rules every single time. We call these rules the Standard Operating Procedure (SOP). The system uses sensors to check liquid levels, temperatures, and chemical strength. It creates a closed loop of control. Here is exactly how the smart system cleans your dairy line step by step.

The Four-Phase CIP Protocol

Phase one is the pre-rinse. The system pushes room-temperature water through the pipes. This simple step removes more than 80% of loose dirt and floating milk. It stops the system from wasting expensive chemicals later. Phase two is the main chemical wash. The system heats a 1.5% sodium hydroxide (alkali) mix to 85°C. This melts the milk fat and breaks down hard proteins.

Phase three is a smart choice. Does the machine need acid? If we wash hot processing tools, the system uses 1.0% nitric acid at 70°C to melt milk stones and calcium scales. If not, it skips to the final water rinse until the water is neutral. Phase four is for germs. If you will make milk again right away, the system uses hot water (over 85°C) to kill all bugs. If you stop for the night, it leaves the pipes dry and waits to sanitize them tomorrow.

Conclusion

A smart CIP system is the only way to guarantee food safety in your dairy plant.³ It cleans automatically, protects your machines, and ensures every drop of milk stays fresh.
