A dairy processing line can pass its normal CIP cycle and still show recurring microbial results at the same valve, pipe branch or filling connection. When that happens, extending the cleaning time may bring temporary improvement without resolving the underlying problem.
Biofilm is one possible cause. Bacteria attach to a surface and develop a protective matrix of extracellular material. Milk residues, worn seals, poor drainage and areas that cleaning liquid cannot reach can help these deposits persist. Stainless steel is widely used in dairy processing because it is durable and cleanable, but its surface still needs proper fabrication, hygienic installation and effective cleaning.
For a dairy plant investigating repeated sanitation failures, the practical sequence is to locate the affected circuit, check its cleaning conditions, inspect difficult-to-clean components, correct the fault and verify the result. This guide covers the piping, pumps, valves, CIP equipment and records involved in that work.
1. Where Does Biofilm Develop in Dairy Processing Equipment?
Biofilm can form on surfaces that remain exposed to moisture and nutrients, including stainless steel, elastomer seals and some polymer components. Initial attachment may be microscopic. Over time, attached microorganisms and their extracellular matrix can become harder to remove than a fresh layer of milk residue.

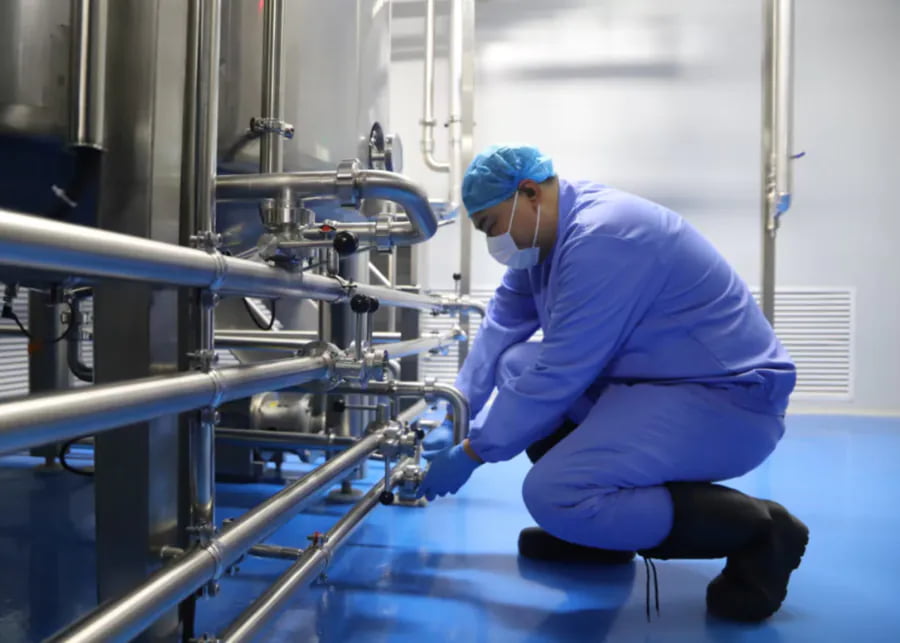

In a milk, yogurt or cream processing line, the areas worth checking first are often connections and components, not the middle of a straight, well-drained pipe.
| Area | What creates the cleaning problem | What to inspect |
|---|---|---|
| Long or unused pipe branch | Little or no CIP exchange near the closed end | Branch length, valve position, actual flow path |
| Valve seat or gasket pocket | Product trapped around seals or in cavities | Seal condition, valve design, cleaning actuation |
| Poorly drained low point | Milk or rinse water remains after the line empties | Pipe slope, supports, drains and return routing |
| Rough internal weld or damaged pipe | Surface defects retain deposits and are difficult to clean | Weld finish, pitting, corrosion and repair history |
| Heat exchanger or heated surface | Protein and mineral deposits build up under heat | Fouling, appropriate acid step, pressure drop |
| Pump, instrument or sample connection | Small pockets are missed by the main circulating flow | Pump seals, sensor insertion, sampling valve design |
Check the stainless steel surface finish and welds
For dairy product-contact tubing, a commonly used hygienic surface-finish target is Ra ≤ 0.8 µm (about 32 µin), consistent with EHEDG hygienic-design guidance. Some highly demanding applications specify a finer finish, such as Ra ≤ 0.4 µm. The specification should include the finished welds and fittings, not only the straight pipe supplied by the mill.
A cleanable internal surface also needs smooth transitions, sound weld roots and freedom from pits, cracks and crevices. EHEDG Guideline 35 on hygienic welding recommends orbital TIG welding where practical for consistent, repeatable sanitary joints. Internal argon purging helps protect the weld root from oxidation. Where fabrication leaves heat tint or iron contamination, suitable post-weld cleaning and, when specified, passivation restore the intended corrosion-resistant surface. Nitric- or citric-acid passivation follows appropriate surface preparation; heavy oxide or defective weld geometry requires its own removal or repair.
A rising microbial count, repeated contamination of one product, or a failing hygiene swab is a reason to investigate. It is not proof of biofilm on its own. Product formulation, raw materials, post-process handling and other contamination routes should be reviewed alongside the CIP system.

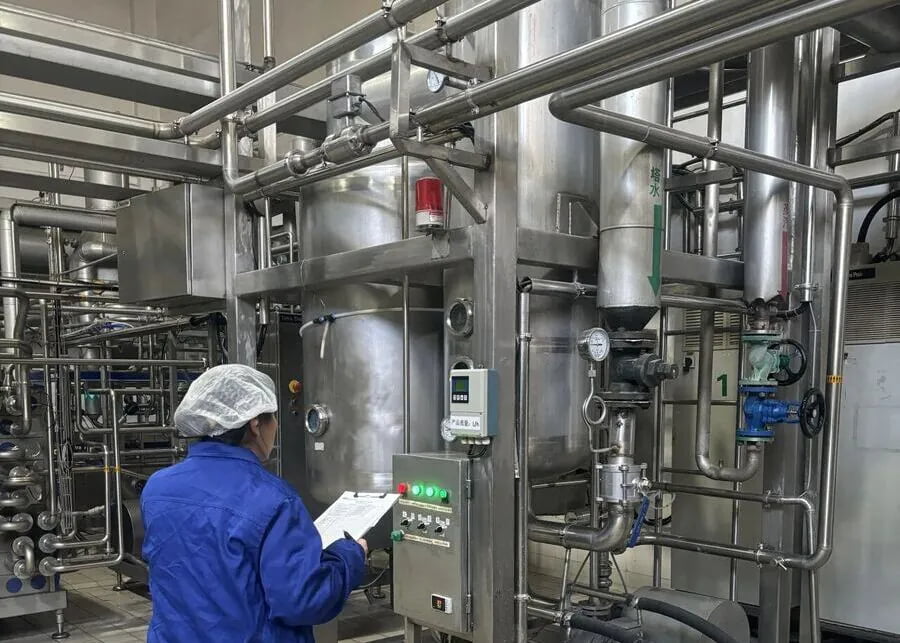

2. Start With the Cleaning Records and a P&ID
When a line repeatedly fails sanitation checks, compare failed production lots with the exact equipment route they used. If the same problem follows one branch or valve cluster, the investigation becomes much narrower.
Ask the plant to collect:
- P&ID and line layout: product/CIP supply and return routes, valve numbers, pipe sizes, elevations and drain points.
- CIP batch records: selected circuit, step sequence, supply and return temperatures, chemical concentration or conductivity, flow, pressure and time.
- Inspection history: replaced gaskets, recent welds, blocked strainers, valve faults, pump servicing and recurring alarms.
- Quality results: sample location, date, organism where identified, cleaning status and whether the result recurs after a particular product.
- Process changes: higher production flow, added tanks, new branches, modified valve logic or a new cleaning chemical.
Compare the worst-performing locations with an unaffected circuit. A long branch that never opens during cleaning requires a piping or valve-sequence correction. A correctly routed circuit that never reaches the intended return temperature or flow calls for a different investigation.
Sampling helps confirm the problem. ATP swabs can show a trend in accessible surface hygiene; microbiological sampling and laboratory identification are needed to investigate particular organisms. A targeted internal inspection of a removable pipe spool or valve can reveal deposits that are hidden during routine operation. The plant's quality team or an independent laboratory should determine the sampling method and interpret the microbiological results.
3. How Much CIP Flow Does a Stainless Steel Pipe Need?
Flow provides the mechanical action that helps remove milk residue from the pipe wall. Tetra Pak's Dairy Processing Handbook gives 1.5–3.0 m/s as a typical velocity range for circulating CIP liquid in dairy piping. It is a useful design benchmark for a liquid-filled pipe circuit, alongside detergent chemistry, temperature and contact time.
The required flow increases quickly with pipe diameter:
Flow (m³/h) = 0.002827 × [internal diameter (mm)]² × [velocity (m/s)]
Use the actual internal diameter, accounting for wall thickness. For a 50 mm ID pipe at 2.0 m/s: 0.002827 × 50 × 50 × 2.0 = 14.1 m³/h.
| Actual internal diameter | At 1.5 m/s | At 2.0 m/s |
|---|---|---|
| 38 mm | 6.1 m³/h | 8.2 m³/h |
| 50 mm | 10.6 m³/h | 14.1 m³/h |
| 65 mm | 17.9 m³/h | 23.9 m³/h |
| 76 mm | 24.5 m³/h | 32.7 m³/h |
This gives the flow needed inside a full pipe. The supply pump must also overcome friction, valve and fitting losses, equipment restrictions, and the pressure needed by any tank-cleaning device. The return arrangement must carry the used solution away without flooding or trapping air. A flooded return, a self-priming return pump or another recovery arrangement may be appropriate depending on the circuit.
Pipe velocity and tank spray coverage are different checks
A pipe circuit is assessed using internal diameter and flow velocity. A tank-cleaning device is selected by its spray coverage, liquid flow, inlet pressure and cleaning action, together with tank diameter, internal obstructions and return capacity.
| Tank-cleaning device | Indicative operating pressure | Cleaning action and typical application |
|---|---|---|
| Static spray ball | Often around 2–3 bar | Fixed spray pattern; suitable for relatively easy-to-clean tanks with well-defined wetting coverage |
| Rotary spray head | Often around 2–3 bar | Rotating spray pattern improves coverage and liquid distribution in milk or ingredient tanks |
| Rotary jet head | Common industrial configurations around 5–8 bar | Concentrated impact jets for larger tanks, stubborn deposits and complicated internal geometry |
These are familiar catalog ranges, not equipment settings to copy between different spray devices. During selection, compare each model's flow-versus-pressure chart, cleaning radius and required return flow. For a tank with agitators or coils, confirm that the spray pattern reaches the surfaces behind those obstructions. Tetra Pak's description of dairy tank CIP also distinguishes pipe circulation from tank spray cleaning.
4. Which CIP Cleaning Parameters Matter Most?
A CIP program combines mechanical action, detergent chemistry, temperature and circulation time. The correct sequence also depends on whether the circuit contains only pipes and unheated tanks or includes a pasteurizer or other heated surface.
The following figures are common dairy-processing references from Tetra Pak, useful when reviewing a proposed program:
| Design or cleaning item | Practical reference | Engineering significance |
|---|---|---|
| Pipe circulation velocity | Around 1.5–3.0 m/s | Helps carry soils away from wetted pipe surfaces |
| Pre-rinse | Promptly after production, with water typically below 55°C | Removes loose milk without encouraging protein coagulation |
| Alkaline detergent | Common NaOH range 0.5–2.0% by weight | Removes fat and protein residues; actual formulated detergents follow their supplier's concentration method |
| Alkaline wash temperature | Often around 70–80°C | Improves removal of many dairy soils within the chemical and equipment limits |
| Acid detergent | Common nitric acid range 0.5–1.5% by weight | Removes mineral deposits, especially from heated equipment |
| Acid wash temperature | Often around 60–75°C | Used where a mineral-removal step is required |
| Contact time | Varies by circuit and deposits | A simple pipe loop and a heavily fouled heat exchanger need different exposure times |
For a relatively simple unheated pipe or tank circuit, an alkaline cycle may be the main detergent step. Heat-treatment equipment usually needs an acid stage as well because hot surfaces accumulate mineral and protein deposits. A complete program also includes appropriate intermediate/final rinsing, drainage and sanitizing or thermal disinfection where the process calls for it.
These are equipment design and review references, not a prescription to strengthen a cleaning chemical whenever microbiological results are poor. The cleaning chemical supplier and the plant's sanitation procedure establish the actual solution, sequence and exposure limits for the materials in contact with it.
Cleaning removes residues; sanitizing reduces microorganisms to an acceptable level. A normal CIP and sanitation program does not automatically make the entire line sterile. Systems requiring sterilization have their own validated procedures.
The Tetra Pak Dairy Processing Handbook's cleaning chapter explains the different CIP programs used for heated and unheated dairy equipment.
5. Why Does Contamination Return After a Stronger CIP Cycle?
Increasing detergent concentration or extending circulation may produce a better result for a short period. Recurring failures are often a sign that part of the equipment is poorly reached, poorly drained or physically damaged.
A useful correction sequence is:

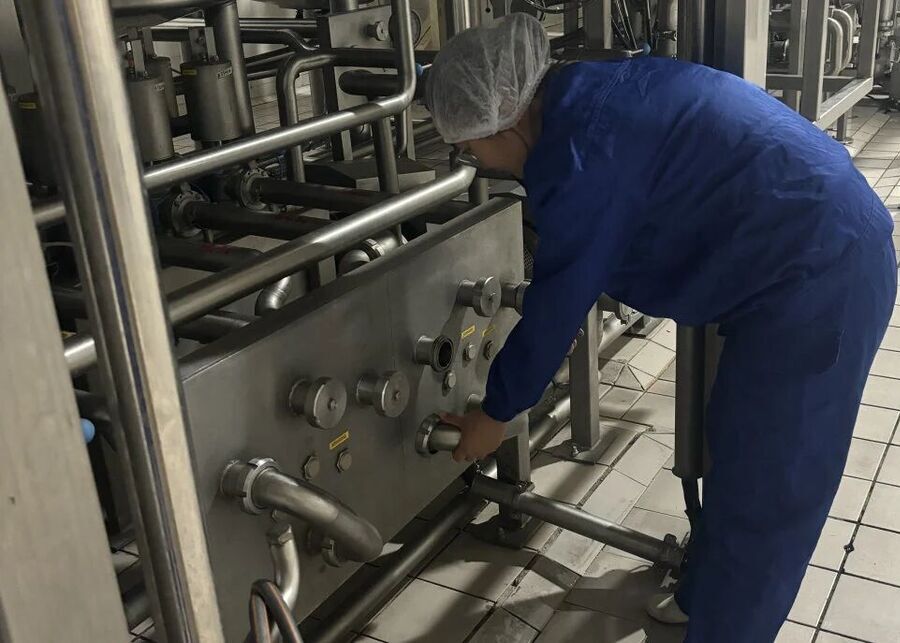

- Confirm the circuit path. Check which valves open during each cleaning phase. An inactive branch may receive little cleaning liquid despite a normal reading at the CIP station.
- Compare actual supply and return readings. Record temperature, flow and pressure while cleaning the most demanding circuit. Verify that the return pump or drain removes liquid consistently.
- Inspect accessible components. Open identified valves, strainers and removable sections under the plant's controlled maintenance procedure. Look for trapped residue, damaged seals, pitting and rough welds.
- Repair the hygienic-design fault. Shorten or remove unused branches, correct drainage, replace unsuitable valves or gaskets, and repair or replace damaged piping.
- Repeat the cleaning and hygiene checks. Use the plant's microbiological and surface-hygiene methods to establish whether the corrective work has resolved the recurring result.
A CIP system can deliver the correct temperature and flow at its discharge while a distant valve pocket remains difficult to clean. This is why a pump upgrade is sometimes useful, while in other cases a short piping modification produces a more reliable improvement.
6. When Should Stainless Steel Piping or Valves Be Replaced?
Some defects call for hardware changes instead of repeated cleaning adjustments.
| Condition found | More useful response |
|---|---|
| Corroded or pitted product-contact pipe | Inspect the extent of damage and replace affected sections where hygienic cleanability is compromised |
| Inaccessible dead-end branch | Remove, shorten or redesign the branch and its isolation arrangement |
| Persistent low point retaining solution | Re-route piping or add a properly designed drain point |
| Rough or defective internal weld | Assess repairability; replace the spool if a sound hygienic surface cannot be restored |
| Cracked gasket or worn valve seal | Replace with a compatible food-contact component and inspect the seat/groove |
| Valve body with product-trapping cavities | Select a more cleanable valve design and review its CIP actuation sequence |
Measure branches and dead legs with the L/D ratio
For an unflushed dead-end branch, L/D compares its depth (L, measured from the main pipe wall to the closed end or valve seat) with the branch's internal diameter (D). For example, a branch with a 25 mm internal diameter and 50 mm dead-leg depth has an L/D ratio of 2.0.
For food-processing hygienic design, EHEDG-oriented guidance generally favors L/D ≤ 1, while 3-A criteria commonly use an L/D limit around 2 for relevant equipment. The comparison of hygienic dead-leg criteria explains how these references differ. During a retrofit, examine branch depth alongside valve-seat location, installation orientation, drainage and whether the branch is actively flushed in the CIP sequence.
Long capped branches, upward pockets that retain air and downward pockets that hold liquid deserve particular attention. A compact valve cluster or a properly cleanable branch arrangement can eliminate several difficult-to-clean locations at once.

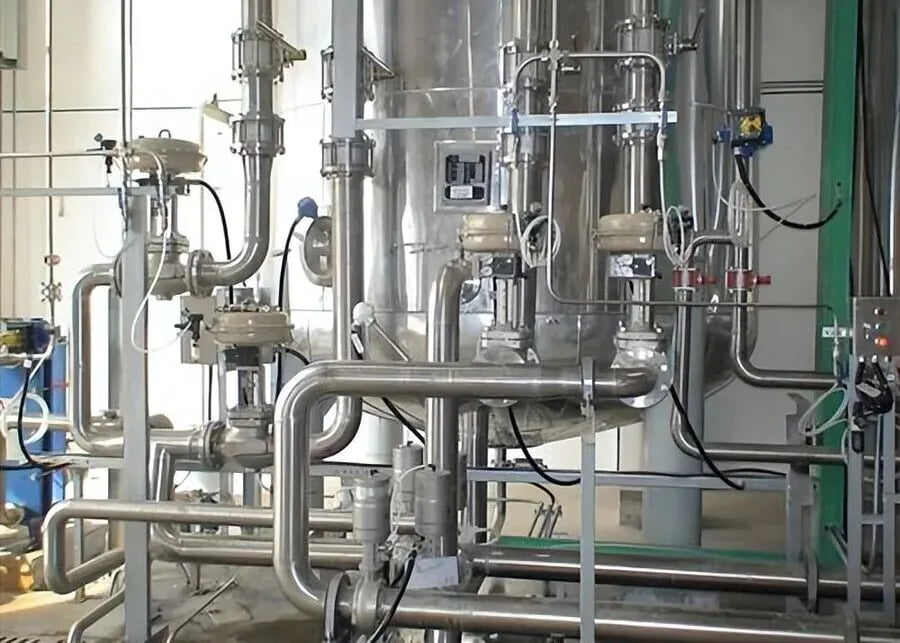

NexAgri can supply 304/316L hygienic stainless steel piping, elbows, tees, reducers, clamp connections, butterfly valves, diaphragm valves, double-seat valves and compatible sealing components. For a retrofit, the proposed piping arrangement can be coordinated against the customer's P&ID and existing equipment interfaces.
7. What CIP Station Should a Dairy Plant Choose?
NexAgri's supply range includes three-tank CIP stations with water, alkaline and acid solution tanks, as well as four-tank or larger configurations, semi-automatic units, PLC-controlled automatic systems and compact mobile units.
Common project configurations use approximately 1,000–5,000 L per tank; larger centralized projects may have aggregate solution-storage capacity above 10,000 L. Typical circulating-flow requirements across the broader supply range are approximately 5–40 m³/h, selected to match the connected cleaning circuits.
Tank capacity is mainly a question of cleaning solution inventory, reuse, heating demand and how many circuits are served. Pipe size and cleaning-device demand drive the flow requirement. Two plants with the same 3,000 L CIP tanks may need different supply pumps.
Which automation functions are useful?
| Function | Practical role |
|---|---|
| PLC/HMI sequence control | Runs the selected rinse, detergent, recovery and cleaning steps |
| Valve and pump control | Routes cleaning liquid to the scheduled circuit |
| Temperature and level monitoring | Controls heating, protects pumps and records operating conditions |
| Flow and pressure monitoring | Shows whether the circulation system is operating within its configured range |
| Conductivity measurement | Helps monitor detergent solution and phase separation/return routing |
| Chemical dosing | Maintains the selected detergent concentration when configured for automatic control |
| Alarms and cycle records | Records deviations for maintenance and hygiene review |
| Multi-circuit control | Allows different equipment groups to use suitable cleaning sequences |
For compact installations, a simpler control panel may be sufficient. A large plant may need recipe selection, automatic dosing, conductivity-based recovery, separate return paths and reporting of incomplete cycles.
For a small dairy workshop or a dedicated cleaning circuit, a three-tank station with 500 L solution vessels can provide a compact installation. Central CIP plants serving multiple processing lines often use 1,000–5,000 L vessels, with their pumps, controls and solution-recovery arrangements sized for the connected circuits. The unit shown above is an example of the smaller equipment format.
8. What Documents and Factory Tests Should Buyers Request?
A CIP purchase is easier to evaluate when the supplier provides the cleaning circuit details together with the tank and pump specifications.
For engineering review:
- PFD, project P&ID and equipment list.
- Tank capacities, pump flow/head curves and selected sanitary connection sizes.
- Valve list, instrumentation and automation description.
- Utilities: power, water, steam or heating medium, compressed air and drainage.
- Layout, dimensions, access space and pipe connection positions.
- Product-contact material grades, internal surface-finish target (Ra), weld quality requirements, seal compatibility and maintenance parts.
For FAT and handover:
- Water-circulation test of the supplied unit, with agreed flow and pressure readings.
- Valve-sequence, pump, level-protection and alarm tests.
- Temperature-control and instrument-function checks.
- Approved operating sequence, wiring/control drawings, manuals and test records.
- Installation and commissioning guidance, with training and project-based on-site support.
Factory water tests can demonstrate pump, valve, instrument and control operation. After installation, the connected piping and cleaning devices should be checked under their actual hydraulic conditions. The dairy's sanitation team then verifies hygienic performance with its approved cleaning and microbiological methods.
9. What Should You Send NexAgri for a CIP Retrofit?
For an existing dairy line, the most useful documents are:
- Process and piping drawings: P&ID, pipe sizes, approximate lengths, valve locations and tank layout.
- Current CIP equipment: number and capacity of tanks, pump nameplates/curves, heating method and return arrangement.
- Operating records: flow, pressure, temperature, conductivity or chemical concentration, and time for the problem circuit.
- Failure pattern: affected equipment, cleaning cycle, repeated hygiene results and maintenance observations.
- Project goals: additional production capacity, a new circuit, better drainage, automation or targeted replacement.
NexAgri can use this information to review piping and pump selection, propose hygienic component changes and prepare an equipment and interface package. Microbial identification and confirmation of the contamination source are handled by the customer's quality laboratory or a qualified third party.
For equipment configurations, see NexAgri Dairy Processing Equipment and Dairy Production Line Integration.
Frequently Asked Questions
Can biofilm form on polished stainless steel?
Yes. Ra ≤ 0.8 µm is a widely used hygienic surface-finish target for dairy stainless steel. Smooth surfaces help cleaning, while pits, damaged welds, trapped residue, worn seals and poorly flushed branches still create areas where microorganisms can persist.
Is 1.5 m/s enough for every CIP circuit?
It is a common starting benchmark for liquid-filled pipe cleaning. The flow and mechanical action required at spray balls, heat exchangers, pump chambers and other components must also be checked.
Will a stronger caustic wash remove established biofilm?
Increasing caustic concentration may not resolve a protected deposit in a poorly reached location. Review the cleaning route and inspect suspect components before changing the program.
Should every dairy pipeline receive acid CIP every day?
Acid frequency follows the equipment, mineral load and validated cleaning program. Heated surfaces generally need more consistent mineral-removal steps than unheated milk transfer lines.
Can ATP swabs confirm that a pipe is free of biofilm?
ATP tests provide rapid hygiene information at accessible points. Microbiological tests and physical inspection are used when investigating persistent contamination or suspected biofilm.
Can an existing dairy line be connected to a new CIP station?
Yes. Pipe sizes, valve routing, return capacity, controls, chemical compatibility and cleaning-device requirements are reviewed before the new station and existing circuits are connected.
Conclusion
Repeated microbial results in dairy piping deserve a systematic equipment review. Start with the P&ID and CIP records, measure flow and return conditions, inspect the components most likely to retain product, then correct any hygienic-design faults. Cleaning changes are most effective when the actual liquid path reaches every relevant surface.
NexAgri supplies CIP stations, hygienic stainless steel piping, valves, controls and related processing equipment for new dairy lines and retrofits. To discuss a configuration, contact NexAgri with your pipe sizes, CIP circuit drawing and operating requirements.
