A set yogurt cup may look perfectly normal when it leaves the factory but develop visible whey, cracks, or a broken gel by the time it reaches the customer.
It is tempting to blame the delivery truck. However, not every problem that appears after transport is caused by transport.
Some yogurt begins separating during refrigerated storage. Other products have an unstable gel before shipment, while certain batches suffer actual mechanical damage during loading or delivery.
The most practical way to prevent whey separation and gel breakage is to identify when the defect develops, then check the relevant production, cooling, packaging, and transportation conditions.
For commercial yogurt processors, this means paying attention to:
- Milk protein and total solids.
- Heat treatment and homogenization.
- Starter culture and fermentation endpoint.
- Cooling after fermentation.
- Gel structure and water-holding capacity.
- Packaging and refrigerated distribution.
The goal is not to make yogurt as hard as possible.
It is to produce a stable, appealing gel that retains whey and withstands the intended handling and delivery conditions.

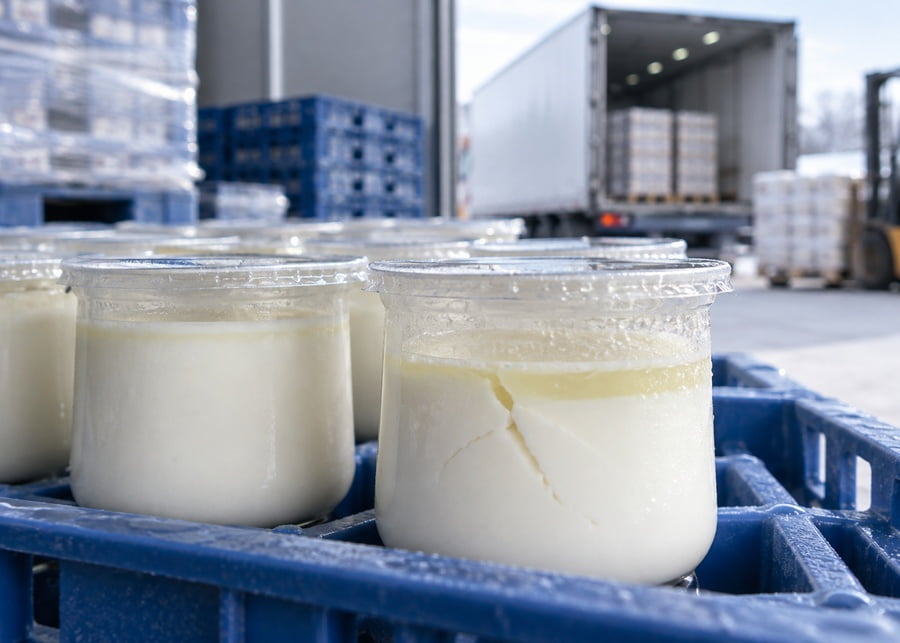

1. Why Does Set Yogurt Separate Whey After Transport?
Whey separation, also called syneresis, occurs when liquid is released from the yogurt gel structure.
In set yogurt, the gel forms inside the final retail container. Once formed, it is sensitive to handling conditions that may disturb or damage its structure.
But visible whey and a broken gel do not always have the same cause.
Before changing the formula or buying new equipment, determine when the problem first appears.
Three Common Situations
| Situation | What You Observe | What to Check First |
|---|---|---|
| A. Whey appears before shipment | Yogurt already shows surface whey or an unstable gel at the factory | Milk composition, heat treatment, fermentation, cooling, and formula |
| B. Whey appears after several days of storage | Yogurt initially looks acceptable but gradually releases whey | Storage temperature, post-acidification, gel rearrangement, and water-holding capacity |
| C. Transported cups are damaged, but factory controls remain normal | Delivered products show cracks, broken gel, or increased whey compared with the same batch kept at the factory | Packaging, handling, temperature exposure, vibration, and underlying gel strength |
The Most Easily Misdiagnosed Problem: Storage-Related Whey Separation
Situation B deserves particular attention.
A product may leave the factory looking normal and develop visible whey several days later.
Possible causes include:
- Continued acid production during storage.
- Temperature fluctuations.
- Changes in the protein network over time.
- Insufficient water-holding capacity.
- Poorly controlled cooling after fermentation.
The defect may become noticeable during distribution, leading the customer to believe that road vibration caused it.
However, the same problem may also develop in factory-held samples under comparable storage conditions.
A defect discovered after delivery is not automatically a transport-induced defect.
This distinction prevents unnecessary changes to cartons, pallets, or vehicles when the actual problem lies elsewhere.
2. Whey Separation vs. Gel Breakage: What Is the Difference?
These two defects may appear together, but they should be evaluated separately.
Whey Separation
Common signs include:
- A thin layer of liquid on the yogurt surface.
- Whey collecting along the cup wall.
- Increasing separation during refrigerated storage.
- A gel that remains mostly intact despite releasing liquid.
This may indicate problems with water retention, acidification, formulation, or storage conditions.
Gel Breakage
Common signs include:
- Visible cracks.
- Large broken gel sections.
- A collapsed or displaced gel.
- Increased whey around fractured areas.
- Damage that is more severe in certain cartons or pallet positions.
This may be associated with mechanical disturbance, package movement, impacts, or a gel that cannot tolerate the applied stresses.

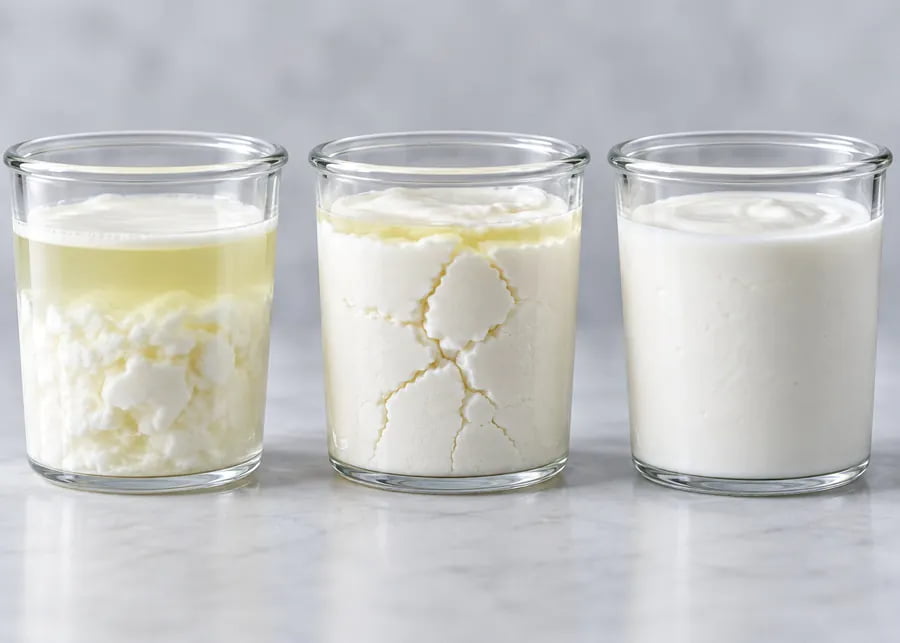

Why Harder Yogurt Is Not Always Better
Higher gel firmness does not automatically mean better transport stability.
A gel must retain water while maintaining a texture suitable for the intended product.
If the structure becomes excessively rigid or brittle, it may respond poorly to certain handling conditions.
The target should therefore balance:
Firmness + Water-Holding Capacity + Texture + Resistance to Handling Damage
Gel texture should be evaluated together with actual storage and transport performance rather than relying on firmness measurements alone.
3. Why Fermentation Endpoint Control Is So Important
For set yogurt, controlling fermentation is one of the most important production tasks.
As starter cultures convert lactose into lactic acid, the pH decreases and milk proteins form the yogurt gel.
If the process is not controlled consistently, the final structure may vary between batches.
Do Not Rely Only on Fermentation Time
A common production mistake is using a fixed incubation time without adequately checking the product's actual acidity.
For example, a factory may use the same fermentation duration every day even when:
- Raw milk composition changes.
- Starter culture activity varies.
- Incubation-room temperatures are uneven.
- Cup size or filling temperature changes.
- Seasonal ambient conditions affect the process.
A fixed time does not guarantee a consistent fermentation endpoint.
Monitor pH and Acidity
Many set-yogurt formulations use a fermentation endpoint around pH 4.4–4.6, but the exact target must be validated for the specific formula and desired product characteristics.
Titratable acidity can provide additional information, but it is not interchangeable with pH.
Similarly, a reference such as 70–80°T should not be treated as a universal specification for every yogurt recipe or sales market.
The plant should establish its own documented endpoint using:
- Starter culture characteristics.
- Milk protein and total solids.
- Fermentation temperature.
- Target taste and texture.
- Cooling behavior after incubation.
- Finished-product stability during storage.
Cooling Does Not Stop Acidification Instantly
When yogurt reaches the intended fermentation endpoint, the product still contains heat.
The cultures may continue producing acid while the cups are cooling.
This means the measured pH at the end of incubation may differ from the pH after cooling or several days of storage.
For better process control, record:
End-of-Incubation pH → After-Cooling pH → Storage pH Trend
A calibrated pH meter and consistent sampling method are more useful than relying on the appearance of the gel.
The final process must also comply with the applicable fermented-milk quality and food-safety requirements.
4. How Do Milk Solids, Heat Treatment, and Homogenization Affect the Gel?
A stable yogurt gel begins with the milk mixture.
Correcting a weak formula after fermentation is usually more difficult than controlling the product before the gel forms.
Milk Protein and Total Solids
Milk proteins form the main structure that holds water inside yogurt.
Protein concentration, protein composition, and total solids all affect the final gel.
Depending on the product specification, processors may adjust milk solids using suitable dairy ingredients or other permitted methods.
However, simply adding more solids does not guarantee a better product.
The formula must also meet requirements for:
- Taste.
- Texture.
- Labeling.
- Ingredient cost.
- Processing behavior.
- Product stability.
For a new yogurt product, milk composition should be evaluated before selecting fermentation and stabilizer settings.
Heat Treatment
Yogurt-milk heat treatment serves both microbiological and functional purposes.
Suitable heating encourages interactions between whey proteins and casein, which can improve gel formation and water retention.
Common yogurt production references describe treatments such as 85°C for 30 minutes or approximately 90–95°C for several minutes.
These are examples of processing approaches, not universal instructions for every product.
The actual heat-treatment conditions should be established according to the formulation, equipment, validated process, and applicable food-safety requirements.
Insufficient or unsuitable heat treatment may contribute to weak gels or increased whey separation.
Excessive heating can also negatively affect product properties.
The objective is the correct heat-treatment profile, not the highest possible temperature.
Homogenization
Homogenization reduces fat-globule size and improves the distribution of fat in the prepared milk mixture.
For yogurt processing, its effect depends on factors such as:
- Fat content.
- Milk protein composition.
- Total solids.
- Homogenization pressure.
- Processing temperature.
- Equipment configuration.
The homogenization stage must be designed as part of the milk-preparation process before yogurt gel formation.
A yogurt line should not use one homogenization pressure for every recipe without checking the resulting product quality.
Research on yogurt syneresis also highlights the combined influence of milk proteins, heat treatment, homogenization, fermentation, starter cultures, and cooling.
Reference: A Comprehensive Review on Yogurt Syneresis.
5. How Should Set Yogurt Be Cooled Without Damaging the Gel?
Cooling is particularly important because set yogurt is already forming, or has formed, its gel inside the retail package.
This makes it different from stirred yogurt.
Set Yogurt and Stirred Yogurt Follow Different Processes
For a typical set-yogurt production arrangement:
Milk Preparation → Homogenization and Heat Treatment → Cooling and Culture Addition → Filling → Incubation Inside Cups → Controlled Cooling → Refrigerated Storage → Transport
For stirred yogurt:
Milk Preparation → Homogenization and Heat Treatment → Tank Fermentation → Controlled Gel Breaking and Cooling → Filling → Refrigerated Storage
The distinction affects equipment selection and factory layout.
For set yogurt, the filled packages must be incubated and cooled while minimizing unnecessary disturbance of the developing gel.
Why Cold-Room Temperature Alone Is Not Enough
A cold-room display may show that the air has reached the target temperature.
That does not mean every yogurt cup has reached the same temperature.
Cooling performance depends on:
- Package size and shape.
- Cup material.
- Tray and crate design.
- Position inside the cooling room.
- Air circulation.
- Product loading density.
- Refrigeration capacity.
For example, cups located in a poorly ventilated part of a packed tray may cool more slowly than those exposed to better airflow.
This can lead to variations in further acid development and final product texture.
Measure the Actual Product Cooling Curve
Before full commercial production, carry out trials using the intended cups, filling volumes, trays, and equipment.
Check representative product temperatures at different locations.
Record:
- Temperature at the end of incubation.
- Temperature during the initial cooling stage.
- Time required to reach the intended refrigerated condition.
- Differences between central and outer tray positions.
- pH and appearance after cooling.
The specific cooling program should be selected through process validation rather than copied without adjustment from another factory.
The Tetra Pak Dairy Processing Handbook describes set-yogurt production in which filled containers undergo incubation followed by cooling, with careful attention to airflow and mechanical disturbance.
Limit Unnecessary Handling After Gel Formation
Equipment layout should reduce unnecessary movement during the most sensitive production stages.
Review:
- Transfers between incubation and cooling areas.
- Tray movement.
- Conveyor starts and stops.
- Sudden impacts at transfer points.
- Carton packing timing.
- Pallet handling.
The goal is not to eliminate every movement.
It is to ensure that movement is controlled and compatible with the product's actual gel strength.
6. Can Stabilizers Prevent Whey Separation?
Stabilizers may help improve water retention, consistency, and texture.
However, they should be treated as one part of the product formulation, not the first solution for every instance of whey separation.
Some commercial set yogurts are successfully produced without added stabilizers.
Others use approved stabilizer systems to achieve a particular texture or distribution requirement.
Common Stabilizer Options
Depending on the product and regulatory market, potential ingredients may include:
- Pectin.
- Gelatin.
- Starch or modified starch.
- Carrageenan.
- Locust bean gum.
- Other formulated hydrocolloid systems.
Carrageenan and locust bean gum may be evaluated as part of a suitable formulation, but this combination is not a universal recommendation for set yogurt.
The functional effect depends on the complete formula and how ingredients interact with the milk proteins.
Why Adding More Stabilizer Is Not Always the Answer
Excessive or poorly selected stabilizers may change the texture in undesirable ways.
Potential problems include:
- Excessive gumminess.
- Unwanted firmness.
- Unnatural mouthfeel.
- Poor ingredient dispersion.
- Product inconsistencies between batches.
Before changing stabilizer dosage, confirm that the basic production conditions are under control.
Good milk preparation, appropriate fermentation, and controlled cooling cannot simply be replaced by adding more stabilizer.
Any new stabilizer system should be tested in the intended formula and checked against the food-additive regulations of the sales market.

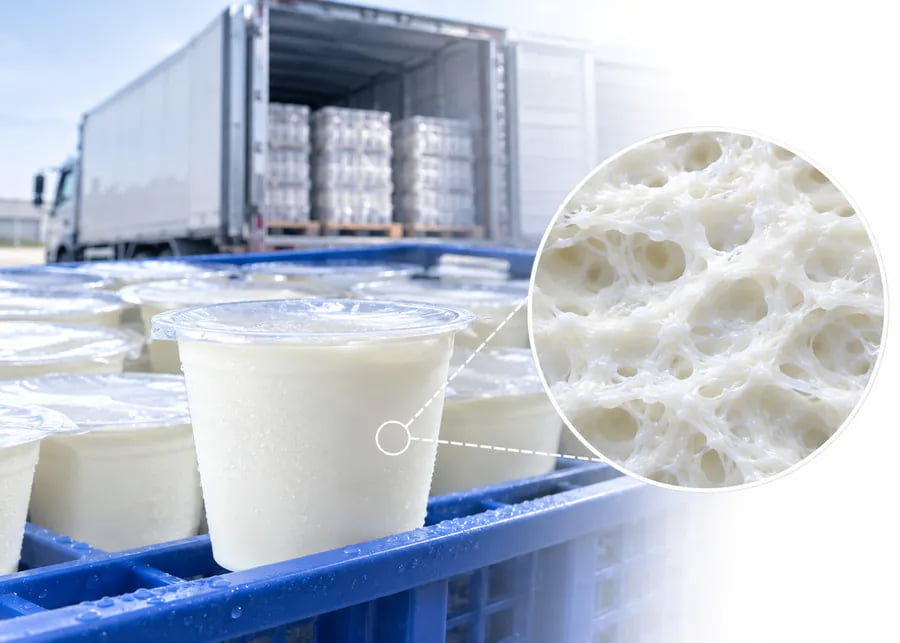

7. How Do Packaging and Cold-Chain Conditions Affect Set Yogurt?
Even well-produced yogurt can be damaged by poor handling or unsuitable packaging.
For set yogurt, the product has already formed its gel inside the cup.
Packaging therefore needs to protect both the physical container and the finished gel.
Check Cup and Carton Protection
Important factors include:
Cup rigidity: The container should resist deformation under normal handling and stacking loads.
Seal integrity: Lids and seals must maintain the required package integrity.
Tray design: Trays should provide adequate support and limit unnecessary movement.
Carton strength: Outer packaging must tolerate the expected distribution conditions.
Pallet stability: Cartons should remain secured without excessive compression or movement.
Stacking arrangement: The load must be appropriate for the packaging and transport method.
A stronger carton is not necessarily the first improvement to make.
The problem may instead involve poorly supported cups, incorrect stacking, or movement inside the packaging.

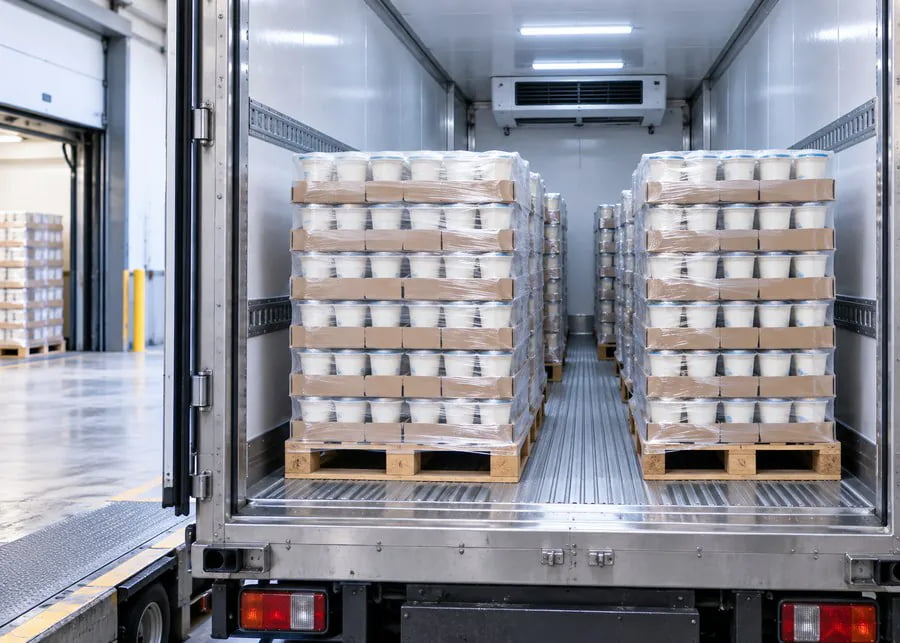

Maintain the Required Cold Chain
Refrigerated transport is not only about switching on the truck's cooling equipment.
Check:
- Product temperature before loading.
- Truck pre-cooling where appropriate.
- Refrigeration-unit operation.
- Airflow around the load.
- Pallet and carton arrangement.
- Door-opening frequency.
- Delivery duration.
- Temperature monitoring.
Blocking refrigerated airflow can create uneven temperatures inside the same vehicle.
Product temperature should remain within the validated storage and distribution requirements for that yogurt.
Can Road Vibration Cause Gel Breakage?
Yes, under some conditions.
Transport can expose the product to repeated vibration, braking, cornering, and loading impacts.
However, the severity depends on the yogurt structure, packaging arrangement, load position, and actual transport conditions.
It would be incorrect to claim that vibration is always the main cause—or that it can never damage a properly produced yogurt.
For processors facing repeated shipment problems, the next step should be testing rather than immediately replacing the packaging.
8. How Can You Find the Real Cause of Whey Separation?
A small controlled comparison can reveal more than a long list of possible causes.
One practical approach is to compare factory-retained samples with products transported from the same production batch.
Step 1: Select Samples From the Same Batch
Use yogurt produced under the same manufacturing conditions.
Record:
- Batch number.
- Production date.
- Cup size.
- Formula.
- Fermentation endpoint.
- Cooling conditions.
- Packaging format.
Select enough unopened cups for each test group and measurement point.
Avoid repeatedly opening the same yogurt cup for testing, since opening or disturbing it can affect the result.
Step 2: Keep a Factory Control Group
Store representative cups at the factory under the intended refrigerated conditions.
These samples provide a reference for changes during storage without commercial transportation.
Step 3: Ship a Matched Group
Package a second group using the actual commercial cartons, trays, and pallet arrangement.
Transport them over a representative delivery route.
Where possible, record the product's temperature exposure and relevant transport conditions.
Step 4: Compare Both Groups at the Same Product Age
The factory samples and transported samples should be evaluated after comparable periods.
Check:
| Test Item | Factory Control | Transported Samples |
|---|---|---|
| pH | Record measured value | Record measured value |
| Surface whey | Measure or grade using the same method | Use the same method |
| Gel cracks | Inspect representative cups | Inspect representative cups |
| Gel displacement | Check for structural disturbance | Check for structural disturbance |
| Package condition | Check seals and cup shape | Check seals, deformation, and impact signs |
| Temperature history | Review factory storage records | Review transport and delivery records |
Photographs are useful when taken with consistent lighting, angles, and sampling procedures.
If measuring whey quantitatively, use the same validated method and reporting units for both groups.
Step 5: Interpret the Results
Both groups develop similar whey separation:
Investigate product formulation, fermentation, cooling, storage duration, and related process conditions.
Transported samples are consistently more damaged:
Investigate cup support, packaging, loading, temperature excursions, vibration, and handling.
Results vary strongly within the same shipment:
Check carton position, pallet stacking, airflow, localized impacts, and packaging consistency.
These comparisons provide evidence, but a single test may not identify one exclusive cause.
Repeat trials or controlled changes may be needed before modifying the production process.
For a processor entering a new regional market, sending a limited test shipment before committing to routine high-volume deliveries can be a practical way to identify weaknesses.
9. What Equipment Should Be Checked Before Expanding a Set-Yogurt Production Line?
For a new project, equipment selection should begin with the finished product and production requirements.
A set-yogurt line should not be designed by simply copying the layout of a stirred-yogurt plant.
Confirm the Product First
Before selecting equipment, define:
- Set yogurt or stirred yogurt.
- Plain or flavored formulation.
- Packaging material and cup size.
- Daily finished-product volume.
- Expected operating hours.
- Required incubation conditions.
- Cooling and cold-storage requirements.
- Intended distribution market and shelf life.
These details determine much of the downstream equipment arrangement.
Do Not Underestimate Incubation and Cooling Capacity
A processing line may prepare yogurt milk quickly while the filled cups require considerably more time for incubation and cooling.
If the incubation room, cooling tunnel, or cold storage is undersized, production may accumulate between stages.
This can create:
- Unplanned waiting periods.
- Inconsistent fermentation or cooling.
- Excessive product handling.
- Congested tray and pallet routes.
- Lower actual finished-product throughput.
The relevant capacity is not only how many liters of milk the preparation system can process per hour. It is how many finished yogurt cups the complete plant can produce, cool, store, and dispatch consistently.
Match the Whole Processing System
| Processing Area | What Buyers Should Confirm |
|---|---|
| Milk preparation | Raw milk capacity, standardization, heat treatment, homogenization |
| Culture and filling | Culture handling, filling accuracy, package sealing |
| Cup incubation | Available space, temperature uniformity, tray handling, incubation time |
| Post-fermentation cooling | Actual product cooling time, capacity, airflow, gentle handling |
| Refrigerated storage | Required holding space, product rotation, temperature monitoring |
| Secondary packaging | Tray and carton compatibility, conveyor transfer, pallet handling |
| CIP | Hygienic cleaning of equipment and pipelines designed for CIP |
| Utilities | Electricity, water, steam or heating, refrigeration, drainage |
| Maintenance | Access to equipment, valves, service areas, and spare parts |
CIP requirements must be planned around the relevant food-contact equipment and process circuits. Closed equipment CIP does not replace appropriate cleaning arrangements for trays, rooms, conveyors, and packaging surfaces.
Validate the Line Before Full-Scale Production
Where practical, processors should conduct small-scale and pilot production trials using the intended formula, package, and equipment conditions.
The trials should confirm:
- Finished-product texture.
- Fermentation endpoint.
- Cooling behavior.
- Whey separation during storage.
- Packaging compatibility.
- Performance after representative transportation.
This helps identify problems before commercial production reaches its intended capacity.
10. Set Yogurt Whey Separation Troubleshooting Checklist
When a customer reports whey separation, use a structured investigation rather than changing several settings at once.
| Observation | First Checks | Possible Next Action |
|---|---|---|
| Whey visible before dispatch | Milk solids, pH, heat treatment, cooling | Review batch and process records |
| Whey increases during storage | pH trend, temperature, gel structure | Compare retained samples and storage conditions |
| Cracks mainly after delivery | Cup movement, carton strength, handling | Conduct matched transport tests |
| Different cartons show different results | Pallet location, airflow, stacking | Check distribution and load arrangement |
| Large differences between production batches | Milk composition, culture, incubation conditions | Review raw material and fermentation consistency |
| Weak or excessively brittle gel | Formula, heat treatment, stabilizer selection | Conduct controlled formula and process trials |
| Uneven cooling between trays | Airflow, loading density, refrigeration capacity | Measure product cooling curves at multiple locations |
A good troubleshooting program should also record who investigates each problem, what was changed, and whether the next production batch improved.
Changing the stabilizer, heating profile, culture, and packaging simultaneously makes it difficult to identify the actual cause.
How Can NexAgri Support Set-Yogurt Production Planning?
NexAgri Solutions supplies dairy processing line equipment and related packaging equipment for commercial milk and yogurt projects.
For set-yogurt production, equipment planning should consider the relationship between milk preparation, homogenization, heat treatment, filling, incubation, cooling, cleaning, and refrigerated storage.
The appropriate configuration depends on the customer's product type, daily capacity, packaging format, utilities, and intended production schedule.
Specific cup-incubation arrangements, cooling performance, filling and sealing equipment, and downstream packaging requirements should be confirmed for the project.
Equipment selection can support a more consistent production process, but it cannot by itself guarantee that whey separation or gel damage will never occur.
Recipe validation, food safety, quality testing, and transport trials remain essential responsibilities within the overall production program.
For a set-yogurt line review, share your daily output, cup size, incubation and cooling arrangement, utilities and distribution route on WhatsApp.
Frequently Asked Questions
Why does set yogurt release whey after several days?
Possible causes include gel rearrangement, continued acidification, poor water retention, and storage conditions. Compare factory-retained samples with distributed products before attributing the defect to transport.
Is pH 4.5 the correct fermentation endpoint for all set yogurts?
No. A target around pH 4.5 is common in many formulations, but the appropriate endpoint depends on the starter culture, composition, texture, and cooling process.
Does adding more stabilizer prevent whey separation?
Not necessarily. Stabilizers can help, but their effectiveness depends on the formulation and processing conditions. They cannot compensate for every fermentation, cooling, or packaging problem.
Is harder yogurt more resistant to transport?
Not always. Firmness must be considered alongside water retention, texture, and susceptibility to mechanical damage.
Can road vibration damage set yogurt?
Yes. Certain vibration and handling conditions may contribute to gel damage. However, the effect depends on the product and its packaging, so actual testing is recommended.
Why is cooling especially important for set yogurt?
Set yogurt ferments inside its retail package. The gel must therefore be cooled without unnecessary disturbance, and actual product temperature must be checked rather than relying only on cooling-room air temperature.
What should a yogurt processor test before entering a distant market?
Test representative commercial batches using the intended packaging and distribution route. Compare transported samples with factory controls of the same age, including pH, whey separation, gel integrity, and temperature records.
Conclusion
Preventing whey separation and gel breakage in set yogurt requires more than changing the stabilizer or choosing stronger transport cartons.
The first task is to identify when and where the defect develops.
Problems visible before shipment point toward production and cooling conditions. Problems that develop during storage require investigation of the gel, acidity, and temperature history. Damage that appears mainly in transported samples calls for closer examination of packaging and logistics.
For commercial processors, consistent fermentation endpoint control, suitable milk preparation, and careful cooling provide the foundation for a stable product.
Packaging and refrigerated distribution then need to protect that product under real operating conditions.
The best solution is not always a new ingredient or a new machine. It is a production and transport process whose performance has been tested and verified with the actual yogurt being sold.
