Plan dairy farm wastewater treatment around where the collected liquid will go. Storage for nutrient-managed land application requires a different system from treatment for a permitted discharge. Define that destination before sizing collection, separation or treatment equipment.
A practical approach is to identify wastewater sources, keep clean stormwater out of contaminated flows where appropriate, collect and store manure safely, use solid-liquid separation when it improves handling, and add further treatment only when the end-use or permit requires it. A manure separator is not a complete wastewater treatment plant, and no standard equipment package can guarantee compliant discharge at every farm.
The following guide explains how to choose a dairy wastewater management route, where different equipment fits, and what information a supplier or wastewater engineer needs before preparing a reliable proposal.
What Is Included in Dairy Farm Wastewater?
The term dairy wastewater can refer to several streams with very different characteristics. They should be identified before collection pipes, tanks, separators, or biological treatment units are sized.
| Wastewater source | Typical concerns | What to check first |
|---|---|---|
| Barn manure slurry and flushing water | Fibrous solids, manure, bedding, variable dilution and abrasive grit | Scraping versus flushing, bedding type, total solids and collection method |
| Milking parlor and holding-yard washdown | Manure, milk residues, cleaning water and intermittent peak flows | Washdown schedule, cleaning products and drainage connections |
| Runoff from contaminated yards and feed areas | Rainfall-driven flow, sediment and organic material | Which surfaces are contaminated, drainage boundaries and storm events |
| Liquid remaining after manure separation | Dissolved nutrients, organic matter and fine suspended solids | Storage, nutrient management or downstream treatment destination |
| Milk-processing wastewater | Milk solids, fats, proteins, whey and cleaning chemicals; potentially large organic and pH fluctuations | Product mix, milk losses, cleaning-in-place (CIP) schedule and separate flow measurement |
| Domestic or other special wastewater | Different treatment or legal handling requirements | Whether a separate sanitary or specialist waste system is needed |
A scraping system generally produces a more concentrated manure stream than a high-volume flushing system, but actual consistency depends on bedding, cleaning water and collection design. Sand bedding deserves particular attention because abrasive grit can damage pumps and separator components.
A farm with its own cheese, yogurt or milk-processing plant should assess processing wastewater separately. Milk-processing effluent can behave differently from barn slurry, and a mechanical manure separator is not a substitute for treatment of dissolved milk components or cleaning chemicals. The IDB Invest guide to dairy-processing wastewater discusses these differences in more detail.
Decide the Destination Before Choosing a Treatment Process
Not every dairy farm needs a system designed to discharge treated water into a river or drain. The destination of the liquid determines much of the process design, operating cost and permitting work.
| Main objective | Typical system emphasis | Key limitation |
|---|---|---|
| Store manure and apply nutrients to crops or pasture | Controlled collection, suitable storage, optional separation and nutrient-based land application | Storage volume, land availability, soil conditions, application timing and local rules must all be adequate |
| Improve an existing manure-handling system | Better drainage, grit control, pumping, screening or mechanical separation | The liquid still requires an approved destination and may still cause sediment or nutrient-loading issues |
| Reuse water for a specified non-potable purpose | Treatment selected for the intended reuse quality, followed by appropriate verification | Reuse standards, pathogens, salinity and operational safeguards depend on the actual application |
| Discharge to a water body or other regulated outlet | Site-specific biological and possibly chemical or advanced treatment, monitoring and permits | No equipment selection alone establishes discharge compliance |
For many farms, controlled storage and nutrient-managed land application are the central design tasks. Storage makes it possible to avoid applying effluent when land is saturated or crop uptake conditions are unsuitable. The appropriate area, timing and application rate depend on crop nutrient needs, soil conditions and permit obligations.
DairyNZ's effluent-system planning guidance illustrates several different collection, storage, separation and land-application arrangements rather than prescribing one universal wastewater-treatment train. Those are examples of engineering approaches, not regulations that automatically apply outside New Zealand.
Likewise, the word reuse does not mean unrestricted irrigation. Nutrient loading, pathogens, salts, soil infiltration, food-safety considerations and local authorization may all affect where treated or stored liquid can be used. Clear-looking liquid is not evidence of safe discharge.
Build Reliable Collection, Drainage and Storage First
A separator cannot compensate for a poorly designed collection network. Before choosing the machine, check how manure and wash water reach the collection pit and how both the liquid and separated solids will leave it.
Keep clean stormwater out where practical
Roof water and runoff from uncontaminated areas should be routed away from manure collection systems where site design and local regulations allow. Contaminated runoff from yards or manure-handling areas still needs appropriate collection and management.
The hydraulic effect can be substantial. As a simple rainfall-volume calculation, 10 mm of rain falling on 1,000 m² represents 10 m³ of rainfall before accounting for runoff and drainage losses. If that water enters the effluent system, it adds to pumping and storage requirements even though it may not add a proportional amount of manure pollution.
Match pits, pumps and pipes to real operating conditions
Collection pits need to accommodate the way manure arrives: continuously, during scraper cycles, or in short washdown peaks. Pumps and pipelines must be suitable for the slurry's solids, fibre and bedding content. Consider access for cleaning, expected sediment accumulation, power interruptions and whether a standby arrangement is justified.
Avoid sizing a separator by the number of cows alone. A 500-cow farm using a scraper and little wash water can have a very different daily liquid volume from a 500-cow farm with a water-flushing system.
Plan storage for both outputs
Mechanical separation creates two material streams that each need a handling plan. The solid fraction needs a suitable loading, storage, processing or transport area. Rain falling on an uncovered solids pile may produce contaminated drainage that must also be controlled.
The liquid fraction still needs appropriately designed storage, land application or further treatment. Storage requirements depend on actual flow, rainfall exposure, crop and soil conditions, and periods when application is not permitted or appropriate.

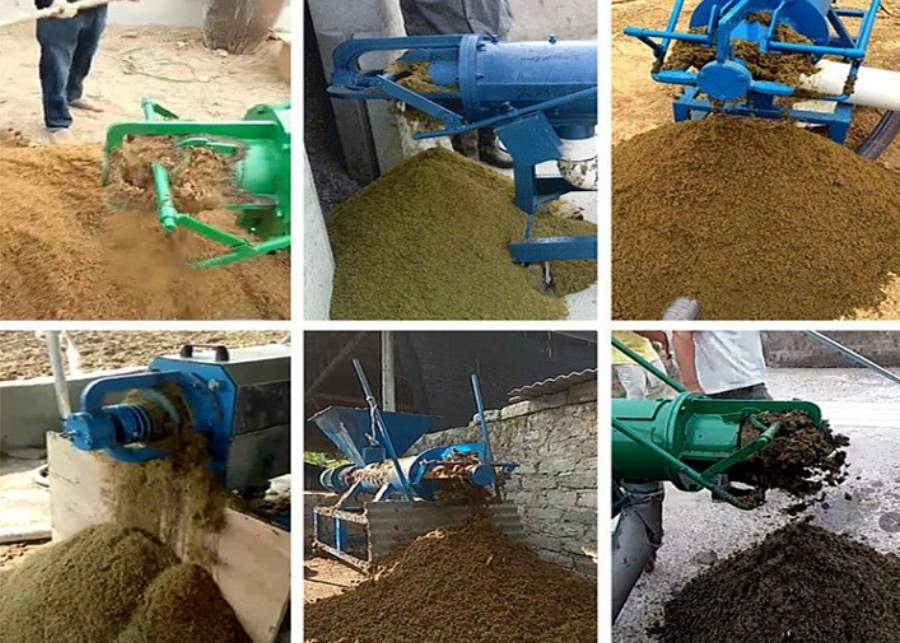

What Does a Solid-Liquid Manure Separator Actually Do?
A screw press separator pushes suitable slurry against a screen and divides it into a retained solids fraction and a liquid fraction. On a dairy farm, this can make bulky fibres easier to handle and reduce the amount of coarse material moving into some downstream facilities.
Potential benefits include easier handling of separated fibre, reduced coarse-solids loading on selected pumps or storage areas, and more options for composting or transporting solids. Actual results depend on incoming manure consistency, screen selection, feed rate, separator settings and the downstream arrangement.
What separation does not do:
- It does not remove all fine particles or dissolved organic matter.
- It does not reliably eliminate dissolved nitrogen, potassium or phosphorus.
- It does not disinfect the liquid or make it automatically suitable for irrigation or discharge.
- It does not guarantee that separated solids are safe for bedding or ready for sale as organic fertilizer.
Penn State Extension's overview of manure separation facilities describes separation as a handling and nutrient-management practice, not a universal replacement for wastewater treatment.
What happens to the separated solids?
Separated solids may be stored for further processing, composted where appropriate, or transported for approved agricultural use. Their actual moisture, nutrient content and sanitary condition should guide the plan. Use as bedding depends on local requirements, material quality and the farm’s hygiene programme. Assess whether further processing is required for the intended use. Mechanical separation alone does not establish hygienic suitability.
What happens to the separated liquid?
The liquid may go to an approved storage and land-application system or to additional treatment. It can still contain fine particles, soluble organic matter, nutrients and pathogens. Liquid handling equipment must be selected for the material that remains after separation, not for an assumed clean-water specification.
Should separation occur before or after anaerobic digestion?
Either arrangement can be appropriate. Pre-digestion separation may remove troublesome fibres or contaminants but can also remove organic material that might otherwise contribute to biogas production. Post-digestion separation can help manage digestate fibre and liquid. Some designs use more than one separation step.
The US EPA AgSTAR explanation of anaerobic system design includes different pretreatment and post-digestion options. Placement should follow the selected digester's feedstock requirements and the intended use of both outputs.

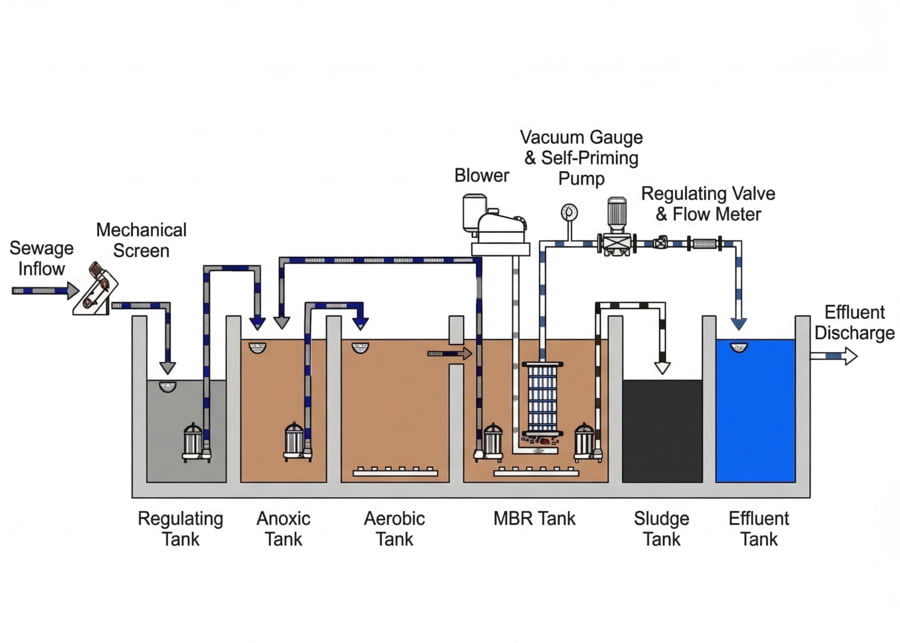

When Are Anaerobic, Aerobic or Advanced Treatment Systems Needed?
There is no single four-stage process that every dairy must install. Treatment stages should be chosen after the receiving stream, influent characteristics, end-use and regulatory limits are established.
| Technology or process | Where it may fit | What it does not guarantee |
|---|---|---|
| Screens, grit removal and mechanical separation | Slurry containing fibrous or abrasive material | Removal of dissolved contaminants or discharge compliance |
| Equalization tanks | Variable washdown flows or fluctuating composition | Removal of pollutants simply by holding or blending them |
| Anaerobic digestion | Suitable collected manure or high-strength organic streams where methane recovery or organic-load treatment is justified | Removal of all nutrients, pathogens or need for digestate management |
| Aerobic biological treatment | Further reduction of biodegradable organics and, with appropriate design, ammonia | Sufficient total nitrogen or phosphorus removal without a process designed for those targets |
| Chemical treatment, clarification or flotation | Specific suspended-solids, fats or phosphorus-removal duties | Universal removal of dissolved organics and nutrients |
| Filtration, disinfection or other polishing | Particular reuse or discharge requirements | Approval for all types of irrigation, drinking-water use or environmental discharge |
Anaerobic digestion can generate biogas, but it requires compatible feedstock, suitable gas handling, safe operation and a realistic use for the recovered energy. Digestion also leaves liquid and solid digestate requiring management. It should not be selected merely because a farm has several hundred cows.
More stringent reuse or discharge targets may require a specialist wastewater team to examine biological nutrient removal, phosphorus control, clarification, disinfection, monitoring and any applicable discharge permit. A process schematic is only a starting point; it is not evidence of final effluent quality.
What Information Is Needed Before Equipment Selection or Quotation?
A supplier can discuss likely equipment categories from basic farm information, but detailed wastewater-treatment sizing and effluent guarantees need stronger project data.
| Information group | Useful project inputs | Why it matters |
|---|---|---|
| Farm and herd | Total animals, animal categories, housing areas and planned expansion | Defines the operating context, not the entire wastewater flow |
| Manure collection | Scrapers or flushing, cleaning frequency, bedding type, layout, manure consistency | Affects solids content, grit exposure and equipment suitability |
| Wastewater sources | Parlor washdown, yard runoff, feed areas, milk-processing and domestic connections | Prevents unrelated waste streams from being overlooked or incorrectly combined |
| Flow and peaks | Measured daily volumes where available, washdown peaks, seasonal variation and stormwater connections | Supports realistic storage, pumping and treatment duty |
| Laboratory data | As relevant: total solids, TSS, COD, BOD5, pH, nitrogen species, total phosphorus and other contaminants | Establishes the treatment requirements and the basis for performance assessment |
| Site conditions | Available land, topography, soils, climate, electricity, access and existing pits or lagoons | Affects construction, hydraulics, storage and maintenance |
| Required endpoint | Nutrient-managed land application, specified reuse or permitted discharge | Determines whether further processing is necessary |
If a farm has no laboratory report yet, start by mapping waste streams and measuring or estimating flow, then arrange representative sampling for the proposed treatment objective. State which flow and laboratory inputs are measured and which are provisional, then agree on the sampling needed before detailed treatment design.
Sampling needs to account for material variability: slurry can stratify, and laboratory values taken from an unrepresentative sample may not match the waste actually delivered to a separator or reactor. University of Minnesota Extension's manure sampling guide explains why nutrient testing and representative sampling matter.
How Should a Dairy Farm Compare Wastewater System Costs?
The cheapest separator quotation is not necessarily the least expensive operating system. Compare the total cost of ownership across the collection system and both material outlets.
| Cost category | Items to include in a realistic comparison |
|---|---|
| Site works | Drainage changes, pits, concrete, liners, access and solids-handling areas |
| Equipment | Scrapers where required, pumps, separators, screens, mixers, valves and controls |
| Installation | Piping, electrical work, lifting, commissioning and integration with existing systems |
| Operation | Electricity, water, labor, sampling, cleaning and operator training |
| Maintenance | Wear parts, screen and screw inspection, pump service, repairs and downtime |
| End-product management | Solids storage, composting or transport; liquid storage, treatment or field application |
| Compliance | Local engineering review, permits, monitoring and necessary laboratory analysis |
Potential benefits may include reduced handling costs, easier manure transport, avoided mineral fertilizer purchases or biogas energy use. None is automatic. Separated solids may require further processing before they have a market, and biogas economics depend on feedstock, usable energy, capital expenditure and long-term operating requirements.
For farms planning a phased investment, improving drainage, collection and storage can be more useful than buying a downstream machine before the incoming material and final destination are defined.
Common Dairy Wastewater Treatment Mistakes
Buying a separator before defining the liquid destination
A separator divides the slurry into two streams. A proposal is incomplete if it shows only the machine and does not say where the liquid will be stored, treated or used.
Treating every runoff source as clean stormwater
Contaminated runoff from yards and manure-handling areas may need controlled collection. The aim is to divert genuinely clean water while containing polluted flows, not to redirect contaminated liquid toward nearby drains.
Assuming clearer effluent means compliant effluent
Appearance cannot establish COD, nutrient, pathogen or other regulated results. Reuse and discharge decisions require the relevant quality criteria, testing and permits.
Ignoring storage and the land available for nutrient application
Effluent may need to remain in storage when fields are saturated, unsuitable or outside an allowed application period. Nutrient application must consider crop demand, soil conditions and runoff risk.
Overlooking manure-pit safety
Manure pits, tanks and some storage areas can accumulate hazardous gases, especially during agitation or pumping. Workers should not enter enclosed manure spaces or attempt an improvised rescue; such work requires professional confined-space safeguards. The CDC/NIOSH manure-pit warning explains these hazards.
Where NexAgri Fits in a Dairy Wastewater Project
NexAgri supplies equipment for the manure collection and solids-handling portion of dairy farm waste management, including manure scraper systems and screw press solid-liquid separators.
The separator product range includes configurations with associated pump, piping and electrical-control components; the exact supply boundary, materials and operating capacity should be confirmed for each project. Equipment selection should account for daily slurry volume, consistency, bedding and grit, operating hours, site power and arrangements for both outputs.
For projects requiring additional storage design, anaerobic digestion, advanced wastewater treatment or regulatory discharge approval, the wider process must be reviewed with suitably qualified specialist partners. Those services, responsibilities and performance criteria should be defined separately in the agreed project scope.
If you are planning a new farm or improving an existing manure-handling line, share your herd size, collection method, estimated daily slurry volume, bedding material, site layout and intended solid and liquid destinations. NexAgri can use these details to discuss suitable front-end equipment and the information needed for further engineering review.
Frequently Asked Questions
Can a solid-liquid separator treat dairy wastewater on its own?
It can separate suitable manure slurry into solid and liquid fractions, but the liquid still contains contaminants and nutrients. A separator alone does not establish suitability for discharge or reuse.
Can separated manure liquid be used for irrigation?
It may be managed through an approved nutrient-based land-application system where local rules, crop needs, soil conditions and storage arrangements allow. It should not be assumed safe for unrestricted irrigation or discharge simply because coarse solids have been removed.
Does every dairy farm need an anaerobic digester?
No. A digester may be useful when suitable collected manure, energy demand, operating capacity and project economics support it. Many farms first need reliable collection, storage and nutrient-management arrangements.
Is a screw press suitable for sand-bedded dairy manure?
Sand is abrasive and can accelerate equipment wear or interfere with separation. The bedding composition, abrasive content and any upstream grit-removal requirements should be assessed before selecting the separator and pump configuration.
How large should a wastewater system be for 500 cows?
Cow numbers alone are insufficient. Scraping or flushing methods, washdown water, contaminated runoff, bedding, seasonal peaks and the intended liquid destination can change flow and treatment requirements substantially.
What should I request from a dairy wastewater equipment supplier?
Ask for the specified feed material, expected operating range, included pump and control equipment, power and maintenance requirements, installation boundaries, and the destination of both separated solids and liquid. For a discharge-treatment proposal, also request a clearly defined sampling basis, process responsibility, monitoring plan and permit requirements.
Conclusion
Start with the waste streams and final destination; then design collection, stormwater control, storage, separation and any additional treatment around actual farm conditions.
Include the design flow, material characteristics, storage needs and both output destinations in the purchasing brief. Assign responsibility for any further treatment, monitoring and local approvals before comparing proposals.
