A cattle water system is not properly sized just because the trough is large and the float valve works. The water must reach the right animals, at the right locations, fast enough during busy periods—and remain clean and accessible throughout the year.
For dairy and beef farms, effective water management starts with five checks: herd demand, drinking access, peak refill capacity, water quality, and seasonal reliability. A stainless steel trough can be part of the answer, but no trough can compensate for an undersized supply line, an overcrowded crossover, or a contaminated water source.
Start a watering-system review with the barn layout and existing utilities before selecting a trough from the catalog. A quotation based on cow numbers alone may look straightforward, yet miss the problem that matters most once the barn is operating: several cows arrive together and the trough does not refill quickly enough.
1. How Much Water Do Dairy and Beef Cattle Need?
There is no single daily water allowance that fits every herd. Requirements change with body weight, milk production, dry matter intake, ration moisture, weather, and the animal's production stage. In a dairy barn, return from milking can also concentrate drinking into a short period.
The following are broad planning illustrations, not drinking limits or regulatory standards. They indicate why the same pipework cannot automatically serve very different groups.
| Cattle group | Practical planning perspective | Main variables to check |
|---|---|---|
| Lactating dairy cows | Often require roughly 80–150 L/head/day, with higher demand possible in hot weather or very high production | Milk yield, feed intake, heat, ration moisture |
| Dry and pregnant dairy cows | Usually drink less than high-producing cows, but still require unrestricted access | Body weight, weather, close-up management |
| Growing and finishing beef cattle | Needs increase with live weight, diet, and temperature; avoid specifying one daily amount for all ages | Live weight, concentrates, forage moisture, heat |
| Beef cow–calf pairs | Water supply must account for both the dam and access for the calf | Lactation, grazing conditions, calf size |
| Preweaned dairy calves | Offer separate, free-choice clean water from birth, in addition to milk or milk replacer | Age, starter intake, accessibility, hygiene |
For context, the University of Missouri's livestock water-planning guidance gives seasonal examples for dairy cows and different beef classes. These are useful for initial budgets—not substitutes for site-specific design.
Daily volume is not the same as peak demand
Imagine a 200-cow dairy using 100 L per cow per day as an illustrative planning assumption:
200 cows × 100 L = 20,000 L/day of animal drinking water.
That figure is not the required pipe or valve flow rate. The system also needs to handle simultaneous drinking after milking and potentially competing water use from parlor cleaning, cooling equipment, and other farm operations.
For example, if a measured or projected peak requires 4,500 L in one hour, the average delivery rate during that hour is 75 L/min. The system designer must then check where that flow is required, whether stored water can bridge short peaks, and what pressure actually reaches each valve. Do not divide the daily total by 24 and call the result an adequate refill rate.
2. How Many Water Troughs Does a Cattle Barn Need?
Start with the groups and their movement paths, not with a fixed “one trough per 20 cows” rule. A single group of 200 cows and four separate groups of 50 require different layouts, even when the total herd size is identical.
A practical design sequence is:
- Map every cow group: lactating, dry, close-up, fresh, heifer, calf, and beef pens as applicable.
- Provide more than one accessible watering location per larger group: this reduces the chance that dominant animals control the only drinking point.
- Check the genuinely accessible drinking edge: do not count trough sides blocked by a wall or fence, or assume a nominal two-sided model can be approached from both sides.
- Check cow traffic: waterers must not force drinking cows to block the return alley, a narrow crossover, or access to feed.
- Check water delivery: each point must retain usable water depth while cows drink and the valve refills.
For freestall dairy barns, Cornell Cooperative Extension summarizes a reference of about 9 cm (3.5 inches) of accessible trough perimeter per cow, with at least two separated watering locations per group. This is planning guidance, not a universal legal standard; alley layout, cow size, local welfare rules, and the chosen trough all matter.
Example: 200 lactating cows in four groups
Suppose the herd is divided into four pens of 50 cows. Using 9 cm per cow for a preliminary freestall design check:
50 cows × 0.09 m = 4.5 m of accessible trough edge per pen.
Across four pens, that is 18 m of accessible edge, distributed so each pen has adequate access. This does not mean one 4.5 m trough is the answer. Two waterers in different locations may be more useful, and only edges cows can actually reach should count. For example, two 2.7 m troughs in one pen would provide 5.4 m of edge if only one full long side of each is accessible; the final arrangement still requires a traffic and refill check.
A 200-cow herd in one shared large pen needs a different circulation study. Do not double the capacity of a trough just because both sides appear open on a drawing. Actual access and conflicts around the waterer determine its usefulness.
Where should waterers be placed?
- On the return route from milking: cows often drink soon after leaving the parlor; avoid forming a queue in the exit lane.
- Near feed and regular crossover routes: provide convenient access without obstructing other cows.
- In each separate pen: do not assume cows can reach a water point beyond a locked gate.
- In close-up, fresh-cow, and treatment groups: allow easy access for animals moving slowly or recovering from illness.
- In calf and beef areas: adjust height, access and protection to the animal size and housing system.
Avoid fixed maximum walking-distance numbers for every barn. Review the actual pen geometry and the relevant dairy or beef housing recommendations. Penn State Extension's water-access guidance gives useful freestall examples, including access near feed and at crossovers.
3. How Do You Check Refill Rate, Water Pressure, and Pipe Size?
The most expensive watering mistakes may be hidden behind the wall. A supplier can fit a high-capacity float valve, but the valve cannot deliver its rated flow when the supply pipe is undersized or the pressure falls during peak demand.
Check the complete water path:
Water source → storage/pump → main pipe → branch pipe → isolation valve → float valve → trough → drain.
Record these before choosing the final trough configuration:
| Site information | Why the engineer needs it |
|---|---|
| Source type and tested water quality | Determines suitability and treatment needs |
| Main and branch pipe diameter | Helps identify pressure losses and flow restrictions |
| Pressure at normal and peak use | A valve's published capacity depends on inlet conditions |
| Measured flow at the intended installation point | Shows what the site can actually deliver |
| Trough usable water volume and refill behavior | Determines how long short drinking peaks can be supported |
| Pump, storage and simultaneous users | Reveals conflicts with parlor cleaning and other equipment |
| Drainage and accessible service valves | Determines how quickly a trough can be cleaned or repaired |
A valve label reading “20 L/min” does not prove the installed trough will refill at 20 L/min. Test actual performance under representative pressure and simultaneous demand. Published recommendations vary by housing type; for example, Penn State discusses high-flow valves of around 10 US gallons/minute (about 38 L/min) for group dairy waterers. That is a useful comparison, not a one-size-fits-all purchase specification.
A simple on-farm refill test
With appropriate supervision and safe access, the team can measure how much the water level drops during a typical drinking peak, the time required to recover, and whether pressure falls when other water-using equipment starts. Repeat across water points rather than testing only the unit nearest the pump.
If several troughs fail together, investigate the pump and main line before blaming every float valve. If only one point fails, check its branch line, filter/strainer, isolation valve, float assembly, and local pressure.

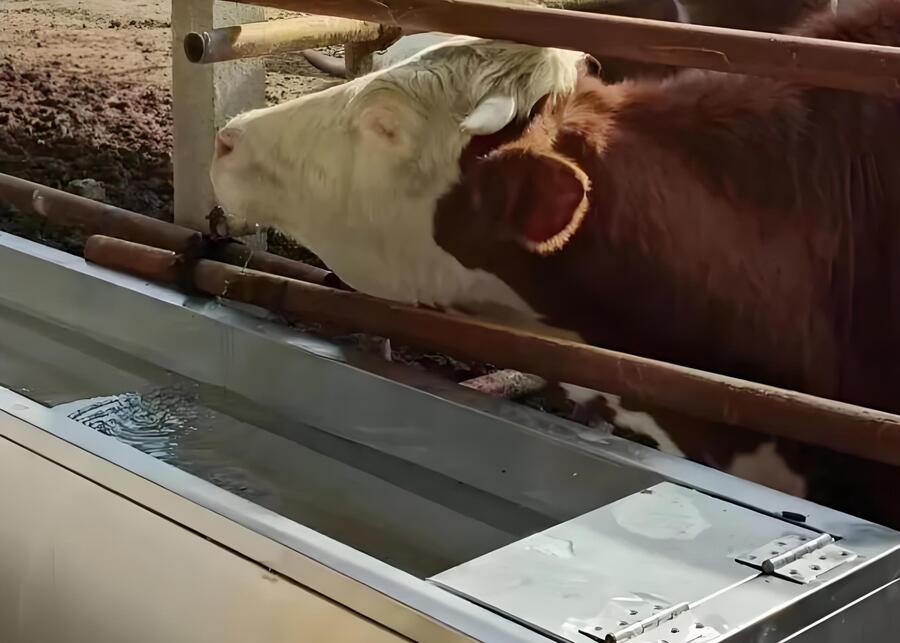

4. What Makes a Stainless Steel Water Trough Worth Buying?
When comparing stainless steel troughs, assess cleanability, structural durability, ease of drainage, and compatibility with optional refill or heating controls.
When comparing models, ask about the following rather than just the listed length:
| Feature | What to inspect |
|---|---|
| Material and fabrication | Steel grade, panel thickness, weld quality, smooth edges, supports and corrosion exposure |
| Cleaning and drainage | Bottom slope, full-emptying drain, access to corners and valve housing |
| Drinking access | Effective edge length, trough height, usable water depth and safety of the surrounding floor |
| Float and refill | Valve type, actual flow at site pressure, service access and replacement parts |
| Cold-weather configuration | Insulation, heater rating, thermostat, wiring protection and pipe freeze protection |
| Lifetime cost | Electricity, sanitation labor, valve maintenance, replacement parts and downtime |
NexAgri offers AISI 304 stainless steel livestock trough configurations with automatic refill, drainage access, and optional insulated/heated arrangements. The published 1.0 m, 2.0 m, 2.7 m and 4.0 m sizes are starting points for a quotation, not guaranteed cow capacities. Where the source water has high chlorides or unusual corrosion risk, material selection and cleaning chemicals require additional review; 304 is not ideal for every water chemistry.
A trough that drains completely and lets staff inspect the float valve may cost less to maintain than a cheaper unit that traps sediment in corners. Routine cleaning is still essential whatever material is used.
5. How Should Water Systems Work in Freezing Winters?
In very cold regions, the real requirement is continuous access to unfrozen water through the entire supply chain. Heating the trough alone is not enough if the inlet line, float-valve chamber, or branch piping freezes.
When assessing winter equipment, check:
- Lowest design temperature and wind exposure: a sheltered interior location and an outdoor water point have different heat losses.
- Incoming water temperature and peak turnover: cold incoming water may arrive faster than a small heater can warm it.
- Pipe, valve and drain freeze protection: including insulation, heat tracing or suitable alternative layouts where justified.
- Heating power and control: heater sizing must reflect trough geometry, ambient conditions, inlet temperature and available electrical supply.
- Electrical protection and service access: grounding, residual-current/ground-fault protection, over-temperature protection and components rated for the installed environment.
- Failure procedures: how to isolate, drain and service a malfunctioning unit without cutting water to an entire pen.
NexAgri's double-wall insulated AISI 304 troughs can be configured with thermostat-controlled heating. A specified set temperature is a design target, not a guarantee of identical temperatures in every climate. Request heater power, insulation and site-condition calculations before ordering. Confirm local electrical certification and installation requirements.
Water temperature can affect cattle drinking behavior, particularly during extreme weather. In winter, the priority is to prevent freezing and maintain reliable access to clean water. Heated water troughs can help keep drinking water available in cold conditions, but there is no single ideal winter water temperature that applies to every dairy or beef farm.
The appropriate heating and insulation system should be selected according to local climate, incoming water temperature, trough capacity, and operating costs.
6. What Should Hot-Climate Farms Improve First?
Prioritize an adequate supply of clean water and easy access before investing in refrigerated drinking water. In a hot, dry region—or a hot and humid dairy barn—the order of investment usually matters more than chasing one exact water temperature.
- Confirm the source, storage and peak flow can supply all planned drinking points.
- Provide accessible locations without crowding, especially after milking and near feeding routes.
- Shade exposed troughs and above-ground pipes; reduce heating of tanks in direct sun.
- Increase cleaning and inspection when warm conditions promote algae, biofilm and organic buildup.
- Coordinate waterer placement with fans and cow-cooling systems, while keeping spray water, manure and feed debris out of drinking troughs.
- Consider special drinking-water cooling only when a site-specific assessment shows a justified benefit relative to cost and simpler heat-abatement measures.
Research has found that chilled water can temporarily reduce dairy cow body temperature during hot conditions, but the benefit is not a substitute for ventilation, shade and effective cow cooling. The Journal of Dairy Science experiment on chilled drinking water illustrates this limitation.
A typical warning sign is a return lane crowded with cows while nearby water level drops faster than the valve can recover. A cooler trough is not the first fix for that problem; accessible space and flow are.
7. What Water Quality Tests Matter for Dairy and Beef Cattle?
Water can look clear and still contain undesirable levels of minerals or contaminants. Conversely, a clean supply may become dirty by the time it reaches a poorly maintained trough.
Test both the source and the animal's drinking point when investigating a problem. Sampling the borehole or municipal inlet alone cannot tell you whether water becomes contaminated in tanks, pipes, or troughs.
| Test or observation | Why it matters | Common next step if abnormal |
|---|---|---|
| Color, odor, turbidity and sediment | Indicates visible contamination or changes in the source or trough | Check source, storage and cleaning practices |
| Bacterial indicators, including E. coli where appropriate | Helps assess microbial contamination | Trace entry point, clean and review disinfection; retest |
| Total dissolved solids (TDS) | Screens combined dissolved mineral load | Identify which individual salts are elevated |
| Nitrate and nitrite | Potential animal health risk, especially with nitrate-rich feed | Check laboratory units, overall diet and source suitability |
| Sulfate, sodium and chloride | May affect palatability or create adverse effects at elevated levels | Evaluate individual concentrations and the ration |
| Hardness, iron and manganese | Can cause scaling, deposits, taste problems and valve maintenance | Select targeted treatment only if needed |
| pH and corrosion-related chemistry | Helps assess material compatibility and treatment needs | Check treatment and piping requirements |
The nitrate unit is particularly easy to misread. A result of 10 mg/L nitrate-nitrogen (NO₃-N) is approximately 44 mg/L nitrate (NO₃⁻). The NASEM Nutrient Requirements of Dairy Cattle water chapter provides guideline bands and stresses that water nitrate risk must be viewed alongside dietary nitrate exposure. Do not compare these different units as though they were identical.
Likewise, TDS by itself is not a diagnosis. A TDS result tells the farm to investigate individual constituents, rather than immediately buy a generic filter. Simple sediment filtration will not meaningfully remove dissolved nitrates or salts; high TDS may require source blending or appropriately designed treatment.
A practical water-testing decision process
- If the source and trough samples are both poor, investigate the source and any required treatment.
- If the source is acceptable but the trough is poor, first inspect storage tanks, pipe dead legs, trough biofilm, manure contamination and cleaning routines.
- If valves scale or clog, test hardness, iron and manganese before choosing softening or pretreatment.
- After maintenance, treatment or a source change, retest to verify that the solution works.
Testing intervals should reflect source risk and local requirements. Private wells, flood or runoff events, source changes, repeated diarrhea concerns and unexplained taste/odor changes can justify extra testing. Do not use the same fixed twice-yearly rule for every farm and every water source.
8. How Often Should Drinking Troughs Be Cleaned?
Clean drinking water requires a repeatable routine, not just an easy-to-clean material.
A simple operating routine is:
| When | What the staff should do |
|---|---|
| Daily observation | Check water level, valve movement, obvious debris, algae, odors and access to each point |
| Scheduled cleaning, at least weekly where applicable | Empty as designed; scrub the basin and valve area, rinse properly and restore clean water |
| More often in hot or heavily contaminated pens | Remove feed, manure, sediment and biofilm before buildup affects palatability |
| Following freeze, repair or treatment | Recheck drainage, flow, water condition and electrical safety where heaters are fitted |
| During herd or water-quality investigations | Compare the source sample with the point-of-use sample and log corrective action |
Penn State Extension recommends a consistent cleaning schedule, at least weekly, with greater attention when contamination is visible. Specific sanitizers, concentrations and contact times must follow product instructions and local farm safety procedures.
9. Do Calves, Fresh Cows, and Lactating Cows Need Different Watering Arrangements?
Yes. Their common need is unrestricted clean water, but the access problems are different.
Preweaned calves: make water easy to reach from birth
Offer clean, free-choice drinking water from birth, separate from milk or milk replacer. Do not delay until day three or treat a fixed one-liter allowance as a maximum. Check bucket height, stability and cleanliness, and replace soiled water promptly. A Journal of Dairy Science study found benefits associated with providing drinking water from birth rather than waiting until later in the preweaning period.
Close-up and fresh cows: reduce competition and difficult walking
Provide more than one convenient access location wherever the housing design allows. Waterers should be easy to reach from feed and resting areas, with non-slip approaches and space for slow-moving or subordinate animals. Fresh cows need prompt access to clean water after calving; special warm electrolyte drinks should follow the farm's veterinary protocol rather than being mandatory in a fixed 30–40 L quantity for every cow.
High-producing cows: design for the busiest minutes
During lactation, and especially in heat or immediately after milking, the important issue is reliable peak refill and adequate accessible edge. Monitor water levels when the full group returns from milking, not just when the barn is quiet.
Beef cattle: adapt the arrangement to the setting
A feedlot pen, pasture paddock and beef cow–calf unit do not have identical watering conditions. Check seasonal demand, animals' size, footing, access for calves, freezing exposure, and whether weak animals can drink without being displaced.
10. What Should Be Included in a Watering-System Quotation?
A useful quotation should explain what is supplied, what must already exist on site, and what still needs to be engineered.
For NexAgri, direct product and design scope can include stainless steel troughs, thermal insulation, optional heater and automatic refill controls, and trough layout engineering. Depending on the project, main pipework, pumps, valves, source-water treatment, flow meters, alarms and installation works may be coordinated with specialized partners or provided through a clearly defined project package. Ask the quotation to identify which of these items are included and which need separate supply or installation.
Before requesting a proposal, send these details:
| Required information | What to share |
|---|---|
| Herd plan | Total cows, groups by production stage, future expansion |
| Barn plan | DWG/PDF drawing or annotated dimensions; crossovers and return lanes |
| Water availability | Source report, measured pressure and flow, main pipe sizes, pump/storage information |
| Climate | Extreme winter and summer conditions; sheltered versus outdoor locations |
| Power | Local voltage, frequency, available circuits, protection requirements |
| Equipment preferences | Trough locations and lengths, single-/double-side access, heating and controls |
| Drainage and cleaning | Existing drain points, floor falls and cleaning access |
| Scope and budget | Equipment-only versus engineering, sourcing and installation coordination |
For a new 300–1,000-cow farm, plan the water network before construction drawings are frozen. During concept design, agree on groups and locations; in detailed engineering, finalize peak demand, pumps, mains, valves, drains and power. At commissioning, measure flow and refill under realistic conditions and verify any winter heating and electrical safeguards.
Dairy and Beef Cattle Water System Checklist
Before finalizing a cattle drinking water system, check the following:
- Each animal group has reliably accessible drinking locations.
- Effective trough edge, passage clearance, and cow traffic have been reviewed.
- Actual inlet pressure and refill flow have been checked at peak use.
- Storage and pump capacity account for parlor and other concurrent water users.
- Winter protection covers pipes, float valves, drainage, and electrical controls—not only the basin.
- In hot weather, accessible water, shade, and cleaning come before optional refrigeration.
- Source and point-of-use water quality are monitored according to risk.
- Staff can drain, scrub, inspect, and repair the waterer without unnecessary disruption.
- Proposed equipment and coordinated third-party works are clearly separated in the quotation.
Frequently Asked Questions
How many water troughs do I need for 200 dairy cows?
It depends on whether the cows share one pen or occupy several groups. Start with group layout, accessible drinking edge, at least two separated water locations for larger pens where feasible, and measured peak refill. Cow numbers alone do not determine an exact trough count.
Is 20 L/min enough for a cattle water trough?
It may be adequate in some situations and insufficient in others. Compare the installed, pressure-dependent refill rate with cow traffic, usable trough volume, and the number of cows drinking simultaneously. Do not use one fixed number as an industry-wide standard.
What height should a dairy cow water trough be?
Match the drinking lip to the actual cattle. Penn State gives a general reference of around 61–81 cm (24–32 inches) for larger Holstein cows, with different dimensions for smaller breeds. Calf, heifer and beef installations need their own review; the physical height of the entire product is not necessarily the drinking lip height.
Do cattle need warm water in winter?
They need continuous access to liquid, clean water. Heating and insulation can help prevent freeze-related interruptions, but no single drinking-water temperature is universally optimal. Size the full freeze-protection system for the climate and installation.
Should drinking water be refrigerated in hot weather?
Not as the first investment. Check water quantity, access, shade, cleanliness and cow-cooling measures first. Refrigeration may offer a site-specific benefit, but it cannot compensate for low flow or poor barn ventilation.
What is the difference between nitrate and nitrate-nitrogen on a water report?
They are different reporting units: NO₃⁻ (mg/L) ≈ NO₃-N (mg/L) × 4.43. Use the correct unit and assess nitrate in the complete ration when interpreting livestock water quality.
Can stainless steel waterers replace routine cleaning?
No. Smooth surfaces and good drainage can make cleaning easier, but feed residue, algae, sediment and biofilm still need scheduled removal.
Can NexAgri help design the water system rather than supply one trough?
Yes. NexAgri can review herd grouping, trough configurations, auto-refill and heating requirements, and drinking-point layout. Pumps, treatment, pipework, monitoring and installation can be separately scoped and coordinated as part of a larger farm project.
Conclusion
A successful dairy or beef cattle water system is designed from the herd and the available water supply outward. Work out where cows drink, how much accessible trough edge they have, whether the water returns fast enough, and how seasonal conditions affect reliable access. Then select materials, heating and controls that make the system easy to operate for years.
If you are planning a new barn or upgrading a watering line, NexAgri can review your herd groups, barn drawings, measured pressure and flow, climate and project scope before recommending stainless steel trough sizes and water-system configurations.
