A dairy plant producing 3,000 liters of chilled milk a day may be able to operate with a batch pasteurizer, but a continuous HTST line could make the production schedule much easier. A company planning shelf-stable milk faces a different decision: the UHT unit, sterile product handling and aseptic packaging must be planned together.
Choose the process from the product you intend to sell, its distribution conditions and the time available to produce it. Batch and HTST pasteurizers are used for refrigerated milk. Extended shelf-life (ESL) systems offer another refrigerated option. UHT processing paired with validated aseptic filling is used for long-life milk stored unopened at ambient temperature. Daily volume matters, but it does not set a fixed boundary between these technologies.
Batch, HTST, ESL or UHT: What Changes in the Finished Product?
The terms pasteurization and sterilization describe different processing objectives. Standard pasteurization controls relevant pathogens using a verified temperature-time combination. Pasteurized milk is cooled, hygienically filled and kept refrigerated. UHT processing, followed by protected aseptic handling and filling, produces a commercially sterile, unopened product intended for ambient distribution.
| Process | Typical design reference | Indicative shelf life and distribution | Main equipment decision |
|---|---|---|---|
| Batch (LTLT) pasteurization | 63°C for 30 min for standard fluid milk | Often around 7–14 days under refrigerated, hygienic conditions | Batch turnover, heating/cooling time and local distribution |
| HTST pasteurization | 72°C for 15 sec for standard fluid milk | Often around 7–14 days refrigerated; well-controlled plants may achieve longer | Continuous output, heat regeneration and filling-line synchronization |
| ESL milk | MF, bactofugation or higher-heat treatment combined with high-hygiene filling | Around 21–45 days in some advanced refrigerated systems; shorter ESL products also exist | Additional microbial reduction, post-treatment hygiene and cold-chain control |
| UHT + aseptic filling | Often around 135–150°C for a few seconds, using a validated process | Commonly around 6–12 months unopened under specified ambient storage conditions | Thermal unit, sterile buffer/transfer and aseptic filler as one system |
The FDA dairy pasteurization guidance provides the familiar LTLT and HTST references. The Tetra Pak Dairy Processing Handbook details refrigerated pasteurized and ESL production, while its long-life dairy chapter covers UHT and aseptic packaging.
These shelf-life ranges help with early equipment planning. The finished product's labeled period is set from raw-milk quality, package performance, filling hygiene, temperature control and shelf-life studies. In some markets, the term ESL also covers products with a much shorter extension than 21 days. See the published review of ESL milk shelf life and the Journal of Dairy Science review of pasteurized milk shelf life. The word fresh is used differently across markets, so labeling must follow the rules where the milk will be sold.
When Is a Batch Milk Pasteurizer the Better Choice?

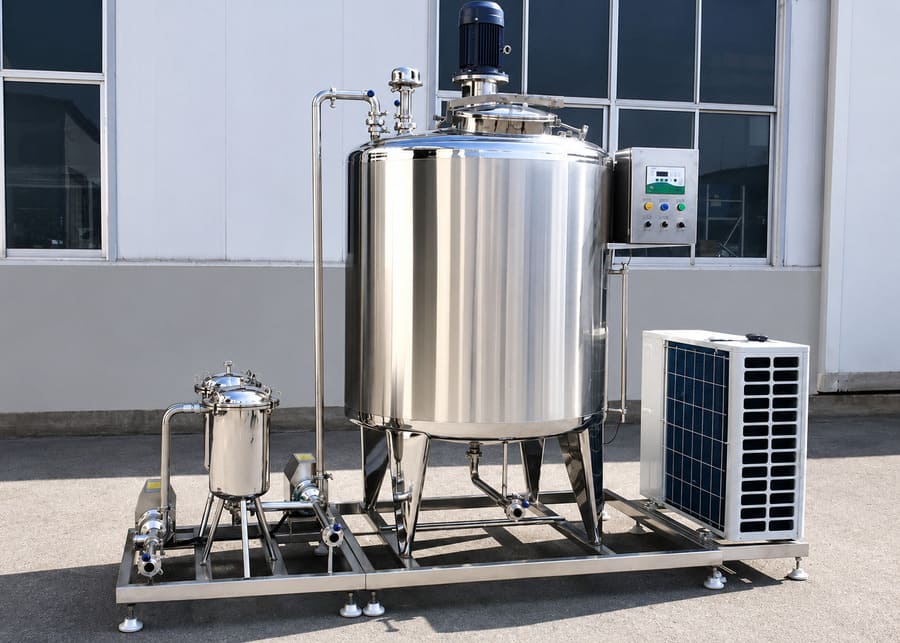

A batch or vat pasteurizer treats a defined quantity of milk inside a temperature-controlled vessel. For a standard LTLT fluid-milk process, the milk is brought to the required holding temperature, maintained for the specified time and then cooled under controlled conditions.
NexAgri supplies batch pasteurizers in configurations from approximately 30 to 1,000 L per batch. Options can include water-jacket heating, controlled mixing, jacket cooling, external product circulation through a suitable heat exchanger and appropriate cleaning connections. The actual arrangement depends on the product and plant utilities.
For a 500 L vessel, the production cycle includes more than the 30-minute pasteurization hold:
- Fill and heat the milk to the specified temperature.
- Hold the full batch at the required conditions.
- Cool to the intended transfer or storage temperature.
- Discharge to a hygienic buffer or filling system.
- Clean and prepare for the next batch.
The heating and cooling stages can take longer than the hold itself. A jacket-only system and a system with an external heat exchanger may have very different cycle times. Those times should be calculated from the working volume, starting temperature, available heating power, chilled-water temperature and heat-transfer area.
Batch equipment is attractive for smaller production runs, frequent product changes and plants where continuous operation would leave equipment idle. Its hourly effective output must be calculated from the full cycle, rather than the tank's nominal capacity alone.
How Does an HTST Plate Pasteurizer Improve Continuous Production?

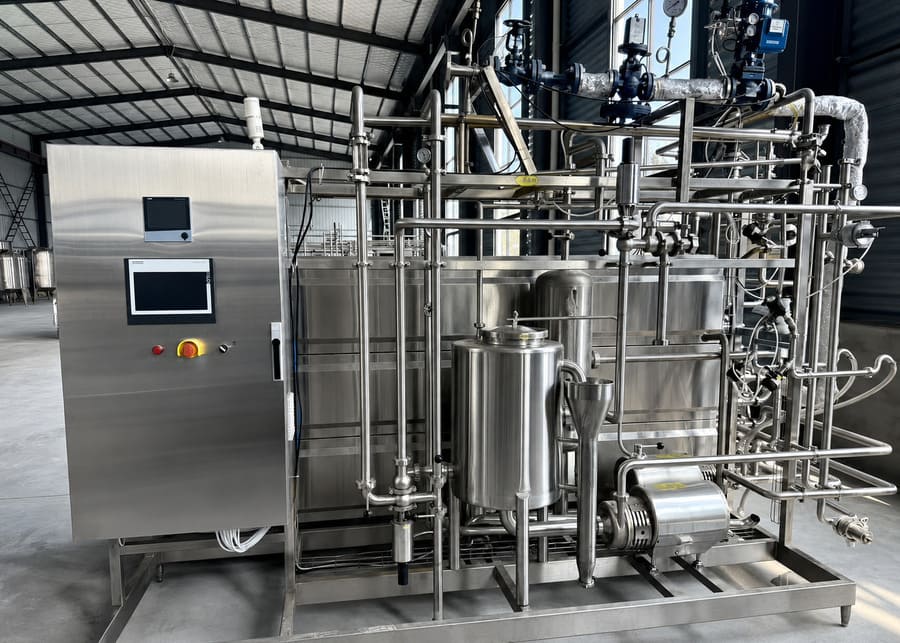

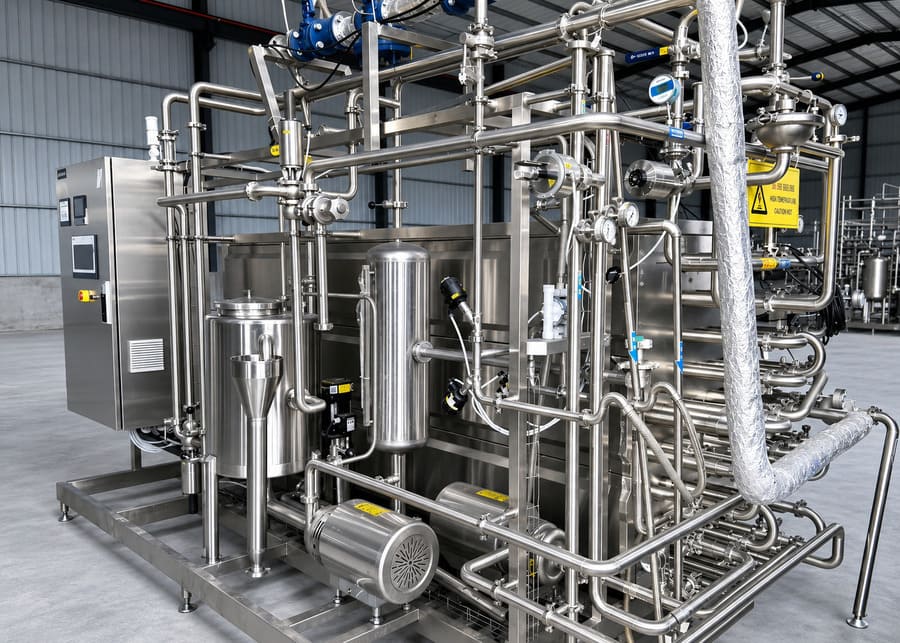

An HTST unit pumps milk at a controlled rate through heating, holding and cooling sections. A plate heat exchanger transfers heat through thin metal plates between separate flow channels. In the regeneration section, outgoing pasteurized milk preheats incoming raw milk while being partially cooled itself.
Our HTST plate pasteurizer range covers approximately 500–3,000+ L/h. Available arrangements include balance tanks, holding tubes, heating and cooling sections, temperature and flow recording, automatic flow diversion, PLC controls and CIP connections. The specification is selected for the rated processing flow and product.
What should be checked on an HTST quotation?
| Item | What to ask the supplier to specify |
|---|---|
| Rated product flow | L/h for the actual milk product and allowed operating range |
| Minimum holding time | Holding-tube configuration and verification at the maximum permitted flow |
| Flow diversion | Sensor location, diversion set point, return path and functional testing |
| Regeneration | Expected heat-recovery percentage at the quoted flow and inlet temperatures |
| Pressure relationships | Pasteurized-side overpressure, pressure sensors and diversion/booster-pump interlocks across the regenerator |
| Final cooling | Outlet temperature at maximum flow, and the chilled-water duty required |
| Controls and cleaning | Data records, alarms, CIP coverage and the planned startup/changeover sequence |
Regenerator pressure protection is a useful acceptance check. Canada's CFIA guidance specifies at least 14 kPa (2 psi) higher pressure on the pasteurized-milk side than on the raw-milk side of the regenerator, including applicable flow and shutdown conditions. The U.S. Grade “A” PMO uses a 6.9 kPa (1 psi) minimum differential for relevant regenerator pressure-switch controls. The installed pressure sensors, flow-diversion logic and booster-pump interlocks are specified and tested against the plant's applicable standard. See the CFIA HTST guidance and the 2023 FDA Pasteurized Milk Ordinance.
How much heat can an HTST system recover?
Our compact 500–1,000 L/h HTST skids are configured for approximately 65–70% heat regeneration. The larger 2,000–3,000+ L/h multistage units offer more than 75%, with additional heat-recovery surface and staging available for long, continuous production runs. We size the regeneration section around the required milk flow, inlet temperature, pressure loss and CIP circulation. See our HTST plate unit specifications.
For purchasing, ask for the calculation at the stated milk inlet temperature, pasteurization temperature and flow rate. Include the heating and cooling utilities in the comparison, especially if production will often run below full capacity.
Is ESL Milk Worth Considering Before Moving to UHT?
ESL, or extended shelf-life, is an option for a dairy that wants longer refrigerated distribution without changing to a shelf-stable UHT product. It combines extra microbial reduction with better post-treatment hygiene, filling and temperature management.
Common industrial approaches include microfiltration (MF), bactofugation and high-heat treatment (HHT).
- MF route: A separator first divides raw milk into cream and skim milk. The skim stream passes through approximately 1.4 μm ceramic microfiltration membranes to reduce bacteria and spores. The cream is heat treated separately (a published process reference is 124–130°C for a few seconds), then recombined with the filtered skim stream for fat standardization, homogenization where needed and final pasteurization.
- Bactofugation route: A high-speed centrifugal bactofuge reduces bacterial spores and other dense particles before the heat-treatment stage. It is often paired with pasteurization and strengthened hygienic filling.
- HHT route: Higher-heat, short-hold processing can support longer refrigerated shelf life. Published ESL designs include approximately 120–130°C for 1–4 seconds, with 130°C for 1 second one documented example. The heat profile is selected for the product and required microbial reduction.
NexAgri can configure the required separators, membrane units, thermal processing, piping and high-hygiene filling equipment as part of a project-specific ESL line.
The practical design brief should state the expected refrigerated shelf life, filling hygiene and distribution temperatures. ESL milk still requires a cold chain, including after the final heat treatment. Our equipment selection can cover the separator, MF skid or bactofuge, thermal stage and high-hygiene filler as a coordinated line.
When Does UHT Processing Make Commercial Sense?
UHT is generally considered when the business requires unopened milk to travel and remain on the shelf without a refrigerated distribution chain. That may be important for distant retail markets, areas with limited cold-chain infrastructure or particular export plans. The decision is not restricted to plants above a fixed daily capacity.
UHT systems may use indirect heating, such as plate or tubular exchangers, or direct heating, such as steam injection or infusion. Direct systems typically use rapid heating, a defined high-temperature holding section and vacuum flash cooling; indirect systems use heat exchangers for heating and cooling. Product properties, thermal performance, fouling, steam quality and utility costs influence the choice.
We can configure pilot and industrial UHT equipment, including project-specific capacities, sterile product buffers, controlled aseptic transfer, CIP/SIP and filling systems. The complete line must be commissioned and verified against the finished product and its package.
For ambient UHT milk, the requirements extend beyond temperature and holding time. The sterile system downstream from the thermal unit, package treatment, filler controls, sealing integrity and production records all contribute to commercial sterility. Target shelf life, whether six months or another period, is established through product and package validation.
A standard fresh-milk bottle or carton filler is not automatically suitable for UHT ambient milk. Our dairy packaging equipment covers several package categories; the aseptic specification must be stated separately for the UHT project.
Example: Processing 3,000 L of Refrigerated Milk per Day
Consider a dairy with 3,000 L of pasteurized milk to produce each day and an eight-hour nominal production shift. Compare a 500 L batch machine with a 1,000 L/h HTST unit.
| Calculation | 500 L batch pasteurizer | 1,000 L/h HTST |
|---|---|---|
| Daily target | 3,000 L | 3,000 L |
| Equipment capacity | 500 L/batch | 1,000 L/h |
| Number of batches / nominal processing time | 6 batches | 3 hours of continuous flow |
| Example time assumption | 3 hours per complete batch cycle | 3 hours excluding startup and shutdown |
| Resulting schedule | 18 hours for six cycles | 3 hours, plus startup, changeover and CIP |
| Main planning question | Can vessels and cooling be scheduled in parallel? | Can filling and downstream storage keep pace? |
The three-hour batch cycle is an illustrative planning assumption covering filling, heating, holding, cooling, discharge and cleaning. Actual time must be calculated for the selected tank and utilities.
The HTST alternative also needs its own startup and cleaning allowance. At 1,000 L/h, a 500 mL bottling line must be able to handle roughly 2,000 bottles/h at the same product flow before allowing for losses and operating margins. A slow filler can erase the benefit of buying a larger pasteurizer.
The comparison shows why a quotation should identify saleable liters per shift, not only tank volume or heater capacity.
How Should Cooling and Filling Be Matched to the Heat Treatment?

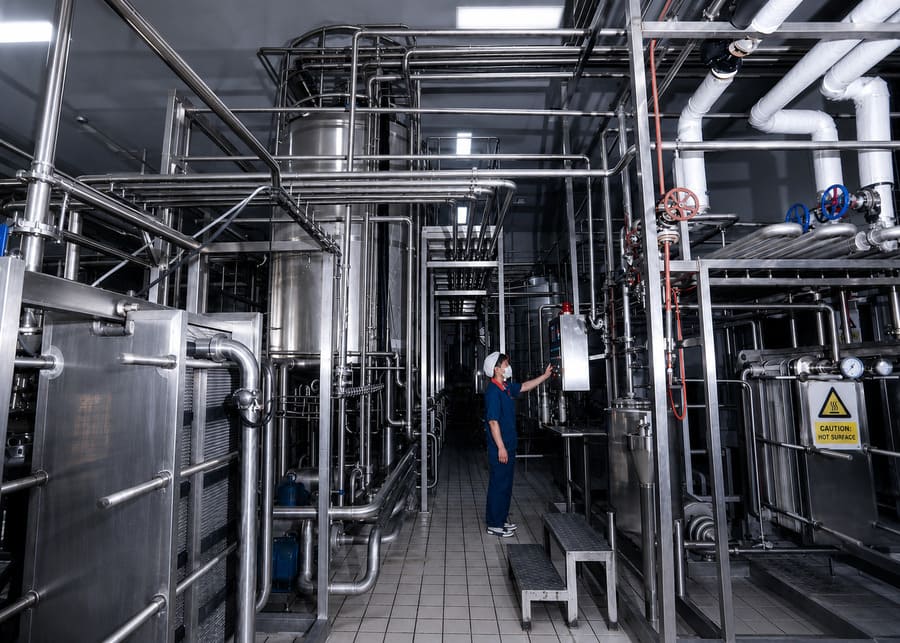

For refrigerated pasteurized milk, cooling starts immediately after the verified treatment. The selected cooling temperature is established from the plant's food-safety plan and the applicable market rules; around 4°C is a common design target for chilled fluid milk. Storage, transfer and hygienic filling must protect the treated milk from recontamination.
- Batch line: Jacket cooling or controlled circulation through a dedicated sanitary heat exchanger, followed by a hygienic receiving tank or filler.
- HTST line: Regeneration and final chilled-water sections within the plate system, with sufficient ice water or chiller capacity at maximum flow.
- ESL line: Controlled post-treatment transfers and high-hygiene filling, with refrigeration maintained through distribution.
- UHT line: Cooling inside a protected sterile process, followed by aseptic transfer and packaging for the intended ambient shelf life.
For new or expanded plants, NexAgri can match cooling equipment, storage vessels, sanitary piping and filling capacity to the heat-treatment line. Equipment designed for raw-milk pre-cooling needs a separate hygiene and interface assessment before it is used on the pasteurized side.
What Does Each Processing Route Cost to Operate?
Initial equipment price is only one part of the investment. For a fair comparison, calculate the cost per liter of finished, accepted and packed milk, including downtime and product losses.
| Cost or operating factor | Batch | HTST | UHT + aseptic filling |
|---|---|---|---|
| Main capital items | Jacketed vessel, controls, cooler and hygienic filler | Plate system, controls, chiller connection and continuous filler | UHT system, sterile buffer, CIP/SIP and aseptic filler |
| Operating schedule | Heating, hold, cooling and cleaning repeated per batch | Continuous runs, with startup and CIP intervals | Continuous sterile run length and aseptic changeovers |
| Utilities | Heating/cooling per batch; limited regeneration | Heat regeneration can reduce heating and cooling demand | Thermal process, sterile utilities and package treatment |
| Packaging and distribution | Hygienic packs plus cold chain | Hygienic packs plus cold chain | Aseptic pack and ambient logistics before opening |
| Maintenance focus | Agitator, jacket, valves, temperature instruments | Plates, gaskets, diversion valve, instruments and CIP | Sterile valves, seals, package treatment, SIP and process verification |
A small producer selling multiple recipes locally may prefer a batch vessel even when its per-liter processing labor is higher. A dairy producing the same chilled milk every day may benefit from continuous HTST. UHT can extend geographic reach, but the aseptic filler, packaging materials and verification requirements must be included before judging project cost.
How Can a Small Dairy Expand Without Replacing Everything?
When future demand is reasonably predictable, a small HTST skid can be a useful first investment. For highly variable volumes and many short product runs, a batch unit may remain the more practical starting point.
Expansion planning should examine the whole line:
- Cooling and storage: Can the raw-milk and pasteurized-milk tanks accommodate the future peak flow and production schedule?
- Homogenization and pumping: Can pumps and homogenizers handle the revised flow and pressure requirements?
- Filling: Will the filler match the pasteurizer's continuous output, including pack size changes?
- Utilities: Is there enough heating, chilled water, power, compressed air and wastewater capacity?
- Piping and CIP: Are planned tie-ins hygienically designed, drainable and included in the cleanable circuits?
- Controls: Can new flow, temperature, diversion and CIP signals be integrated and tested?
NexAgri can review existing drawings and equipment schedules, recommend what can be retained, and configure new process modules around the available plant layout. Hygienic connections and future service space are much cheaper to plan before installation than to retrofit into a crowded processing room.
What Should Be Verified Before the Equipment Is Accepted?
Commissioning should use the agreed product or appropriate test medium and address the conditions most likely to affect performance.
| System | Useful acceptance checks |
|---|---|
| Batch | Working volume, temperature uniformity, calibrated temperature records, full holding time, cooling time and cleaning |
| HTST | Actual maximum flow, holding-time verification, low-temperature diversion, pressure safeguards, heat regeneration and CIP |
| ESL | Selected bacterial-reduction process, downstream hygienic design, fill hygiene and refrigerated shelf-life testing |
| UHT | Validated time/temperature process, sterile transfer and buffer operation, SIP, aseptic filler, package integrity and product tests |
FAT and SAT can establish mechanical and control performance; product-specific microbiological and shelf-life studies require cooperation with the customer's quality team and, where necessary, qualified external laboratories or process authorities. A signed acceptance plan should define tests, criteria, responsibilities and records before commissioning begins.
Frequently Asked Questions
Is fresh milk always processed with a batch pasteurizer?
No. Both batch and continuous HTST systems can make refrigerated pasteurized milk. The better choice depends on operating hours, product variety and how much milk must be packed per shift.
How long do pasteurized, ESL and UHT milk usually last?
For preliminary planning, conventional batch or HTST pasteurized milk is often marketed with about 7–14 days of refrigerated shelf life. Some ESL systems target around 21–45 refrigerated days, although market definitions and achieved periods vary. UHT milk with validated aseptic packaging commonly targets 6–12 months unopened at ambient temperature. The plant confirms its own label life through product and packaging tests.
Does a UHT milk plant need more than 10 tonnes of milk per day?
No fixed daily-volume threshold defines UHT. Smaller and larger lines are possible. The business case depends on the package, market, utilities, sterile-system investment and desired ambient distribution.
Can ESL milk be delivered without refrigeration?
No. ESL extends refrigerated shelf life; it is not the same as UHT milk packaged for ambient storage.
Can I upgrade a batch line to HTST and reuse my existing milk tanks and filler?
Often some equipment can be retained. Check the working capacity, hygienic piping, cooling duty, CIP connections and filler speed before preparing the conversion layout.
What is the first number I should provide for a pasteurizer quotation?
Provide the daily saleable milk target and the hours available for production. Include the intended product, packaging format, desired shelf life and utilities. These determine whether batch or continuous equipment will operate efficiently.
Conclusion
Batch pasteurization, HTST, ESL and UHT serve different production and distribution plans. The practical choice comes from the milk product, daily output, available shift hours, package and the supply chain—not a fixed threshold that automatically makes one technology better.
At NexAgri Solutions, we supply batch pasteurizers, continuous HTST plate units and customized dairy production lines, with UHT and ESL configurations available for suitable projects. We can support equipment selection, process flow and P&ID development, plant layout, installation and commissioning, operator training and project-specific acceptance testing.
If you are comparing equipment, contact our team with your daily milk volume, intended shelf life, pack size, operating hours and available heating and cooling utilities. We can review a practical line arrangement and equipment quotation.
