Longer milking times, recurring slips or changes in teat condition call for a review of the liner together with the installed milking system. Replacing a liner with a softer material or a different shape is only useful when its fit and operating conditions are understood.
Liner geometry can affect milk flow and milking duration.1 A published square-versus-round liner study found performance differences under its test conditions, with similar stomping and kicking behavior. The result supports checking the liner design in use; it does not establish that one component alone determines milk quality or long-term teat health.
For a practical review, record the liner and shell codes, herd teat-size range, installation date, milking frequency, vacuum and pulsation settings, slips and unit-on time. Compare observations before and after a planned change using the same routine and clearly identified animal groups.

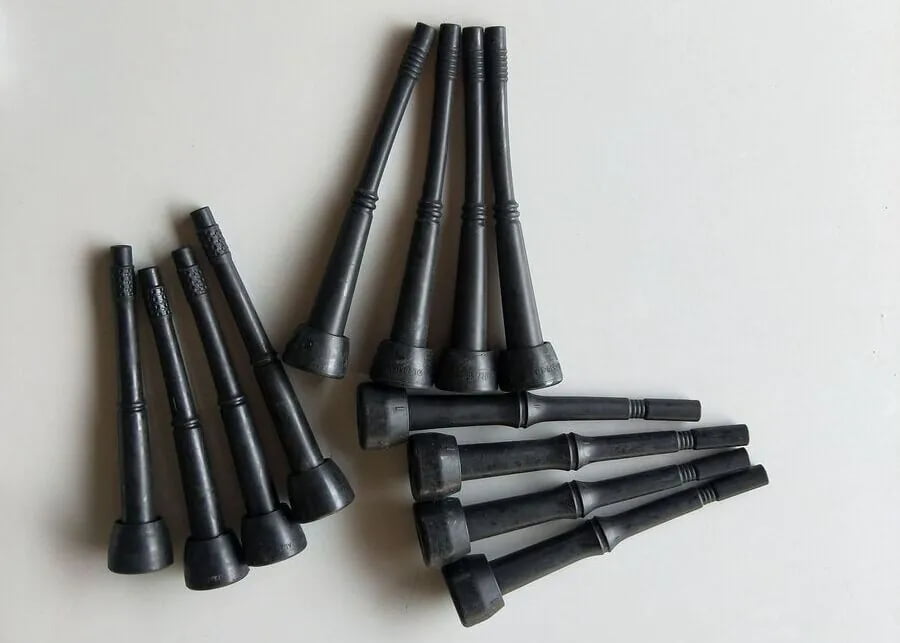

What Are the Different Types of Milk Liners and Their Standards?
Rubber and silicone describe material families. Their performance also depends on compound formulation, dimensions, mounting tension and the cleaning conditions for the selected model.
Ask for Documents for the Actual Compound
Request the material identification, food-contact declaration and relevant test reports for the liner being supplied. Match the documentation to the destination market, contact conditions and intended cleaning process.
BfR publishes recommendations for food-contact materials, including separate provisions for rubber and silicones. US 21 CFR 177.2600 addresses rubber articles intended for repeated use. A rubber or silicone label on its own is not a product-specific compliance record.
| Item to Compare | Request or Measure | Why It Matters |
|---|---|---|
| Material | Compound designation and food-contact documentation | Identifies what was assessed and supplied |
| Geometry | Mouthpiece opening, barrel dimensions and mounting length | Supports matching to teats and shells |
| Operating Compatibility | Approved shell, mounting tension and system guidance | Affects how the liner opens, closes and fits |
| Cleaning Compatibility | Permitted chemistry, concentration and temperature conditions | Keeps the cleaning plan aligned with the material |
| Service Limit | Milkings, calendar limit and condition-based rejection criteria | Provides a model-specific replacement basis |

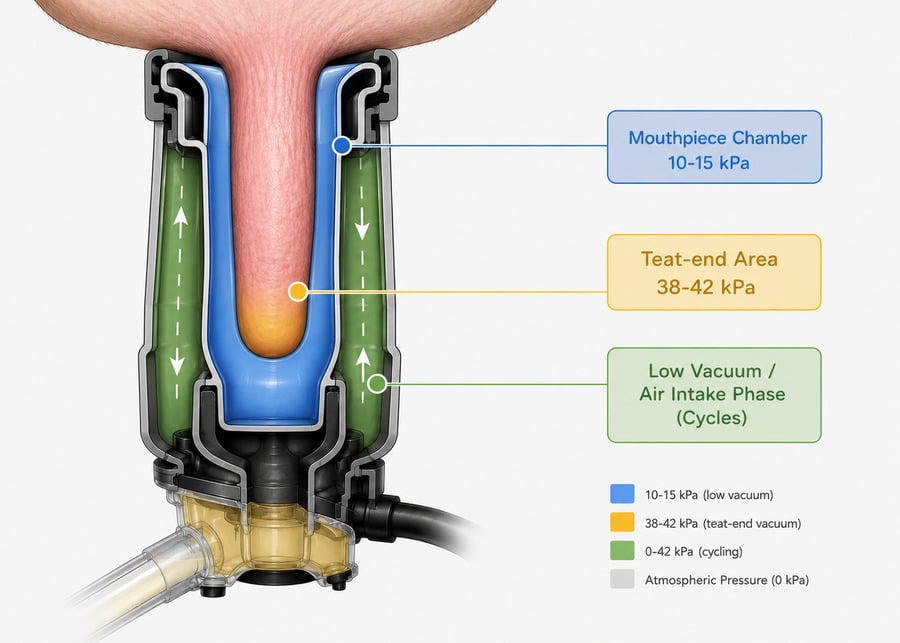

How Does Vacuum Level Affect Milk Liner Performance?
The vacuum shown at a system gauge is not the complete condition at a teat during milk flow. Milk transport, air admission, tube dimensions, cluster position and pulsation all influence what the animal experiences.
Milking-equipment guidance links teat-end vacuum, pulsation, liner function and handling practices.2 Have a technician compare dynamic measurements with the installed system and liner specifications. Record where each measurement was taken and the milk-flow conditions during the test.
What to Include in a Dynamic Test
| Test Condition | Record | Review Together |
|---|---|---|
| Start of milking | Preparation routine, attachment timing and milk-flow start | Delayed let-down, air admission and initial cluster behavior |
| Peak flow | Vacuum trace at the specified teat-end or claw test point | Milk-line arrangement, restrictions and available system capacity |
| Low flow and removal | Vacuum behavior, low-flow duration and removal setting | Overmilking, unit-on time and teat condition |
| Pulsation | Rate, ratio and phase performance for the installed equipment | Liner opening/closure and matched component specifications |
| Recurring slips | Animal/quarter, liner fit, cluster alignment and air events | Fit, attachment routine, tubing and system response |
Mouthpiece-chamber vacuum is a separate measurement from teat-end or claw vacuum. Where it is relevant to the fault, record it with the liner fit and teat penetration. Swelling, discoloration or liner climbing calls for a combined fit and system review, rather than adjustment to a universal pressure number. Check the pulsators and claws as part of that review.

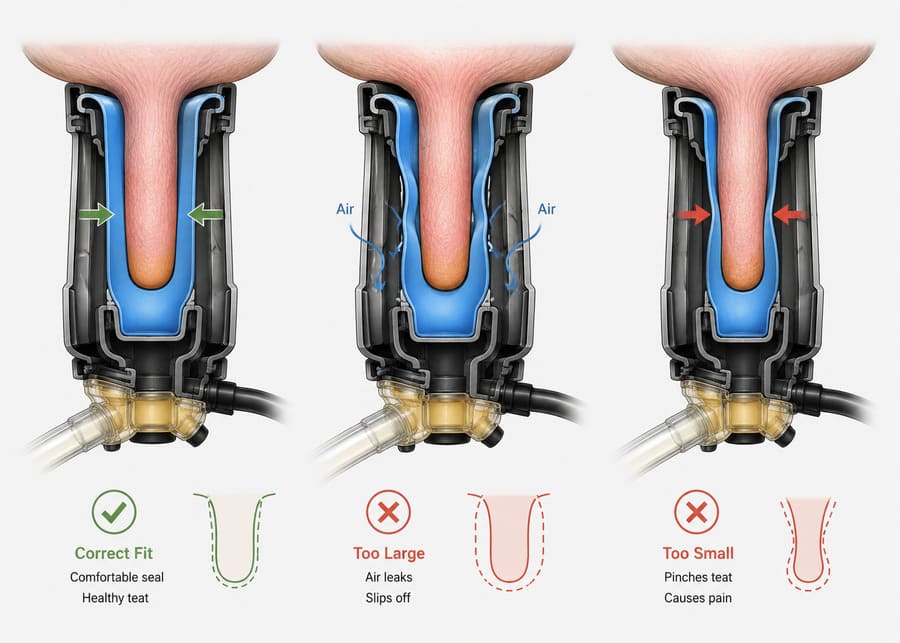

Why is the Fit Between the Liner and Teat So Critical?
A liner needs to form a suitable seal and move as intended during pulsation. Fit should account for the herd's teat-size range and the shell assembly, not only a description such as soft, wide or lightweight.
Check the Complete Assembly
- Record the teat measurements used for selection and the liner's mouthpiece and barrel dimensions.
- Match the liner code to the shell, mounting length and specified tension. Align installation marks and check for twisting.
- Observe the cluster under actual milk flow. Record slips, climbing, uneven alignment and tubing pull.
- Inspect teat condition after removal using the farm's consistent scoring method. Compare groups and milking sessions before attributing a change to liner shape alone.
Repeated slips or visible teat changes need review of preparation, vacuum, pulsation and unit removal alongside fit. When comparing liners and tubes, provide the existing shell code and operating observations so the proposed replacement can be checked against the installation.
What Are the Best Practices for Milk Liner Maintenance and Replacement?
Research on selected nitrile-rubber liners found changes in chemistry, deposits and mechanical behavior with age and use.3 The study describes milk-derived material uptake and loss of formulation components; it does not establish one lifespan for every rubber or silicone compound.
Turn a Service Limit into a Farm Schedule
Use the supplier's milking-count and calendar limits for the selected liner, together with its inspection criteria. Estimate use per liner from the herd and the working clusters:
Milkings per liner per day = cows milked × milkings per cow per day ÷ working clusters.
For example, 200 cows milked twice daily through 20 working clusters give approximately 20 milkings per liner per day. If the selected model has a stated limit of 2,500 milkings, that count would be reached in about 125 days. This is an arithmetic example, not a recommended interval for every model. Use actual counters where cluster use is uneven, and apply any earlier calendar or condition limit.
Keep an Inspection and Replacement Record
| Record or Check | Practical Action |
|---|---|
| Installation date and liner code | Identify the set and the applicable supplier service limits |
| Use count | Update the estimated or measured milkings per liner |
| Cleaned surface and elasticity | Inspect for cracks, distortion, deposits and damage using the model's rejection criteria |
| Wash record | Check chemistry, concentration, time and temperature against material compatibility |
| Installation and storage | Align the liner, avoid cuts and store spare parts clean, dry and protected from damaging conditions |
Plan replacement milking components by part compatibility, delivery lead time and the recorded service schedule. A longer nominal life is useful only when the selected liner remains suitable for the installed system and its permitted service conditions.
Conclusion
Select a liner from the actual teat, shell and operating requirements. Verify it through dynamic testing and consistent animal observations, then track its use and condition. These records make a liner comparison or replacement enquiry much more useful than choosing by material name or a single vacuum setting.
Herath, H. M. G. P., Kudrass, D., Bryant, R. H., and Al-Marashdeh, O. (2024). Geometry of milk liners affects milking performance in dairy cows. Journal of Dairy Research. doi:10.1017/S002202992400027X. ↩
Jones, G. M. (2009). The Role of Milking Equipment in Mastitis. Virginia Cooperative Extension, publication 404-742. ↩
Boast, D., Hale, M., Turner, D., and Hillerton, J. E. (2008). Variation in Rubber Chemistry and Dynamic Mechanical Properties of the Milking Liner Barrel with Age. Journal of Dairy Science, 91(6), 2247–2256. doi:10.3168/jds.2007-0316. ↩
