A beef finishing barn can have plenty of fans and still have cattle standing in warm, stagnant air. The problem is often the path the air takes through the building: openings, partitions, fan positions and the cattle themselves all influence how much air reaches each pen.
For a semi-open or enclosed beef fattening barn, ventilation design starts with the building layout, animal numbers and local weather. A practical system combines fresh-air exchange, air movement at cattle level, seasonal controls and—where the climate supports it—evaporative cooling. Fan quantity is calculated from the chosen airflow arrangement and checked against the selected fans' operating performance.
For a 200-head barn, a naturally ventilated structure with circulation fans may be sufficient. A tightly enclosed 1,000-head finishing facility needs a much more coordinated approach to air inlets, exhaust capacity, cooling and automatic control. At NexAgri Solutions, we supply barn fans and can configure ventilation equipment, inlets, cooling systems and local control for both types of projects.
What Ventilation Conditions Matter Most in a Beef Fattening Barn?
Beef cattle require a continuous supply of fresh air. In summer, the system must remove accumulated heat and help cattle lose body heat. In winter, it must move moisture and manure gases out of the building without exposing resting cattle to concentrated cold drafts.
Four measurements are useful on site:
| Measurement | What It Tells the Farm | Where to Check |
|---|---|---|
| Air temperature and relative humidity | How difficult it may be for cattle to dissipate heat | Several representative pen locations, not only near the controller |
| Air velocity | Whether moving air actually reaches cattle | At cattle back height in feeding and resting areas |
| Fresh-air exchange | How much outdoor air passes through the barn | Air inlets, exhaust fans and building flow path |
| Moisture and gas buildup | Whether winter ventilation and manure management are sufficient | Animal-level locations, damp bedding areas and enclosed corners |
The World Organisation for Animal Health (WOAH) beef cattle welfare guidance identifies ventilation, air quality, dust and gas accumulation as important factors in intensive beef production. It states that ammonia in enclosed cattle housing should not exceed 25 ppm.
How Should Heat Load Guide Fan Control?
A warm, dry afternoon with a steady breeze is different from a humid day when the barn remains hot after sunset. Heavy finishing cattle on high-energy rations may be especially vulnerable during prolonged heat events. Watch for faster breathing, panting, bunching, reduced feed intake and poor overnight recovery.
Temperature–humidity index (THI) combines air temperature and relative humidity and gives the controller a more useful signal than temperature alone. A commonly used cattle equation is:
THI = 0.8 × T + (RH / 100) × (T − 14.4) + 46.4
Here, T is air temperature in °C and RH is relative humidity in percent. At 32°C and 45% RH, THI is approximately 80. Published feedlot-cattle research describes an alert range around THI 75–78, a danger range around 79–84, and an emergency category above 84 (heat-stress review).
These ranges help set an initial response schedule. We combine the THI reading with local wind, sun exposure, overnight cooling and visible cattle responses before finalizing fan and cooling stages. The equipment controls air movement; drinking-water availability, shade and heat-event management remain essential parts of the plan.
For exposed or strongly sunlit housing, measures such as the heat load index (HLI) can add wind and radiant heat to the assessment. South Dakota State University Extension also emphasizes the importance of consecutive hot days and limited nighttime cooling in feedlots: Heat Stress in Feedlot Cattle.

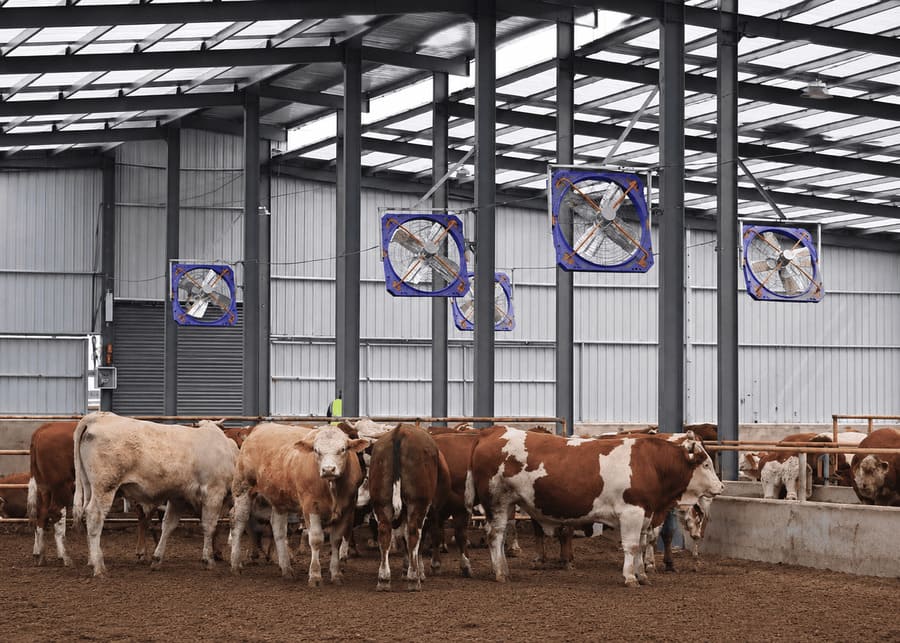

Semi-Open vs. Enclosed Beef Barns: Which Ventilation Layout Works?
The ventilation system should fit the building rather than forcing the same fan layout into every barn.
| Barn Type | Main Airflow Approach | Typical Equipment Package | Design Priority |
|---|---|---|---|
| Semi-open steel-framed barn | Natural crossflow through open sides, assisted by circulation fans | Axial fans, adjustable side curtains or louvers, local sensors | Maintain air movement throughout feeding and resting pens |
| Enclosed mechanically ventilated barn | Planned inlet-to-exhaust flow, with separate circulation where needed | Exhaust fans, controlled inlets, shutters, PLC cabinet, optional cooling pads | Achieve the intended airflow at operating static pressure |
| Hot, dry-climate enclosed barn | Mechanical ventilation with optional evaporative inlet cooling | Wet pads, exhaust fans, recirculation pumps, filters and controls | Balance pad cooling, humidity and exhaust capacity |
In a semi-open barn, wind direction and sidewall opening area can change conditions throughout the day. Circulation fans are particularly helpful in sheltered corners, behind partitions and around densely occupied pens. In an enclosed barn, inlet position and resistance are just as important as exhaust-fan size: air will take the easiest route, which may leave some pens under-ventilated.
A layout drawing should show air moving through the occupied animal zone, not only across the roof space. We typically assess the feed line, resting pens, drinkers, central aisles and any walls or partitions that may block airflow before setting fan positions.
Which Barn Fans Are Suitable for Beef Cattle Housing?
Fan dimensions and nominal airflow are useful for shortlisting equipment, but they do not tell the whole story. An exhaust fan must deliver its required flow against the resistance of louvers, pads, guards and the building. A circulation fan is selected for the airspeed and coverage it creates inside the barn.
NexAgri can supply axial circulation fans, negative-pressure exhaust fans, inlets and shutters, as well as HVLS ceiling fans for suitable structures. Below are the key specifications across five axial barn fan configurations in our NexAgri range:
| Fan Configuration | Overall Dimensions | Nominal Airflow | Motor Power | Construction / Other Data |
|---|---|---|---|---|
| Galvanized 4-blade | 1,120 × 1,120 × 300 mm | 26,800 m³/h | 410 W | Galvanized frame and guard; 430 stainless-steel blades; 750 rpm |
| Galvanized 6-blade | 1,120 × 1,120 × 300 mm | 26,800 m³/h | 550 W | Galvanized frame and guard; 430 stainless-steel blades; 750 rpm |
| Plastic-shell 4-blade | 1,130 × 1,130 × 300 mm | 26,800 m³/h | 410 W | Polypropylene housing, PE collector, 430 stainless-steel blades; 750 rpm |
| Plastic-shell 6-blade | 1,140 × 1,140 × 300 mm | 26,800 m³/h | 550 W | Polypropylene housing, galvanized collector, 430 stainless-steel blades; 750 rpm |
| 72-inch large axial fan | Approx. 2.0 × 2.0 m | 84,000 m³/h | 2.2 kW | 1.83 m blade diameter; fiberglass housing; aluminum-magnesium blades; 300 rpm; 380 V / 50 Hz; IP55 |
The compact models support 50/60 Hz power frequency, while our 72-inch unit is specified at 380 V / 50 Hz with an IP55-rated motor. For the compact models, we confirm the motor voltage, enclosure protection and control arrangement with the selected configuration and destination power supply. Fan curves at the working pressure are included in the engineering selection where the fans will serve as exhaust units.
Why Fan Duty Matters More Than the Brochure Airflow Figure
For a circulation fan, the key site measurement is airspeed in the places cattle occupy. For an exhaust fan, it is the delivered outdoor-air flow at the system's static pressure. A fan advertised at 26,800 m³/h under one test condition may deliver a different volume when installed behind shutters or evaporative pads.
Ask for the fan curve at the required pressure, operating power, noise data and mounting arrangement. Those figures help the buyer compare the complete system rather than the fan diameter alone.

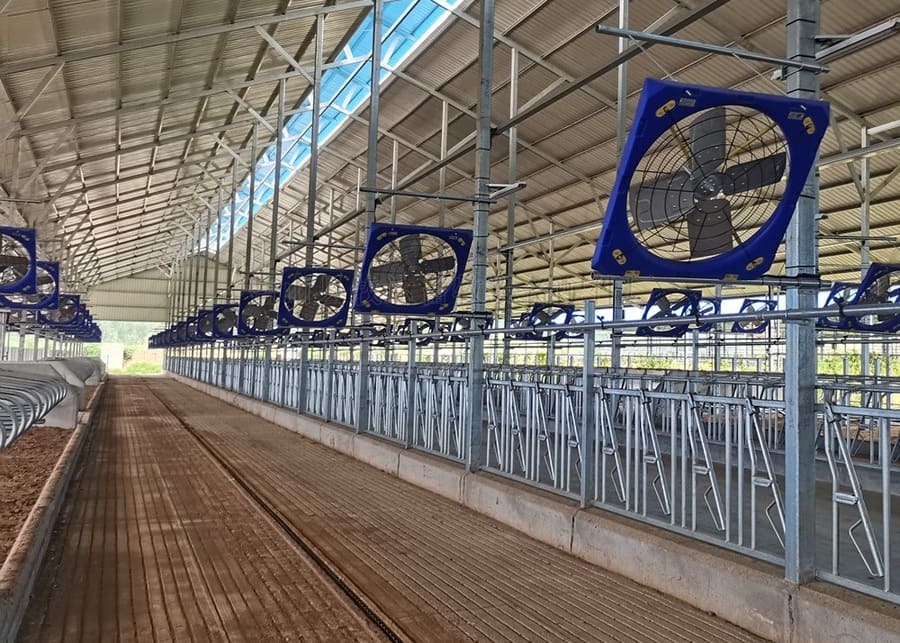

What Height, Tilt and Spacing Work for Circulation Fans?
For an initial layout of approximately 1.1 m axial circulation fans, we may start with a lower-frame clearance around 2.5–3.0 m above the floor, a 15–20° downward tilt, and roughly 8–10 fan diameters between units along the air path. At a 1.1 m fan diameter, this is approximately 9–11 m of spacing.
These are layout starting points for an unobstructed arrangement. Beef-pen gates, support beams, equipment routes and the measured throw of each fan may call for a different position. Larger 1.83 m / 72-inch fans are laid out using their actual air-throw pattern and the available mounting height, rather than scaling spacing from diameter alone. After installation, we check airspeed across feeding and resting pens to identify weak spots.
The placement drawing also includes structural support, safe clearance, electrical protection, service access and cleaning access. Practical agricultural fan guidance similarly emphasizes measured air movement and overlap between fan jets (DLG fan-placement guidance).
How Do You Estimate Airflow and Fan Quantity?
Start by choosing the ventilation strategy. For a tunnel-ventilated building, airflow can be estimated from the effective building cross-section and intended average air velocity:
Required airflow (m³/h) = Effective cross-sectional area (m²) × Design air velocity (m/s) × 3,600
Consider a conceptual enclosed barn with an effective airflow section 20 m wide × 3 m high. If the design calls for 1.2 m/s average longitudinal movement through that section:
- Effective area = 20 × 3 = 60 m²
- Airflow = 60 × 1.2 × 3,600 = 259,200 m³/h
The next step is to match that required airflow to the fan curve at the project's operating static pressure. Air inlets, protective guards, shutters and evaporative pads create resistance. Agricultural fan studies report typical operating pressures around 12.5–37.5 Pa for many installations, with further resistance possible in pad-equipped systems (agricultural fan performance study).
For a useful preliminary comparison, consider the nominal 26,800 m³/h rating in our compact-fan table and an example operating-flow scenario of 21,000 m³/h:
| Airflow Used for Each Exhaust Fan | Calculation | Initial Fan Count |
|---|---|---|
| 26,800 m³/h, nominal figure | 259,200 ÷ 26,800 = 9.67 | 10 |
| 24,000 m³/h, example operating case | 259,200 ÷ 24,000 = 10.80 | 11 |
| 21,000 m³/h, example operating case | 259,200 ÷ 21,000 = 12.34 | 13 |
The 21,000 m³/h scenario is about 22% below the nominal 26,800 m³/h figure. This illustrates why the selected fan's pressure–airflow curve matters to both quantity and cost. Once the fan curve and inlet/pad pressure loss are available, we substitute the actual operating-point flow and finalize the number of exhaust fans. Inlet velocity, airflow distribution, reserve capacity and pen obstructions are then checked with the layout.
Circulation fans follow a separate calculation: their job is to move air across cattle, while only outdoor-air supply and exhaust count toward the building's fresh-air exchange.
For semi-open barns, the task is different. The number of circulation fans is determined from throw, coverage and measured cattle-level velocity, while outside-air renewal is assessed from the open sides and local wind conditions. Recirculated air does not count as fresh-air exchange.
A Simple Fan Electricity Calculation
Power is often the next question after airflow. Six 410 W fans operating for 12 hours per day would use:
6 × 0.410 kW × 12 h = 29.52 kWh/day
Over 30 days, that is 885.6 kWh. At an example electricity price of US$0.12/kWh, the energy cost would be about US$106 for the month. Electricity pricing, duty hours, controller settings and actual measured input power will change the result.
This type of calculation is more useful when comparing two proposals with a stated operating schedule. It should be paired with delivered airflow and maintenance requirements rather than evaluated on motor wattage alone.
How Should Fans and Cooling Systems Operate During Summer?
A well-configured controller changes equipment output as conditions change. NexAgri can supply temperature and humidity sensors, local PLC controls, staged fan switching, alarms and project-specific variable-speed arrangements.
One practical way to build the initial control schedule is to use feedlot THI categories as inputs, then adjust the switching points to the site, cattle weight and measured air movement:
| Heat-Load Stage | Example THI Reference | Fan and Cooling Response |
|---|---|---|
| Routine ventilation | Below approximately 75 | Maintain required fresh-air exchange; keep normal monitoring active |
| Alert | 75–78 | Start additional circulation fan groups or ramp compatible fans; check shade and water access |
| High heat load | 79–84 | Increase circulation and exhaust to the designed summer stage; use the selected wet-pad or intermittent sprinkler program when conditions permit |
| Severe heat event | 85 or higher | Maintain the maximum designed cooling response; intensify animal checks, drinking-water provision and heat-event precautions |
| Cooler conditions / nighttime | Falling THI and improving animal response | Step down heat-abatement output while preserving fresh-air exchange |
| Fan or sensor fault | Any stage | Alarm and activate the site's backup or safe-response program |
For example, an alert near THI 75 can start the first supplemental fan group, and a second stage near THI 79–80 can increase airflow. The controller also needs appropriate time delays and hysteresis to avoid repeated switching as readings fluctuate.
NexAgri can configure these stages through local PLC controls, temperature and humidity sensors, alarms and compatible variable-speed equipment. Wet pads and sprinklers are enabled according to humidity, water availability, drainage and barn type—not by THI alone.
Where variable-frequency drives are used, the selected motors and fans must be suitable for inverter control. Smaller fans may instead be operated in separately switched groups. The system can also record temperature, humidity, calculated THI and equipment status when specified in the PLC package.
Wet Pads and Sprinklers for Hot, Dry Regions
Hot, dry climates can be suitable for evaporative cooling. In an enclosed barn, a wet-pad inlet and exhaust system can lower the temperature of incoming air. For example, with 38°C dry-bulb air, 24°C wet-bulb temperature and 70% pad effectiveness, the estimated pad outlet temperature is:
38 − 0.70 × (38 − 24) = 28.2°C
This describes the air leaving the pad. Air temperature throughout the barn will depend on heat gain, air distribution and equipment operation.
For semi-open beef barns, localized sprinklers and circulation fans can support animal cooling. Nozzle location, water flow, drainage and livestock response matter. Applying water continuously to bedding or poorly drained pens can create mud and added humidity. USDA-ARS offers practical heat-stress precautions for cattle, including management of water application and animal handling during hot weather.
NexAgri can configure wet pads, exhaust fans, circulation pumps, filters, sprinklers, pipes and local temperature/humidity interlocks. In humid conditions, ventilation and moisture removal generally take priority over adding more water.
What Changes in Winter Ventilation?
Winter ventilation is an air-quality and moisture-control task. Fans may run at lower output, but the barn still needs fresh air to remove humidity, carbon dioxide, ammonia, dust and gases associated with manure storage.
A practical winter system uses smaller ventilation stages, adjustable inlets or curtains, and sensors placed in occupied areas. Incoming cold air should be introduced and mixed in a way that limits direct drafts onto resting cattle. Damp bedding, condensation on walls and ceilings, and persistent ammonia odor are signs that the air-management plan needs attention.
WOAH's beef cattle guidance sets the enclosed-housing ammonia level at no more than 25 ppm. For day-to-day management, a 10–15 ppm ammonia alert can encourage earlier checks of airflow, bedding and manure removal; New Zealand's beef cattle welfare guidance likewise recommends avoiding persistent levels in that range (MPI cattle welfare code).
CO₂ can help identify insufficient air renewal in an enclosed barn. A reading approaching 3,000 ppm is a useful engineering investigation point in cattle-housing assessments, alongside humidity, visible condensation and ammonia readings. Local limits and the agreed control plan determine the actual alarm settings.
A quick winter airflow cross-check can use air changes per hour (ACH):
Ventilation airflow (m³/h) = Building internal volume (m³) × ACH
For example, a 20 m × 80 m × 4 m enclosed building has an approximate volume of 6,400 m³. At an illustrative 4 ACH, the exchange airflow would be 25,600 m³/h. Cold-weather animal-housing guidance often uses four air changes as an early sizing reference, but the final beef-barn minimum is set by the building's moisture and gas loads, cattle numbers, local weather and inlet performance. During commissioning, we confirm that these needs are met without cold drafts across resting pens.
Where requested, NexAgri can integrate ammonia and CO₂ sensors, air inlets, fan alarms and manure-scraper status into local control logic. Routine inspection remains important because dirty sensors, blocked openings and manure buildup can distort results even when the controller is functioning correctly.
Five Mistakes That Make Beef Barn Fan Projects More Expensive
The first mistake is specifying fans by floor area alone. Two barns with the same footprint can have different ceiling heights, cattle densities, inlet arrangements and summer heat loads.
The second is comparing only blade diameter and motor wattage. The relevant comparison also includes delivered air performance, pressure resistance, corrosion protection and maintenance access.
Third, fans mounted too high or behind obstructions may move substantial air above the animals while leaving the occupied zone stagnant. For circulation units, start with an appropriate safe clearance, downward tilt and overlapping throw; then check the airspeed at cattle level. An initial 9–11 m spacing for some 1.1 m fans is only useful when the barn layout and fan performance support it.
Fourth, poor inlet and exhaust coordination can create short circuits. Air may enter near an exhaust fan and leave immediately, bypassing distant pens. Adjustable curtains or louvers can help direct airflow.
Finally, a system with no seasonal control strategy is costly to run and difficult to manage. Summer heat abatement and winter minimum ventilation require different stages, with fault alarms and site checks in both seasons.
For new barns and retrofits, NexAgri can review building dimensions, livestock capacity, local climate and existing openings, then propose an equipment schedule, fan positions, inlet/exhaust arrangement and control package. We also support installation and commissioning according to the agreed project scope.
What Should Be Checked Before Accepting a Barn Ventilation Installation?
A useful site acceptance check is based on actual performance in occupied areas:
- Confirm the installation. Check fan model, orientation, wiring, guards, shutters, structural fixing and service access.
- Check air routes. Confirm that intended inlets are available and that air is not bypassing distant pens.
- Measure cattle-level airflow. Use an anemometer at representative feed, drinker and rest locations, including suspected dead zones. During hot-weather cooling, local velocities around 2–3 m/s may be a design target for some fan arrangements; the value must be matched to the barn and checked after installation.
- Verify control stages. Test temperature/humidity inputs, fan start sequences, compatible speed controls, alarms and the minimum-ventilation mode.
- Check cooling and drainage. Run the proposed wet pad or sprinkler sequence and observe water distribution, runoff and humidity response.
- Record electrical operation. Compare operating current, input power and running hours against the selected duty.
The resulting measurements give the farm a baseline for maintenance and help explain why one pen may feel warmer than another. They are also more useful for future expansion than a fan-count table by itself.
Frequently Asked Questions

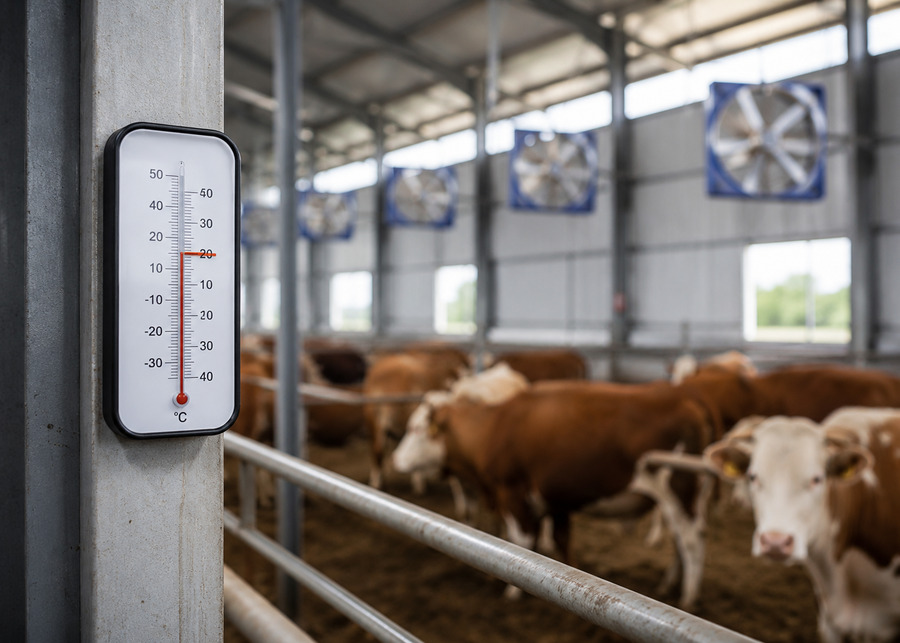

At what temperature should beef barn fans turn on?
An initial feedlot control program can use THI 75–78 for a supplemental fan stage, THI 79–84 for stronger ventilation and suitable evaporative cooling, and THI 85+ for intensive heat-event measures. Temperature, humidity, sunlight, wind and cattle behavior help us refine the switching points during commissioning.
Is a 72-inch fan always better than a smaller fan?
The 72-inch model in NexAgri's available range has a nominal 84,000 m³/h airflow and a 2.2 kW motor. A smaller 4-blade model is listed at 26,800 m³/h and 410 W. The right choice depends on whether the job is air circulation or exhaust duty, required throw, mounting space, power supply and installed operating conditions.
Should an enclosed beef barn use wet pads?
Wet-pad cooling is particularly relevant to enclosed barns in hot, dry regions when the air inlets, exhaust fans and water system are designed together. Its benefit decreases as incoming humidity rises, so the seasonal control program matters.
Do beef barns still need ventilation in cold weather?
Yes. Winter operation maintains fresh-air exchange and removes moisture and manure gases. Adjustable inlets and a minimum-ventilation stage help avoid drafts while protecting air quality.
What information is needed to size a new barn ventilation system?
Share the barn's length, width, eave and ridge heights, cattle numbers and average weights, pen and feed-lane layout, sidewall openings, local summer weather, electricity supply and preferred cooling approach. Photographs or a floor plan help us review fan positions and access for installation.
Plan Your Beef Barn Ventilation Around the Animals and the Building
The best ventilation proposal is the one that makes the intended airflow reach cattle throughout the barn while providing adequate fresh-air exchange and a practical operating cost. Semi-open steel barns and enclosed mechanically ventilated buildings often need different solutions—even at the same stocking capacity.
