A portable milking machine may be the practical choice for a small herd. A fixed herringbone or parallel parlor makes more sense when daily milking takes too much time, while a rotary system is worth evaluating when a large herd needs continuous cow flow. The right choice depends on how many lactating cows must be milked in each session, the time available, the people doing the work, and the facilities around the milking equipment.
For example, 100 lactating cows milked twice daily still require 100 cows to be milked in each session. If each session must finish in two hours, the milking system needs to handle an average of at least 50 cows per hour, plus any allowance for the farm's actual routine and interruptions.
NexAgri supplies portable cow milking machines, herringbone and parallel parlors, rotary systems, milking components, and associated milk cooling and cleaning equipment. This guide explains how to compare them on operating capacity and total project requirements rather than herd size alone.
1. What Determines the Right Milking System?
Start with the cows actually in milk. A farm with 300 total cattle may have a substantially smaller lactating group, so using its total herd count to size a parlor can give the wrong result.
| Planning input | Why it changes the equipment choice |
|---|---|
| Lactating cows per session | Sets the number of cows to be handled at each milking |
| Milkings per day | Determines the total daily operating and cleaning schedule |
| Target session duration | Sets the minimum hourly cow throughput |
| Staff per shift | Limits preparation, attachment and cow-handling speed |
| Cow entry and exit routes | A slow holding area or return lane can restrict an otherwise capable parlor |
| Milk yield and collection schedule | Determine milk transfer, cooling and storage demand |
| Expansion target | Influences civil layout, pipe capacity and electrical provisions |
Required average throughput (cows/hour) = lactating cows milked per session ÷ available milking hours per session.
Decide whether the stated hours refer only to cow milking or include bringing in the herd, equipment preparation, washing and shift handover. Use the same definition throughout the quotation and acceptance test. The FAO guide to milking installation performance also evaluates systems by cows per hour and cows per labor-hour.

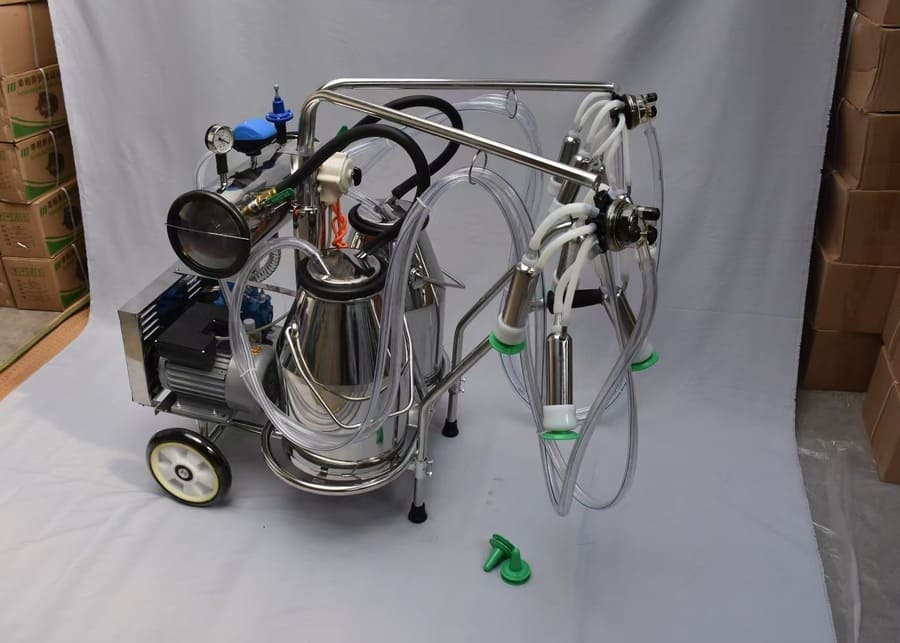

2. When Does a Portable Milking Machine Make Sense?
Portable machines suit small herds, satellite barns, individual cow care and farms without a fixed milking pit. They can also provide useful backup capacity where a main parlor is already installed.
NexAgri offers single-, double- and multi-bucket configurations, with suitable milking clusters for cows, goats or sheep. Electrical supply, pulsators, liners and other components can be selected for the application and destination market.
Bucket count, milking units and pump type
A milking unit is the working teat-cup cluster and its milk and pulsation connections. Bucket count shows how milk is collected; the number of active clusters determines how many cows can be milked at once. Common portable configurations offer 25 L or 30 L AISI 304 stainless-steel milk buckets, with the selected volume stated in the quotation. Check whether a two-bucket machine actually includes two independent milking units.
Portable units can use different vacuum-pump designs:
| Vacuum-pump design | Practical characteristics | What to check before purchase |
|---|---|---|
| Rotary-vane vacuum pump | Relatively continuous airflow; available in sizes for portable, multi-unit and pipeline systems | Airflow at working vacuum, oil-lubricated versus oil-free construction, noise, vane service and vacuum reserve |
| Reciprocating piston vacuum pump | Positive-displacement design with a simple reciprocating mechanism; useful in compact portable equipment | Vacuum fluctuation and receiver capacity, duty cycle, lubrication requirements and replacement parts |
Both systems use a separate pulsator to alternate the milking and massage phases at the teat cups. For example, a pneumatic or electronic pulsator may be specified at about 50–65 cycles/min with a 60:40 ratio, subject to the selected liner and system design. Some piston units are oil-free, while others have their own servicing requirements. Compare measured vacuum stability and the full machine configuration rather than choosing by pump label alone.
For reference, portable equipment specifications commonly list 25 L and 30 L stainless buckets, while DairyNZ's milking-plant guidance explains how pulsation and vacuum settings are evaluated.
How many cows per hour can a portable unit handle?
A useful initial planning range is about 10–12 cows/hour for one active cluster and 20–24 cows/hour for two active clusters with an efficient operating routine. These are workload estimates, not guaranteed outputs for every animal or machine.
| Example configuration | Planning throughput | Important condition |
|---|---|---|
| One active milking unit | 10–12 cows/hour | One cow at a time; preparation, transfer and bucket handling included |
| Two active milking units | 20–24 cows/hour | Both clusters operate; staff and cow access support overlapping work |
| Two buckets but one active cluster | Depends on one cluster | Additional bucket capacity alone does not double throughput |
For illustration, 40 lactating cows at 20 cows/hour require about two hours of active milking per session, before allowing for work outside that measured interval. If the herd is milked twice daily, those same 40 cows are handled in both sessions.
Small farms with limited labor may choose a portable unit for flexibility. Farms approaching 30–50 lactating cows should compare the actual daily time spent on portable milking against a small fixed installation, especially if they plan to expand.
Explore our portable vacuum-pump milking machines and portable milking system options.
3. When Should a Farm Upgrade to a Fixed Milking Parlor?
A fixed parlor becomes attractive when the portable setup requires prolonged milking, repeated equipment movement or more staff hours than the farm can sustain. It also offers a more organized cow route and scope for electronic metering, automatic cluster removal (ACR) and RFID identification.
There is no single herd-number cutoff. Compare the cost and operating time of the existing method with a proposed parlor at the same herd size and milking frequency. Include the construction work needed for the milking pit, holding area, cow return lanes, milk room and cleaning systems.
A farm with 50 lactating cows might remain with a portable machine if flexibility and capital cost dominate. The same farm could justify a small 2×4 herringbone parlor if it wants predictable sessions, cleaner equipment routes and planned growth. At 100 lactating cows, 2×6 and 2×8 parlors are reasonable alternatives to investigate, but the final choice still depends on target throughput and labor.
4. Herringbone vs. Parallel vs. Rotary: Which Parlor Fits?
The three conventional parlor types differ mainly in cow positioning, operator access, entry and exit arrangements, and the way capacity can be increased.
| System | Typical NexAgri configurations | Operating characteristics | Main layout checks |
|---|---|---|---|
| Herringbone | 2×4 through 2×24; larger by project | Common stall angles include 30° and 50°; angled cow positioning allows side or partly rearward udder access depending on design | Pit length, stall angle, entry/exit and operator walking distance |
| Parallel | 2×8, 2×12, 2×16, 2×24; larger project options | Cows stand at 90° to the operator pit; clusters attach from behind, between the hind legs; rapid-exit options are available | Rapid-exit clearance, pneumatic equipment, return lanes and group changeover |
| Rotary | 30, 40, 60 and 80 stalls; larger projects available | Continuous platform movement with coordinated preparation, attachment and exit | Platform diameter, rotation speed, entry timing, safety interlocks and service access |
The notation 2×12 means 12 cow positions on each side, or 24 stalls altogether. In some parlor designs a cluster serves more than one stall in turn, so the specification must also state the actual number of milking units.
The 30° herringbone layout typically gives more side access but requires greater pit frontage per cow. A 50° herringbone arrangement can shorten the row and changes the operator's approach to the udder. In a 90° parallel parlor, the typical walking distance between adjacent udder positions is approximately 69–76 cm (27–30 in), compared with around 90–115 cm (36–45 in) in many herringbone designs. Actual civil dimensions depend on cow size, manufacturer geometry, gates and the installation layout. These comparative dimensions are described in Ontario's milking-centre design guidance.
A herringbone layout may be useful where side access and an existing building favor angled stalls. Parallel parlors are often attractive when rapid group exit and compact operator movement matter. Rotary systems deserve attention where herd size and repeated daily sessions justify continuous-flow operation and the larger initial investment.
For individual configurations, see our herringbone parlor, parallel parlor and rotary parlor equipment pages.
5. How Do You Calculate Milking Parlor Capacity?
First calculate the hourly capacity your farm needs. Then estimate whether the proposed equipment and crew can deliver it.
Step 1: Calculate cows per session
| Lactating cows | Target active milking time per session | Minimum average throughput |
|---|---|---|
| 50 | 2 hours | 25 cows/hour |
| 100 | 2 hours | 50 cows/hour |
| 300 | 3 hours | 100 cows/hour |
| 500 | 3 hours | 167 cows/hour (rounded) |
These are illustrative operating targets, not herd-size recommendations. With twice-daily milking, each row's full lactating group is milked twice; with three milkings per day, the same group normally passes through the system three times. Extra sessions increase total daily workload even when the number of cows per session is unchanged.
Step 2: Estimate the turn time of a batch parlor
For a conventional batch arrangement with one functioning milking unit per stall:
Illustrative throughput = total milking stalls × 60 ÷ minutes per completed batch.
If a proposed 2×12 parlor has 24 stalls and the full preparation, milking, release and refill cycle averages 12 minutes per batch, the simple cycle estimate is 24 × 60 ÷ 12 = 120 cows/hour.
The 12-minute cycle is an assumption to be tested against the milking procedure and cow flow. A slower 15-minute cycle would give 96 cows/hour. Partial batches, unavailable stalls and operator delays reduce realized throughput further.
| Parlor example | Total stalls | At 12 min/batch | At 15 min/batch |
|---|---|---|---|
| 2×4 | 8 | 40 cows/h | 32 cows/h |
| 2×6 | 12 | 60 cows/h | 48 cows/h |
| 2×12 | 24 | 120 cows/h | 96 cows/h |
| 2×16 | 32 | 160 cows/h | 128 cows/h |
| 2×20 | 40 | 200 cows/h | 160 cows/h |
The calculation assumes a fully equipped parlor using all stalls each batch. For rotary systems, capacity instead depends on stall count, platform rotation, entry utilization, cow milking time and the proportion of cows requiring another rotation. Research on commercial herringbone and rotary parlors shows substantial differences in observed performance between farms.
Step 3: Check people and cow movement
A nominally fast parlor may be limited by slow udder preparation, crowded entry gates, poor floor traction, long cow return routes or insufficient operators. For a 500-cow target of three hours, a 2×16 parlor delivering 160 cows/hour would need about 3.13 hours, before other delays. A 2×20 layout could provide more margin if the site and staff support it.
6. Which Milking Machine Specifications Should Buyers Check?
Request the proposed settings and performance test points, not only motor power or a general claim of high efficiency.
| Component | What to request | Practical engineering reference |
|---|---|---|
| Vacuum system | Design working vacuum, test location, pump airflow and reserve | Low-line installations often use 40–42 kPa at the machine; higher milk lines may require 42–48 kPa. During peak milk flow, average claw vacuum around 32–42 kPa is a useful evaluation range; the actual teat-end measurement is not interchangeable with the system-gauge reading |
| Pulsation | Rate, ratio and actual measured waveform | Common cow settings are about 50–65 cycles/min and 60:40 to 70:30, assessed with the selected liners and a measured pulsation trace |
| Teat-cup liners | Animal suitability, material, fit and service life | Rubber liners are often replaced after 2,000–2,500 cow-milkings. Silicone products vary: references range from 3,000–5,000 to about 8,000 cow-milkings. Use the particular liner manufacturer's interval and condition checks |
| Milk-contact parts | Stainless grade, hoses, seals, cleanability | Define suitable food-contact materials, such as 304 or 316 stainless where required |
| ACR and milk meters | Flow-rate removal trigger, delay, calibration and fault behavior | 200–400 g/min is an established example range for ACR removal-flow settings in conventional parlors; specify the adjustable range, delay and on-farm verification for the selected milking system |
| RFID and software | Tag compatibility, correct stall association and export/interface features | Test with actual animals and installed readers |
| Cleaning | Wash circuits, chemical compatibility, temperatures, flows and drains | Verify complete cleaning coverage for the selected equipment |
DairyNZ's pulsation and vacuum guidance describes recommended system vacuum by milk-line height; its milking-plant reference tables distinguish rubber and silicone liner replacement intervals. AHDB's liner guidance gives a longer lifespan for certain silicone products. A published ACR study directly compared removal settings of 0.2 and 0.4 kg/min. These are useful checks when reviewing a quotation; the final settings should follow the specific machine, liners and milking routine.
ISO 5707 addresses milking installation construction and performance, while ISO 6690 covers mechanical tests.
A project quotation should identify measurement locations and the method for testing vacuum stability, effective reserve, pulsator performance and leaks. Pump motor size alone cannot demonstrate stable vacuum at the last cluster.
For existing parlors, these tests also establish whether the current vacuum system, milk lines and controls can be retained when adding ACR, electronic milk meters or RFID identification.
7. What Else Must Work With the Milking Machine?
The milking equipment ends at milk collection only if the remainder of the process has been planned. Raw milk must be transferred, filtered, cooled and handled hygienically, while the machine itself needs a dependable cleaning routine.
| Supporting system | Design question for the project |
|---|---|
| Milk transfer and filtration | Can the pump, receiver and filter handle peak milk flow? |
| Pre-cooling and bulk cooling | Can the cooling equipment handle the largest expected milking and collection interval? |
| CIP or wash system | Can washing solution reach the clusters, meters and milk lines as designed? |
| Water and electricity | Are supply, hot-water availability, drainage and electrical capacity adequate? |
| Civil works and cow traffic | Are the milking pit, holding area, floor traction, entry and exit routes workable? |
For example, if 100 cows produce an assumed average of 14 liters per cow in a particular milking, that session generates about 1,400 liters of milk. The cooling and storage arrangement must be assessed against the actual peak milking, daily volume, cooling duty and collection schedule. The NexAgri milk cooling tank range includes vertical and horizontal configurations for different farm scales.
8. How Should You Compare Milking Equipment Quotations?
Request the same operating basis from each bidder: lactating cows, milking frequency, target session time, cow-flow layout, utilities and expected expansion. Then compare the scope behind the price.
| Quotation item | What needs to be stated |
|---|---|
| Capacity and milking units | Stall count, active clusters, operating assumptions and intended cows/hour |
| Vacuum and pulsation | Pump model, reserve, regulator, pulsators and field-test requirements |
| Milk system | Clusters, milk lines, receiver, filter, pump and any meter or ACR package |
| Cleaning and cooling | Included CIP equipment, hot-water needs, milk cooling and storage |
| Installation interfaces | Civil drawings, utility connections, cables, drains and local labor |
| Automation | RFID, software, data ownership, interfaces and operator controls |
| Acceptance | Mechanical tests, trial running, agreed throughput test and correction process |
| Running costs | Power, washing chemicals, liners, consumables, service and spare parts |
A lower equipment quotation can become a higher project cost if it excludes essential pipelines, installation work, cooling or spare parts. For retrofit projects, include the shutdown period and a clear list of components to retain or replace.
9. What Can NexAgri Supply for New and Existing Dairy Farms?
NexAgri supplies portable milking systems, including rotary-vane and piston-type vacuum pump configurations, as well as herringbone, parallel and rotary parlors. We can configure milking units, pulsation, vacuum control, milk meters, ACR, RFID identification, milk cooling and cleaning equipment for a coordinated project scope.
For a new 2×12 parallel parlor, our engineering support can cover a 24-stall equipment layout, cow entry and exit planning, vacuum and milk transfer systems, the control package, installation guidance, commissioning, training and spare-parts support. Associated civil works and external utilities are defined in the project scope.
For an existing parlor, we can assess vacuum and pipeline condition, replace worn system components and review upgrades such as electronic milk recording, automatic cluster removal and RFID identification. Interface compatibility is checked against the installed equipment before the upgrade scope is finalized.
We also support overseas site work and commissioning according to project requirements. Share your lactating cow count, milkings per day, target hours per session, staff numbers, building dimensions, current equipment and expansion plan so we can prepare an appropriate configuration and quotation.
Discuss Your Milking System with NexAgri
Frequently Asked Questions
Is a portable milking machine suitable for 30–50 cows?
It can be, particularly with two active milking units and sufficient staff. Check the time for a complete milking of the full lactating group, including animal preparation and bucket handling. At this size, a small fixed parlor is also worth comparing.
Does a double-bucket milking machine milk twice as fast as a single-bucket unit?
Only when the configuration includes two active milking units and the operating routine supports simultaneous use. Two collection buckets with one teat-cup cluster do not double cow throughput.
What should I compare between piston and rotary-vane portable milkers?
Check the working vacuum under load, pulsator settings, number of active clusters, pump airflow, lubrication needs, noise and availability of spare parts. A compact piston unit can suit a small herd, while rotary-vane units offer a range of airflow capacities for larger configurations. The chosen machine should be checked as a complete vacuum-and-pulsation system.
How many cows can a 2×12 milking parlor handle per hour?
A 2×12 has 24 cow positions. At a hypothetical 12-minute completed batch cycle it could handle about 120 cows/hour; at 15 minutes, about 96 cows/hour. Actual results depend on cluster configuration, work routine, cow movement and staff.
Should a 50–60-cow farm buy a robotic milking system?
An automatic milking system (AMS) can be evaluated where labor availability, cow flow and service support justify it. Compare its full investment, software and maintenance costs against a small fixed parlor. The lowest-labor option is not necessarily the lowest-cost option for every herd.
Can an existing milking parlor be upgraded without replacing everything?
Often, yes. A condition and compatibility assessment can identify reusable stalls, vacuum components and pipework, and determine whether electronic meters, ACR or RFID can be added without a complete rebuild.
Conclusion
Choose a milking machine by the number of lactating cows handled at every session, the hours and labor available, and the infrastructure that supports clean, dependable milk collection. A portable system is practical when flexibility and modest workload matter. Herringbone and parallel parlors offer scalable fixed installations; rotary systems suit projects where continuous flow and daily utilization justify their larger footprint and investment.
The most useful quotation is one that states the complete operating assumptions, equipment scope and acceptance method, not merely a stall count or motor rating.
