Butter production begins with cream, but the finished product depends on more than the butter churn. Cream fat content, heat treatment, fat crystallization, churning temperature and moisture control all affect yield, texture and shelf life. A plant also needs somewhere to send the skim milk and buttermilk produced along the way.
Industrial butter processing typically follows six stages: cream separation, pasteurization, physical ripening, churning, working and packaging. The key change happens during churning, when cream's oil-in-water emulsion becomes butter's water-in-oil structure. Small facilities can use batch churns, while larger plants often use continuous butter-making machines.
What Are the Main Steps in Industrial Butter Processing?
A conventional sweet-cream butter line follows this sequence:
Raw milk reception → cream separation → cream pasteurization → cooling and physical ripening → churning and buttermilk drainage → butter working → forming, wrapping and cold storage.
For cultured butter, a controlled starter-culture stage is added to develop acidity and flavor. The equipment layout and temperature program change accordingly.
| Processing stage | Main purpose | Typical equipment |
|---|---|---|
| Cream separation | Recover and standardize milk fat | Centrifugal cream separator, balance tank, cream/skim lines |
| Cream pasteurization | Apply the validated cream heat treatment | Plate pasteurizer, holding section, temperature and flow controls |
| Physical ripening | Develop the required fat-crystal structure | Insulated, temperature-controlled cream ripening tanks |
| Churning | Form butter grains and separate buttermilk | Batch butter churn or continuous butter maker |
| Working and salting | Disperse moisture and develop texture | Butter worker, optional water/salt dosing |
| Forming and packaging | Prepare the finished product for distribution | Block former, cutter, wrapper and cold-storage equipment |
The Tetra Pak Dairy Processing Handbook's butter chapter describes the production sequence and the differences between batch and continuous systems.

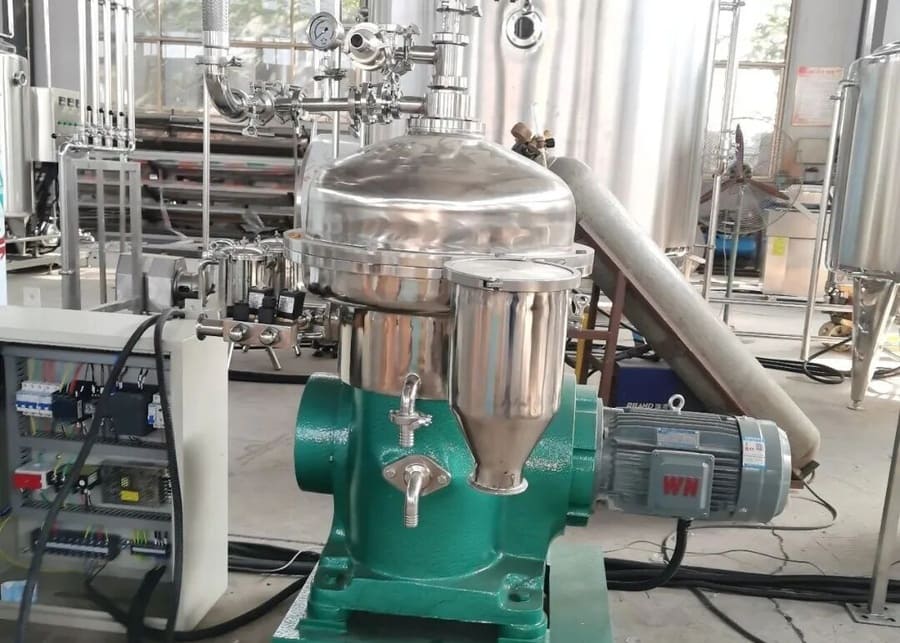

How Is Cream Separated From Raw Milk?
A centrifugal separator divides milk into a fat-rich cream stream and skim milk. In a conventional warm-separation process, whole milk is commonly preheated to about 55–65°C before entering the separator. This helps the separator recover fat efficiently while the cream fat concentration is adjusted for the butter process. A common butter-making cream specification is approximately 35–40% milk fat, as described by the Center for Dairy Research. The Tetra Pak guide to centrifugal separation explains the warm-separation process and fat standardization.
Residual fat in skim milk is an important measure of separator efficiency. For well-operated modern separators, published technical guidance gives approximately 0.04–0.07% residual milk fat in the skim stream. Measuring it alongside inlet milk fat and cream fat provides a useful basis for assessing the separator and calculating how much cream is available for churning. See the University of Guelph's butter manufacture guide.
Cream quality deserves attention before it reaches the churn. Fat content, acidity, flavor, microbial quality and the condition of the milk fat affect downstream consistency. The skim milk leaving the separator should also have a planned destination, such as a pasteurized milk, cultured product or powder line.
Cream flow and butter output are different capacity figures. For example, a separator handling 5,000 kg of whole milk per hour cannot be assumed to supply 5,000 kg/h of cream. Milk fat percentage and cream concentration determine the amount of cream available for butter production.

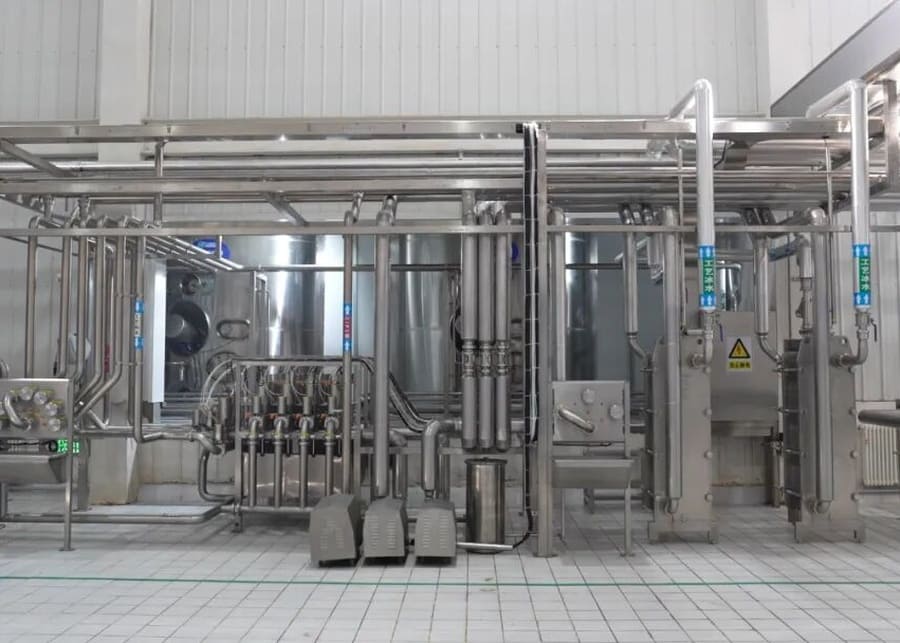

What Pasteurization Conditions Are Used for Butter Cream?
Cream is pasteurized before ripening and churning to control microorganisms and enzymes that affect product quality. One widely described industrial reference is 85°C for 15 seconds or a suitably higher heat treatment. The appropriate time-temperature combination must be established for the cream, processing system and applicable food-safety requirements.
A continuous cream pasteurizer needs a heating section, a correctly designed holding tube, flow control and reliable temperature monitoring. The holding time is assessed at the highest permitted product flow. For smaller batch plants, a jacketed vessel may be used with a documented heating and holding procedure.
The system also needs a suitable cooling route to the ripening tanks. Cream becomes more viscous as it cools, so exchanger passages, pump selection and pressure loss should be matched to the cream's fat content.
Why Is Cream Ripening Important Before Churning?
After pasteurization, the fat in the cream is largely liquid. Cooling allows part of that fat to crystallize. The balance between solid and liquid fat influences how butter grains form and whether the finished butter is firm, brittle, greasy or spreadable.
A conventional ripening period is often around 12–15 hours, with the temperature program selected for the hardness of the milk fat and the required texture. The Alnarp-type approach adjusts cooling and warming stages according to the milk fat's iodine value, an indicator of its degree of unsaturation.
| Milk-fat condition | Example temperature sequence | Intended effect |
|---|---|---|
| Harder fat (iodine value 28–29) | 8°C → 21°C → 16°C | Develop a crystal balance that gives a more workable, spreadable butter |
| Very soft fat (iodine value above 40) | 20°C → 8°C → 11°C | Encourage crystallization and improve firmness |
These are successive temperature stages from published cream-ripening programs. Holding periods and the final churning temperature are set for the cream composition and chosen process.
Physical ripening develops the fat-crystal structure. Culturing uses selected lactic acid bacteria to develop acidity and characteristic butter flavor. Cultured cream butter often has a finished-product pH around 4.4–5.0, while sweet-cream butter remains closer to the natural pH of cream. The culture temperature, acidity endpoint and physical-ripening program are specified together for a cultured-butter line.

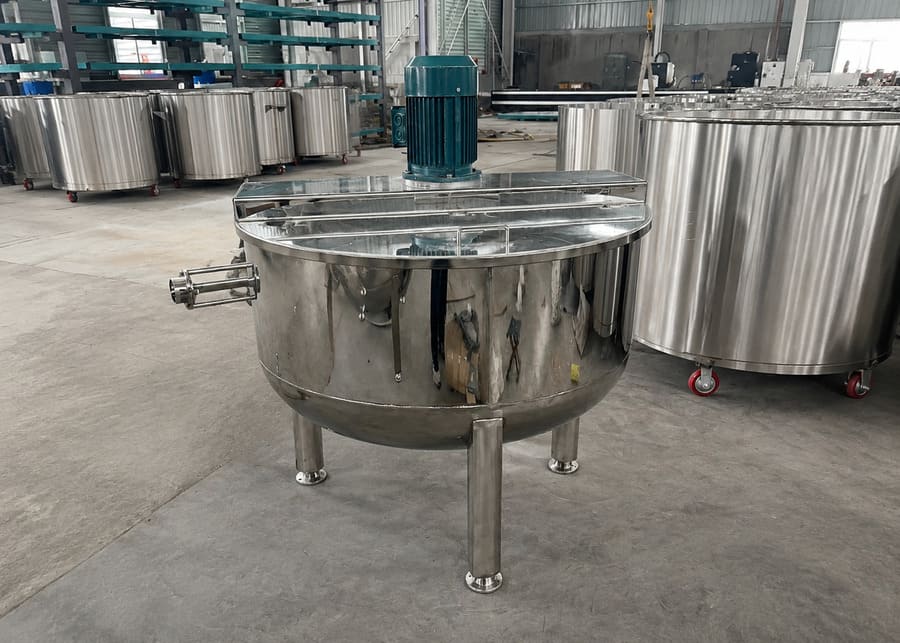

For a commercial line, the ripening tanks need enough usable capacity for the required hold, cleaning and batch changeover. Multiple tanks can allow one batch to ripen while another feeds the butter maker.

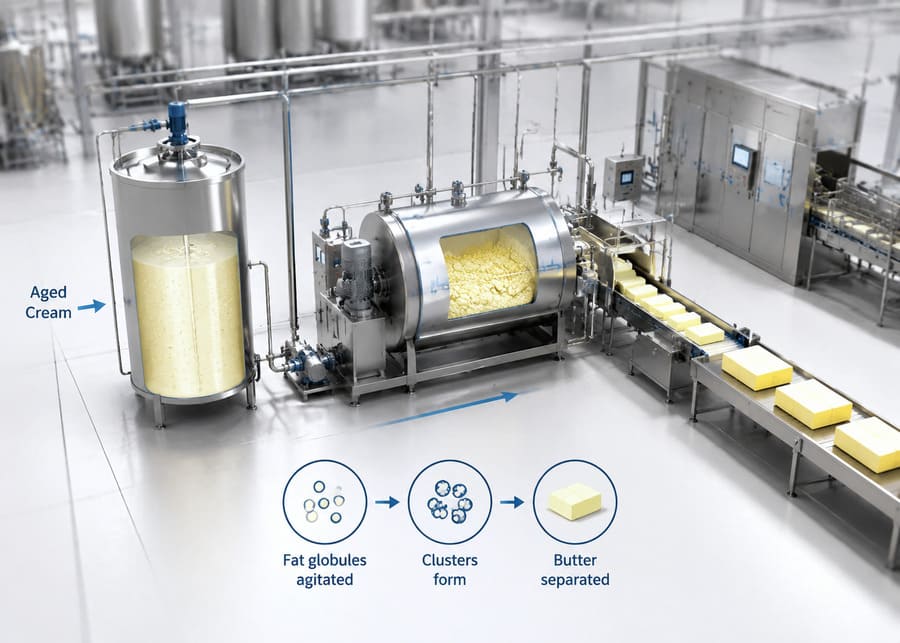

How Does Churning Turn Cream Into Butter?
During churning, controlled mechanical agitation destabilizes the fat-globule membranes in cream. Milk fat begins to cluster into butter grains. As the grains grow, liquid buttermilk separates and can be drained or continuously discharged.
This is a phase inversion: cream is an oil-in-water emulsion, while butter is mainly water droplets dispersed within a continuous fat phase.
Churning temperature has a strong effect on grain formation. A frequently cited range is around 9–13°C for conventional batch churning, with adjustments for season, milk-fat properties and machine design. Cream that is too warm can give soft, greasy butter and greater fat losses; excessively cold cream can be slow to churn or produce an undesired hard texture.
Traditional batch churns may include a washing stage after buttermilk drainage. Many modern butter-making systems omit routine washing and instead manage buttermilk removal, working and final moisture through the selected process. Washing can still be configured when the product specification calls for it.
Batch Churn or Continuous Butter Maker: Which Fits the Plant?
| Item | Batch butter churn | Continuous butter-making machine |
|---|---|---|
| Production pattern | Cream loaded, churned and discharged by batch | Cream fed continuously with integrated butter-grain formation and working |
| NexAgri configuration range | Small systems producing about 25 kg of butter per batch | Configurable 100–1,500 kg/h of finished butter |
| Suitable operation | Small dairy plants, trial products, shorter production runs | Plants with steady cream supply and higher throughput |
| Controls and options | Adjustable churning speed, buttermilk drainage, optional washing and working | PLC operation, continuous buttermilk removal, working, optional water and salt dosing |
| Capacity quotation | Finished butter per batch, plus cream charge and cycle duration | Finished butter per hour, plus required cream feed per hour |
For either arrangement, the equipment schedule should state cream feed capacity, finished butter output, operating hours and utility requirements. Cream fat content, churning temperature and buttermilk fat losses determine the output achievable under the agreed process.
How Are Butter Moisture, Salt and Texture Controlled?
After the grains are separated from buttermilk, working presses them into a cohesive butter mass and distributes the remaining water into fine droplets. It also helps develop the intended plasticity and appearance. Salted butter receives its salt during the appropriate working stage, followed by further mixing for uniform distribution.
The Codex Standard for Butter (CXS 279-1971) specifies these composition limits for conventional butter:
| Component | Codex butter specification |
|---|---|
| Milk fat | At least 80% |
| Water | No more than 16% |
| Milk solids-not-fat | No more than 2% |
A plant producing 82% milk-fat butter, for example, needs to control its final composition and measure fat, moisture and salt as applicable. The 16% moisture figure is a maximum in this standard, not the required moisture target for every recipe. Salted, unsalted, sweet-cream and cultured products may use different settings and packaging formats.

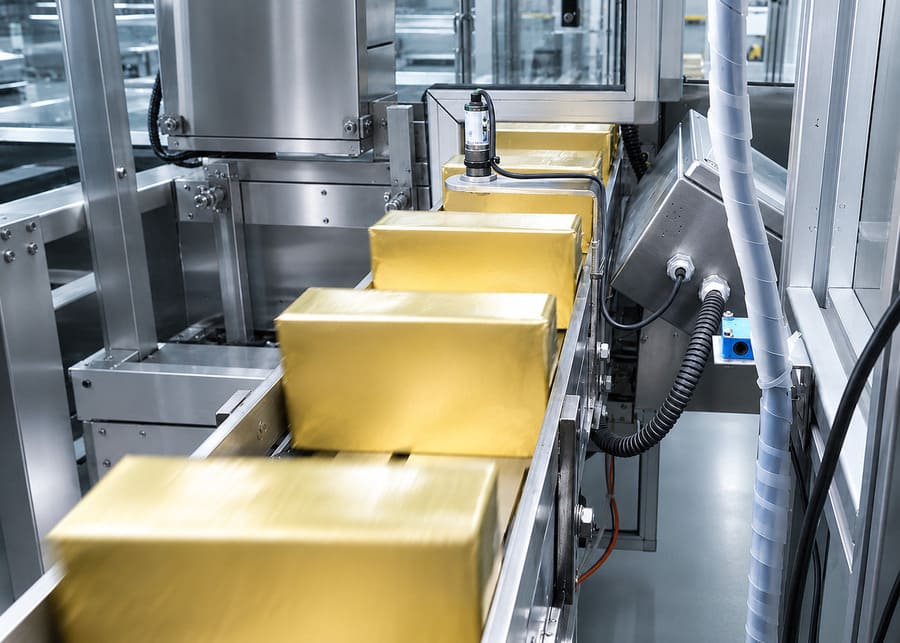

The finished butter may be formed into retail blocks, foil- or paper-wrapped portions, tubs or bulk packs. Packaging equipment is chosen from the required pack weight, product temperature, wrapping material, line speed and cold-storage arrangement. We can configure butter forming, cutting and wrapping equipment for the agreed product formats and integrate it with the plant's wider dairy packaging equipment.
How Much Butter Can Be Made From 10 Tonnes of Milk?
Butter yield is driven mainly by the milk fat available, the fat captured in cream, the fat recovered during churning and the final butter fat percentage. A simple fat balance is useful before sizing equipment.
Estimated butter output (kg) = Milk input (kg) × milk fat fraction × separation fat-recovery fraction × churning fat-recovery fraction ÷ finished butter fat fraction
Consider an illustrative plant with these assumptions:
| Input or assumption | Value |
|---|---|
| Whole milk received | 10,000 kg |
| Milk fat content | 4.0% |
| Fat captured in the cream stream | 99% of incoming fat |
| Cream fat concentration | 40% |
| Cream fat recovered in finished butter | 99% |
| Finished butter fat specification | 82% |
The calculation gives:
- Milk fat entering the plant: 10,000 × 4% = 400 kg.
- Fat transferred to cream: 400 × 99% = 396 kg.
- Cream available at 40% fat: 396 ÷ 0.40 = 990 kg.
- Fat retained in butter: 396 × 99% = 392.04 kg.
- Finished butter at 82% fat: 392.04 ÷ 0.82 ≈ 478 kg.
This example gives approximately 478 kg of butter from 10,000 kg of whole milk, with approximately 9,010 kg of skim milk and a separate buttermilk stream before any optional additions or process losses. The remaining 4 kg of fat in the skim milk corresponds to approximately 0.044% skim-milk fat in this example.
For a production-line assessment, we use measured raw-milk fat, cream fat, residual skim-milk fat and buttermilk fat to refine the material balance and match the separator, ripening tanks and butter maker to the required output. If cream is purchased rather than separated on site, the calculation begins with its measured mass and fat percentage.
How Do You Size Cream Ripening Tanks for a Continuous Butter Line?
Ripening capacity can become the bottleneck even when the butter-making machine has sufficient hourly throughput. Consider a line targeting 500 kg/h of finished butter at 82% fat. Using 40%-fat cream and an assumed 99% churning fat recovery:
Required cream feed ≈ 500 × 0.82 ÷ (0.40 × 0.99) ≈ 1,035 kg/h.
At a 15-hour physical-ripening residence time, a steady continuous operation would have approximately 15.5 tonnes of cream in the ripening stage. Usable tank volume, cleaning time, batch scheduling and reserve capacity are then assessed around the actual production plan.
The calculation helps explain why quoting a 500 kg/h butter maker without reviewing the upstream ripening tanks can lead to a production bottleneck. Batch operations may use a different tank schedule, so the holding inventory should be calculated from the planned working hours and filling sequence.
What Happens to Skim Milk and Buttermilk?
Both streams can be valuable co-products if the plant provides appropriate separation, cooling, storage and handling.
- Skim milk: Can be directed to suitable liquid dairy, cultured milk or powder-processing operations, depending on the facility.
- Buttermilk: Contains water, milk solids and material associated with milk-fat-globule membranes. It can be used in selected food formulations or processed further when the plant has an appropriate product route.
A butter project therefore needs more than a cream line and churn. Its equipment list should also cover co-product tanks, cooling capacity, pumps, hygienic piping, CIP, drainage and any downstream processing of those streams.
Before procurement, confirm the utilities for cream heating, refrigeration, compressed air, electricity, wash water and wastewater handling. Where the line handles several product types, allow for cleaning and changeover between salted, unsalted and cultured butter.
What Should Be Confirmed Before Ordering a Butter Production Line?
A useful technical quotation should identify:
- Product specification: Sweet-cream or cultured, salted or unsalted, target milk fat, moisture, texture and pack format.
- Input and output: Whole-milk intake, cream fat content, cream feed rate, finished butter kg/batch or kg/h, and the plan for co-products.
- Thermal processing: Required cream pasteurization temperature and hold, ripening program, cooling capacity and temperature records.
- Butter-making configuration: Batch or continuous equipment, working and moisture control, salt dosing and wash options where needed.
- Utilities and hygiene: Steam or hot water, chilled water, power, compressed air, CIP coverage, drainage and available floor space.
- Acceptance tests: Demonstrated throughput, finished-product composition, working consistency, equipment functions and cleaning performance under the agreed test conditions.
NexAgri supplies custom butter-processing equipment from small batch systems to continuous lines, along with equipment selection, plant layout, piping and CIP integration, installation and commissioning, operator training, technical assistance and spare-parts support. For a new project, we can review the production flow and interfaces before preparing the equipment list.
Frequently Asked Questions
What machines are needed to make butter commercially?
A typical line includes a cream separator when starting from whole milk, cream pasteurizer, ripening tanks, batch churn or continuous butter maker, butter working equipment, packaging and cold storage. Pumps, controls, CIP and skim-milk/buttermilk handling complete the system.
What is the difference between cream ripening and cultured butter?
Physical ripening controls the crystallization of milk fat through a temperature program. Cultured butter uses starter bacteria to develop acidity and flavor, alongside the physical treatment needed for the target texture.
Does butter have to be washed after churning?
No. Washing is optional and depends on the product and production equipment. Modern processes often control residual buttermilk through drainage and working without a separate wash stage.
Can the same butter line produce salted and unsalted butter?
A suitably designed system can support both, with salt addition, cleaning/changeover and batch records configured to prevent unintended mixing between products.
Is butter-making capacity measured in litres of milk per hour?
Butter makers are commonly specified by butter output (kg/h) or butter per batch. The associated cream feed and whole-milk requirement are calculated from fat content and recovery. These capacities should be listed separately in a quotation.
Conclusion
Reliable butter production begins with an accurate cream-fat balance and a practical ripening schedule. Pasteurization, fat crystallization, churning, working and packaging must be matched to the product specification and the output target. Skim milk and buttermilk handling also belong in the original plant plan.
At NexAgri Solutions, we supply dairy processing equipment and customized butter-making systems, including batch churns, continuous butter makers, ripening tanks, butter working and packaging equipment. These can be planned within a wider dairy production line with compatible utilities, piping and CIP. If you are planning a butter line, contact our team with your daily milk or cream supply, cream fat percentage, target butter output and pack sizes. We can review a suitable process layout and equipment configuration.
