Why Do Yogurt Cups Swell? Causes of Gas Formation and Production Fixes

A yogurt cup leaves the filling line with a flat, well-sealed lid. Several days later, the lid is bulging. In other cases, strawberry yogurt develops swollen packs while plain yogurt made from the same base remains normal.

For a dairy processor, package swelling is a fault that needs investigation before the affected product is released or distributed. Gas-producing yeasts are an important cause, particularly in fruit yogurt. The source may be the fruit preparation, transfer equipment, filling area or an ineffective cleaning step. Temperature abuse during distribution can accelerate the problem.

A raised lid can also result from a packaging or temperature-related issue, so the first job is to establish whether gas is actually being generated inside the pack. This guide focuses on that diagnosis and the equipment checks that follow: fruit dosing, hygienic piping, CIP, filling, sealing and cooling.

1. What Causes Yogurt Cups to Swell?

When microorganisms ferment available sugars inside a closed package, the gas they produce can build pressure beneath the lid. Yogurt commonly finishes fermentation around pH 4.2–4.5. That acidity helps control many unwanted bacteria, but acid-tolerant yeasts can still survive and grow. Some spoilage yeasts ferment sugars and release carbon dioxide (CO₂), raising the pressure inside a sealed cup. Other microorganisms may also produce gas, depending on the formulation and contamination source.

The main investigation categories are:

Possible cause	Typical evidence	First place to investigate
Gas-producing yeast contamination	Bulging lid, gas bubbles, sometimes a yeasty odor	Fruit ingredients, post-fermentation piping, filler and refrigerated storage records
Other microbial contamination	Abnormal gas, odor or quality results	Product samples and laboratory identification
Incomplete seal or damaged packaging	Leaking, lifted film edges, irregular seal marks; possible contamination during storage	Cup rims, sealing tools, film, cap or lid application and handling
Temperature or package-headspace effects	Lid distortion related to filling and storage temperatures	Fill temperature, headspace, package material and temperature history

Yeast and mold are both important yogurt spoilage organisms. Fermentative yeasts are a common source of gas-related swelling, while molds may appear as visible growth, off-flavors or other defects. Some molds can also contribute to packaging changes, so laboratory identification is important when a defect repeats.

In documented spoilage cases, visibly gassy yogurt has been associated with yeast levels around 10⁵–10⁶ CFU/g. That describes an advanced spoilage condition, well after the contamination should have been detected. Finished-product release criteria are set through the plant's microbiological specifications and applicable market requirements.

A swollen package should be isolated for the plant's quality team. Avoid opening retained evidence packs on the production floor. Qualified personnel can select unopened units for package assessment, microbiological testing and, where useful, headspace-gas analysis.

2. Why Does Strawberry Yogurt Swell While Plain Yogurt Stays Normal?

This pattern provides one of the strongest clues about where to start checking.

Fruit preparations introduce another ingredient stream after the yogurt base has been prepared. They also introduce additional equipment: a fruit tank, pump, valves, dosing line and often an in-line mixer. Each point needs hygienic handling and an effective cleaning method.

The sugar in a fruit preparation can also feed spoilage yeasts. In a study of yeast contamination in plain and fruit yogurt, both products contained the contaminating organism, but gas swelling was particularly evident in fruit yogurt because the added jam supplied fermentable sugars. This makes the fruit lot and its dosing equipment useful starting points for the investigation.

That finding suggests a practical comparison:

1. Compare plain and fruit products made from the same yogurt-base batch.
2. Identify the fruit preparation lot, delivery and storage conditions.
3. Review samples from the fruit tank, dosing pump, product-contact valves and mixing point.
4. Compare unopened finished cups from each filling head and production period.
5. Check whether the affected products shared one fruit line, one packaging line or one shift.

If only one fruit flavor repeatedly develops gas, investigate that flavor's ingredient and dosing path before changing fermentation settings across the entire plant.

For problems involving whey separation or viscosity loss without gas, see our separate guide to stirred yogurt separation after fruit addition.

3. When Does the Swelling Start? Use the Failure Pattern

The timing and distribution of swollen cups often narrow the investigation faster than a general inspection of the whole production line.

Observation	Investigation priority	Records or samples to compare
Swelling appears within the first few days	Ingredient contamination, filler hygiene, early microbial growth	Day-0 retained packs, ingredients, filling heads, cleaning verification
Products look normal at dispatch but swell at retail	Cold-chain excursions, low-level contamination that grew during storage	Transport logger, retailer temperature records, retained packs kept at the plant
Only fruit yogurt swells	Fruit preparation and dosing circuit	Fruit lots, fruit tank, pump, valves, mixer and product-contact swabs
One filling head has most complaints	Local filling and sealing conditions	Head number, nozzle condition, seal tooling, cup and film lots
Multiple flavors begin swelling after a changeover	Shared equipment and changeover cleaning	Valve positions, CIP log, dismantling records and start-up samples
Lid looks raised but laboratory tests show no gas-producing contamination	Fill temperature, headspace and packaging deformation	Pack dimensions, closure settings and temperature history

These patterns guide the sampling plan; they do not replace laboratory confirmation. The quality team should also check whether the bulging occurs in set yogurt fermented in its cup or stirred yogurt fermented in a tank and filled afterward. The relevant exposure points are different.

4. Check the Fruit Dosing System Before Changing the Recipe

On stirred-yogurt lines, a typical fruit addition arrangement consists of a hygienic fruit preparation tank, a positive-displacement dosing pump, sanitary valves, a short mixing section and a connection to the filler. The fruit stream should remain controlled from storage through dosing.

The following locations deserve close inspection:

• Fruit tank outlet: product retained beneath the discharge or around poorly drained fittings.
• Pump chamber and seals: residue around rotor or screw assemblies, gaskets and shaft seals.
• Valve seats and branch lines: trapped fruit particles or an inactive branch that is difficult to clean.
• Mixing section: fruit pieces collecting behind internals, at narrow passages or in low-flow areas.
• Filler connection: exposed product at changeovers, drips, and joints repeatedly opened for maintenance.

For fruit with pulp or large pieces, pump selection and passage size affect both product handling and cleanability. A line that doses accurately during production may still require an improved cleaning route or removable components.

NexAgri can configure fruit preparation tanks, sanitary dosing pumps, valves, in-line mixers and filling equipment as an integrated system. For an existing line, the connection design is based on the available space, piping, controls and the type of fruit preparation being processed.

5. Build a CIP Route That Reaches the Entire Fruit Circuit

Fruit preparation leaves sugar, pulp and other residues in places that a main yogurt-line rinse may not reach. An independently isolatable fruit circuit makes it easier to clean the dosing equipment and to change flavors without moving cleaning solution unnecessarily through the yogurt base line.

A practical fruit-line CIP design can include:

• Separate supply and return routes for the fruit tank, pump, main line and mixing section.
• Hygienic valve arrangements to isolate fruit production from cleaning operations.
• Drainable piping, accessible sampling points and inspection access around seals or other difficult components.
• Recorded cleaning-solution flow, return temperature, conductivity and cycle status.
• Removable pump, mixer or filling components where full in-place cleaning is impractical.

Practical CIP parameters for dairy piping

A fruit-dosing line needs enough circulation to clean the entire route from the tank outlet through the pump, valves and mixer. The Tetra Pak dairy-equipment cleaning guide provides these useful design references:

CIP parameter	Common dairy-processing reference	What to check on a fruit line
Liquid velocity in fully flooded pipes	1.5–3.0 m/s for turbulent circulation	Return flow, pipe diameter, valve positions and restrictions around the mixer
Alkaline detergent	Often 0.5%–2.0% NaOH, with cleaning around 70–80°C in suitable equipment	Sugar, fat and protein deposits; compatibility of seals and pump parts
Alkaline circulation time	Around 10 minutes in some cold-equipment examples; approximately 30 minutes in certain heated circuits	Residue removal and verified circulation through every branch
Acid detergent, when required	Often 0.5%–1.5% nitric acid around 60–75°C	Mineral scale, plant-approved chemistry and material compatibility
Final rinse and sanitation	Clean-water rinse followed by an approved thermal or chemical sanitation program	Residual chemicals, drainability and microbiological verification

These figures are useful when discussing a CIP pump and piping design. A narrow fruit valve, low-flow branch or mixer passage can receive inadequate cleaning even when the pump outlet shows normal pressure. Tanks also need appropriate spray-device coverage, while some fruit-pump seals and mixing elements require periodic dismantling.

A common sequence is product recovery, pre-rinse, alkaline wash, intermediate rinse, an acid stage where needed, final rinse and sanitation. The fruit-line recipe is then established against the actual ingredients, seals and cleaning verification results. Recording supply and return temperature, conductivity, circulation flow and completion status helps the dairy identify a missed or interrupted cleaning cycle.

After cleaning, checks may include visual inspection of opened components, targeted microbiological swabs, final-rinse assessment and the CIP record. Conductivity can show whether detergent has been displaced by rinse water; microbiological sampling evaluates the hygienic result.

NexAgri can supply a dedicated fruit-line CIP arrangement with hygienic valves, return piping, controls and project P&ID documentation. See the NexAgri processing equipment and CIP systems.

6. Inspect the Filling and Sealing Equipment

Even when the yogurt and fruit preparation are within specification, post-process contamination can occur near an open cup. The filling area should be reviewed as a complete sequence: cup feeding, product dosing, cup rim condition, lid or film placement, sealing and discharge.

What should the filler be checked for?

Equipment area	Practical check	Possible improvement
Cup and lid handling	Packaging materials, storage protection and cup handling	Better packaging-material protection and suitable hygienic handling
Cup rim before sealing	Yogurt or fruit residue, splashes and damaged rims	Adjust filling nozzle, dosing profile, rim-cleaning arrangement
Heat-sealing station	Temperature, dwell time, pressure, film alignment and cup material	Review tooling, temperature monitoring and matched cup/film specifications
Filling enclosure	Air movement, operator access, cleaning and condensation	Hygienic enclosure and properly designed filtered-air protection
Finished pack inspection	Missing film, wrinkles, tilted lids, overfill and visible defects	Vision inspection, checkweighing and automatic rejection
Seal integrity	Leaks that may not be visible from above	Agreed destructive or non-destructive seal-integrity sampling/test method

A vision system is useful for detecting visible seal defects; a leak test measures package integrity more directly. Both may be useful in a plant's inspection plan.

Filtered or clean-air protection can reduce exposure around open cups when its airflow, filters and maintenance are correctly designed. A specific cleanroom class should be quoted only for an enclosure that has been tested against that requirement. UV treatment, where selected, also needs coverage and performance verification for the target surface.

NexAgri can configure cup-rim cleaning, sealing-temperature monitoring, filtered-air protection, UV options, vision inspection, checkweighing and automatic rejection according to the selected filling machine. Refer to our dairy filling and packaging equipment.

7. Keep Product Temperature Under Control From Fermentation to Retail

Temperature records help distinguish a contamination problem originating in production from one that becomes visible after distribution. A cold-chain interruption can allow yeast already present in the yogurt to multiply and produce gas more rapidly.

Stirred yogurt: from fermentation to filling

Industrial stirred-yogurt lines commonly finish fermentation around pH 4.2–4.5, then cool the coagulum before adding fruit and filling. One established two-stage arrangement uses:

1. First cooling stage: reduce the stirred yogurt to approximately 15–22°C, with gentle mechanical treatment to obtain the required texture.
2. Fruit addition and filling: meter fruit into the cooled yogurt, then pass the product through hygienic transfer piping to the filler.
3. Final cooling: bring the packed yogurt to approximately 4–6°C through the designed chilling process and refrigerated storage.

This sequence is described in the Tetra Pak guide to fermented milk products. Some lines instead cool the yogurt to its final filling temperature before packaging. The selected arrangement determines the buffer-tank cooling duty, filler inlet temperature and time available for product transfer.

Set yogurt: cool the product inside its package

Set yogurt is filled before incubation. When the target fermentation acidity is reached, the packaged yogurt passes through a cooling tunnel or cold room. Trays, crate spacing and package loading must allow the product at the slowest-cooling position to reach the specified storage temperature.

Cold storage and distribution

For refrigerated yogurt, 2–6°C is a useful storage and distribution design range, with the product's validated specification and local requirements determining the operating limit. Repeated excursions above approximately 8–10°C deserve investigation because spoilage microorganisms can grow faster as the product warms.

In research on temperature abuse and yeast spoilage in yogurt, higher storage temperatures accelerated yeast growth and visible gas-related defects. A separate study of fruit yogurt shelf life also found yeast growth and product-quality changes were influenced by storage temperature.

For affected batches, compare:

• The pH and temperature at fermentation completion.
• Time and temperature through the first cooling stage, buffer tank and filler.
• The product core temperature after final cooling, including slow-cooling positions.
• Warehouse and vehicle temperature records, including loading and unloading periods.
• Retail temperature logs against retained packs stored under controlled factory conditions.

NexAgri can supply fermentation vessels, temperature-control equipment, cooling systems and associated processing-line components. For an upgrade, the cooling arrangement is checked against batch size, product flow, packaging method and required chilling time.

8. What Should the Quality Team Test When Packages Swell?

Equipment checks and microbiological investigation work best when they use the same batch records. Start with the affected production lot and isolate it according to the plant's food-safety procedure. Retained unopened packages help compare factory storage with distribution conditions.

The quality or third-party laboratory can establish a sampling plan covering:

1. Finished packs: swollen and apparently normal packs from the same lot, kept unopened until the laboratory receives them.
2. Product microbiology: yeast and mold testing and other relevant organisms selected by the quality team.
3. Fruit ingredients: fruit lot samples and remaining material where available.
4. Contact surfaces: fruit tank, pump, mixing section, filler nozzles, seals and other identified sites.
5. Package performance: seal integrity and headspace-gas analysis where useful; elevated CO₂ supports investigation of fermentation-related gas production, while temperature or pressure changes can also alter lid shape.
6. Production records: CIP cycle, fruit changeover, seal parameters, process temperatures and cold-chain loggers.

A laboratory result becomes more useful when it is tied to the affected fruit lot, filling head and equipment path. In a study measuring gas inside spoiled yogurt packages, CO₂ accumulated as yeast contamination developed. Headspace composition can therefore help distinguish microbial gas production from an apparent bulge caused by filling temperature, trapped air or changes in external pressure.

For example, repeated yeast findings associated with one dosing route provide a more actionable lead than a general conclusion that the yogurt had a short shelf life.

NexAgri's contribution is on the equipment and engineering side: reviewing drawings and hygienic design, checking cleanability, preparing retrofit configurations and arranging agreed machine tests. Microbial identification, contamination-source confirmation and product-release decisions belong to the customer's quality team and qualified laboratory.

9. Upgrade an Existing Yogurt Line Without Replacing Everything

The corrective investment should follow the fault found during investigation.

Confirmed or strongly indicated problem	Equipment project to evaluate
Fruit circuit is difficult to drain and inspect	Revised hygienic piping, valves and removable sections
Fruit dosing route cannot be independently cleaned	Dedicated fruit CIP supply/return and valve isolation
Cup rims are repeatedly contaminated during filling	Nozzle position, filling curve and rim-cleaning equipment
Frequent visible sealing defects	Sealing tooling, controls, film handling and visual inspection
Poor package-integrity results	Cup/film compatibility and an appropriate seal-test process
Product warms excessively between fermentation and filling	Buffer-tank temperature control, gentle cooling and revised transfer schedule
Multiple aging subsystems affect hygienic handling	Coordinated filler, dosing, CIP and controls upgrade

For an upgrade, NexAgri can provide equipment selection, arrangement drawings, piping and control-interface information, an equipment list, FAT support, installation guidance and project-based on-site engineering assistance. Existing equipment interfaces are reviewed during design so the new fruit dosing, CIP or filling system can be integrated into the available line.

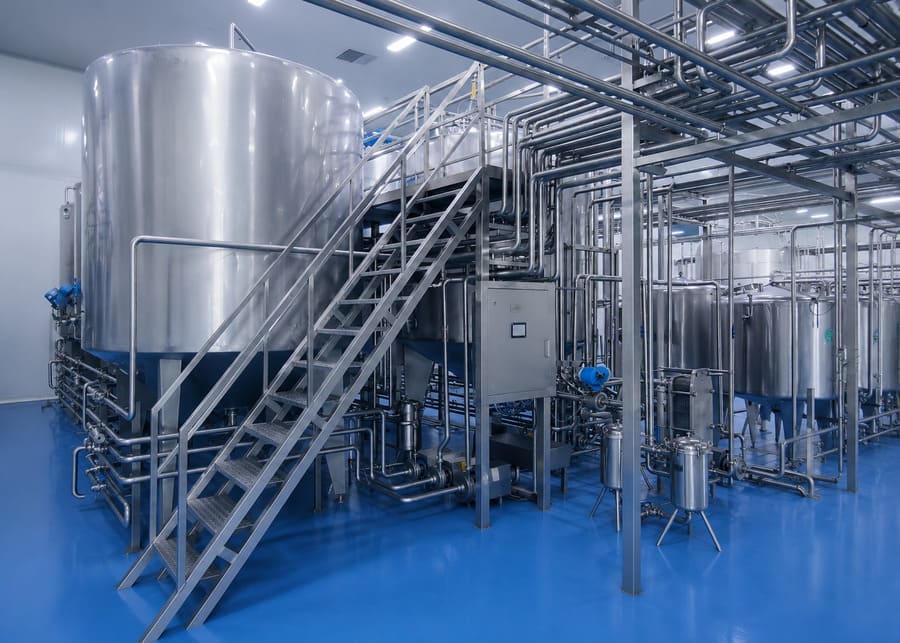

The NexAgri dairy production line page outlines the types of processing and packaging equipment that can be coordinated for a new project or extension.

10. What Information Should You Send for an Equipment Review?

A useful initial request includes:

1. Product: set, stirred or drinking yogurt; plain and fruit flavors; fruit piece size and dosing percentage.
2. Packaging: cup or bottle material, fill size, lid or film specification and number of filling heads.
3. Output: required cups per hour and working hours per day.
4. Fault pattern: which flavors or lots swell, how many days after filling, and where the defect first appears.
5. Existing equipment: fermentation and buffer tanks, fruit pump and mixer, filling machine, sealing system and CIP station.
6. Documents: current PFD/P&ID, line layout, equipment photos, cleaning program and available process/temperature records.
7. Project objective: targeted replacement, new fruit line, filling upgrade or integrated processing-and-packaging system.

With these details, NexAgri can review the equipment interfaces and prepare a practical configuration proposal for the parts of the line that need attention.

Frequently Asked Questions

Can yeast cause a yogurt cup to swell even when the lid looks properly sealed?

Yes. If gas-producing yeast is present in the finished product, fermentation of available sugars can generate carbon dioxide within an intact sealed cup. The quality team can investigate with unopened pack samples and microbiological testing.

Why are fruit yogurts sometimes more affected than plain yogurts?

Fruit preparation adds another ingredient and processing route. Certain spoilage yeasts also ferment sugars supplied by the fruit preparation. Comparing the same yogurt base with and without fruit helps pinpoint the problem.

Does a swollen lid always prove microbial contamination?

No. Packaging deformation, product temperature and headspace conditions also affect lid shape. Gas analysis, microbiology and seal inspection can identify the failure mechanism.

Will better sealing stop yeast-related swelling?

A sound seal helps protect the product against leakage and contamination during handling. If yeast has already entered the product before sealing, improving the seal alone will not correct that source of contamination.

What CIP flow rate should a fruit-dosing line be designed for?

For fully flooded dairy pipelines, 1.5–3.0 m/s cleaning-liquid velocity is a common design reference. The CIP pump, pipe diameters, valves and return path must work together; pump capacity alone does not confirm effective circulation at the furthest branch or through the mixer. Seals and parts that are not fully reached by CIP may require disassembly and inspection.

What storage temperature helps control yogurt package swelling?

Many refrigerated-yogurt systems target 2–6°C during storage and distribution. Product temperature, storage duration and the selected culture affect the final specification. Cold storage slows spoilage development but cannot remove contamination already introduced during fruit dosing or filling.

Can preservatives be used to fix yogurt packages that are already swollen?

The affected product should follow the plant's food-safety disposition procedure. The production investigation should identify the organism, contamination source and process failure. Any future formulation changes are separate decisions requiring product testing and applicable regulatory review.

Conclusion

Swollen yogurt cups often point to gas-producing contamination, with yeast a particularly important suspect in fruit yogurt. The most useful clues are which products swell, when the swelling starts and which equipment or ingredient streams those lots have in common.

Once the quality team has defined the likely source, attention can shift to the practical fixes: better fruit-line isolation and cleaning, hygienic filling, consistent seals and controlled cooling. NexAgri supplies the fruit dosing, CIP, filling, temperature-control and processing equipment needed for targeted upgrades or new yogurt lines.

To discuss an equipment change, contact NexAgri with your current line layout, package format, production capacity and the observed failure pattern.
